TrekStor SurfTab breeze 7.0 quad User manual

SURFTAB P10
EN OPERATING INSTRUCTIONS
SURFTAB BREEZE 7.0 QUAD LTE
EN OPERATING INSTRUCTIONS

1. Welcome ……………………………………………………………………………… 4
2. Intended use ………………………………………………………………………… 4
3. Explanation of Safety Symbols and Keywords …………………… 5
4. General Safety Information ………………………………………………… 5
5. Technical specifications………………………………………………………… 11
Technical specifications of the device 11
Technical specifications of the power adapter 12
6. Package contents ………………………………………………………………… 12
7. Controls & Ports …………………………………………………………………… 13
8. Starting up the Surftab for the first time …………………………… 14
Charging the Surtab 14
Switching on the Surftab 14
9. Elements on the start screen ……………………………………………… 16
10. Using the touch screen ………………………………………………………… 17
Selecting an element 17
Enlarging and reducing the view 18
Scrolling 18
Using the on-screen keyboard 18
11. Personalising the home screen……………………………………………… 19
Adding app shortcuts to the start screen 19
Adding widgets to the start screen 19
Removing app shortcuts and widgets from the start screen 20
Changing the screen background 21
12. Opening Settings ………………………………………………………………… 21
13. Setting up an identification method for screen lock …………… 21
14. Changing the display language …………………………………………… 22
15. Connecting the Surftab to the Internet ……………………………… 22
Connecting to a stationary wireless network (WiFi) 22
Connect to a wireless mobile network (via LTE) 22
CONTENT

16. Launching the Internet browser/ Entering an Internet address 24
17. Sending and receiving e-mails with the Surftab…………………… 24
Setting up the app 25
Receiving e-mails 25
Sending e-mails 25
18. Downloading and installing apps from the Play Store ………… 26
19. Uninstalling apps ………………………………………………………………… 27
20. Using the camera ………………………………………………………………… 28
21. Transferring files between the Surftab and other devices …… 29
Transferring files via Bluetooth® 29
Transferring files between the Surftab and a PC 31
22. Reset and recovery mode……………………………………………………… 31
Resetting the Surftab (Reset) 31
Resetting the Surftab (reset hole) 32
Putting the Surftab into recovery mode/
loading factory settings 32
23. Switching off the Surftab …………………………………………………… 33
Standby 33
Shutting down/Switching off 33
24. Useful tips on saving energy ………………………………………………… 33
25. Troubleshooting/FAQ …………………………………………………………… 34
26. Glossary ……………………………………………………………………………… 35
27. Notes on copyright and trademarks …………………………………… 37
28. Notes on disposal and recycling …………………………………………… 38
Notes on disposal 38
Notes on recycling 38
Information on disposal in non-EU countries 38
29. Notes on the warranty ………………………………………………………… 39
30. Support information …………………………………………………………… 39

4
1. Welcome
We hope you enjoy your new Surftab breeze 7.0 quad LTE.
The online operating instructions, the enclosed Quick Start Guide and the
additional brochure "Product Safety and Legal Information" are direct
components of the product.
Please read all three documents carefully before you turn on your device. They
contain important information about device safety, usage and disposal.
Please keep these documents in a safe place and pass them on in full to the new
owner if the device changes hands.
In order to be able to work with maximum efficiency and safely, as well as to protect
the device from possible dangers, please familiarize yourself with all operating and
safety instructions.
These operating instruction describes the basic functions of your Surftab. For
information on the operation of individual apps, please refer to the instructions
of the individual apps.
2. Intended use
The Surftab is a Android tablet that can be used for surfing the Internet, running a
number of apps, gaming, and streaming and viewing music, images, and videos.1
Never use the device for anything other than its intended purpose. Malfunctions
may otherwise occur. Intended use includes observing all instructions contained
in the technical documentation. The manufacturer is not liable for damages
resulting from improper use or modification of the device.
Furthermore, the manufacturer shall not be held liable for damage or for loss of
data or any subsequent damage caused as a result.
The manufacturer shall reserve the right to constantly further develop the
product. Changes may be made without any direct reference to them in the
user’s manual. As a result, the information contained in the user’s manual does
not need to reflect the current technical design.
Unauthorized modifications to the device (particularly installing external
firmware not approved by the manufacturer or modifications to the device
hardware) will invalidate the warranty.
1Not all of the applications you will need are pre-installed at the factory. You can download those
apps from the Google Play™. Some apps must be purchased.

5
3. Explanation of Safety Symbols and Keywords
This booklet uses the following safety symbols and keywords:
WARNING
Indicates possible danger to life and/or danger of severe, irreversible injuries
CAUTION
Follow instructions to avoid injuries and material damage
NOTICE
Follow instructions to avoid material damage
ADVICE
Additional information about using the device
4. General Safety Information
WARNING
Risk of multiple injuries due to reduced physical, sensory, or mental
capabilities and/or lack of knowledge or practical experience
■Children and vulnerable individuals may only use the device under direct
supervision.
Risk of suffocation and severe injuries from accessories and packaging
materials
■Keep accessories and packaging materials out of reach of babies, young
children, and pets.
■Do not insert accessories and/or parts of the device into orifices such as
your mouth, ears, or eyes.
Risk of electric shock or electrocution from live components
■Do not insert objects into the device’s ventilation slots.
■Do not open the power adapter.
■Do not touch the power adapter if your hands are wet.
■Do not short out the device and/or charger.

6
Risk of electric shock or electrocution and/or fire hazard from unsafe
connections
■Make sure the power cord is not bent, crimped, or damaged in any other way.
■Never use the power cord or plug if they are damaged.
■Only use the included power adapter and only connect it to a suitable
and professionally installed power outlet. Please read and observe the
specifications on the power adapter’s label.
■Do not use power outlets if they are loose.
■If the power adapter is defective, contact customer service.
Fire hazard and/or risk of burns from damaged or leaking batteries
■Do not use or charge the device if the battery is damaged or leaking.
■Avoid skin contact with the device and/or battery if the battery is leaking.
Wear protective gloves if it is not possible to avoid touching the device/
battery in such cases.
■Immediately wash your hands thoroughly in the event of skin contact with
the battery substrate.
■If the battery substrate comes into contact with your eyes, rinse them out
with plenty of water and consult a physician immediately.
Risk of hearing loss through the use of headsets, earbuds, or headphones
The device can generate high sound levels when using headsets, earbuds, or
headphones. This may result in hearing loss if your ears are exposed to high
sound levels over an extended period of time. The higher you set the volume, the
more quickly your hearing can be damaged. Hearing loss may occur slowly over
time.
■Do not listen to music or other audio files for an extended period of time
at high volumes.
■Lower the volume before connecting your headset, earbuds, or headphones.
■When using headsets, earbuds, or headphones, make sure the acoustic
emissions do not exceed an A-weighted sound level of 80 dB.
■Always set the volume at the lowest level where you can still clearly hear
the audio track being played without causing discomfort.
■Do not increase the volume once you have become accustomed to that
sound level.
■Adjusting the default settings for the equalizer can boost the device’s
volume levels.
■Changing the settings of pre-installed software (for example, the
operating system, firmware, drivers) can also increase volume levels.

7
Risk of multiple injuries due to reduced attentiveness
■Safety is the top priority while driving. For this reason, it is prohibited to
use the device while operating a motor vehicle.
■Always be aware of your immediate surroundings to avoid putting yourself
or others at risk.
■When using a headset, earbuds, or headphones in public, adjust the
volume so that you can still hear noises or sounds in your surroundings.
Distractions or being cut off from your surroundings may lead to
accidents. It is illegal to use headsets, earbuds, or headphones while
operating a motor vehicle in some regions.
Risk of interference with other electronic devices that transmit high-
frequency signals
■Switch off the device in safety or security zones where the use of mobile
devices is prohibited (e.g., when the plane is taking off or landing, in hospitals,
or near medical equipment). Obey the corresponding signs and warnings and
strictly observe the instructions contained on them.
■You are allowed to use the device in airplane mode with the permission of
the flight crew once the aircraft has taken off. Please notethat use of the device
may interfere with the plane’s electronic navigation systems.
■Refrain from using the device near other electronic devices.
Risk of multiple injuries and fire/explosion hazard in potentially explosive
atmospheres
■Operating the device in potentially explosive atmospheres, such as at
filling stations, on construction sites, or in chemical plants, is prohibited.
■Switch off the device if you are in areas that contain potentially explosive
materials (e. g., gas, fuel, chemicals, particulate matter, grain, dust, or metal
powders). Sparks could cause an explosion or fire.
■Obey the corresponding signs and warnings in these areas and strictly observe
all instructions contained on them.

8

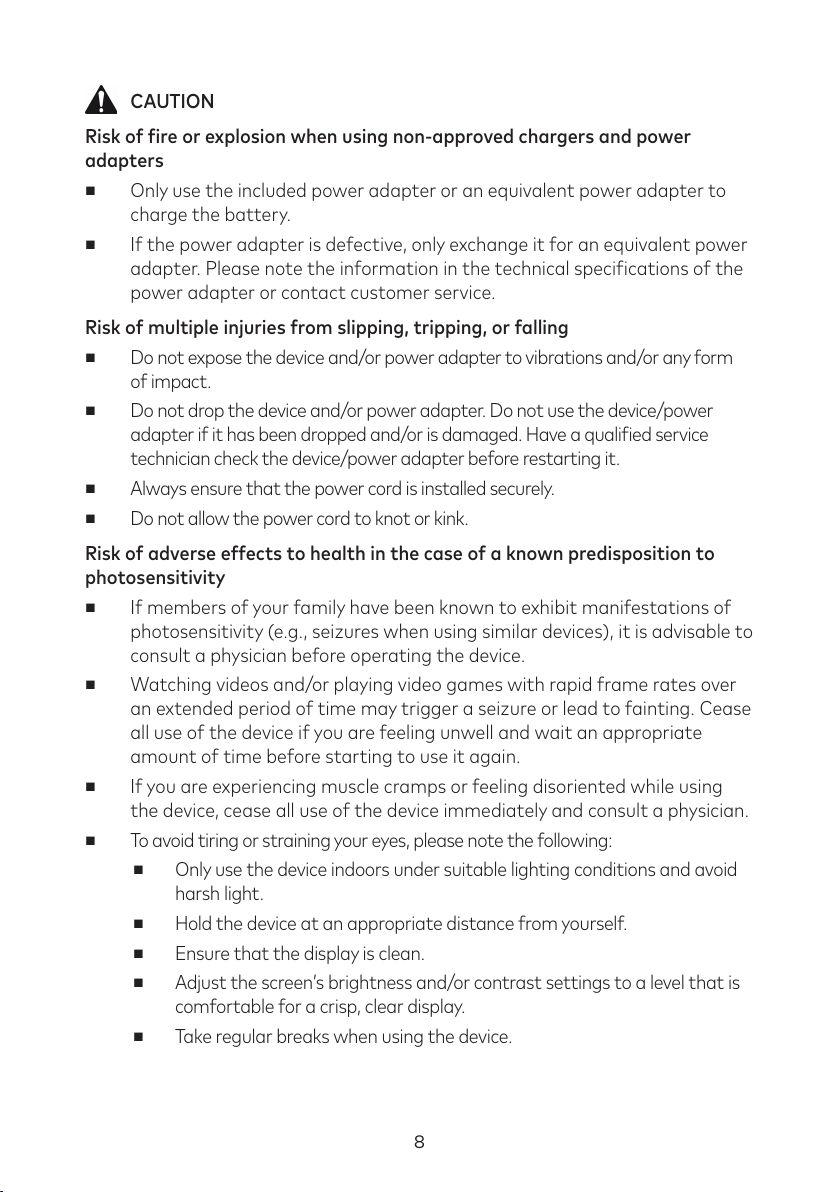

CAUTION
Risk of fire or explosion when using non-approved chargers and power
adapters
■Only use the included power adapter or an equivalent power adapter to
charge the battery.
■If the power adapter is defective, only exchange it for an equivalent power
adapter. Please note the information in the technical specifications of the
power adapter or contact customer service.
Risk of multiple injuries from slipping, tripping, or falling
■Do not expose the device and/or power adapter to vibrations and/or any form
of impact.
■Do not drop the device and/or power adapter. Do not use the device/power
adapter if it has been dropped and/or is damaged. Have a qualified service
technician check the device/power adapter before restarting it.
■Always ensure that the power cord is installed securely.
■Do not allow the power cord to knot or kink.
Risk of adverse effects to health in the case of a known predisposition to
photosensitivity
■If members of your family have been known to exhibit manifestations of
photosensitivity (e.g., seizures when using similar devices), it is advisable to
consult a physician before operating the device.
■Watching videos and/or playing video games with rapid frame rates over
an extended period of time may trigger a seizure or lead to fainting. Cease
all use of the device if you are feeling unwell and wait an appropriate
amount of time before starting to use it again.
■If you are experiencing muscle cramps or feeling disoriented while using
the device, cease all use of the device immediately and consult a physician.
■To avoid tiring or straining your eyes, please note the following:
■Only use the device indoors under suitable lighting conditions and avoid
harsh light.
■Hold the device at an appropriate distance from yourself.
■Ensure that the display is clean.
■Adjust the screen’s brightness and/or contrast settings to a level that is
comfortable for a crisp, clear display.
■Take regular breaks when using the device.

9
Risk of impairment to the musculoskeletal system and supporting tissue
from use over longer periods of time
■Repetitive movements (e.g., use of keyboard/touch screen or playing
games for an extended period of time) may result in pain in the hands,
arms, shoulders, neck and shoulder region, and in other parts of the body.
To avoid tiring or straining your musculoskeletal system and supporting
tissue, please note the following:
■Always assume a relaxed posture when using the device.
■Change your position regularly and take frequent breaks to move
around.
■Press lightly when typing.
■Take regular breaks.
■If you are experiencing discomfort similar to that indicated above while using the
device, cease all use of the device immediately and consult a physician.
■Do not rest the device on your lap or other parts of your body when in use.The
device may heat up, resulting in discomfort or injury (e. g., minor burns).
NOTICE
To avoid potential malfunctions and/or damage to the device caused by
environmental factors, please note the following:
■The recommended humidity for operating, charging, and storing the device
is between 30 and 70 percent.
■The recommended ambient temperature for operating, charging, and
storing the device is between 5° C and 30° C. Temperatures above or
below this may adversely affect the charging capacity and service life of
the device and battery and cause damage to the device.
■Protect the device from rapid temperature fluctuations. Condensation
from humidity can damage the device and may result in danger to the
user.
■Shield the device from direct sunlight (e. g., in the car) and do not store it near
a heat source to prevent the display and device from malfunctioning and avoid
the risk of the battery exploding.
■Keep the device away from open flames such as candles, fireplaces, and
campfires to avoid the risk of the battery exploding.
■Do not expose your device to rain or to dripping or splashing water.
■Do not use the device outdoors during a storm.
■Should the device become wet, turn it off immediately. Ensure that the device
and/or the power adapter are checked by a qualified person before using it
again.

10
■Use the device in a dust-free environment.
■Magnetic fields may cause the device to malfunction and/or the battery to
discharge.
To prevent possible damage to your device:
■Do not charge your device on standard USB ports such as those found on
desktop or laptop computers.
■Take care to wind the cord loosely.
■Moisture, dense smoke, and fumes may lead to malfunctions and/or
damage the device’s housing.
ADVICE
The storage capacity indicated on the packaging and in the technical
specifications refers to the total storage capacity of your device. The storage
capacity of your device as indicated by the operating system may differ from the
specified storage capacity, as a portion of the total storage is also used by the
operating system and system applications.

11
5. Technical specifications
Technical specifications of the device
Processor (CPU): MT8735M Processor, up to 1,0 GHz,
64-Bit ARMv8 Cortex-A53, quad core
Operating system: Android™ 7.0 (Nougat)
RAM: 1 GB DDR 3
Storage capacity: 16 GB
Graphics processing unit (GPU): Mali-T720 MP2
Display size: 7" (17,78 cm)
Display type: 5-point capacitive multi-touch HD IPS display
Screen resolution: 800 x 1280 Pixel
Aspect ratio: 16 : 9
Camera: Front: 0.3 MP; Rear: 2 MP
Speaker: Mono
Microphone: yes
Interface: Micro-USB 2.0 (Host), dual SIM card slot,
memory card reader, audio out/mic in (3.5 mm)
Network: WiFi, Bluetooth® 4.0, LTE/4G, UMTS/3G,
GSM/2G
Frequencies: WLAN (IEEE 802.11 b/g/n 2.4 GHz),
GSM/2G (900/1800 MHz),
UMTS/3G (WCDMA 900/2100 MHz),
LTE/4G (B1, 3, 7, 20)
Supported memory cards: microSD, microSDHC (max. 32 GB)
Supported SIM cards: Mini-SIM
Dimensions (B x H x T): ca. 187 x 107 x 9.5 mm
Weight: ca. 268 g
Material/Colour: Aluminium, plastic/Black
Playable video formats: MPEG-4.10 H.264/AVC (MP@L4.1, HP@
L4.0), MPEG-4.2 SP/ASP (e. g. Xvid)
Video container formats: AVI, MKV, MOV
Gaming: 3D games, G-Sensor games,
Classic games, Touch games
Supported picture formats: JPEG, PNG, GIF, BMP
Playable audio formats: MP3, WAV, OGG, FLAC, AAC
Type of battery: Lithium polymer
(3.7 V / 2800 mAh / 10.36 Wh)

12
Average battery runtime: up to 5 h (video)
Charge by: Micro-USB
Power supply: USB power adapter (100 V – 240 V)
More: Call function, video light, vibra, GPS,
G-Sensor GPS, G-Sensor
Languages: Multilanguage support via Android™ 7.0
Operation and storage: Temperatures 5°C bis 30°C
Relative humidity 30 bis 70%
Technical specifications of the power adapter
Model: FJ-SW728L0502000UE
Input voltage: 100 - 240 V ~ , 50/60 Hz
Input current: 0,4 A max.
Output: DC 5.0 V/2.0 A
Manufacturer: Shenzhen Fujia Appliance Co., Ltd.
6. Package contents
■TREKSTOR SURFTAB BREEZE 7.0 QUAD LTE
■Micro-USB cable
■USB host adapter cable
■USB power adapter (100 V - 240 V)
■Cleaning cloth
■Quick guide
■Important safety and legal information

13
7. Controls & Ports
RESET
USB
MIC
A B C H I
D
E
F
JK L
M
N
O
P
G
A) Touch screen
B) Front camera
C) Earpiece
D) Volume +
E) Volume -
F) On/off switch
G) Reset
H) Slit for opening the cover
I) Audio port
J) Rear camera
K) Video light
L) Micro-USB socket/Charging socket

14
M) Dual-SIM card slot
N) Memory card slot
O) Speaker
P) Microphone
8. Starting up the Surftab for the first time
Charging the Surtab
Please fully charge your Surftab before you use it for the first time.
To charge the Surftab, connect the Micro-USB plug on the power adapter supplied
to the micro-USB socket on the Surftab.
Then plug the power adapter into a socket.
NOTICE
Only leave the power adapter connected to the power socket until the Surftab is
fully charged. Disconnect the power adapter from the power socket first and
then remove the charging cable from your Surftab.
NOTICE
The maximum battery life is reached after approximately 10 charging cycles.
NOTICE
The battery should be recharged to between 40 and 60 per cent every 6 months
or so if the Surftab is not being used.
Switching on the Surftab
Press the On/off switch for about 3 seconds to switch on the Surftab. The
Surftab starts up.
A setup assistant appears directly after the tablet has started up for the first
time. Follow the setup assistant’s instructions to set up your Surftab.
During the setup process, the setup assistant will prompt you to sign in with
your Google account. In order to make full use of all the features of the Surftab,
we highly recommend that you sign in with your Google account at this point.

NOTICE
If you do not have a Google Account, tap "Orcreate anew account" and create
a new Google Account.

15
Your Surftab will be configured once you complete the setup process. This may
take a few minutes. Do not switch off the Surftab during this period!
Each time you turn on the Surftab after setting it up, the lock screen will appear
during start up. To unlock the screen, drag the lock screen upwards from bottom
to top with your fingertip.

NOTICE
If you have set up an identification method for your Surftab (see Section 13), you
will then have to use this method to unlock the screen.

16
9. Elements on the start screen
A) Google™ search
B) Google™ voice search
C) View all open elements: Tap this button to view all open elements. To close
a recently used element (app, widget, menu), place the tip of your finger
on the element you want to close and drag the element to the left or right.
D) Home icon: Tap this button to go back to the start screen.
E) Return icon: Tap this button to go back to the previous screen.
F) Quick start bar

NOTICE
The three elements at the bottom of the screen (View all open elements, Home
icon, Return icon) are deliberately hidden in certain apps (for example, in the
Camera app) so as not to disturb you while you are using the app. Briefly tap
the lower edge of the screen to show these three icons again. The icons will now
be shown again for a short time and you can access their features.

17
10. Using the touch screen
Selecting an element
To open an element or select an option, briefly touch the icon you require with
the tip of your finger.

18
Enlarging and reducing the view
You can change the size of some displays (images, Web pages and so on). Move
two fingers apart on the screen to enlarge the display. In reverse, move two
fingers towards each other on the screen to reduce the display again.
Scrolling
To scroll on your Surftab screen or in an app, place your fingertip on the screen
and drag the screen in the opposite direction:
If you would like to access an element further down on the
screen ("scroll down"), drag the screen up with your fingertip.
In reverse, you can "scroll up" by dragging the screen down with your fingertip.
If you would like to access an element further to the right on the screen ("scroll
to the right"), drag the screen to the left with your fingertip. In reverse, you can
"scroll to the left" by dragging the screen to the right with your fingertip.
Using the on-screen keyboard
If you tap a text field in order to enter text (for example, a Web address), the
on-screen keyboard appears. Enter text in the usual way using the keyboard. Use
the "?123" and buttons to enter numbers and special characters.
To enter an alternative letter (for example, a letter with an accent or German
umlaut), press and hold a particular letter. The available alternatives will now be
displayed. Tap the alternative letters required.

19
11. Personalising the home screen
You can set up the home screen as you wish by adding or removing app shortcuts
and widgets in the form of icons and altering the background.

NOTICE
You can move an icon located on your home screen at any time. Hold your
finger on the icon you want to move until you can move it. You can now drag
the selected icon to any empty position within the required window and drop it
there.
Adding app shortcuts to the start screen
Proceed as follows to add app shortcuts to the start screen in the form of icons:
a) Tap the applications menu in the quick start bar on the start screen. A screen
opens showing the apps that are currently available.
b) Hold down the required app until the start screen appears again.
c) Now drag the icon to an empty position of your choice within the indicated
window.

NOTICE
If you drag the icon to the page edge, you can place it on another page of the
start screen.
Adding widgets to the start screen
In addition to app shortcuts, you can also add widgets to the start screen. To do
so, proceed as follows:
a) Touch an empty area of the screen background until the word "Widgets"
appears at the bottom of the screen.
b) Tap the word. A screen opens showing the widgets that are currently
available.
c) Hold down the required widget until the start screen appears again.
d) Now drag the icon to an empty position of your choice within the indicated
window.
NOTICE
If you drag the icon to the page edge, you can place it on another page of the
start screen.

20
NOTICE
To access an icon that is on a page other than the first page of the start screen,
simply scroll to the relevant page (see Section 10, "Scrolling").
Removing app shortcuts and widgets from the start screen
a) To remove an app shortcut or widget from the start screen, hold down the
respective icon until the following symbol appears in the top in the left of
the screen: "X".
b) Drag the icon over the symbol. As soon as you release the icon it will be
removed from the start screen.
NOTICE
This action only deletes the link between the app/widget and the start screen,
not the app/widget itself. To find out how to remove an app completely from
your Surftab, see Section 19.
