TRENDnet TPL-101U User manual

TRENDnet
TRENDware, USA
What's Next in Networking
The Powerline USB adapter transforms existing powerline in your home or small officie into a
high-speed network solution. The Powerline USB adapter meets Home Plug 1.0.1
compatibility, ensures privacy through 56-bit Data Encryption, and supports data rates of up
to 14Mbps. Included software measures data performance and enhances security.
TPL-101U
Powerline USB Adapter
FEATURES
TPL-101U (08.03.05)
• Up to 14Mbps High-Speed Data Transfer Rate over Powerlines
• Allows Concurrent Shared Internet Access across existing Electrical Outlets
• Supports up to 12 Clients per Network
• Fully HomePlug 1.0.1 Compliant
• Supports 56-bit Data Encryption Security
• Compatible with Windows 98(SE), ME, 2000 and XP
• Connect to a Network using Existing Powerlines with Wall-Plugged design
• Range of up to 300 Meters (depends on the environment)
• Supports Plug & Play and Easy Installation
• 3-Year Warranty
POWERLINE

SPECIFICATIONS
TPL-101U
Powerline USB Adapter
TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit ____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2005. All Rights Reserved.
RELATED PRODUCTS
PACKAGE CONTENTS
TPL-102E
TPL-110AP
TPL-111BR
• Powerline 10/100Mbps Ethernet Bridge
• 125Mbps 802.11g Wireless Powerline Access Point
• 125Mbps 802.11g Wireless Powerline Router
• TPL-101U
NETWORKING SOLUTIONS
To Order Please Call:
1-888-326-6061
ORDERING INFORMATION
TRENDware International, Inc.
3135 Kashiwa Street,Torrance, CA. 90505. USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.TRENDNET.com
• Quick Installation Guide
• Utility CD-ROM

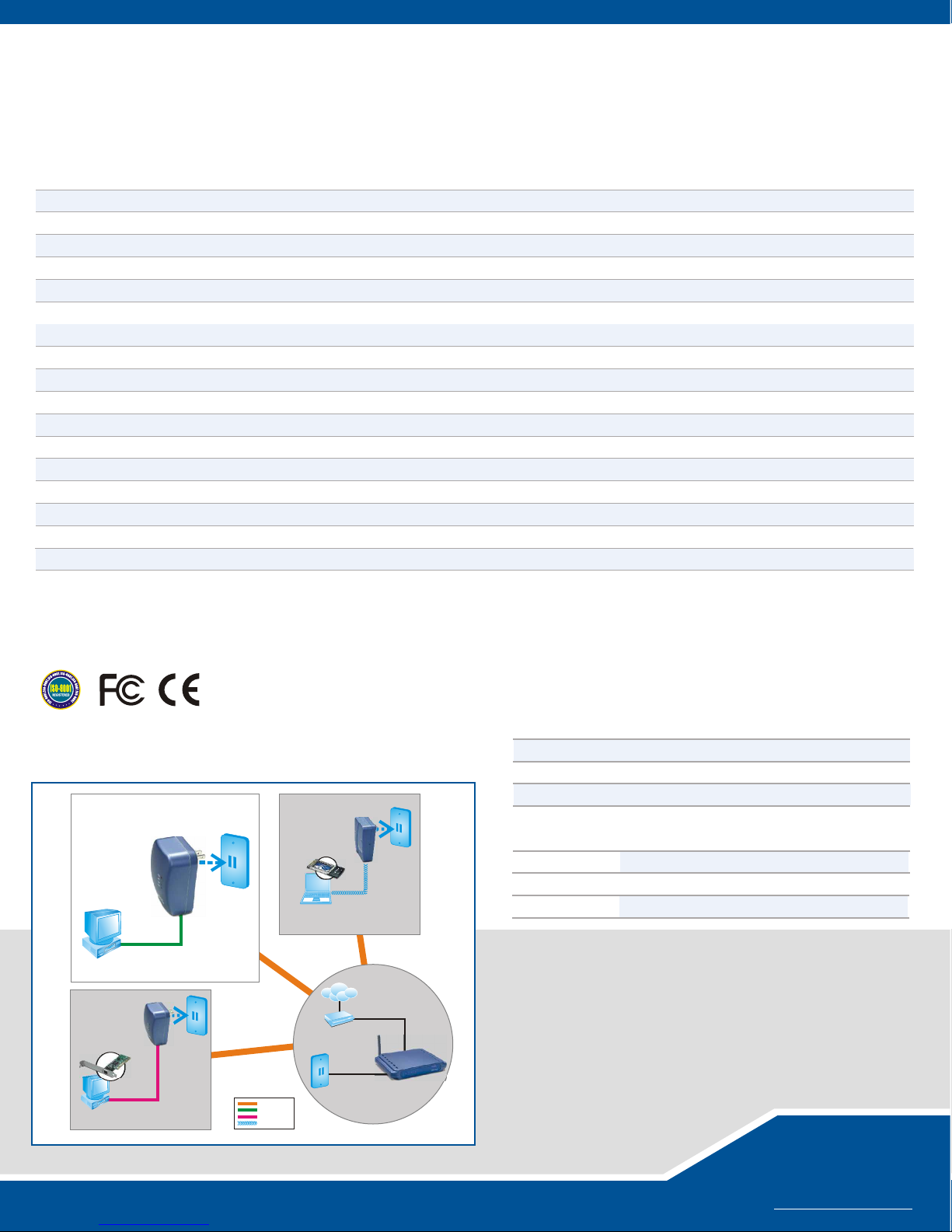

Cable/DSL
Modem
Internet
Outlet
Outlet
Powerline USB Adapter
(TPL-101U)
Workstation
USB Cable
Powerline
USB Cable
Cat.5 Cable
54Mbps
Powerline
Powerline
Powerline
125Mbps 802.11g
Wireless Powerline Router
(TPL-111BR)
Outlet
Powerline 10/100Mbps
Ethernet Bridge
(TPL-102E)
Cat.5 Cable
Workstation with
Fast Ethernet PCI Adapter
(TE100-PCIWN)
125Mbps 802.11g Wireless
Powerline Access Point
(TPL-110AP)
Outlet
Notebook with
Wireless PC Card
(TEW-421PC)
Standards
Frequency Band
Interface
Access Method
Modulation
Speed
OS Compliant
LED
Nodes
Dimension (L x W X H)
Encryption
Weight
• IEEE 802.3, IEEE 802.3U HomePlug 1.0.1
• USB 1.1 Upstream Port (Type B) Power Prongs
• 4.3 ~ 20.9 MHz
• CSMA/CA
• OFDM
• Powerline: Up to 14Mbps
• USB: Up to 12Mbps
• Windows 98SE/ME/2000/XP
• Power, Link, Activity, Collision
• Up to 12 client notes
• 68 x 43 x 95 mm (2.7 x 1.7 x 3.7 inches)
• 56-bit DES with key management
• 113g (4 oz.)
Hardware
Power Source
Temperature
Certifications
Operating Humidity
• 100~240VAC, 50/60 Hz
• 0° ~ 70° C (32° ~ 158° F)
• 0% to 90% (Non-Condensing)
• FCC, CE, HomePlug 1.0.1
