TRENDnet TV-IP121WN User manual

- 1 -
Preface
Thank you for purchasing the TV-IP121WN, a powerful andhigh-quality
image SecurView Wireless Day/Night Internet Camera. The infrared LEDs
and light sensor enable the camera to capture images even in dark
environments. The camera can be installed as a standalonesystem within
your application environment easily and quickly, and supports remote
management function so that you can access and control it using a Web
browser on your computers.
This User Guide provides you with the instructions and illustrations on how
to use your camera, which includes:
Chapter 1 Introduction to Your Camera describes the features of the
camera. You will also know the components and functions of
the camera.
Chapter 2 Hardware Installation helps you install the camera according
to your applicationenvironment. You can use thiscamera at
home, at work, at any where you want.
Chapter 3 Accessing the Camera lets you start using yourcamera
without problem. The camera can be set up easily and work
within your network environment instantly.
Chapter 4 Configuring the Camera guides you through the configuration
of the camera using the web browser on your PC.
Chapter 5 Using SecurView™ Pro showsyou the detail instructions on
operating SecurView™ Pro software.
Chapter 6 How to Access the Camera Behind a Router provides the
instruction how to setup your DDNS.
Chapter 7 Appendix provides the specification of the camera and some
useful information for using your camera.
NOTE The illustrations and configuration values in this guide are for reference only. The
actual settings depend on your practical application ofthe camera.

- 2 -
CONTENTS
PREFACE.............................................................................1
CHAPTER 1.......................................................................4
INTRODUCTION TO YOUR CAMERA...........................4
1.1 CHECKING THE PACKAGE CONTENTS..............................................4
1.2 GETTING TO KNOW YOUR CAMERA...............................................5
1.3 FEATURES AND BENEFITS ............................................................7
1.4 SYSTEM REQUIREMENT...............................................................8
CHAPTER 2.......................................................................9
HARDWARE INSTALLATION .........................................9
2.1 INSTALLING THE CAMERA STAND ..................................................9
2.2 CONNECTING THE CAMERA TO LAN/WLAN................................10
2.3 APPLICATIONS OF THE CAMERA..................................................11
CHAPTER 3.....................................................................12
ACCESSING THE CAMERA...........................................12
3.1 USING IPSETUP.......................................................................12
3.2 ACCESSING TO THE CAMERA ......................................................17
3.3 CONFIGURING THE IPADDRESS OF THE PC...................................20
CHAPTER 4.....................................................................21
CONFIGURING THE CAMERA.....................................21
4.1 USING THE WEB CONFIGURATION ..............................................21
4.2 USING SMART WIZARD.............................................................22
4.3 BASIC SETUP...........................................................................27
4.4 NETWORK SETTINGS ................................................................31
4.5 SETTING UP VIDEO &AUDIO .....................................................40
4.6 EVENT SERVER CONFIGURATION.................................................43
4.7 MOTION DETECT.....................................................................47
4.8 EVENT CONFIG........................................................................48
4.9 TOOLS ...................................................................................52
4.10 INFORMATION.........................................................................54
CHAPTER 5.....................................................................55

- 3 -
SECURVIEW™ PRO SOFTWARE .................................55
5.1 INSTALLATION .........................................................................56
5.2 USING SECURVIEW™PRO.........................................................59
CHAPTER 6.....................................................................90
HOW TO ACCESS THE CAMERA BEHIND A ROUTER..........90
CHAPTER 7.....................................................................96
APPENDIX ......................................................................96
A.1 SPECIFICATION ........................................................................96
A.2 GLOSSARY OF TERMS................................................................98
LIMITED WARRANTY......................................................107

- 4 -
CHAPTER 1
INTRODUCTION TO YOUR CAMERA
1.1 Checking the Package Contents
Check the items contained in the packagecarefully. You should have the
following:
TV-IP121WN
1 x CD-ROM (Utility & User’s Guide)
1 x Multi-Language Quick Installation Guide
1 x External antenna
1 x 5V 2.5A power adapter
1 x Network cable
1 x Camera stand.
NOTE: If there is any packaging contentmissing, please contact with your
local authorized dealer for replacement.

- 5 -
1.2 Getting to Know Your Camera

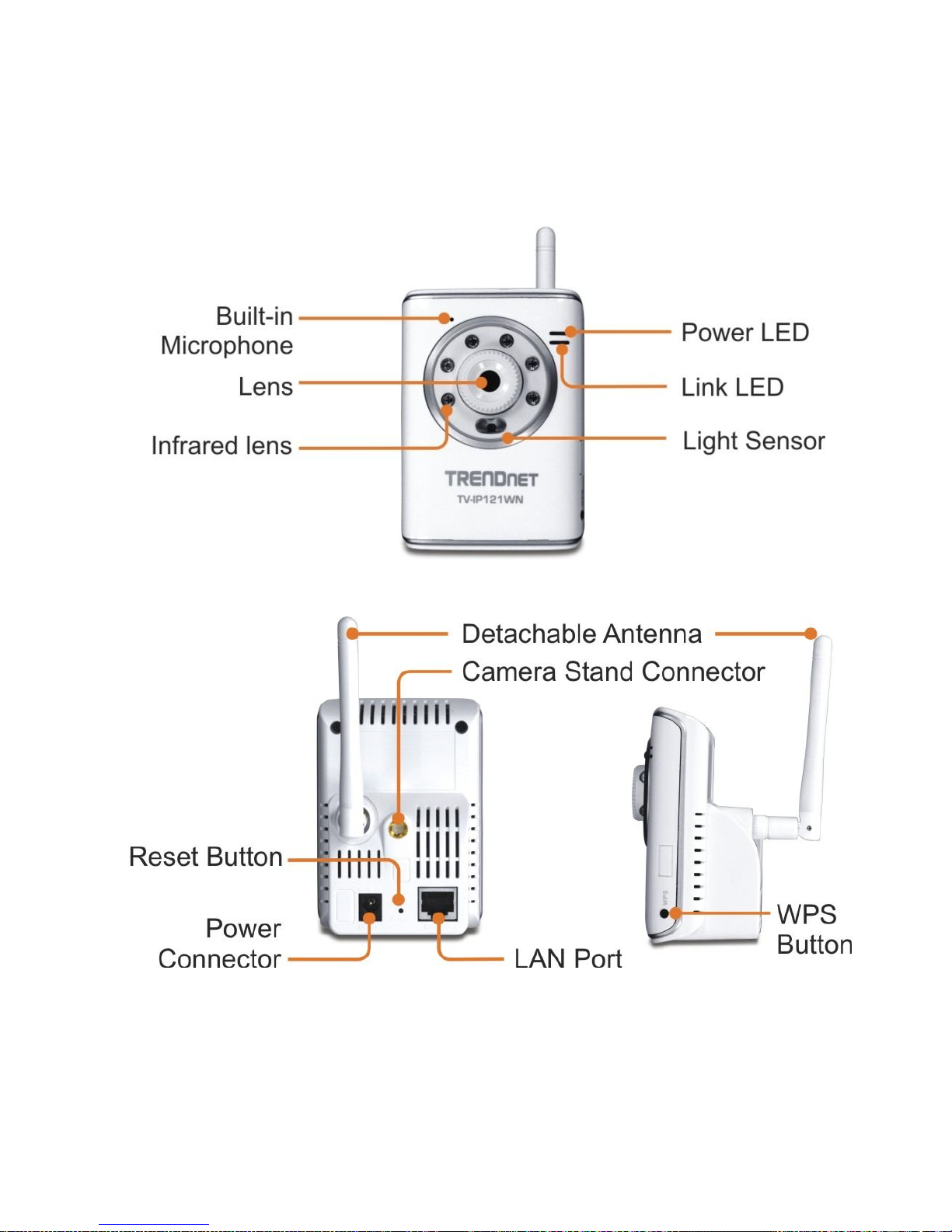

-Built-in Microphone: It allows the camera to receive the sound or
voice

- 6 -
-Infrared LEDs: It allows your camera to capture clear images in a dark
environment.
-Lens: Adjust the focus by rotate outside of the Lens.
-Light Sensor: It is used to trigger on and off the Infrared LEDs
according to the environmental light level.
-Power LED: A steady orange light indicates the camera is powered on.
-Link/Act LED: A blinking green light indicates the camera’s network
connection correctly.
-WPS Button: A push button to help you to connect camera to your
secured wireless network.
-Detachable Antenna: The detachable external antenna allows you to
adjust its position to obtain the maximum signal.
-Camera Stand Connector: Connects the camera with the camera
stand.
-Power Connector: Connectsthe AC power adapter to supply power to
the camera.
-LAN Port: It is used to connect the network RJ-45 cable, which
supports the Auto-MDIX so that the camera can detect thenetwork
speed automatically.
-Reset Button: Rest will be initiated when the reset button is pressed
once. The power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds orwhen Power LED begins to light up.
Releasethe reset button and thePower LEDwill begin to flash.

- 7 -
1.3 Features and Benefits
Audio Capability
The built-in microphone of the camera provides on-the-spot audio via
the Internet, allowing you to monitor the on-site voice.
Day & Night Surveillance Supported
The six Infrared LEDs around the standard lens assembly (optional)
enable the camera to capture crystal clearimages in the dark
environment or at night. When theLight Sensor detects the
environmental light level becomeslow, the camera captures the
images in black & white mode using these infrared LEDs.
Remote Control Supported
By using a standard Web browser or the bundledSecurView™ Pro
software application, the administrator can easily change the
configuration, upgrade the firmware. Theusersare allowed to monitor
the images and taking the snap via network.
Multiple Platforms Supported
The camera supports multiple networkprotocols, includingTCP/IP,
SMTP e-mail*, HTTP, and otherInternet related protocols.
Multiple Applications Supported
Through the remote access technology, you can use the cameras to
monitor various objects and places for your own purposes.
For example, babies at home, patientsin the hospital, offices and
banks, and more. The camera can capture both still imagesand video
clips, so that you can keep the archives and restore them atany time.
WPS (Wi-Fi Protected Setup) Supported
WPS is a new solution thatsimplifies the process of configuring Wi-Fi
security settings, allowing you to establish a secure wireless network
by simply pressing a button.
Note: Support SSL with complimentary software

- 8 -
1.4 System Requirement
Networking
LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet, Auto-MDIX
WLAN: Based on IEEE 802.11n technology,IEEE 802.11g/b
Accessing the Camera using Web Browser
Platform: Microsoft® Windows® 7/Vista/XP
CPU: Intel Pentium III 800MHz or above
RAM: 512MB
Resolution: 800x600 or above
User Interface: Microsoft® Internet Explorer 6.0 or above
Accessing the Camera using SecurView Pro
Platform: Microsoft®Windows® 7/Vista/XP
Hardware Requirement:
1 ~ 8 cameras: Intel Core 2 Duo; 2GB RAM
9 ~ 32cameras: Intel Core 2 Quad; 4GB RAM
NOTE: It is higher recommended that using a high performance
computer to monitor multiple cameras.

- 9 -
CHAPTER 2
HARDWARE INSTALLATION
2.1 Installing the Camera Stand
The camera comes with a camera stand,which uses a swivel ball screw
head to lock to the camera’s screw hole. When the camera stand is
attached, you can place the camera anywhere bymounting the camera
through the three screw holes located in the base of the camera stand.
The Camera Stand

- 10 -
2.2 Connecting the Camera to LAN/WLAN

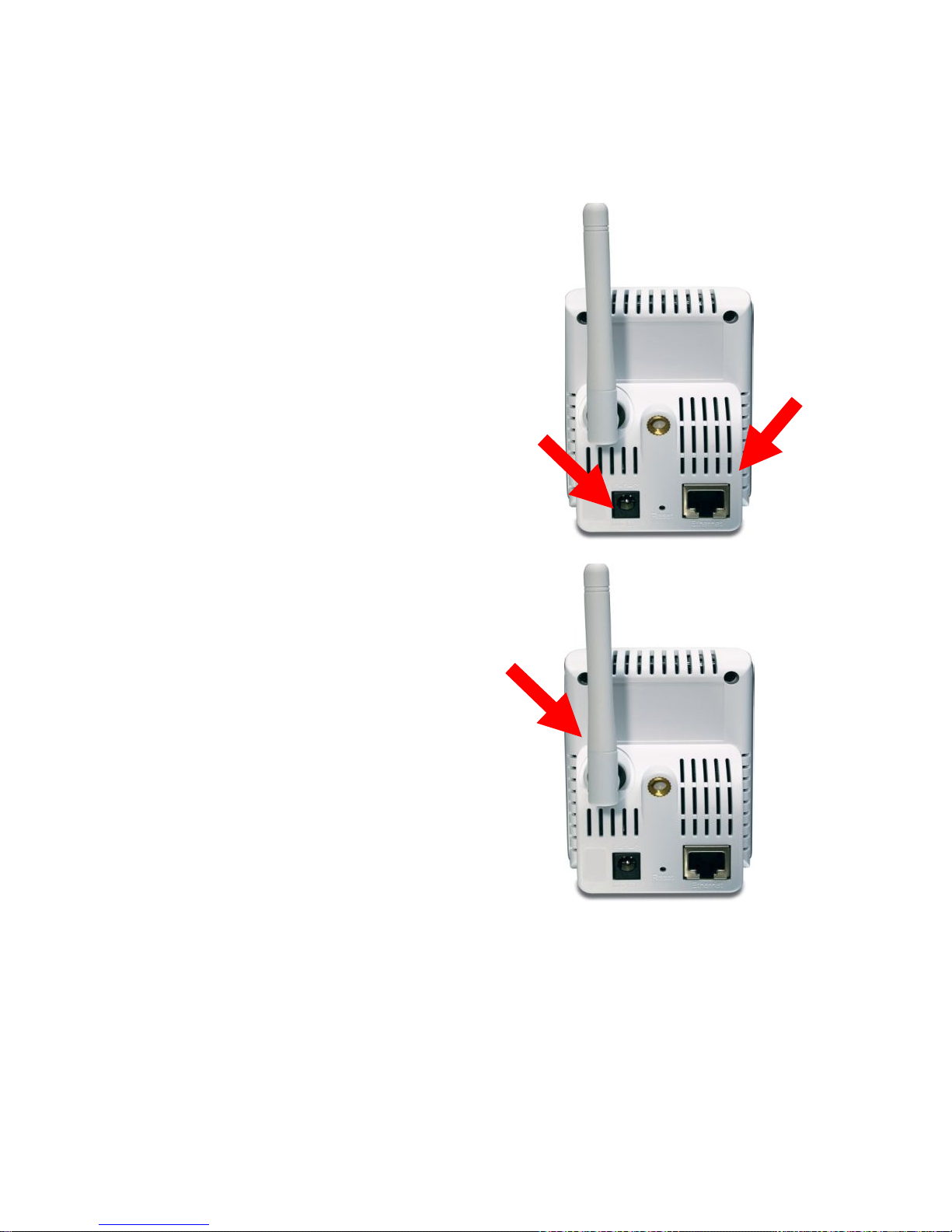

Use the provided Ethernet cable to
connect the camera to your local area
network (LAN).
When you connect the power
adapter, the camera is powered on
automatically. You can verify the
power status from thePower LED on
the front panel of the camera.
Once connected,the Link LED starts
flashing green light and the camera is
on standby and ready for use now.
If you use a wireless network in your
application environment, you need to
attach the included detachable
antenna to the camera.
If your wireless network has set
encryption, you can use WPS button
or configure the wirelessconnection
via a LAN connection.
NOTE: If the camera cannotconnect to your wireless network, youneed
to install the camera in LAN and proceed with WLAN settings.

- 11 -
2.3 Applications of the Camera
The camera can be applied in multiple applications, including:
Monitor local and remote places and objects viaInternet orIntranet.
Capture still images and video clips remotely.
Upload images or send email messages with the still imagesattached.
The following diagram explains one ofthe typical applications for your
camera and provides a basic example for installing the camera.

- 12 -
CHAPTER 3
ACCESSING THE CAMERA
3.1 Using IPSetup
The camera comes with a convenient utility, IPSetup, whichis included in
the Installation CD-ROM, allowing you to search the cameraon your
network easily.
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to
initiate the Auto-Run program.

- 13 -

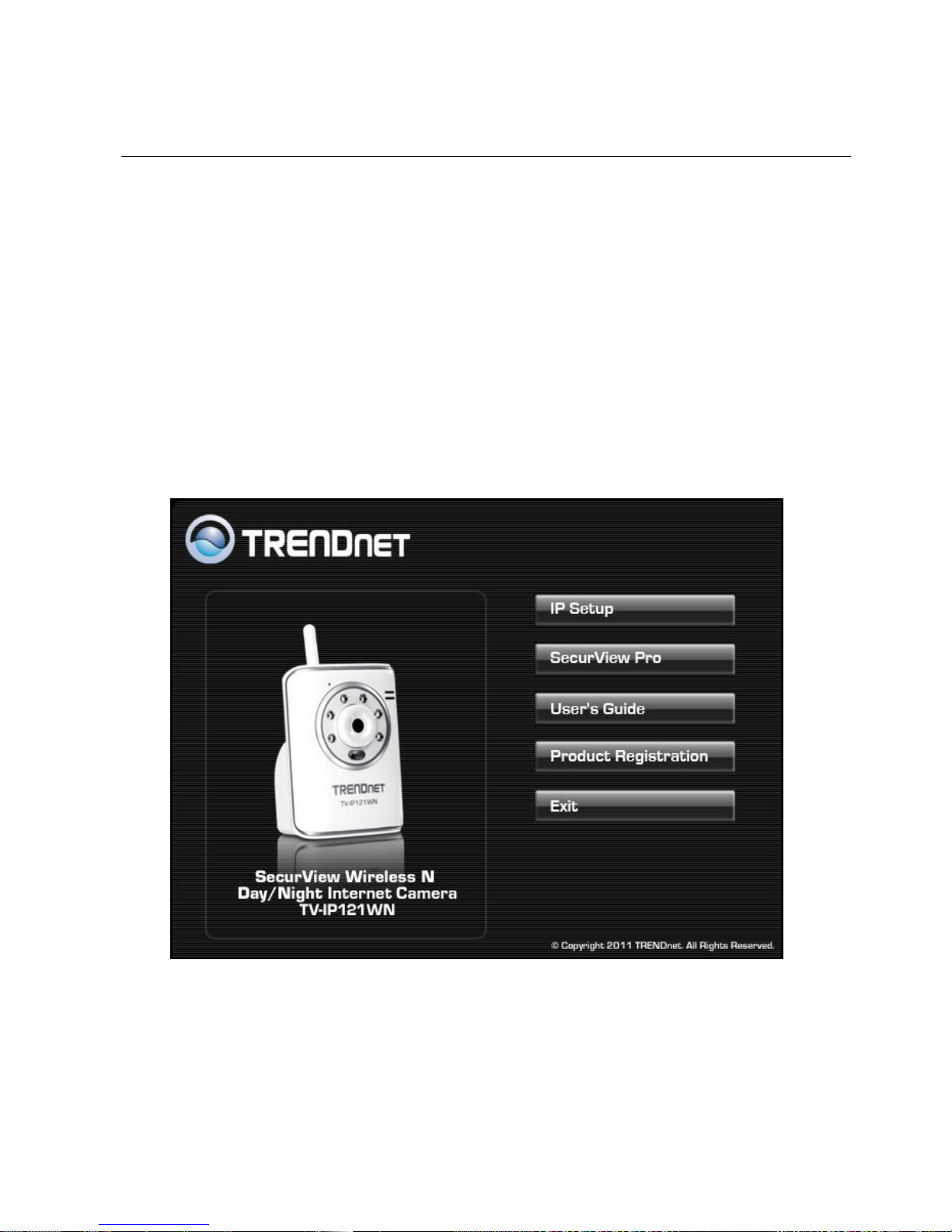

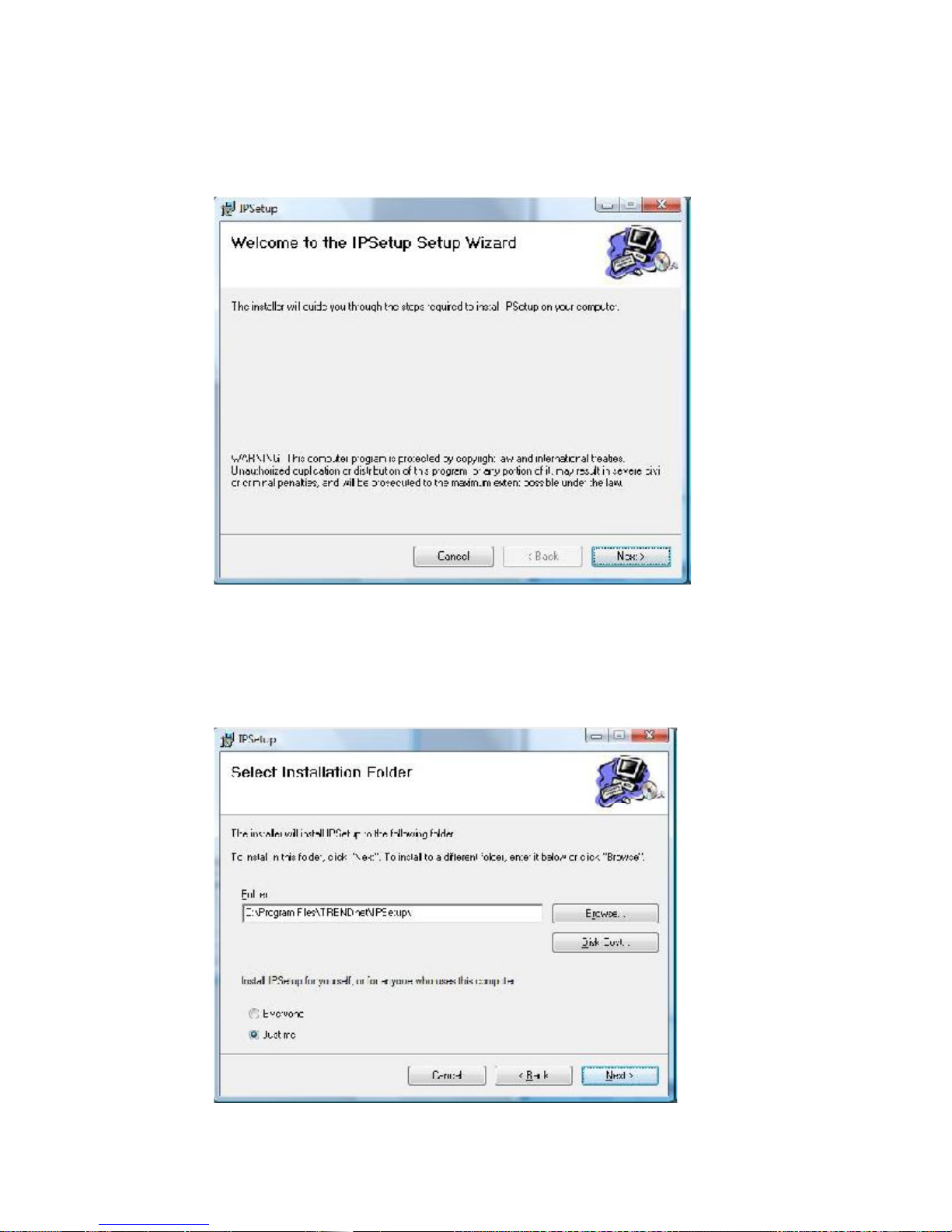

2. Click the IPSetup from the Auto-Runmenu screen. Then the IPSetup
Wizard will appear. Click Next when the Welcome to the IPSetup
Wizard appears.
3. Click Browse to choose the desired destination location. By default,
the destination location is C:\Program Files\TRENDnet\IPSetup. Then
click Next.

- 14 -
4. Click Next to confirm the IPSetup software to be installed to the
computer.
5. When the Installation Complete window appears, click Close.

- 15 -
6. After installing the IPSetup utility, the application is automatically
installed to your computer, and creates a folder in
Start\Program\TRENDnet\IPSetup.
7. Click Start>Programs>TRENDnet>IPSetup, and then click IPSetup.

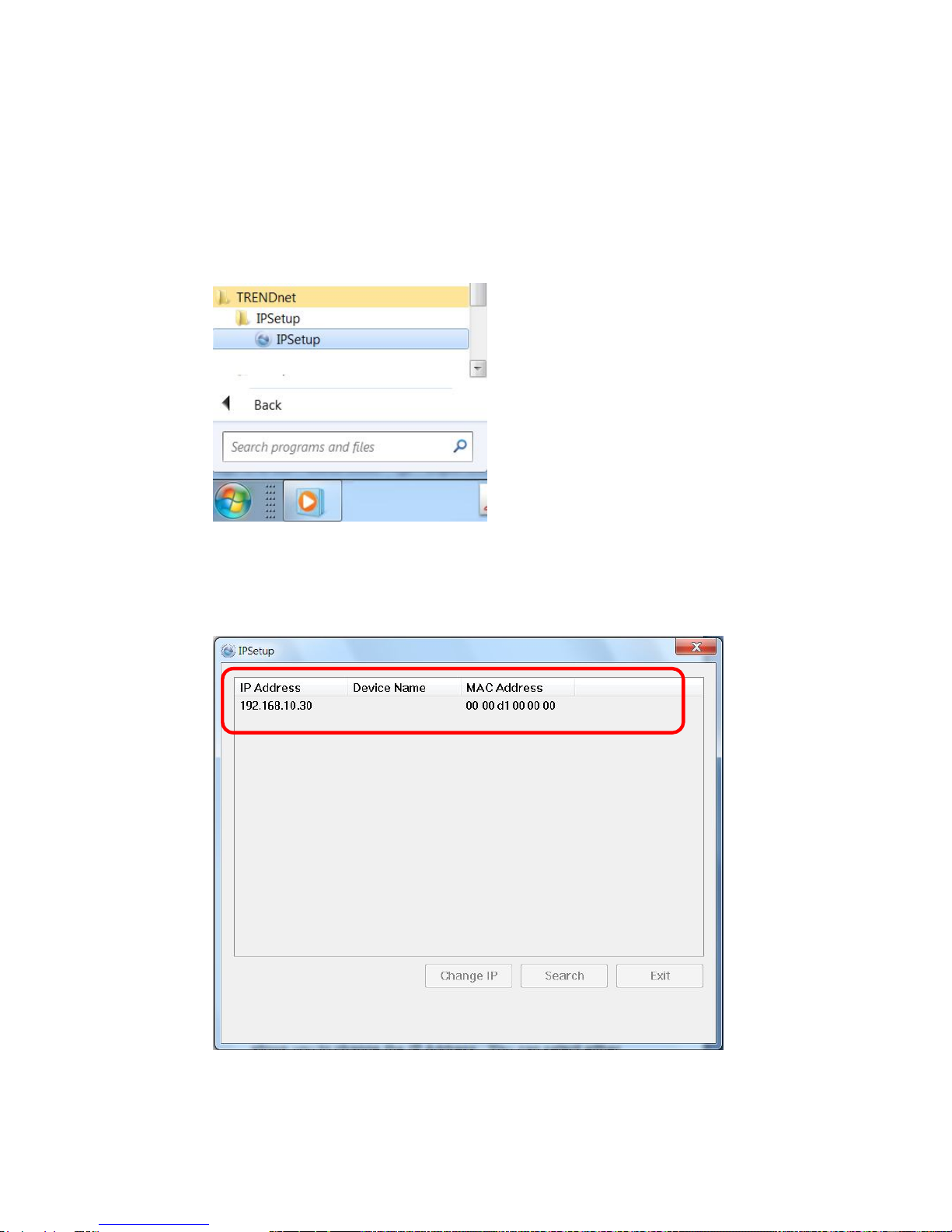

8. The IPSetup window will appear. It will search for the camera within
the same network

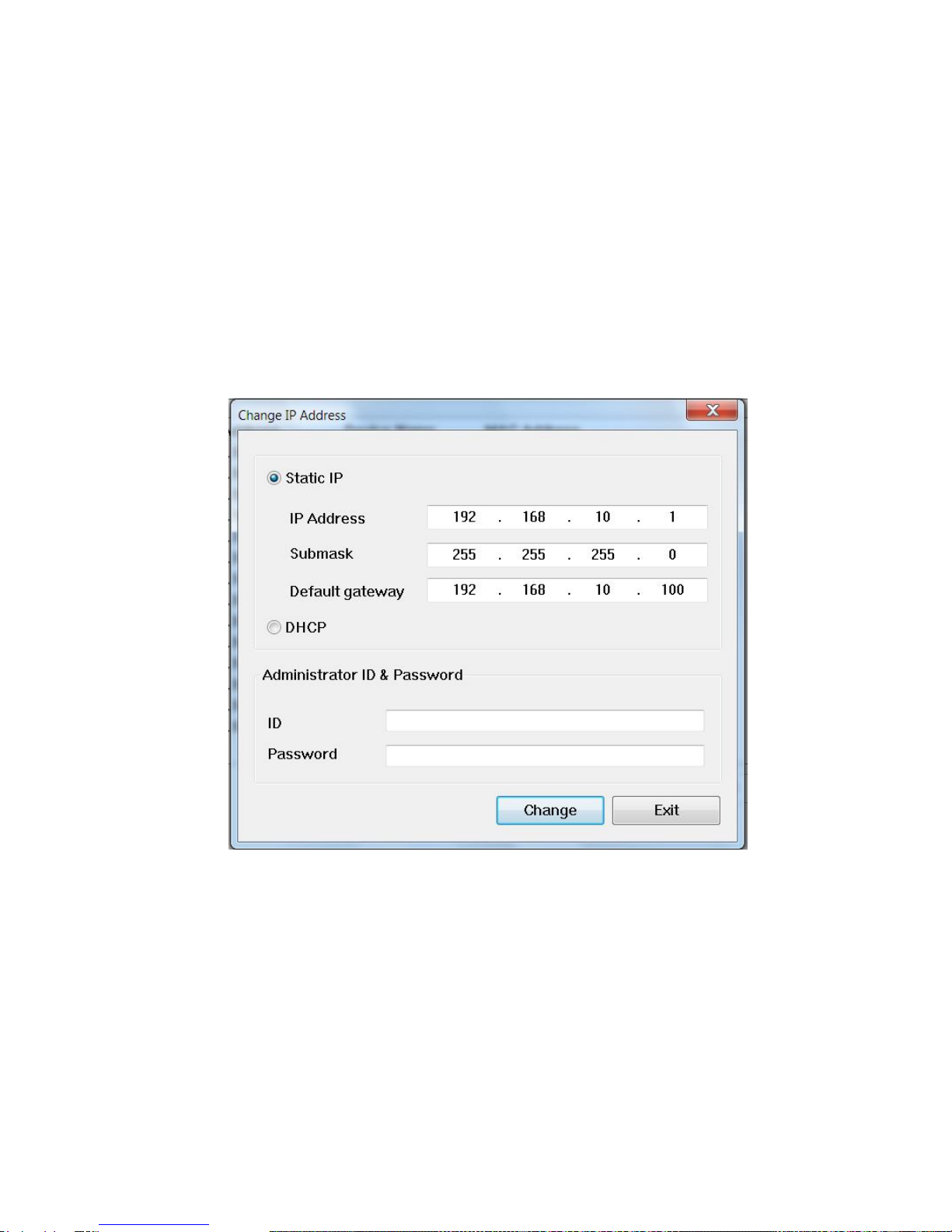

-Camera Display Area: By default, the IP setting on the Camera is set
up DHCP. If you have DHCP server, the camera will automatic get the
Camera Display Area

- 16 -
IP address from DHCP server. If you do not haveDHCP server on your
network, it will show the default IP as 192.168.10.30.
Double click the IP address; it will link to Camera’s Web Configuration
page.
-Change IP: Click thisbutton to bring up the following window. It
allows you to change the IP Address. You can select either Static IP or
click DHCP. Then,enter the Administrator ID &Password. By default
the ID/Password is: admin. When complete, click Change.
-Search: Click this button to search the connected camera in the same
network
-Exit: Click this button to exit the program.

- 17 -
3.2 Accessing to the Camera
Access the camera:
1. Open the Web browser on your computer (example showed in the
User’s Guide is based on the Internet Explorer).
2. Type the default IP address (192.168.10.30) or the IP address found by
IPSetup in the Address bar, and then press [Enter].
3. When the login window appears, enter the default User name (admin)
and Password (admin) and press OK toaccess to themain screen of
the camera’s Web Configuration.
NOTE: If you are initially access to the camera, you will be ask to install a
new plug-in for the camera. Permission request depends onthe
Internet security settings of your computer. Click Yes to proceed.

- 18 -
After you login into the Web Configuration of the camera, the main page
will appear as below:
The main page of the Web Configuration provides you withmany useful
information and functions, including:
Camera Information –Display the camera’s location and the current
date & time. The information can bemodified in the Web
Configuration.
Live View Image –Displays the real-time image of the connected
camera.
Live View/Setup Switch –Click Setup to configure the camera. For
details, see Chapter 4.
Function Buttons –Use these buttons to control the video functions.
Manual Record allows you to record and save a video clip.
Camera Information
Live View Image
Zoom InButtons
Nightmode Button
FunctionButtons
Live View/Setup
Switch

- 19 -
Snapshot allows you to capture and save a still image.
Browse allows assign the destination folder to store the video
clips and still images.
Listen allows you receive the on-site sound and voice from the
camera.
Zoom In Buttons –Click the buttons to zoom in the live view image by
1x, 2x, and 3x.
Nightmode Button – Click the button to enable the“nightshot mode”
to deliver clearer images in the dark environment. However, this will
reduce the frame rate of video setting.
NOTE: If you are using Microsoft 7/Vista platform, you may not be able
to find these recorded files that are stored by Snapshot or
Manual Record. You will need to disable the protected mode of
Security in the IE Browser before manual record video file or
taking a snapshot.
Please follow the below Steps:
1. OpenIE Browser
2. Select ToolsInternet Options
3. Select Security
4. Uncheck the ”Enable Protected Mode” then press OK
