TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 2
Product Overview
TV-IP320PI
Features
The Outdoor 1.3 MP HD PoE IR Network Camera, model TV-IP320PI, provides
powerful 1.3 megapixel HD night vision in complete darkness for up to 30
meters (100 ft.). This ultra-compact camera is outdoor ready with an IP66
weather rated housing. It comes with a free Apple® and Android™ mobile app
and Complimentary pro-grade software to manage up to 32 TRENDnet
cameras.
Hardware
Adjustable Bracket
Fully adjustable integrated mounting bracket provides installation flexibility
PoE
Save installation costs with Power over Ethernet (IEEE 802.3af)
Outdoor Ready
Outdoor IP66 weather rated and an operating temperature range of -30 –
60 °C (-22 –140 °F)
Performance
1.3 Megapixel
Record 1280 x 960 pixel video at 30 fps in H.264 compression
Night Vision
Night vision up to 30 meters (100 ft.) in complete darkness
Smart IR
Dynamic IR adjustment optimizes night visibility
D-WDR
Digital Wide Dynamic Range improves video quality in high contrast lighting
environments

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 3
Camera Management
Multi-Language Interface
Support for English, French, Spanish, German, and Russian
Advanced Playback
Advanced in-camera archived video review functionality
Dynamic DNS Support
Support for dyn.com and NO-IP.org
Storage
SMB/CIFS support with notification if storage drive is full
Motion Detection
Create motion detection windows with separate sensitivity settings and
event triggers
Recording Schedule
Define a weekly recording schedule
Tamper Detection
Receive tamper detection video clips via email
IPv6
IPv6 support
ONVIF
ONVIF v2.2 compliant
Free Apps
See live video on a mobile device with free Apple® and Android® apps
Complimentary Software
Complimentary pro-grade software to manage up to TRENDnet 32 cameras

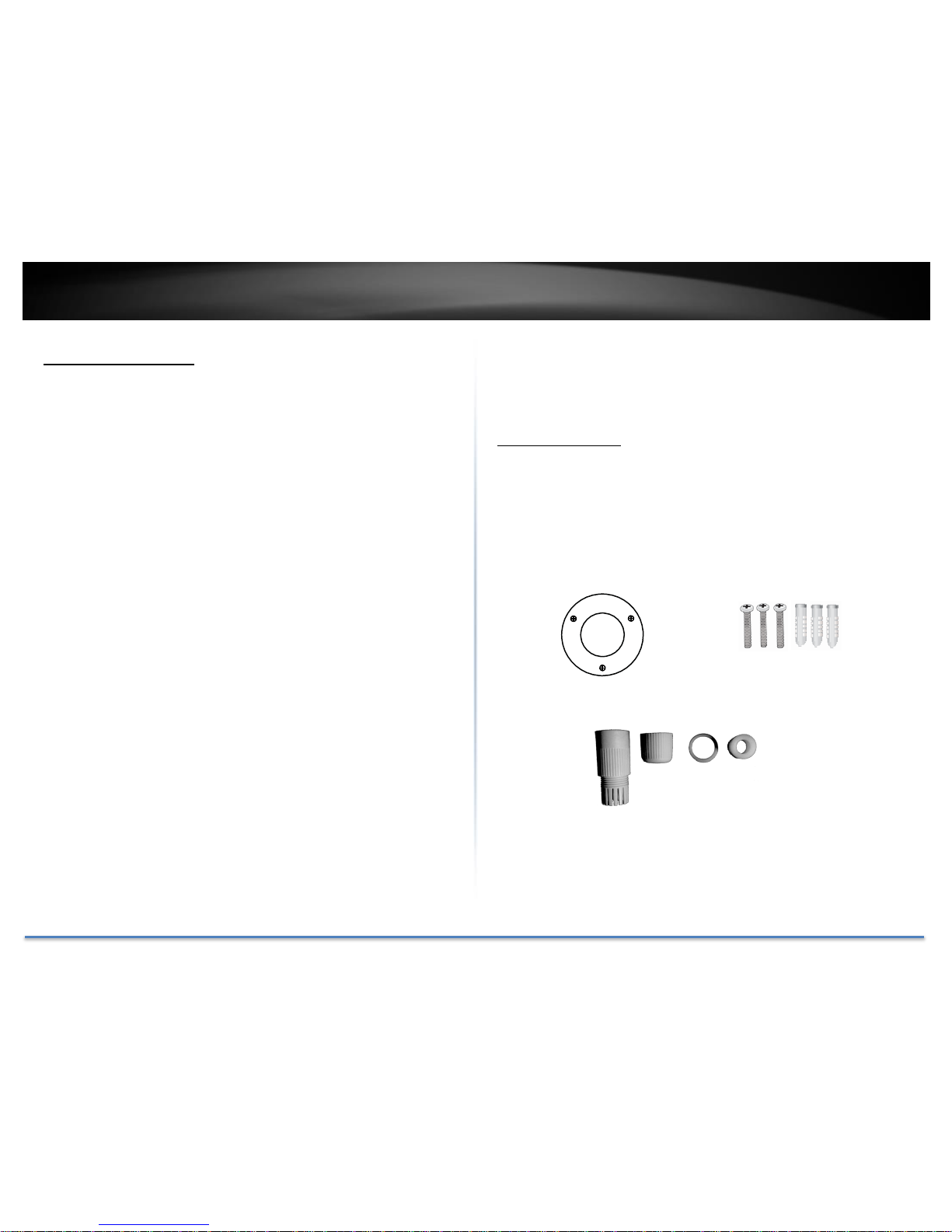

Package Contents
TV-IP320PI package includes:
•TV-IP320PI
•Multi-Language Quick Installation Guide
•CD-ROM (Utility and User’s Guide)
•Camera mounting hardware
•(Optional power adapter not included)
If any package content is missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.
Drilling Template
Mounting Screws
Network Cable
Waterproof Accessories

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 4
Front View
Sun Shield
Protect camera lens from direct exposure to the Sun.
Reset Button
Push and hold the reset button then power on the camera.
Keep holding the reset button for more than 10 seconds to
reset configuration to factory default.
Grounding
Screw
Connects to electric ground.
Lock Ring
Loosen to adjust the camera position. Tighten to hold the
camera position.
Ambient Light
Sensor
Detects the brightness in the environment and enable
day/night modes automatically.
IR LEDs
Infra-red LEDs for night vision.
Mounting Holes
Connectors
Sun Shield
IR LEDs
Ambient Light Sensor
Sun Shield
Grounding
Screw
Lock Ring
Reset Button
Mounting Base
10/100 PoE Network Port
DC Power 12V DC 1A
(Optional)

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 5
Warnings
Serious injury or death may be caused if any of these warnings are neglected.
Follow these safety guards to prevent serious injury or death.
•If using the power adapter, please choose the power adapter that
meets the safety extra low voltage (SELV) standard or IEC60950-1 and
Limited Power Source standard.
•If the product does not work properly, please contact your dealer or
the nearest service center. Never attempt to disassemble the camera
yourself. Disassembling the product will void the warranty and may
cause harm or injury.
•To reduce the risk of fire or electrical shock, do not expose this product
to rain or water.
•The installation should be done by a qualified service person and
should conform to all construction and electric regulations and other
local codes.
Cautions
Injury or equipment damage may be caused if any of these cautions are
neglected. Follow these precautions to prevent potential injury or material
damage.
•Make sure the power supply voltage is correct before using the Camera.
•Do not drop the camera or subject to physical shock.
•Do not touch sensor modules with fingers. If cleaning is necessary, use
a clean cloth with a bit of ethanol and wipe it gently. If the camera will
not be used for an extended period of time, put on the lens cap to
protect the sensor from dirt.
•Do not aim the camera lens at the strong light such as the Sun or an
incandescent lamp. Strong light can damage the camera sensor.
•The sensor may be burned out by a laser beam, so when any laser
equipment is being used, make sure that the surface of the sensor will
not be exposed to the laser beam.
•Do not place the camera in extremely hot, cold temperatures (the
operating temperature should be between -10°C to 60°C), dusty or
damp environment, and do not expose it to high electromagnetic
radiation.
•To avoid heat accumulation, good ventilation is required for a proper
operating environment.
•Keep out of water and any liquid.
•While shipping, the camera should be packed in its original packing.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 6
Installation Procedure
There are number of factors involved in a successful camera installation.
Follow the suggested installation steps and go through the check lists. This
guide will help you make your camera installation smoothly and easily.
•Plan for installation location, see page 6 (next paragraph)
•Setup Your Camera with CD, see page 7
•Hardware Installation, see page 10
Plan for installation location
Viewing angle
The TV-IP320PI is a bullet camera with a focused viewing angle (70horizontal)
that provides non-distorted and detailed images. Choose the location where
has good angle to shoot the image you expect to see. The motion detection
area should also be considered when installing the camera.
Weather Conditions
The TV-IP320PI is a small bullet camera, which fits most installations indoor
and outdoor. The camera can work under a wide range of weather conditions.
For severe weather conditions, a camera housing with temperature and
moisture control is recommended. Using the camera in milder weather
conditions will help extend the camera’s product life and preserve the quality
of the video image.
•Moisture: Avoid damp or moist environments whenever you can.The
TV-IP320PI is an IP66 grade water proof camera, and it will work in
moist environments. However, rain may affect the picture quality,
especially at night, water may reflect the light from the infra-red
illumination and degrade picture quality.
•Temperature: TV-IP320PI works within a specified temperature range.
Areas with severe temperatures should be avoided when installing the
camera. It’s recommended that you use an enclosure with a heater and
blower if you plan on using this camera outside of the specified
temperature range.
•Sunlight: Avoid direct sun light exposure. Direct sun light will damage
the image sensor. If sunlight is necessary for your viewing purposes,
provide protection for the image sensor.
•Lighting: Consider installing your camera faces the same direction of
the light sources. Shooting images with top-down position outdoor or
next to the existing light source are good choices. Avoid the light source
if it creates a shade that darkens the viewing area.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 7

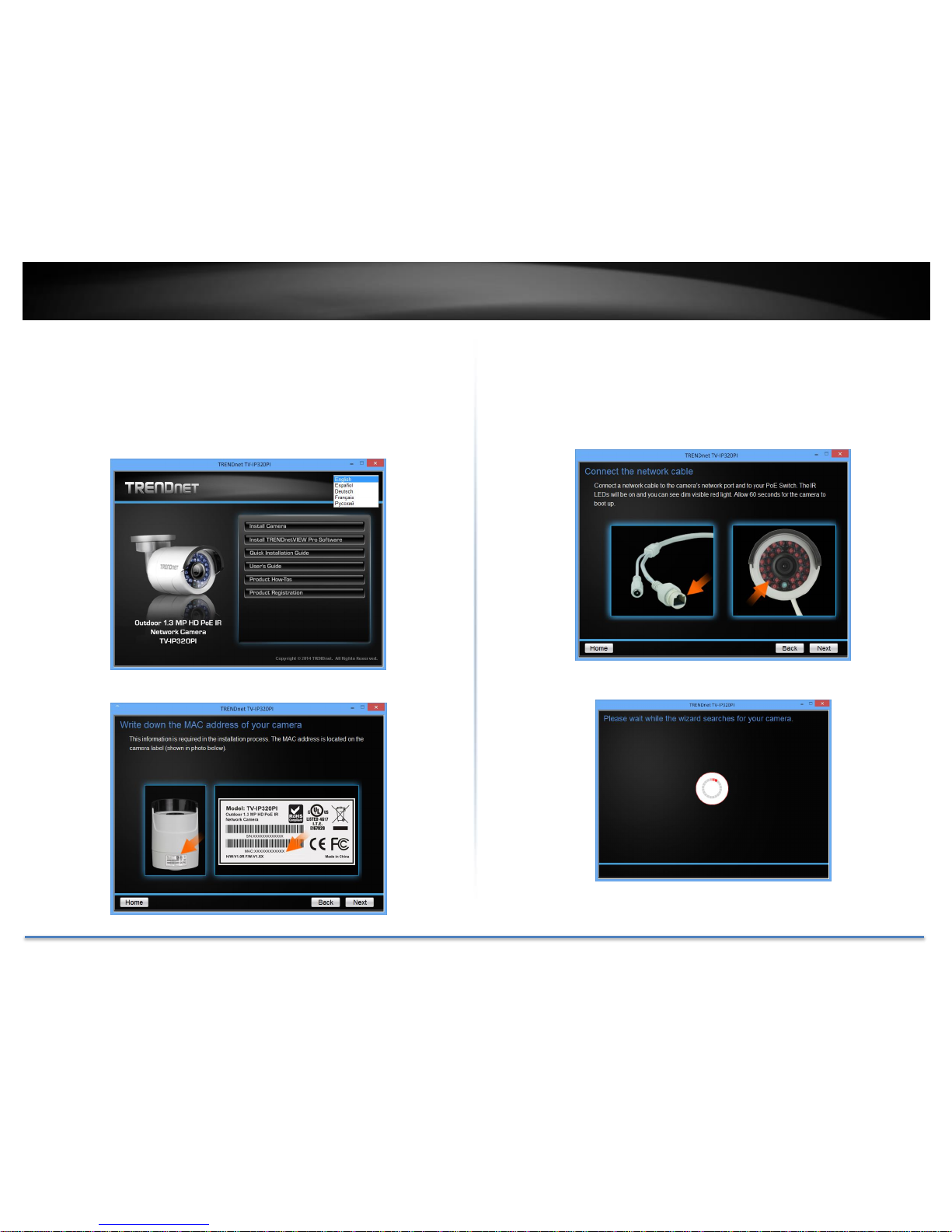

Setup Your Camera with CD
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to
initiate the Auto-Run program. Choose your preferred language and then
click the Install Camera.
2. Write down the MAC Address of the camera.
3. Connect a PoE capable network cable to the camera’s network port and
then to a PoE switch and wait for the camera to boot up. Click Next when
you are done.
* A power adapter (sold separately) can be used instead of PoE switch.
4. Wait while the utility is searches for the camera.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 8
5. The installation wizard will list cameras found on your network. If only
one camera is found, it will be selected by default. If you have more than
one camera on the network, please choose the camera you wish to set
up by identifying its MAC address. Select the camera and then click Next.
6. Select the DHCP option to assign IP address dynamically, or select Fixed
IP to assign the camera an IP address, and then click Next.
7. If you select Fixed IP, enter the IP address, subnet mask, default gateway,
and DNS server address. Please make sure the IP address you are setting
on the camera is in the same network of the computer that you are using.
Click Next.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 9
8. Enter a new password. The default password is admin.You are required
to change the password from the default setting to prevent unauthorized
access. Enter the default password: admin and enter the new passwords
for a brand new installation. The password must be between 8 and 16
characters. (Alphanumeric: a-z, A-Z, 0-9, !, @, #, $)
Note: This camera installation wizard is also good for finding the camera if it was
setup with DHCP. The IP address may change dynamically with the DHCP setting.
If you want to access your camera again and you don’t know the IP address, you
can run this camera installation wizard again. If you have already setup the
password and want to keep the password unchanged, un-check the Change
Password box and click next to get the link to access your camera.)
9. Click here to access to the camera’s web page or click Next for mobile
app installation.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 10

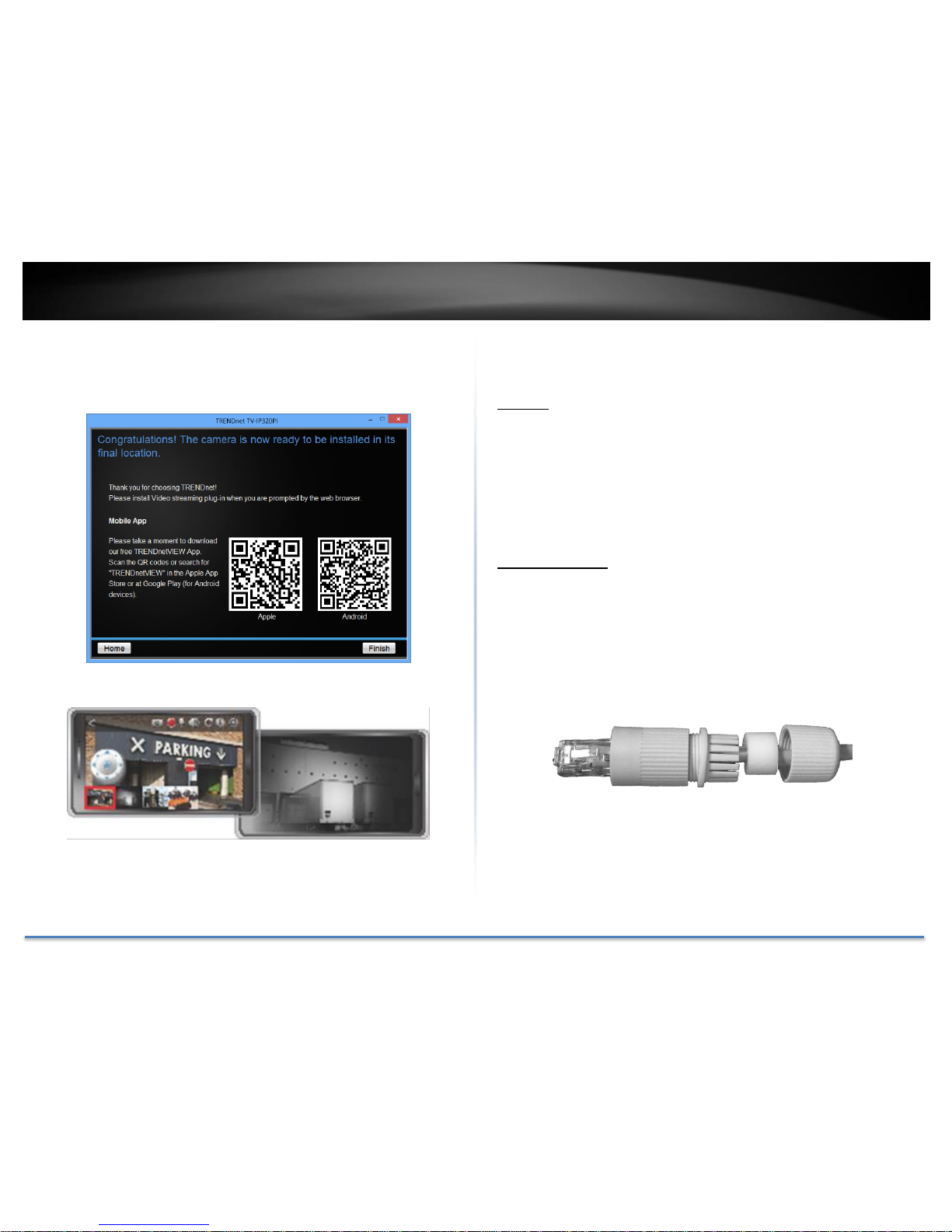

10. Click Finish to exit the program or click Home to return to the main screen.
You can also download a free app to view video on your mobile devices.
Scan the QR code to find and install the TRENDnetVIEW app.
Hardware Installation
Cabling
It’s recommended that the wiring the cable in your home or office by a
professional. If you already have the cable deployed, make sure the cable and
the connectors meet the category 5 Ethernet cable standards. At least 2 pairs
of twisted lines are required for power and data. Poor cable quality may cause
unexpected problems. Testing your cable or running a new cable is suggested
for new camera installation.
Waterproof cap
The TV-IP320PI itself is IP66 grade water and dust proof. There is a set of
network cable water proof caps that comes with the package as well. Run
your cable going through the accessories, and then crimp the cable with an
RJ45 module. Plug in the network cable and then tighten the waterproof cap
to prevent water running into camera through the cable.
Free App
Night Vision

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 11

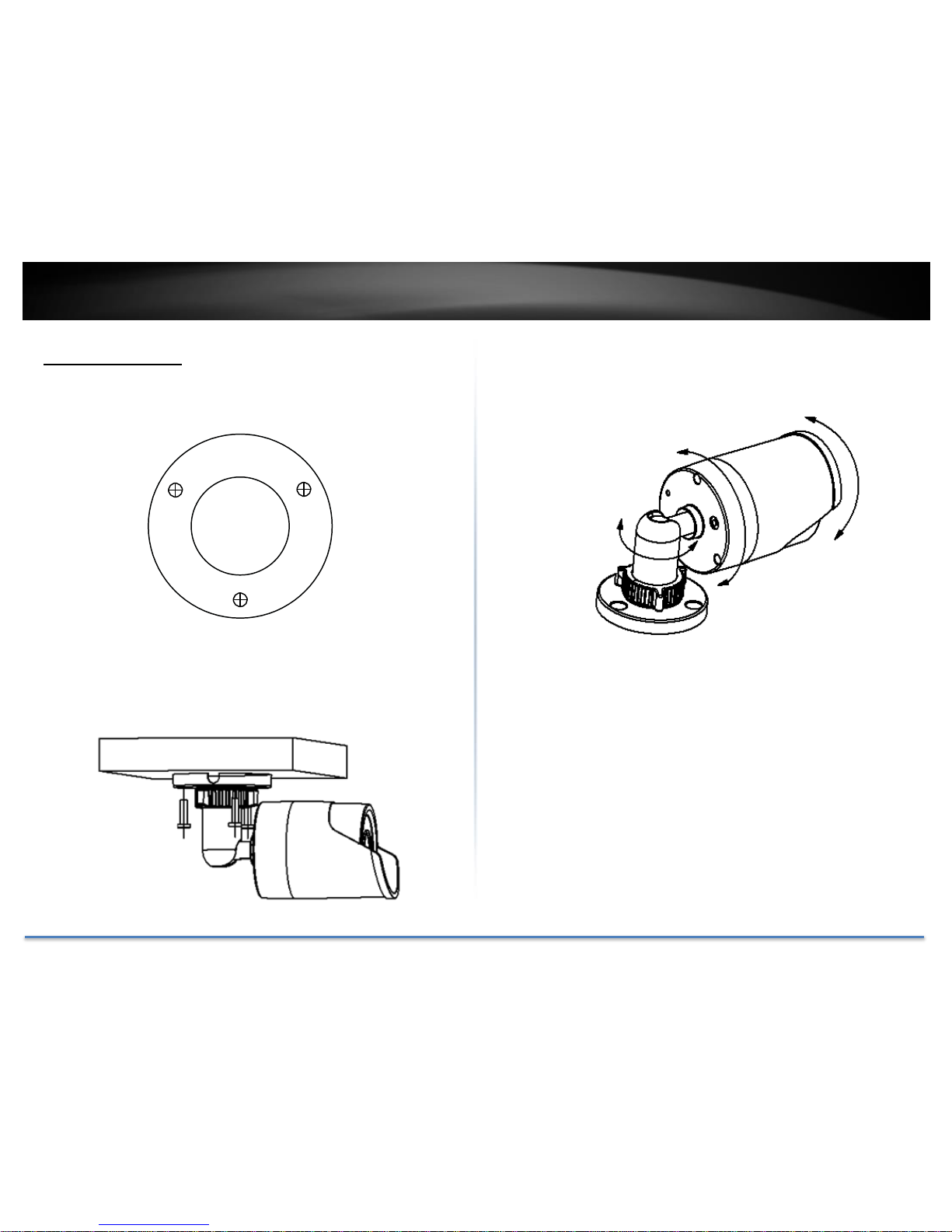

Mount your camera
Drill the screw holes and the cable hole if necessary with the drill template
comes with the package.
Fix the mounting base on the ceiling or the wall with the screws that come
with the package. Route the cables to the cable hole.
Loosen the lock ring and then adjust the camera position. Tighten the lock
ring when you setup the camera position.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 12
Access your Camera with the Web Browser
System Management and Default Settings
It is recommended that you install your camera with the CD that comes with
the package and use accompanying TRENDnetVIEW Pro software (version
2.4.3 or later) for Windows computers. The software is included on the CD
comes with the package. If you do not have the CD with you, you can go to
http://www.TRENDnet.com/support enter the model number “TV-IP320PI”
and download the software.
If you didn’t go through the TV-IP320PI CD installation wizard or you have
reset the TV-IP320PI to factory defaults by pressing and holding reset button
while power on the camera and keep holding the button for over 10 seconds,
your TV- IP320PI has following settings:
System Default
Management
IP
Dynamic assigned if there’s a DHCP server on the
network or self-assigned 192.168.10.30
Administrator
name
admin
Administrator
password
admin
If you want to access your camera directly instead of using software, you can
follow the steps specified in this chapter to login to your camera. A web
browser plug-in must be installed to watch video smoothly.
For Windows system, please go to the next paragraph.
For OS X system, please go directly to page 15
Logging-in to the Camera for the First Time (Windows)

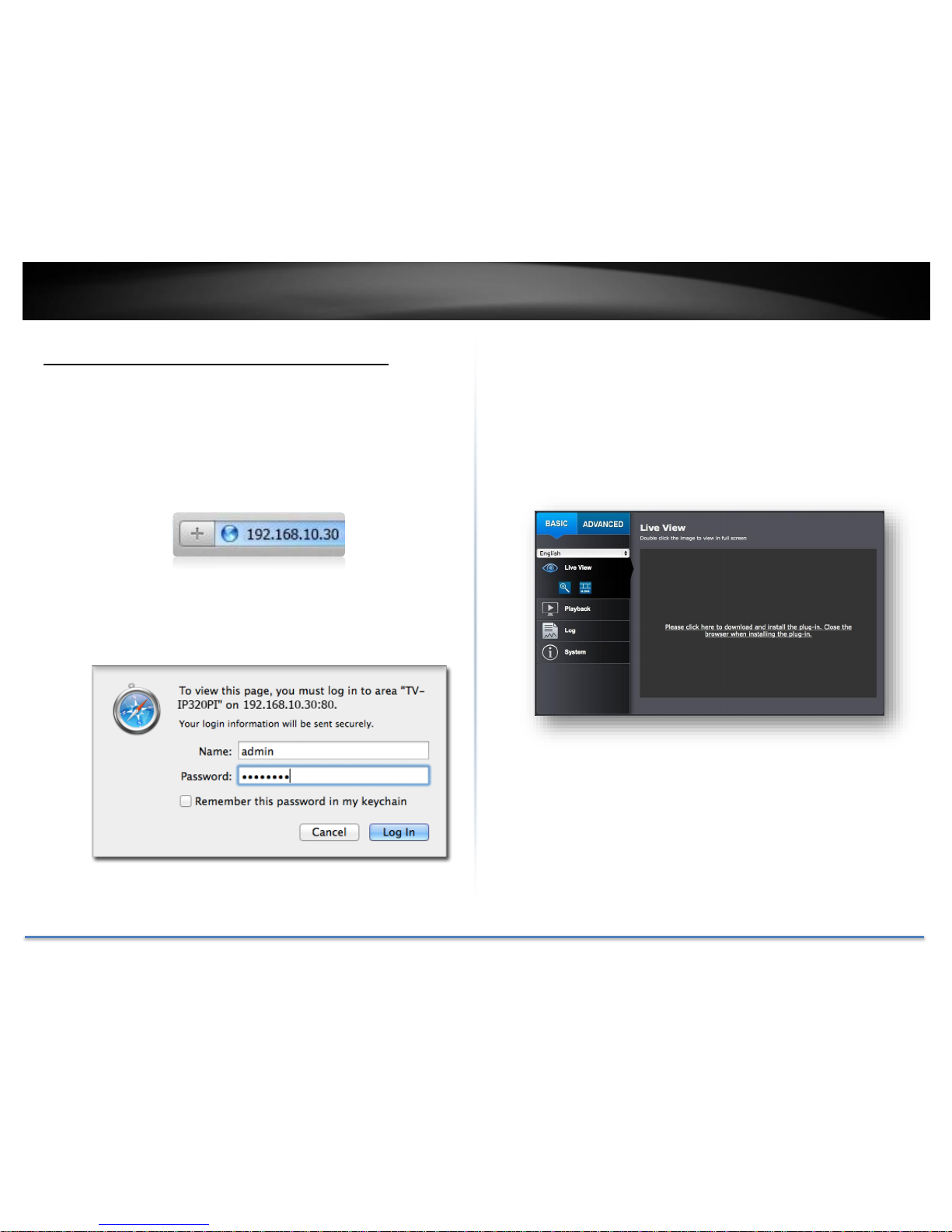

1. Open the web browser on your computer.In the address bar, enter the
IP address you setup through the setup CD or 192.168.10.30.
(If you have a DHCP server on your network, the IP address will be
assigned dynamically. For example, if you have a home gateway on your
network and you plug-in the camera on the same network, you can find
the camera’s IP address on your home gateway.), and then press Enter.
2. Enter the user name, admin, and the password you setup through the
setup CD or the default password, admin, and then click OK.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 13

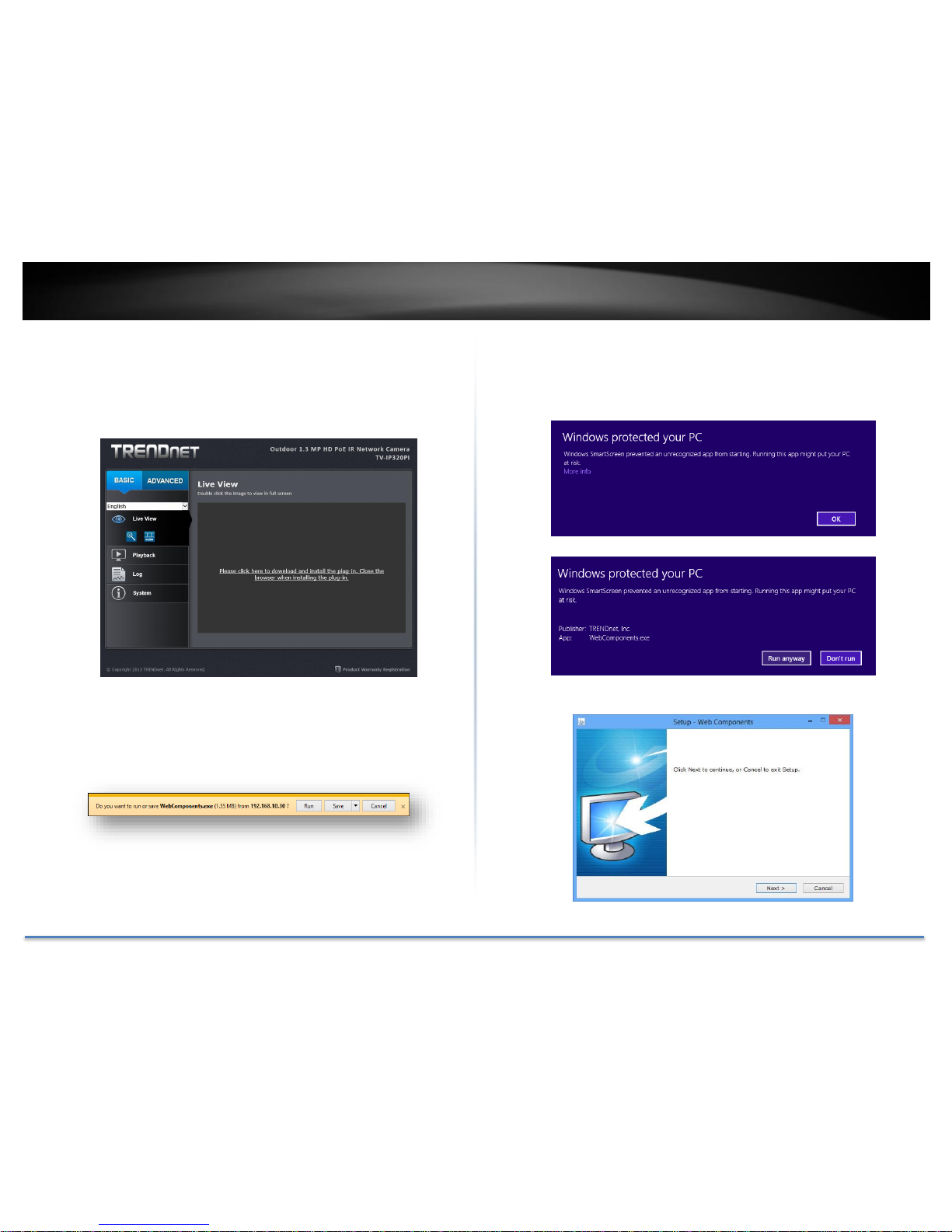

3. The camera management page will detect if you installed the camera
video streaming plug-in or not. Click the link to download the plug-in from
the TV-IP320PI camera.
4. Download the plug-in to your computer and then and close your browser.
Launch the plug-in installation to install the plug-in.
5. Permission request may show up depends on the Internet security
settings on your computer. Click More Info and then Run anyway to
install the plug- in.
6. Click Next to install the plug-in.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 14
7. Click Finish to finish the installation.
8. Open the browser and login again.
9. (Go to step 11 if you already changed your password with the setup CD).
The TV-IP320PI will ask you to change your password from default setting.
Please enter the new password twice and click OK. The password must
be between 8 and 16 characters. (Alphanumeric: a-z, A-Z, 0-9, !, @, #, $).
10. Enter the user name admin and new password again to start secured
session.
11. The Live View page will show up and begin streaming video.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 15
Logging-in to the Camera for the First Time (OS X)
1. Open the web browser on your computer.In the address bar, enter the
IP address of the camera 192.168.10.30. (If you have a DHCP server on
your network, the IP address will be assigned dynamically. For example,
if you have a home gateway on your network and you plug-in the camera
on the same network, then you can find the camera IP address on your
home gateway), and then press Enter.
2. Enter the user name, admin, and the default password, admin, and then
click OK.
3. The camera management page will detect if you installed the camera
video streaming plug-in or not. Click the link to download the plug-in from
the TV-IP320PI camera.
Note: Internet connection is required to download the plug-in. If you do not have
Internet access, you can find the plug-in on the CD comes with the package under
/Mac folder.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 16

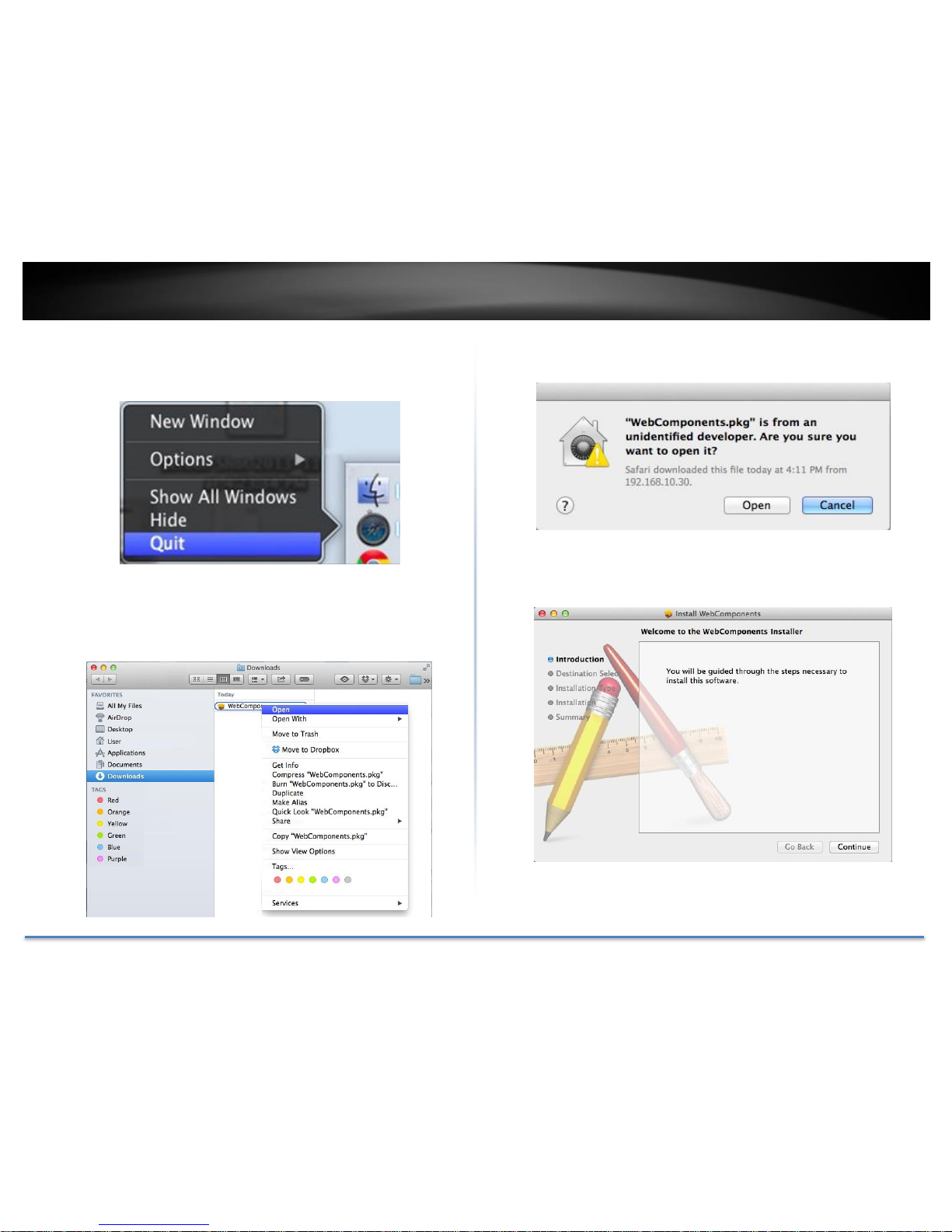

4. Quit your browser completely by command-Click on the browser icon
and then click Quit before installing the plug-in.
5. Go to the Finder and navigate to the Download folder. Command-Click
the WebComponents.pkg and then click Open. (If you are install the plug-
in from the CD, just browse to /Mac folder and double click the
WebComponents.pkg file.)
6. Click Open to start installation.
7. Click Continue to install the plug-in.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 17
8. Select a destination to install the plug-in. Then click Continue.
9. Use the default location and click Install.
10. Enter your password and click Install Software
11. Installation will process automatically.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 18

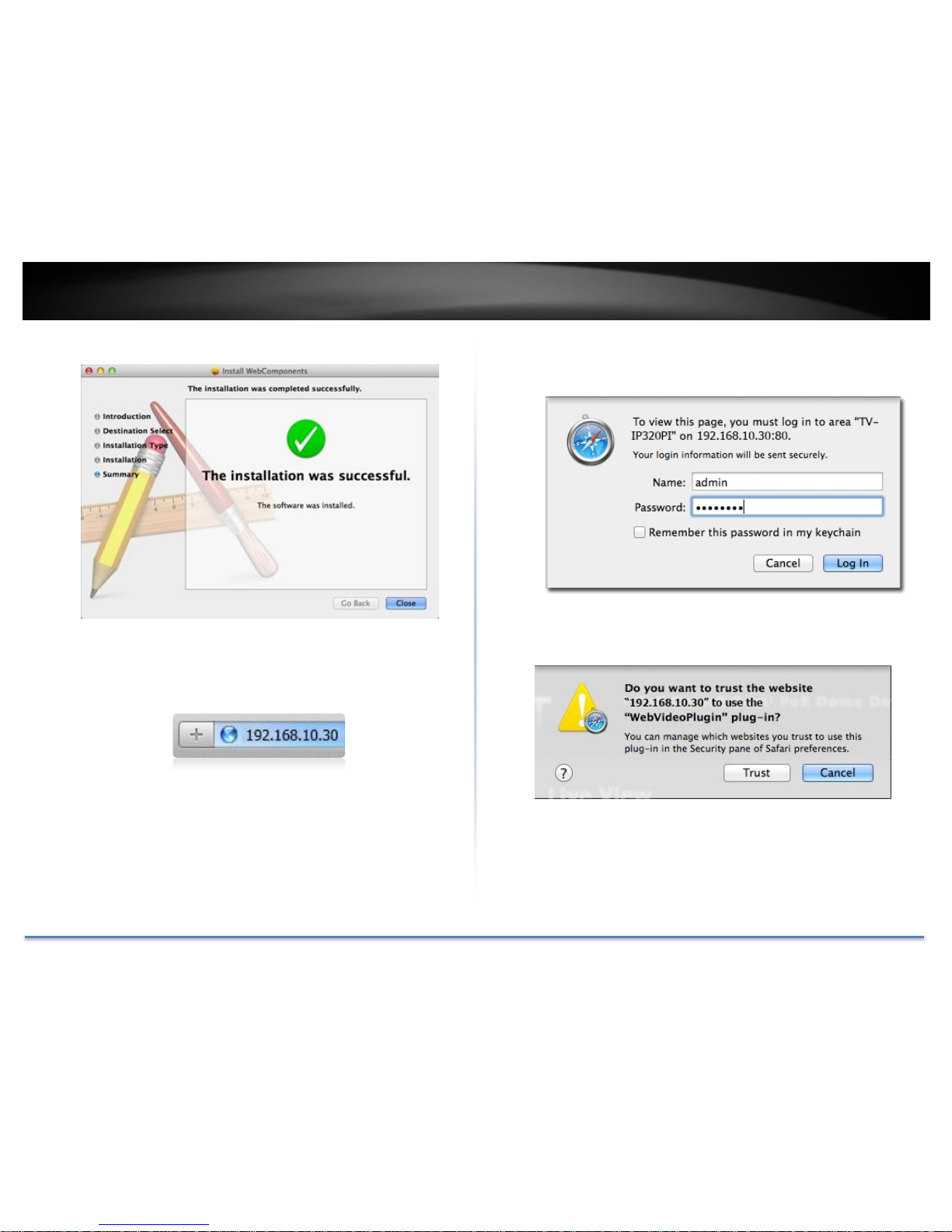

12. Click Close to exit the installation.
13. Open the browser and login again with the default IP 192.168.10.30 or
the IP that was dynamically assigned by your router.
14. Enter the user name, admin, and the default password, admin, and then
click OK.
15. Click Trust (You’ll have to do this again when your camera changes to a
new IP address.)

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 19
16. The TV-IP320PI will ask you to change your password from the default
setting. Please enter the new password twice and click OK. The password
must be between 8 and 16 characters. (Alphanumeric: a-z, A-Z, 0-9, !, @,
#, $).
17. Enter the user name admin and new password again to start secured
session.
18. The Live View page shows up and the video starts to stream.

TRENDnet User’s Guide TV-IP320PI
© Copyright 2014 TRENDnet. All Rights Reserved. 20

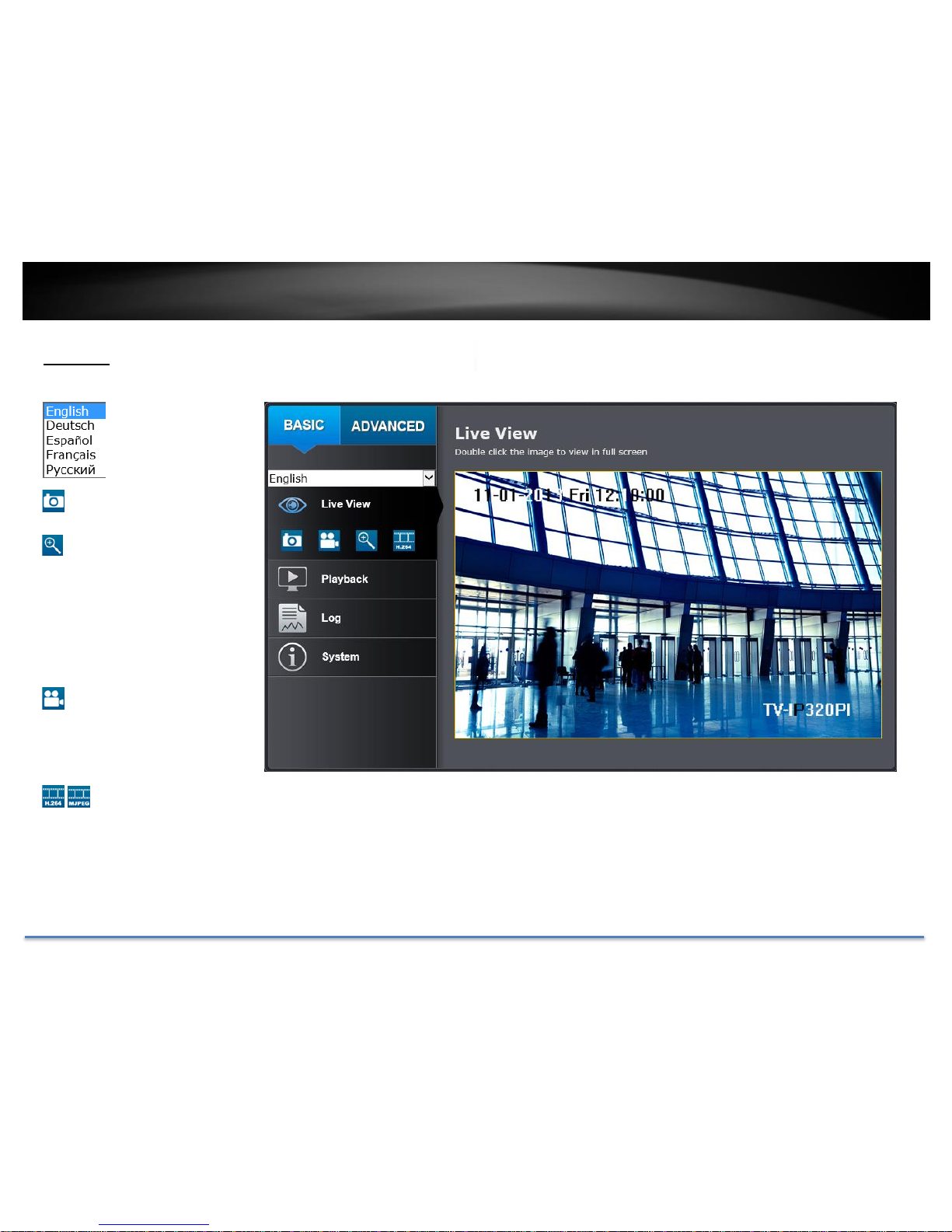

Live View
Snapshot
Click this icon to take a video snapshot.
After you log-in into the camera management page, you’ll see the Live View page.
Multi-Language
Change your preferred
language anytime.
Zoom
Click once to enable zoom. When
enabled, click and drag the area on the
picture to zoom in. Right click to
resume 100% zoom. Click the icon
again to disable zoom. The zoom
function works in full screen mode as
well.
Recording
Click once to start recording. Click it
again to stop recording. The status bar
will indicate if it is in recording state or
not.
Video Stream
TV-IP320PI has two video streams:
H.264 and MJPEG. Switch to view the
different video streams by clicking this
icon.
Full Screen Mode
Click the picture to view in full screen
mode. Double click again or press
escape key on your keyboard to exit
full screen mode.
Status Bar
The status bar shows the status you
are at, including enabled the zoom,
recording video, and successfully
taking a snapshot.
Where can I find saved files?
Videos and snapshots captured from
Live View will save to your computer.
See Live View Settings on page 29 for
details.
