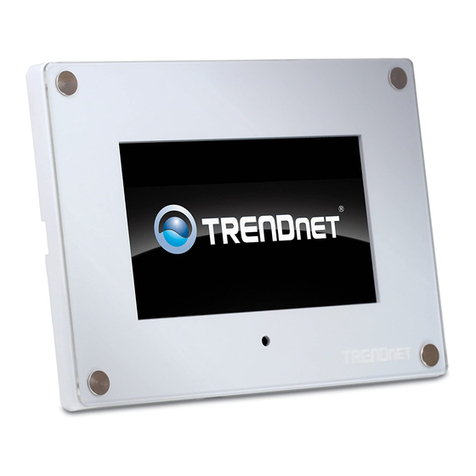

TRENDnet TV-M7 - SecurView Wireless Internet Surveillance... User manual

-1-
Table of Contents
Package Contents…………………………………………………………………………4
Hardware Interface…………………………………………………………………….…. 5
Remote Control Functions………………………………………………………….….….7
Virtual Keyboard Functions………………………………………………………….…....9
IP Cameras & Network …………………………………………………………………..10
IP Cameras ………………………………………………………………………11
Flickr® / Picasa™ ……………………………………………………………….13
NAS ……………………………………………………………………………….14
Internal Memory …………………………………………………………………………..16
Photos ……………………………………………………………………………..17
Music ……………………………………………………………………………....18
Video ………………………………………………………………………………19
Calendar/Time ……………………………………………………………………20

-2-
Settings ……………………………………………………………………………..……. 21
System Setup ………………………………………………………………….... 22
Slideshow Setup ………………………….………………………………...…..23
A/V Setup …………………………………………………………………….…....24
Calendar/Time/Alarm Setup ………………………………………………….... 25
Copy/Delete File ……………………………………………………………….... 26
Auto Play Setup …………………………………………………………….…..…27
Networking Setup …………………………………………………………….…...28
Web Album Setup ……………………………………………………………….. 30
NAS Setup ………………………………………………………………….......... 31
Display Setup …………………………………………………………………….. 32
Memory Card
Photos ………………………………………………………………………….…...33
Music ………………………………………………………………………..............34
Video ……………………………………………………………………………..…35

-3-
PC Connection ………………………………………………………………………….…36
PC ……………………………………………………………………………….…37
Mac …………………………………………………………………………….…..38
General Usage
Starting the Slideshow………………………………………………………….…40
Zooming & Rotating Photos………………………………………………….….. 41
Returning to Main Menu……………………………………………………….….42
Calendar Display…………………………………………………………………..43
Connecting Wireless Network …………………………………………………...44
Set Homepage to Camera View……………………………………...………….48
Firmware Upgrade ………………………………………………………………..49

-4-
Package Contents
(1) Camera Monitor (2) Power Adapter (3) USB Cable (6) CD-ROM
(4) Remote Control (5) Stand (6) Quick Installation Guide

-5-
Hardware Interface
(1) Power Switch
(2) LED Indicator: Power
(A steady GREEN light confirms that the device is
powered on.)
(3) LED Indicator: Network
(A flashing GREEN light confirms that there is
network traffics.)
(4) Navigation buttons (Up/Down/Left/Right)
(5) ESC button
(6) ENTER button
(7) Remote Sensor
(8) 7" TFT LCD panel

-6-
Hardware Interface
(9) SD/MMC/MS/MS Pro/XD Card Slot
(10) Audio OUT Jack
(11) USB Port
(12) DC IN Jack
(13) Reset Button
Note: The device supports up to 16GB memory card.
Tip: If you have a MS Pro Duo card, you will need an adapter to install
the card.

-7-
Remote Control Functions
(1) HOME: Return to the Device Selection screen.
(2) SETUP: Pop up an onscreen Setup menu window.
(This button will not work during the slide show)
(3) SNAP SHOT: Capture an image from the IP camera.
(4) ESC: Return to the previous screen.
(5) PHOTO/MUSIC: While viewing a photo, press this button to
start the slide show with background music (if available).
(6) NAVIGATION (Up/Down/Left/Right)/ENTER buttons:
zUse the NAVIGATION buttons to select items, and press
the ENTER button to confirm your selection.
zWhile viewing the photo, press / to view the next
photo or / to view the previous photo

-8-
The Remote Control
(7) ROTATE/REFRESH:
zWhile viewing a photo, press the button to rotate the displayed photo 90˚clockwise.
zRefresh the connected IP camera list while in network status.
(8) ZOOM/SELECT:
zZoom in on a photo. You may zoom five times before returning to normal.
zSelect the IP camera you want to monitor from the list while in network status.
(9) Volume Control: While playing music and video, press / to decrease/increase the volume;
press to mute.
(10) IP CAM: Access the image of the connected IP camera.
(11) CALENDAR: Show the calendar with your photo and music.
(12) Playback Control: While playing music and video, press to start/pause; press to stop. While
playing video, press / to fast backward / forward.

-9-
The Virtual Keyboard
Al
p
hake
y
s
Backspace
Toentercharacters,useNAVIGATIONbuttonsto
findthedesirecharactersandpressENTERto
selectfromtheRemoteControl.

NumericKeys:Numbers0~9.
AlphaKeys:LettersA~Zora~z.
Space:Insertspacebetweencharacters
CapsLock:Allowuserstoswitchbetweenlower
caseanduppercaseletters.
Backspace:Usebackspacekeytoclearthe
enteredcharacters.
Shift:Allowuserstochangeletterstosymbols,
hitShifttoswitchback.
Enter:Afterallthecharactersareinserted,hit
Entertoacceptandexitthevirtual
keyboardsection.

Numericke
y
s
Enter
Space
CapsLock
Shift
