Trendstyle Oven tower cabinet User manual

oven tower
cabinet
www.trendstyle.com.au
Step 1
Follow these instructions to
build and attach your cabinet.
Before you get started
All cabinets will need to be attached to the wall using a minimum of
8 gauge 65mm screws if you have a stud wall. If your wall is
concrete, brick or another surface ask your hardware specialist for
advice on the right fixing method.
Make sure you leave plumbing and electrical work to qualified trades
people. Never try this yourself.
For extra strength use exterior woodworking glue when
assembling cabinets.

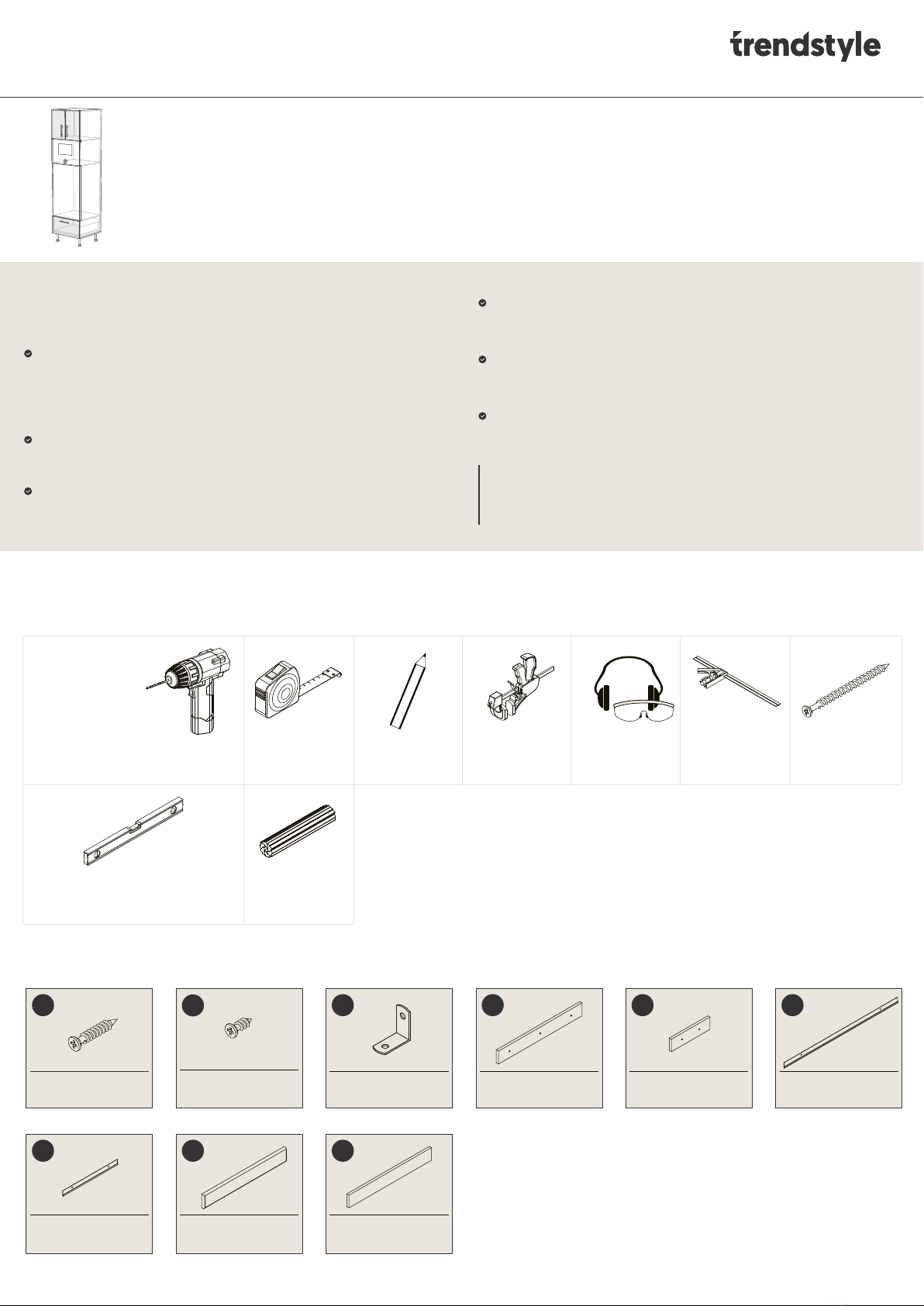

Hardware included
Tools you will need
To put your trendstyle cabinets together you will need the following tools.
Cordless drill with:
• Number 2 screw tip
• 4mm drill bit
• Number 12
countersinking drill bit
Tape
measure
C
90° angle
bracket x 6
Pencil Clamps Safety
gear
Adjustable
square
65mm
wood screw
Spirit level
(900mm recommended)
Wall fixing
(If necessary)
page 1
A
28mm
wood screws x 8
B
14mm
wood screws x 20
To help identify panels, counter sunk holes always face
outwards.
All holes that aren’t already pre-drilled should be drilled prior to
screwing using a No 12 countersinking drill bit.
Make sure you always use safety gear like a mask, ear muffs and
glasses when using tools.
Regulations require that a qualified electrician/gas fitter must be
employed for the installation of oven units. Please refer to your
oven installation guide to see if the base of the oven cabinet
needs to be cut out for ventilation before installing your oven.
D
598mm
oven cleats x 2
E
298mm
oven cleats x 2
F
598mm
heat deflectors x 2
G
298mm
heat deflectors x 2
H
600mm
front panel x 1
I
heat
deflectors x 1

www.trendstyle.com.au
oven tower cabinet
page 2

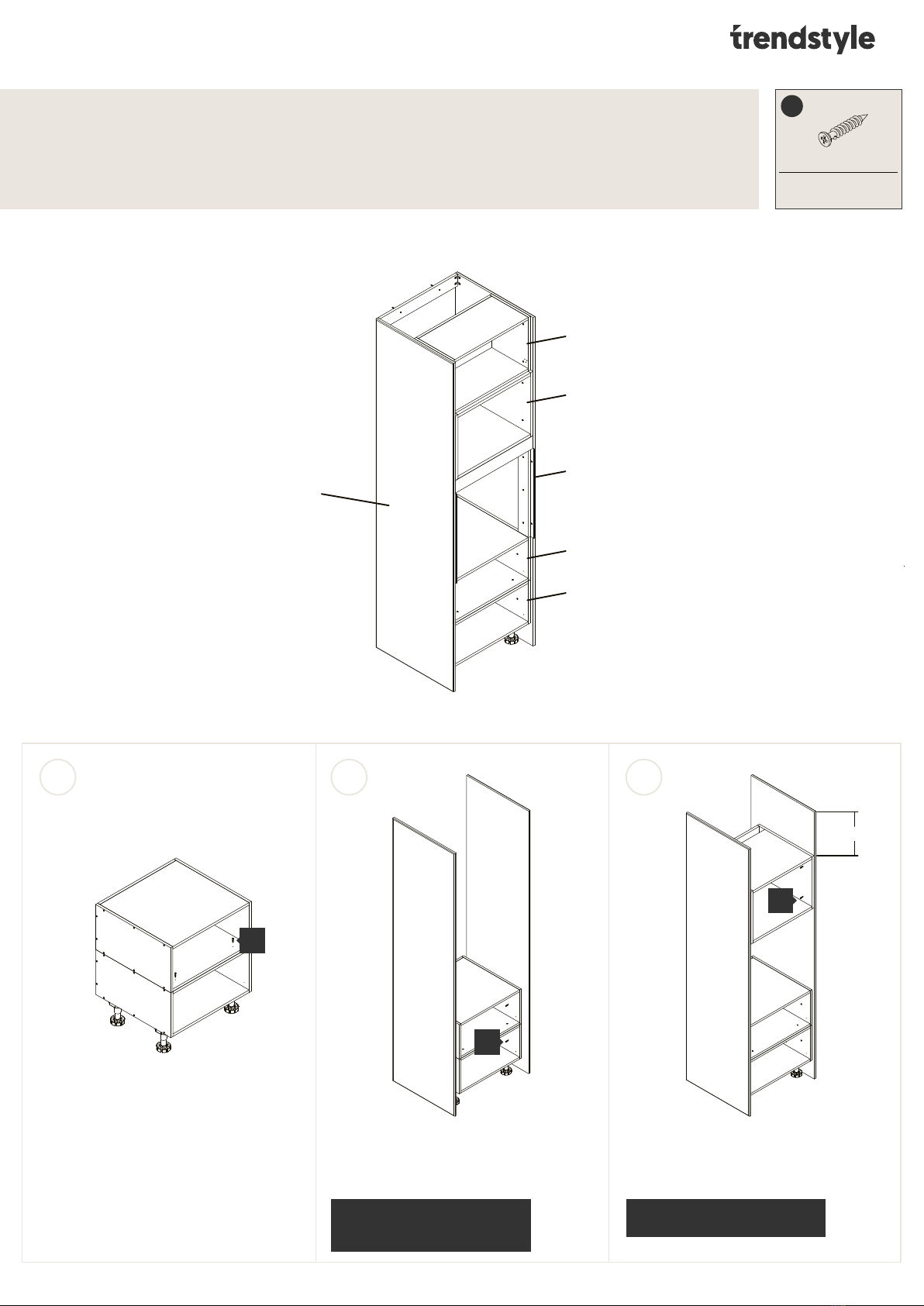

Assembling 600mm oven cabinet
Oven tower for 600mm high oven
Step 1
1 2 3
What you will need
B
28mm
wood screws
pantry
end panel
600mm
slimline
cabinet
600mm
1 drawer
cabinet
600mm
1 drawer
cabinet
600mm
mircowave
box
pantry
end panel
A
A
pantry
end panel
pantry
end panel
360mm
A
Pre-drill and screw together two
600mm 1 drawer cabinets.
Set the drawer cabinet back from
the front of the end panels 18mm
for melamine doors and 20mm for
thermoformed doors.
Attach the 600mm microwave box
360mm from the top of the end panels.
Note: make sure the feet have been
adjusted to the correct height and
that the cabinet is level.
Note: Ensure microwave box is flush
with the front of the end panels.

www.trendstyle.com.au

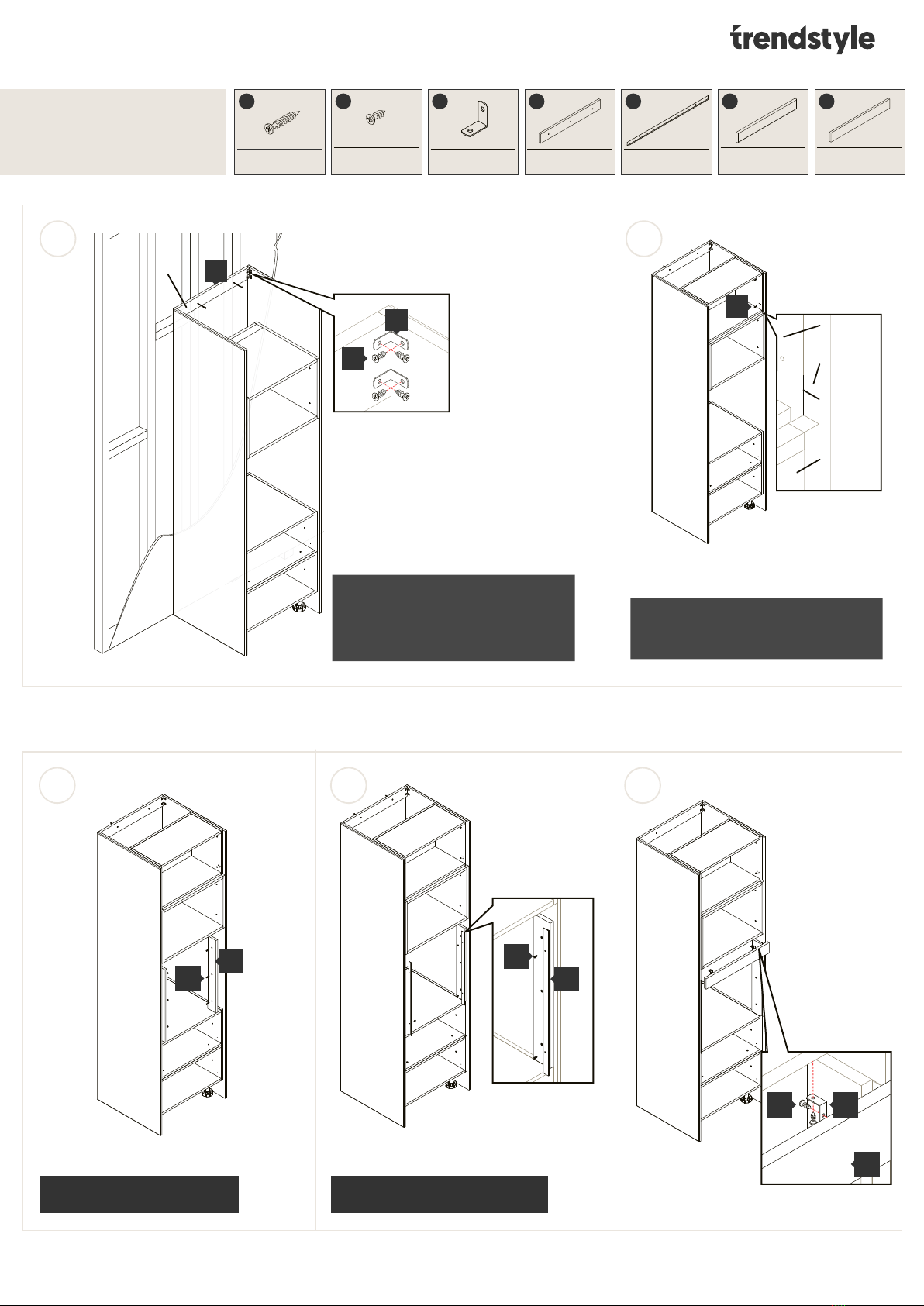

Attaching 600mm oven cleats Attaching front panel
Step 1
4 5
oven tower cabinet
1 2 1
page 3
Attach the oven cleats 20mm back
from the front of the end panels.
Note: The cleats should sit on the top
of the drawer cabinet.
Attach the heat deflectors onto the sides
of the end panels in front of the cleats.
Note: the lip of the heat deflectors
should sit on the sides of the end panels.
fixing rail
B
I
C
Caution: Please ensure all cabinets are
screwed into your timber stud wall using
a minimum of 65mm timber screws.
If attaching to concrete, brick, steel or any
other substrates seek advice from your
hardware specialist.
Attach the fixing rail at the top of the
end panels.
Attach the oven tower to the wall
through the fixing rail and the drawer
cabinet using the correct fixings.
slimline
cabinet
setback
microwave
cabinet
microwave
cabinet
Note: Set the slimline cabinet back from
the front of the end panels 18mm for the
melamine doors and 20mm for thermofo-
ermed doors.
Attach the slimline cabinet on top of the
mircowave box.
A
AD
end panel
B
F
end panel
B
H
C
What you will need
C
90° angle
bracket x 6
A
28mm
wood screws x 8
B
14mm
wood screws x 20
D
598mm
oven cleats x 2
F
598mm
heat deflectors x 2
H
600mm
front panel x 1
I
heat
deflectors x 2

www.trendstyle.com.au
oven tower cabinet
page 2

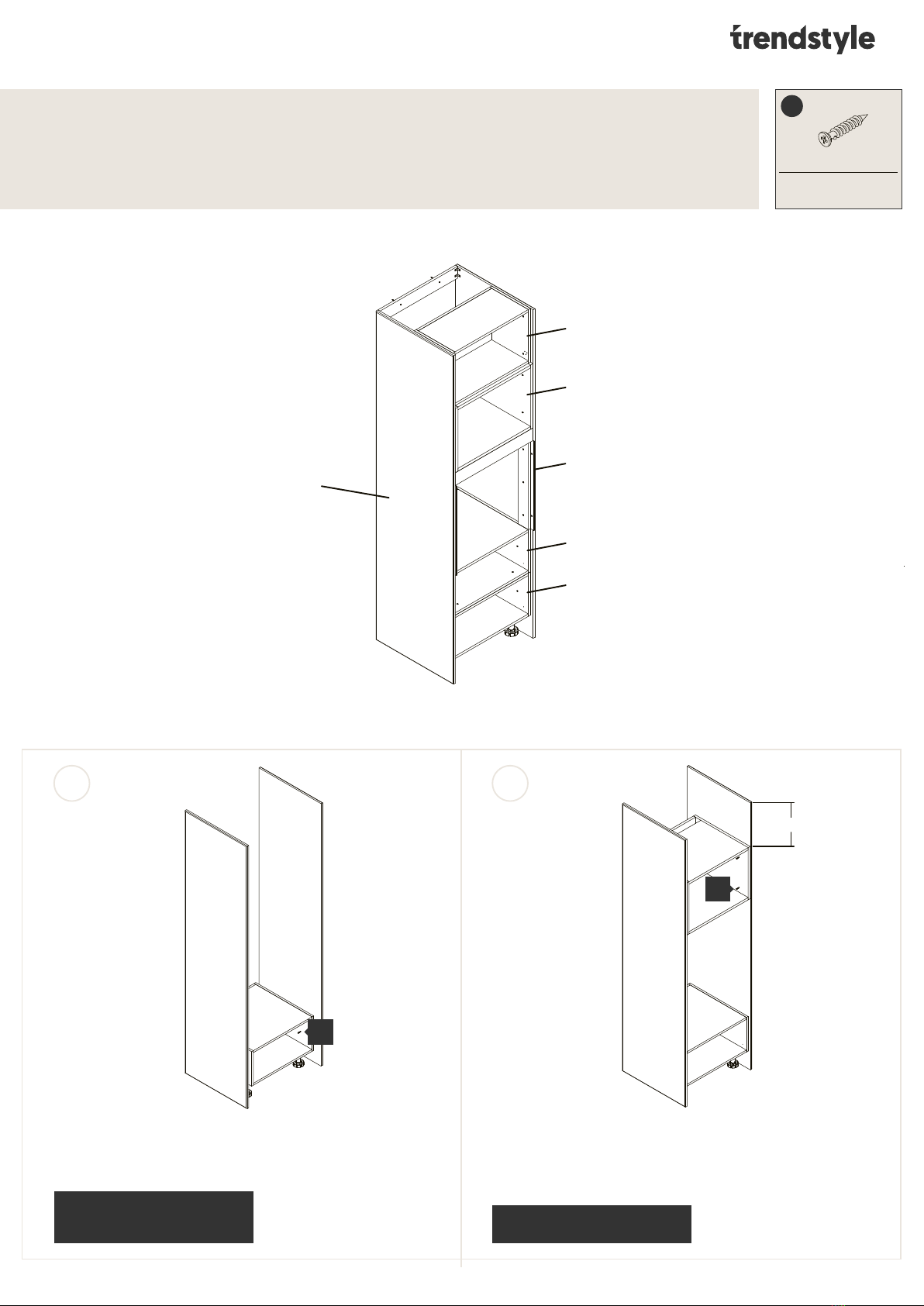

Assembling 890mm oven cabinets
Oven tower for 890mm high oven
Step 1
1 2
What you will need
B
28mm
wood screws
pantry
end panel
600mm
slimline
cabinet
600mm
1 drawer
cabinet
600mm
1 drawer
cabinet
600mm
mircowave
box
pantry
end panel
Set the drawer cabinet back from
the front of the end panels 18mm
for melamine doors and 20mm for
thermoformed doors. Attach the 600mm microwave box
360mm from the top of the end panels.
Note: make sure the feet have been
adjusted to the correct height and
that the cabinet is level.
Note: Ensure microwave box is flush
with the front of the end panels.
A
pantry
end panel
pantry
end panel
360mm
A

www.trendstyle.com.au

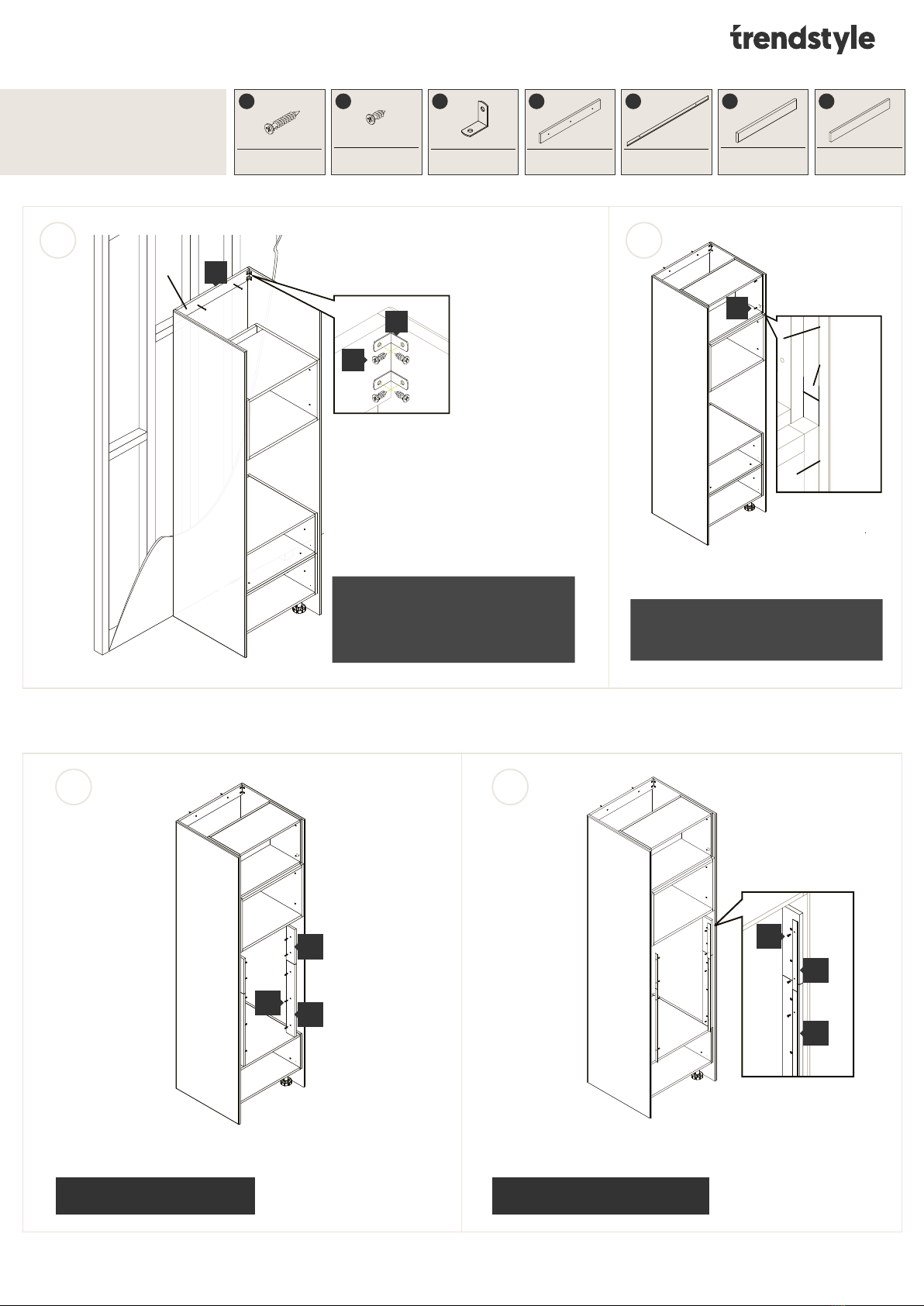

Assembling 890mm oven cabinets
Step 1
4 5
oven tower cabinet
1 2
page 3
page 5
Attach the oven cleats 20mm back
from the front of the end panels.
Note: The cleats should sit on the top
of the drawer cabinet.
Attach the heat deflectors onto the sides
of the end panels in front of the cleats.
Note: the lip of the heat deflectors
should sit on the sides of the end panels.
fixing rail
B
I
C
Caution: Please ensure all cabinets are
screwed into your timber stud wall using
a minimum of 65mm timber screws.
If attaching to concrete, brick, steel or any
other substrates seek advice from your
hardware specialist.
Attach the fixing rail at the top of the
end panels.
Attach the oven tower to the wall
through the fixing rail and the drawer
cabinet using the correct fixings.
slimline
cabinet
setback
microwave
cabinet
microwave
cabinet
Note: Set the slimline cabinet back from
the front of the end panels 18mm for the
melamine doors and 20mm for thermofo-
ermed doors.
Attach the slimline cabinet on top of the
mircowave box.
A
What you will need
C
90° angle
bracket x 6
A
28mm
wood screws x 8
B
14mm
wood screws x 20
D
598mm
oven cleats x 2
F
598mm
heat deflectors x 2
H
600mm
front panel x 1
I
heat
deflectors x 2
E
D
A
B
G
F

www.trendstyle.com.au
oven tower cabinet
page 2

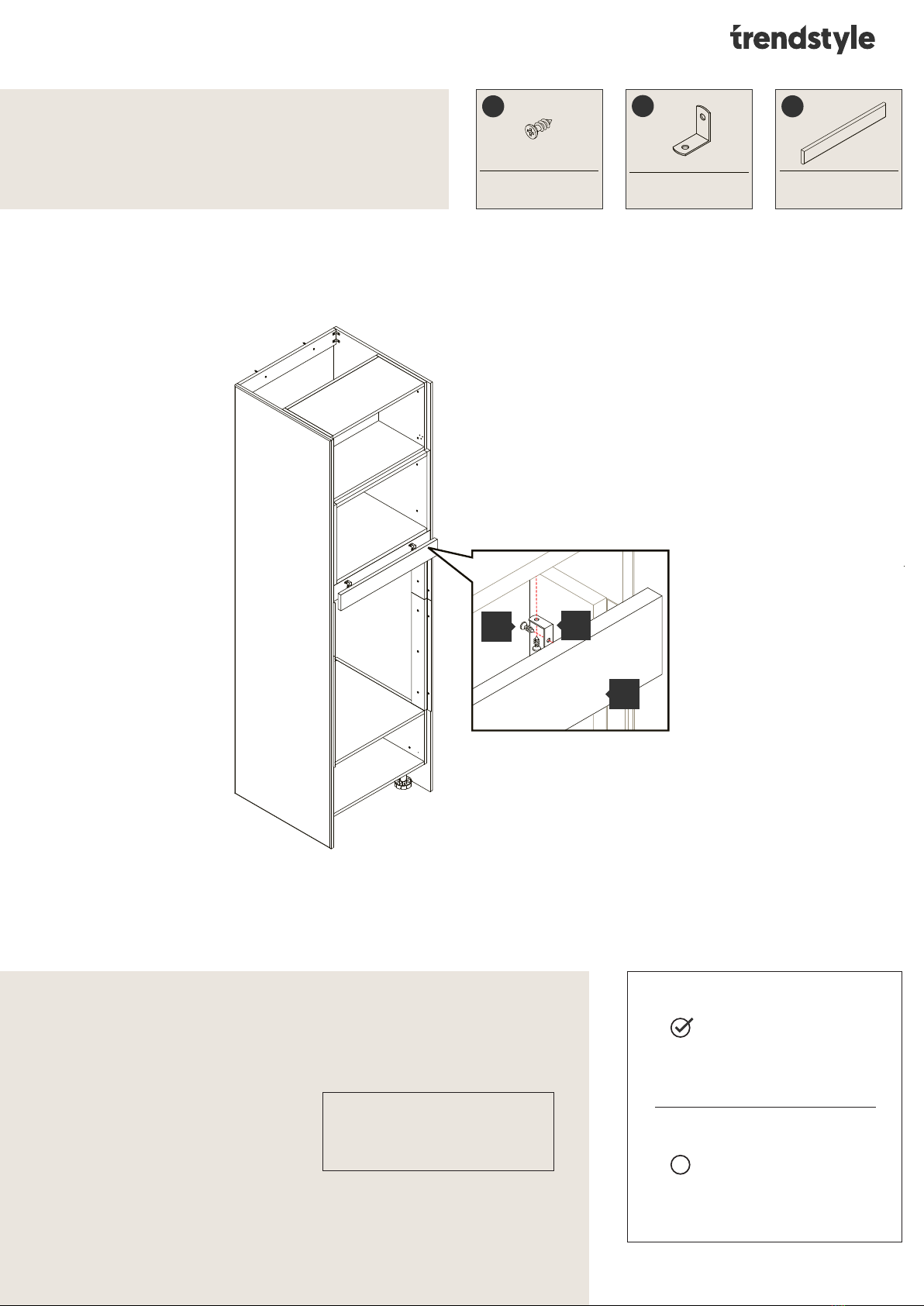

Joining cabinets
Step 1
What you will need
B
H
C
Step 1
Your Trendstyle cabinet
is now complete.
Step 2
Then follow the instructions to
fit your door and panels.
Your new Trendstyle cabinets are made from quality
products in order to last you for many years, as long as
the right care and maintenance is undertaken.
When cleaning your cabinets, ensure you use a
non-abrasive cleaner, do not use materials like
steel-wool or abrasive items that can scratch and
damage your cupboards. Avoid harsh chemicals or
thinner based products as these will damage the
melamine surfaces. While our Trendstyle cabinets are
water resistant, they are not water proof, so ensure
your cleaning cloths are only damp and not saturated.
If large spills of water occur, ensure these are attend-
ed to immediately.
We offer a dedicated customer service line for
advice or any questions you may have on
Trendstyle products.
Caring for your cabinets
[phone]
[email protected]
Call customer service on
C
90° angle
bracket x 6
B
14mm
wood screws x 20
H
600mm
front panel x 1
