SERVICE TECHNICIAN’S
TROUBLE SHOOTING GUIDE
FOR THE TRIANGLE TUBE
INDIRECT FIRED WATER HEATER
2006-14 TTPTSG-4/06

Indicates a potentiall hazardous situation, if ignored, can result in death, serious injur or sub-
stantial propert damage.
Indicates special instructions on installation, operation or maintenance, which are important to the equip-
ment/product, but not related to personal injur hazards.
This guide is to be used in conjunction with the TR/Smart Installation and Maintenance manual.
Procedures and servicing listed in this manual must be performed b a qualified service technician,
installer, service agenc or gas supplier. An procedures or service performed b an unqualified
individual or service agenc can result in severe personal injur , death or substantial propert
damage.
WARNING
NOTICE
WARNING

Triangle Tube Service Technician’s Trouble Shooting Guide
This guide is to be used in conjunction with all Triangle Tube Indirect Fired Water Heaters (TR eries,
MART eries & HL eries) Technical pecifications Installation and Maintenance Guide.
Good Trouble Shooting Practices
Before leaving for the job site:
• Check your parts and tools.
- Test equipment and tools that you will need:
Electrical meter that can measure voltage and continuity.
Pressure gauge, Watts #276H300 Test Gauge.
Temperature gauge
Bucket, 1 gallon or larger with volume markings.
topwatch
- Parts to solve most problems:
Thermostat (Aquastat) Kit P3KITTH01
O-Ring Kit P3KITT0R01
• Know the water heater model number.
• Know boiler manufacturer and model number.
• Review all appropriate manuals before leaving for the job site.
At the job site:
• Clarify the problem.
• Have this manual and any boiler manuals and/or wiring and piping schematic readily available
• Turn to page 2 -- read carefully and follow instructions step by step.
Remember !!
Follow the Troubleshooting Guide step by step, always double checking your results. kipping steps or not
completing steps can lead to wrong conclusions, repeated visits to the job site, unhappy customers and unnec-
essary warranty claims.
Introduction
1

Index
2
Insufficient
Hot Water
Excessive Domestic
Water Temperature
Boiler Relief Valve
Lifting or Weeping
Temperature/Pressure
Relief Valve Lifting
or Weeping
Water Found on the
Floor Near the Tank
Top of Tank/
Insulation Wet
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Water Qualit
Problems
No
Yes
Insuffici nt Hot Wat r - page 3
- Undersized water heater
- Boiler system improperly sized
- Check component parts
- Boiler operating temperature
- Location of flow control devices
- Air in system
- Clean boiler system
Exc ssiv Wat r T mp ratur - page 6
- Reduce taking
 - Lowering boiler operating temperature
 - Relocating T-stat bulb
 - Reverse boiler piping
- Install thermostatic mixing valve
- Recirculation loop
T&P R li f Valv Lifting or W ping - page 8
- Undersized or missing domestic
side expansion tank
- Faulty domestic expansion tank
- Faulty T&P relief valve
- High domestic supply pressure
- Possible water hammering or pressure spikes
- Boiler operating temperature
Wat r on th Floor - page 9
- From sources other than the water heater
- T&P valve lifting and discharging
- Loose piping connections
Top of Tank / Insulation W t - page 10
- From sources other than the water heater
- Loose piping connections
- Leakage from the drywell
Wat r Sm lls / Tast Bad - page 11
- Water smells like "rotten eggs"
- Milky water
- Rusty discolored water
Boil r R li f Valv Lifting or W ping - page 7
- Undersized boiler expansion tank
- Faulty boiler expansion tank
 - imulate maximum expansion
- Faulty boiler relief valve
- Faulty boiler fill valve
- Inner tank leak
Situation Corrective Action Section

Is the water heater undersized for the application
- There are many methods of sizing various applications, i.e. A HRAE sizing tables, or A PE domes-
tic water heating design manual, re-confirm the water demand required for the application.
- Re-confirm the flow rates of the fixtures. Was the tank sized for shower heads at 2.0 gpm, when the
actual heads are 5.0 gpm? Use a bucket and a stopwatch to determine fixture flow rates.
- Evaluate the hot water usage pattern for a day. Is the peak demand unusually high for the application?
- Has the demand for domestic hot water changed since the system was installed? A bathroom remod-
eling project with a newly installed whirlpool tub will drastically change the domestic water demand.
Is the boiler s stem properl sized

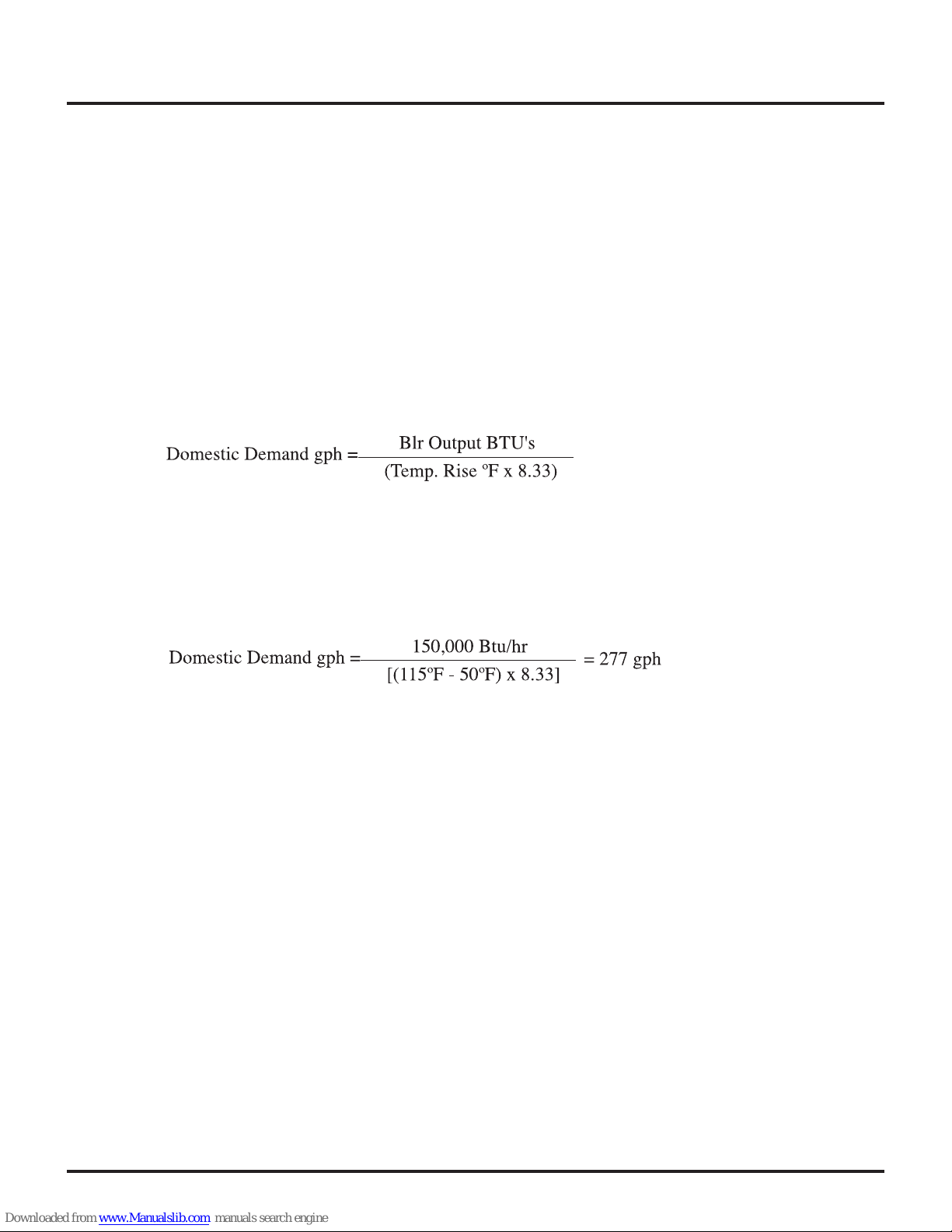

- Is the boiler providing the required output of BTU’s to meet the domestic water load?
Temp Rise ºF = Desired Temp.ºF - Incoming Temp.ºF
8.33 = Density of Water lbs/gal. x 1 Btu/lbs ºF
Example: A single family home with a 3.0 gpm shower fixture and a 150,000 Btu/hr output boil-
er capacity. Is the boiler capacity adequate to deliver 115ºF water for an extended period?
The boiler capacity is capable of delivering 4.6 gpm continuously which is adequate for this appli-
cation.
Action Item:
- Measure the BTU input to the boiler by clocking the gas meter or finding the oil flow rate
based on nozzle size and pump pressure.
- Does the hot water system need to be wired for domestic priority? For systems in which either the
storage or BTU’s available are marginal it is recommended to wire the domestic water heater in a pri-
ority manner.
- Is the boiler piping to the water heater properly sized to allow the required flow rate for maximum
BTU transfer? The temperature differential of the boiler supply and return water should be 20ºF to
30ºF.
Insufficient Hot Water
3
!"#$%&'( #")*+(,-.(/ 012(34%-4%(0567$
85#"-9(:&$#(;<(=(>9??@
!"#$%&'( #")*+(,-.(/ ABCDCCC(0%4E.2
!""#$%&'&#($%)&*&+,--. /&011&234
56789:;<&587=>?&234&/ @AB&CD:3D:&@EFG9
!E873,&H;98&$%&*&+,--)
56789:;<&587=>?&234&/ "#(I(((&@:DJ4B
!""#$%&'&#($%)&*&+,--. /&011&234

- Is the circulator between the boiler and the water heater properly sized to provide adequate flow for
maximum BTU transfer?
Check component parts
- Is the domestic water thermostat functioning properly? With a electrical voltmeter check for conti-
nuity between terminals C and 1 on the snap-set connection.
Action Item:
1. Disconnect the snap-set connector on the Triangle Tube water heater.
2. Turn the thermostat knob to the highest setting - clockwise to initiate a call for heat.
3. Check for continuity between terminals C and 1 (end connectors on the snap-set). On a call
for heat, these contacts should be in the close position.
4. Continue checking for continuity while turning the thermostat knob to the lowest setting -
counter clockwise to satisfy the call for heat. The contacts should open, breaking the conti-
nuity.
5. If any of these steps fail, replace the thermostat.
6. Reconnect the snap-set.
- Is the thermostat setting too low? If the thermostat setting is too low the boiler may not have the
opportunity to deliver the maximum BTU’s required to completely heat the entire volume of water
stored in the tank.
- During a call for heat by the water heater, does the boiler circulator begin pumping, does the zone
valve open, does the boiler fire? Check every component in the system to ensure they are properly
functioning.
- Check the thermostat sensing bulb size and fit into the drywell. ome older units have a sensing bulb
that is thinner and fits loose inside the drywell. The newer thermostats have a larger bulb which fits
tighter in the drywell allowing better heat transfer for more accurate water temperature sensing.
Action Item:
- If the sensing bulb does not slide into the drywell; remove burrs from top 1 1/2” inside the dry-
well with a 3/8” drill.
Insufficient Hot Water
4
Pipe Size Flow Rate BTU's Transfer
3/4" 3 to 7 gpm 50 to 100 MBH
1" 8 to 15 gpm 100 to 180 MBH
1 1/4" 12 to 25 gpm 160 to 300 MBH
1 1/2" 18 to 35 gpm 200 to 450 MBH
2" 30 to 55 gpm 300 to 650 MBH

- What is the location of the thermostat bulb? A bulb inserted completely at the bottom of the drywell
will initiate a quicker response for a call for heat. This is typically the position of the bulb required
for applications in which there are large draws of domestic water.
- Remove and examine the dip tube located in the cold water inlet. Replace if damaged. A broken or
melted dip tube will cause the cold water to discharge across the top of the tank, thus short cycling the
water heater.
Check the operating temperature of the boiler
- If possible increase the boiler operating temperature to 180ºF or 200ºF.
- Maintain a minimal temperature in the boiler during non-heating seasons. A boiler typically has a
higher standby loss than the indirect water heater. After a long standby period the colder boiler may
absorb the stored energy within the water heater during the initial call for heat.
Check location of flow control devices
- Lab tests have shown that during long standby periods the boiler piping can act as a thermal siphon
and draw stored heat from the domestic water. Locate flow control devices (zone valve, spring check
valves...) or heat trap loops in the boiler piping close to the water heater. Insulate all boiler piping to
and from the water heater.
Check for air in the s stem
- An air bound water heater or boiler will not circulate system water properly, resulting in a lack of heat
transfer.
Clean the boiler s stem
- A dirty boiler system can cause deposits to form on the outer wall of the inner tank, which insulates
the tank, affecting the heat transfer. Clean the boiler system per the boiler’s manufacturer’s instruc-
tions.
Action Item:
- Install a strainer in the boiler piping on older installations or for systems prone to becoming
dirty.
Insufficient Hot Water
5

Excessive water temperature is usually the result of stacking within the water heater. tacking is the occur-
rence of various water temperatures layering within the water heater with the hottest water in the uppermost
layer. This layering or stacking effect typically occurs during small draws of hot water (typically less than
25% of the storage capacity) which are long enough to create a call for heat on the thermostat, but are short
enough not to deplete the stored energy within the tank. Excessive stacking can occur when frequent short to
moderate draws are taken in quick succession. During this type of situation, the temperature of the domestic
water can approach the temperature of the boiler water.
REMEMBER: All water heaters (direct and indirect) will stack.
Reducing stacking within the tank
- Reduce the boiler operating temperature to 160ºF - 170ºF. This will limit the maximum domestic out-
let water temperature during high stacking water usage.
- Raise the thermostat sensing bulb higher in the drywell. This will reduce the frequency of thermostat
calls for heat during small draws of hot water. However, it will reduce the quantity of available hot
water during a deep draw by delaying the call for heat to the boiler.
- Reverse the boiler side piping. The older installations may have the boiler supply at the top of the
water heater and return at the bottom. Reversing the piping, supply at the bottom and return at the top
will:
a) Result in lower tank stacking by having the hottest boiler water closer to the cooler incoming
domestic water.
b) Reduce the effect of “thermal overshoot” after the thermostat call for heat has been satisfied.
c) Provide a more uniform hot water delivery temperature during moderate to deep draws (25% to
100% of the tank’s storage capacity).
Reversing the boiler piping will not affect the performance of the water heater.
Install thermostatic mixing valve
- Installation of a thermostatic mixing valve will provide an uniform delivery temperature with mini-
mal regard to water usage.
Recirculation Loop
- Installation of a properly sized recirculation loop not only provides prompt delivery of hot water, but
it provides circulation and mixing of the water within the tank.
Excessive Water Temperature
6

Is the expansion tank on the boiler side properl sized?
- The additional quantity of boiler water contained in the outer tank must be considered when sizing the
boiler side expansion tank.
- Insufficient allowance for expansion on the boiler side can cause the boiler pressure relief valve to lift.
Is the expansion tank defective, water logged or improperl charged?
- Check for failed gaskets or bladders, or a faulty chraeder valve.
- Use a tire gauge to check the charged pressure of the tank
Action Item:
- Increase the boiler operating temperature and let the system run at the higher temperature.
This will simulate maximum expansion in the boiler system.
- If the boiler relief valve lifts and/or there is a significant increase in the boiler system pressure,
the expansion tank is flooded or undersized.
Is the boiler pressure relief valve functioning properl ?
- Dirt and water deposits can accumulate under the valve seat.
Check the boiler automatic fill valve for defects.
- Is the valve filling to the correct pressure?
Check for possible inner tank leak
- If possible, isolate the Triangle Tube tank from the boiler system for an extended period of time.
Observe the boiler system pressure during that time.
Boiler Relief Valve Lifting or Weeping
7
Boiler Side
Model Capacit gal.
TR-20 8
TR-30 9
TR-36 12
TR-45 8
TR-60 8
TR-75 15
TR-120 30
MART 20 / HL-20 5
MART 30 / HL-30 5
MART 40 / HL-36 6
MART 50 / HL-45 8
MART 60 / HL-60 8
MART 80 14
MART 100 25
MART 120 43

Is there a thermal expansion tank installed on the domestic suppl piping and is it properl sized?
- A thermal expansion tank is required if the domestic supply piping includes a backflow preventer or
pressure reducing valve.
- Ensure the potable water expansion tank is properly sized according to the water heater volume and
supply pressure.
- During long periods when there is no draws from the tank (i.e. overnight), the T&P relief valve may
lift or weep due to thermal expansion, but may function properly during normal periods of tank draws.
Is the expansion tank defective, water logged or improperl charged?
- Check for failed gaskets or bladders, or a faulty chraeder valve.
- Use a tire gauge to check the charged pressure of the tank
Is the temperature/pressure relief valve functioning properl ?
- Dirt and water deposits can accumulate under the valve seat.
Check the domestic suppl pressure entering the water heater.
- If the pressure is over 70 psi it is recommended to install a pressure reducing valve. This will prevent
any pressure spikes or increases in pressure due to thermal expansion which may cause the T&P valve
to lift or weep.
Check the domestic s stem for possible sources of water hammering or pressure spikes.
- ome appliances such as clothes washers and dishwashers utilize fast acting valves which may cause
water hammering or pressure spikes through the domestic water system.
Action Item:
- Install water hammer arrestors as required per the manufacturer’s instructions, or install flex-
ible connectors to isolate the tank from the domestic system.
Check the operating temperature of the boiler
- If the boiler operating temperature is excessive, 200ºF or higher, stacking can occur in the inner tank
raising the domestic water temperature close to the boiler operating temperature.
Action Item:
- Reduce the boiler operating temperature to 180ºF.
Temperature/Pressure Relief Valve Lifting or Weeping
8

Is the source of the water from the tank?
- Check for possible water seepage through foundation cracks. Did the water appear after a heavy rain?
Is the source of water from the T&P relief valve?
- Place a bucket under the discharge piping of the T&P relief valve and monitor it for a day or two. This
is a procedure that can be done by the homeowner.
- If the T&P relief valve is the source, refer to the T&P Relief Valve section of this guide.
Check all connections - boiler connections, domestic connections....
- Check all the boiler connections to the water heater. A build-up of corrosion is a sure sign of a leak.
- Check the domestic connections. Look at the welds where the spuds enter into the outer tank.
Excessive water hammering in the domestic system may crack these welds.
- Check the seal around the air vent and drywell for leaks. Remove the drywell and check the O-ring
gasket (if applicable) beneath it.
Action Item:
- To replace the drywell O-ring (if applicable) use the O-Ring Replacement Kit (P/N
P3KITOR01). When re-installing the drywell with a rubber O-Ring gasket do not over tight-
en and crush or tear the O-ring.
- Apply sealant (i.e. Leaklok or Loctite) completely around threads in all applications.
Water on the loor
9

Is the source of the water from the tank?
- Check for possible overhead pipes leaking onto the tank
Check all connections - domestic connections, air vent....
- Check the connections to the water heater. Are they loose? A build-up of corrosion around joints is
a sure sign of a leak.
- Check the domestic connections. Look at the welds where the spuds enter into the outer tank.
Excessive water hammering in the domestic system may crack these welds.
- Check the seal around the air vent and drywell for leaks. Remove the drywell and check the O-ring
gasket (if applicable) beneath it.
- Remove the thermostat sensing bulb from the drywell. Is the bulb wet or is water visible at the top of
the drywell? If so, replace the entire drywell.
Action Item:
- To replace the drywell O-ring (if applicable) use the O-Ring Replacement Kit (P/N
P3KITOR01). When re-installing the drywell with a rubber O-Ring gasket do not over tight-
en and crush or tear the O-ring.
- Apply sealant (i.e. Leaklok or Loctite) completely around threads in all applications.
Top of Tank / Insulation Wet
10

The hot water smells like “rotten eggs”
The most common cause of water to smell like “rotten eggs” is a non-toxic sulfate reducing bacteria. The
bacteria usually enters into the water system through a break in the supply piping or during construction/main-
tenance of the supply piping. The bacteria survives in the water system by converting sulfate ( O4) in the
water to hydrogen sulfide (H2 ) gas. It is this gas that creates the “rotten egg” smell. The presence of hydro-
gen sulfide can also affect the taste of the water as well. Along with the stench caused by this bacteria, black
deposit which typically indicate pipe and/or fitting corrosion may also appear in the water.
In extremel high concentrations, h drogen sulfide gas can be toxic. However, the gas is detectable
prior to reaching harmful levels.
The bacteria will thrive in any water system under the following conditions:
• High levels of sulfur in the water
• Activated hydrogen in the water from cathodic reactions within the tank
• Water with little or no dissolved oxygen
• toring the domestic water below 140ºF
Other causes of smelly water:
• Chlorides of magnesium and calcium gives water a bitter taste
• Chloride of sodium will produce a salty tasting water
• ulfates above 50 ppm in the water gives the water a medicinal taste.
• Carbon dioxide in water with a low pH results in water that is fizzy.
• Iron and tannic waters will produce water with a bad taste and odor.
Action Item:
- The treatment of this situation requires the water system to be shock-chlorinated. Depending
on the severity of the bacteria within the water system, several treatments may be needed.
WARNING
Water Smells /Tastes Bad
11

Hot water from the faucet appears milk
When water is initially drawn from the faucet it appears to be milky or cloudy, but it becomes clear after the
water is allow to stand for several minutes. This is usually an indication that the water contains high levels
of soluble gases such as oxygen, chlorine, carbon dioxide, hydrogen sulfide or others.
As the water system pressure increases, the amount of gas that water can hold in a solution decreases. When
air and gases are forced out of the heated water, the problem may be evident in one or both of the following
conditions:
• Gases, in the form of small bubbles, may make the water appear milky from the tap, but clear after
several minutes when those bubbles will separate. imilar to the reaction that occurs as air bubbles
form on the walls of a pan shortly before the water begins to boil.
• The release of dissolved gas can also create air pockets and air locks in the water system piping. This
can cause spurts of air or gases when opening the hot water faucet.
There is generally no cure for milky water cause by dissolve gases, although it can be reduced with aerated
faucets. In some applications the amount of air and gases precipitating out of the water will reduced in time.
It should be noted that these gases are not harmful to the end user.
Water Smells / Tastes Bad
12

Discolored water from the hot water faucet
The water from the hot water faucet appears discolored, either rusty, brown, black or yellow. Because the
inner tank is stainless steel, which by its nature is resistant to corrosion, the problem is not tank related. The
problem is usually a non-toxic iron reducing bacteria that is commonly found in soil, well water, water treat-
ment plants and piping systems. The bacteria usually thrives in those systems in which the soluble iron
exceeds 0.2 ppm. The bacteria will feed on the soluble iron in the water producing “rusty” color water as a
by-product of the feeding process.
Variables in which the bacteria can thrive in:
• Elevated levels of iron and manganese in the water
• Water with little or no dissolved oxygen
• Water storage temperatures below 140ºF
Items that can potentially increase the presence of the bacteria:
• Water softeners
• Well water
• Long periods of no water movement
Action Item:
- The treatment of this situation requires the water system to be shock-chlorinated. Depending
on the severity of the bacteria within the water system, several treatments may be needed.
Water Smells / Tastes Bad
13

Products Description
14
Domestic Hot
Water Outlet
Domestic Cold
Water Inlet
1/2" NPT
Air Vent
Drywell for Remote
ensing Bulb
Auxiliary
Connection
C
D
E
Boiler Water Return
(TR-20 thru TR-36)
Boiler Water upply
(TR-45 thru TR-120)
Boiler Water upply
(TR-20 thru TR-36)
Boiler Water Return
(TR-45 thru TR-120)
FA
B
2"
op views
Side view
Domestic Hot
Water Outlet
Domestic Cold
Water Inlet
1/2" NPT
Air Vent
Drywell for Remote
ensing Bulb
Auxiliary
Connection
C
D
E
4 1/8"
4 1/8"
TR-20/30/36/80/100/120
TR-45/60
TR ERIE

15
Products Specifications
MART ERIE (1)
Specifications
22"
Cold
Water Inlet
Auxiliary
Connection
Thermostat
Cover Plate
Hot
Water Outlet
Air Vent
14 1/4"
op view SMAR -20/30/40/50/60
B
A
C
22"
Boiler
Return
Hot Water
Outlet
Cold Water
Inlet
Auxiliary
Connection
Boiler
upply
10 5/8"
Hot Water
Outlet
Cold Water
Inlet Auxiliary
Connection
Thermostat
& rywell
Air Vent
op view SMAR 80/100 Rear view SMAR 80/100
Rear view SMAR -20/30/40/50/60
B
A
C
26"
Cold Water
Inlet Hot Water
Outlet
Auxiliary
Boiler
Return
Boiler
upply

Products Specifications
16
MART ERIE (2)
Specifications
22"
Cold
Water Inlet
Auxiliary
Connection
Thermostat
Cover Plate
Hot
Water Outlet
Air Vent
14 1/4"
op view SMAR -20/30/40/50/60
B
A
C
22"
Boiler
Return
Hot Water
Outlet
Cold Water
Inlet
Auxiliary
Connection
Boiler
Supply
10 5/8"
Hot Water
Outlet
Cold Water
Inlet Auxiliary
Connection
Thermostat
& rywell
Air Vent
op view SMAR 80/100 Rear view SMAR 80/100
Rear view SMAR -20/30/40/50/60
B
A
C
26"
Cold Water
Inlet Hot Water
Outlet
Auxiliary
Boiler
Return
Boiler
upply

Products Specifications
17
Specifications
16"
22"
45º
7" 7"
12"
Domestic Cold
Water Inlet
Auxiliary
Connection
Domestic Hot
Water Outlet 1/2" NPT
Manual air vent
Drywell for remote
ensing Bulb
op view HL-20/30/36/45/60
C
2"
B
A
20"
Boiler Water
Return
Boiler Water
upply
Side view HL-20/30/36/45/60
C
2"
A
B
28"
Boiler Water
Return
Boiler Water
upply
5" 5"
Domestic Cold
Water Inlet
Auxiliary
Connection
Domestic Hot
Water Outlet 1/2" NPT
Manual air vent
Drywell for remote
ensing Bulb
op view HL-80
Side view HL-80
HL ERIE
