Tribit BTS11 User manual

Hereby, Thousandshores Deutschland GmbH declares that the radio equipment
type Portable Wireless Speaker BTS11 is in compliance with Directive2014/53/EU.
The full text of the EU declaration conformity is available at the following internet
address: http://files.tribit.com/bts11-eu-doc.pdf
Hiermit erklärt Thousandshores Deutschland GmbH, dass der Funkanlagentyp
Portable Wireless Speaker BTS11 der Richtlinie2014/53/EU entspricht.
Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden
Internetadresse verfügbar: http://files.tribit.com/bts11-de-doc.pdf
Learn more about the UK Declaration of Conformity, Please click below link to
download. http://files.tribit.com/bts11-uk-doc.pdf
A

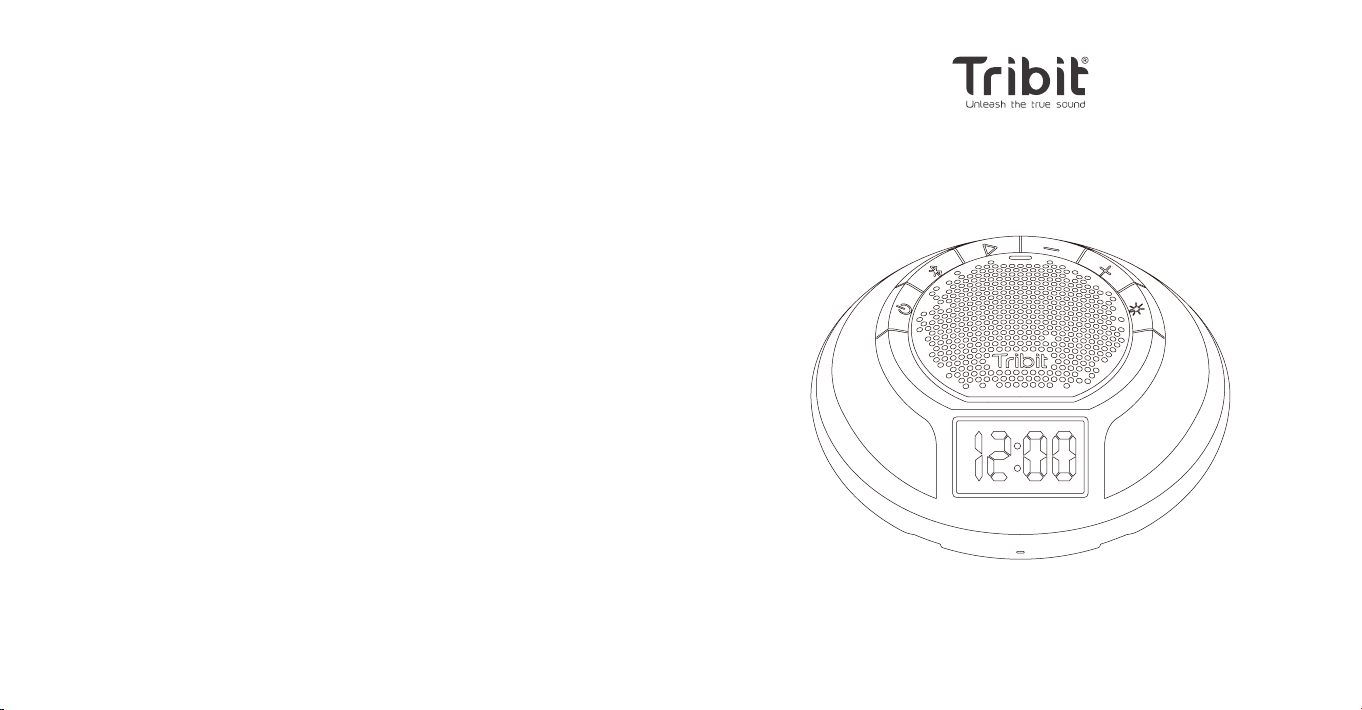

Portable Wireless Speaker
Tribit AquaEase
BTS11
English User Manual | Benutzerhandbuch | Guide Utilisateur
Manual de Usuario | Manuale Utente | 取扱説明書 | 说明书

EN EN
1 2
Package Contents
Tribit AquaEase
USB-C Cable
User Manual
Product Illustration
Volume +
MFB
Lighting Button
USB-C Charging Port
Volume -
Power Button
Time Display
Micro SD Card Slot
Status Indicator Light
Mic
RGB LightRGB Light
Bluetooth Button
Tribit AquaEase
BTS11
Tips：Support micro SD card up to 32G, support file system format FAT32.

EN EN
3 4
How to Charge the Speaker
Connect the other end of charging cable to a charging adapter and connect the
charging cable to the USB-C charging port on the Bluetooth speaker.
Note:
During charging, the indicator light is always on in red.
When the speaker is fully charged, the red indicator light goes off.
When using in wet or watery environment, please plug the silicone plug
tightly to avoid water in the charging port.
Button Control
1. On/Off
Press Turn on
•The status indicator light is always
on in blue.
•When the battery is low, the
status indicator will flash in red.
•During charging, the indicator is
always on in red.
•When the speaker is fully charged,
the red indicator light goes off.
Press Turn off All lights are off and the display
goes off.
Press and
hold for 8s
Forced
shutdown
All lights are off and the display
goes off.
Note: If the Tribit AquaEase Speaker is unable to be powered off due to unknown
reasons, you can forcibly turn it off by pressing and holding the power button for
8 seconds and then the speaker will re-start automatically.
Power Button
Status Indicator Light

EN EN
5 6
2. Bluetooth Connection 3. Multifunctional Button (MFB)
Device A Device B
Press and hold the
Bluetooth button for 1s
The speaker will automatically enter
into Bluetooth pairing mode.
The blue indicator light
will flash rapidly.
Press twice Micro SD card playback mode White light is always on
Music Mode
Press once Play / Pause
Press twice Next track
Press three times Previous track
Press and hold for 1 second Activate voice assistant
Phone
Conversation
Press Answer / end a call
Press and hold for 1 second Reject a call
Press and hold for 1 second
(during a call)
Pause the current call and
answer an incoming call
Press (during a three-way calling) Switch between the 2 calls.
Press and hold for 1 second
(during a three-way calling)
End the call with the caller
not in the line.
MFB
Tribit AquaEase:
•Automatically re-connects to the last paired device.
•Connects 2 bluetooth devices at the same time.
•Memories 8 bluetooth devices.
Note: When 2 devices are connected to the Tribit AquaEase speaker, device A
and device B cannot play simultaneously---only one speaker at a time.
Tribit AuaRun Tribit AuaRun
Status Indicator Light
Bluetooth Button

EN EN
7 8
4. Volume
Press Increase the volume
Press and hold Continuously increase the volume
Press Decrease the volume
Press and hold Continuously decrease the volume
Volume +
Volume -
5. Time setting
Press and hold for
5 second Enter time settings
Press Confirm settings
Press Time mode switching
Volume +
Volume -MFB

EN EN
9 10
7. Stereo Mode
①Make sure speaker A and speaker B are both are turned on.
②Press and hold the Bluetooth button on speaker A for 5 seconds to enter the
stereo pairing mode. ( Speaker A is the primary speaker.)
③Press and hold the Bluetooth button on speaker B for 1 seconds to enter the
stereo pairing mode. (Note: If this speaker is already in pairing mode, there is
no need to perform this operation)
④When you hear the prompt, “Stereo Mode”, the stereo pairing is successful.
When entering the Stereo Mode, the primary speaker reads, “left Channel” and
the secondary speaker reads, “Right Channel”.
Note: Stereo mode is only available when there are 2 Tribit AquaEase speakers.
And make sure the firmware of both speakers have been upgraded to the
latest version through the APP.
Tribit AuaRun
>1S
①
③
>5S
①
②
Speaker A Speaker B
6. Ambient Light
Press Switch / Turn off the light effect.
Lighting Button
RGB Light

EN EN
11 12
Specifications
Bluetooth Version V5.3
Bluetooth Protocol A2DP, AVRCP, HFP, HSP
Output Power 5W
Frequency Response 100~16KHz
Frequency Band 2402-2480MHz
Maximum Transmission Power ≤6dBm
Battery 3.7V, 2200mAh, 8.14Wh
Charging Time 3 hours @ DC 5V/1A
Waterproof Rating IPX7
Size 109.6 * 109.6 * 48.2mm
Weight 260g
8. Reset
If malfunction occurs, you can try to reset the speaker ( press and hold the
volume + button and volume - button at the same time for 5 seconds ) to remedy
issues. Once reset, all the old data has been wiped, and you need to pair the
speaker to your Bluetooth device anew.
>5S

EN EN
13 14
FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions (1)this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Customer Service
• An 12-month Warranty
• For more services and information, please Email to [email protected].
Safety Precautions
•Do not place the speaker in a place where it is easy to fall.
•IPX7 is tested under strictly controlled laboratory conditions. Water resistance
may diminish over time under daily use. To prevent damage to the product
from liquids, do not immerse the product in water.
•Do not disassemble, repair or modify this product by yourself.
•Keep the speaker away from extreme temperatures.
•Do not use the speaker in an outdoor thunderstorm environment.
•Do not use any corrosive cleaners or other chemical solutions to clean the
speaker.
