Tributaries AC300 User manual

www.tributariescable.com
AC300
Coaxial / Toslink Audio Converter with Dolby®Decoder
AC300_MANUAL.indd 1 8/16/13 2:27 PM

AC300
1. Introduction
Tributaries AC300 is an Optical to Analog Audio Converter (DAC)
with Dolby®Digital Decoding. This unit provides the ideal solution
for converting an optical signal to analog stereo audio. With audio
sampling rate support up to 48kHz (Dolby Digital)/96kHz (LPCM) and
I/O data rate support up to 24-bit, the AC300 provides high quality
sound conversion that guarantees the Dolby digital audio signals are
down-mixed to analog stereo without loss of quality. Powered by USB
power, the AC300 is easy to install and use. It can be used with USB
equipped HDTVs, Blu-ray players, amplifiers or computers without the
need for a separate power supply.
2. Features
• Converts Dolby Digital formatted audio into stereo analog audio.
• Perfect for HDTVs with digital audio output and analog audio amplier
inputs
• Supports uncompressed digital LPCM stereo or Dolby Digital 5.1 CH
audio inputs
• Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48,
88.2 and 96 kHz)
• Supports Dolby Digital 5.1CH audio sampling rates of 48kHz
• Supports Dolby Digital audio down-mixing to 2 channel audio
• Supports S/PDIF bitstream 24-bit of data for left & right channels
• Compact design is easy to install and use
1
Coaxial / Toslink Audio Converter with Dolby®Decoder
AC300_MANUAL.indd 2 8/16/13 2:27 PM

3. Package Contents
• AC300 Audio Convertor with Dolby Decoder
• Mini-USB to USB A type cable
• 5 volt, 1 amp USB power supply
• Operation Manual
4. Operation Controls and Functions
4.1 Front Input Panel
2
Dolby LED indicator: When the source audio is encoded with
Dolby Digital the LED will illuminate.
Optical Input: Connect an optical cable from the source’s optical
output to the AC300’s Optical input.
USB 5VDC power port: Connect a Mini USB > USB A cable from
AC300 to a USB powered port.
Power LED: The LED will illuminate when connected to a power
source.
1
2
3
4
AC300_MANUAL.indd 3 8/16/13 2:27 PM

3

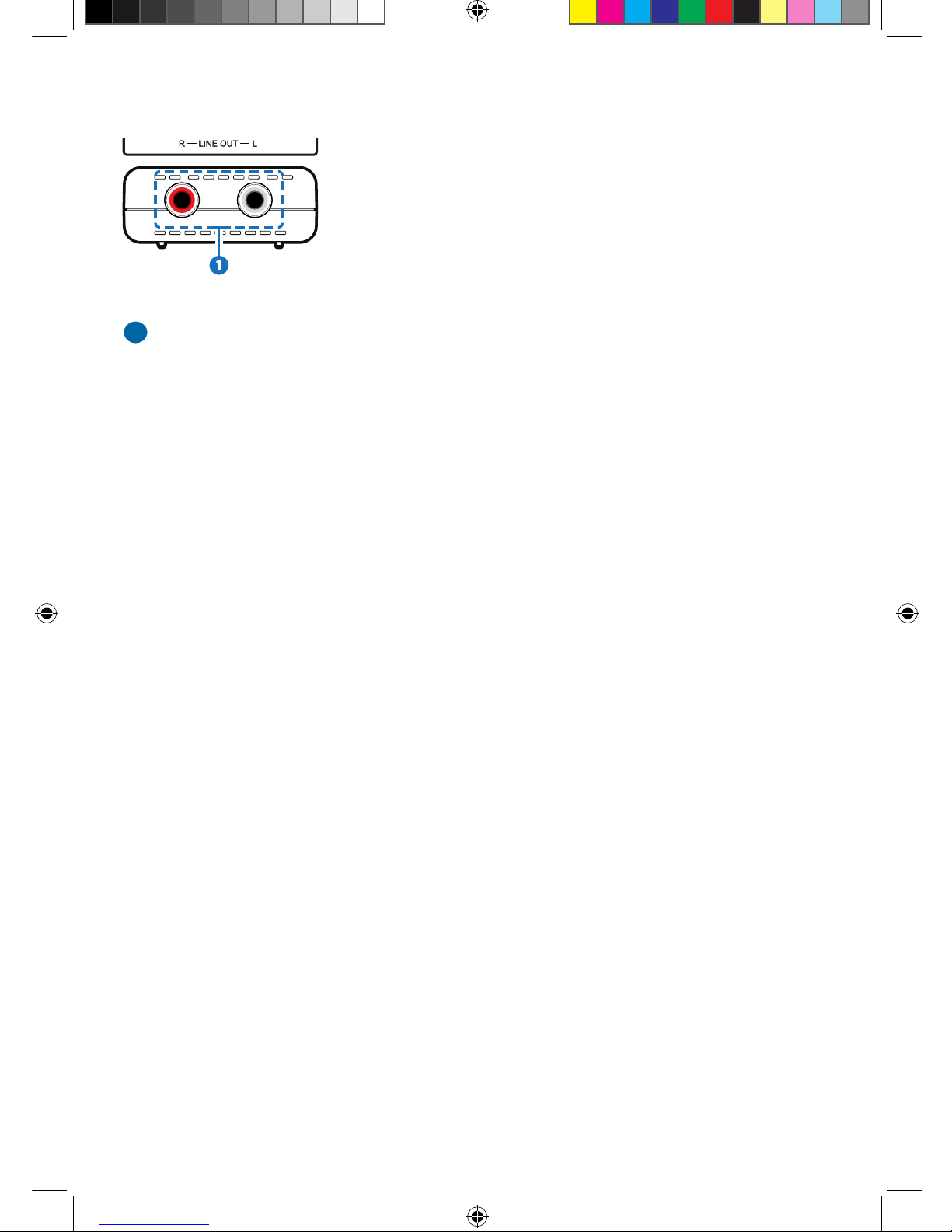

4.2 Back Output Panel
R/L Line Out: Connect the R/L analog audio output to the input of
your AV Receiver or audio system.
1
5. Specifications
Input Port 1 X Optical
Output Port 1 X L/R (RCA)
Power Supply USB power supply
Output Level 1Vrms + 10%
Total Harmonic Distortion < 0.018%
Frequency Response + 1 dB
Signal-to-Noise Ratio > 80dB
Crosstalk < -80 dB
Dimension 55mm (2 ⅛”) (W) x 82mm (3¼”) (D) x 22.5mm (¾”) (H)
Weight 46g (1⅝oz)
Operating Temperature 32°F - 104°F
Storage Temperature -4°F - 140°F
Relative Humidity 20 – 90% (non-condensing)
Power Consumption 1.8 W
AC300_MANUAL.indd 4 8/16/13 2:27 PM

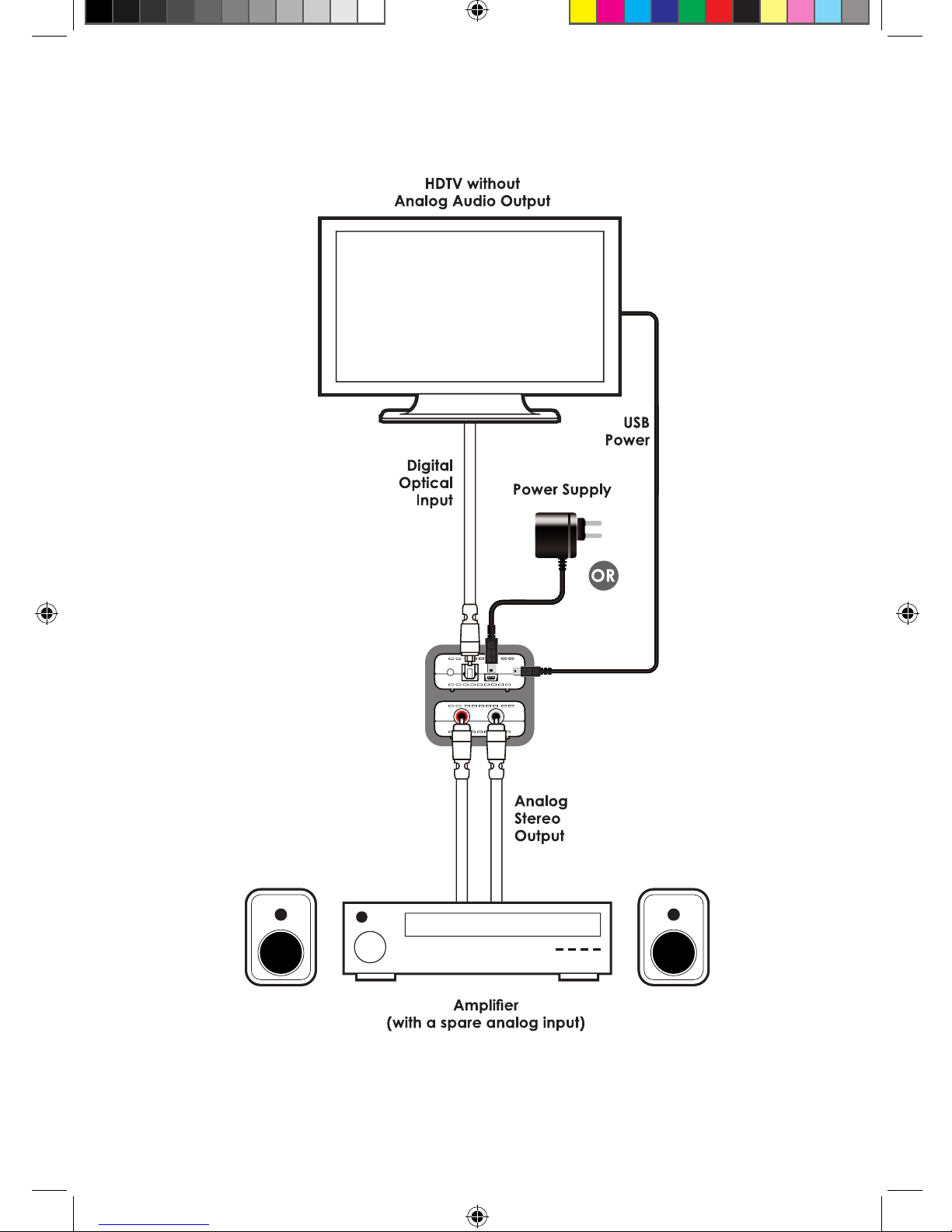

6. Connection Diagram
4
AC300_MANUAL.indd 5 8/16/13 2:27 PM

5
