OPERATING
AND
INSTALLATION
INSTRUCTIONS
MODEL NO
3000S

WARNINGS - ELECTRIC COOKERS
IT IS MOST IMPORTANT THAT THIS
INSTRUCTION BOOK SHOULD BE RETAINED
WITH THE APPLIANCE FOR FUTURE
REFERENCE. SHOULD THE APPLIANCE BE
SOLD OR TRANSFERRED TO ANOTHER
OWNER, OR SHOULD YOU MOVE HOUSE AND
LEAVE THE APPLIANCE, ALWAYS ENSURE
THAT THE BOOK IS SUPPLIED WITH THE
APPLIANCE IN ORDER THAT THE NEW OWNER
CAN BE ACQUAINTED WITH THE FUNCTIONING
OF THE APPLIANCE AND THE RELEVANT
WARNINGS. PLEASE ENSURE THAT YOU HAVE
READ THE WHOLE INSTRUCTION BOOK
BEFORE USING THE APPLIANCE AND THAT
YOU FOLLOW THE RECOMMENDATIONS GIVEN.
THESE WARNINGS ARE PROVIDED IN THE
INTERESTS OF YOUR SAFETY. YOU MUST
READ THEM CAREFULLY BEFORE INSTALLING
OR USING THE APPLIANCE.
A This appliance is designed to be operated by
adults only. Children should not be allowed to
tamper with the controls or play with or near the
product.
A Any installation work must be undertaken by a
qualified electrician. The appliance must be
installed according to the instructions supplied.
A Any electrical work required to install this
appliance should be carried out by a qualified
electrician.
Do not try to move the appliance by pulling the
door handles. Refer to installation instructions.
It is dangerous to alter the specifications or
modify the product in any way.
A This product should be serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used. Details of
servicing arrangements are supplied.
A Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunctioning. Refer to your local
Tricity Bendix Service Centre. Always insist on
approved spare parts. Details of servicing
arrangements are supplied.
A Always ensure that all control knobs are in the
‘off’ position when not in use.
A Take great care when heating fats.and oils as
they will ignite if they become too hot.
For hygiene and safety reasons this appliance
should be kept clean at all times. A build-up of
fats or other food stuffs could result in a fire.
This product has been designed for cooking
edible foodstuffs only, and must not be used for
any other purposes.
Always switch off the isolator switch at the
cooker point and allow the appliance to cool
before any maintenance or cleaning work is
carried out.
A Only clean this appliance in accordance with the
instructions given in this book.
A This appliance is heavy and care must be taken
when moving it.
A Cookers and hobs become very hot with use,
and retain their heat for a long period of time
after use. You must therefore take care when
using the appliance, supervise children at all
times and do not allow them to touch the cooker
or hob surface or be in the vicinity of the
appliance until it has cooled after use.
Ensure that all packaging, both inside and
(where applicable) outside the appliance is
removed before the appliance is used.
If you use a Saucepan which is smaller than the
heated area on the hob the handle may become
hot. Ensure that you protect you hand before
touching the handle.
Never cook directly on the hob surface without a
saucepan cooking utensil. Never place plastic or
any other material which may melt on the hob
surface or in the oven itself.
Always carefully lift saucepans on and off the
hob. This will prevent accidents caused by
spillage and will also keep cleaning to a
minimum. Similarly ensure saucepans and
cooking utensils are large enough to contain
foods and prevent spillages and boil overs.
Unstable or misshapen pans are dangerous and
should not be used on the hotplate as unstable
pans may tip or spill and cause an accident. You
must follow the recommendations for saucepans
given in this book.
Always use oven gloves to remove and replace
the grill pan handle when grilling. Do not leave
the handle in position when grilling as it will
become hot.
A Always support the grill pan when it is in the
withdrawn or partially withdrawn position.
A Always ensure that all vents (where fitted) are
left unobstructed to ensure ventilation of the
oven cavity.
Never line any part of the appliance with
aluminium foil.

> > bbb >
>
Ensure that the anti-tip oven shelves are put in
place in the correct way.
(See instructions).
Always stand back from the appliance when
opening the oven door(s) to allow any excessive
build up of steam or heat to release.
Keep feet and legs clear when opening the drop
down oven door. Do not allow it to 'fall' open -
support it using the door handle, until it is fully
open.
Take care when removing items from the oven
to avoid spillages and burns.
Do not use the trivet and the grilling grid in the
grill pan/meat tin together (where applicable).
Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
Do not stand on the appliance or on the open
oven doors.
Do not hang towels or dishcloths from the
appliance or its handles. They are a safety
hazard.
Do not use this appliance if it is in contact with
water. Similarly never operate it with wet hands.

IMPORTANT:
PLEASE READ THIS
INSTRUCTION BOOK
BEFORE USING THE

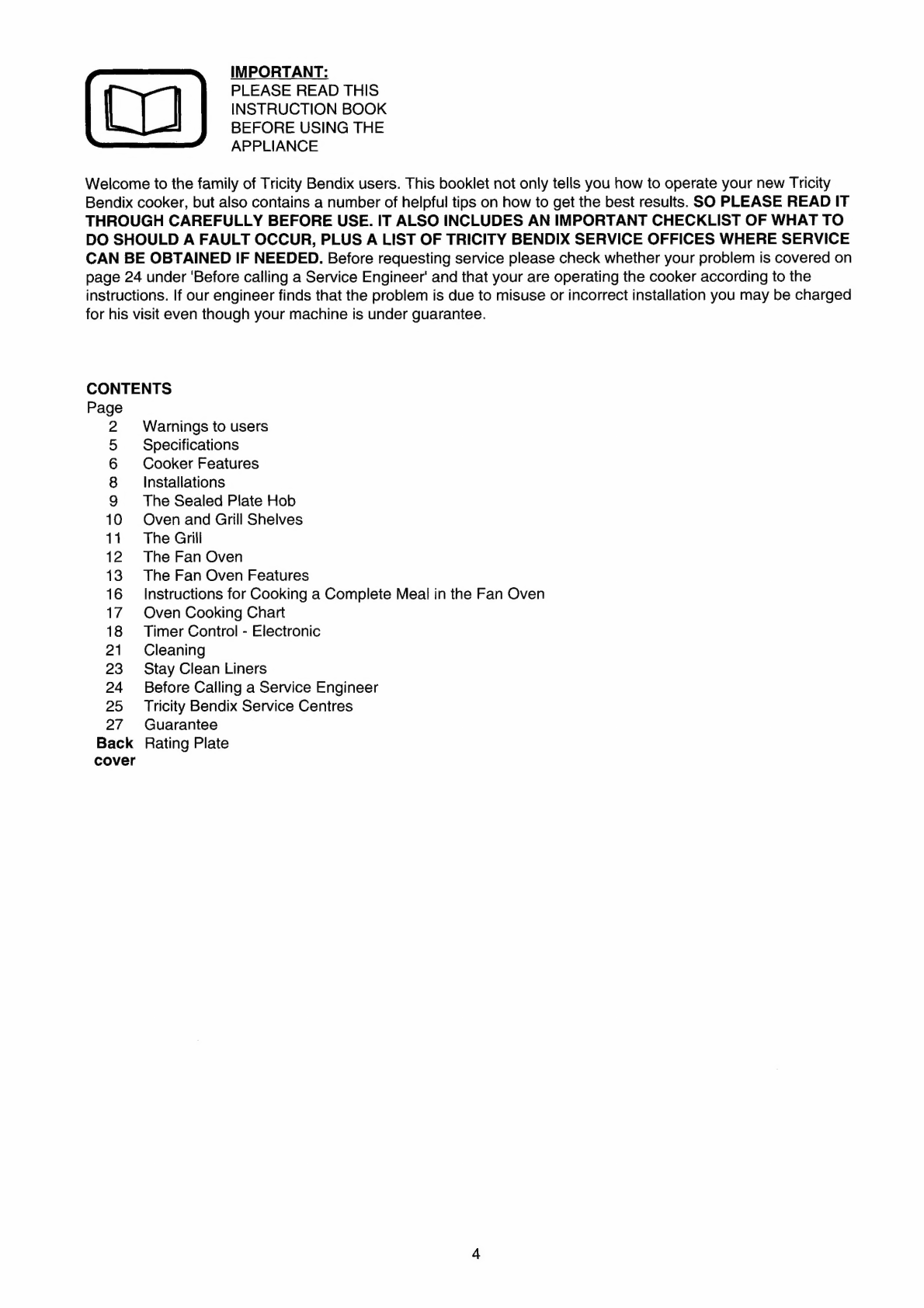

Welcome to the family of Tricity Bendix users. This booklet not only tells you how to operate your new Tricity
Bendix cooker, but also contains a number of helpful tips on how to get the best results. SO PLEASE READ IT
THROUGH CAREFULLY BEFORE USE. IT ALSO INCLUDES AN IMPORTANT CHECKLIST OF WHAT TO
DO SHOULD A FAULT OCCUR, PLUS A LIST OF TRICITY BENDIX SERVICE OFFICES WHERE SERVICE
CAN BE OBTAINED IF NEEDED. Before requesting service please check whether your problem is covered on
page 24 under ‘Before calling a Service Engineer’ and that your are operating the cooker according to the
instructions. If our engineer finds that the problem is due to misuse or incorrect installation you may be charged
APPLIANCE
for his visit even though your machine is under guarantee.
CONTENTS
Page
2 Warnings to users
5 Specifications
6 Cooker Features
8 Installations
9 The Sealed Plate Hob
10 Oven and Grill Shelves
11 The Grill
12 The Fan Oven
13 The Fan Oven Features
16 Instructions for Cooking a Complete Meal in the Fan Oven
17 Oven Cooking Chart
18 Timer Control - Electronic
21 Cleaning
23 Stay Clean Liners
24 Before Calling a Service Engineer
25 Tricity Bendix Service Centres
27 Guarantee
Back Rating Plate
cover

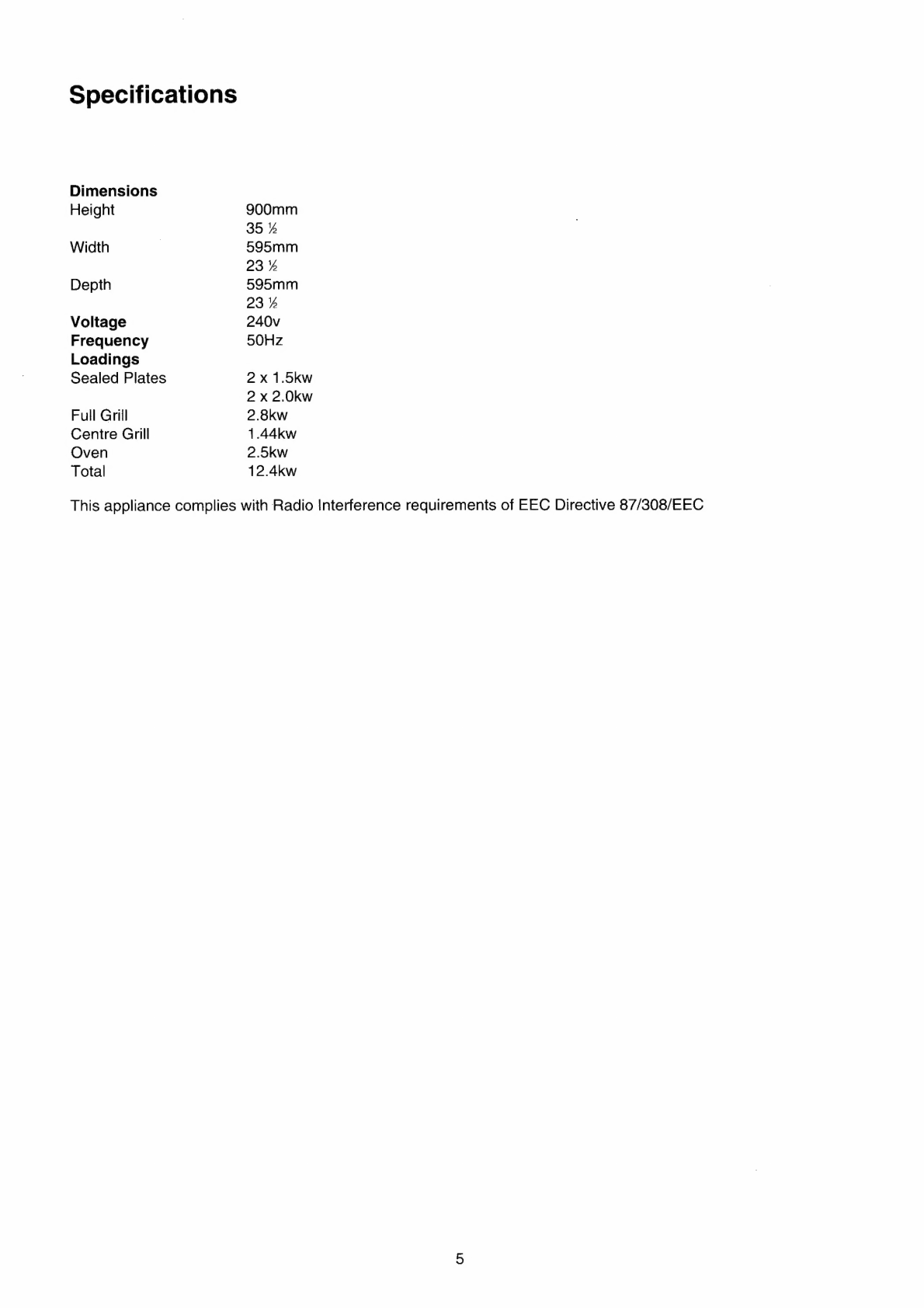

Specifications
Dimensions
Height
Width
Depth
Voltage
Frequency
Loadings
Sealed Plates
Full Grill
Centre Grill
Oven
Total
This appliance complies with Radio Interference requirements of EEC Directive 87/308/EEC
900mm
35 %
595mm
23 %
595mm
23 %
240v
50Hz
2 x 1.5kw
2 x 2.0kw
2.8kw
1.44kw
2.5kw
12.4kw

COOKER FEATURE
1 Glass hob mE
2 1500w Superfast sealed plate mE
3 2000w Superfast sealed plate
4 1500w Superfast sealed plate l | l
5 2000w Superfast sealed plate | mE MEM o
6 Ventilation slots mM
7 Control panel with control knobs for hob, grill and fan oven. l i l i
8 Timer control EE T MEM mM
9 Fan oven neon EE ZU
10 Grill deflector
11 Rapid grill elements — o M MEM
12 Grilling compartment — i MM
13 Grill pan, handle and grid NN mE
14 interchangeable shelves — B l
15 Fan oven with defrosting, thermal grilling and oven lights —
16 Drop down door MEM o mE | l 7
17 See through viewing panel HR i E
18 Adjustable feet $= — i
19 Rollers | mE | 7 |
20 Meat pan with trivet l
21 Stay clean liners in fan oven on sides, roof and back l

INSTALLATION
WARNING: THIS APPLIANCE MUST BE
EARTHED
Connection to the electricity supply must be
made by a competent electrician, using a suitable
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area
to prevent overheating and deterioration. Six square
millimetres (6.00mm ) is the recommended cross-
sectional area.
POSITIONING THE COOKER
The cooker has rollers fitted to the rear to assist
when moving the cooker. To move the cooker, open
the main oven door and raise the cooker by lifting
the inside top of the main oven. Do not move the
cooker by pulling the oven door or door handle.
This is a type Y appliance which means it is
freestanding and has adjustable feet fitted to the
front to assist in positioning the cooker and is
designed to fit between kitchen cabinets spaced
600mm (24in) apart. The space either side need
only be sufficient to allow withdrawal of the cooker
for cleaning or servicing. It can be fitted with
cabinets on one or both sides as well as in a corner
setting. It can also be situated as a free-standing
model.
Adjacent side walls which project above hob
level, should be protected by heat resistant material,
but in any case should not be nearer to the cooker
than 75mm (3in). Any overhanging surface or
cooker hood should not be nearer than 685mm
(27in) above the hob.
BEFORE USE
Record the model and serial number on the back
of this booklet.
Please ensure that any protective film and all
packaging has been removed from the cooker
before switching on.
Allow all elements to run for a short period to
burn off any residue from the surfaces of the
elements.
CONTROL KNOBS
The control knobs can be pushed in to prevent
accidental re-setting but are required to be in the
outward position (by pushing in and releasing) to
select a setting for cooking. When in use the
settings will glow through the display windows.
MANUAL CONTROL
Should the oven indicator neon not glow when
the oven control dial is turned on, it will most likely
be found that the cooker is set for automatic
cooking. To return the cooker to manual, turn the
stop/cook time knob to the manual position.
DURING USE
This cooker has passed all the approved
temperature and safety requirements. However,
when using various parts of the cooker, certain
areas may become hot.
COOLING FAN FOR THE CONTROLS
The fan may cycle on and off during any cooking
operation and is controlled by an automatic
temperature sensing device in the cooker.
AT THE END OF COOKING DO NOT
IMMEDIATELY TURN THE COOKER OFF AT THE
MAINS SUPPLY. THIS WILL ALLOW THE
COOLING FAN TO CONTINUE TO RUN UNTIL
THE INTERNAL CONTROLS IN THE APPLIANCE
HAVE COOLED DOWN.

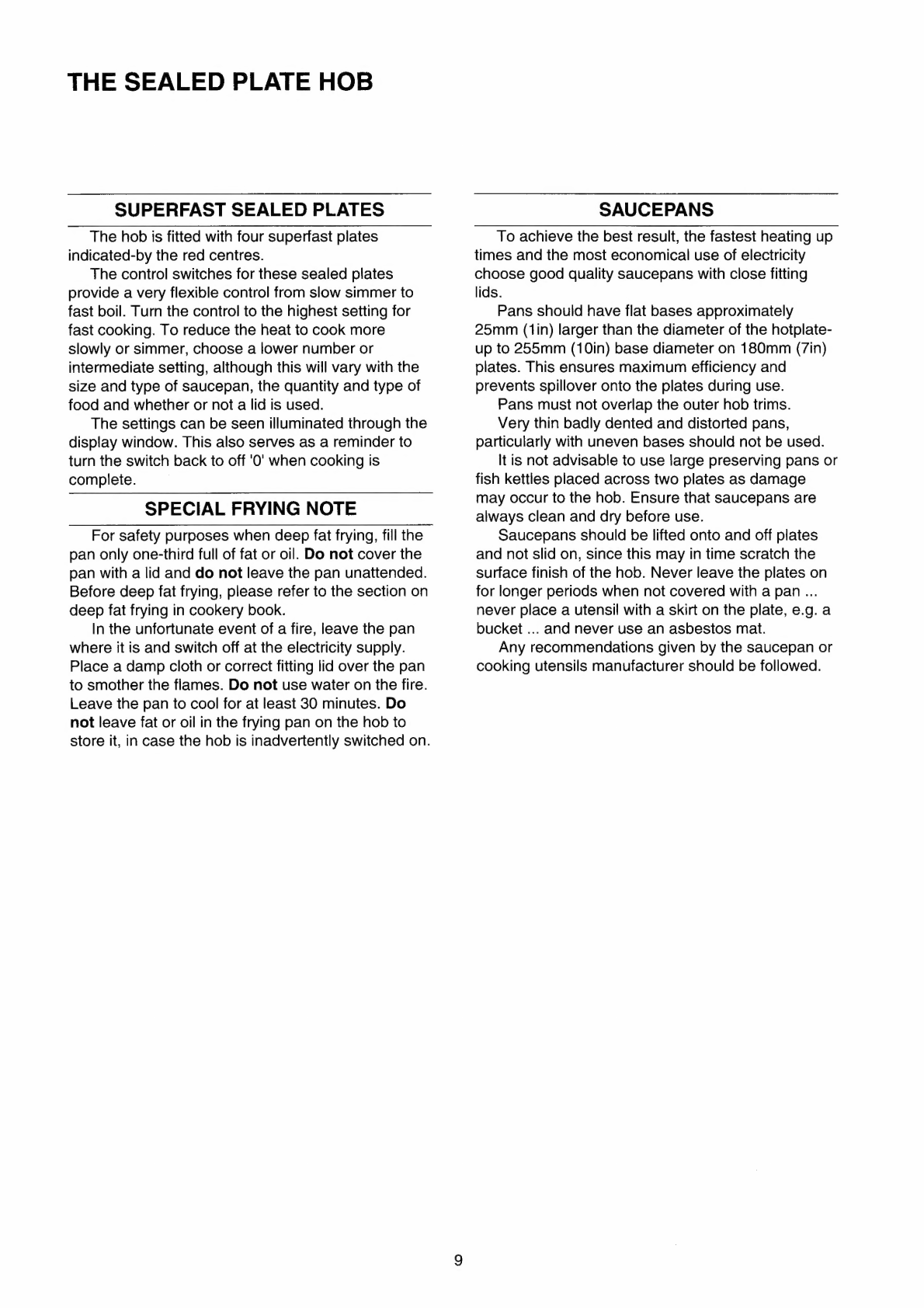

THE SEALED PLATE HOB
SUPERFAST SEALED PLATES
The hob is fitted with four superfast plates
indicated-by the red centres.
The control switches for these sealed plates
provide a very flexible control from slow simmer to
fast boil. Turn the control to the highest setting for
fast cooking. To reduce the heat to cook more
slowly or simmer, choose a lower number or
intermediate setting, although this will vary with the
size and type of saucepan, the quantity and type of
food and whether or not a lid is used.
The settings can be seen illuminated through the
display window. This also serves as a reminder to
turn the switch back to off '0' when cooking is
complete.
SPECIAL FRYING NOTE
For safety purposes when deep fat frying, fill the
pan only one-third full of fat or oil. Do not cover the
pan with a lid and do not leave the pan unattended.
Before deep fat frying, please refer to the section on
deep fat frying in cookery book.
In the unfortunate event of a fire, leave the pan
where it is and switch off at the electricity supply.
Place a damp cloth or correct fitting lid over the pan
to smother the flames. Do not use water on the fire.
Leave the pan to cool for at least 30 minutes. Do
not leave fat or oil in the frying pan on the hob to
store it, in case the hob is inadvertently switched on.
SAUCEPANS
To achieve the best result, the fastest heating up
times and the most economical use of electricity
choose good quality saucepans with close fitting
lids.
Pans should have flat bases approximately
25mm (1in) larger than the diameter of the hotplate-
up to 255mm (10in) base diameter on 180mm (7in)
plates. This ensures maximum efficiency and
prevents spillover onto the plates during use.
Pans must not overlap the outer hob trims.
Very thin badly dented and distorted pans,
particularly with uneven bases should not be used.
It is not advisable to use large preserving pans or
fish kettles placed across two plates as damage
may occur to the hob. Ensure that saucepans are
always clean and dry before use.
Saucepans should be lifted onto and off plates
and not slid on, since this may in time scratch the
surface finish of the hob. Never leave the plates on
for longer periods when not covered with a pan ...
never place a utensil with a skirt on the plate, e.g. a
bucket ... and never use an asbestos mat.
Any recommendations given by the saucepan or
cooking utensils manufacturer should be followed.

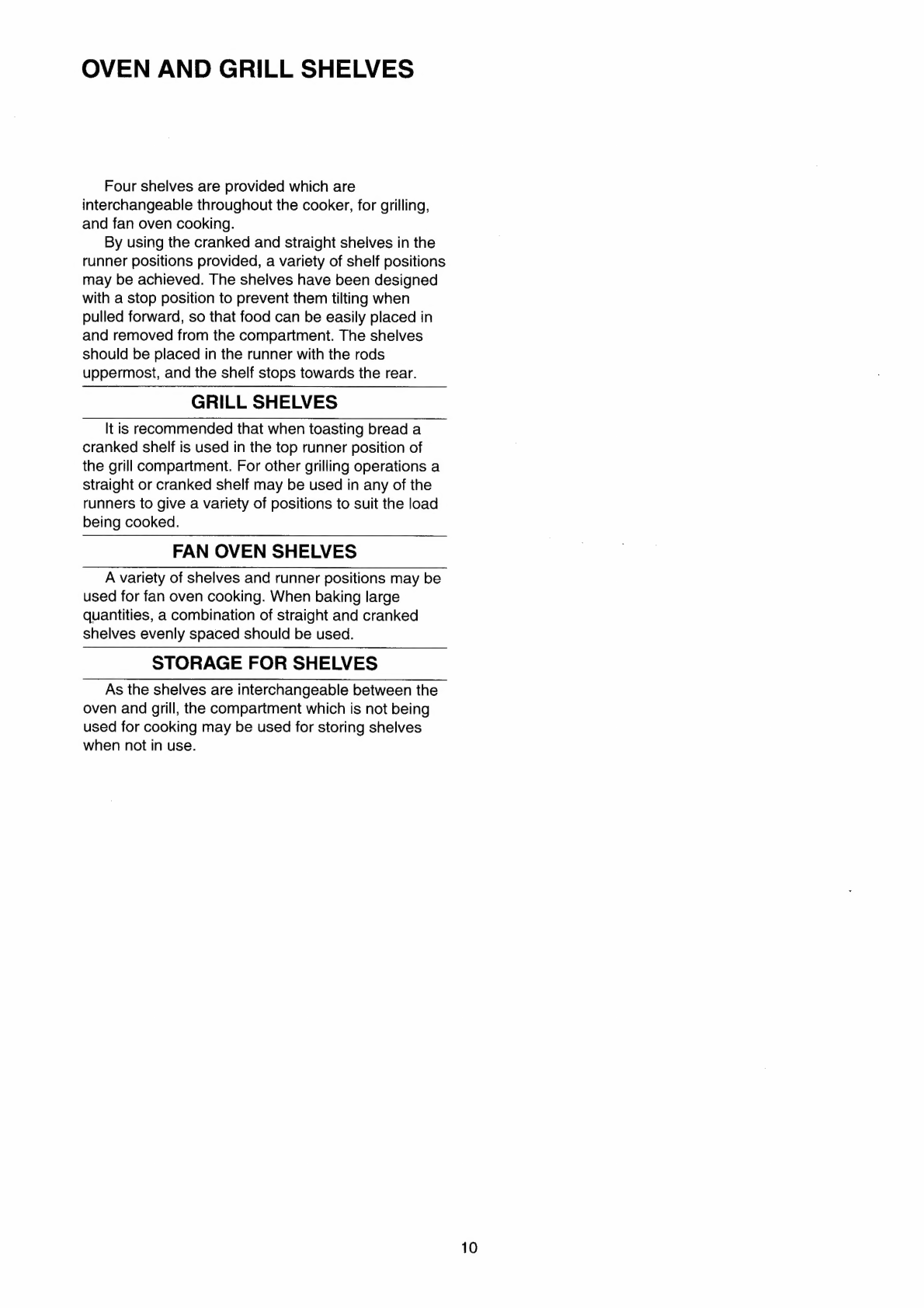

OVEN AND GRILL SHELVES
Four shelves are provided which are
interchangeable throughout the cooker, for grilling,
and fan oven cooking.
By using the cranked and straight shelves in the
runner positions provided, a variety of shelf positions
may be achieved. The shelves have been designed
with a stop position to prevent them tilting when
pulled forward, so that food can be easily placed in
and removed from the compartment. The shelves
should be placed in the runner with the rods
uppermost, and the shelf stops towards the rear.
GRILL SHELVES
It is recommended that when toasting bread a
cranked shelf is used in the top runner position of
the grill compartment. For other grilling operations a
straight or cranked shelf may be used in any of the
runners to give a variety of positions to suit the load
being cooked.
FAN OVEN SHELVES
A variety of shelves and runner positions may be
used for fan oven cooking. When baking large
quantities, a combination of straight and cranked
shelves evenly spaced should be used.
STORAGE FOR SHELVES
As the shelves are interchangeable between the
oven and grill, the compartment which is not being
used for cooking may be used for storing shelves
when not in use.
10

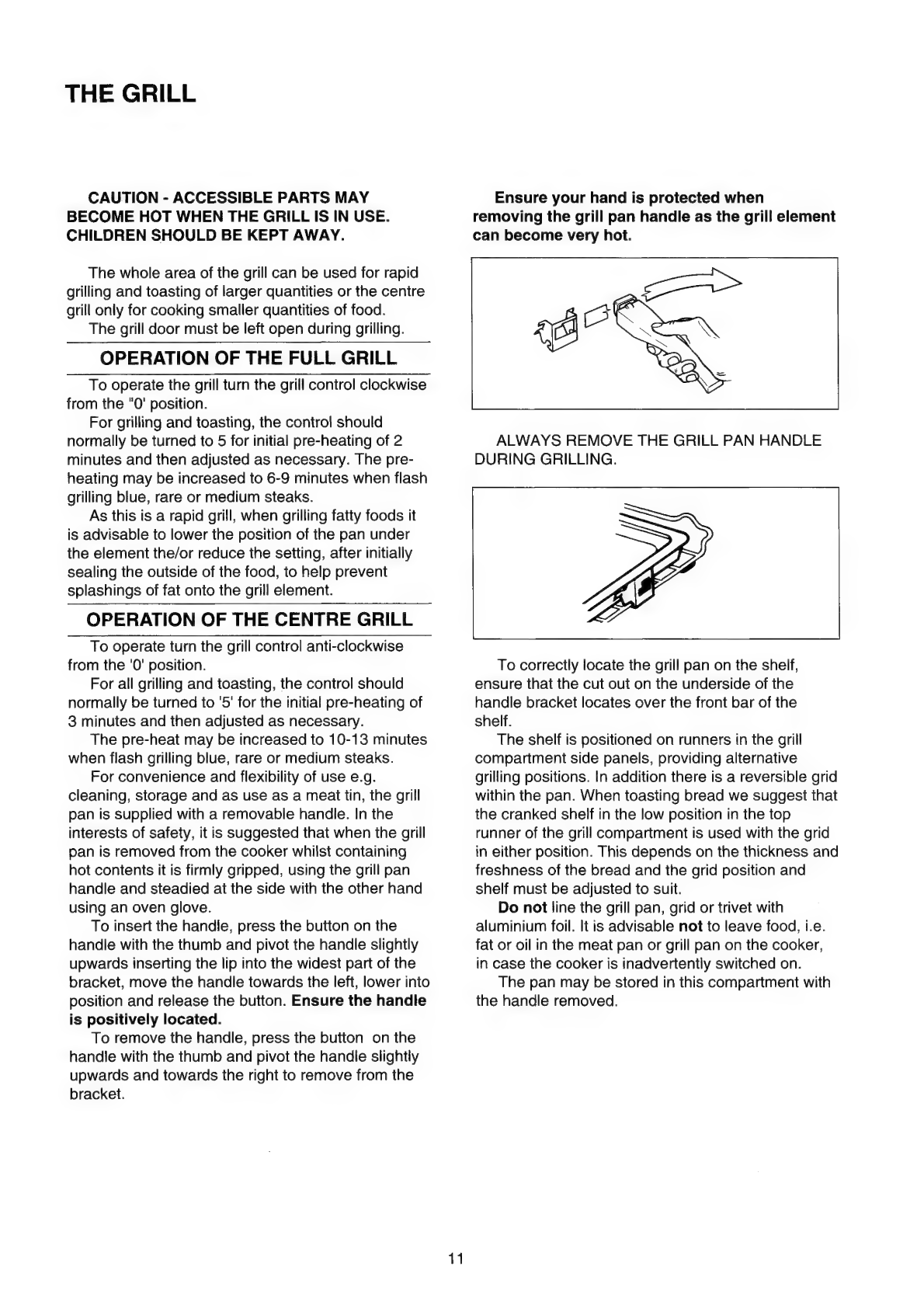

THE GRILL
CAUTION - ACCESSIBLE PARTS MAY
BECOME HOT WHEN THE GRILL IS IN USE.
CHILDREN SHOULD BE KEPT AWAY.
The whole area of the grill can be used for rapid
grilling and toasting of larger quantities or the centre
grill only for cooking smaller quantities of food.
The grill door must be left open during grilling.
OPERATION OF THE FULL GRILL
To operate the grill turn the grill control clockwise
from the "O' position.
For grilling and toasting, the control should
normally be turned to 5 for initial pre-heating of 2
minutes and then adjusted as necessary. The pre-
heating may be increased to 6-9 minutes when flash
grilling blue, rare or medium steaks.
As this is a rapid grill, when grilling fatty foods it
is advisable to lower the position of the pan under
the element the/or reduce the setting, after initially
sealing the outside of the food, to help prevent
splashings of fat onto the grill element.
OPERATION OF THE CENTRE GRILL
To operate turn the grill control anti-clockwise
from the 'O' position.
For all grilling and toasting, the control should
normally be turned to '5' for the initial pre-heating of
3 minutes and then adjusted as necessary.
The pre-heat may be increased to 10-13 minutes
when flash grilling blue, rare or medium steaks.
For convenience and flexibility of use e.g.
cleaning, storage and as use as a meat tin, the grill
pan is supplied with a removable handle. In the
interests of safety, it is suggested that when the grill
pan is removed from the cooker whilst containing
hot contents it is firmly gripped, using the grill pan
handle and steadied at the side with the other hand
using an oven glove.
To insert the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards inserting the lip into the widest part of the
bracket, move the handle towards the left, lower into
position and release the button. Ensure the handle
is positively located.
To remove the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
11
Ensure your hand is protected when
removing the grill pan handle as the grill element
can become very hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING.
To correctly locate the grill pan on the shelf,
ensure that the cut out on the underside of the
handle bracket locates over the front bar of the
shelf.
The shelf is positioned on runners in the grill
compartment side panels, providing alternative
grilling positions. In addition there is a reversible grid
within the pan. When toasting bread we suggest that
the cranked shelf in the low position in the top
runner of the grill compartment is used with the grid
in either position. This depends on the thickness and
freshness of the bread and the grid position and
shelf must be adjusted to suit.
Do not line the grill pan, grid or trivet with
aluminium foil. It is advisable not to leave food, i.e.
fat or oil in the meat pan or grill pan on the cooker,
in case the cooker is inadvertently switched on.
The pan may be stored in this compartment with
the handle removed.

THE FAN OVEN
USE OF THE FAN OVEN
1. The drop down oven door should be opened by
pulling the handle at the top of the door and closed
by a gentle push.
2. Before switching the oven on, arrange the
shelves in position. The runners are numbered from
the bottom upwards. The shelves provided with the
cooker give a variety of positions.
The even heat distribution in the oven allows
most dishes to be cooked equally well on any shelf
position.
3. If cooking only one or two dishes it is preferable
that they are placed centrally on separate shelves.
It is recommended that when baking larger
quantities and 3 or 4 shelves are being used the
shelf positions should be evenly spaced to suit the
load being cooked.
A slight increase in cooking time may be
necessary.
4. Baking trays or oven dishes should not be placed
directly against the grid covering the fan at the back
of the oven.
5. To operate the fan oven turn control in a
clockwise direction to the temperature required for
cooking. The fan oven neon will glow until the
temperature selected is reached and then go out. It
will cycle on and off periodically during cooking
showing that the temperature is being maintained.
6. The compartment is fitted with two oven lights
positioned in the top of the side panels. Food can be
seen during cooking without loss of heat through the
glass panel in the door.
7. Most foods are cooked at lower temperatures
in the fan oven than conventional ovens. A
guideline is to reduce the temperature by 20-25°C
when using recipes from general cookery books or
check with the recommendations given for a similar

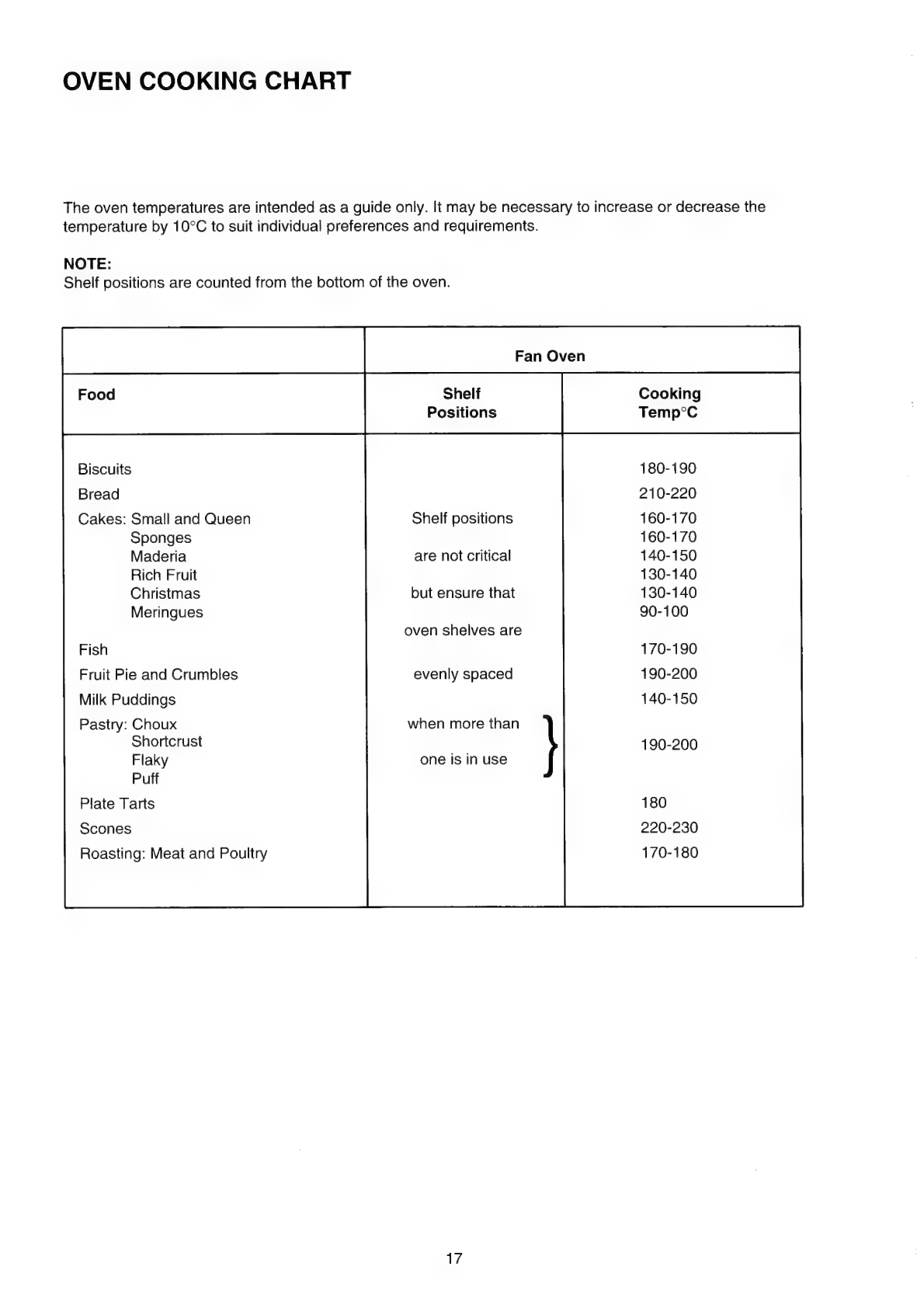

food item in the oven cooking chart on page 17.
8. Do not line any part of the oven with aluminium
foil.
9. The oven is vented through the back of the
cooker. Under certain conditions when moisture is
present, steam will be visible from the vent. This is
quite normal and prevents a build-up of steam which
would otherwise occur inside the oven.
10. The use of oven thermometers are not
recommended as they do not give accurate
temperature readings and therefore, can give
misleading information to the user.
12
THE TRIVET
The trivet ensures that oven cleaning is kept to a
minimum. The joint is placed on the trivet in the
roasting tin so that during cooking all the fat drains
through the perforations into the cavity base.
Potatoes should be brushed with melted fat before
cooking and placed around the joint.
REPLACING THE OVEN LIGHT BULB
The type of bulb required is a 300C 25 watt small
Edison Screw. Part number 572 491 5431-00/1.
(Available through Tricity Bendix service centres)
CAUTION: Disconnect the appliance from the
electricity supply before replacing the bulb.
Open door and remove the shelves to enable
easy access to the oven light assembly. Insert a flat
blade screwdriver between the oven side and the
glass which covers the bulb.
Support the glass with your hand and prise out
sufficiently to release the glass cover. Unscrew the
bulb in an anti-clockwise direction until it is possible
to remove the bulb with ease.
Fit the new bulb by turning in a clockwise
direction until it is secure. Ensuring the indent to the
flange is pointing to the rear of the oven, replace the
glass by pushing it firmly into the hole to cover the
bulb assembly.
Replace the shelves. Restore the electricity
supply and adjust the time of day and clock, as
necessary.

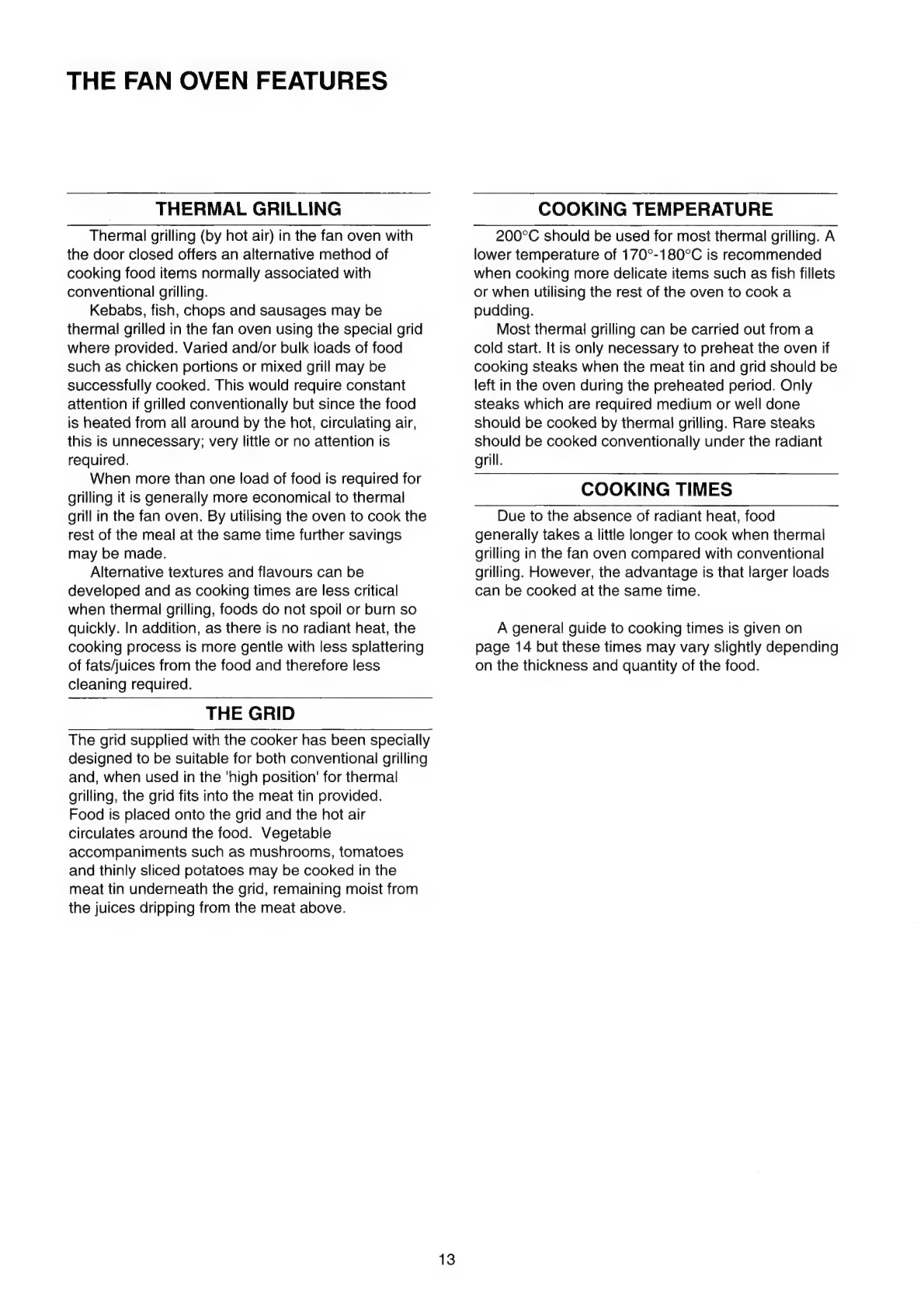

THE FAN OVEN FEATURES
THERMAL GRILLING
Thermal grilling (by hot air) in the fan oven with
the door closed offers an alternative method of
cooking food items normally associated with
conventional grilling.
Kebabs, fish, chops and sausages may be
thermal grilled in the fan oven using the special grid
where provided. Varied and/or bulk loads of food
such as chicken portions or mixed grill may be
successfully cooked. This would require constant
attention if grilled conventionally but since the food
is heated from all around by the hot, circulating air,
this is unnecessary; very little or no attention is
required.
When more than one load of food is required for
grilling it is generally more economical to thermal
grill in the fan oven. By utilising the oven to cook the
rest of the meal at the same time further savings
may be made.
Alternative textures and flavours can be
developed and as cooking times are less critical
when thermal grilling, foods do not spoil or burn so
quickly. In addition, as there is no radiant heat, the
cooking process is more gentle with less splattering
of fats/juices from the food and therefore less
cleaning required.
THE GRID
The grid supplied with the cooker has been specially
designed to be suitable for both conventional grilling
and, when used in the 'high position' for thermal
grilling, the grid fits into the meat tin provided.
Food is placed onto the grid and the hot air
circulates around the food. Vegetable
accompaniments such as mushrooms, tomatoes
and thinly sliced potatoes may be cooked in the
meat tin underneath the grid, remaining moist from
the juices dripping from the meat above.
13
COOKING TEMPERATURE
200*C should be used for most thermal grilling. A
lower temperature of 170?-180?C is recommended
when cooking more delicate items such as fish fillets
or when utilising the rest of the oven to cook a
pudding.
Most thermal grilling can be carried out from a
cold start. It is only necessary to preheat the oven if
cooking steaks when the meat tin and grid should be
left in the oven during the preheated period. Only
steaks which are required medium or well done
should be cooked by thermal grilling. Rare steaks
should be cooked conventionally under the radiant
grill.
COOKING TIMES
Due to the absence of radiant heat, food
generally takes a little longer to cook when thermal
grilling in the fan oven compared with conventional
grilling. However, the advantage is that larger loads
can be cooked at the same time.
A general guide to cooking times is given on
page 14 but these times may vary slightly depending
on the thickness and quantity of the food.

200°C
Chops - pork /lamb
Sausages - large
Steaks - medium/well done
Chicken Portions
Beefburgers
170-180°C
Fish - small whole fish,
ie trout or fillets
Bacon
Liver
Sausages - small
Kidneys
Toasted Sandwiches
35-45 min
25-30min
15-20 min
35-45 min
15-20 min
10-15 min
35-40 min
35-40 min
35-40 min
35-40 min
15-20 min
Below are recommendations for cooking a
breakfast and mixed grill by thermal grilling when the
grid is fitted.
Breakfast
Oven Temperature:
Time:
Tomatoes
Mushrooms
Toast
Chipolata Sausages
Bacon
(i) ^ Halve the tomatoes and place in the meat tin
with mushrooms.
(ii) | Spread slices of bread on both sides with
either butter or white fat.
(ii) | Place the grid in position. Cover with bread,
sausages and bacon rashers.
(iv) Thermal grill.
14
Mixed Grill
Oven Temperature: 200°C
Time: 20 min
Tomatoes
Banana
Streaky Bacon
Mushrooms
Liver
Kidneys
Lamb Chop
Chipolata Sausages
(i) ^ Halve the tomatoes. Quarter the banana and
wrap in bacon.
(ii) | Place tomatoes, banana and mushrooms in
the meat tin.
(iii) | Place the grid in position, cover with liver and
kidneys both wrapped in bacon, lamb chops
and chipolatas.
(iv) Thermal grill.

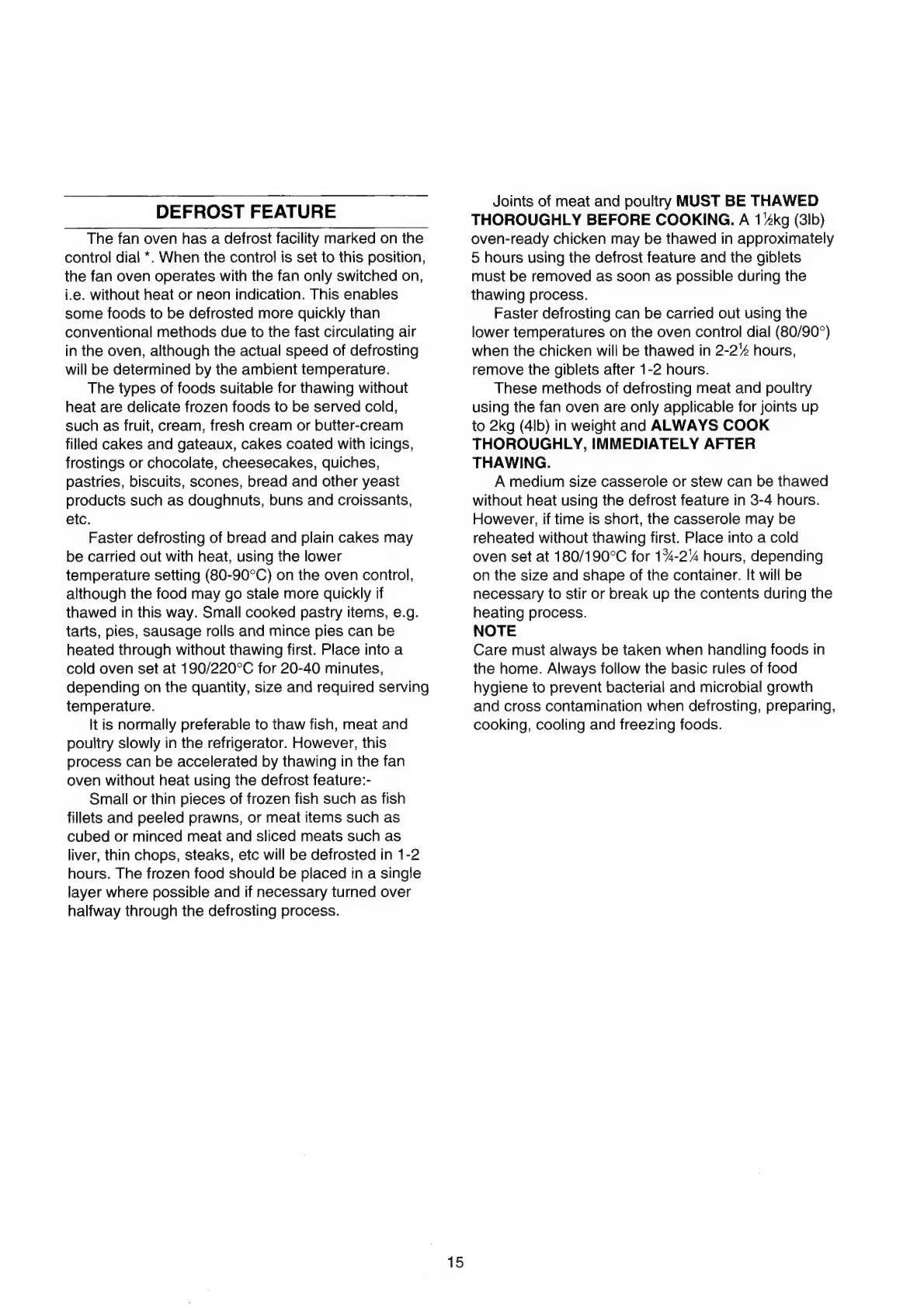

DEFROST FEATURE
The fan oven has a defrost facility marked on the
control dial *. When the control is set to this position,
the fan oven operates with the fan only switched on,
i.e. without heat or neon indication. This enables
some foods to be defrosted more quickly than
conventional methods due to the fast circulating air
in the oven, although the actual speed of defrosting
will be determined by the ambient temperature.
The types of foods suitable for thawing without
heat are delicate frozen foods to be served cold,
such as fruit, cream, fresh cream or butter-cream
filled cakes and gateaux, cakes coated with icings,
frostings or chocolate, cheesecakes, quiches,
pastries, biscuits, scones, bread and other yeast
products such as doughnuts, buns and croissants,
etc.
Faster defrosting of bread and plain cakes may
be carried out with heat, using the lower
temperature setting (80-90°C) on the oven control,
although the food may go stale more quickly if
thawed in this way. Small cooked pastry items, e.g.
tarts, pies, sausage rolls and mince pies can be
heated through without thawing first. Place into a
cold oven set at 190/220°C for 20-40 minutes,
depending on the quantity, size and required serving
temperature.
It is normally preferable to thaw fish, meat and
poultry slowly in the refrigerator. However, this
process can be accelerated by thawing in the fan
oven without heat using the defrost feature:-
Small or thin pieces of frozen fish such as fish
fillets and peeled prawns, or meat items such as
cubed or minced meat and sliced meats such as
liver, thin chops, steaks, etc will be defrosted in 1-2
hours. The frozen food should be placed in a single
layer where possible and if necessary turned over
halfway through the defrosting process.
15
Joints of meat and poultry MUST BE THAWED
THOROUGHLY BEFORE COOKING. A 1'4kg (3lb)
oven-ready chicken may be thawed in approximately
5 hours using the defrost feature and the giblets
must be removed as soon as possible during the
thawing process.
Faster defrosting can be carried out using the
lower temperatures on the oven control dial (80/90°)
when the chicken will be thawed in 2-2% hours,
remove the giblets after 1-2 hours.
These methods of defrosting meat and poultry
using the fan oven are only applicable for joints up
to 2kg (4lb) in weight and ALWAYS COOK
THOROUGHLY, IMMEDIATELY AFTER
THAWING.
A medium size casserole or stew can be thawed
without heat using the defrost feature in 3-4 hours.
However, if time is short, the casserole may be
reheated without thawing first. Place into a cold
oven set at 180/190°C for 174-274 hours, depending
on the size and shape of the container. It will be
necessary to stir or break up the contents during the
heating process.
NOTE
Care must always be taken when handling foods in
the home. Always follow the basic rules of food
hygiene to prevent bacterial and microbial growth
and cross contamination when defrosting, preparing,
cooking, cooling and freezing foods.

INSTRUCTIONS FOR COOKING A COMPLETE MEAL
IN THE FAN OVEN
Many people today like to cook meat at comparatively low temperatures. When these lower temperatures
are used the joint is often more tender; also there is very little splashing of fat onto the oven interior during
cooking. When a ‘full meal’ including a joint, roast potatoes, Yorkshire pudding and fruit pie is required, cooking
times may vary slightly according to the thickness of the joint and how 'well done' one likes the meat and
potatoes etc. Slight temperature adjustment may be necessary. We hope this will prove to be a useful guide to
your new cooker.
ROAST BEEF, ROAST POTATOES, YORKSHIRE PUDDING, APPLE PIE
Preparation
Beef 1% kg(3lb) Arrange on trivet in meat tin.
Potatoes 600g (1%ib) Brush with melted fat or oil, sprinkle with salt and
arrange around joint.
Yorkshire 250ml (‘4pt) Mix together 100g (402) plain flour and a pinch of salt.
Pudding pouring batter Gradually mix in a beaten egg and 250ml (‘4pt) milk
until smooth
Apple Pie 300g (120z) Shortcrust pastry.
1kg(2lb) Prepared fruit.
Sugar to taste.
Place fruit and sugar in 1 litre (2pt) oval pie dish
and cover the fruit with rolled out pastry.
Cooking
Pre-heat oven to 190?C.
Arrange Beef, Potatoes and Apple Pie in the oven as follows:
Beef and Potatoes Shelf position 1 low
Apple Pie Shelf position 4 low
Cook for approximately 50 minutes.
Remove pie and raise temperature to 200°C.
Yorkshire Pudding: Heat 25g (102) lard in a 23cm (Qin) square tin for approximately 5
minutes on shelf position 4. Pour in batter. Cook for 35 minutes approximately.
Total cooking time approximately: 1 hour 30 minutes.
These instructions are a guide only and should be altered to suit individual requirements. If the joint is
preferred very well cooked we suggest allowing an extra 15-30 minutes cooking time after removing the pie and
before cooking the Yorkshire pudding.
16

OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperature by 10°C to suit individual preferences and requirements.
NOTE:
Shelf positions are counted from the bottom of the oven.
Biscuits
Bread
Cakes: Small and Queen
Sponges
Maderia
Rich Fruit
Christmas
Meringues
Fish
Fruit Pie and Crumbles
Milk Puddings
Pastry: Choux
Shortcrust
Flaky
Puff
Plate Tarts
Scones
Roasting: Meat and Poultry
Shelf
Positions
Shelf positions
are not critical
but ensure that
oven shelves are
evenly spaced
when more than
one is in use
17
Cooking
Temp°C
180-190
210-220
160-170
160-170
140-150
130-140
130-140
90-100
170-190
190-200
140-150
190-200
180
220-230
170-180

TIMER CONTROL
(Electronic)
The timer will automatically switch the oven on and
off at the selected times. It also includes a clock and
a minute minder.
CLOCK
The clock will operate even if the automatic control
is not being used. If the cooker is switched off at the
wall the clock will stop. It will start as soon as the
cooked is switched on again and will need to be set
to show the correct time of day.
MINUTE MINDER
The minute minder is not part of the automatic
control. It gives an audible reminder at the end of a
set interval to be timed.
SELECTOR SWITCH 'BLEEP'
Whenever the selector switch is turned to a new
setting an audible bleep will be heard, except when
auto function is selected. This 'verifies' that a new
function has been chosen.
AUTOMATIC COOKING
When the main oven is set on the timer control the
grill can be operated manually.
TIMER CONTROL
This timer is a 2 rotary control knob type electronic
timer. When the Electricity supply is first switched on
the display will flash on and off.
A= Function Selector Switch
B= Setting Knob
7 MANUAL
— TIMER
— COOKTIME
— END TIME
— AUTOMATIC
(QU
Setting Knob
B
18
USING THE FUNCTION SELECTOR SWITCH AND
SETTING KNOB
Select a function by turning the selector switch to
the mode required. To set the required time or
duration for the selected function carry out the
following procedure:-
TO COUNT UP - Turn the setting knob clockwise.
TO COUNT DOWN - Turn the setting knob
anticlockwise. If the setting knob is 'held' in the
turned position this will increase the count up or
count down speed (depending whether the knob is
held clockwise or anticlockwise respectively to the
central rest position of the setting knob).
N.B. An audible signal sounds at the end of a minute
minder cycle of a cooking programme for a period of
7 minutes. The signal can be cancelled by turning
the selector switch.
When an automatic programme has been set the
display wili revert to show the time of day after 5
seconds.
The cooking duration, cooking end time, time of day
and minute minder can only be set up to a maximum
of 23 hrs. 59 mins. The timer can only store a
programme up to a one day period.
SETTING THE TIME OF DAY
Set the time of day by turning the selector switch (A)
to and selecting the correct time by using
setting knob (B).
TO SET THE OVEN FOR MANUAL
OPERATION
When the selector switch is set to manual the
'AUTO' symbol disappears and the cooking duration
symbol $, appears on the display. Any
programmes which have been previously set will be
cancelled.

HOW TO USE THE TIMER TO SWITCH
ON AND COOK FOR A SET DURATION
(Semi-automatic Programme).
1. Make sure the electricity supply is switched on.
2. Place food in oven.
3. Check that the clock shows the correct time of
day.
4. Set selector switch (A) to cook time, use the
setting knob (B) to set the required duration. The
'AUTO' and cooking duration :* symbols will
appear on the display. Turn the selector switch to
the 'AUTO' position.
5. Set the oven control to the required temperature.
The oven indicator should immediately come on as
the programme will be active. During the cooking
period the oven indicator neon will cycle on and off
to indicate the cooker is working and controlling the
temperature.
6. When the cooking duration period has elapsed
the cooking time symbol “ goes out and an audible
signal sounds. The symbol 'AUTO' blinks on the
display. Move the selector switch to cancel the
audible signal.
7. Move the selector switch to MANUAL, check that
the oven operates manually then turn the oven off
by the oven control.
HOW TO USE THE TIMER TO COOK
UNTIL A SPECIFIC TIME
(Semi-automatic Programme)
Follow steps 1-3 as per previous passage then:
4. Set selector switch (A) to end time, use the
setting knob (B) to set the required end time. The
'AUTO' and cooking duration symbols will appear on
the display. Turn the selector switch to the 'AUTO'
position.
5. Follow steps 5-7 as per previous passage.
19
HOW TO USE THE TIMER TO START AND STOP
COOKING AT SPECIFIC TIMES
(Full Automatic Programme).
Follow steps 1-3 as per previous passage then:
4. a) Set selector switch (A) to cook time, use the
setting knob (B) to set the required duration. The
'AUTO' and cooking duration “ symbols will
appear on the display.
b) Set selector switch to end time use the setting
knob to set the required end time. The cooking
duration symbol € will switch off on the
display.
C) Set selector switch to AUTO, the cooking
duration symbol will appear on the display, at the
time of automatic oven switch on (cooking end
time minus cooking duration; e.g. cooking end
time 4 pm, minus cooking duration of 1% hours
gives a switch on time of 2.30 pm).
5. Follow steps 5-7 as per previous passage.
THE MINUTE MINDER
The minute minder gives an audible signal at the
end of any set interval to be timed up to a maximum
of 23 hours, 59 minutes.
1. Select timer function with selector switch and set
the required time with the setting knob. Return
selector switch to manual the /1 symbol will light.
2. After the time has elapsed an audible signal
sounds.
CHECKING THE TIME REMAINING IN A
COOKING PROGRAMME
Select the cook time function using the selector
switch and the time remaining for a programme to
run will be shown on the display. Do not switch to
manual when a programme is operating as this
will cause it to cancel.

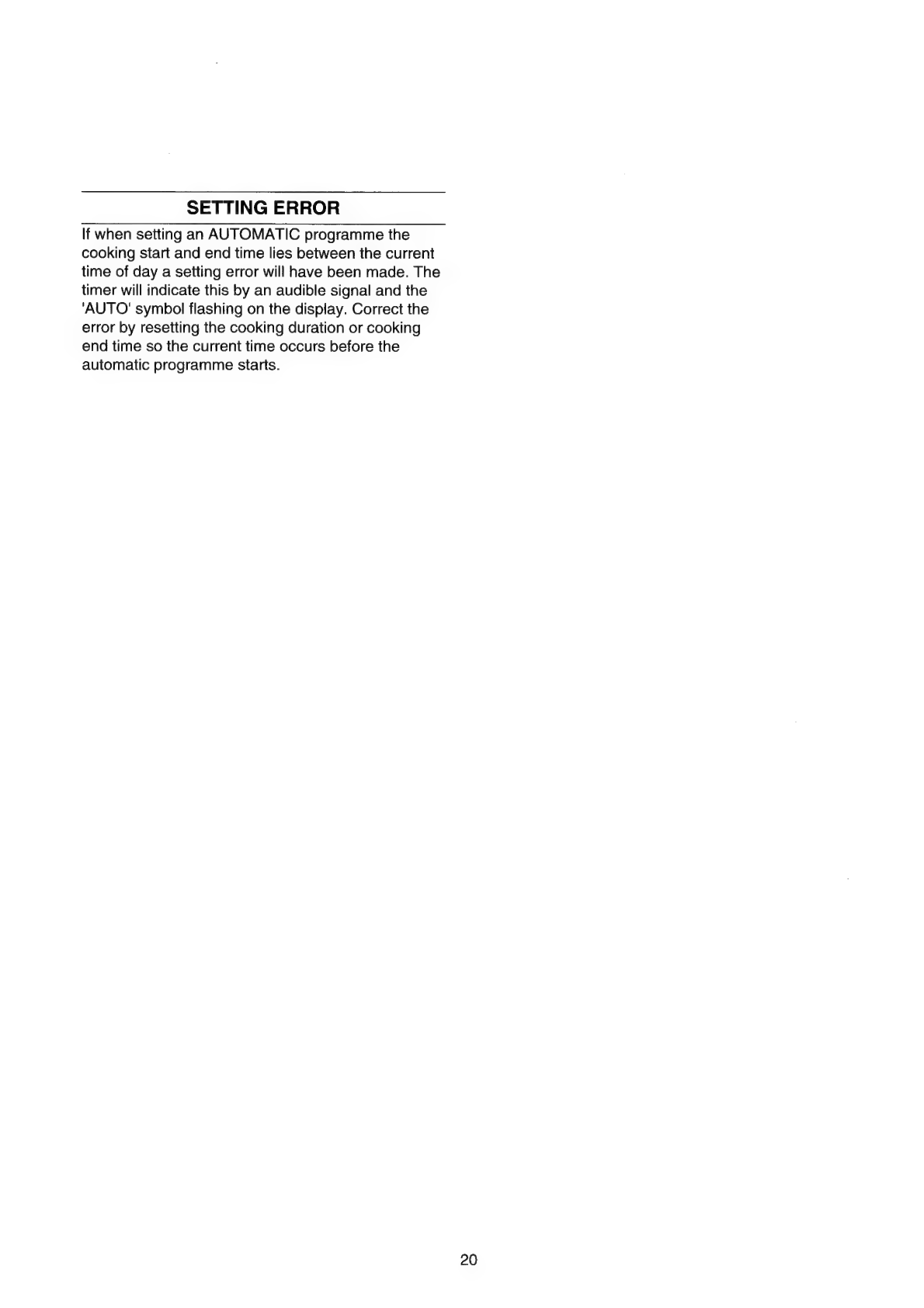

SETTING ERROR
If when setting an AUTOMATIC programme the
cooking start and end time lies between the current
time of day a setting error will have been made. The
timer will indicate this by an audible signal and the
‘AUTO' symbol flashing on the display. Correct the
error by resetting the cooking duration or cooking
end time so the current time occurs before the
automatic programme starts.
20
