Tricity Bendix TBS 605 User manual

2
INSTRUCTION BOOKLET
BUILT-IN OVEN MODEL
TBS 605
Please read this instruction booklet before using the appliance

3
Installation
• This oven must be installed by qualified personnel
to the relevant British Standards.
• This oven is heavy. Take care when moving it.
• Remove all packaging, both inside and outside the
oven, before using the oven.
• Do not attempt to modify the oven in any way.
Child Safety
• This oven is designed to be operated by adults. Do
not allow children to play near or with the oven.
• The oven gets hot when it is in use. Children
should be kept away until it has cooled.
During Use
• This oven is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
• Never line any part of the oven with aluminium
foil.
• Do not allow heatproof cooking material, e.g.
roasting bags, to come into contact with oven
elements.
• Never place plastic or any other material which
may melt in or on the oven.
• Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
• Do not hang towels, dishcloths or clothes from the
oven or its handle.
• Do not use this oven if it is in contact with water
and never operate it with wet hands.
• Take great care when heating fats and oils as they
will ignite if they become too hot.
• Always use oven gloves to remove and replace
food in the oven.
• Ensure that all control knobs are in the OFF
position when not in use.
• Do not leave cookware containing foodstuffs, e.g.
fat or oil in or on the oven in case it is
inadvertently switched ON.
• When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the oven.
Maintenance and Cleaning
• Only clean this oven in accordance with the
instructions.
• The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
• Always allow the oven to cool down and switch
off the electrical supply before carrying out any
cleaning or maintenance work.
Service
• This oven should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
• After installation, please dispose of the packaging
with due regard to safety and the environment.
• When disposing of an old appliance, make it
unusable, by cutting off the cable. Remove any
door catches, to prevent small children being
trapped inside.
Important Safety Information
You MUST read these warnings carefully before installing or using the oven.
If you need assistance, contact our Customer Care Department
on 08705 950950
Keep this instruction book for future
reference and ensure it is passed on
to any new owner.

4
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683
(Low VoltageDirective);
* 93/68 (General Directives);
* 89/336 (Electromagnetical
Compatibility Directive) .
and subsequent modifications
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
For the User For the Installer
Contents
☞
i
Important Safety Information 3
Description of the Appliance 5
Controls 6
Before the First Use 9
Using the Oven 9
Using the Fan Oven 11
Cooking Chart 12
Defrosting 14
Grilling 15
Cleaning the Oven 18
If something goes wrong 21
Service and Spare Parts 22
Guarantee conditions 22
Technical Data 25
Electrical Connection 25
Building In 26
Oven Door Protection Device
All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety
level, and avoid small children to be
exposed to the heat when the appliance
is operated, it is possible to fit a special
protection device to the oven door. This
device can be purchased in our Service
Force Centres, specifying the relevant
code (35791) and the Product No. shown
on the rating plate.

5
OVEN PROGRAMMER FUNCTION TEMPERATURE
0
50
100
150
200
MAX
MAINS
ON
THERMOSTAT
ON
Thermostat
Control Light
Oven
Function
Control
Knob Thermostat
Control
Knob
Electronic
timer
Description of the Appliance
Control Panel
Oven door
Oven Function
Control Light
Removable
handle
Grill Pan Grid
Grill / Roasting pan
Accessories

6
Controls
Oven Function Control Knob
Oven Light - The oven light will be on without
any cooking function.
Inner grill element only - can be used for
grilling small quantities.
Double Grill - The full grill element will be on.
Thermal Grilling - This function offers an
alternative method of cooking food items,
normally associated with conventional grilling.
The grill element and the oven fan operate
together, circulating hot air around the food.
Fan Oven cooking - This allows you to roast or
roast and bake simoultaneously using any
shelf, without flavour transference.
Defrost Setting - This setting is intended to
assist in thawing of frozen food.
0
50
100
150
200
MAX
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).
- +
A
U
T
O
A
U
T
O
24 hour Clock andTimer
Time
setting
Cookpot
symbol
Programming
controls
Auto
symbol
Minute minder
Cooking duration
End of cooking time
Manual function
Cookpot symbol - This will be displayed when
a program is in operation.
Auto symbol - This will be displayed when the
oven has been programmed for automatic
operation.
- + Time setting knob
The SafetyThermostat
This oven is provided with a safety thermostat. In
case of malfunctioning of the main thermostat, and
consequent over-heating, the safety device will stop
the power supply to the appliance. If this happens,
call your local Service Centre. Under no
circumstances should you attempt to repair the
appliance yourself.
A
U
T
O

7
- +
- +
24 hour Clock and Timer
The electronic timer can indicate the time of day,
operate as a minute minder and automatically operate
the oven.
Before the oven can be operated, the time of day must
be set on the electronic timer.
Please note that this is a 24 hour clock. For example,
2pm is shown as 14:00.
In case of loss of power, all the settings (time of day,
set program or program in operation), will be
cancelled. When the power is restored, the numbers
on the display will flash, and the timer has to be reset.
☞
TO SET THE TIME OF DAY
Press buttons and , and at the same time turn
the time setting knob until the correct time of day is
displayed.
☞
TO SET THE MINUTE MINDER
Press button and at the same time turn the setting
time knob until the duration time is displayed
(maximum 23 hours, 59 minutes).
Our diagram shows the timer set for 35 minutes.
After a few seconds the time of day will show in the
display.
To check the number of minutes remaining, press the
button. At the end of the timed period an alarm
will sound. To switch off the alarm press button .

8
- +
A
U
T
O
A
U
T
O
- +
A
U
T
O
A
U
T
O
- +
☞

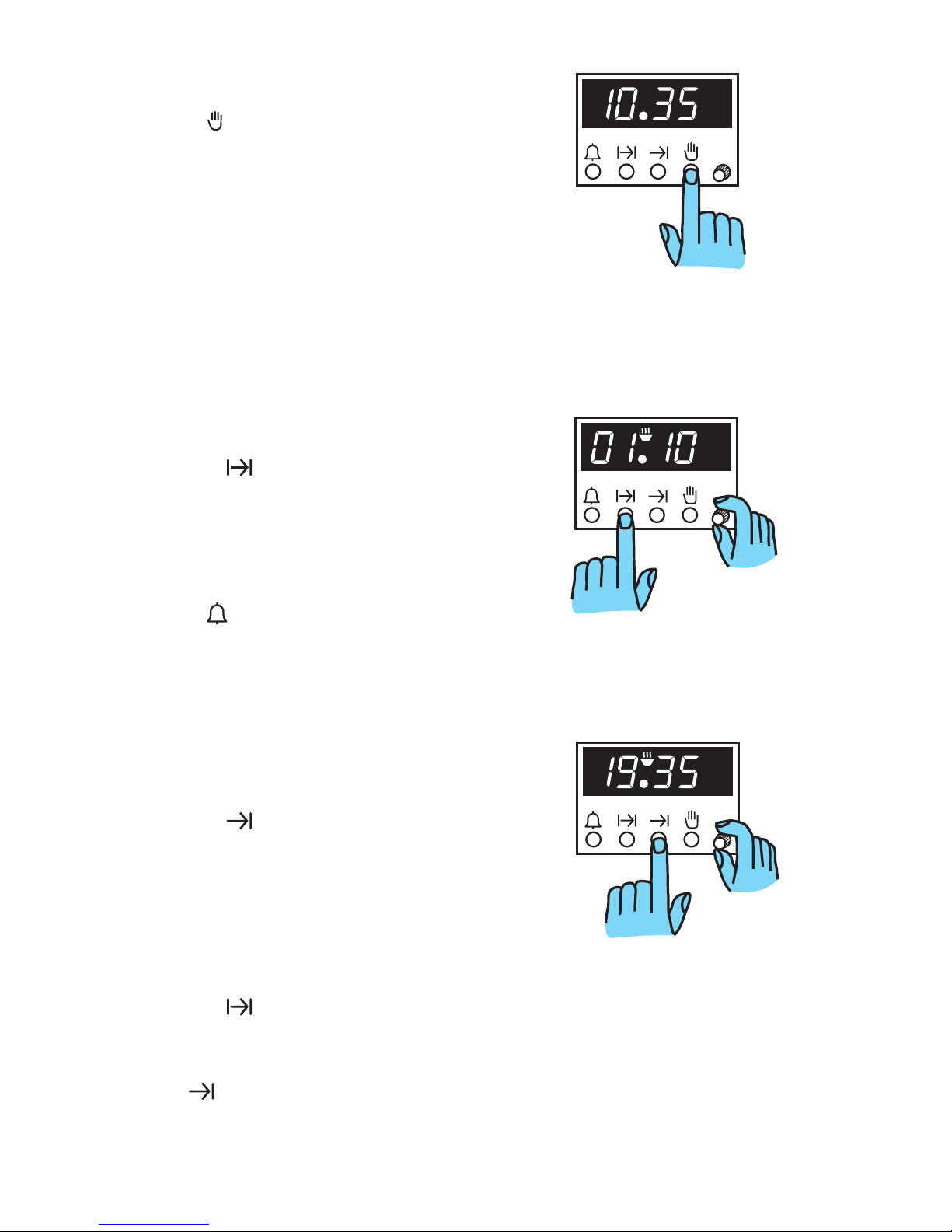

MANUAL FUNCTION
Press button to set the oven for manual function.
☞
TO SET THE TIMER TO
SWITCH OFF ONLY
This is useful if you want to begin cooking
immediately but have the oven switch off
automatically.
1. Set the oven function control knob and the
thermostat control knob on the required settings.
2. Place food in the oven.
3. Press button and, at the same time, turn the
time setting knob until the required cooking
duration is displayed.
Our diagram shows the timer set for 1 hour 10
minutes.
At the end of the cooking time the oven will switch
off, an alarm will sound. To switch off the alarm
press button .
☞
TO SET THE TIMER TO SWITCH
THE OVEN ON AND OFF
1. Ensure the clock is showing the right time of day.
2. Carry out steps 1, 2 and 3 as explained in "To set
the timer to switch off only".
3. Press button and at the same time turn the
time setting knob until the end cooking time is
displayed.
Our diagram shows the end cooking time set for
7:35 pm.
☞
TO CANCEL A PROGRAMME
1. Press button and, at the same time, turn the
time setting knob until the cooking duration is set
on "zero".
2. If the end cooking time has been set too, press
button and at the same time turn the time
setting knob until the end cooking time is set on
"zero".

9
Before the First Use
Remove all packaging, both inside and
outside the oven, before using the
appliance.
Before first use, the oven should be heated without
food. During this time, an unpleasant odour may be
emitted. This is quite normal.
☞1. Set the end of cooking programmer to
manual function.
2. Switch the oven function control knob to
fan cooking .
3. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for
approximately 45 minutes.
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
Using the Oven
•Always cook with the oven door closed.
• Stand clear when opening the drop down
oven door. Do not allow it to fall open -
support the door using the door handle,
until it is fully open.
• The oven has four shelf levels, and is
supplied with two shelves. The shelf
positions are counted from the bottom of
the oven as shown in the diagram.
It is important that these shelves are
correctly positioned as shown in the
diagram. Shelf level 2 is fitted with
telescopic shelf supports (see next page).
• Do not place cookware directly on the
oven base.
i
4
3
2
1
NORMAL SHELF
ANTI-TIP SHELF
metal tabs
Your oven is supplied with one normal shelf for use
on the telescopic shelf supports and one anti-tip shelf. The anti-tip shelf has four small metal tabs on its frame to prevent it from sliding out from the shelf
supports.

10
Cookware
• Use any oven proof cookware which will
withstand temperatures of 250°C.
• Baking trays, oven dishes, etc. should not be
placed directly against the grid covering the fan at
the back of the oven, or placed on the oven base.
• Do not use baking trays larger than 30 cm x 35 cm
(12 in x 14 in) as they will restrict the circulation
of heat and may affect performance.
Condensation and steam
When food is heated it produces steam in the same
way as a boiling kettle. The oven vents allow some of
this steam to escape. However, always stand back
from the oven when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense
and produce water droplets. This is quite normal and
is not a fault with the oven.
To prevent discoloration, regularly wipe away
condensation and also soilage from surfaces.
i
Hints andTips
Telescopic shelf supports
Shelf level 2 is fitted with telescopic shelf supports.
1. Pull the right and left hand telescopic shelf
supports completely out, as shown in the
diagram.
2. Place the shelf or the grill pan on the
telescopic shelf supports, as shown in the
diagram, then gently push them all inside
the oven.
Do not attempt to close the oven door if the
telescopic shelf supports are not completely
inside the oven. This could damage the door
enamel and glass.
The anti-tip shelf is not designed for use on
the telescopic shelf supports.
Please, do not use the anti-tip shelf on the
telescopic shelf supports, as it will be
unstable and may fall.
☞
The effects of dishes
on cooking results
Dishes and tins vary in their thickness, conductivity,
colour, etc. which affects the way they transmit heat
to the food inside them.
AAluminium, earthenware, oven glassware and
bright shiny utensils reduce cooking and
underneath browning.
BEnamelled cast iron, anodized aluminium,
aluminium with non-stick interior and coloured
exterior and dark, heavy utensils increase cooking
and underneath browning.
Cooling fan
The cooling fan operates during cooking. Air is
expelled through vents between the oven door and the
control panel, as shown in the diagram.
The cooling fan may run on after the oven is switched
off to keep the controls cool. This is quite normal.

11
Using the Fan Oven
The air inside the oven is heated by the element
around the fan situated behind the back panel. The
fan circulates hot air to maintain an even temperature
inside the oven.
The advantages of cooking with this function are:
✓Faster Preheating
As the fan oven quickly reaches temperature, it is not
usually necessary to preheat the oven although you
may find that you need to allow an extra 5-7 minutes
on cooking times. For recipes which require higher
temperatures, best results are achieved if the oven is
preheated first, e.g. bread, pastries, scones, souffles,
etc.
✓Lower Temperatures
Fan oven cooking generally requires lower
temperatures than conventional cooking.
Follow the temperatures recommended in the chart at
page.12 or remember to reduce temperatures by
about 20-25°C for your own recipes which use
conventional cooking.
✓Even Heating for Baking
The fan oven has uniform heating on all runner
positions. This means that batches of the same food
can be cooked in the oven at the same time.
However, the top shelf may brown slightly quicker
that the lower one.
This is quite usual. There is no mixing of flavours
between dishes.
☞
How to Use the Fan Oven
1. Turn the oven function control knob to .
2. Turn the thermostat control to the required tempe-
rature.
THINGS TO NOTE
• The oven light will come on when the oven
function control knob is set.
• The oven fan will operate continually during
cooking.
• The thermostat control light will remain on until
the correct temperature is reached. It will then
cycle on and off to show the temperature is being
maintained.
FO 0061

12
Food Shelf Cooking
Position Temp (°C)
Biscuits 180-190
Bread 210-220
Casseroles 130-140
Cakes: Small and queen 160-170
Sponges 160-170
Madeira 140-150
Rich Fruit 130-140
Christmas 130-140
Meringues 90-100
Fish 170-190
Fruit Pies and Crumbles 190-200
Milk Puddings 130-140
Pastry: Choux
Shortcrust
Flaky 190-200
Puff
Plate Tarts 180
Quiches/Flans 170-180
Scones 210-220
Roasting: Meat & Poultry 160-180
Cooking Chart
This chart is intended as a guide only. It may be necessary to increase or decrease the temperature to suit your
individual requirements. Only experience will enable you to determine the correct setting for your personal
requirements.
When roasting, ensure the meat is cooked thoroughly, use a meat thermometer if preferred to check the centre
temperature has reached the required temperature (see table below).
MEAT TEMPERATURES
Beef Rare - 60°C
Medium - 70°C
Well Done - 80°C
Pork Well Done - 80°C
Lamb Medium - 70°C
Well Done - 80°C
}
Shelf
positions
are not
critical but
ensure that
oven
shelves are
evenly
spaced
when more
than one is
used.

13
Runner positions are not critical, but make sure the
shelves are evenly spread.
When cooking more than one dish in the fan oven,
place dishes centrally on the shelves rather than
several dishes on one shelf.
When the oven is full, you may need to allow slightly
longer cooking time.
A shelf may be placed on the floor of the oven. Place
dishes on a shelf in this position rather than on the
oven base, to allow air circulation around the food.
When the oven is full of the same food, e.g. equal
trays of small cakes or equal size victoria sandwich
cakes, then they will be cooked in the same time and
removed from the oven together. When different
sizes of trays or types of food, e.g. biscuits and cakes
are cooked, they will not necessarily be ready
together.
The fan oven can be used to heat foods through
without thawing first, e.g. fruit tarts, mince pies,
sausage rolls, and other small pastry items. Use a
temperature of 190-200°C and allow 20-40 minutes
(depending on the quantity of food in the oven).
The use of too high temperatures can cause uneven
browning. Check with the recommendations for oven
temperatures given in the cooking charts, but be
prepared to adjust the temperature by 10°C if
necessary. Remember to reduce temperatures by
about 20-25°C for your own conventional recipes.
When roasting do use the trivet in the meat tin. Fat
and meat juices will drain into the meat tin below and
can be used to make gravy. The trivet also prevents
splashes of fat from soiling the oven interior.
The meat tin should not be placed on a heated
hotplate as this may cause the enamel to crack.
i
Hints andTips

14

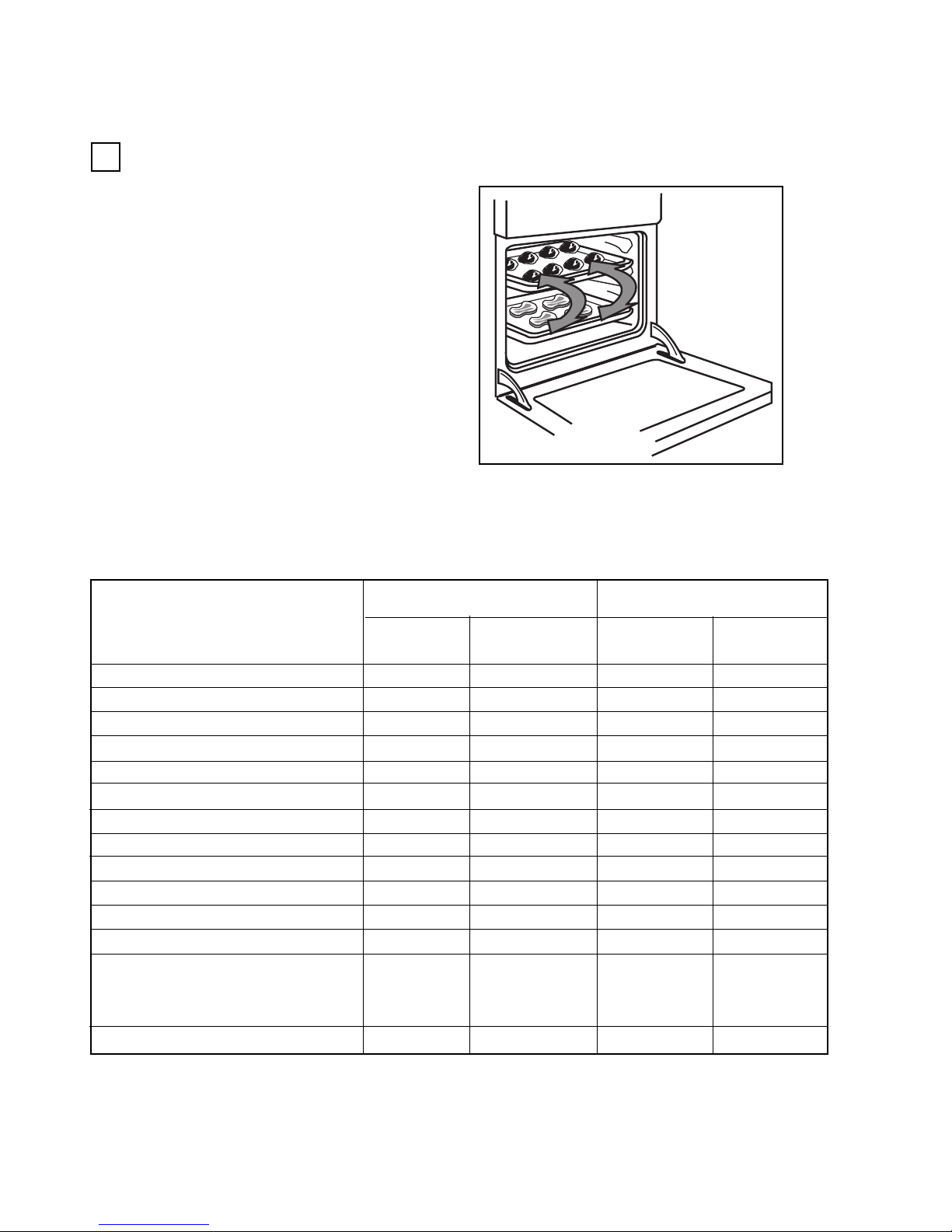

The oven fan operates without heat and circulates the
air, at room temperature, inside the oven. This
increases the speed of defrosting. However, please
note that the temperature of the kitchen will influence
the speed of defrosting.
This function is particularly suitable for delicate food
which could be damaged by heat, e.g. cream filled
gateaux, iced cakes, pastries, bread and other yeast
products.
☞
How to Use Defrosting
1. Turn the oven function control knob to .
2. Ensure the thermostat control knob is in the OFF
position.
Defrosting
• Cover food with a lid, aluminium foil or plastic
film to prevent drying out during defrosting.
• ALWAYS COOK THOROUGHLY
IMMEDIATELY AFTER THAWING.
• Frozen food should be placed in a single layer
when ever possible and turned over half way
through the defrosting process.
• Only joints of meat and poultry up to 2 kg. (4 lb.)
are suitable for defrosting in this way.
Refer to the following table for approximate
defrosting times.
i
Chicken 1000 g. 100-140 20-30 Place the chicken on an inverted
saucer on a large plate. Defrost open
and turn at half time or defrost
covered with foil. Remove giblets
as soon as possible.
Meat 1000 g. 100-140 20-30 Defrost open and turn at
half time or cover with foil
Meat 500 g. 90-120 20-30 As above
Trout 150 g. 23-35 10-15 Defrost open
Strawberries 300 g. 30-40 10-20 Defrost open
Butter 250 g. 30-40 10-15 Defrost open
Cream 2 x 200 g. 80-100 10-15 Defrost open (cream is
easy to whip even if parts
of it are still slightly frozen)
Cake 1400 g. 60 60 Defrost open
Food Defrosting time
(Mins) Standing time
(Mins) Notes
Hints andTips
The times quoted in the chart should be used as a guide only, as the speed of defrosting will depend on the kitchen
temperature. For example, the colder the ambient temperature, the longer the defrosting time.

15
Grilling
Grilling must be carried out with the oven
door closed. The grill pan handles must be
removed from the pan.
☞
How to Use the Grill
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature.
3. Adjust the grid and grill pan runner position to
allow for different thicknesses of food. Position
the food close to the element for faster cooking
and further away for more gentle cooking.
Preheat the grill on a full setting for a few minutes
before sealing steaks or toasting. Adjust the heat
setting and the shelf as necessary, during cooking.
During cooking, the cooling fan and the thermostat
control light will operate in the same way as
described for the fan oven function.
- Most foods should be placed on the grid in the grill
pan to allow maximum circulation of air to lift the
food out of the fats and juices. Food such as fish,
liver and kidneys may be placed directly on the grill
pan, if preferred
- Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep them
moist during cooking
- Accompaniments such as tomatoes and mushrooms
may be placed underneath the grid when grilling
meats
- When toasting bread, we suggest that the top runner
position is used.
- The food should be turned over during cooking, as
required.
The grill element is controlled by the thermostat.
During cooking, the grill cycles on and off to
prevent overheating.
OI
L
Hints andTips
i

16
☞

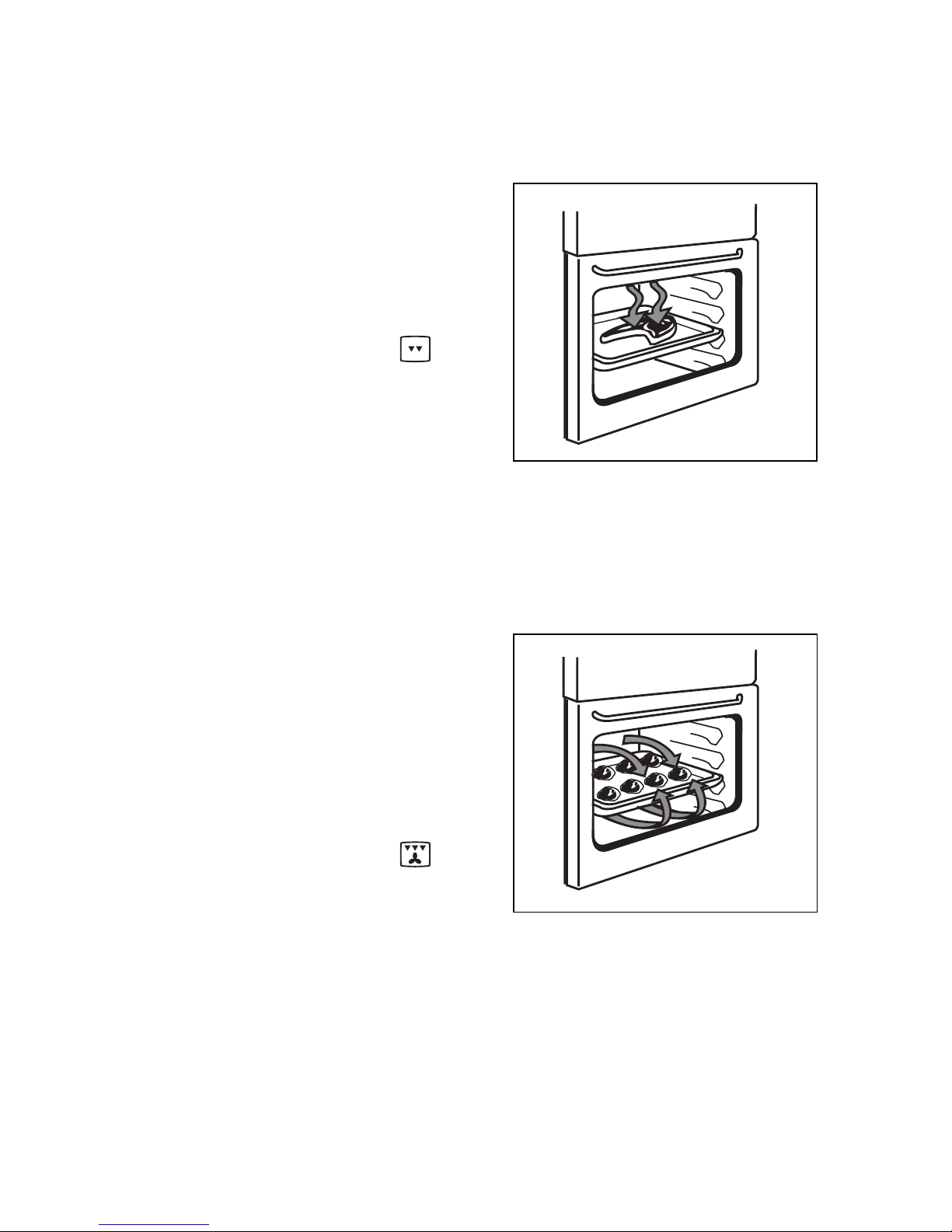

How to Use the Inner Grill
Element
The inner grill provides quick direct heat to the
central area of the grill pan. By using the inner grill
element for cooking small quantities, it can help to
save energy.
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature.
3. Adjust the grid and grill pan runner position to
allow for different thicknesses of food and follow
the instructions for grilling.
☞
How to Use theThermal Grill
Thermal grilling offers an alternative method of
cooking food items normally associated with
conventional grilling. The grill element and the oven
fan operate alternately, circulating hot air around the
food. The need to check and turn the food is reduced.
Thermal grilling helps to minimize cooking smells in
the kitchen.
With the exception of toast and rare steaks, you can
thermally grill all the foods you would normally cook
under a conventional grill. Cooking is more gentle,
therefore food generally takes a little longer to cook
with thermal grilling compared with conventional
grilling. One of the advantages is that larger loads
can be cooked at the same time.
1. Turn the oven control function knob on .
2. Turn the thermostat control knob on the required
temperature. Select a maximum temperature of
200°C.
3. Adjust the grid and grill pan runner position to
allow for different thicknesses of food and follow
the instructions for grilling.

17

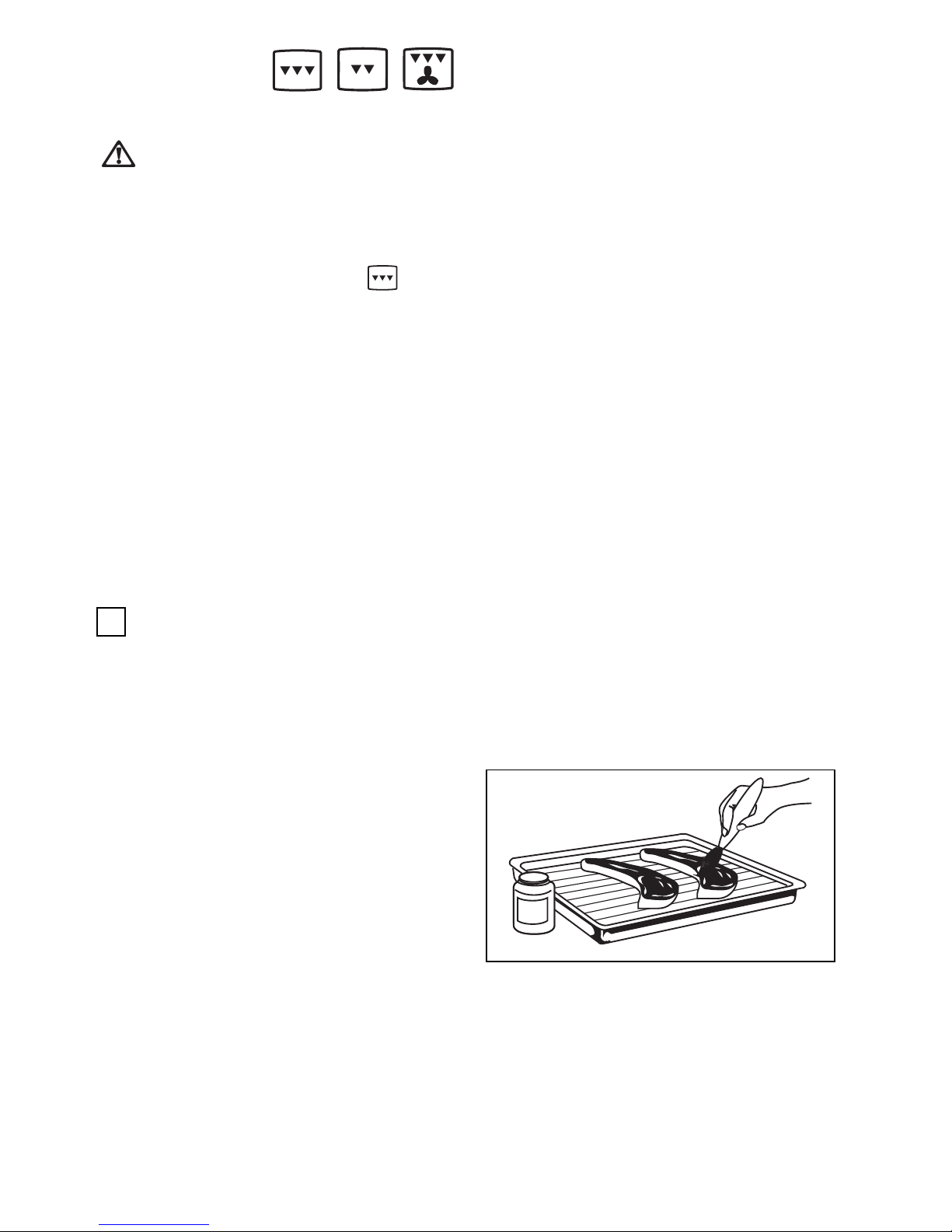

Prepare foods in the same way as for conventional
grilling. Brush lean meats and fish lightly with little
oil or butter to keep them moist during cooking.
If thermally grilling on more than one level, it may be
necessary to interchange the food on the shelves
during cooking.
A general guide to cooking times is given below but
these times may vary slightly depending on the
thickness and quantity of food being cooked.
Cooking Chart - Grilling
Time
(Mins)
Temp
(°C)
Time
(Mins per side)
Temp
(°C)
FOOD Grill and Inner Grill Element Thermal Grill
Bacon Rashers 210 2-3 200 8-12
Beefburgers 200 6-10 190 10-15
Chicken Joints 170 10-15 160 35-45
Chops - Lamb 180 7-10 170 20-25
- Pork 180 10-15 170 25-35
Fish - Whole Trout/Herring 170 8-12 170 10-20
- Fillets Plaice/Cod 170 4-6 170 10-20
Kebabs 180 10-15 170 20-30
Kidneys - Lamb/Pig 170 4-6 180 10-15
Liver - Lamb/Pig 170 5-10 180 20-30
Sausages 180 10-15 190 10-15
Toast 250 1-2 --
Heating through and
Browning, e.g. au-gratin, - - 170 20-30
lasagne, shepherd's pie.
depending on size depending on size
Browning dishes only 230 3-5 --
Hints andTips
i

18
Before cleaning always allow the cooling
fan to cool the cooker down before
switching off at the electricity supply.
The oven should be kept clean at all times.
A build-up of fats or other foodstuffs could
result in a fire, especially in the grill pan.
Cleaning materials
Before using any cleaning materials on your oven,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
External cleaning
Regularly wipe over the control panel, oven door and
door seal using a soft cloth well wrung out in warm
water to which a little liquid detergent has been
added.
To prevent damaging or weakening the
door glass panels avoid the use of the
following:
• Household detergent and bleaches
• Impegnated pads unsuitable for non-
stick saucepans
• Brillo/Ajax pads or steel wool pads
• Chemical oven pads or aerosols
• Rust removers
• Bath/Sink stain removers
Clean the outer and inner door glass using warm
soapy water. Should the inner door glass become
heavily soiled it is recommended that a cleaning
product such as Hob Brite is used.
DO NOT clean the oven door while the
glass panels are warm. If this precaution is
not observed the glass panel may shatter.
If the door glass panel becomes chipped or
has deep scratches, the glass will be
weakened and must be replaced to prevent
the possibility of the panel shattering.
Contact your local Service Centre who will
be pleased to advise further.
Cleaning the Oven

19

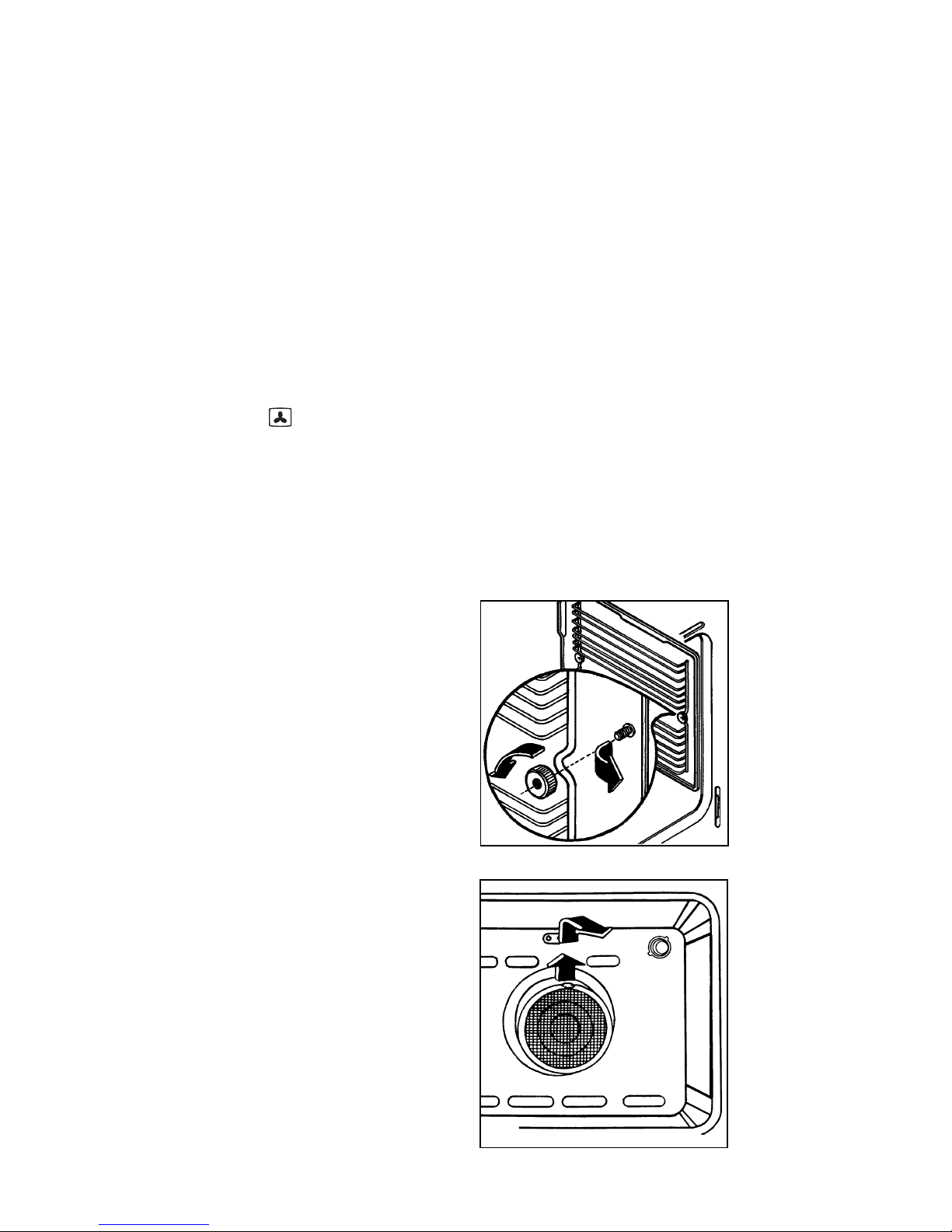

Grease Filter
To prevent a build-up of fats on the fan impellor, the
grease filter must be fitted by clipping it over the
vents in the back panel. Do not use abrasive materials
to clean the seal. The grease filter is dishwasher
proof.
To clean the grease filter
When cooking is completed and the oven has cooled
down, remove the filter by pushing the protruding
tongue on the filter upward, and wash carefully.
Remember to refit the filter before using the oven
again. FO 0018
Oven Cavity
The enamelled oven cavity is best cleaned whilst the
oven is still warm.
Wipe the oven over with a soft cloth soaked in warm
soapy water after each use. From time to time it will
be necessary to do a more thorough cleaning, using a
proprietary oven cleaner.
If the soilage has become set, after the oven has
cooled down, the following process will help to
soften the splatters to help make cleaning easier.
☞1. Place the grill/ meat pan on the oven shelf
positioned in the lowest runner.
2. Add a few drops of wasing-up liquid to the
pan and fill to about 12 mm. with boiling
water from the kettle.
3. Close the oven door, turn the oven function
knob on fan oven and set the thermostat
knob on 50°C.
4. After 15 minutes, turn off the thermostat
and allow the fan oven to continue without
heat for a further 5 minutes, when the
temperature of the water will have cooled
down.
5. Carefully remove the pan of water from the
oven and use normal oven cleaners to clean
away soil residues.
6. Leave a little of soapy water to soak into
any burned on spillage on the floor of the
oven for a longer time if necessary.
Oven Shelves
To clean the oven shelves, soak in warm soapy water
and remove stubborn marks with a well wetted soap
impregnated pad. Rinse well and dry with a soft
cloth.The shelf supports can be removed for easy
cleaning (see diagram). Please, ensure the retaining
nuts are secure when refitting the shelf support.

20
FO 0287
ReplacingThe Oven Light
If the oven bulb needs replacing, it must comply with
the following specifications:
- Electric power: 15W,
- Electric rate: 230-240 V (50 Hz),
- Resistant to temperatures of 300°C,
- Connection type: E14.
These bulbs are available from your local Force
Service Centre.
To replace the faulty bulb:
1. Ensure the oven is isolated from the electrical
supply.
2. Push in and turn the glass cover anticlockwise.
3. Remove the faulty bulb and replace with the new
one.
4. Refit the glass cover.
5. Restore the electrical supply.
