The Trident 88 is a split inline console that builds on the Trident heritage. The 88 consoles possess the
highest sonic quality components and are equipped with eight busses and the renowned Trident Series
80 EQ. This incarnation by Trident Audio Developments is built with modern integrated circuits that use a
combination of through-hole and surface mount parts. These consoles feature options such as custom
transformer installation, VU Meters and more. The quality construction and modular design make the
Trident 88 a highly serviceable unit with unparalleled value.
TRIDENT 88 OWNERS MANUAL 3
Input Impedance
0LFURSKRQH !.ƘHOHFWURQLFDOO\EDODQFHG
/LQH  !.ƘHOHFWURQLFDOO\EDODQFHG
Output Impedance
/HIW5LJKW0RQLWRU23*URXSDQG$X[HV Ƙ2XWVPDUWV'ULYH
$OORWKHU2XWSXWV  Ƙ
Frequency Response
0LF,QSXWWR0L[2XWSXW  G%+]WR.+]#G%JDLQ
/LQH,QSXWWR0L[2XWSXW  G%+]WR.+]#G%JDLQ
Distortion/Noise7+'1RLVHDWG%X2XWSXW
0LF;/5,QSXWWRDQ\2XWSXWG%XLQSXW  
/LQH,QSXWWRDQ\2XWSXW  
0RQLWRU7DSH5HWXUQ,QSXWWRDQ\2XWSXW  
Noise
0LF(,1.+]ƘVRXUFHG%JDLQ  G%X
5HVLGXDO%XV1RLVH2XWSXWIDGHUDWPLQ  G%X
%XV1RLVH LQSXWVFRQWLQXDOO\DVVLJQHG G%X
,QSXW0RQ7DSH5HWXUQV();5HWXUQVDQG0DVWHU7DSH5HWXUQV
%XV1RLVHLQSXWVURXWHGHTXLYWR,QSXWV G%X
Crosstalk
$GMDFHQW&KDQQHO  G%#.+]
G%#.+]
&KDQQHO)DGHU0XWH G%+]WR.+]
0RQLWRU7DSH5HWXUQ0XWH  G%+]WR.+]
0L[%XV$VVLJQ  G%+]WR.+]
$X[WR$X[ G%+]WR.+]
Maximum Input
0LF;/5,QSXWDWPLQJDLQ G%X
0LFµ,QSXWDWPLQJDLQ G%X
/LQHDWPLQJDLQ  G%X
&KDQQHO,QVHUW5HWXUQ G%X
$OO2XWSXW,QVHUW5HWXUQV  G%X
Maximum Output
0L[*URXS$X[0RQLWRU2XWSXWV  G%X,QWRƘ
,QVHUW6HQG6WXGLR$OW2XWSXWV G%X,QWR.Ƙ
Phase
0LF,QSXWWR'LUHFW2XW RWRR+]WR.K]
0LF,QWR0L[2XWSXW RWRR+]WR.K]
/LQH,QWR0L[2XWSXW RWRR+]WR.K]
0RQLWRU7DSH5HWXUQWR0L[2XWSXW  RWRR+]WR.K]
Trident 88 Specifications
1&KDQQHO¬WidthVLGHWRVLGHLQFOXGLQJVLGHSDQHOV¬¬  DepthIURQWWREDFN¬¬   HeightWRSWRERWWRPDERXW
&KDQQHO Width VLGHWRVLGHLQFOXGLQJVLGHSDQHOV¬ Depth IURQWWREDFN   HeightWRSWRERWWRPDERXW
&KDQQHO¬Width VLGHWRVLGHLQFOXGLQJVLGHSDQHOV¬ Depth IURQWWREDFN   Height WRSWRERWWRPDERXW
&KDQQHO¬Width VLGHWRVLGHLQFOXGLQJVLGHSDQHOV¬ Depth (IURQWWREDFN   Height WRSWRERWWRPDERXW
Module width is 1.25"
Dimensions:

The TR DENT 88 nput module is an extremely sophisticated and
flexible channel that can be used for recording, mixing and
monitoring multi-track recordings. t will accept a signal from a
low impedance balanced microphone, high or low level balanced
line input, or even the output from a musical instrument.
t provides the user with state of the art fully discrete
microphone preamps, with the option to add transformers to as
many channels as you like. A four band fully sweepable Trident
EQ is at the core of this console, every channel also has a Tilt EQ
on the Monitor section with the ability to swap the full EQ and Tilt
EQ from the nput path and the Monitor path.
Access to the channel is available through means of a
switchable post Mic preamp insert and a switchable pre/post EQ
insert point. This allows the user to insert their favourite external
Mic Preamp (or Line output device) into the channel and remove
the internal preamp and additionally insert an effects device via
the standard channel insert.
Eight Auxiliary sends are provided, four mono and two stereo
sets, each can be switched pre or post the channel fader. Aux 1,
Aux 2 and Aux 7/8 can also be selected between the channel
and monitor path, greatly adding to the flexibility of the module.
Each module incorporates a monitor section with the Tilt EQ
which is used to monitor a replay channel from a multi-track
recording device. This is, in effect, a separate signal path which
ultimately feeds the master Left/Right outputs. By making the
channel EQ and Auxiliary sends 1,2 and 7/8 to this path , this
becomes an extremely versatile feature of the console. When
monitoring the output of a multi-track recording device, it is
possible to create a monitor mix with equalisation and reverb ef-
fects completely independently from the channel. These effects
would also remain when the recording is played back through
the same monitor section.
When the module is used for mixing purposes, the monitor sec-
tion functions as an additional line input return to the main
Left/Right mix, again with the Tilt EQ and Auxiliary 1,2 and 7/8
available through the monitor section. This effectively doubles
the number of inputs per input module that are available on mix
down mode. This, with additional inputs on the master section,
greatly increases the inputs available, even on the
smallest console.
The input channel is provided with a switchable non destructive
mono pre fader listen (PFL) and stereo after fader listen (AFL)
SOLO system, the monitor input is provide with an AFL SOLO
only. t is possible then to hear the selected signal in isolation (or
mixed with other “soloed” sources) separately in the main moni-
tors, without effecting the main Left/Right mix.
The images on the following pages give a brief description of the
controls on the nput module:
The Input Module
TRIDENT 88 OWNERS MANUAL
4

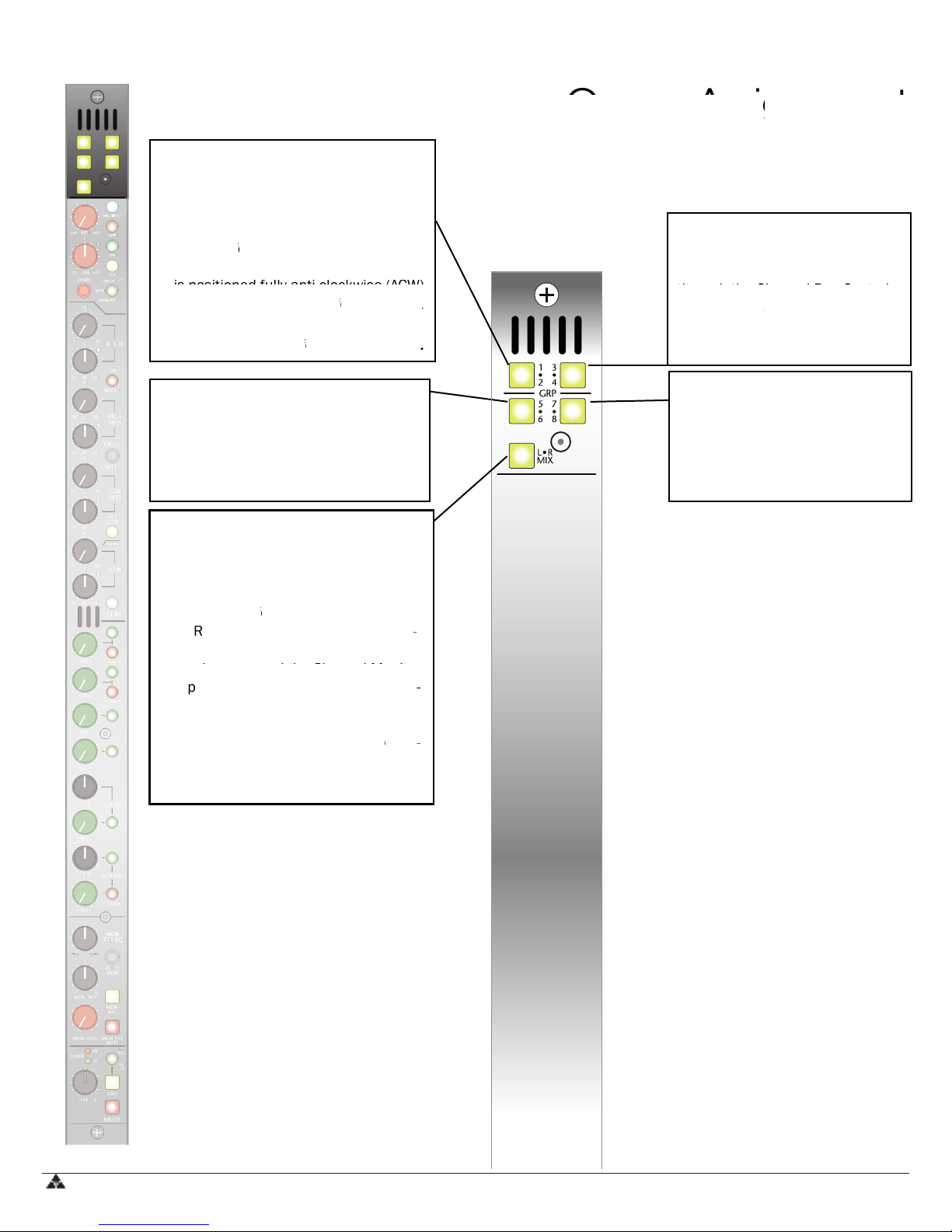

1-2 Group Assignment
Assigns the Channel post-fader signal to
the Group 1 and 2 mix buses through the
Channel Pan Control. With the Channel
Pan control in mid position, the signal will
be fed to Group 1 and 2 in equal
amounts. If the Channel Pan Pot Control
is positioned fully anti-clockwise (ACW)
the channel signal will only feed Group 1.
When positioned fully clockwise (CW) the
signal will feed only Group 2..
5-6 Group Assignment
Assigns the Channel post-fader signal to
Group 5 and 6 mix buses through the
Channel Pan Control. Operation is the
same as the 1-2 Group assignment.
3-4 Group Assignment
Assigns the Channel post-fader
signal to Group 3 and 4 mix buses
through the Channel Pan Control.
Operation is the same as the 1-2
Group assignment.
7-8 Group Assignment
Assigns the Channel post-fader
signal to Group 7 and 8 mix buses
through the Channel Pan Control.
Operation is the same as the 1-2
Group assignment.
L-R Mix
Assigns the Channel post-fader signal to
the Left and Right mix buses through
the Channel Pan Control. Operation is
the same as the 1-2 Group assignment.
Sometimes referenced as the Main mix
or Remix bus assignment. In a multi-
track studio environment, this L-R Mix
assignment and the Channel Monitor
Input allow the user to have two sepa-
rate external inputs (Channel Mic/Line
and Monitor return) that can be sent to
the Left and Right mix busses, effec-
tively doubling your inputs on
mixdown (Remix)
+60+10 MIC
MIX
1
-
2
+48V
LINE
POL
MTR
I/P REV
+20-20 LINE
MIC INSRT
0
+-
+
-
0
Hz
15k
1k
ON
INSERT
INSERT
PRE EQ
+15-15
+
-
010k700
+15-15
+-
01.5k
100
+15-15
+
-
065040 LOW
50 Hz
HPF
FILTER
EQ IN
P
R
E
AUX 1
AUX 2
TO MON
AUX 3
AUX 4
AUX 5/6
LEVEL
TO MON
MON PAN
LR
MON
TILT EQ
EQ TO
MON
MONITOR
MUTE
MON LEVEL
MON
AFL
PAN
DIR OP
MON RET
AFL
PFL
SOLO
MUTE
+10
-20
SIGNAL
Hz
Hz
Hz
PAN
LEVEL
PAN AUX 7/8
LR
TO MON
dB
dB
dB
HIGH
MID
+15-15 dB
HIGH
+
-
+
-
+
-
=
MON
TILT EQ
LOW
MID
3
-
4
5
-
6
7
-
8
P
R
E
P
R
E
P
R
E
P
R
E
P
R
E
Trident 88 Input Channel
Group Assignment
G
Trident
G A i
t 88 Input C
t
Channel
is p
amou
an co
P
Cha
the Gr
Assig
positioned fully anti clockwise
t C
o
an P
unts. If the Channel P
oup 1 and 2 in
o Gr
ed t
be f
fed t
ol in mid position, the signal will
ontr
ol. With the Channel
an Contr
annel P
oug
oup 1 and 2 mix buses thr
r
ader sig
gns the Channel post-f
oup Assign
1-2 Gr
CW)
(A
ol
Contr
ual
eq
nal will
hannel
gh the
o
gnal t
nment
G
h th C
th
ou
o Gr
signal t
Assigns the C
oup Ass
3-4 Gr
Group Assig
l
C t
Ch l P
up 3 and 4 mix buses
ader
hannel post-f
signment
gnment
When
the ch
is p
s
Ch
Gr
Assig
o
eed only Gr
signal will f
feed only Gr
n positioned fully clockwise (CW) the
o
eed Gr
hannel signal will only f
feed Gr
positioned fully anti-clockwise
oup assign
same as the 1-2 Gr
ol. Operation is the
an Contr
hannel P
oug
oup 5 and 6 mix buses thr
r
ader sig
gns the Channel post-f
oup Assign
5-6 Gr
.
oup 2.
W) the
.
oup 1
CW)
(A
nment.
is the
gh the
o
gnal t
nment
oup assignm
Gr
Operation is t
ough the C
thr
Operation is t
ough the C
thr
ou
o Gr
signal t
Assigns the C
oup Assignment
7-8 Gr
ment.
the same as the 1-2
ol.
an Contr
Channel P
he same as the 1-2
ol.
an Contr
hannel P
up 7 and 8 mix buses
ader
hannel post-f
signment
tra
or R
Som
the s
the
the
Assig
i d h Ch l M
-
onment, this L
L-R Mix
vir
ck studio en
emix bus assignment. In a m
R
erenced as the Main mix
times ref
ferenced as the Main mix
e
oup assignm
ame as the 1-2 Gr
ol. Operation is
an Contr
e Channel P
t and Right mix buses thr
e Lef
ader sig
ns the Channel post-f
L-
i
R Mix
-
multi
n mix
ment.
tion is
ough
r
o
nal t
R Mix
oup assignm
Gr
ment.
th
and
e
rat
p
In
as
wn (R
mixdo
pu
our in
ely doubling y
tiv
t and Right mix busses, e
he Lef
turn) that can be se
or re
Monit
puts (Channel Mic
ernal in
xt
e e
o
e tw
v
o ha
w the user t
put allo
signment and the Channel Mo
emix)
R
uts on
-
ec
f
ef
o
ent t
c/Line
-
sepa
or
onit
TRIDENT 88 OWNERS MANUAL 5

Trident 88 Input Channel

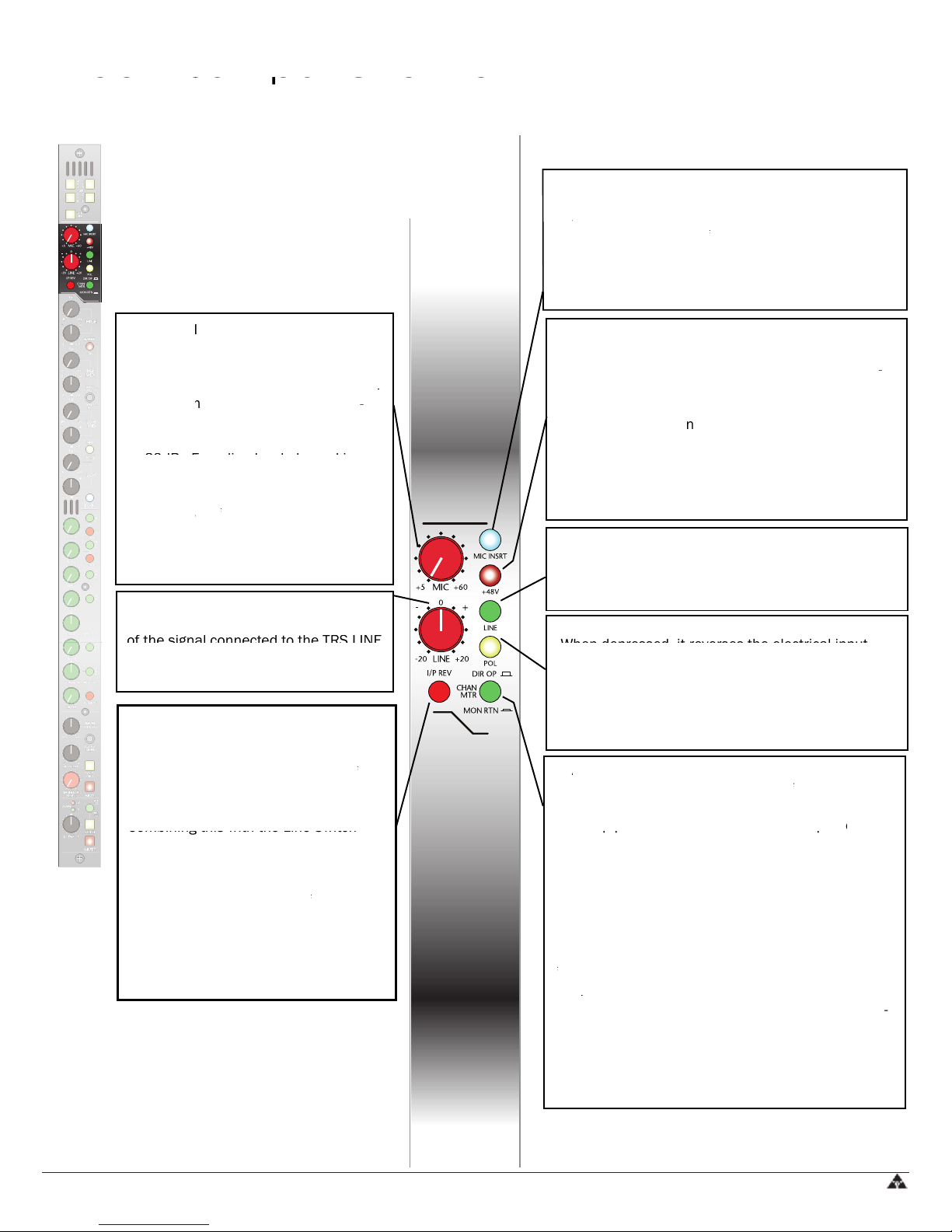

Mic/Line Options
MIC INSRT
Selects between the Mic input source on the XLR /
¼” Combination connector and the line level input
(labelled Ext MIC) that feeds the Channel. Allows
the user to connect a line source (external Mic
Preamp) and be able to bypass the Channel Mic
pre-amp stage or switch between them.
+48V
When depressed , provides +48 Volt phantom
power to the XLR portion of the MIC input connec-
tor. Note: +48V will NOT appear on the ¼” part of
the MIC input connector. Phantom power is required
for operation of many condenser microphones. See
your microphone instructions to see if phantom
power is required or should not be activated (some
microphones require phantom power NOT to be
activated or they may be damaged).
MIC GAIN
This control adjusts the amount of
gain of the signal connected to the
MIC XLR / ¼” Combination connector.
For low impedance balanced micro-
phone plugged into the XLR the gain
varies from +5dB min to approximately
+60dB. For a line level plugged into
the ¼” part of the MIC combination
connector the gain varies from -15dB
to +40dB, effectively providing a 20dB
pad to the microphone preamp.
Note: This gain is independent from
the Line Gain.
Line Gain
This control adjusts the amount of gain
of the signal connected to the TRS LINE
jack. In the mid position the gain is
unity (0dB).
Line Switch
This control adjusts the amount of gain of the signal
connected to the TRS LINE jack. In the mid position
the gain is unity (0dB)
POL
When depressed, it reverses the electrical input
polarity of any microphone or line level input signal
which has been selected as the channel source. Use
of this control may alter the sound quality of an input
relative to other channels when multiple
microphones are picking up the same sound.
CHAN MTR
This button selects the signal that is fed to the
relevant channel meter situated on the meter bridge.
In the up position the Channel Direct Output feed is
displayed.
[The Channel Direct Output can be user defined by a
selectable option on the Input module, it can be
selected either Channel post fader or Channel Insert
Return (signal appearing on ring contact of Channel
INSERT TRS jack.]
When this button is depressed the channel meter is
fed from the signal on the Channel MONITOR I/P TRS
jack.
In a multi-track studio environment where the Chan-
nel Direct Output is fed to the recording device and
the output of this device is connected to the MONITOR
I/P, it is possible to see on the Channel meter what is
sent to or received from the recording device.
I/P REV
The Input Reverse switch when
depressed flips the Line Input signal
and the Monitor Input signals. In effect
this switch determines the Line input
source that is available to the channel.
Combining this with the Line Switch
above allows the user to source the
channel signal from the Channel
Monitor Return TRS jack and to use the
full channel strip resources for the
Monitor return signal. Alternatively
depressing this switch selects the Line
Input TRS source for the Channel
Monitor section.
Trident 8
88 Input Ch
hannel
Mic/Line
Trident 8
e Options
88 Input Ch
hannel
th
(la
¼
Se
M
c
a line sour
o connect
e user t
eeds the Channel. Allo
at f
f
abelled Ext MIC) th
or and the line le
nect
¼” Combination con
put s
Mic in
een the
tw
elects be
IC INSRT
ernal Mic
xt
ce (e
ws
e Channel. Allo
put
el in
v
the line le
ce on the XLR /
sour
60dB F
o
aries fr
v
phone plu
w im
or lo
F
MIC XLR /
gain of th
This contr
AIN
MIC G
l l d i
li l
F
ely
ximat
o
o appr
m +5dB min t
o the XLR the gain
ugged int
-
o
pedance balanced micr
m
.
or
/ ¼” Combination connect
o the
ed t
e signal connect
ol adjusts the amount of
r
N
pr
Pr
y
o
y
o
f
th
o
t
po
W
+4
ee
tw
itch be
p stage or sw
re-am
ypass the Channel Mic
o b
e t
p) and be abl
ream
o
structions t
ophone in
our micr
y condense
n
or operation of ma
. Phant
or
ect
put conn
he MIC in
T appear on the ¼” par
NO
e: +48V will
t
. No
or
tion of the
or
o the XLR p
er t
w
o
vides +48
o
r
When depressed , p
48V
en them.
the Channel Mic
om
o see if phant
ophones. See
er micr
uired
er is req
w
om po
t
t of
r on the ¼” par
-
put connec
e MIC in
om
olt phant
8 V
the Line G
e: This
t
No
o the
pad t
o +40dB
t
o
connect
the ¼” pa
+60dB. F
of the sign
o
This contr
Line Gain
Gain.
om
s gain is independent fr
p.
ophone pream
e micr
viding a 20dB
o
ely pr
ectiv
f
f
B, ef
5dB
om -1
aries fr
r the gain v
t of the MIC combination
ar
o
el plugged int
v
or a line le
F
o the TRS LINE
ed t
al connect
ol adjusts the amount of gain
ac
m
po
W
PO
th
co
Th
Li
y be dama
y ma
ed or the
at
ctiv
om
uire phant
ophones req
micr
t
r should no
uired o
er is req
w
o
ses th
er
v
d it re
When depresse
OL
e gain is unity (0dB)
o the TRS LINE jack
ed t
onnect
ol adjusts the amount of gain of the signal
his contr
h
ne Switc
ged).
o be
T t
er NO
w
po
ed (some
at
t be activ
put
e electrical in
. In the mid position
k
t of gain of the signal
unity (0dB)
. In the
jack
of the sign
Combining
ce tha
sour
this switch
and the Mo
depressed
put R
The In
I/P REV
).
e mid position the gain is
o the TRS LINE
ed t
al connect
g this with the Line Switch
o the channel.
ailable t
v
t is a
put
ermines the Line in
t
de
ect
f
f
put signals. In ef
or In
onit
put signal
flips the Line In
se switch when
er
v
e
R
m
re
of
wh
po
W
In t
rele
Thi
CHA
e picking up the
ophones ar
icr
r channels when multiple
the
o o
e t
elativ
er the sou
y alt
ol ma
f this contr
ed as the
select
hich has been
ophone or lin
y micr
olarity of an
ses th
er
v
d, it re
When depresse
on the Channel D
the up positi
ed
er situat
t
el me
ant chann
v
e
cts the signal tha
on sele
s butt
AN MTR
e same sound.
n multiple
put
uality of an in
und q
ce. Use
e channel sour
put signal
el in
v
ne le
put
e electrical in
eed is
Direct Output f
e
er bridge.
t
on the me
o the
ed t
at is f
f
or se
Monit
put TRS s
In
depressing
t
or re
Monit
full channe
e
or R
Monit
channel sig
w
e allo
v
abo
Combining
ection.
or the Channel
ce f
sour
g this switch selects the Line
ely
ernativ
turn signal. Alt
or the
ces f
f
el strip resour
o use the
turn TRS jack and t
e
om the Channel
gnal fr
ce the
o sour
ws the user t
g this with the Line Switch
In a
jac
ed
f
f
Wh
INS
t
e
R
sel
sel
[Th
dis
onme
vir
studio en
a multi-track
.
k
nal on the Chann
om the sig
d fr
on is depressed the channel me
hen this butt
.]
T TRS jack
SER
ppearing on ring contact of Channel
turn (signal a
ad
Channel post f
ed either
ect
put m
n on the In
ectable optio
e Channel Direct Output can be user defined b
ed.
y
pla
p p
-
ent where the Chan
OR I/P TRS
nel MONIT
er is
t
he channel me
contact of Channel
t
der or Channel Inser
module, it can be
y a
be user defined b
p
sen
I/P
the
nel
om the reco
ed fr
v
o or recei
nt t
o see on the C
, it is possible t
vice is connect
is de
e output of th
o the rec
ed t
ut is f
Direct Outp
vice.
ding de
or
er what is
t
hannel me
OR
o the MONIT
ed t
ect
vice and
ding de
cor
TRIDENT 88 OWNERS MANUAL
6

Trident 88 Input Channel
The Equaliser
+-
015k
1k
ON
INSERT
INSERT
PRE EQ
+15-15
+-
010k700
+15-15
+-
01.5k
100
+15-15
+-
065040 LOW
50 Hz
HPF
FILTER
EQ IN
Hz
Hz
Hz
dB
dB
dB
HIGH
MID
+15-15 dB
HIGH
+-
+-
+-
LOW
MID
CHANNEL EQUALISER

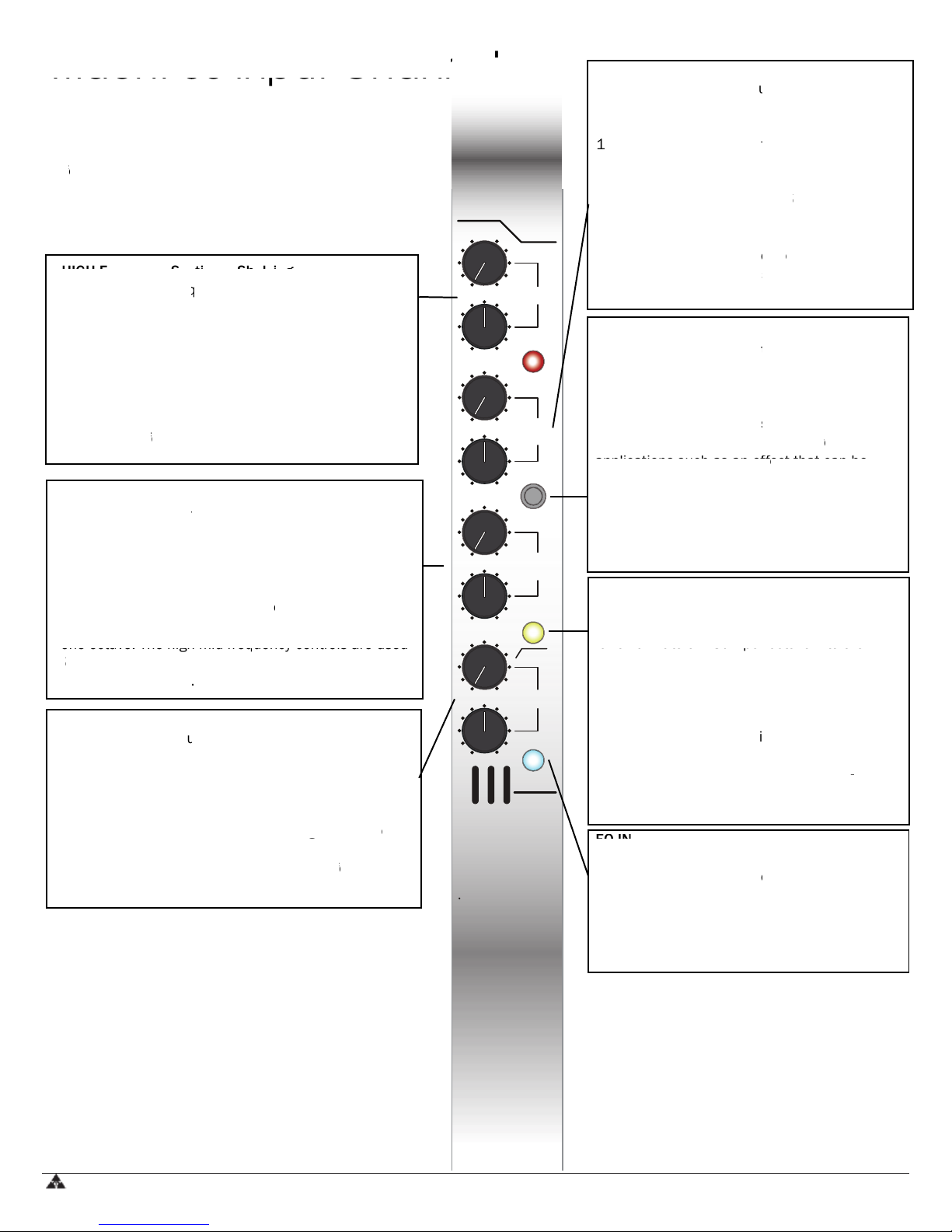

A four band fully sweepable Trident EQ with overlapping
ranges is provided with a switchable high pass filter. The
HIGH and LOW sections of the equaliser have a shelving
response and the mids have a peaking (bell) response.
HIGH Frequency Section – Shelving
Adjusts the high frequency shelving EQ response.
The Frequency control selects the corner frequency
of the shelving filter (between 1kHz and 15kHz)
and the Level control adjusts the cut/boost
between +/- 15dB. The centre “0” position of the
Level control has a detent to indicate that it is
having no effect on the associated channel signal.
Cut or boost of the high frequency level control is
usually used for minor tonal adjustments.
HIGH - MID
Adjusts the high-mid frequency EQ response.
The Frequency control selects the centre
frequency of the filter (between 700Hz and
10kHz) and the Level control adjusts the
cut/boost between +/- 15dB. The centre “0”
position of the Level control has a detent to
indicate that it is having no effect on this
frequency band. The bandwidth of this filter is
approximately one octave. The high-mid
frequency controls are used for minor tonal
adjustment or repair of a specific band of
frequencies.
LOW –MID Frequency Section
Adjusts the low-mid frequency EQ response. The
Frequency control selects the centre frequency of the
filter (between 100Hz and 1.5kHz) and the Level
control adjusts the cut/boost between +/- 15dB. The
centre “0” position of the Level control has a detent
to indicate that it is having no effect on this frequency
band. The bandwidth of this filter is approximately
one octave. The high-mid frequency controls are used
for minor tonal adjustment or repair of a specific
band of frequencies.
LOW Frequency Section – Shelving
Adjusts the low frequency shelving EQ response. The
Frequency control selects the corner frequency of the
shelving filter (between 40Hz and 650Hz) and the
Level control adjusts the cut/boost between +/-
15dB. The centre “0” position of the Level control
has a detent to indicate that it is having no effect on
the associated channel signal. Cut or boost of the
low frequency level control is usually used for minor
tonal adjustments.
EQ IN
This switch inserts the 4-band EQ and High
Pass Filter into the channel/monitor (see EQ
TO MON switch description below) signal
path. When not in use, it is suggested that
the EQ be kept in the OUT position for best
phase performance.
INSERT ON
When depressed, this switch places the rear
panel channel TRS insert connector in line with
the signal path. "This insert point is by default
after the channel EQ (unless it is selected pre
EQ below). By routing the signal through this
connector, the insert may be used for
applications such as an effect that can be
switched in/out. In the event the user wants to
patch in his/her favourite external EQ, it can be
connected to the Channel insert TRS and
activated with this switch, it could be used in
conjunction with/without the Trident EQ.
HPF
When selected inserts a high-pass (or Low-
Cut) filter with a corner frequency 50Hz and
a roll off rate of 18dB per octave into the
signal path. This control is used to remove
unwanted signal content below 50Hz. The
result is usually improved signal quality of
the associated input signal, while decreasing
the low frequency amplification demand of
the audio systems amplifier and speaker
combination. Mainly for use with micro-
phones, this helps remove low frequency
rumble and handling noise.
Trident 8
88 Input Ch
n l
hann l
HIGH - MID
The Equ
Trident 8
S
HIGH F
response and the mid
W sectio
O
HIGH and L
vided wit
o
ranges is pr
ee
our band fully sw
A f
four band fully sw
ALISER
CHANNEL EQU
aliser
88 Input Ch
ti Sh l i g
e a peaking (bell) response.
v
ds ha
e a she
v
ualiser ha
ns of the eq
e
ilt
th a switchable high pass f
erlap
v
rident EQ with o
epable T
R
n
hann
nse.
elving
. The
r
pping
ols are used f
uency contr
freq
e
v
ely one octa
ximat
o
appr
uency band. The bandwidth of this f
freq
ving n
e that it is ha
indicat
el contr
v
position of the Le
5
een +/- 1
tw
cut/boost be
el cont
v
0kHz) and the Le
1
t
er (be
ilt
uency of the f
freq
ol sel
uency contr
req
The F
u
djusts the high-mid freq
A
onal
or minor t
ed f
o
. The high-mid
er is
ilt
dwidth of this f
ect on this
f
fect on this
no ef
o
ent t
t
ol has a de
r
5dB. The centre “0”
ol adjusts the
tr
een 700Hz and
tw
ects the centre
uency EQ response.
or min
usually used f
for minor t
Cut or boost of the h
ect on t
f
ving no ef
ha
ol has a d
el contr
v
Le
5dB. T
een +/- 1
tw
be
o
el contr
v
and the Le
er
ilt
of the shelving f
uency contr
req
The F
djusts the high freq
A
requency Sec
HIGH F
onal adjustments.
or t
ol is
el contr
v
uency le
high freq
ed channel signal
the associat
e that it is
o indicat
ent t
t
de
The centre “0” position of the
ol adjusts the cut/boost
5kHz)
een 1kHz and 1
tw
(be
uenc
ol selects the corner freq
r
uency shelving EQ response.
q
ction – Shelving
l.
cy
uencies.
freq
adjustment or repair of a specific band of
applications such as an ef
y
t ma
, the inser
or
connect
outing the signal thr
w). By r
EQ belo
er the channel EQ (unless it is select
t
af
the signal path. "This inser
t
panel channel TRS inser
When depressed, this switch places the rear
INSERT ON
specific band of
ect that can be
f
e
f
or
be used f
for
ough this
signal thr
ed pre
ess it is select
ault
y def
t point is b
r
or in line with
connect
tch places the rear
e. The high
v
one octa
band. The bandwidth
e that it is h
o indicat
t
centre “0” position o
ol adjusts the c
contr
00H
een 1
tw
er (be
ilt
f
ol se
uency contr
req
F
-mid f
w
djusts the lo
A
requenc
W –MID F
O
L
ols are u
uency contr
h-mid freq
ely
ximat
o
er is appr
ilt
h of this f
ue
ect on this freq
f
e
ving no ef
ha
e
t
ol has a de
el contr
v
of the Le
5dB. T
een +/- 1
tw
cut/boost be
el
v
.5kHz) and the Le
Hz and 1
uency of
elects the centre freq
uency EQ response. The
freq
cy Section
used
y
ency
ent
The
the
conjunction with/without the T
ed with this switch, it could be used in
at
activ
o the Channel inser
ed t
connect
e
ourit
v
a
patch in his/her f
e
v
switched in/out. In the e
applications such as an ef
8dB per
e of 1
f rat
oll of
a r
rner fr
er with a co
ilt
Cut) f
ts a h
er
ed ins
When select
HPF
rident EQ.
the T
it could be used in
t TRS and
inser
ernal EQ, it can be
xt
e
o
ants t
ent the user w
ect that can be
f
e
f
o the
e int
v
r octa
uency 50Hz and
eq
-
w
high-pass (or Lo
uencies
band of freq
onal adjus
or minor t
f
for minor t
e. The high
v
one octa
o indic
ent t
t
has a de
5dB. The centre “0
1
ol adjusts
el contr
v
Le
e
tw
er (be
ilt
shelving f
ol se
uency contr
req
F
u
w freq
djusts the lo
A
requency Sect
W F
O
L
.
stment or repair of a specific
ols are u
uency contr
h mid freq
ect o
f
ving no ef
e that it is ha
at
ol
el contr
v
” position of the Le
een +/-
tw
s the cut/boost be
een 40Hz and 650Hz) and the
uency of
elects the corner freq
uency shelving EQ response. T
tion – Shelving
used
on
e
the
The
EQ IN
ng nois
rumble and handli
v
remo
phones, this helps
or u
combination. Mainly f
plif
am
ems
the audio syst
i
plif
am
uency
w freq
the lo
put sign
ed in
the associat
ed signal q
v
o
pr
result is usually im
ent belo
ont
ed signal c
ant
w
un
ol i
ontr
signal path. This c
8dB per
e of 1
f rat
oll of
a r
se.
uency
w freq
e lo
v
-
o
use with micr
er
ier and speak
f
cation demand of
al, while decreasing
uality of
d signal q
w 50Hz. The
belo
e
v
o remo
s used t
o the
e int
v
r octa
onal adjustments.
t
el c
v
uency le
w freq
lo
ed chann
the associat
or mino
ol is usually used f
for minor
contr
nel signal. Cut or boost of the
g
or
e.
ormanc
f
phase per
ept in the OUT position f
the EQ be k
t in use, it i
path. When no
scriptio
O MON switch de
T
channe
o the
er int
ass Filt
P
the 4-band EQ and High
ts
This switch inser
EQ IN
or best
T position f
ed that
s suggest
w) signal
n belo
or (see EQ
el/monit
band EQ and High
TRIDENT 88 OWNERS MANUAL 7

Trident 88 Input Channel

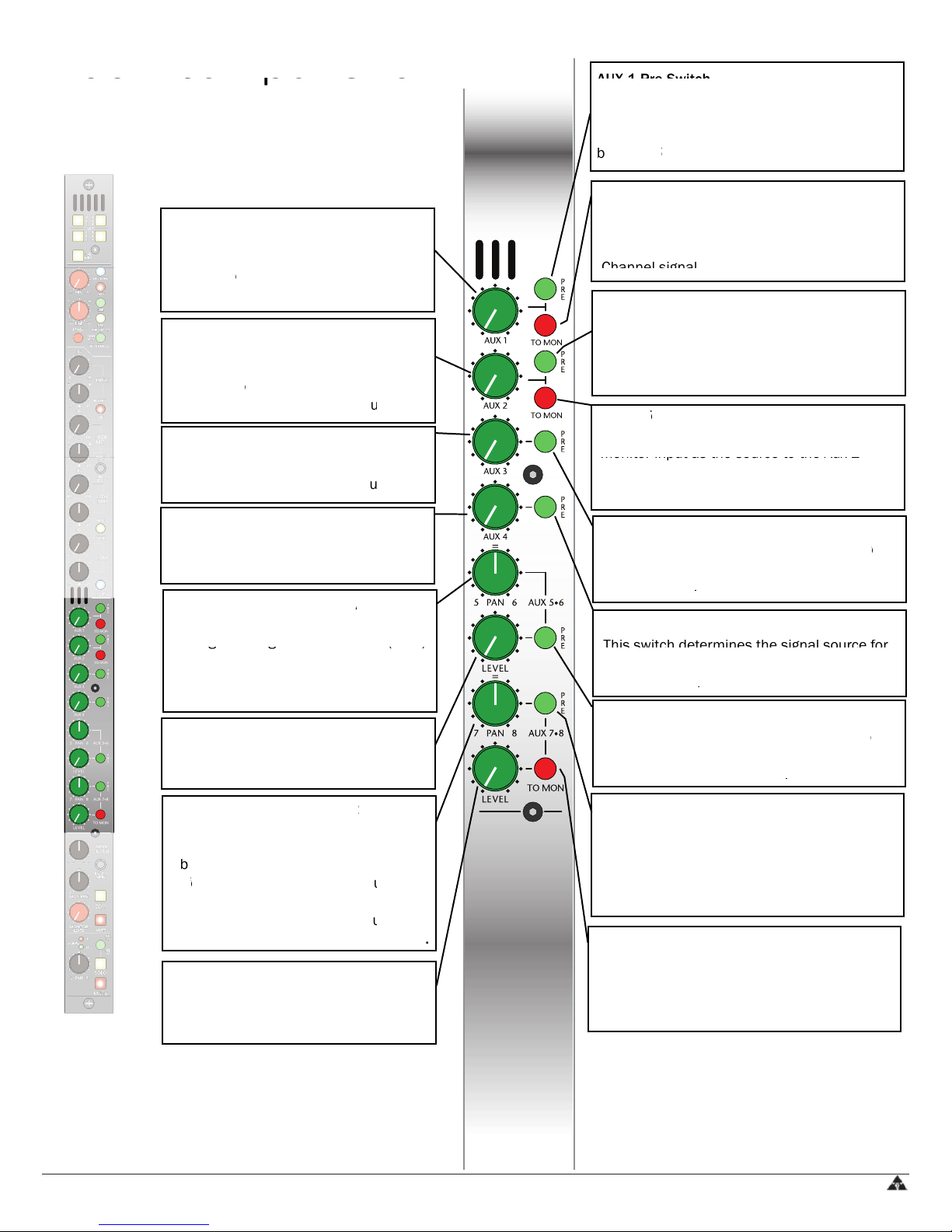

Aux Sends
AUX 1 Pre Switch
This switch determines the signal source for
Aux 1 bus, between Post (Up) or Pre (Down)
Channel fader/Monitor level (as determined
by Aux 1 To Mon switch below).
AUX 1 Level Control
Adjusts the mix level of
Channel/Monitor (as determined by
Aux 1 To Mon switch below) into the
Aux 1 bus.
AUX 1 To Mon
When depressed selects the channel
monitor input as the source to the Aux 1
Level control. In the up position sources the
Channel signal.
AUX 2 Pre Switch
This switch determines the signal source for
Aux 2 bus, between Post (Up) or Pre (Down)
Channel fader/Monitor level (as determined
by Aux 2 To Mon switch below).
AUX 2 Level Control
Adjusts the mix level of
Channel/Monitor (as determined by
Aux 2 To Mon switch below) into the
Aux 2 bus. AUX 2 To Mon
When depressed selects the Channel
monitor input as the source to the Aux 2
Level control. In the up position sources the
Channel signal.
AUX 3 Pre Switch
This switch determines the signal source for
Aux 3 bus, between Post (Up) or Pre (Down)
Channel Fader.
AUX 3 Level Control
Adjusts the mix level of Channel into
the Aux 3 bus.
AUX 4 Pre Switch
This switch determines the signal source for
Aux 4 bus, between Post (Up) or Pre (Down)
Channel Fader.
AUX 4 Level Control
Adjusts the mix level of Channel into
the Aux 4 bus.
AUX 5-6 PAN Control
Adjusts the balance of the Channel
signal being fed to Aux 5 bus (ACW)
and Aux 6 bus (CW). In the centre (=)
position equal signal level is sent to
both Aux 5 and Aux 6 buses.
AUX 5-6 Pre Switch
This switch determines the signal source for
Aux 5 and Aux 6 buses, between Post (Up)
or Pre (Down) Channel Fader.
AUX 5-6 Level Control
Adjusts the stereo mix level of Channel
into the Aux 5 and Aux 6 buses.
AUX 7-8 PAN Control
Adjusts the balance of the
channel/monitor signal (as determined
by Aux 7-8 To Mon switch below) being
fed to Aux 7 bus (ACW) and Aux 8 bus
(CW). In the centre (=) position equal
signal level is sent to both Aux 7 and
Aux 8 buses.
AUX 7-8 Level Control
Adjusts the stereo mix level of Channel
into the Aux 7 and Aux 8 buses.
AUX 7-8 Pre Switch
This switch determines the signal source for
Aux 7 and Aux 8 buses, between Post (Up)
or Pre (Down) channel fader/monitor level
(as determined by Aux 7-8 To Mon switch
below).
AUX 7-8 To Mon
When depressed selects the channel
monitor input as the source to the Aux 7-8
Level control. In the up position sources the
Channel signal.
Trident 8
88 Input Ch
hann
h
UX 1 Pre Switc
A
Aux Sen
Trident 8
nds
88 Input Ch
ermi
t
or (as de
Channel/Monit
djusts the mix le
A
el C
v
UX 1 Le
A
hann
y
ned b
el of
v
le
ol
Contr
o Mon switch belo
ux 1 T
To Mon switch belo
y A
b
or le
ader/Monit
Channel f
ost (U
een P
tw
ux 1 bus, be
A
ermines th
t
This switch de
h
UX 1 Pre Switc
A
Channel signal
ol. In the up p
el contr
v
Le
put as the sour
or in
monit
When depressed selects
o Mon
UX 1 T
o
A
w).
belo
ermined
t
el (as de
v
e
wn)
p) or Pre (Do
(U
or
ce f
he signal sour
ces the
position sour
ux 1
o the A
ce t
ur
s the channel
ux
A
w) in
o Mon switch belo
ux 1 T
To Mon switch belo
A
u
A
w)
o Mon switch belo
ux 2 T
To Mon switch belo
A
erm
t
or (as de
Channel/Monit
djusts the mix
A
el
v
UX 2 Le
A
el
v
UX 3 Le
A
1 bus.
o the
nt
ux 2 bus.
o the
int
y
mined b
el of
v
x le
ol
l Contr
ol
l Contr
Channel signal.
o Mon switch belo
ux 2 T
y A
b
or le
ader/Monit
Channel f
ost (U
een P
tw
ux 2 bus, be
A
ermines t
t
This switch de
h
UX 2 Pre Switc
A
put as the sour
or in
monit
When depressed selects
o Mon
UX 2 T
To Mon
A
w).
belo
ermined
t
el (as de
v
e
wn)
p) or Pre (Do
t (U
or
ce f
he signal sour
ux 2
o the A
ce t
ur
s the Channel
u
the A
el of Chan
v
djusts the mix le
A
ux
the A
el of Chan
v
djusts the mix le
A
el
v
UX 4 Le
A
ux 5 bu
o A
ed t
signal being f
djusts the balance of the Channel
A
AN
UX 5-6 P
A
A
ux 3 bus.
o
nnel int
x 4 bus.
o
nel int
ol
Contr
CW)
s (A
Channel
ol
Contr
Channel signal.
ol. In the up p
el contr
v
Le
put as the sour
or in
monit
.
ader
Channel F
ost
een P
tw
ux 3 bus, be
A
ermines t
t
This switch de
h
UX 3 Pre Switc
A
ermines
t
This switch de
h
UX 4 Pre Switc
A
ces the
position sour
ux 2
o the A
ce t
ur
wn)
p) or Pre (Do
t (U
or
ce f
for
the signal sour
or
ce f
the signal sour
d
A
ux 6
ux 5 and A
th A
bo
el is
v
ual signal le
position eq
ux 6 bus (CW). In the centre (=)
and A
g g
ux 6
ux 5 and A
o the A
int
el of C
v
ereo mix le
djusts the st
el
v
UX 5-6 Le
A
djusts the balance of the
A
AN
UX 7-8 P
PAN Contr
A
6 buses.
o
s sent t
entre (=)
)
(
6 buses.
Channel
ol
Contr
ce of the
ol
Contr
.
ader
Channel F
os
een P
tw
ux 4 bus, be
A
ermines
t
This switch de
wn) Channel F
or Pre (Do
ux 6 buses, b
ux 5 and A
A
ermines t
t
This switch de
h
UX 5-6 Pre Switc
A
ermines
t
This switch de
h
UX 7-8 Pre Switc
A
wn)
p) or Pre (Do
st (U
or
ce f
the signal sour
.
ader
p)
ost (U
een P
tw
be
or
ce f
for
the signal sour
or
ce f
the signal sour
f
b
ch
d
A
ux 8
A
u
th A
o bo
el is sent t
v
signal le
(CW). In the centre (=) positio
u
CW) and A
ux 7 bus (A
o A
ed t
f
fed t
w
o Mon switch belo
ux 7-8 T
y A
b
e
t
or signal (as de
hannel/monit
ux 8
ux 7 and A
o the A
int
el of C
v
ereo mix le
djusts the st
el
v
UX 7-8 Le
A
.
8 buses
ux 7 and
ual
on eq
ux 8 bus
w) being
ermined
8 buses.
Channel
ol
Contr
w).
belo
ux 7
y A
ermined b
t
(as de
wn) channel f
or Pre (Do
ux 8 buses,
ux 7 and A
A
Channel signal.
ol. In the up p
el contr
v
Le
put as the sour
or in
monit
When depressed selects
o Mon
UX 7-8 T
o
A
o Mon switch
7-8 T
el
v
or le
ader/monit
p)
ost (U
een P
tw
be
ces the
position sour
ux 7-8
o the A
ce t
ur
s the channel
TRIDENT 88 OWNERS MANUAL
8

Trident 88 Input Channel
Monitor Section
The Monitor section of the channel module allows the user to feed the signal on the
Monitor Return TRS jack to the Left and Right buses with level, pan and EQ control.
MON PAN
LR
MON
TILT EQ
EQ TO
MON
MONITOR
MUTE
MON LEVEL
MON
AFL
PAN
AFL
PFL
SOLO
MUTE
+10
-20
SIGNAL
LR
=
MON
TILT EQ
MON TILT EQ Control
A single control level which simultaneously adjusts the
low and high frequency gain of the signal. In the full
counter clockwise position the low frequencies are
boosted whilst the high frequencies are cut, in the
centre position there is no effect on the signal and in
the full clockwise position the low frequencies are cut
and the high frequencies are boosted.
Note: There is no TILT EQ on/off switch and the TILT EQ
is always in circuit.
MON PAN (Monitor Pan) Control
This control blends the post monitor level signal between
the Left and Right buses. When at the centre, detented
position, both Left and Right buses are fed equal
amounts of signal (each down by 3dB).
MONITOR LEVEL Control
Adjusts the monitor signal level to the
Left/Right bus
EQ to MON
Assigns the 4 band channel EQ to the
Monitor Section, the TILT EQ is then inserted
to the Channel path. Note: this switch is not
illuminated.
SOLO (AFL)
When pressed, routes the monitor (post level
and pan) signal to the Solo bus.
Additionally this switches the Main Monitor
Output (normally fed the Left/Right Mix) to
source the signal from the AFL/PFL Master
Level in the Master section as well as to
trigger LED indicators in the Master section
and Meter-Bridge stating a solo has been
pressed.
MONITOR MUTE
When pressed will Mute the monitor signal
to the Left/Right bus. It is recommended
when the monitor section is not being
used that it be muted
Channel Signal Indicators
+10 – Indicates RED when the channel signal level has
reached +14dBu (+10 VU)
-20 – Indicates GREEN when the channel signal level has
reached -16dBu (-20 VU)
The channel indicator signal source can be selected pre or
post the channel fader through an option available on the
input module circuit board.
(Note: Signal headroom available on the input module is
+22dBu and when the +10 indicator illuminates the signal
level is approaching 6 to 8 dB before clipping when just
flashing red with signal peaks).
These are extremely useful features and provide a constant
indication that a signal is present in the module (green LED)
and that the signal peak is being reached (red LED).
AFL/PFL Select
Selects the channel source feed that will be fed
to solo bus when the Channel SOLO is pressed.
UP - solo system is fed from the channel post
fader/post pan pot point and is a stereo
signal that follows the pan pot. This allows the
user to monitor the channel in the solo system
and to see its contribution to the mix.
Down - solo system is fed from the channel pre
fader point and is a mono source. This
allows the user to monitor the signal in the solo
system before the channel fader/mute, allowing
the user to check the signal in the channel
without being routed to any output buses.
Channel PAN Control
This control blends the channel post-fader/post mute signal
between any of the assigned bus pairs (L-R Mix, Group 1-2,
Group 3-4, Group 5-6 and Group 7-8) located at the top of the
module. When at the centre, detented position, both sides are
fed equal amounts of signal (each down by 3dB).
SOLO (Channel)
When pressed, routes the channel AFL or PFL
(see AFL/PFL Select above) signal to the Solo
bus. Additionally this switches the Main
Monitor Output (normally fed the Left/Right
Mix) to source the signal from the AFL/PFL
Master Level in the Master section as well as to
trigger LED indicators in the Master section
and Meter-Bridge stating a solo has been
pressed.
MUTE (Channel)
When pressed will mute the aassigned outputs of the
channel (Group1 – 8 and L-R Mix) and all post Aux sends.
The Mute does not affect the channel’s solo PFL feed, but
WILL affect the channel metering in the Meter Bridge, the
Trident 8
88 Input Ch
n
hann
turn TRS ja
e
or R
Monit
or section of
The Monit
Monitor
Trident 8
d hil t
b t
er clockw
count
w and high fre
lo
v
ol le
A single contr
t and Right buses
o the Lef
ack t
ws t
f the channel module allo
Section
88 Input Ch
i t
t th high f
uenc
w freq
wise position the lo
uency gain of the signal. In the full
q
el which simultaneously adju
v
T EQ C
MON TIL
LT EQ Contr
, t
el, tr
n
v
s with le
f
o f
n
the user t
hann
t i th
cies are
the full
sts the
ol
Contr
ol.
r
the
Assigns the 4 band channel EQ t
oMON
EQ t
o the
nnel EQ t
e: There is no T
t
No
an
the full clockwise
centre position th
ed whilst
boost
t and Right
the Lef
ol blends th
This contr
ys in
a
is alw
f switch and the T
T EQ on/of
IL
LT EQ on/of
uencies are bo
nd the high freq
uencies
w freq
position the lo
ect on the signal
f
here is no ef
uencies are cut, in the
t the high freq
buses. When at the centre, de
el signal be
v
or le
he post monit
an) C
or P
AN (Monit
MON P
PAN (Monit
cuit.
cir
T EQ
TIL
LT EQ
ed.
oost
are cut
and in
t, in the
ed
ent
t
e
een
tw
e
ol
Contr
ed.
illuminat
t
o the Channel path. No
t
T
or Section, the TIL
LT EQ is then inser
Monit
om t
ce the signal fr
sour
ed the
Output (normally f
e
dditionally this switches the Main Monit
A
o the S
and pan) signal t
es th
out
When pressed, r
O (AFL)
SOL
t
e: this switch is no
t
ed
t
T EQ is then inser
er
the AFL/PFL Mast
o
t/Right Mix) t
e Lef
or
es the Main Monit
Solo bus.
el
v
or (post le
he monit
am
t
position, bo
d
A
wn b
mounts of signal (each do
ed
t and Right buses are f
fed eq
h Lef
t/Rig
Lef
e
v
or signal le
djusts the monit
OR LEVEL C
MONIT
Channel Signal Indicat
y 3dB).
ual
d eq
ght bus
o the
l t
ol
Contr
s
or
icat
pressed.
-Bridge stating a solo has been
er
t
and Me
s in
or
trigger LED indicat
er sect
el in the Mast
v
Le
om t
ce the signal fr
sour
ed
used that it be mut
or sectio
when the monit
t/Right bus. It
o the Lef
t
e
When pressed will Mut
OR MUTE
MONIT
g a solo has been
er section
n the Mast
o
ell as t
tion as w
er
the AFL/PFL Mast
t being
on is no
t is recommended
or signal
e the monit
oac
el is appr
v
le
+22dBu and when
e: Signal hea
t
(No
post the channel f
The channel indica
es GR
-20 – Indicat
es
0 – Indicat
+1
flashing red with signal
ore clipping wh
o 8 dB bef
hing 6 t
es the
or illuminat
0 indicat
the +1
put mo
ailable on the in
v
oom a
adr
cuit
put module cir
in
ailable
v
ough an option a
ader thr
f
ed
ce can be select
or signal sour
at
6dBu (-
reached -1
REEN when the channel signal le
4dBu (+
reached +1
s RED when the channel signal le
Channel Signal Indicat
peaks)
hen just
e signal
odule is
d.
t boar
e on the
d pre or
-20 VU)
el has
v
e
0 VU)
+1
el has
v
e
s
or
icat
is a mono sou
point and
ader
f
ed
is f
em
yst
wn - solo s
Do
bution
s contri
t
i
ee
o s
t
and
nn
the cha
or
onit
o m
t
ser
u
ws the pa
ollo
t f
signal tha
t point a
n po
/post pa
ader
r/post pa
f
o
fr
ed
s f
em i
o syst
UP - sol
s when the Cha
olo bu
o s
t
c
r
sou
nnel
Selects the cha
AFL/PFL Select
ce This
r
o sou
pre
nnel
the cha
om
fr
ix.
o the m
n t
m
e
o syst
in the sol
nel
ws the
t. This allo
n po
o
re
e
is a st
nd
a
t
om the channel pos
.
O is pressed
nnel SOL
d
e
t will be f
tha
eed
f
ce
and that the
indication that a sign
xtremely
These are e
a
u
d eq
e
f
t the c
le. When a
u
mod
-6
p 5
ou
-4, Gr
p 3
ou
Gr
y of the
n an
ee
tw
be
nds t
ol ble
This contr
signal peak is being reached (re
nal is present in the module (gree
vide a co
o
eatures and pr
y useful f
flashing red with signal
wn b
signal (each do
s of
f signal (each do
nt
l amou
th sid
position, bo
ed
nt
e
t
e
e, d
centr
op
at the t
ed
at
p 7-8) loc
ou
Gr
and
o
-R Mix, Gr
s (L
L-R Mix, Gr
bus pair
ssigned
e a
e
t
mu
t
/pos
ader
-f
t
l pos
the channe
AN C
Channel P
PAN Contr
d LED).
en LED)
onstant
peaks).
.
y 3dB)
b
re
des a
the
p of
p 1-2,
ou
e signal
ol
Contr
o a
t
ed
t
ou
t being r
withou
gn
ck the si
he
o c
t
ser
the u
nne
e the cha
or
em bef
syst
o
onit
o m
r t
se
u
he
ws t
allo
is a mono sou
point and
ader
f
l
ce the signa
r
ou
o s
t
Mix)
mally
t (nor
tpu
Ou
or
Monit
dditionally this switches the M
bus. A
v
bo
FL/PFL Select a
(see A
es the
t
ou
, r
When pressed
O (Channel)
SOL
ses.
t bu
tpu
y ou
n
n the channel
nal i
wing
, allo
e
t
/mu
ader
r/mu
f
el
solo
he
signal in t
he
t
r
ce. This
r
o sou
the AFL/PFL
om
fr
/Right
t
t/Right
ef
the L
ed
y f
ain
tches the M
o
he Sol
o t
e) signal t
v
PFL
AFL or
nnel
e cha
WILL
The M
chan
Wh
ering in th
t
ect the channel me
f
af
ect the channel
f
t af
e does no
Mut
-R Mix) and
oup1 – 8 and L
L-R Mix) and all pos
nel (Gr
e the aassign
hen pressed will mut
MUTE (Channel)
Bridge, the
er
t
he Me
t
, bu
eed
PFL f
’s solo
s.
x send
u
t A
d all pos
he
t
ts of
f t
pu
t
ned ou
)
.
pressed
ting
-Bridge sta
r
e
t
Me
and
s in t
or
igger LED indicat
tr
e
n the Mast
el i
v
Le
er
Mast
s been
o ha
a sol
section
er
Mast
he
t
o
ell as t
s w
section a
er
TRIDENT 88 OWNERS MANUAL 9

The Group section of the console greatly enhances
the flexibility of the TR DENT 88 console and pro-
vides a number of different functions. There are 8
Group modules provided on the console, each
controlling the associated group mix bus outputs.
The groups can be used as audio subgroups for
combining and processing a collection of input
channels. Each group bus has its own TRS nsert
jack and TRS balanced Output jack on the rear
Master Connector panel.
The Group module also provides a method of
monitoring, equalising and panning the group
output on the control room speakers. By using
these controls it is possible to build up a monitor
mix of the recorded tracks and any that are about
to be recorded. A fader reverse facility swaps the
Monitor Level control and the Group fader to gain
greater control of the monitor mix. To enhance this
monitor facility, the full complement of all Auxiliary
sends (1 to 8) are available making it possible to
send a headphone mix from the groups together
with reverb and effects and since all Auxiliary
sends are switchable to Pre the monitor level
control, they can be used to create a separate
auxiliary mix independent of the monitor level.
The images on the following pages give a brief
description of the controls on the Group module:
The Group Section
TRIDENT 88 OWNERS MANUAL
10

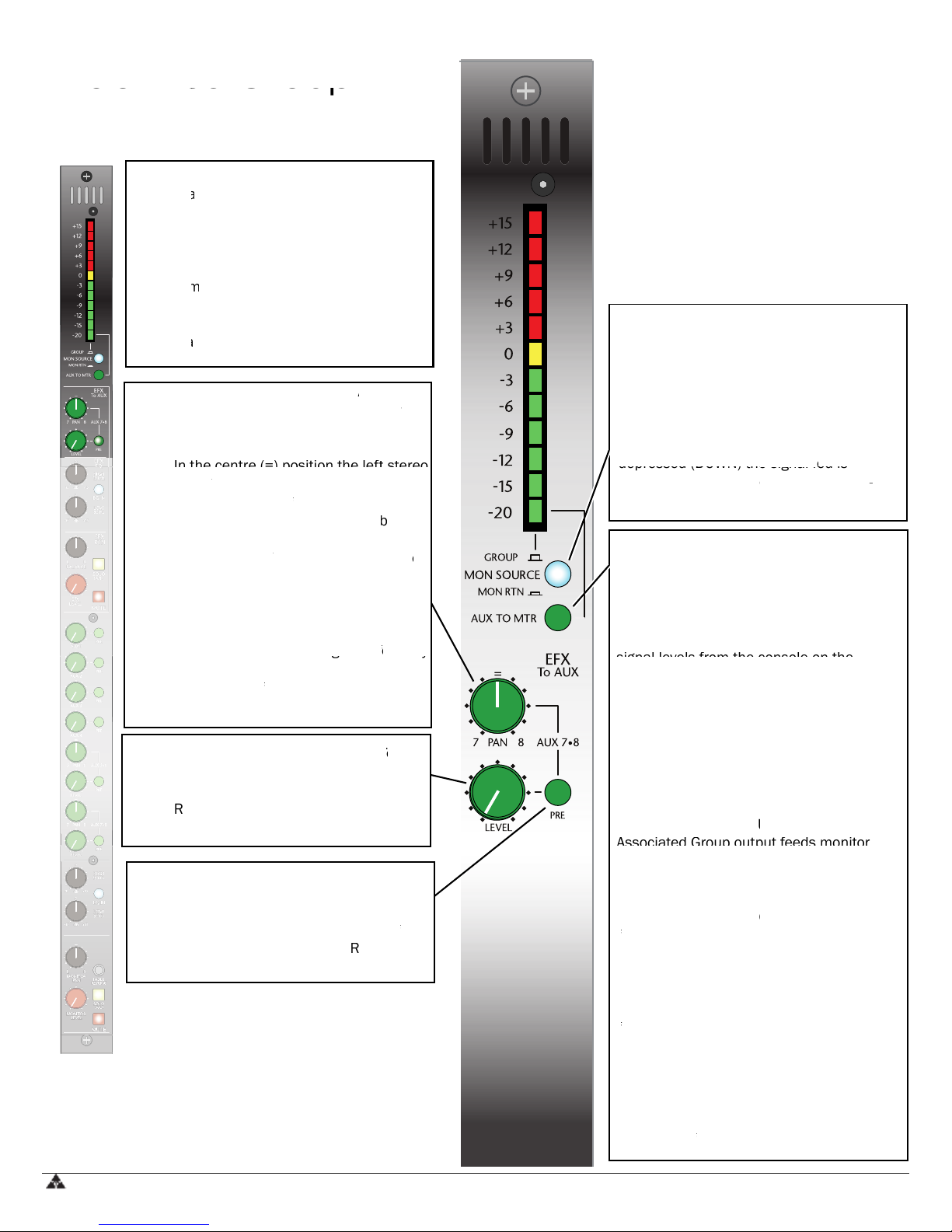

Trident 88 Group
Monitor Section
12-Segment Bargraph Meter
Displays one of 3 sources as determined
by the switches below (MON SOURCE and
AUX TO MTR). The meter is a peak
responding meter with a fast attack and
slower release. It is very useful when used
with complex dynamic waveforms and able
to display sharp transient responses and
greatly assist the engineer when it comes
to avoiding distortion during recording.
MON SOURCE
This switch determines the signal source
to the Group Monitor section; additionally
it displays the signal shown on the
bargraph meter above.
In the UP position the signal fed to the
group Monitor section and bargraph
meter is the Group output. When
depressed (DOWN) the signal fed is
derived from the associated rear MONI-
TOR RETURN TRS jack.
AUX TO MTR
Pressing this switch assigns the
associated Aux Output (post the Aux
Master Level on the master module) to
the bargraph meter above. This allows
the user to check Auxiliary outputs
signal levels from the console on the
meter. Note: When this switch is
pressed the Auxiliary signal sourced to
the bargraph meter overrides any other
signal to the bargraph selected by the
MON SOURCE above. The switch
combinations below explain the various
signal flows:
MON SOURCE (UP) - AUX to MTR (UP) –
Associated Group output feeds monitor
section and also the bargraph.
MON SOURCE (UP) - AUX to MTR
(DOWN) – Associated Group output
feeds monitor section. Associated Aux
Output feeds bargraph.
MON SOURCE (DOWN) - AUX to MTR
(UP) – Associated Monitor Return TRS
feeds monitor section and also the
bargraph.
MON SOURCE (DOWN) - AUX to MTR
(DOWN) – Associated Monitor Return
TRS feeds monitor section. Associated
Aux Output feeds bargraph.
EFX To AUX
AUX 7-8 Level Control
Adjusts the stereo mix level of Effects
Return into the Aux 7 and Aux 8 buses.
AUX 7-8 PAN Control
Adjusts the balance of the stereo Effects
Return signal being fed to Aux 7 bus and
Aux 8 bus.
In the centre (=) position the left stereo
signal is fed to Aux 7 (pre level control) and
the right signal is fed to Aux 8 (pre level
control) and both are attenuated by 3dB.
With the balance control fully anticlockwise
the Left Effects Return signal is fed
unattenuated to Aux 7 (pre level control)
and the right signal is fed fully attenuated to
Aux 8 (pre level control)
With the balance control fully clockwise the
Left Effects Return signal is fed fully
attenuated to Aux 7 (pre level control) and
the right signal is fed unattenuated to Aux 8
(pre level control).
AUX 7-8 Pre Switch
This switch determines the signal
source for Aux 7and Aux 8 buses,
between Post (Up) or Pre (Down) Effects
Return level
Trident 8
88 Group
er
w
slo
respo
y the
b
Displa
Monitor
Trident 8
y useful when
er
release. It is v
ast attac
er with a f
t
onding me
er is a
t
O MTR). The me
UX T
A
C
w (MON SOUR
switches belo
erm
t
ces as de
ys one of 3 sour
a
2-Segment Bargraph
1
Section
88 Group
n used
ck and
a peak
E and
mined
er
t
Me
o a
t
greatly
o disp
t
with com
In t
tu
e
R
dju
A
tion during reco
or
oiding dist
v
a
y assist the engineer when it comes
p transient response
y shar
pla
orms and
ef
v
a
x dynamic w
ple
m
t
the centre (=) position the lef
ux
A
ux 7 b
o A
ed t
urn signal being f
ereo
usts the balance of the st
AN
UX 7-8 P
A
A
ding.
or
comes
es and
d able
ereo
t st
x 8 bus.
bus and
ects
f
f
Ef
ol
Contr
WN) the
depressed (DO
oup out
er is the Gr
t
me
or section
oup Monit
gr
In the UP position the signal f
e
v
er abo
t
bargraph me
ys the signal s
it displa
or s
oup Monit
o the Gr
t
ermine
t
This switch de
CE
MON SOUR
ed is
e signal f
e
tput. When
and bargraph
o the
ed t
signal f
e.
wn on the
ho
section; additionally
ce
s the signal sour
With th
and the
una
With th
cont
the
signal
In t
turn signal is f
e
ects R
f
t Ef
Lef
ol fully clockw
he balance contr
el c
v
ux 8 (pre le
A
enu
ed fully att
e right signal is f
el c
v
ux 7 (pre le
o A
ed t
enuat
att
turn signa
e
ects R
f
f
t Ef
the Lef
ol fully anticlo
he balance contr
ed b
enuat
th are att
ol) and bo
tr
ux 8 (p
o A
ed t
e right signal is f
f
el contr
v
ux 7 (pre le
o A
ed t
is f
f
t
the centre (=) position the lef
ed fully
f
fed fully
wise the
ol)
contr
o
ed t
uat
ol)
contr
ed
al is f
e
ockwise
y 3dB.
b
el
v
re le
ol) and
r
ereo
t st
OR RETURN TRS jack
T
om the associat
ed fr
deriv
WN) the
depressed (DO
om the c
els fr
v
signal le
uxi
o check A
the user t
er ab
t
the bargraph me
el on the mast
v
er Le
Mast
ux Output
ed A
associat
Pressing this switch assigns the
O MTR
UX T
A
.
k
-
ed rear MONI
ciat
ed is
e signal f
e
console on the
y outputs
liar
ws
e. This allo
v
bo
o
er module) t
ast
ux
t (post the A
ssigns the
the righ
enu
att
t
e
R
A
el c
v
(pre le
ed t
enuat
ed unatt
ht signal is f
f
el contr
v
ux 7 (pre le
o A
ed t
uat
g
ux 8
ux 7 and A
o the A
turn int
el of
v
ereo mix le
djusts the st
el C
v
UX 7-8 Le
A
EFX T
ol).
contr
ux 8
o A
ol) and
r
y
buses.
ects
f
Ef
ol
Contr
UX
o A
T
To A
oup outp
ed Gr
Associat
U
CE (UP) - A
MON SOUR
ws:
signal flo
x
w e
combinations belo
e. T
v
CE abo
MON SOUR
o the bargraph
signal t
v
er o
t
the bargraph me
y s
uxiliar
pressed the A
e: When this switch is
t
. No
er
t
me
om the c
els fr
v
signal le
or
eeds monit
put f
o MTR (UP) –
UX t
arious
xplain the v
The switch
y the
ed b
select
ther
y o
errides an
v
o
ced t
signal sour
s switch is
console on the
tw
be
tu
e
R
wn)
p) or Pre (Do
ost (U
een P
w
ux 8
ux 7and A
or A
ce f
sour
ermines the
t
This switch de
UX 7-8 Pre
A
el
v
rn le
ects
f
f
Ef
buses,
e signal
Switch
or section
eeds monit
f
f
ed Mon
(UP) – Associat
WN)
CE (DO
MON SOUR
eeds bargraph
Output f
or section. Associat
eeds monit
f
f
ed G
WN) – Associat
(DO
U
CE (UP) - A
MON SOUR
section and also the bargraph.
oup outp
ed Gr
Associat
and also the
turn TRS
e
or R
nit
o MTR
UX t
) - A
h.
ux
ed A
Associat
oup output
Gr
o MTR
UX t
argraph.
or
eeds monit
put f
eeds barg
ux Output f
f
A
or sec
eeds monit
TRS f
ed
WN) – Associat
(DO
WN)
CE (DO
MON SOUR
bargraph.
graph.
ed
ction. Associat
turn
e
or R
Monit
o MTR
UX t
) - A
TRIDENT 88 OWNERS MANUAL 11

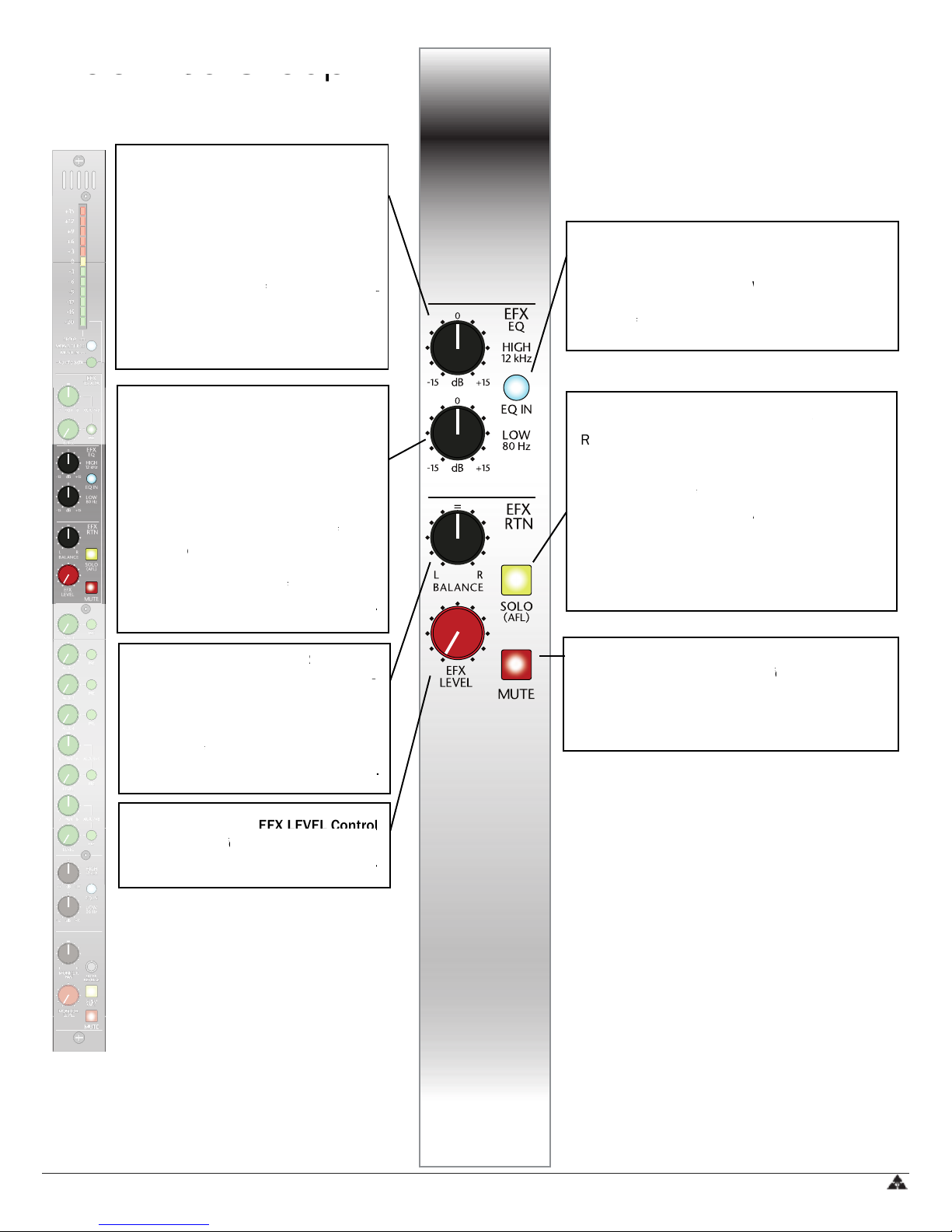

Trident 88 Group
EFX EQ
HIGH Frequency Section – Shelving
Adjusts the high frequency shelving EQ
response. The corner frequency of the
shelving filter is 12 kHz and the Level
control adjusts the cut/boost between
+/- 15dB. The centre “0” position of the
Level control has a detent to indicate
that it is having no effect on the associ-
ated channel signal. Cut or boost of the
high frequency level control is usually
used for minor tonal adjustments.
EQ IN
This switch inserts the 2-band EQ into the
Effects Return signal path. When not in use, it is
suggested that the EQ be kept in the OUT
position for best phase performance.
LOW Frequency Section – Shelving
Adjusts the low frequency shelving EQ
response. The corner frequency of the
shelving filter is 80 Hz and the Level
control adjusts the cut/boost between
+/- 15dB. The centre “0” position of
the Level control has a detent to
indicate that it is having no effect on
the associated channel signal. Cut or
boost of the low frequency level
control is usually used for minor tonal
adjustments.
EFX RTN PAN Control
This control blends the EFX post-
level/post mute signal between the
Left and Right buses. When at the
centre, detented position, both sides
are fed equal amounts of signal
(each down by 3dB).
EFX LEVEL Control
Adjusts the Effects Return signal level
to the Left/Right bus.
EFX RTN SOLO (AFL)
When pressed, routes the stereo Effects
Return (post level and pan) signal to the
Solo bus.
Additionally this switches the Main Monitor
Output (normally fed the Left/Right Mix) to
source the signal from the AFL/PFL Master
Level in the Master section as well as to
trigger LED indicators in the Master section
and Meter-Bridge stating a solo has been
pressed.
EFX RTN MUTE
When pressed will Mute the Effects Return
signal to the Left/Right bus. It is recommended
when the EFX RTN section is not being used
that it be muted.
Trident 8
88 Group
EFX EQ
Trident 8
5dB.
+/- 1
ol a
contr
shelving
response
djusts th
A
HIGH
88 Group
The centre “0” position of the
een
tw
adjusts the cut/boost be
e
v
er is 12 kHz and the Le
ilt
g f
uency of the
e. The corner freq
uency shelving EQ
he high freq
uency Section – Shelving
req
F
e
n
l
e
Q
g
EQ IN
used
high fre
ed chan
at
that it is h
el co
v
Le
response
djusts t
A
W F
O
L
onal adjustments
or minor t
d f
ol is usually
el contr
v
uency le
q
nnel signal. Cut or boost of the
-
ect on the associ
f
f
ving no ef
ha
e
o indicat
ent t
t
ol has a de
ontr
uency of the
e. The corner freq
uency shelving EQ
w freq
the lo
requency Section – Shelving
F
.
y
e
-
e
e
Q
g
f
or best phase per
position f
f
e
ed that the EQ be k
suggest
turn signal path. When no
e
ects R
f
Ef
ts the 2-ba
This switch inser
el and pan) signal t
v
turn (post le
e
R
es the s
out
When pressed, r
O (AFL)
EFX RTN SOL
ormance.
f
f
ept in the OUT
t in use, it is
When no
o the
and EQ int
o the
) signal t
ects
f
f
ereo Ef
st
ol i
contr
bo
the asso
e
indicat
the
5
+/- 1
ol a
contr
shelvin
adjustments.
onal
or minor t
s usually used f
f
el
v
uency le
w freq
oost of the lo
ed channel signal. Cut or
ociat
ect on
f
f
ving no ef
e that it is ha
o
ent t
t
ol has a de
el contr
v
e Le
dB. The centre “0” position of
een
tw
djusts the cut/boost be
el
v
er is 80 Hz and the Le
ilt
ng f
.
l
l
r
n
o
f
n
l
pressed.
-Bridge stating a solo has been
er
r
t
and Me
s in the
or
trigger LED indicat
er section as w
el in the Mast
v
Le
om the A
ce the signal fr
sour
ed the Le
Output (normally f
f
dditionally this switches the Main Monit
A
Solo bus.
solo has been
er section
e Mast
o
ell as t
as w
er
AFL/PFL Mast
o
t/Right Mix) t
ef
or
he Main Monit
ar
centre,
t
Lef
el/
v
le
This
y 3dB)
wn b
(each do
ual amounts of signa
ed eq
re f
f
th sides
ed position, bo
ent
t
de
and Right buses. When at the
een the
tw
e signal be
/post mut
-
ol blends the EFX post
s contr
o
AN Contr
EFX RTN P
PAN Contr
ol
EFX LEVEL Contr
.
l
s
e
e
l
l
ed.
that it be mut
TN section is no
when the EFX R
t/Right bus.
o the Lef
signal t
e the
When pressed will Mut
EFX RTN MUTE
t being used
s no
It is recommended
turn
e
ects R
f
fects R
Ef
djusts t
A
t/Right bus.
o the Lef
t
el
v
turn signal le
e
ects R
f
fects R
the Ef
ol
EFX LEVEL Contr
.
l
l
TRIDENT 88 OWNERS MANUAL
12

Trident 88 Group
Monitor AUX Sends
AUX 1 Pre Switch
This switch determines the signal source for Aux
1 bus, between Post (Up) or Pre (Down)
Monitor level.
AUX 2 Pre Switch
This switch determines the signal source for
Aux 2 bus, between Post (Up) or Pre (Down)
Monitor level.
AUX 3 Pre Switch
This switch determines the signal source for
Aux 3 bus, between Post (Up) or Pre (Down)
Monitor level.
AUX 4 Pre Switch
This switch determines the signal source for
Aux 4 bus, between Post (Up) or Pre (Down)
Monitor level.
AUX 5-6 PAN Control
Adjusts the balance of the Monitor
signal being fed to Aux 5 bus (CCW) and
Aux 6 bus (CW). In the centre (=)
position equal signal level is sent to
both Aux 5 and Aux 6 buses.
AUX 1 Level Control
Adjusts the mix level of Monitor
Input into the Aux 1 bus.
AUX 2 Level Control
Adjusts the mix level of Monitor
Input into the Aux 2 bus.
AUX 3 Level Control
Adjusts the mix level of Monitor
Input into the Aux 3 bus.
AUX 4 Level Control
Adjusts the mix level of Monitor
Input into the Aux 4 bus.
AUX 7-8 Level Control
Adjusts the stereo mix level of Effects Return
into the Aux 7 and Aux 8 buses.
AUX 7-8 Pre Switch
This switch determines the signal source for
Aux 7and Aux 8 buses, between Post (Up) or
Pre (Down) Effects Return level.
AUX 7-8 PAN Control
Adjusts the balance of the stereo
Effects Return signal being fed to Aux 7
bus and Aux 8 bus.
In the centre (=) position the left stereo
signal is fed to Aux 7 (pre level control)
and the right signal is fed to Aux 8 (pre
level control) and both are attenuated
by 3dB. With the balance control fully
anticlockwise the Left Effects Return
signal is fed unattenuated to Aux 7 (pre
level control) and the right signal is fed
fully attenuated to Aux 8 (pre level
control)
With the balance control fully clockwise
the Left Effects Return signal is fed
fully attenuated to Aux 7 (pre level
control) and the right signal is fed
unattenuated to Aux 8 (pre level
control).
AUX 5-6 Pre Switch
This switch determines the signal source for
Aux 5 and Aux 6 buses, between Post (Up) or
Pre (Down) Monitor Level.
AUX 5-6 Level Control
Adjusts the mix level of Monitor Input
into the Aux 5 and Aux 6 buses.
Trident 8
88 Group
Monitor
Trident 8
A
d
A
AUX Send
88 Group
ux 2 bu
o the A
put int
In
o
el of Monit
v
djusts the mix le
A
el Contr
v
UX 2 Le
A
ux 1 bus.
othe A
put int
In
or
el of Monit
v
djusts the mix le
ol
el Contr
v
UX 1 Le
A
s
s
or
ol
.
r
l
i h
Thi i h d
h
UX 2 Pre Switc
A
el.
v
or le
Monit
p) or P
ost (U
een P
tw
1 bus, be
ermines the signal sour
t
This switch de
h
UX 1 Pre Switc
A
f
i l
wn)
Pre (Do
ux
or A
ce f
ignal sour
d
A
A
ux 4 bus
o the A
put int
In
or
el of Monit
v
djusts the mix le
o
el Contr
v
UX 4 Le
A
ux 3 bu
o the A
put int
In
o
el of Monit
v
djusts the mix le
A
el Contr
v
UX 3 Le
A
ux 2 bu
o the A
put int
In
.
r
l
s.
or
ol
s.
el.
v
or le
Monit
p
ost (U
een P
tw
ux 3 bus, be
A
ermines the signal sour
t
This switch de
h
UX 3 Pre Switc
A
el.
v
or le
Monit
p
ost (U
een P
tw
ux 2 bus, be
A
ermines the signal sour
t
This switch de
wn)
) or Pre (Do
or
ce f
f
signal sour
wn)
p) or Pre (Do
or
ce f
signal sour
posi
A
signal be
dj
A
djust
A
ux 6 buse
ux 5 and A
th A
bo
el is sent
v
ual signal le
tion eq
ux 6 bus (CW). In the centre (
A
ux 5 bus (CCW) an
o A
ed t
eing f
usts the balance of the Monit
AN Contr
UX 5-6 P
PAN Contr
A
ux 6 buse
ux 5 and A
o the A
int
p
or In
el of Monit
v
ts the mix le
el Contr
v
UX 5-6 Le
A
es.
o
t
(=)
nd
or
t
ol
r
A
T
A
es
put
ol
r
el.
v
or le
Monit
p
ost (U
een P
tw
ux 4 bus, be
A
ermines the signal sour
t
This switch de
h
UX 4 Pre Switc
A
e
tw
ux 6 buses, be
ux 5 and A
A
ermines the signal sour
t
This switch de
h
UX 5-6 Pre Switc
A
wn)
) or Pre (Do
or
ce f
f
signal sour
p) or
ost (U
een P
or
ce f
f
gnal sour
3dB
b
el co
v
le
and the
signal is
In the ce
ects R
f
f
Ef
d
A
l f l
B Wi h h b l
e
enuat
th are att
ol) and bo
ontr
ux 8 (pr
o A
ed t
e right signal is f
o
el contr
v
ux 7 (pre le
o A
ed t
s f
f
ere
t st
entre (=) position the lef
ux 8 bu
bus and A
ux
o A
ed t
turn signal being f
e
R
ere
djusts the balance of the st
AN Contr
UX 7-8 P
A
A
ux 6 buse
ux 5 and A
o the A
int
ll
ed
re
ol)
eo
s.
7
eo
ol
es.
turn le
e
ects R
f
wn) Ef
Pre (Do
tw
ux 8 buses, be
ux 7and A
A
ermines the signal sour
t
This switch de
h
UX 7-8 Pre Switc
A
el.
v
or Le
wn) Monit
Pre (Do
el.
v
e
p) or
ost (U
een P
w
or
ce f
f
signal sour
u
co
full
the L
With the
full
el co
v
le
signal is
anticlo
y 3dB
b
v
ux 8 (pre le
o A
ed t
enuat
unatt
e
ol) and the right signal is f
f
ntr
v
ux 7 (pre le
o A
ed t
enuat
y att
e
turn signal is f
f
e
ects R
f
t Ef
Lef
ol fully clockwis
balance contr
o
contr
v
ux 8 (pre le
o A
ed t
enuat
y att
e
ol) and the right signal is f
f
ntr
ux 7 (pr
o A
ed t
enuat
ed unatt
f
f
tur
e
ects R
f
t Ef
ockwise the Lef
ol ful
B. With the balance contr
el
ed
el
ed
se
ol)
el
ed
re
rn
lly
u
in
e
djusts the st
A
o
contr
v
ux 8 (pre le
o A
ed t
enuat
unatt
ux 8 buses
ux 7 and A
o the A
nt
turn
e
ects R
f
fects R
el of Ef
v
ereo mix le
o
el Contr
v
UX 7-8 Le
A
l).
el
s.
n
ol
TRIDENT 88 OWNERS MANUAL 13

Trident 88 Group
Monitor EQ
HIGH Frequency Section – Shelving
Adjusts the high frequency shelving
EQ response. The corner frequency of
the shelving filter is 12 kHz and the
Level control adjusts the cut/boost
between +/- 15dB. The centre “0”
position of the Level control has a
detent to indicate that it is having no
effect on the associated channel
signal. Cut or boost of the high
frequency level control is usually used
for minor tonal adjustments.
EQ IN
This switch inserts the 2-band EQ into
the Monitor Input signal path. When not
in use, it is suggested that the EQ be
kept in the OUT position for best phase
performance.
LOW Frequency Section – Shelving
Adjusts the low frequency shelving
EQ response. The corner frequency
of the shelving filter is 80 Hz and
the Level control adjusts the
cut/boost between +/- 15dB. The
centre “0” position of the Level
control has a detent to indicate that
it is having no effect on the associ-
ated channel signal. Cut or boost of
the low frequency level control is
usually used for minor tonal
adjustments.
MONITOR PAN Control
This control blends the Monitor Input
post-level/post mute signal between the
Left and Right buses. When at the centre,
detented position, both sides are fed equal
amounts of signal (each down by 3dB).
MONITOR FADER REVERSE
When depressed, swaps the Monitor Level
Control with the Group Fader Control. The
Monitor signal level to the Left/Right bus is
now controlled by the Group fader, addition-
ally the Group output level is now controlled
by the Monitor Level Control. Note: SOLO and
Mute functions below remain with the
Monitor signal path.
MONITOR SOLO (AFL)
When pressed, routes the Monitor signal (post
level and pan) signal to the Solo bus.
Additionally this switches the Main Monitor
Output (normally fed the Left/Right Mix) to
source the signal from the AFL/PFL Master Level
in the Master section as well as to trigger LED
indicators in the Master section and Meter-
Bridge stating a solo has been pressed.
MONITOR MUTE
When pressed will Mute the Monitor Input
signal to the Left/Right bus. It is recom-
mended when the Monitor section is not
being used that it be muted.
MONITOR LEVEL Control
Adjusts the Monitor input signal level
to the Left/Right bus
Trident 8
88 Group
Monitor
Trident 8
t
b
el
v
Le
the she
EQ respo
djusts
A
HIGH F
EQ
88 Group
5dB Th t “0”
+/ 1
ol adjusts the cut/boost
contr
er is 12 kHz and the
ilt
elving f
uency of
onse. The corner freq
uency shelving
s the high freq
requency Section – Shelving
F
W F
O
L
uenc
freq
si
e
f
f
ef
ent t
t
de
posit
e
tw
be
requency Section – Shelving
onal adjustments.
or minor t
f
f
ol is usually used
el contr
v
y le
gnal. Cut or boost of the high
ed channel
ect on the associat
ving no
e that it is ha
o indicat
t
ol has a
el contr
v
tion of the Le
5dB. The centre “0”
een +/- 1
l bl d th M
Thi t
ol
AN Contr
OR P
PAN Contr
MONIT
ormance.
f
o
per
o
ept in the OUT position f
f
k
ed that
in use, it is suggest
put signal path. When no
or In
the Monit
ts the 2-b
This switch inser
EQ IN
t
I
it
or best phase
the EQ be
t
ath. When no
o
and EQ int
the
ed ch
at
it is ha
ol
contr
ce
cut/b
of th
EQ res
djust
A
ol is
el contr
v
uency le
w freq
lo
hannel signal. Cut or boost of
-
ect on the associ
f
f
ving no ef
a
e that
o indicat
ent t
t
has a de
el
v
ntre “0” position of the Le
5dB. The
een +/- 1
tw
boost be
ol adjusts the
el contr
v
the Le
er is 80 Hz and
ilt
e shelving f
uency
ponse. The corner freq
uency shelving
w freq
ts the lo
ade
oup F
ol with the Gr
Contr
aps th
When depressed, sw
ADER REVERSE
OR F
A
MONIT
amounts of signal (each do
th sid
ed position, bo
ent
t
de
t and Right buses. When at the centre,
Lef
e signal be
el/post mut
v
post-le
ol blends the Monit
This contr
ol. The
er Contr
el
v
or Le
e Monit
E
y 3dB).
wn b
o
ual
ed eq
des are f
f
n at the centre,
een the
tw
l be
put
or In
nit
djusts
A
t/Right bus
o the Lef
t
el
v
put signal le
or in
the Monit
ol
OR LEVEL Contr
MONIT
adjustments.
onal
or minor t
usually used f
s
l
l
o the
el and pan) signal t
v
le
es the M
out
When pressed, r
O (AFL)
OR SOL
MONIT
or signal path.
Monit
w remain with the
e functions belo
Mut
o
el Contr
v
or Le
y the Monit
b
el i
v
oup output le
ally the Gr
oup
y the Gr
olled b
w contr
no
o the L
el t
v
or signal le
Monit
Solo bus
or signal (post
Monit
ain with the
O and
e: SOL
t
ol. No
olled
w contr
is no
-
, addition
ader
p f
t/Right bus is
Lef
Wh
MO
e the Mo
hen pressed will Mut
OR MUTE
ONIT
Bridge stating a solo has been pressed.
er section and Me
s in the Mast
or
indicat
e
er section as w
in the Mast
om the A
ce the signal fr
sour
ed the Le
Output (normally f
fed the Lef
dditionally this switches th
A
o the
el and pan) signal t
v
le
put
or In
nit
een pressed.
-
er
t
ction and Me
o trigger LED
ell as t
el
v
er Le
AFL/PFL Mast
o
t/Right Mix) t
f
or
he Main Monit
Solo bus.
be
me
sig
Wh
ed.
eing used that it be mut
or secti
ended when the Monit
t/Right bus. It is
o the Lef
gnal t
e the Mo
hen pressed will Mut
t
ion is no
-
s recom
put
or In
nit
TRIDENT 88 OWNERS MANUAL
14

The Master section of the 88 console contains all of the controls
that affect the overall functionality of the console. An accurately
matched 100mm stereo fader controls the level of the master
stereo balanced outputs. Housed in the master module is the 8
master auxiliary sends level controls and associated SOLO
switches.
A comprehensive talkback system is provided which incorporates
an internal high quality electret microphone with an option to
switch over to an external microphone, this is plugged into the rear
of the console via a balanced XLR connector (phantom volts avail-
able on XLR). Easy switching to an oscillator source in the talkback
section allows the use of the on board 1kHz or 10kHz sine wave
generator. The signal can be routed to the auxiliary buses in pairs,
the 8 subgroups and to the studio outputs. When the ‘TALK TO
GROUPS’ button is used, the monitor signal is dimmed to avoid
feedback in the control room monitor speakers.
The main monitor system is very comprehensive. The engineer can
monitor anyone of three stereo playback devices. ‘2TK 1 RET’ and
‘2TK 2 RET’ are conventional analogue connections located on the
master connector section so that the playback of a stereo device
such as a cd player or output of a computer sound card can be se-
lected to the control room monitor speakers and a 3.5mm TRS
mini jack available on the module allows the user to plug in his ex-
ternal portable audio source too (e.g. iPod). The monitor system is
provided with a SUM MONO control which combines the left/right
monitor signals so that it is possible to check mono compatibility.
t should be noted that the mono facility is purely a monitor
unction and does not affect the main stereo left/right output which
remains as a true stereo image.
A very useful further facility in this section is the provision of two
alternate monitor outputs (Alt MON TOR 1 and 2) with their indi-
vidual level controls and ON switches. When switched ON routes
the monitor signal to associated set of output jacks on the rear of
the master section so that an alternative monitor system can be
set up. This makes it possible to listen to the signal on (for exam-
ple), a different set of monitor speakers so that comparisons can
be made.
A headphone jack with a high quality stereo amplifier is provided
which allows the engineer to monitor the console only on head-
phones if required. A separate stereo volume control is provided
so that the headphones can be adjusted independently from the
main monitor control level.
A stereo master level control is also provided so that the volume
of the AFL/PFL system can be adjusted into the control room mon-
itor speakers. This comes combined with indicator LED that noti-
fies the user that a console SOLO switch has been pressed and
that the AFL/PFL signal is now being fed to the control room
monitors.
A separate studio playback section is available, with its own level
control and ON switch. The Studio Playback is fed the left right mix.
This can be changed to listen to the mono Aux 1&2 mix, or the
stereo mix of Aux7/8.
The images on the following pages give a brief description of the
controls on the Master module:
The Master Module
TRIDENT 88 OWNERS MANUAL 15

Trident 88 Master Module
Aux
AUX 1 MASTER LEVEL
This control adjusts the Aux
1 bus mix level that
appears on the Aux 1
Output TRS jack.
AUX 1 SOLO
Assigns the post Aux 1 Master Level
signal to the Solo system for display on
the Master meters and into the
monitor/headphone systems. This
signal feed to the solo system in mono.
AUX 2 thru 8 Master Controls
The level controls and the
solo switches function in the
same way as Aux 1 controls.
Trident 8
88 Master M
Module
This
Aux
ux 1
s on the A
appear
el that
v
1 bus mix le
ux
ol adjusts the A
contr
UX 1 MASTER LEVEL
A
o the Solo syst
signal t
ux 1
Assigns the post A
O
UX 1 SOL
A
y on
or displa
em f
t
el
v
er Le
1 Mast
same
solo s
The le
UX 2
A
ols.
ux 1 contr
y as A
a
e w
switches function in the
ols and the
el contr
v
e
ols
er Contr
2 thru 8 Mast
.
Output TRS jack
ux 1
s on the A
appear
s
o the solo
eed t
signal f
or/headphone s
monit
s and
er
t
er me
the Mast
o the Solo syst
signal t
em in mono.
o syst
ems. This
syst
o the
d int
y on
or displa
em f
t
TRIDENT 88 OWNERS MANUAL
16

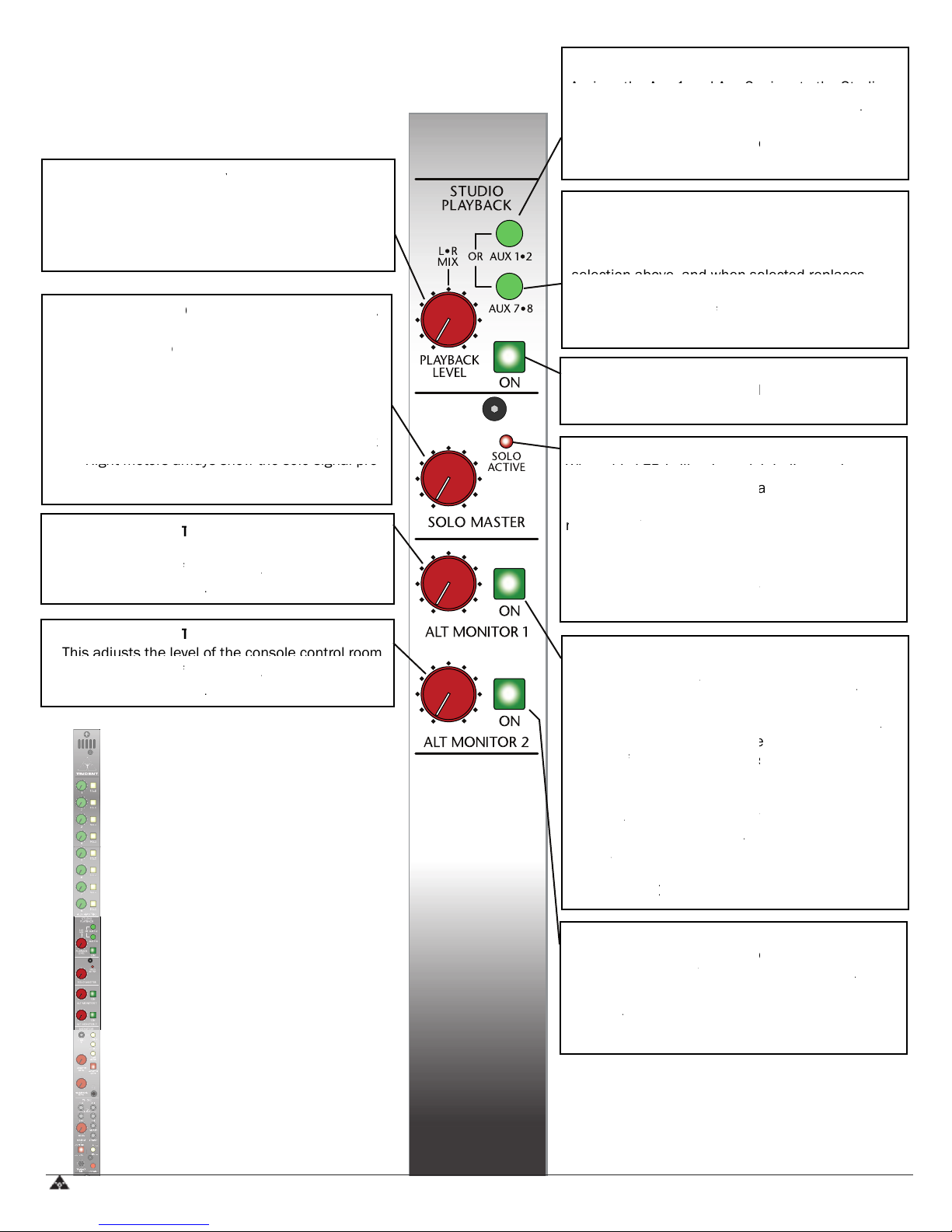

Trident 88 Master Module
Studio Playback
AUX1-2
Assigns the Aux 1 and Aux 2 mixes to the Studio
Playback Left and Right outputs respectively.
Note: When selected replaces the default control
room monitor feed to the Studio Playback
outputs.
PLAYBACK LEVEL CONTROL
This control adjusts the stereo level fed to the
Studio Playback Output TRS jacks. The source
for the Studio Playback is determined by the
state of the Aux1-2 and Aux7-8 switches above.
ON
When depressed, switches the signal to the
Studio Playback outputs on.
AUX7-8
Assigns the Stereo Aux 7 / 8 mix to the Studio
Playback Left and Right outputs.
Note: Priority is given to this over Aux1-2
selection above, and when selected replaces
either the Aux1-2 mix (if selected) or the default
control room monitor feed to the Studio
Playback outputs.
SOLO ACTIVE LED
When this LED is illuminated, it indicates that
one or more SOLO switches have been pressed
on the console. The console monitor output is
now being fed from the solo left/right mix buses.
Additionally the console main Left/Right meters
are switched to monitor the solo left/right mix
and an additional meter bridge indicator flashes
to show the console is in a “SOLO” state.
SOLO MASTER LEVEL CONTROL
This control adjusts the level of the solo
left/right mix fed to the control room monitors
when one or more SOLO switches are selected
on the console. This presets the SOLO signal
level and enables the engineer to balance the
signal levels to the control room monitors from
the main mix and the solo mix. Note: Main Left
Right meters always show the solo signal pre
this level control (unaffected by this control).
ALT MONITOR 1 ON
When this switch is depressed the main
Left/Right Monitor feed is diverted to the ALT
MONITOR 1 output TRS jacks. In doing so, the
console main Left /Right signal is switched OFF.
This allows the engineer to set up a separate
monitor feed (say to another set of monitor
speakers) and be able to A/B the systems for
comparison.
Note: ALT MONITOR 2 ON switch, when
depressed, will override ALT MONITOR 1 ON i.e.
the ALT Montior 1 output will be switched OFF if
ALT MONITOR 2 ON is enabled and signal will be
diverted to ALT Monitor 2 output TRS jacks.
ALT MONITOR 2 ON
When this switch is depressed the main
Left/Right Monitor feed is diverted to the ALT
MONITOR 2 output TRS jacks.
Note: ALT MONITOR 2 ON switch has priority over
ALT MONITOR 1 ON switch.
ALT MONITOR 1 LEVEL CONTROL
This adjusts the level of the console control room
monitor signal is fed to the ALT Monitor 1 output
TRS jacks when ALT MONITOR 1 is turned ON.
ALT MONITOR 2 LEVEL CONTROL
This adjusts the level of the console control room
monitor signal is fed to the ALT Monitor 2 output
TRS jacks when ALT MONITOR 2 is turned ON.
Trident 8
88 Master M
Module
2
1 d A
A i th A
UX1-2
A
th St di
t
i
Studio P
ux1-
e of the A
stat
or the Studio
f
yback
Studio Pla
ol adj
This contr
Playback
e
v
ux7-8 switches abo
-2 and A
y the
ermined b
t
yback is de
Pla
ce
kOutput TRS jacks. The sour
o the
ed t
el f
v
ereo le
usts the st
OL
CK LEVEL CONTR
YBA
PLA
AYBA
e.
e
e
e
L
outputs.
o the Stud
eed t
or f
oom monit
r
ed replaces
e: When select
t
No
t and Right outputs respectiv
yback Lef
Pla
ux 2 m
ux 1 and A
Assigns the A
e and when select
v
selection abo
o this o
en t
e: Priority is giv
t
No
t and Right outp
yback Lef
Pla
ux 7 / 8
ereo A
Assigns the St
UX7-8
A
yback
dio Pla
ol
ault contr
s the def
.
ely
uts respectiv
o the Studio
es t
mix
ed replaces
elect
ux1-2
er A
v
o
uts.
o the Studio
mix t
s alw
er
t
Right me
the main mix and
o th
els t
v
signal le
el and enable
v
le
on the console.
when one or more
ed
t/right mix f
e
lef
o
This contr
SO
w the solo signal pre
ys sho
a
w
t
e: Main Lef
t
the solo mix. No
om
s fr
or
oom monit
ol r
he contr
o balance the
s the engineer t
O signal
ts the SOL
This prese
ed
O switches are select
e SOL
s
or
oom monit
ol r
o the contr
d t
el of the solo
v
ol adjusts the le
OL
O MASTER LEVEL CONTR
OL
t
L
W
S
d
Wh hi LED i ill i
CTIVE LED
O A
SOL
yback outputs.
Pla
o
eed t
or f
f
oom monit
ol r
contr
ux1-2 mix (if selec
either the A
e, and when select
v
selection abo
yback outputs on.
Studio Pla
When depressed, switches the signal t
ON
h
i i di
the Studio
ault
ed) or the def
ct
ed replaces
elect
o the
he signal t
v
This adjusts the le
T
AL
LT MONIT
TRS jacks when
e
or signal is f
f
monit
v
This adjusts the le
T
AL
LT MONIT
o
el contr
v
this le
s alw
er
t
Right me
oom
ol r
el of the console contr
v
OL
OR 2 LEVEL CONTR
T MONIT
OR 1 is turned ON
T MONIT
AL
LT MONIT
or 1 outpu
T Monit
o the AL
LT Monit
ed t
oom
ol r
el of the console contr
v
OL
OR 1 LEVEL CONTR
T MONIT
ol).
y this contr
ed b
ect
f
ol (unaf
w the solo signal pre
ys sho
a
w
m
L
.
t
m
L
t
a
a
A
n
o
o
W
OR 1 ON
T MONIT
AL
LT MONIT
w the console is in a “SOL
o sho
t
er bridg
t
and an additional me
or the so
o monit
are switched t
dditionally the console main Lef
A
om the solo le
ed fr
w being f
f
no
on the console. The console monit
O switches ha
one or more SOL
ed,
When this LED is illuminat
e.
O” stat
OL
or flashes
ge indicat
t/right mix
olo lef
s
er
t
t/Right me
Lef
t/right mix buses.
ef
or output is
monit
e been pressed
v
a
es that
it indicat
TRS jacks when
e
or signal is f
f
monit
v
This adjusts the le
OR 2 is turned ON
T MONIT
AL
LT MONIT
or 2 outpu
T Monit
o the AL
LT Monit
ed t
oom
ol r
el of the console contr
v
.
t
m
T M
erride AL
LT MONIT
v
depressed, will o
OR 2 ON switch, when
T MONIT
e: AL
LT MONIT
t
No
parison.
com
o A/B
s) and be able t
er
speak
ther s
o ano
y t
eed (sa
or f
f
monit
o se
ws the engineer t
This allo
t /Right signal is switched OFF
console main Lef
OR 1 output TRS jacks
MONIT
eed is div
or f
f
t/Right Monit
Lef
When this switch is depressed the main
OR 1 ON i.e.
MONIT
tch, when
or
ems f
B the syst
or
t of monit
se
e
t up a separat
e
.
nal is switched OFF
s. In doing so, the
T
o the AL
LT
ed t
t
er
v
ed the main
OR 1 ON switch.
T MONIT
AL
LT MONIT
OR 2 ON swit
T MONIT
e: AL
LT MONIT
t
No
OR 2 output TRS jacks.
MONIT
eed is div
or f
f
t/Right Monit
Lef
When this switch is depressed the main
OR 2 ON
T MONIT
AL
LT MONIT
or 2 out
T Monit
o AL
LT Monit
ed t
t
er
div
OR 2 ON is enable
T MONIT
AL
LT MONIT
T Montior 1 output will be switched OFF if
the AL
LT Montior 1 output will be switched OFF if
er
v
tch has priority o
.
T
o the AL
LT
ed t
t
er
d the main
put TRS jacks.
d and signal will be
be switched OFF if
TRIDENT 88 OWNERS MANUAL 17

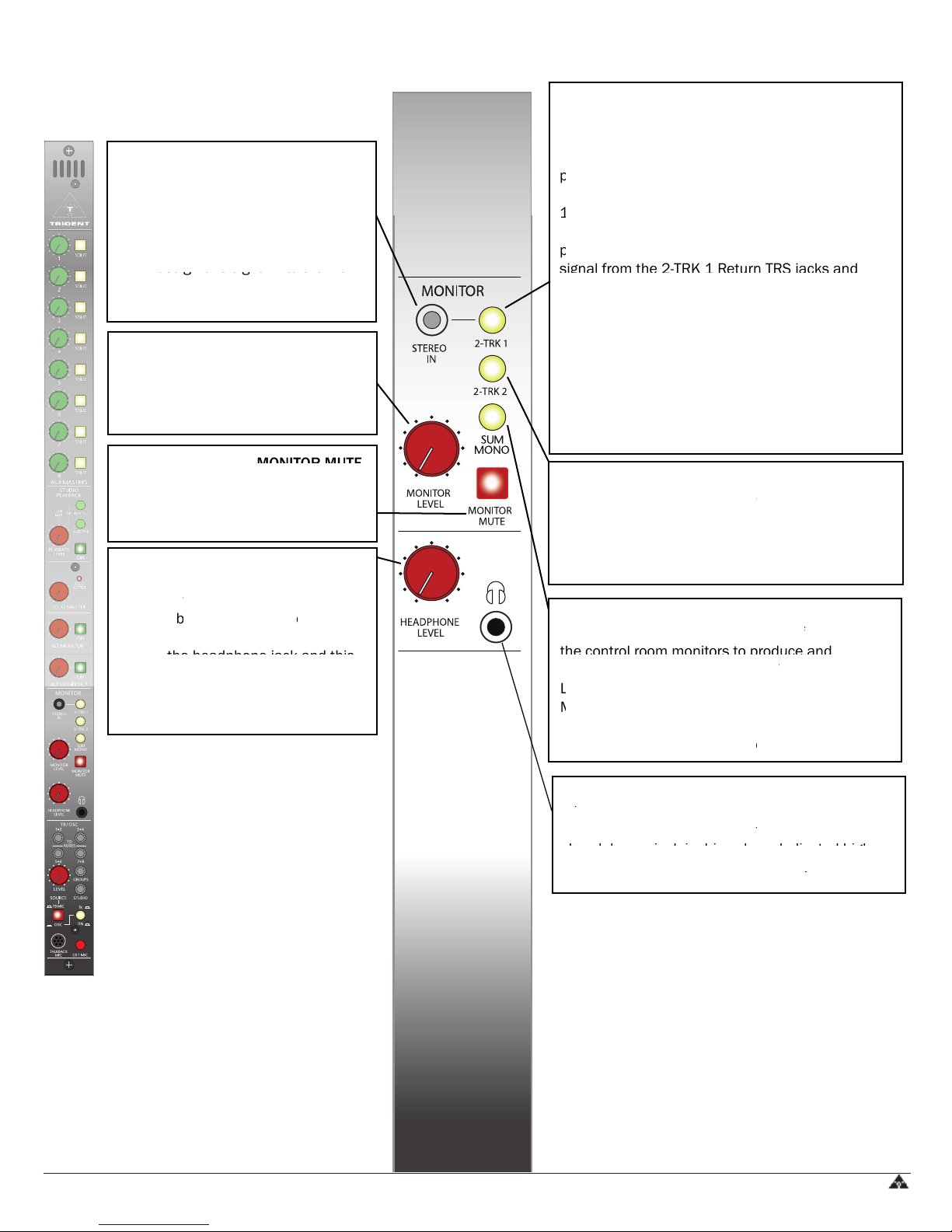

Trident 88 Master Module
Monitor Section
STEREO IN JACK (3.5mm, 1/8”)
This jack allows the engineer to plug
in an external stereo signal via a
standard 1/8” wire cable ( i.e IPOD)
which can then be selected to the
main Control Room Monitors. To
assign this signal into the main
monitors, the user has to depress the
2-TRK 1 switch.
2-TRK 1
When depressed this selects either the signal
from the stereo 2-TRK 1 Return TRS jacks (on the
rear master connector panel) or the stereo signal
plugged in the STEREO IN JACK (above) and feeds
it to the control room monitors. The stereo 2-TRK
1 return signal from the TRS jacks is normalled to
the STEREO IN JACK signal and if a signal wire is
plugged into the STEREO IN JACK it replaces the
signal from the 2-TRK 1 Return TRS jacks and
that is the signal that is switched to the main
monitors. Note: When this switch is depressed,
the main Left/Right mix is disconnected from the
control room monitors, also if 2-TRK 2 switch is
depressed (below) this kills the 2-TRK 1 signal to
the control room monitors. For monitoring signals
into control room monitors the Priority is SOLO
PL[ȹ75.ȹ75.ȹ0DLQ/HIW5LJKW
mix.
2-TRK 2
When depressed this selects the signal from the
stereo 2-TRK 2 Return TRS jacks (on the rear
master connector panel) to the control room
monitors. This switch has priority over 2-TRK 1
switch above. (see description 2 TRK 1 above)
SUM MONO
Combines the Left and Right signals feeding
the control room monitors to produce and
summed (L+R) mono signal that feeds both
Left and Right monitor outputs. Note: The SUM
MONO facility is purely a monitor function and
does NOT affect the main stereo Left/Right
output which remains as a true stereo image.
MONITOR LEVEL CONTROL
This control adjusts the level of the
stereo signal feeding the control
room monitors.
MONITOR MUTE
When depressed this switch kills the
signal being fed to the Control Room
Monitors.
HEADPHONE LEVEL
This control adjusts the level of
signal fed to the headphone jack
below. The signal fed to the
Control Room Monitors also feeds
the headphone jack and this
Headphone level control can be
adjusted independently of the
main MONITOR CONTROL LEVEL.
HEADPHONE JACK (3.5mm, 1/8”)
To monitor the console on headphones the
engineer can plug them into this jack. The
headphones jack is driven by a dedicated high
quality, high current stereo amplifier.
Trident 8
88 Master M
Module
Monitor
assi
main
which c
d
standar
in an
This jack
STER
r Section
o the main
gn this signal int
o
s. T
or
oom Monit
ol R
Contr
o the
ed t
can then be select
1/8” wire cable ( i.e IPOD)
ereo signal via a
ernal st
xt
e
o plug
ws the engineer t
allo
CK (3.5mm, 1/8”)
A
REO IN J
s
p
t
1
it
p
r
f
W
2
turn
e
TRK 1 R
om the 2-
signal fr
A
TEREO IN J
o the S
plugged int
CK signal and if a signal wire is
A
TEREO IN J
he S
om the TRS ja
turn signal fr
1 re
s
or
oom monit
ol r
o the contr
t t
CK
A
TEREO IN J
plugged in the S
or panel) o
er connect
ear mast
tur
e
TRK 1 R
ereo 2-
om the st
r
When depressed this selects either the signal
TRK 1
2-
n TRS jacks and
CK it replaces the
A
d if a signal wire is
o
acks is normalled t
TRK
ereo 2-
s. The st
eeds
e) and f
v
K (abo
ereo signal
or the st
nTRS jacks (on the
either the signal
ere
st
This con
s, t
or
monit
assi
OR MUTE
MONIT
s.
or
oom monit
r
ol
eeding the contr
o signal f
el of the
v
ol adjusts the le
ntr
OL
OR LEVEL CONTR
MONIT
TRK 1 switch.
2-
o depress the
the user has t
o the main
gn this signal int
m
P  
in
t
d
c
t
m
t
s
mix.
75.ȹ 
75.ȹ
PL[ȹ
s the
or
oom monit
ol r
o contr
nt
or
s. F
or
oom monit
ol r
he contr
w) this kills the
depressed (belo
s, also if 2
or
oom monit
ol r
contr
t/Right mix is disconnect
he main Lef
e: When this swit
t
s. No
or
monit
hat is the signal that is switched t
turn
e
TRK 1 R
om the 2
signal fr
W5LJKW
 ȹ0DLQ/HI
O
e Priority is SOL
oring signals
r monit
o
TRK 1 signal t
e 2-
TRK 2 switch is
2-
om the
ed fr
connect
tch is depressed,
o the main
hed t
n TRS jacks and
the
ol
Contr
b
signal f
This c
signal be
When dep
e headphone jack and this
eeds
s also f
or
oom Monit
R
o the
ed t
. The signal f
e
w
belo
o the headphone jack
ed t
f
el of
v
ol adjusts the le
contr
HEADPHONE LEVEL
s.
or
Monit
oom
ol R
o the Contr
ed t
ing f
pressed this switch kills the
OR MUTE
MONIT
t
C
S
s
m
m
s
W
2
o p
s t
or
oom monit
ol r
he contr
t and Right signals f
Combines the Lef
SUM MONO
e. (see description
v
switch abo
s. This switch has priority o
or
monit
o the
or panel) t
er connect
mast
turn TRS jac
e
TRK 2 R
ereo 2-
st
When depressed this selects the signal fr
TRK 2
2-
oduce and
pr
eeding
signals f
f
e)
v
2 TRK 1 abo
TRK 1
er 2-
v
rity o
oom
ol r
e contr
cks (on the rear
om the
the signal fr
main M
adju
Head
the
OL LEVEL.
OR CONTR
MONIT
ed independently of the
ust
ol can be
el contr
v
phone le
e headphone jack and this
o
d
M
L
s
t
b
h d h j k i d i
o t
engineer can plug them int
or the console on headphones the
o monit
T
T
CK (3.5mm, 1/8”)
A
HEADPHONE J
output which remains as a true st
ere
ect the main st
f
T af
does NO
acility is purely a monit
MONO f
or outputs
t and Right monit
Lef
summed (L+R) mono signal that f
o p
s t
or
oom monit
ol r
he contr
d high
d di t
. The
this jack
eadphones the
1/8”)
ereo image.
e st
t/Right
eo Lef
or function and
t
e: The SUM
t
s. No
th
eeds bo
hat f
f
oduce and
pr
ereo a
, high current st
uality
q
y
en b
headphones jack is driv
.
ier
plif
m
ed high
y a dedicat
TRIDENT 88 OWNERS MANUAL
18

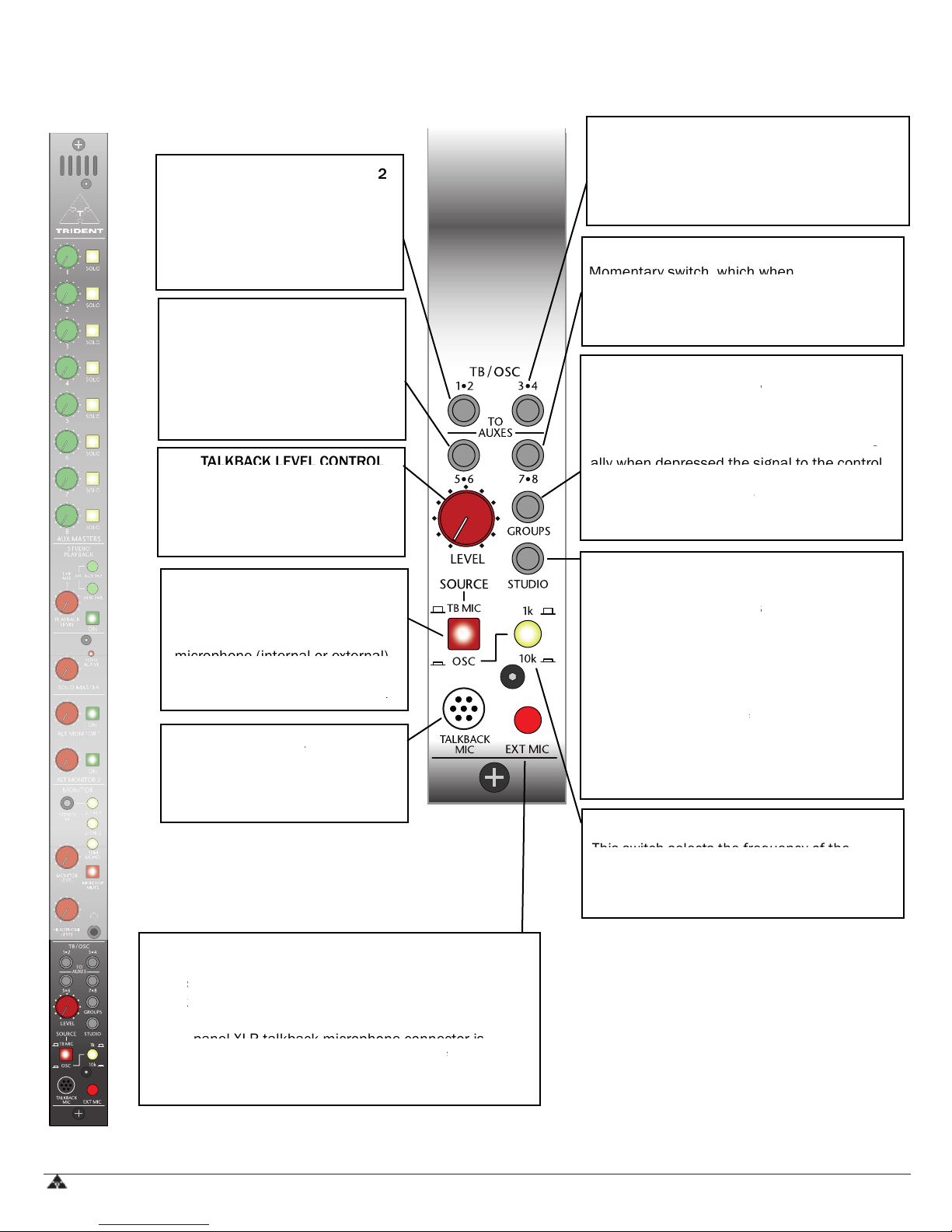

Trident 88 Master Module
Talkback/Oscillator
TO AUX 1-2
Momentary switch, which when
depressed assigns the talkback
signal (post the talkback LEVEL
Control) to the Aux 1 and Aux 2
mix.
TO AUX 3-4
Momentary switch, which when depressed
assigns the talkback signal (post the talkback
LEVEL
Control) to the Aux 3 and Aux 4 mix.
TO AUX 5-6
Momentary switch, which
when depressed assigns the
talkback signal (post the
talkback LEVEL
Control) to the Aux 5 and Aux 6
mix.
TO AUX 7-8
Momentary switch, which when
depressed assigns the talkback signal
(post the talkback LEVEL
Control) to the Aux 7 and Aux 8 mix.
TO GROUPS
Momentary switch, which when depressed
assigns the talkback signal (post the
talkback LEVEL
Control) to the all the group buses. Addition-
ally when depressed the signal to the control
room monitor is dimmed (attenuated) by
approx 30 dB to avoid a feedback situation
in the control room monitor speaks.
TO STUDIO
Momentary switch, which when depressed
assigns the talkback signal (post the
talkback LEVEL
Control) to the Studio Output TRS jacks.
Additionally when depressed the signal to
the control room monitor is dimmed
(attenuated) by approx 30 dB. The original
signal source that was feeding the studio
output (main Left/Right mix or Aux 1/2 or
Aux 7/8) is muted when talking to the
studio outputs.
TALKBACK LEVEL CONTROL
This control adjusts the level of
the talkback source
(microphone or oscillator) to the
talkback destinations above.
TB MIC/OSC switch
This selects the source to use in
the talkback section. In the UP
position this is the Talkback
microphone (internal or external)
and in the DOWN position this is
the internal oscillator.
1k/10k
This switch selects the frequency of the
internal oscillator from 1kHz (UP) and
10kHz (DOWN)
TALKBACK MIC
Directly behind this location is
situated the internal high quality
electrets microphone.
EXTERNAL MIC
When depressed switches the talkback microphone
source from the internal electrets above or the
external microphone plugged into the XLR situated
on the rear master connector panel. Note: the rear
panel XLR talkback microphone connector is
supplied with +48V phantom voltage and feeds into
an internal high quality preamp stage.
Trident 8
88 Master M
Module
Talkbac
C
s
d
M
ck/Oscillato
mix
ux 2
ux 1 and A
o the A
ol) t
Contr
signal (post the talkback LEVE
epressed assigns the talkbac
yswitch, which whe
Momentar
UX 1-
O A
T
or
x.
2
L
k
n
2
y switch, which when
Momentar
UX 7-8
O A
T
ux 3 and A
o the A
ol) t
Contr
LEVEL
assigns the talkback signal (post the talkback
yswitch, which when depressed
Momentar
UX 3-4
O A
T
when
ux 4 mix.
A
al (post the talkback
when depressed
C
OL
CK LEVEL CONTR
ALKBA
T
TALKBA
mix
ux
ux 5 and A
o the A
ol) t
Contr
talkback LEVE
talkback signal (post th
when depressed assigns th
y switch, whic
Momentar
UX 5-
O A
T
L
x.
6
EL
he
he
ch
-6
ally when depressed the s
ou
o the all the gr
ol) t
Contr
talkback LEVEL
assigns the talkback signal (post the
y switch, which when depressed
Momentar
OUPS
O GR
T
ux 7 and A
o the A
ol) t
Contr
(post the talkback LEVEL
depressed assigns the talkback signal
y switch, which when
Momentar
ol
o the contr
ignal t
-
ddition
p buses. A
al (post the
when depressed
ux 8 mix.
A
kback signal
when
m
Th
(m
T
erna
xt
ernal or e
ophone (int
icr
alkbac
position this is the T
the talkback section. In the U
o use i
ce t
his selects the sour
TB MIC/OSC switc
e
v
talkback destinations abo
o the
or) t
ophone or oscillat
micr
ce
the talkback sour
el o
v
ol adjusts the le
This contr
OL
CK LEVEL CONTR
ALKBA
T
TALKBA
al)
ck
P
n
h
c
e.
e
e
f
L
o the Studio Out
ol) t
Contr
talkback LEVEL
assigns the talkback signal (post the
y switch, which when depressed
Momentar
O STUDIO
T
o
oom monit
ol r
in the contr
e
oid a f
f
v
o a
x 30 dB t
o
appr
or is dimmed (att
oom monit
r
ally when depressed the s
put TRS jacks.
al (post the
when depressed
or speaks.
eedback situation
y
ed) b
enuat
att
ol
o the contr
ignal t
s
an
m
ophon
ts micr
electre
ua
ernal high q
ed the int
situat
Directly behind this location
CK M
ALKBA
T
TALKBA
o
ernal oscillat
the int
WN position this i
nd in the DO
erna
xt
ernal or e
ophone (int
icr
ne.
lity
n is
MIC
.
or
is
al)
This switch selects the freq
0k
1k/1
studio outputs.
ed when t
ux 7/8) is mut
A
t/Right m
output (main Lef
ee
as f
f
ce that w
signal sour
x 30
o
y appr
ed) b
enuat
(att
or
oom monit
ol r
the contr
dditionally when depressed the signal t
A
uency of the
q
o the
alking t
ux 1/2 or
mix or A
eding the studio
0 dB. The original
is dimmed
o
sed the signal t
on
x
e
s
Wh
opho
panel XLR talkback micr
or pa
er connect
n the rear mast
ophone plugged in
ernal micr
xt
ernal elect
om the int
ce fr
sour
hen depressed switches the ta
EXTERNAL MI
or is
ct
one conne
: the rear
e
t
anel. No
ed
situat
o the XLR
t
e or the
v
ts abo
tre
ophone
icr
alkback m
C
WN)
0kHz (DO
1
om 1k
or fr
ernal oscillat
int
This switch selects the freq
Hz (UP) and
uency of the
q
sup
uality pr
ernal high q
an int
ol
om v
pplied with +48V phant
opho
panel XLR talkback micr
ge.
p sta
ream
o
eeds int
ltage and f
f
or is
ct
one conne
TRIDENT 88 OWNERS MANUAL 19

TRIDENT 88 OWNERS MANUAL
20

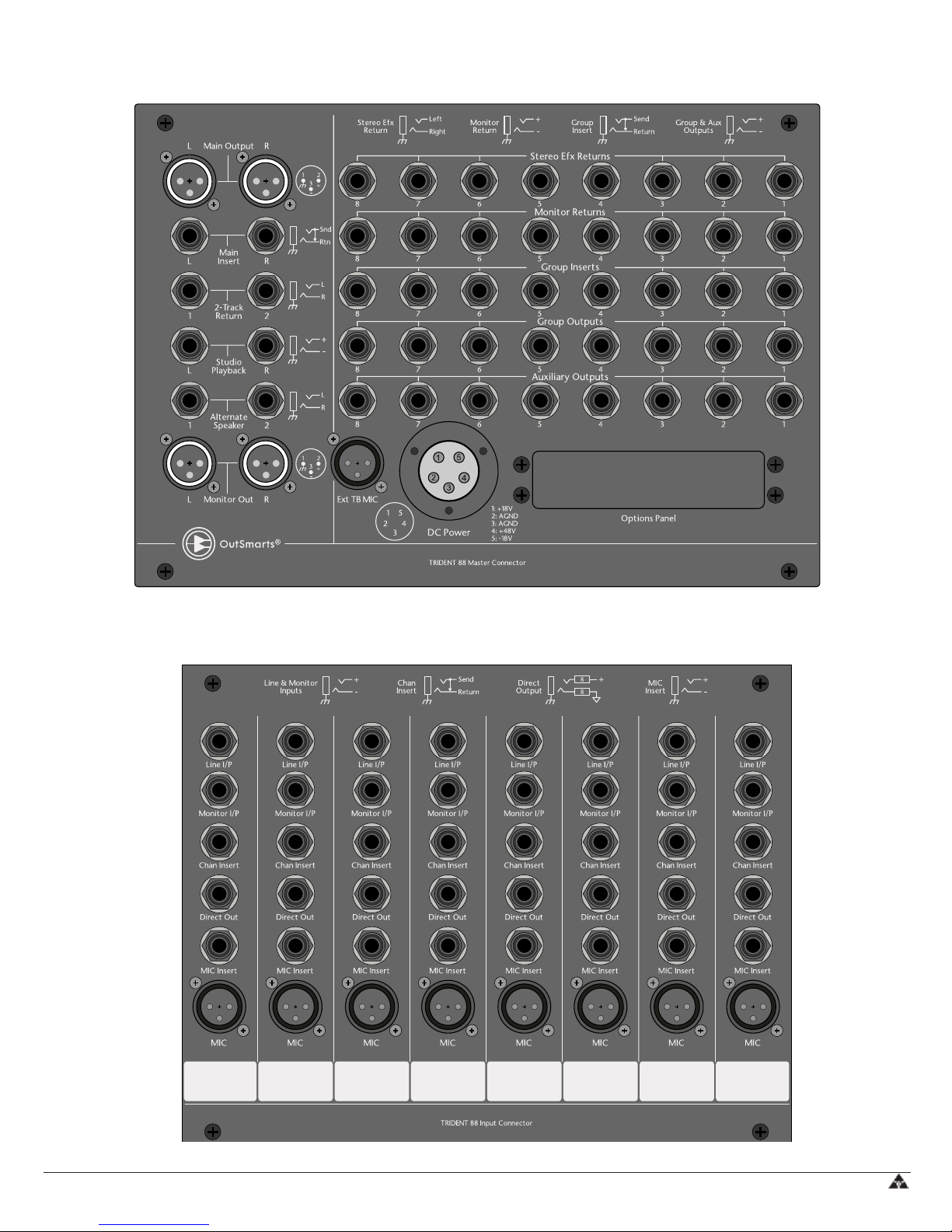

Trident 88 Rear Connections
Master Connector
Input Connector
