Tripp Lite NGI-U05 User manual

1
Unmanaged Industrial
Gigabit Ethernet Switches,
Plug and Play, Mountable
Models: NGI-U05, NGI-U16
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. All rights reserved.
Owner’s Manual
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Español 17 • Français 33 • Русский 49 • Deutsch 65

2
• NGI-U05 or NGI-U16 Gigabit Ethernet Switch
• Owner’s Manual
Package Contents
Product Features
• 5 (NGI-U05) or 16 (NGI-U16) auto-negotiable 10/100/1000
Mbps RJ45 ports
• Supports auto MDI/MDI-X crossover function
• Supports operating temperature range of -40°C to 75°C
(-40°F to 167°F)
• Easy-to-read LEDs indicate connection and activity status
for each port
• Meets the following IEEE standards:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-T
• IEEE 802.3ab 1000Base-T
• IEEE 802.3 Auto Negotiation
• IEEE 802.3x Flow Control
• Supports MAC address auto-learning and auto-aging
• Preinstalled durable rail clip mounts rmly to any standard
35 mm DIN rail*
• Simple plug-and-play installation and operation with no
conguration required
*Note: Only NGI-U05 is both DIN and wall mountable

3
NGI-U05
Optional Accessories
• N001-Series Cat5e 350 MHz Snagless UTP Cables
Product Overview
Top View Front View
10/100
1000 Mbps
Grounding
Screw
Power

4
Product Overview
NGI-U16
Top View
Front View
Grounding Screw
DIN Rail
Grounding
Screw
LNK/ACT
PWR
1000 Mbps
Power Input
Terminal
Block

5
ATTENTION: The NGI-U05 and NGI-U16 are open-
type devices and shall be DIN mounted or wall
mounted (NGI-U05 only) in a rack enclosure. The
ambient temperature should not exceed 75°C
(167°F).
Mounting the Switch
Place the switch on the DIN rail from above using the built-in
slot. Push the front of the switch toward the mounting surface
until it snaps into place. You will hear a “click” to indicate it has
successfully snapped into place.
Dismounting the Switch
Press the switch from the top, then pull out the lower edge of
the switch to remove it from the DIN rail.
DIN Mounting/Dismounting Instructions
Mounting
the Switch
Removing
the Switch

6
DIN Mounting/Dismounting Instructions
Wall-Mounted Mask (NGI-U05 Only)
1. Mount the switch by using mounting holes on the wall at the
appropriate places.
Mounting Holes

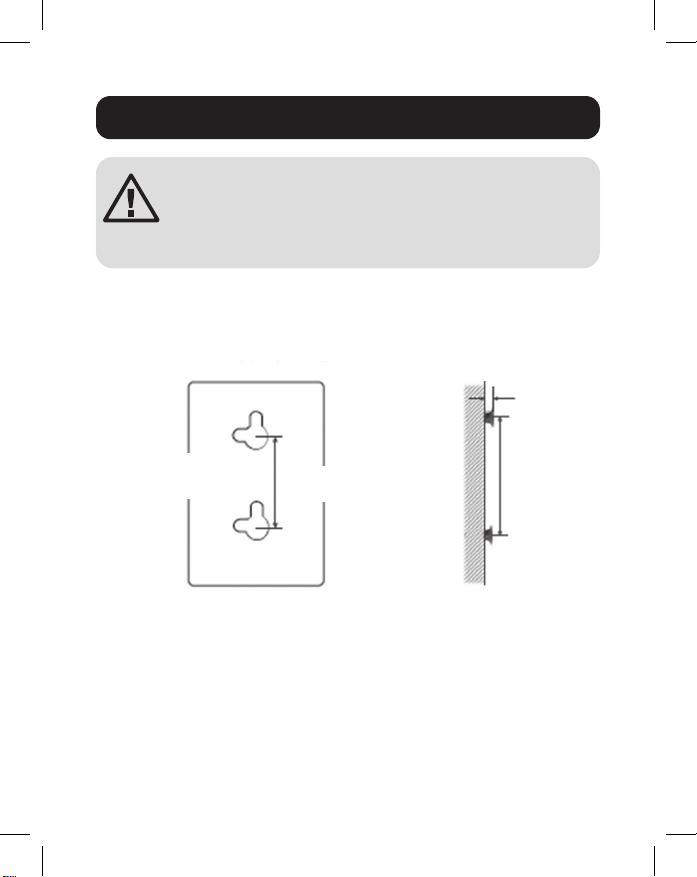

Drawing of NGI-U05
Screw Installation
Distance
Mounting holes
for switch 50 mm
1.5 mm - 3 mm
50 mm
ATTENTION: A corrosion-free DIN mounting rail is
advisable. When mounting the switch, be sure to
allow enough space between devices to install the
cabling and to ensure proper airow.

7
2. The switch can be wall mounted either vertically or
horizontally.
Note: Horizontal mounting is not evaluated by UL.
Grounding the Switch
Grounding and wire routing help limit the e󰀨ects of line noise
caused by electromagnetic interference (EMI). Run the ground
connection from the ground screw to the grounding surface
prior to connecting devices.
ATTENTION: This switch is intended for mounting on a
well-grounded surface, such as a metal panel.
DIN Mounting/Dismounting Instructions
Mounting direction with screw
Straight Direction
Installation Horizontal Direction
Installation
(Horizontal direction is
not evaluated by UL)
Mounting direction with screw

8
WARNING: Safety measures should be taken before
connecting the power cable. Turn o󰀨 the power before
connecting modules or wires. The correct power supply
voltage is listed on the product label. Check the voltage of your
power source to make sure you are using the correct voltage.
DO NOT use a voltage greater than what is specied on the
product label. Calculate the maximum possible current in each
power wire and common wire. Observe all electrical codes
dictating the maximum current allowable for each wire size. If
current exceeds the maximum rating, the wiring can overheat,
causing serious damage to your equipment.
Please read and follow these guidelines:
• Use separate paths to route wiring for power and devices. If
power wiring and device wiring paths must cross, make sure
the wires are perpendicular at the intersection point.
Note: Do not run signal or communications wiring and power wiring
through the same wire conduit. To avoid interference, wires with
dierent signal characteristics should be routed separately.
• You can use the type of signal transmitted through a wire
to determine which wires should be kept separate. Wiring
that shares similar electrical characteristics can be bundled
together.
• You should separate input wiring from output wiring.
• Be advised that you should label the wiring to all devices in
the system.
Wiring Requirements

9
Wiring Power Input
NGI-U05 with 3-Pin Terminal Block
Check the polarity while connecting. Top view of the Terminal
Block is shown in the gure below:
CAUTION:
• Use copper conductors only.
• Wiring cable temperature should support at least 105°C.
• Tighten the wire to a torque value 4.5 lb.in.
• The wire gauge for the terminal block should range between
12 and 24 AWG.
Wiring Requirements
Power
Grounding Screw
Power Input
Terminals
Grounding
Terminals

10
To insert power wire and connect the 9~48VDC at a maximum
of 0.5A DC power to the power terminal block, follow these
steps:
• Use a at-head screwdriver to loosen the wire-clamp screws.
• Insert the negative/positive DC wires into the ( - / + )
terminals, respectively.
• Tighten the wire-clamp screws to prevent the wires from
loosening.
ATTENTION: Use a power supply from 9~48VDC.
The device power shall be supplied by SELV
circuit.
NGI-U16 with 2-Pin Terminal Block
You can use “PWR” for power input. Top view of the Terminal
Block is shown in the gure below:
Wiring Requirements
PWR
12~48VDC
Terminal Block
-
+

11
CAUTION:
• Use copper conductors only.
• Wiring cable temperature should support at least 105°C.
• Tighten the wire to a torque value 4.5 lb.in.
• The wire gauge for the terminal block should range between
12 and 24 AWG.
To insert power wire and connect the 12~48VDC at a
maximum of 1.5A DC power to the power terminal block, follow
these steps:
• Use a at-head screwdriver to loosen the wire-clamp screws.
• Insert the negative/positive DC wires into the PWR-/PWR+
terminals, respectively.
• Tighten the wire-clamp screws to prevent the wires from
loosening.
ATTENTION: Use a power supply from 12~48VDC.
The device power shall be supplied by SELV
circuit.
Wiring Requirements

12
Connect one end of an RJ45 Ethernet cable (see Optional
Accessories) into the switch’s RJ45 Ethernet port. Connect
the other end to a network device. Cat5e cable or above is
recommended.
All ports support Fast Ethernet and 10/100/1000 Ethernet
(10/100/1000Base-T), as well as auto-negotiation and auto
MDI/MDI-X to eliminate the need for crossover cabling.
LED Indicators
Cabling

13
PWR (Green) Illuminated Power on by Terminal Block
PWR
O󰀨 Terminal Block PWR fails or is
unavailable
1000 (Green) Illuminated Link speed is 1000 Mbps (1 Gb)
Blinking Data is transmitting/receiving
O󰀨 Link speed is 10/100 Mbps or
link failed
10/100 (Green) Illuminated Copper port link-up at 10/100
Mbps
Blinking Data is transmitting/receiving
O󰀨 Link speed is 1000 Mbps (1 Gb)
or link failed
LNK/ACT
(Green)
Illuminated Ethernet link-up
Blinking Data is transmitting/receiving
O󰀨 Port disconnected or link failed
Note:10/100 LED only on NGI-U05. LINK/ACT LED only on NGI-U16.
Speed LED (100/1000) blinking function only on NGI-U05.
LED Indicators

14
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Maximum Altitude 2000 m
Ambient Relative Humidity 5 to 95% (Non-Condensing)
ATTENTION: If the switch is used in a manner
not specied here, the protection provided by the
switch may be impaired.
Environmental

15
3-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be
free from original defects in material and workmanship for a period of three (3) years
from the date of initial purchase. If the product should prove defective in material or
workmanship within that period, Seller will repair or replace the product, at its sole
discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE
RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER
MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES
OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY
EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do
not allow limitations on how long an implied warranty lasts, and some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specic legal
rights, and you may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this
device is suitable, adequate or safe for the use intended. Since individual applications
are subject to great variation, the manufacturer makes no representation or warranty as
to the suitability or tness of these devices for any specic application.
Product Registration
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be
automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
*No purchase necessary. Void where prohibited. Some restrictions apply. See website for
details.
WEEE Compliance Information for Tripp Lite Customers and Recyclers
(European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and
implementing regulations, when customers buy new electrical and electronic
equipment from Tripp Lite, they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies
depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste
Warranty and Product Registration

16
Warranty and Product Registration
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o󰀨
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modications to this equipment not expressly approved by Tripp Lite
could void the user’s authority to operate this equipment.
Use of this equipment in life support applications where failure of this equipment
can reasonably be expected to cause the failure of the life support equipment or to
signicantly a󰀨ect its safety or e󰀨ectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specications are subject to change
without notice. Photos and illustrations may di󰀨er slightly from actual products.
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-02-223 • 93-3E2B_RevA

17
Switches Gigabit
Ethernet Industriales no
Administrados, Conectar y
Usar, Instalables
Modelos: NGI-U05, NGI-U16
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. Todos los derechos reservados.
Manual del Propietario
English 1 • Français 33 • Русский 49 • Deutsch 65

18
• Switch Ethernet Gigabit NGI-U05 o NGI-U16
• Manual del Propietario
Contenido del Empaque
Características del Producto
• 5 puertos (NGI-U05) o 16 (NGI-U16) RJ45 de negociación
automática de 10/100/1000 Mbps
• Soporta la función de detección automática de cruce MDI /
MDI-X
• Soporta un rango de temperatura de operación de -40 °C a
75 °C [-40 °F a 167 °F]
• Los LEDs de fácil lectura indican el estado de conexión y
actividad para cada puerto
• • Cumple con los siguientes estándares de IEEE:
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-T
• IEEE 802.3ab 1000Base-T
• IEEE 802.3 Negociación Automática
• IEEE 802.3x Control de Flujo
• Soporta aprendizaje automático y envejecimiento automático
de la dirección MAC
• El durable clip para riel preinstalado se ja rmemente en
cualquier riel DIN estándar de 35 mm*
• Instalación y operación simples para conectar y usar, sin
necesidad de conguración
*Nota: Solo NGI-U05 es instalable en DIN y en la pared

19
NGI-U05
Accesorios Opcionales
• Cables UTP Snagless de 350 MHz Cat5e Serie N001
Vista General del Producto
Vista Superior Vista Frontal
10/100
1000 Mbps
Tornillo de
Conexión a
Tierra
Alimentación

20
Vista General del Producto
NGI-U16
Vista Superior
Vista Frontal
Tornillo de
Conexión a Tierra
Riel DIN
Grounding
Screw
LNK/ACT
PWR
1000 Mbps
Bloque de
Terminales
de Entrada
de Energía
