Tristan auron Bt1d7008 User manual

DVD/VCD/CD/MP3/MP4/USB/SD/MMC PLAYER

FM/AM TUNER • Bluetooth-Unterstützung

BT1D7008

Betriebsanleitung

1. Only connect this unit to a 12V DC power

supply with negative grounding.

2. Never install this unit where the operation

for safety driving is restrained.

3. Never use the video display function in the

front when driving to prevent the violation

of laws & regulations and also to reduce

the risk of trafc accident except using the

rear view video camera.

4. Never expose this unit, amplier, speakers

to moisture or water to prevent electronic

sparks or res.

Warnings

5. Please don't change the fuse in the power

cord without professional guidance,

improper fuse may cause damage to this

using unit or even cause re.

6. Please power off this unit at once and send

it back to the after-sales service center or

the dealer / distributor you purchased from

if one of the following symptoms is found:

(a) No audio output;

(b) No image output;

(d) Smoking;

(e) Peculiar smell.

7. To ensure safe driving, please adjust the

volume to a safe and comfort level in case

of emergency situations.

Precautions

1. Never disassemble or adjust the unit

without any professional guide. For

details, please consult any professional car

shop / dealer for inquiry.

2. If the front panel or TFT monitor is squalid,

please use a clean silicone cloth and

neutral detergent to wipe off the spot.

Using a rough cloth and non-neutral

detergent such as alcohol for cleaning may

result in scratching or decoloration to the

applicant.

3. If any abnormal behavior of the unit is

found, please refer to trouble shooting

guide of this manual. If no relevant

information is found,please press the

[RESET] key on the front panel to resume

factory default.

4. If you have parked the car in hot or cold

weather for a long time, please wait until

the temperature in the car becomes normal

before operating the unit.

5. Using in-car heater in low temperature

environment may result in beads coagulate

inside the unit, Do not use the unit in this

situation, eject the disc and wipe off the

bead on the disc. If the unit still doesn't

work after a few hours, please contact with

after-sales service center.

6. No erce impact to the LCD monitor when

it is in open position for preventing the

damage to any mechanisms inside.

7. To prevent the damage to the screen,

avoid touching it with sharp objects.

8. The monitor employs auto motorizing

mechanism, please don't push, pull, or

swivel the monitor manually to prevent

damage to the core mechanism.

9. To provide a clear demonstration and an

alternative for easy understanding to the

operation of this unit, graphic illustrations

areused.However, these illustrations are

some different from the actual images

displayed on the screen.

10.During operating the unit, ' ' will

display if the current operation is not

available or illegal.

11.Operate the unit correctly according to this

manual to prevent unnecessary problem.

The guarantee won't be valid if the problem

is caused by inappropriate operation.

Declaration

This product incorporates copyright protection

technology that is protected by U.S patents

and other intellectual property rights. Use of

this copyright protection technology must be

authorized by Macrovision, and is intended

for home and other limited viewing uses only

unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is

prohibited.

Contents

Before using

Front panel ............................................. 1

Auxiliary LCD ......................................... 2

Remote control....................................... 2

Basic operations

Power on / off......................................... 4

Mute ....................................................... 4

Volume adjustment................................. 4

Open SOURCE MENU .......................... 4

Playing source selection ........................ 4

Using the TFT monitor ........................... 4

Reset the unit......................................... 4

RDS operations

AF function ............................................. 5

TA function ............................................. 5

PTY function........................................... 5

PS(Program service ) ............................ 5

CT (Clock time) ...................................... 5

RT (Radio text)....................................... 5

Radio mode

Select radio as playing source ............... 6

Select one radio band ............................ 6

Auto tuning ............................................. 6

Manual tuning......................................... 6

Auto save ............................................... 6

Manual save........................................... 6

Preview scan ......................................... 6

Recall the stored stations....................... 6

Local seeking ......................................... 6

Disc mode

Insert a disc............................................ 7

Eject the disc.......................................... 7

Touch screen controls ............................ 7

Suspend playback.................................. 7

Stop playback ..................................... 7

Display le list ........................................ 7

Fast playback ......................................... 7

Previous / next ....................................... 7

Change folder......................................... 7

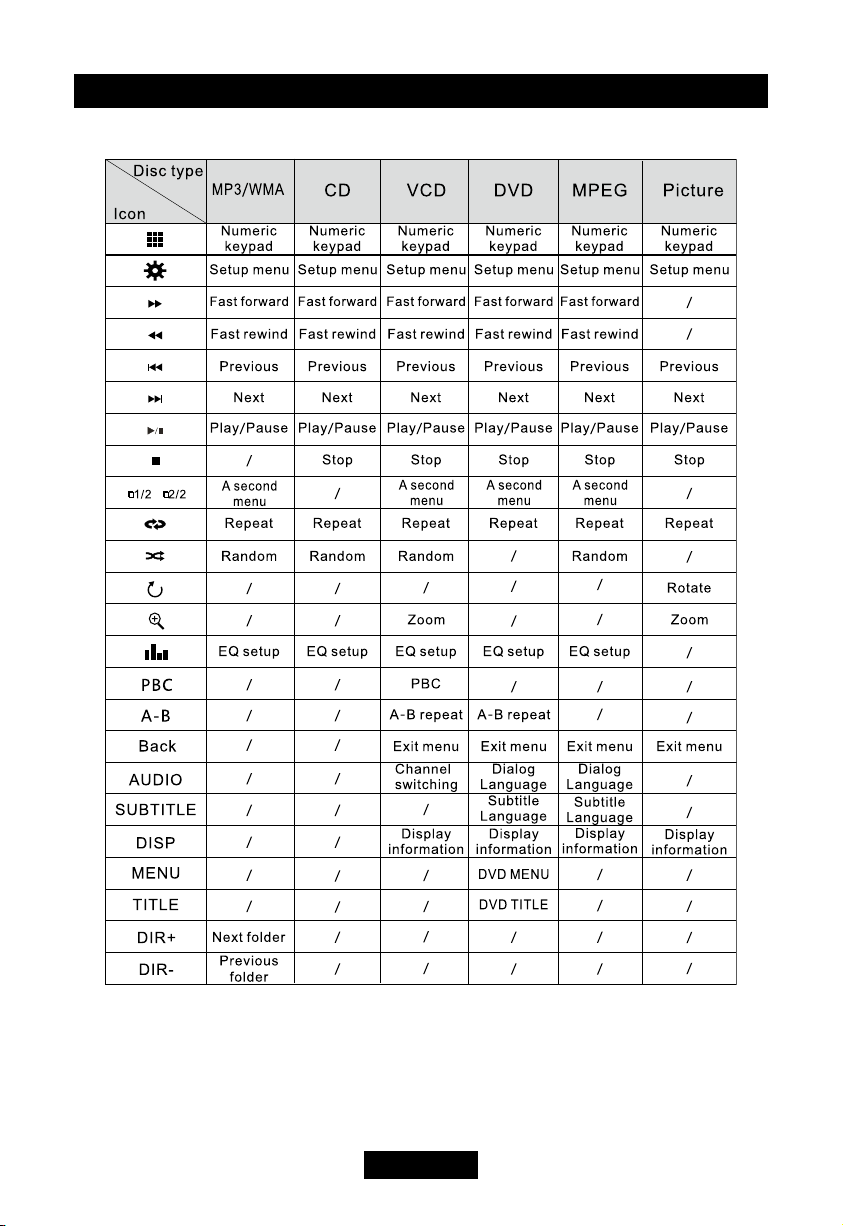

Onscreen control buttons....................... 8

Repeat playback .................................... 9

Repeat A-B............................................. 9

Random playback .................................. 9

Intro playback......................................... 9

Direct search ......................................... 9

GOTO search......................................... 9

MENU and TITLE................................... 9

Select subtitle language....................... 10

Select multi-angle views ...................... 10

Select audio channel ........................... 10

PBC function ....................................... 10

Zoom in/out ......................................... 10

Rotate picture....................................... 10

Playback information............................ 10

Bluetooth mode

Select bluetooth as playing source .......11

Function icons.......................................11

Work modes of bluetooth module .........11

Phone mode..........................................11

Music mode.......................................... 12

SD/USB mode ........................................... 13

Other modes

AUX...................................................... 14

Camera ................................................ 14

SWC..................................................... 14

TV(Optional)......................................... 14

Setup

Setup procedures................................. 15

General ................................................ 15

Language ............................................. 15

Audio.................................................... 15

RDS...................................................... 15

Bluetooth.............................................. 16

Rating .................................................. 16

Hardware.............................................. 16

P.VOL ................................................... 17

TS CAL................................................. 17

EQ .............................................................. 18

Troubleshooting ....................................... 19

Device connections

Notes of connection ........................... 21

Control cables ...................................... 21

Parking brake cable connections ....... 22

Reverse driving cable connections ...... 22

Installation and uninstall

Notes of installation.............................. 23

Installation procedures ......................... 23

Remove the unit .................................. 23

Trim ring installation ............................. 23

Trim ring uninstall ................................ 23

Disassemble the detached panel......... 24

Assemble the detached panel.............. 24

Specications ........................................... 25

Appendix

Region code ........................................ 26

Cautions of disc using.......................... 26

Wiring diagram ..................................... 26

EN - 1

Before using

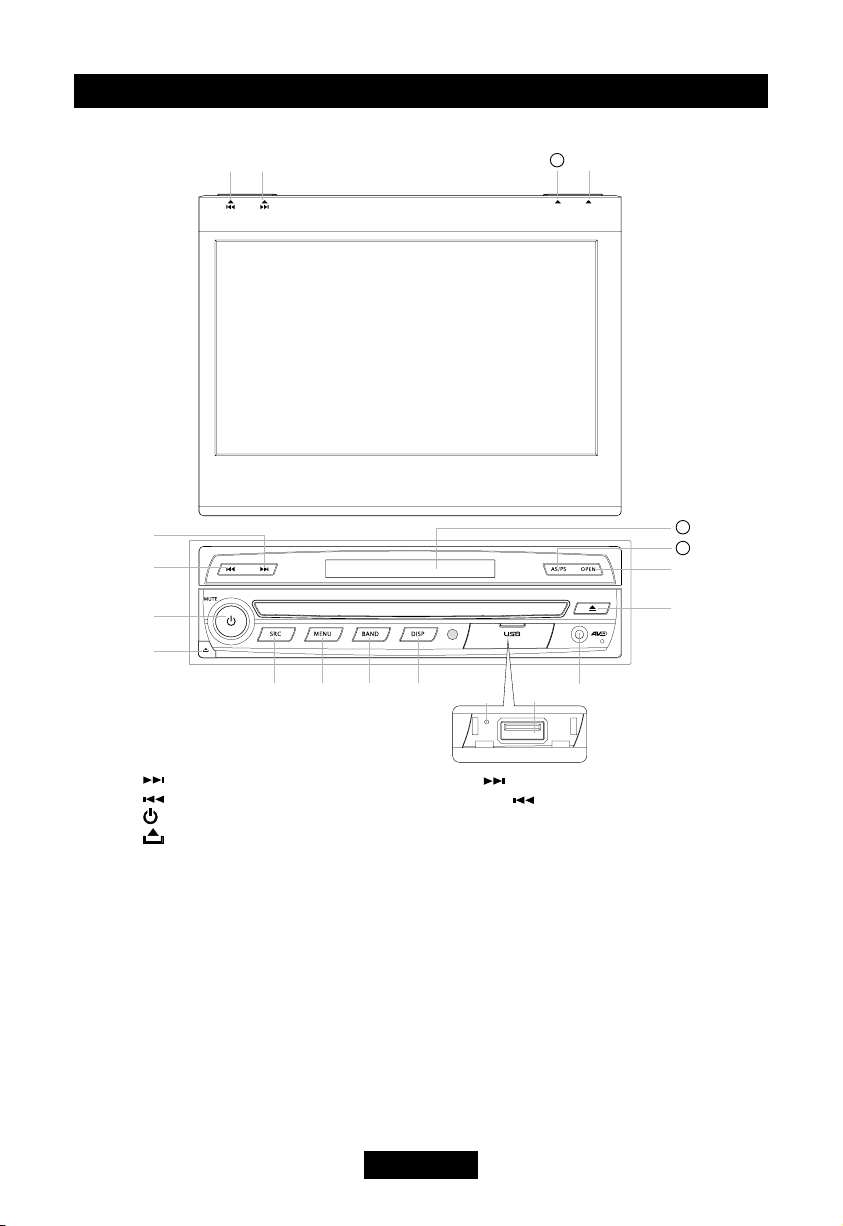

Front panel

1. [ ] Key: Next / With the monitor closed, press to seek forward

2. [ ] Key: Previous / With the monitor closed, press to seek backward

3. [ / MUTE / VOL] Knob Key: Unit power / Mute audio outputs / Adjust volume

4. [ ] Key: Flip the front panel

5. [SRC] Key: Press once to the playing mode

6. [MENU] Key: DVD menu / PBC / Switch Radio local and distant(in radio mode)

7. [BAND] Key: Change radio band(short press) /

Fast playback / Slow playback(long press)

8. [DISP] Key: Change display mode / Switch the TFT to standby mode(when the TFT open)

9. Reset the unit

10. USB slot

11. AV IN jack

12. Eject disc

13. [OPEN / CLOSE] Key: Open / Close the TFT monitor

14. [AS / PS / TILT] Key:

Auto memory store / Preset scan (when the TFT close) /

Press to enter display angle setting mode, and rotate the knob to adjust

(when the TFT open)

15. Disc slot

TI LT C L OS E

཰ཱ

཰

ཱ

ི

ཱི

ུ ཱུ ྲྀ ཷ

ཻ

ོ

ླྀ

ཹ

ེ

EN - 2

Before using

Auxiliary LCD

1. Disc indicator

Light up when one disc is inside; Light off

when no disc is inside.

2. Repeat mode indicator

Light up when repeat mode is on; Light off when

repeat mode is off.

3. Main display area

Display characters, playback time, tuning

frequency, clock and other text information.

4. Radio status indicators

Stereo indicator lights up when the radio

broadcast is a stereo one; Local indicator lights

up when the local seeking function is activated.

Notes:

1. Most information can be displayed on this

LCD only when the TFT monitor is closed.

2. Only English font support on this LCD.

Remote control

1. [SRC]Key:select playing source

2. [EJECT]Key: Eject disc

[

AUDIO

] Key: Select audio channel

4. [VOL+/-] Key: Adjust volume

5. [ZOOM] Key: Image zoom in/out

6. [ /BAND] Key: Select radio band /

Fast playback / Slow playback

7. [WIDE] Key: Change display mode

8. [PRESET /] Key: Select preset

radio station

9. [EQ] Key: Enter/Exit the EQ setting

10.[GOTO / ] Key: GOTO search / Call

11.[OPEN/CLOSE] Key: Open / Close the

TFT monitor

12.

[

TILT

] Key: Adjusting display tilting angle

13.[RPT A-B] Key: A-B repeat

14.[RPT] Key: Repeat playback

15.[MUTE] Key: Mute audio outputs

16.[POWER] Key: Unit power

17.[SUBTITLE] Key: Select DVD subtitle

language

18.[ANGLE] Key: Select view angle

19.[MENU] Key: DVD MENU / PBC

20.[TITLE] Key: DVD TITLE

21.[SETUP] Key: Setup menu

22.[ ] Key: Fast Forward / Move cursor up

23.[ ] Key:Auto search / Next / Move cursor

to the right

24.[ ] Key: Play / Pause / Enter

25.[ ] Key: Auto search / Previous / Move

cursor to the left

26.[PIC] Key: Image setting

27.

[ ] Key: Fast Reverse/ Move cursor down

28.[ / ] Key: Stop Playback / Hangup

29.[DISP] Key: Display information

30.[0~9] Key: Numeric keys

31.[RDM] Key: Random playback

32.[INT] Key: Intro playback

Note:

Your remote control may differ slightly from

the one pictured here.

The above diagram is for illustrative purpose only.

EN - 3

Before using

Notes of remote control using

1. Aim the remote control at the remote

sensor on the unit.

2. Remove the battery from the remote

control or insert a battery insulator if the

battery has not been used for a month or

longer.

3. Do not store the remote control under

direct sunlight or in high temperature

enviro n ment, or it m a y not funct i on

properly.

4. The battery can work for 6 months under

normal condition. If the remote control can't

work, please change the battery.

5. Use “button shaped” lithium battery

“CR2025” (3V) only.

6. Do not recharge, disassemble, heat or

expose the battery in re.

7. Insert the battery in proper direction

according to the (+) and (-) poles.

8. Store the battery in a place where children

cannot reach to avoid the risk of accident.

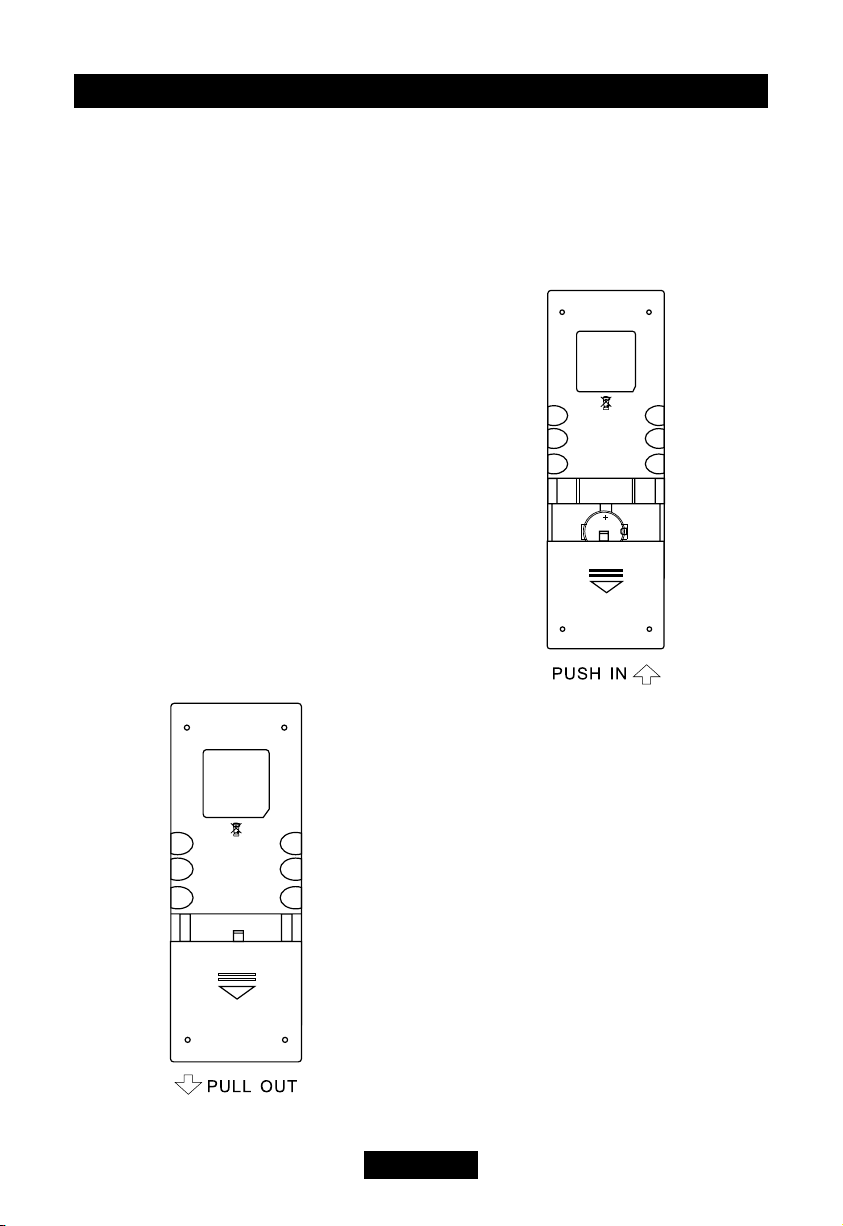

Uninstall battery

Slide out the battery compartment

tray at the bottom on the back of the

remote control.

Install battery

Use button-shaped lithium battery

“CR2025 (3V)” only. Insert the

battery to the battery tray with proper

direction according to the (+) and (-)

poles.

EN - 4

Basic operations

Power on / off

Press and hold the [ ] key on the front

panel to turn on the power under standby

mode. The unit goes back to the last status

after power on.

Press and hold the [ ] key on the front

panel or press the [POWER] key on the

remote control to turn off the power under

work mode.

Mute

Press the [MUTE] key on the front panel or

remote control to mute the volume from the

unit.

Notes:

1. Doing the operation above again or

adjusting volume will release muting.

2. Mute icon winks on the TFT during muting.

Volume adjustment

Turn the volume knob on the front panel or

press the [VOL] key on the remote control.

The adjustable range of volume is 0 to 40.

Open SOURCE MENU

Press the [SRC] key on the front panel or

remote control or touch the top left corner of

the screen to open the SOURCE MENU.

Do the above operation again to return to the

original source.

Playing source selection

Open the SOURCE MENU, and then touch

the source you desired or select one source

by moving the cursor and then conrm.

Notes:

1. Playing source selection means selecting

work mode, such as DVD mode, Radio

mode, Camera mode, etc.

2. When some devices are not ready, they

cannot be selected.

Display system time

Press and hold the [DISP] key on the front

panel or remote control to switch the display

information between system time and playing

source when the TFT monitor is closed.

Using the TFT monitor

Open / Close monitor

Press the [OPEN/CLOSE] key on the front

panel or remote control to push the display

panel out or in.

Change the monitor tilt angle

Due to the inherent character of LCD, you

will get different vision impressions when you

watch it from different angles.

The display angle of this unit can be changed;

hence you can select the best angle where

you can get the best vision impression.

Press the [TILT] key on the remote control to

adjust the tilt angle one step at a time.

When the monitor is open, press the [TILT]

key on the display panel to enter tilt angle

setting mode, and rotate the knob to adjust.

Press and hold the [TILT] key on the remote

control to adjust the tilt angle continuously.

Change aspect ratio

Press the [WIDE] key on the remote control

to adjust the aspect ratio.

Image setting

1. Enter image setting mode

Press the [PIC] key on the remote control.

2. Select one item to adjust

Press the [ ]/[ ] keys on the remote

control.

3. Adjust the value

Press the [ ] / [ ] keys on the remote

control.

4. Exit image setting mode

To exit image setting mode, repeat the rst

step or stop operation for some seconds.

Reset the unit

If the unit can not work correctly, you should

reset the unit by pressing the [RESET] button

on the front panel.

EN - 5

RDS operations

The unit provides basic functions of RDS, including

PI (Program Identification), radio station name ,

RT (Radio Text), CT (Clock Time), AF (Alternative

Frequency), TA (Traffic Announcement) and PTY

(Program Type) Selection.

AF function

Alternative Frequencies Lists are used

for the same program service and used

in conjunction with the PI code (Program

Identication code) to assist automatic tuning.

Using this information, a radio can automatically

search out another station that is playing the

same material. This is useful when the station

you are listening to is fading out.

To activate AF function, touch the [AF] button on

the user interface.

To cancel this function, do the operation above

again.

Note:

During auto switching radio frequency, some

interference could be heard. Turning off AF

function can settle this problem.

TA function

The TA (Trafc Announcement ag) function

lets the unit receive traffic announcements

automatically no matter what media source

is playing back. The TA function can be

activated by a TP (Traffic Program) station

broadcasting trafc information.

When TA is activated and a traffic

announcement is received, the current

playing source will be overridden by the trafc

announcement if the current radio band is FM

and the 'TA' indicator lights up, indicating that

the unit is waiting for trafc announcements.

The unit returns to the original source after

the trafc announcement has been received.

To activate TA function, touch the [TA] button

on the user interface.

To cancel this function, do the operation

above again.

PTY function

PTY is the abbreviation for Program Type

which is a code dening the type of program

being broadcast (e.g. News or Rock).

Six PTY options will display on the screen. To

view more PTY options, touch the scroll bar

and arrows on the screen.

When one PTY option is touched (e.g.

News), auto search for next available PTY

by increasing tuning frequency until the PTY

of the next station matches the current. If no

matched PTY has been found, the unit will

return to the original radio frequency.

PS(Program service )

Used for receiver displays of an 8 character

alpha numeric Program Service name which

may use Upper or Lower case characters, e.g.

{BBC_4_FM}, {Classic_}.

CT (Clock time)

Some stations broadcast the time and date

within the encoded RDS signal. The clock

time is automatically adjusted when "CT" is

set to "On".

RT (Radio text)

When this function is activated, the unit will

display short message data transmitted from

the provider, such as station information, the

name of the current broadcasting song and

the artist name.

EN - 6

Radio mode

Select radio as playing source

Open the SOURCE MENU and then touch

[RADIO].

Select one radio band

Press the [BAND] key on the display panel

or remote control or touch the [BAND] icon

on the user interface to select one radio band

among FM1, FM2, FM3, AM1 and AM2.

Auto tuning

When the monitor is closed, press the [

] / [ ] key on the display panel or remote

control to seek automatically.

When the monitor is open, touch the [ ]

/ [ ] icon on the user interface to seek a

higher / lower station.

To stop searching, repeat the operation above

or press other keys having radio functions.

Note:

When a station is received, searching stops

and the station is played.

If the unit receives a stereo broadcasting, the

indicator light of stereo ‘ST’ on the TFT or

LCD display will be lighted.

Manual tuning

During manual tuning, the frequency will be

changed in steps.

Press the [ ] / [ ] key on remote control

or touch the [ ] / [ ] icon on the user

interface to tune in a higher / lower station.

Touch the numeric keypad icon( ) and then

touch the numeric buttons to input the radio

station frequency numbers.

Auto save

Only stations with sufficient signal strength

will be detected and stored in the memory.

When the monitor is closed, press and hold

the [AS] key on the display panel.

When the monitor is opened, touch the [AS]

icon on the user interface.

To stop auto save, press other keys having

radio functions.

Notes:

1. After auto save, the previous saved

stations will be overwritten.

2.The unit has 5 bands, such as FM1, FM2,

FM3, AM1, AM2, and each band can store

6 stations; hence the unit can store 30

stations in all.

Manual save

When one expected radio station has been

detected:

1. Press the [MEM] icon on the user interface

and the preset menu will be opened.

2. Press one preset button among P1~P6.

3. If you want to abort, press the [Exit]

button.

Preview scan

Preview scan searching is such a process

that the searching pauses when a station is

received and then played for 5 seconds. After

being played, the unit continues the process

until the whole band is detected.

When the monitor is closed, press the [AS]

key on the display panel.

When the monitor is opened, touch the [PS]

icon on the user interface.

To stop the process, press other keys having

radio functions.

Recall the stored stations

1. Select a band(if needed).

2. There are three methods to select a preset

station.

a. Touch an on-screen preset button to select

the corresponding stored station.

b. You also can press [ ] / [ ] key on the

display panel when the monitor is open.

c. Press one numeric key among 1 to 6 on

the remote control.

Local seeking

When LOCAL seeking is on, only those radio

stations with strong radio signal could be

received.

To open or close LOCAL function, press and

hold the volume knob on the front panel.

Notes:

1. When the local radio station searching

is on, the indicator light ‘LOC’ lights up;

whereas the light goes off.

2. The number of radio stations that can

be received will decrease after the local

seeking mode is on.

EN - 7

Disc mode

Insert a disc

Upon inserting a disc, the unit will switch to

disc mode automatically.

Notes:

1. Please confirm whether there is a disc in

the unit before you insert another one.

2. Some recorded discs, such as CD-R, CD-

RW, DVD-R, DVD+R, DVD-RW, DVD+RW

cannot be played back because of different

recording status. Otherwise, the discs

without being closed could not be played

back.

3. About the cautions of disc using, please

refer to the appendix.

Eject the disc

Press the [ ] key on the front panel or

remote control to eject the disc.

Touch screen controls

The touch key areas for DVD playback are

outlined below:

A - Return the last menu

B - Display playback information

C - Display onscreen control menu

Suspend playback

Press the [ ] key on the remote control or

open the onscreen control buttons menu and

then touch the [ ] icon.

To resume normal play, repeat the above

operation.

Stop playback

To stop playback, press the [■] key on the

remote control or open the onscreen control

buttons menu and then touch the[■] icon.

When the above operation is executed for

the rst time, the current playback is paused

and the break point is memorized and the

playback will resume when you start playback

again or switch back from other playing

sources. The current playback will cancel if

the above operation is executed twice and

the playback will start over when you start

playback again.

Display le list

To display the file list of one recorded disc,

stop current playback.

Fast playback

Press the [ ]/[ ] key on the remote

control repeatedly or open the onscreen

control buttons menu and then touch the

[ ]/[ ] icon repeatedly to change the rate

of fast forward/fast reverse.

Previous / next

Press the [ ]/[ ] key on the display

panel or remote control or open the onscreen

control buttons menu and then touch the

[]/[ ] icon to play the next or previous

le.

Change folder

Press the [DIR+]/[DIR-] icon on the user

interface (you should stop playback first if a

video or picture le is played back) to change

folder during the playback of one recorded

disc containing more than one folder.

EN - 8

Disc mode

Onscreen control buttons

EN - 9

Repeat playback

Press the [RPT] key on the remote control

repeatedly or open the onscreen control

buttons menu and then touch the [ ] icon

repeatedly to alter repeat mode according to

the following table.

Notes:

1. When a VCD is played back, this function

is prohibited if the PBC is on.

2. Turning off the power or switching playing

source to other modes and back will

cancel this function.

Repeat A-B

When a DVD, VCD or CD disc is played back,

you can play back the contents between the

time points from A to B repeatedly.

Press the [RPT A-B] key on the remote

control or open the onscreen control buttons

menu and then touch the [RPT A-B] icon to

set the start point (A) of the repeated section.

Do the above operation again to set the end

point of the repeated section.

The selected portion will repeat continuously.

Do the above operation for the third time to

cancel this function.

Random playback

When this function is on, the contents in the

disc will be played back randomly.

Press the [RDM] key on the remote control

repeatedly or open the onscreen control

buttons menu and then touch the [ ] icon

repeatedly to alter random playback mode

among ‘Random on’, ‘Random off’.

Intro playback

When this function is on, the unit will play

back the first 10 seconds of each track of a

VCD or CD disc. You can search the le you

desired using this function.

Press the [INT] key on the remote control to

activate this function.

Do the above operation again to cancel this

function.

Direct search

When a DVD, VCD or CD disc is played back,

you can search for a particular chapter / track

by pressing the numeric keys of the remote

control. For example, if you want to select the

15th track, you should press numerical key [1]

and [5].

GOTO search

(1) Enter GOTO search mode

Press the [GOTO] key on the remote

control to open search menu.

For DVD, you can search according to

title, chapter and time.

For VCD, if PBC function is off, you can

search according to time; if PBC function

is on, you can search according to track,

time and Disc time.

For CD, you can search according to

track.

For MPEG les, you can search according

to track and time.

For record discs containing MP3 and/or

JPG files, you can search according to

track(le number).

(2) Enter search information

Select items by pressing the direction keys

on the remote control and enter search

information by pressing the numeric keys,

such as title, chapter and time.

(3) Conrm

Press the [ ] key on the remote control

to conrm.

(4) Exit GOTO search mode

Repeat the above operation until the

search menu disappeared or touch the

[Exit] button on the menu.

MENU and TITLE

This function is only available for the DVD

discs having “MENU / TITLE”.

Press the [MENU] key on the remote control

or open the onscreen control buttons menu

and then touch the [MENU] icon to open DVD

MENU.

You can select audio language, subtitle

language and so on for playback.

Press the [TITLE] key on the remote control

Repeat chapter ėRepeat title ėRepeat off

DVD

VCD(PBC off)

Repeat single ėRepeat all ėRepeat off

MP3/WMA

Disctype Repeatmode


MPEG

Repeat single ėRepeat folder ėRepeat allėRepeat off

Disc mode

EN - 10

Disc mode

or open the onscreen control buttons menu

and then touch the [TITLE] icon to open DVD

TITLE.

You can select a different title for playback.

Select subtitle language

Press the [SUBTITLE] key on the remote

control repeatedly or open the onscreen

control buttons menu and then touch the

[SUBTITLE] icon repeatedly to choose a

subtitle language.

Select multi-angle views

Press the [ANGLE] key on the remote control

repeatedly to choose a shooting angle during

the playback of a DVD disc or video file

containing multi-angle views.

Select audio channel

For DVD containing multi-language audio

files, press the [AUDIO] key on the remote

control repeatedly or open the onscreen

control buttons menu and then touch the

[AUDIO] icon repeatedly to change dialogue

language.

For VCD and CD, press the [AUDIO] key on

the remote control repeatedly or open the

onscreen control buttons menu and then

touch the [AUDIO] icon repeatedly to alter

audio channel modes among Left vocal, Right

vocal, Mono left, Mono right, Stereo.

Note:

Left channel and right channel cannot work

properly if the audio files are not recorded

correctly.

PBC function

This function is available for the VCD discs

with PBC function (Ver 2.0 or higher).

Open the onscreen control buttons menu

and then touch the [PBC] icon to activate this

function.

Press again to cancel.

Notes:

1. When PBC is on, playback goes back to

the track list and starts from the rst track.

2. When PBC is on, fast motion playback,

slow motion playback or skip search

is available but repeat playback and

searching for a particular chapter or track

is prohibited.

3. If you do the operation of random

playback, scan playback or searching

playback when PBC is on, PBC will be off

automatically.

Zoom in/out

To zoom in/out the image being played, press

the [ZOOM] key on the remote control or

open the onscreen control buttons and then

touch the [ ] icon.

Rotate picture

When one picture le is played back, you can

rotate the picture to get proper view angle

by pressing the [ ] icon on the onscreen

control buttons.

Playback information

Touch the top center area of TFT LCD when

playing back DVD and VCD discs and the

playback information will be displayed on the

top area of the TFT.

For DVD

1. Disc type.

2. Elapsed time of the current title.

3. DVD Title information. “5/8” indicates that

this DVD has 8 titles and the title playing

back now is the fth title.

4. DVD Chapter information. “2/16” indicates

that current title has 16 chapters and the

chapter playing back now is the second

chapter.

5. Indicates that the subtitle of this DVD has

been recorded in 6 languages and the

language displayed now is the second,

EN - 11

Disc mode

that is English.

6. Touch the [SUB TITLE] button repeatedly

to choose a subtitle language.

7. Multi angle.

8. Bitrate.

For VCD

1. Disc type.

2. Elapsed time of the current track.

3. PBC function indicator. "PBC On" indicates

that PBC function has been activated.

Bluetooth mode

Bluetooth is a wireless transmission way

for short distance operating at 2.4GHz.

The bluetooth module can connect with the

mobile phones having bluetooth function.

After connecting, you can control your mobile

phone through the unit.

As different mobile phones provide different

bluetooth functions, so not all of the functions

undermentioned are available to different

phones. Please read through the operation

manual of the mobile phone in use at rst.

Select bluetooth as playing

source

Open the SOURCE MENU and then touch

BT.

Function icons

The function icons of BT are outlined as

below.

Work modes of bluetooth

module

The bluetooth module has two work modes,

which are phone mode and music mode.

Touch the mode switch icon to switch to its

corresponding mode. Under phone mode,

hand-free, call and other phone functions are

available. Under music mode, you can enjoy

the music played back by your mobile phone

through the speakers in your car and you can

control the playback.

Phone mode

Pairing

Use this function to establish a connection

between the Bluetooth module and your

mobile phone.

Switch the work mode of the Bluetooth

module to phone mode, open the SETUP

menu and select the Bluetooth sub-menu

and then set the 'Bluetooth' option to 'On'.

Turn on the Bluetooth function of your

mobile phone and start to search Bluetooth

devices.

After the name of the Bluetooth module

EN - 12

Bluetooth mode

appears on the pairing list on your mobile

phone, you should select it. At this time,

a pairing code is required. The Bluetooth

module will exit pairing mode if there is no

pairing instruction from your mobile phone

during the pairing time (90s) and 'Phone

Pairing Fail' is displayed on the screen.

Enter the pairing code (1234 by default)

to initiate the pairing process. The paired

mobile phone name will display on the

screen.

Browse call numbers

The Bluetooth module will download phone

book and call records from your mobile phone

after pairing.

Touch the [MENU] icon to display the Menu

list. There are some options on the menu list,

including missed calls, received calls, dialed

calls and phone book. When you press one

of them, the Bluetooth module will get its

corresponding information from your mobile

phone.

Make an outgoing call

Browse through the Phone book or call

records, touch the number you want to dial

and then touch the dial icon to make an

outgoing call.

Touch the Dial Panel icon to open dial

panel and then touch the numeric buttons

to input phone numbers. Touch the [Clear]

icon to clear the last digit. Touch the

hangup icon to clear the entire numbers or

end the conversation. Touch the Ans icon

to make an outgoing call.

Answer an incoming call

The Bluetooth module will switch to phone mode

automatically when there is an incoming call and

the incoming call number will be displayed on the

screen.

If the 'Auto Answer' option of the 'Bluetooth' sub-

menu under the SETUP MENU is set to 'On',

the unit will answer incoming calls automatically,

otherwise you should answer them manually.

The call duration will be displayed on the screen

after the incoming call has been put through.

Hangup

While talking, press the hangup key on your

mobile phone or touch the hangup icon on the

screen to end the conversation.

Voice transfer

While talking, touch the 'Voice transfer' icon

on the screen to transfer audio from the unit

to your mobile phone, and touch again to

transfer audio from your mobile phone to the

unit.

Note: Some mobile phones will transfer audio

from the unit to themselves once the incoming

call is answered.

Microphone mute

While talking, press the microphone mute icon

on the screen to mute the microphone built in

the unit. Under this condition, the one talking

over the telephone with you can not hear

what you are saying. Touch the mute icon

again to resume microphone functionality.

Music mode

Pairing

Before pairing, switch the work mode of

the Bluetooth module to music mode. The

procedures of pairing under music mode is

the same as the phone mode.

A2DP

A2DP is short for Advanced Audio Distribution

Profile. The mobile phones supporting this

function can transmit stereo audio, whereas

the ones not supporting this function can

transmit mono audio only.

After pairing, open the audio player of your

mobile phone and set the transmit mode to

Bluetooth. At this time, the speakers of your

mobile phone will close automatically.

To set the transmit mode of mobile phones

to Bluetooth, please refer to the user manual

or help document of the mobile phone in use

or the audio player software because the

audio players of different mobile phones vary

greatly.

AVRCP

AVRCP is short for Audio/Video Remote

Control Prole. The mobile phones supporting

this function can control the playback of a

Bluetooth audio player.

After pairing, touch the corresponding icon

to control current playback, such as Play,

Pause, Stop, Previous, Next.

EN - 13

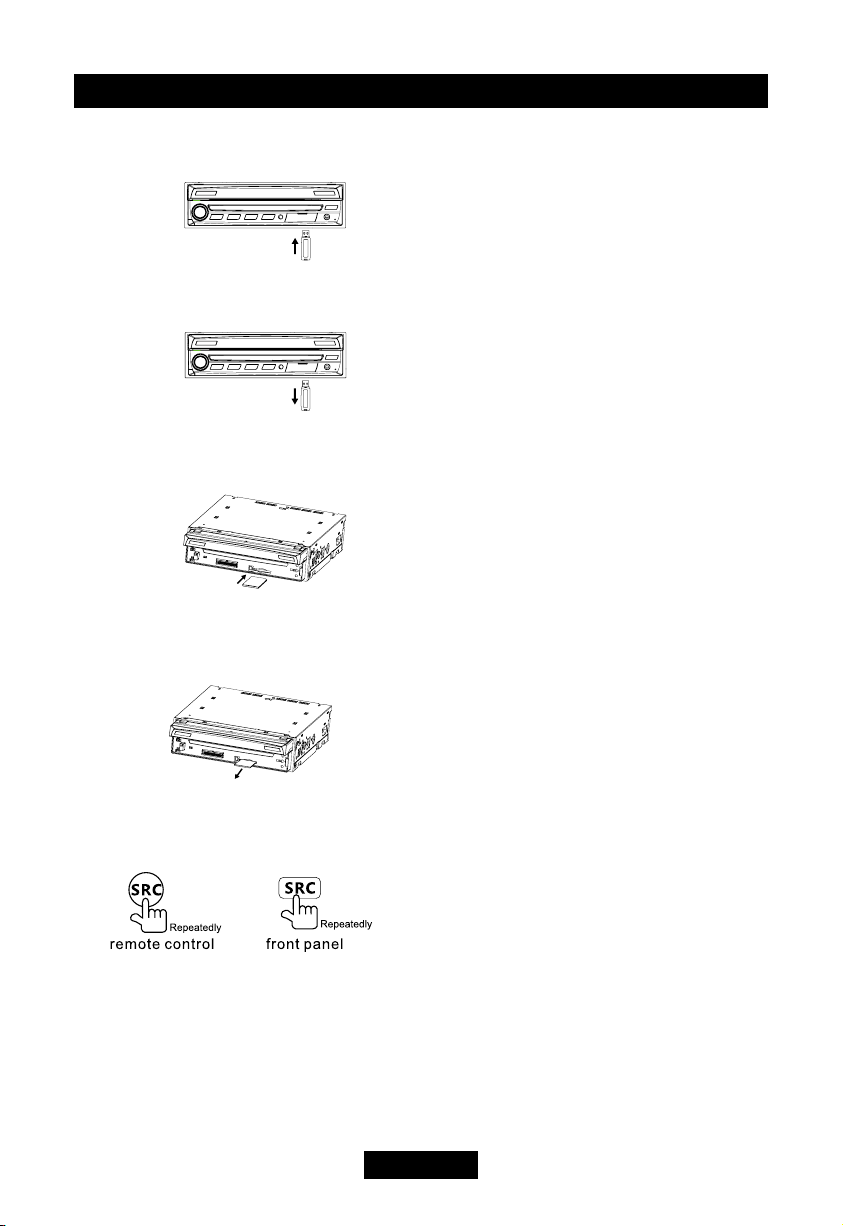

1. Load USB equipment

Open the cap, insert the USB into the

connector.

2. Take out USB equipment

Press [SRC] key and switch to non USB

mode, then take off the USB stick, close

the cap.

1. Load SD/MMC card

Disassemble the detached panel, insert the

SD/MMC card into the slot.

2. Take out SD/MMC card

Press [SRC] key and switch to non CARD

mode, slightly press SD/MMC card, take

out the card when it pops out.

Select SD/USB as playing source

Method 1:

Method 2:

Open the 'SOURCE MENU' and then select

'SD' or 'USB'.

Notes:

1. The unit will switch to SD card mode or

USB mode after a SD card or USB device

has been inserted.

2. The unit supports hot swap.

Using the touch screen controls

The operation is the same as DVD mode.

Onscreen control buttons

Onscreen control buttons under USB mode

are the same as disc mode.

Stop playback temporarily
