VOD806 Drop Down DVD Video Monitor
Installation Guide
ELECTRONICS COR
P.
®
999.audiovox.com
For Customer Service
Visit Our Website At
Product Information, Photos,
FAQ’s Owner’s Manuals
AUDIO OX

ImportantNotice
It is unlawful in most jurisdictions for a person
to drive a motor vehicle which is equipped
with a television viewer or screen that is
located in the motor vehicle at any point
forward of the back of the driver's seat, or
that is visible directly or indirectly to the
operator of the motor vehicle.
Please note that the state of Rhode Island
forbids the installation of such a device in a
motor vehicle.

-1-
TOOLS REQUIRED:
#2 Phillips Screwdriver
#1 Phillips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery Hook Tool (for removal of panels as necessary)
Electrical Tape
MaskingTape
Multimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe)
Marker–tomarkheadliner
Scribe (to mark trim ring if used)
Misc. Electrical Connectors (to connect to vehicle power source). Requirements will vary from vehicle to vehicle)
DVD (to verify system operation after installation)
12
4
3
8
5
AUDI O OX
7POWER
ON/OFF SELECT
EJEC T
SOURCE
AUTO
ERASE/
MENU
RETURN
A-B
REPEAT
SETUP
PIX
Enter
FM TRANSMITTER
MEMORY
SKIP/
SEARCH
WRITE VOL
MUTE
CH
CH
6
3e
3c
MATERIALS INCLUDED IN THIS PACKAGE:
1) VOD806 DVD Video Monitor with TV Tuner (P/N 136D2142) (1 pc)
2) Accessory 8 pin FM Transmitter Harness with Transformer (P/N 112B3106) (1 pc)
3) 2 Pin Power Wire Harness with choke (P/N 112B3143) (1 pc)
4) 12 Pin Power / Signal Harness (P/N 112B2821) (1 pc)
5) Protective Covers (2pcs)
Left Protective Cover for IR sensor (P/N 102B3689 (1pc)
Right Protective Cover for Headphone Jacks (P/N 102B3690) (1pc)
6) Hardware Package
#6 x 3/8” Screws (12 pcs)
#8 x 5/8” Self Drilling Screws (5 pcs)
#8 x Washer (5 pcs)
Rubber Plug (1pc)
7) Remote Control (P/N 136B2154) (1 pc)
8) FM Modulator(P/N136C2152) (1pc)

GENERAL INSTALLATION APPROACH:
1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP,
Tuner, RF Modulator/external amp, remote headphones, 2nd VCP, etc.).
2) Review all manuals to become familiar with electrical requirements and hook ups.
3) Decide upon mounting locations of all components and method of mounting.
4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as
all areas where interconnecting wire harnesses will need to be located. If any access holes need to
be cut into the vehicle (headliner, other trim components etc.), this should be done now as well.
(Refer to Page 3).
5) Route the wiring harnesses throughout the vehicle as necessary. (Refer to the Wiring Diagrams on
pages 6 of this manual as well as the wiring instructions for the individual components and accessory
options being installed). Be sure that all wiring is protected from sharp edges and is routed in such a
manner that it will not be pinched when all components and interior trim are fully installed. Be sure to
leave enough slack in the wiring at each component to allow working room.
6) Remove all A/V system components from their packaging and place them loosely in the vehicle at
their respective locations.
7) Connect all components together (electrically) and verify proper operation of all system functions.
Note: This is best done BEFORE, components have been permanently mounted.
8) After verifying proper operation of the system, proceed to mount of each component.
9) When all components are mounted, recheck function of entire system again to ensure that no wiring
was pinched or connected improperly during final installation.
GENERAL SYSTEM CONFIGURATIONS:
The following is intended to provide some of the system configurations that are possible with the VOD806
Drop Down Video Systems:
System 1: Video Monitor with TV tuner (VOD806), with VCP .
-Optional Accessory Harness (P/N 8010730) must be purchased.
-TV antenna must be added (AN-300 or similar).
Notes: There are a few audio output options can be added as follows:
a) Additional speakers can be added to a VOD806 system using the speaker
outputs. Refer to the wiring diagram on p6.
The VOD806 video systems are only intended for an overhead, drop down installation.
It is not intended for seat back or any other type of mounting. The hinging mechanism
is designed for horizontal, drop down use only.
-2-

-3-
VEHICLE PREPARATION:
1) Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when
keyis off). Alsolocate a good groundingpoint. Generally,these connection points canbefound at
the Ignition Switch, Fusebox, Radio etc.
2) The mounting method and location will vary from vehicle to vehicle, so this manual will only focus
on the installation of the video monitor and related console accessories.
3) Generally, the best location for the video monitor is where the vehicle's factory dome light is in-
stalled. The monitor should be located in such a manner that it can be comfortably viewed by rear
seat passengers. NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE DRIVER'S VIEW.
THISIS NOT ONLY DANGEROUS,BUT IT IS ALSOILLEGAL IN MANY STATES.
4) Once the mounting location of the monitor has been determined, there may be additional prepara-
tion work necessary, depending on the vehicle structure and installation method. Some of the
steps that may be required are:
A) Removal of the vehicle's dome light
B) The headliner may need to be trimmed as per the drawing below.
C) If the mini-console will be used, it will have to be trimmed to fit the contour
of the vehicle's headliner. Refer to the "Mini-Console installation" section in
this manual.
FULL SIZE CONSOLE INSTALLATION
There are several "full size" custom console available for selected vehicles. Some of these vehicles are
the Chevrolet Suburban, Ford Expedition, and Dodge Durango. These full size consoles incorporate
several additional features, and particularly useful if the vehicle you are installing this system into already
has an OEM overhead console in the headliner.
Refer to the installation manual that comes with the console itself for complete installation instructions.

MINI CONSOLE INSTALLATION:
This page only covers special installation considerations for the mini-console installation.
If the video monitor is to be installed in a vehicle with the mini console, the console may need to be
trimmed to fit the contour of the vehicle headliner.
1) In this installation, the video monitor is mounted directly to the overhead cross-member in the roof
using the mounting screw bosses. These screw bosses should contact the cross-member di-
rectly (i.e.: no gap between the screw boss and the roof structure). Also, be sure that the screws
do not pierce the outer roof skin when fully fastened to the cross-member. The mini-console is
attached to the video monitor using the perimeter screw bosses. It is important that the screws
used in this installation are not overtightened, and that the video monitor and mini-console are
mounted in such a way that the assembly does not distort (or bend) when the mounting screws
are tightened. An alternate method is to use a piece of plywood (12"x9"x3/4"). First secure the
plywood block to the cross-member, then screw the monitor into the plywood. See the drawing on
page5.
2) It is best to mount the video monitor to the roof structure without the mini-console first. There
shouldbe a gap between theheadlinerand the outer flange ofthevideo monitor. Themini-console
should be cut to full this gap. Apply masking tape to the outer surface of the mini-console in the
areas where the cut will be made.
3) Mark the cut to follow the necessary contour of the roof. The suggested method of marking is as
follows:
A) First mark the narrowest point of the mini-console on the masking tape. Be careful to
consider not only vertical location, but fore-aft location.
B) Using the handle of a screwdriver, make a “transfer marking tool”. See diagram below.
Place the tool against the roof and the marker against the masking tape on the mini-con-
sole. Trace the cut to be made around the entire perimeter of the mini-console.
C) Cut the mini-console using a sharp utility knife or shears. Make the cut in several passes
over the marked line, each time cutting a little deeper. It is not necessary to cut completely
through the plastic, the cut only need be over 50% of the wall thickness of the plastic. By
bending the cut back and forth several times, the plastic will break cleanly at the cut.
D) Check the fit of the trimmed console and make any minor adjustments necessary.
4) The mini-console can be painted or covered with a material that matches the headliner before
assembling the mini-console to video monitor.
5) Thefinishedmini-console should be attachedto the video monitor, then attachthe assembly to the
roof.

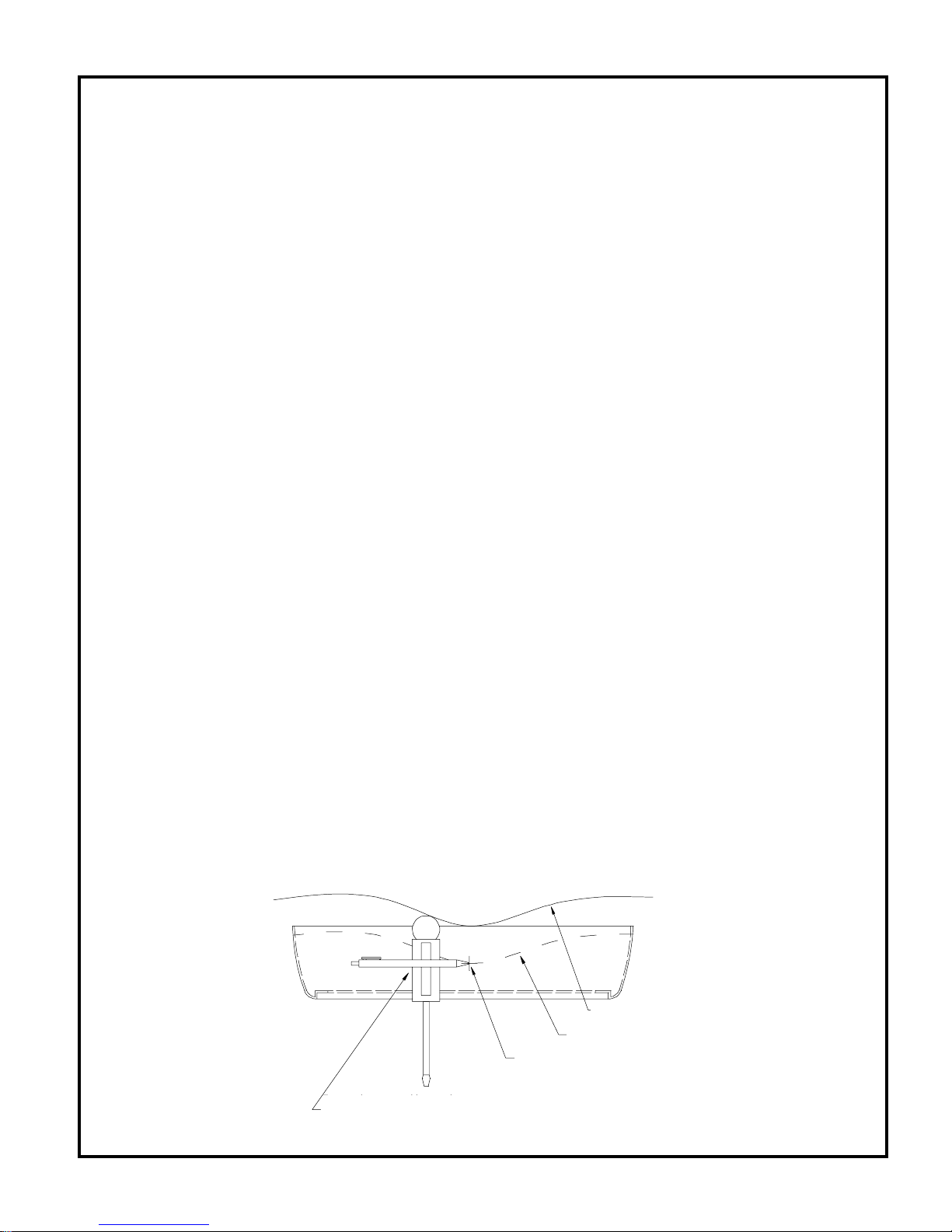

Tape marker to screwdriver startin
g
at
y
our mark for thelowest point, then
trace the contour of the roof
Cut Line
Headliner
Lowest Point Mark
Refer to Fi
g
7 for detail on atta
c
console to video
p
od and vide
o
vehicle structure.
Fi
g
ure 6
Tapemarker toscrewdriver. Startingat yourmark
for the lowest point, trace the contour of the roof
Lowestpoint mark
Cutline
Headliner
-4-

-5-
MOUNTING THE MINI-CONSOLE
Roof
RoofSupport
Headliner
12"x9"x3/4"Plywood
Block
(4)Self-TappingScrews
(notsupplied)
Mini-Console
Video Unit
(5) #8Flat Washers
(5)#8x3/4"Self-Tapping
Screws
(1)Rubber Plug

1) Make the connections to the vehicle for the 12 pin wiring harness.
2) When connecting an AV Component, insert the Circular Mini-Din Connector of the source component
harness through the wire tie loop on the main PCB and into the Mini-Din Connector on the main PCB.
Pull the wire tie loop tight and cut off the excess.
3) Connect power harness to vehicle electrical system by tapping into an accessory hot line and also a
ground.
4) Connect 8 pin wiring harness from video monitor to the mating connector on FM Modulator.
5) Connect the FM Modulator to the Vehicle Radio.
6) Mount and connect the Television Antenna (sold separately).
7) Verify all functions of the System before final mounting of the finished assembly.
A/V Source Definitions:
1= TV Tuner
2= AV1 input (VCP, game or future DVD, etc)
3= AUX input (VCP, game or future DVD, etc)
4= Built -in DVD
-6-
VOD806
1
TV antenna
(If applicable)
12 Pin Power si
g
nal
Harness
Accessor
y
Harness
8 Pin Modulator
Hardness
LEFT
WHITE
RIGHT
RED
TO
FACTORY
RADIO
TO
OPTIONAL
ADDITIONAL
MONITOR
RCA-Female
Patch Cord
RCA Male to Male
12 VDC Power and Ground
Auxillary
video display
INPUT
VIDEO
LINE
OUT
VIDEO
To Secondary AV Monitor
Choke
Power Harness
Red: +12VDC
(Accessory Cir.)
Black: Ground
Optional Remote eadphone Stations
Stereo
Headphone Jack
Stereo
Headphone Jack
Green
(R ght+)
Black
(Ground)
Gray
(Left+)
,+ 8
CH-3
CH-4
 #8  )
M n -D n Connectors
Red RCA (Aud o R ght)
Wh te RCA (Aud o Left)
Yellow RCA (V deo)
Out
Power Connector
4 Pin
Y Adapter
for use w th
Installat ons
IR LED:
Clean the IR
Rece ver W ndow
on the front of the
VCP. Remove
Adhes ve Back ng
and Apply IR LE
to IR W ndow on
the Face of the VCP.
FM
Modulator
Am/Fm
Antenna
Dash Radio FM Modulator
ard Wired FM Modulator Output
For Receivers with ow evel Audio Input
Dome Li
g
ht Connection.
Refer to Connectin
g
the
Dome Li
g
hts
Sold Separately

CONNECTING THE DOME LIGHTS
The dome lights in the video monitor require three connections to the vehicle's wiring. There are two
common types of dome light circuits used, positive or negative switched. Positive systems supply voltage
to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To
determine which system you have you must locate the wires at the dome light. On a positive switched
system, with all the doors closed and the lights out, both wires at the dome light will rest at ground. When
the light is activated, one of these wires will switch to +12 vdc. This is the vehicle's switching wire. On a
negative switched system, with all the doors closed and the lights out, both wires at the dome light will rest
at + 12vdc. When the light is activated, one of these wires will switch to ground. This is the switching wire.
For positive systems, connect the purple / brown (Lamp auto) wire to the vehicle's switched wire. Then
connect the red / black (lamp on) wire to a fused constant 12 volt source and the black / red (lamp
common) wire to a good ground. Positive systems are commonly found on Ford vehicles.
For negative systems, connect the purple / brown (Lamp auto) wire to the vehicle's switched wire. Then
connect the red / black (lamp on) wire to a good ground and the black / red (lamp common) wire to fused
constant 12 volt source. Negative systems are commonly found on General Motors and import vehicles.
NOTE:
Some vehicles which incorporate transistorized control of the dome light circuit, such as the 1999 Dodge
Caravan, may require that the purple / brown (Lamp auto) wire be connected to the door pin switch wire,
as the additional current draw of the Monitor's lights may not be supported by the output of the vehicles
body control computer.
-7-
Red / black - Lamp on
Black / red - Lamp common
Purple / brown - Lamp Auto
To12 pin
connector
onMonitor
To
constant
+12vdc
To
constant
+12vdc FactoryDoor ajar
switchor Body
Controlcomputer
Factory Dome light circuit
Positive Switched Dome lighting

Troubleshooting:
SYMPTOM:
No power at Video Monitor
Power but no video or
sound
Picture, but no sound
Static on TV Stations
(Tuner Version Only)
No Infrared remote func-
tions for VCP (or other com-
ponents)
REMEDY:
-Verify +12VDCon Red wire at 2pinPower Harness behind video monitor.
Verify ground connection with continuity test from known good ground to
black wire at 2 pin Power Harness
-Verify that the correct source is selected (i.e.:1,2,3 or 4). Verify that the
source is on and playing a known good media (such as a DVD or video-
tape). Verify connections at both ends of the source component harness.
-Pushand hold the volumeup button (▲)on theremote control until sound
is heard over wired headphones. If problem is limited to the dash radio,
verify radio is tuned to the correct frequency, and that power to the wired
RF modulator is on. Otherwise, verify all connections per the wiring dia-
gram on page 6 .
-Press Auto Program button. Then press CH up or CH down. Verify an-
tenna mounting and connections to the tuner.
Note: Due to the nature of TV signals, vehicle motion, direction the vehicle
is facing, distance from the transmitter, nearby surroundings and weather
may adversely affect TV reception. These conditions may result in the fol-
lowing: picture roll, "snowy" picture, or momentary loss of color.
-Check batteries in the hand held remote. Verify that the IR LED ( page 6
Wiring Diagram) is properly attached to the sensor window of the VCP (or
other component).
Negative Switched Dome lighting
To12 pin
connector
To
constant
To
constant
FactoryDoor ajar
switchorBody
Factory Dome light circuit
Red / black - Lamp on
Black / red - Lamp common
Purple / brown - Lamp Auto
-8-

128-6285
-9-
© Copyright 2002 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788
999.audiovox.com
For Customer Service
Visit Our Website At
Product Information, Photos,
FAQ’s Owner’s Manuals
