Triton Zante 3 User manual

Installers please note these InstructIons are to be left wIth the user
2180754C - March 2012
Installation and
operating
instructions
Zante 3
electric shower

Zante 3
CONTENTS Page
Important safety information.......................................................... 1
Introduction ................................................................................... 2
Specifications.................................................................................. 2
Advice to users ............................................................................... 2
Main components .......................................................................... 3
Electrical requirements................................................................. 4 − 5
Water requirements ........................................................................ 6
Siting of the shower ....................................................................... 7
Fitting the shower to the wall...................................................... 8 − 9
Plumbing connections ................................................................... 10
Electrical connections .................................................................... 11
Replacing the cover ....................................................................... 12
Commissioning.............................................................................. 13
Operating the shower................................................................ 14 − 15
Operating functions....................................................................... 16
Cleaning the inlet filter .................................................................. 17
Spare parts .................................................................................... 18
Fault finding .............................................................................. 19 − 20
Water/Cable entry points diagram .................................... 21
Guarantee, service policy, etc. ..................................................rear cover
To check the product suitability for commercial and multiple installations, please contact Triton’s
specification advisory service before installation.
Telephone:
Facsimile:
E mail:
0844 980 0730
0844 980 0744
[email protected]
WARNING
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience or knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children may not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

Zante 3
1
Products manufactured by Triton are safe and without risk provided they are installed, used and
maintained in good working order in accordance with our instructions and recommendations.
WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out
before using.
DO NOT operate the unit if the showerhead or spray hose becomes damaged.
DO NOT restrict flow out of shower by placing showerhead in direct contact with your body.
DO NOT operate the shower if water ceases to flow during use or if water has entered inside
the unit because of an incorrectly fitted cover.
WARNING: If restarting the shower immediately after stopping, be aware that a slug of
hot water will be expelled for the first few seconds.
PLEASE READ THIS IMPORTANT SAFETY INFORMATION
1 GENERAL
1.1 Isolate the electrical and water supplies before
removing the cover.
1.2 Read all of these instructions and retain them
for later use.
1.3 DO NOT take risks with plumbing or electrical
equipment.
1.4 Isolate electrical and water supplies before
proceeding with the installation.
1.5 The unit must be mounted onto the finished
wall surface (on top of the tiles). DO NOT tile
up to or seal around ANY PART of the unit
using silicone sealer after fixing to the wall.
Special care must be taken NOT TO BLOCK
OR SEAL ANY PRD VENTS ON THE UNIT.
1.6 Contact Customer Service (see back page), if
any of the following occur:
a) If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated.
b) If the unit shows a distinct change in performance.
c) If the shower is frozen.
1.7 If it is intended to operate the shower in areas
of hard water (above 200 ppm temporary
hardness), a scale inhibitor may have to be
fitted. For advice on the Scale Inhibitor,
contact Customer Service.
1.8 The showerhead must be cleaned regularly
with descalent to remove scale and debris,
otherwise restrictions to the flow on the outlet
of the unit will result in higher temperatures
and could also cause the (PRD) Pressure Relief
Device in the unit to operate.
1.9 This product is not suitable for mounting into
steam rooms or steam cubicles.
2 PLUMBING
2.1 The plumbing installation must comply with
Water Regulations, Building Regulations or any
particular regulations as specified by Local
Water Company or Water Undertakers and
should be in accordance with BS EN 806.
2.2 The supply pipe must be flushed to clear debris
before connecting to the shower unit.
2.3 DO NOT solder pipes or fittings within 300mm
of the shower unit, as heat can transfer along
the pipework and damage components.
2.4 DO NOT fit any form of outlet flow control as
the outlet acts as a vent for the heater can.
2.5 DO NOT use excessive force when making
connections to the flexible hose or
showerhead, finger tight is sufficient.
2.6 All plumbing connections must be completed
before making the electrical connections.
2.7 This appliance MUST not be connected to the
inlet supply by a hose-set.
3 ELECTRICAL
3.1 The installation must comply with BS 7671
‘Requirements for electrical installations’ (IEE
wiring regulations), building regulations or any
particular regulations as specified by the local
Electrical Supply Company.
3.2 This appliance MUST be earthed.
3.3 In accordance with ‘The Plugs and Sockets etc.
(Safety) Regulations 1994’, this appliance is
intended to be permanently connected to the
fixed wiring of the electrical mains system.
3.4 Make sure all electrical connections are tight to
prevent overheating.
3.5 A 30mA residual current device (RCD) MUST
be installed in all UK electric and pumped
shower circuits. This may be part of the
consumer unit or a separate unit.
3.6 Switch off immediately at isolating switch if
water ceases to flow during use.
3.7 Other electrical equipment i.e. extractor fans,
pumps must not be connected to the circuits
within the unit.
3.8 Switch off at isolating switch when not in use.
This is a safety procedure recommended with
all electrical appliances.
3.9 As with all electrical appliances it is
recommended to have the shower and
installation checked at least every two years by
a competent electrician to ensure there is no
deterioration due to age and usage.

Zante 3
2
INTRODUCTION
This book contains all the necessary fitting and
operating instructions for your Triton electric
shower. Please read them carefully.
The shower installation must be carried out by a
suitably qualified person and in the sequence of
this instruction book.
Care taken during the installation will provide a
long, trouble-free life from your shower.
SPECIFICATIONS
Electrical
Nominal power Nominal power
rating at 240V rating at 230V
8.5kW – (40A MCB rating) 7.9kW – (40A MCB rating)
9.5kW – (40A MCB rating) 8.7kW – (40A MCB rating)
Water
Inlet connection – 15 mm diameter.
Outlet connection – ½” BSP male thread.
Entry Points
Water – Right: bottom back, bottom, bottom right
Cable – Right: middle back, top.
Materials
Backplate, cover, controls, showerhead – ABS.
Sprayplate – Acetal.
Elements – Minerally insulated corrosion
resistant metal sheathing.
Dimensions
Height – 299mm
Width – 212mm
Depth – 94mm
Standards and Approvals
Splashproof rating IPX4.
Complies with the requirements of current
British and European safety standards for
household and similar electrical appliances.
Complies with requirements of the British
Electrotechnical Approvals Board (BEAB).
Meets with Compliance with European
Community Directives (CE).
ADVICE TO USERS
The following points will help you understand
how the shower operates:
a. The electric heating elements operate at a
constant rate at your chosen power setting.
It is the rate of the water passing through
the heater can which determines the water
temperature. (The slower the flow, the hotter
the water becomes; the faster the flow, the
cooler the water).
b. During winter the mains water supply will
be cooler than in the summer, so the flow
rate will vary between seasons at any one
temperature setting. At different times of the
year you may have to adjust the position of
the temperature control to maintain your
desired temperature setting.
c. The stabiliser valve minimises variations in
shower temperature during mains water
pressure changes. If changes in shower
temperature are experienced during normal
use, it will most likely be caused by the
water pressure falling near to or below the
minimum level. The drop in pressure may
be due to water being drawn off at other
points in the house whilst the shower is in
use. If pressure drops appreciably below
the minimum, the heating elements will
automatically cut out.
If ever the water becomes too hot and you
cannot obtain cooler water, first check that
the sprayplate in the showerhead has not
become blocked.
DO NOT place items such as soap or shampoo
bottles on top of the unit. Liquid could seep
through the joint between the cover and
backplate, and possibly damage the sealing
rubber.
IMPORTANT: When first installed the unit
will be empty. It is essential the unit should
contain water before the elements are
switched on. It is vital that the commissioning
procedure is followed. Failure to carry out
this operation will result in damage to the
unit and will invalidate the guarantee.
Replacement parts can be ordered from Customer Service. See
‘spare parts’ for details and part numbers.
Due to continuous improvement and updating, specification
may be altered without prior notice.

Zante 3
3
MAIN COMPONENTS

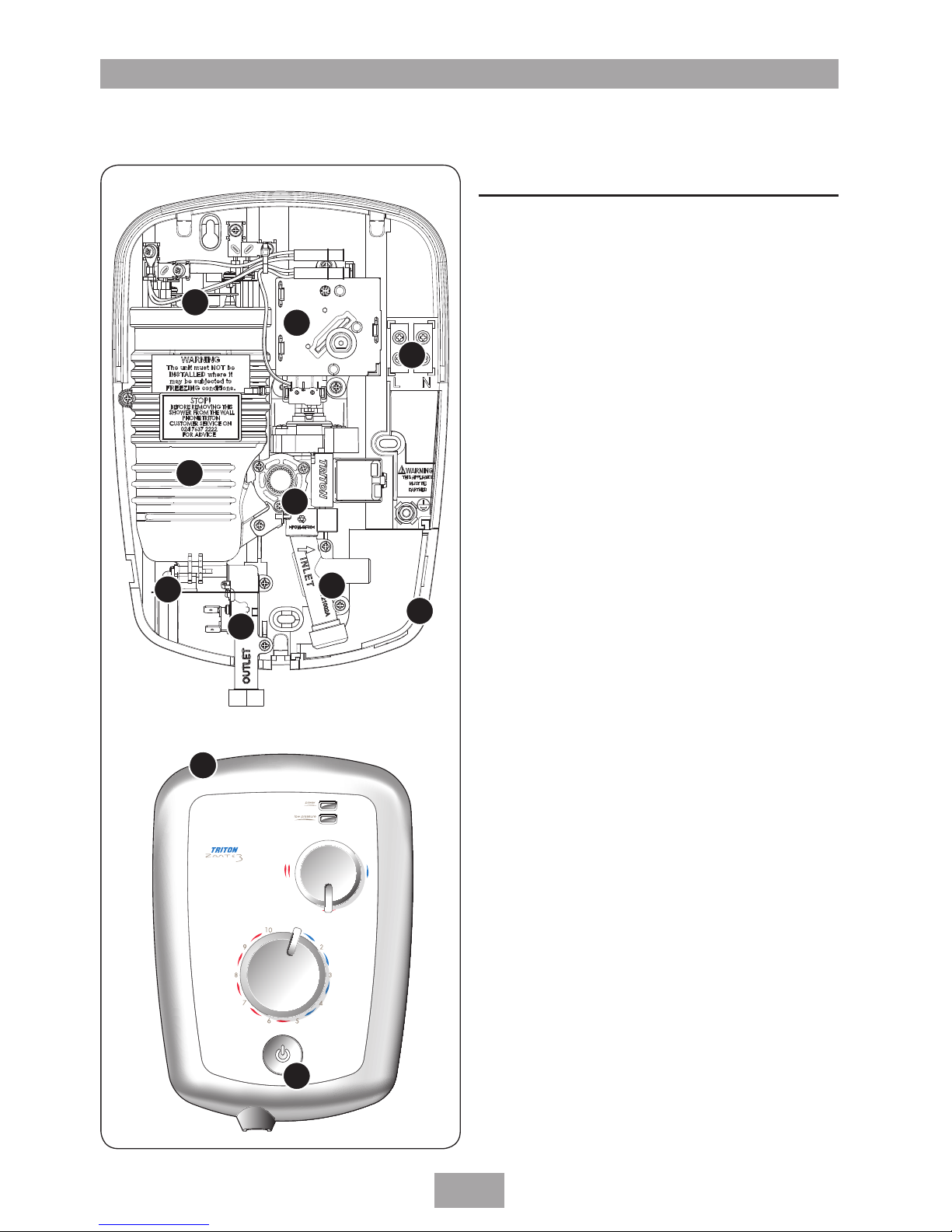

Inside unit (fig.1)
1. Top cable entry
2. Bottom pipe entry
3. Rear pipe entry area
4. Rear cable entry area
5. Wall screw fixing
6. Terminal block
7. Power selector
8. Stabilising valve
9. Solenoid valve
10. Guide pockets
11. Can and element assembly
12. Thermal cut-out (main)
13. Earth connection
14. Pressure relief device
15. Outlet temperature limiter
16. Neons
17. Trimplate
Inside cover (fig.2)
18. Cover tags
19. Start/Stop switch
20. Neon bracket
Outlet
Inlet
212mm
299mm
Fig.1
Fig.2
NOTE: Not all wiring has been depicted for reasons of clarity
1
2
3
4
5
5
5
6
7
89
10
10 10
11
12
13
14
15
16
17
18 18
18
19
20

Zante 3
4
W-006-A
WARNING!
THIS APPLIANCE MUST BE EARTHED
Meter Incoming
supply
fuse
Meter
tails
Consumer
unit
Pull cord
isolating switch
Shower
unit
Fuse or
MCB
RCD
(can be part of
consumer unit)
80A or 100A
main switch
Table A
MCB
30/32A
32A
40A
40A
40A
40/45A
45A
cartridge
fuse
30A
35A
35A
45A
45A
45A
45A
unit
rating
7.0kW
7.5kW
8.0kW
8.5kW
9.0kW
9.5kW
10.5kW

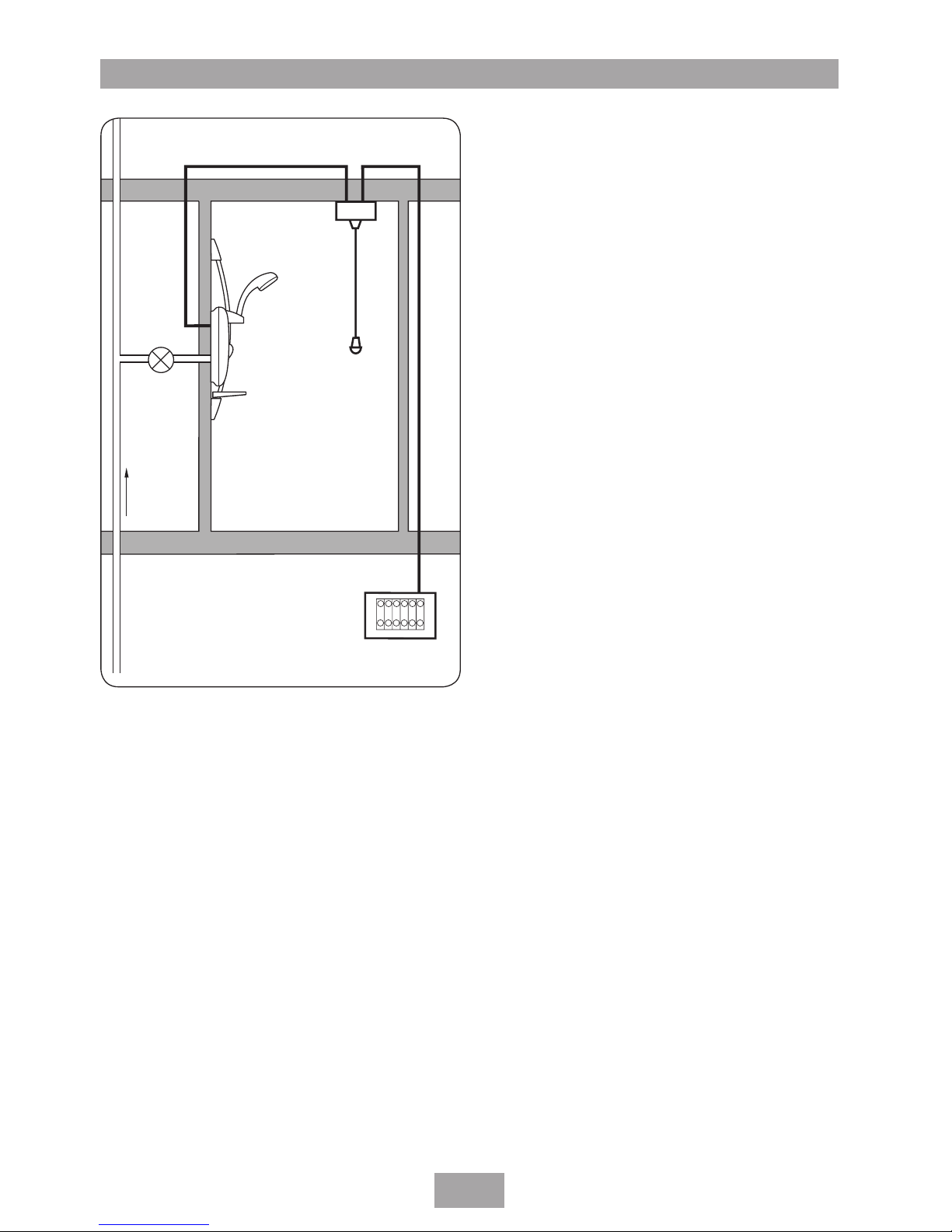

CIRCUIT PROTECTION
Fig.4 Schematic of installation circuit
ELECTRICAL REQUIREMENTS
The installation, supply cable and circuit
protection must conform with BS 7671 (IEE
wiring regulations) and be sufficient for the
amperage required.
The following notes are for guidance only:
1The shower must only be connected to a
230-240V ac supply. If you are installing a
shower with a kilowatt rating above 9kW, it
is advisable to contact the local electricity
supply company.
1.1 The electrical rating of the shower is shown
on the rating label (Fig.3) within the unit.
2Before making any sort of electrical
connection within the installation make
sure that no terminal is live. If in any doubt,
switch off the whole installation at the mains
supply and remove the correct fuse.
3The shower must be connected to its own
independent electrical circuit. IT MUST NOT
be connected to a ring main, spur, socket
outlet, lighting circuit or cooker circuit.
3.1 The electrical supply must be adequate for
the loading of the unit and existing circuits.
4Check your consumer unit (main fuse box)
has a main switch rating of 80A or above
and that it has a spare fuse way which will
take the fuse or Miniature Circuit Breaker
(MCB) necessary for the shower (Fig.4).
4.1 If your consumer unit has a rating below
80A or if there is no spare fuse way, then the
installation will not be straightforward and
may require a new consumer unit serving
the house or just the shower.
4.2 You will need to contact the local electricity
company. They will check the supply and
carry out what is necessary.
5 For close circuit protection DO NOT use a
rewireable fuse. Instead use a suitably rated
Miniature Circuit Breaker (MCB) or cartridge
fuse (see Table A).
5.1 A 30mA residual current device (RCD)
MUST be installed in all UK electric and
pumped shower circuits. This may be part of
the consumer unit or a separate unit.
Triton Showers,
Triton Road, Nuneaton,
Warwickshire, CV11 4NR
xxxx
Fig.3

Zante 3
5
Table B
Note: Cable selection is dependent on
deratin
g
factors
Twin and earth PVC insulated cable
Current carrying capacity
In conduit
trunking
6mm²
38A
10mm²
52A
16mm²
69A
Installed in an
insulated wall
6mm²
32A
10mm²
43A
16mm²
57A
Clipped direct
or buried in a
non-insulated
wall
6mm²
46A
10mm²
63A
16mm²
85A
6mm210mm216mm2
*The method below may be used by
installers to determine the approximate
size of the incoming cable.
1. Measure the width of an individual strand,
and half that measurment to find (r),
e.g: 1.34mm ÷ 2 = (r) 0.67mm
2. Multiply (r) x (r) x 3.14,
e.g: (r) 0.67 x (r) 0.67 x 3.14 = 1.41mm2
3. Multiply this by the number of wire strands
(usually 7), e.g: 1.41mm2x 7 = 9.87mm2.
4. The number obtained would suggest
10mm2wiring.
*PLEASE NOTE: If unsure, consult a qualified Electrician.
6A 45 amp double pole isolating switch with
a minimum contact gap of 3 mm in both
poles must be incorporated in the circuit.
6.1 It must have a mechanical indicator showing
when the switch is in the OFF position, and
the wiring must be connected to the switch
without the use of a plug or socket outlet.
6.2 The switch must be accessible and clearly
identifiable, but out of reach of a person
using a fixed bath or shower, except for the
cord of a cord operated switch, and should
be placed so that it is not possible to touch
the switch body while standing in a bath or
shower cubicle. It should be readily accessible
to switch off after using the shower.
7Where shower cubicles are located in any
rooms other than bathrooms, all socket
outlets in those rooms must be protected by
a 30mA RCD.
8The current carrying capacity of the cable
must be at least that of the shower circuit
protection (see Table B).
8.1 To obtain full advantage of the power
provided by the shower, use the shortest
cable route possible from the consumer unit
to the shower.
8.2 It is also necessary to satisfy the disconnection
time and thermal constraints which means
that for any given combination of current
demand, voltage drop and cable size, there is
a maximum permissible circuit length.
9The shower circuit should be separated from
other circuits by at least twice the diameter
of the cable or conduit.
9.1 The current rating will be reduced if the
cabling is bunched with others, surrounded
by thermal loft or wall insulation or placed
in areas where the ambient temperature
is above 30°C. Under these conditions,
derating factors apply and it is necessary to
select a larger cable size.
9.2 In the majority of installations, the cable
will unavoidably be placed in one or more
of the above conditions. This being so, it is
strongly recommended to use a minimum
of 10mm cabling throughout the shower
installation.
9.3 In any event, it is essential that individual
site conditions are assessed by a competent
electrician in order to determine the correct
cable size and permissible circuit length.

Zante 3
6
WATER REQUIREMENTS
The installation must be in accordance with
Water Regulations/Bylaws.
To guarantee activating the heating elements,
the shower must be connected to a mains water
supply with a minimum running pressure of
100kPa (1.0 bar) at a minimum flow rate of nine
litres per minute. The maximum static pressure
must be no greater than 1 000kPa (10 bar).
Note: If the stated flow rates are not available,
it may not be possible to achieve the best
performance from the unit throughout the year.
For guidance on the running and static pressures
contact the local Water Authority or consult a
competent plumber.
During periods of high ambient temperatures it
may be necessary to select a low power setting
to achieve your preferred shower temperature.
The water supply can be taken from a cold
water storage cistern provided there is a
minimum head of ten metres above the
showerhead. It must be an independent supply
to the shower only.
If it is intended to operate the shower at
pressures above the maximum or below the
minimum stated, contact Customer Service for
advice.
Fig.5 shows a typical system layout.
DO NOT use jointing compounds on any pipe
fittings for the installation.
Isolating
stopvalve
Mains
water
supply
Shower
unit Switch may
be wall
mounted
in accordance
with IEE regs.
Mains electric supply
(via double pole switch)
Double
pole
isolating
switch
Separate permanently
connected supply
from consumer unit
Fig.5 Diagrammatic view (not to scale)

Zante 3
7
Shower unit
must not
be within
an area
1 metre
from base
Height of
showerhead
and shower
to suit user's
requirement
Spillover
level
Soap dish
retaining
ring
25 mm minimum
Shower unit can
be mounted either
side of riser rail
Outline of bath
or shower tray

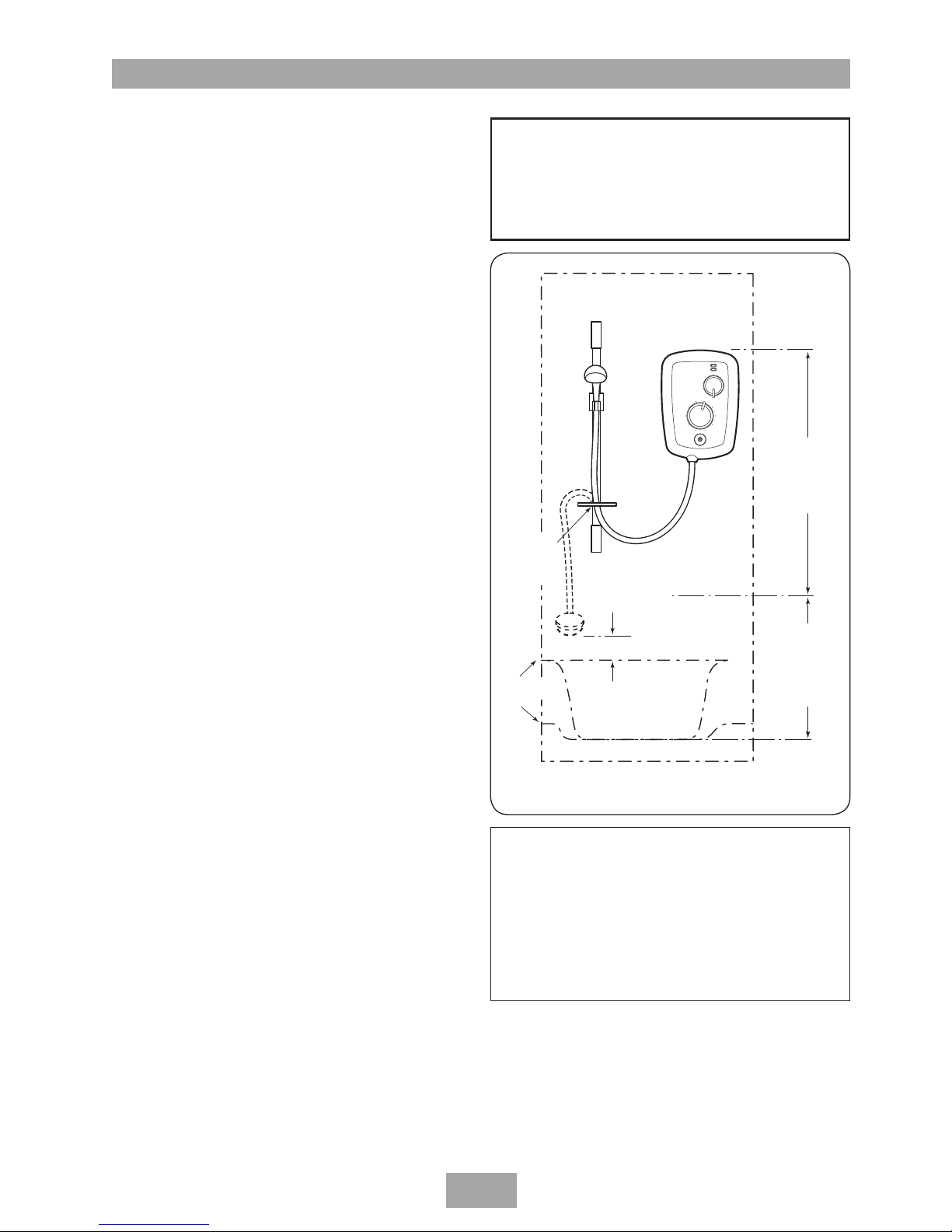

SITING OF THE SHOWER
IMPORTANT: If installing onto a tiled wall
always mount the unit on the surface of the
tiles. NEVER tile up to the unit.
Refer to fig.6 for the correct siting of the
shower. Position the unit where it will NOT be in
direct contact with water from the showerhead.
Position the shower unit vertically.
Allow enough room between the ceiling and the
shower to access the cover top screws. Leave
enough space between the left-hand side of the
unit and the wall to allow access to the pressure
relief device (PRD) in the future.
Note: Water regulations require the showerhead
be ‘constrained by a fixed or sliding attachment
so that it can only discharge water at a point
not less than 25mm above the spill-over level
of the relevant bath, shower tray or other
fixed appliance’. The use of the supplied gel
hanger/hose guide will in most cases meet this
requirement, but if the showerhead can be
placed within a bath, basin or shower tray, then
a double check valve, or similar, must be fitted
in the supply pipework to prevent back-flow.
Pressure relief safety device
A pressure relief device (PRD) is designed into
the shower unit which complies with European
standards. The PRD provides a level of appliance
protection should an excessive build up of
pressure occur within the shower.
DO NOT operate the shower with a damaged
or kinked shower hose, or a blocked
showerhead which can cause the PRD to
operate.
When commissioning, the showerhead must
be removed from the flexible hose, while at the
same time the temperature control must be at
the minimum flow position. Failure to follow this
procedure may also cause the PRD to operate.
Make sure the shower is positioned over a bath
or shower tray because if the PRD operates, then
water will eject from the bottom of the unit.
Should this happen, turn off the electricity and
water supplies to the shower at the isolating
switch and stopvalve. Contact Customer Service
for advice on replacing the PRD.
Fig.6 Diagrammatic view (not to scale)
WARNING!
The shower MUST NOT be positioned
where it will be subjected to freezing
conditions.
IMPORTANT: The unit must be mounted
on a flat surface which covers the full width
and length of the backplate. It is important
that the wall surface is flat otherwise
difficulty may be encountered when fitting
the cover and subsequent operation of the
unit may be impaired.

Zante 3
8
FITTING THE SHOWER TO THE WALL
Note: The control knobs are an integral part of
the cover – DO NOT attempt to remove them.
Lift the cover from the backplate (fig.7) to
access the pipe and cable connections then lift
off the trimplate.
Entry positions for the mains water are from the
bottom, rear or right. Cable entry is via the top
or rear.
Note: Deviations from the designated entry
points will invalidate product approvals.
If bottom or right surface entry is required
for the mains cold water, then the necessary
opening will need to be cut out in the cover
(fig.8) and the trimplate (fig.9).
Fig.7
Fig.9
WARNING!
Check there are no hidden cables or
pipes before drilling holes for wall
plugs. Use great care when using
power tools near water. The use of
a residual current device (RCD) is
recommended.
Fig.8
REAR OF
COVER
Remove for
right entry
Remove for
bottom entry
Remove
for right
entry
Remove for
bottom entry

Zante 3
9
If surface cable entry from the top is required
then a small area will need to be cut out in the
backplate (fig.10).
If installing a feed pipe from the rear or bottom,
the centre of the inlet valve to the wall surface is
21mm (fig.11).
Note: If entry is from the rear, the nut of the
compression fitting will be partially behind the
surface of the wall (fig.11). This area MUST
be left clear when plastering over the pipework
in order to make the nut accessible for future
adjustments.
After choosing the site for the shower, use the
backplate as a template and mark the three
fixing holes (fig.12).
Drill and plug the wall.
(An appropriate drill bit should be used. If the
wall is brick, plasterboard or a soft building block,
appropriate wall plugs and screws should be
fitted).
Screw top fixing screw into position leaving the
base of the screw head protruding 6mm out
from the wall.
Hook the backplate over the top screw and
fit the bottom fixing screw into position. DO
NOT fully tighten the screws at this stage,
as the fixing holes are elongated to allow for
out of square adjustment after the plumbing
connections have been completed.
21 mm
Fig.11
Fig.10
Fig.12

Zante 3
10

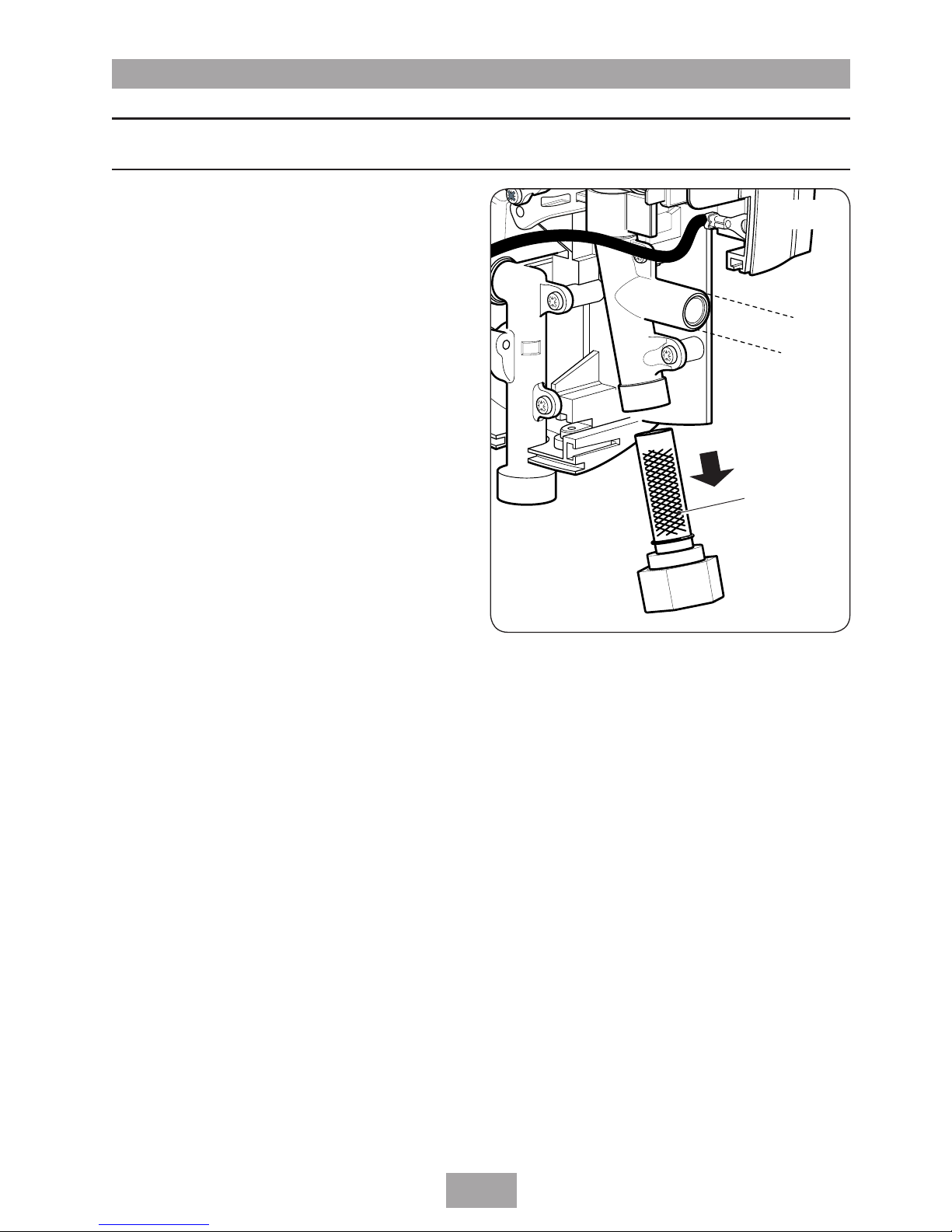

PLUMBING CONNECTIONS
Plumbing to be carried out before wiring
DO NOT use jointing compounds on any pipe
fittings for the installation.
DO NOT solder fittings near the shower unit
as heat can transfer along the pipework and
damage components.
Compression fittings MUST be used to connect
to the inlet of the shower. (Push-on fittings must
NOT be used as full engagement cannot be
guaranteed).
Note: An additional stopvalve (complying with
Water Regulations) MUST be fitted in the mains
water supply to the shower as an independent
means of isolating the water supply should
maintenance or servicing be necessary.
IMPORTANT: Before completing the
connection of the water supply to the inlet
of the shower, flush out the pipework to
remove all swarf and system debris. This can
be achieved by connecting a hose to the
pipework and turning on the mains water
supply long enough to clear the debris to
waste.
Procedure
Turn off water supply either at the mains
stopvalve or the isolating stopvalve. Connect the
mains water supply to the inlet of the shower
via 15mm copper, stainless steel or plastic pipe
using a 15mm x 15mm elbow compression
fitting.
DO NOT use excessive force when making these
connections.
Make sure the backplate is square on the wall
and tighten the two retaining screws which hold
it to the wall.
Turn on the mains water supply and check for
leaks in the pipework connection to the shower.
IMPORTANT: Using a suitable sealant,
always seal around the incoming pipework to
prevent water entering the wall.
Note: At this stage no water can flow through
the unit.
WARNING!
The outlet of the shower acts as a
vent and must NOT be connected to
anything other than the hose and
showerhead supplied.

Zante 3
11
Fig.14
Note: The elements on UK models are to
240V specification and will give a lower kW
rating if the voltage supply is below 240V.
2
3
4
5
6
9
7
11
10
L
N
E
inletoutlet
1
4
8
10
Fig.13
1. Terminal block
2. Start/Stop switch
3. Low pressure
microswitch
4. Power selector
microswitches
5. Solenoid valve
6. Thermal cut-out
(main)
7. Thermal cut-out
(outlet)
8. Neon power
9. Neon —low pressure
10.Element
11.Earth post
ELECTRICAL CONNECTIONS
SWITCH OFF THE ELECTRICITY SUPPLY AT
THE MAINS.
Fig.13 shows a schematic wiring diagram.
The cable entry points are shown in fig.1. The
cable can be surface clipped, hidden or via
20mm conduit.
Note: Conduit entry can only be from rear.
Route the cable into the shower unit and
connect to the terminal block (fig.14) as
follows:
Earth cable to terminal marked E
Neutral cable to terminal marked N
Live cable to terminal marked L
IMPORTANT: Fully tighten the terminal
block screws and make sure that no cable
insulation is trapped under the screws. Loose
connections can result in cable overheating.
Note: The supply cable earth conductor must
be sleeved. The outer sheath of the supply cable
must be stripped back to the minimum.
The supply cable must be secured either by
routing through conduit or in trunking or by
embedding in the wall, in accordance with
current IEE regulations.
The use of connections within the unit, or other
points in the shower circuit, to supply power to
other equipment i.e. extractor fans, pumps etc.
will invalidate the guarantee.
DO NOT switch on the electricity supply until
the cover has been fitted.

Zante 3
12
WARNING
WARNING
Power selector
spindle
Position flat
on right face
of spindle

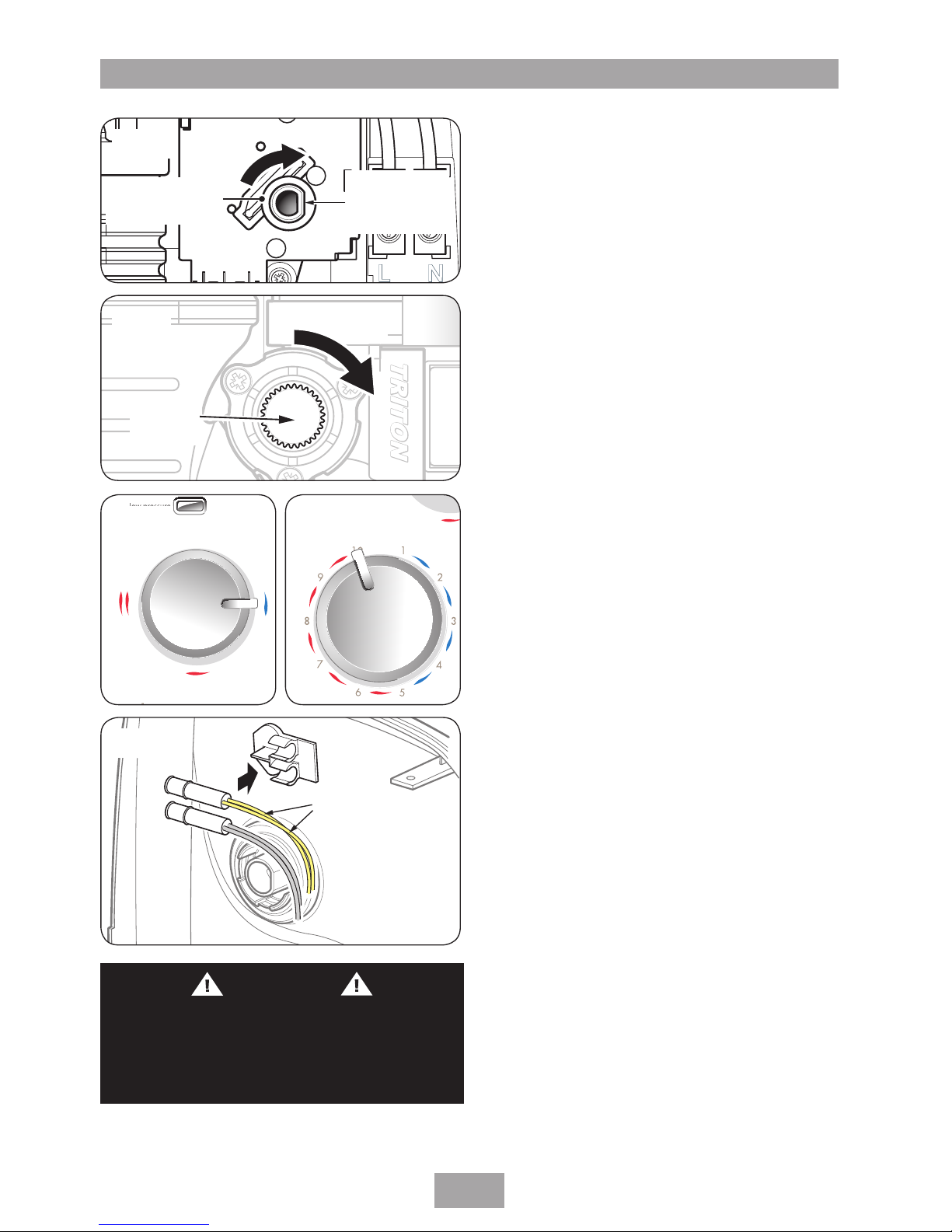

REPLACING THE COVER
Refit the trimplate. Turn the POWER selector
spindle clockwise to the position shown in
fig.15.
Turn the stabiliser valve spindle fully clockwise
until resistance is felt (fig.16).
On the cover turn the power selector to the
COLD position (fig.17) and position the
temperature control so that it points to the ‘10’
(fig.18).
IMPORTANT: Before finally fitting the cover,
the following steps must be taken:
a. Check the plumbing connections are
watertight.
b. Check the terminal block screws are fully
tightened.
c. Make sure the pipe and cable entering
the unit do not prevent the cover locating
correctly to the backplate.
d.Check the power selector is in the COLD
position and the temperature control is in
the ‘10’ position.
Offer the cover to the unit.
Plug the two neons located on the backplate
onto the bracket inside the cover (fig.19). The
neon with the coloured (red or yellow) wires
clips into the upper position and the remaining
neon fits into the lower position.
Attached to the START/STOP switch inside the
cover is a two-wire lead. Connect the socket on
the end of the lead to the plug leading from the
backplate (fig.20).
Note: The plug and socket can only fit one way.
Carefully locate the cover tags into the guide
pockets on the backplate and make sure the
wires are not trapped.
Note: DO NOT remove the cable ties in this
unit.
Guide the cover into position so that the knob
spindle locates correctly (minor adjustment may
be necessary to align the knob and spindle).
Should any difficulty arise, recheck the points
above.
While applying slight pressure to the front cover,
secure in place using the three retaining screws.
>POM-GF30<
Valve
spindle
Fig.15
Fig.18
Fig.16
Fig.17
Coloured
(red or yellow)
wires
Fig.19
WARNING
COVER RETAINING SCREWS
ONLY the SUPPLIED SCREWS should be
used. The use of none supplied screws WILL
invalidate product specifications & warranty.

Zante 3
13
COMMISSIONING
IMPORTANT: The first operation of
the shower is intended to flush out any
remaining unit debris, and to make sure
the heater unit contains water before the
elements are switched on.
This operation must be carried out with
the flexible hose screwed to the outlet but
WITHOUT the showerhead attached.
The COLD position must be used. Make sure the
outlet from the flexible hose is directed to waste.
Before turning on the electric and mains water
supplies to the shower, check that the power
selector is in the COLD position (fig.21) and
the temperature control is turned to position
‘10’, the minimum flow position (fig.21).
Note: Failure to turn the control to ‘10’ may
cause the PRD to operate.
Turn on the electric and mains water supplies to
the shower.
Press the START/STOP button (fig.21) and wait
until water starts to flow from the flexible hose.
Slowly turn the temperature control fully
anti-clockwise to ‘1’, the maximum flow
position (fig.22).
It will take about thirty seconds for a smooth
flow of water to be obtained while air and any
debris is being flushed from the shower.
When there is a smooth flow of water turn the
temperature control from ‘1’ to ‘10’ and back
again several times to release any trapped air
within the unit.
Once flushing out has been completed, stop the
water flow by pressing the START/STOP button.
Fit the showerhead to the flexible hose and
place in the showerhead holder.
The shower is now ready for normal operation.
P12721002A

P0
P0
P12721002A

Fig.20
Fig.21
WARNING!
Before normal operation of the
shower, it is essential the following
commissioning procedure is
completed correctly.
Power
selector
to COLD
Temperature
control at
minimum ow
setting
Start/Stop
button

Zante 3
14

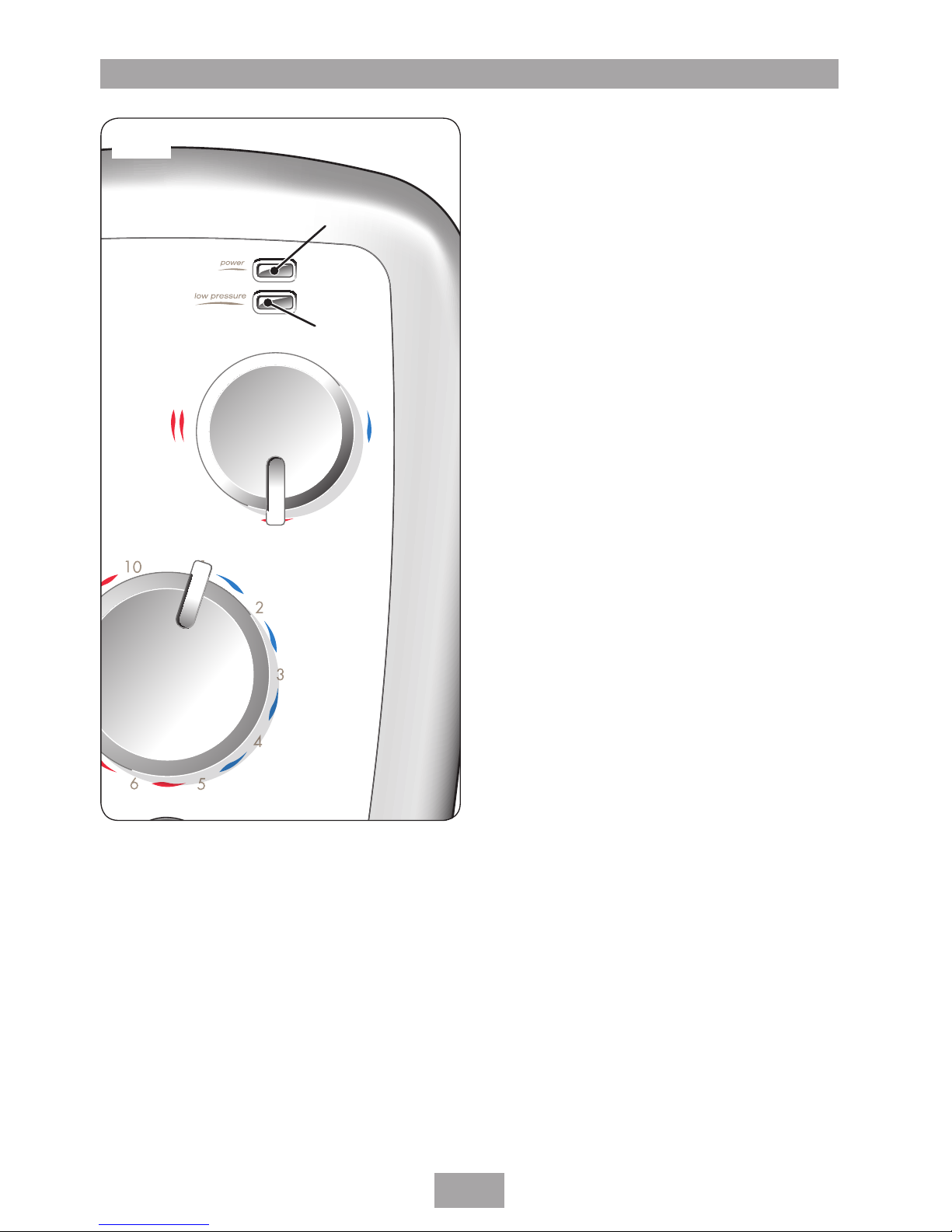

OPERATING THE SHOWER
To start the shower
Press the START/STOP button and water will flow.
To stop the shower
Press the START/STOP button once more and
water will cease to flow.
To use the power selector
The power selector has three positions – COLD,
ECONOMY and HIGH (fig.23).
The blue symbol is for COLD water only.
Adjusting the temperature control at this setting
will only change the force of the water from
the showerhead. (It will not alter the water
temperature).
The grey symbol is the ECONOMY setting for
using less energy when the ambient mains water
temperature is high during warmer months.
Temperature adjustment at this setting is via the
temperature control.
Note: If the stated flow rate required for the
unit cannot be met due to low water pressure,
it will be necessary to operate the unit on this
setting during the warmer months because of
flow rate limitations entering the unit.
The red symbol is the HIGH power setting
which allows the highest flow achievable for
your preferred temperature. This setting should
normally be regarded as optimum shower
performance throughout the year. Temperature
adjustment at this setting is via the temperature
control.
Fig.23
Fig.22
WARNING!
Before normal operation of the
shower, it is essential that the
commissioning procedure has been
completed correctly.
WARNING!
If restarting immediately after
stopping, be aware that a slug of hot
water will be expelled for the first
few seconds.
Start/Stop
button
Temperature
control
Power selector
Ecomomy
High
Cold

Zante 3
15
To adjust the shower temperature
The water temperature is altered by increasing
or decreasing the flow rate of the water
through the shower via the temperature control
(fig.23).
After obtaining your showering temperature, the
number can be left as the normal setting and
should only need altering to compensate for
seasonal changes in ambient water temperature.
Note: The preferred number on ECONOMY
will give a different temperature to the same
number position on HIGH.
To decrease the shower temperature
Turn the temperature control anti-clockwise;
this will increase the flow of water through
the shower therefore decreasing the water
temperature, and is indicated by lower numbers.
To increase the shower temperature
Turn the temperature control clockwise; this will
decrease the flow of water through the shower
therefore increasing the water temperature, and
is indicated by higher numbers.
Note: It is advisable to be certain that the
showering temperature is satisfactory by testing
with your hand before stepping under the
showerhead. There will always be a time delay
of a few seconds between selecting a flow rate
and the water reaching the stable temperature
for that flow rate.
CAUTION: It is recommended that persons
who may have difficulty understanding or
operating the shower controls should not
be left unattended while showering. Special
consideration should be given to young
children and the less able bodied.
WARNING!
After any servicing of mains water
supply, always make sure the unit is
started on COLD in order to purge
any air in the pipework.
Note: In normal use, it is in order to leave
the water supply permanently on to the
shower unit, but as with most electrical
appliances, the unit must be switched
off at the isolating switch when not
in use.

Zante 3
16
OPERATING FUNCTIONS
Power on indicator (fig.24)
When the electricity supply to the shower is
switched on at the isolating switch, the neon
power indicator will light.
Low pressure indicator (fig.24)
If this indicator lights, this means the water
pressure has fallen below the minimum required
for correct operation of the shower, resulting in
the low pressure cut-out operating. This switches
off power to the heating elements preventing
any undue temperature rises (water will continue
to flow). Power will automatically be restored
when adequate water pressure returns.
Temperature limiter
During normal operation if an overheat
temperature is sensed power to the elements
will be reduced, although water will continue
to flow. When the temperature has cooled
sufficiently, power to the elements will be
automatically restored to the settings at the time
of interruption.
Safety cut-out
The unit is fitted with a non-resettable
thermal cut-out safety device. In the event of
abnormal operation which could cause unsafe
temperatures within the unit, the device will
disconnect the heating elements. It will require a
visit from a qualified engineer to determine the
nature of the fault and replace the safety device,
once the unit has been repaired.
Fig.24
Power
indicator light
Low
pressure
indicator

Zante 3
17
CLEANING THE INLET FILTER
It is recommended that the filter is periodically
cleaned in order to maintain the performance of
the shower. It is essential that this operation is
carried out by an installer or service engineer.
IMPORTANT: Before servicing, switch off
both the electricity supply and water supply
at the mains.
The inlet filter is situated at the bottom of the
inlet pipe (fig.25).
To gain access to the filter, remove the trimplate
and then unscrew the retaining nut from the
bottom of the inlet pipe.
When cleaning the filter, DO NOT use a sharp
object, as it will cause damage. It is preferable to
use an old toothbrush or similar.
Filter and
‘O’ ring
Incoming
pipework
Fig.25
INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY

Zante 3
18
Ref. Description Part No.
1. Power selector including
microswitches S12121011
2. Terminal block & outlet
pipe assembly S12721003
3. Thermal cut-out 22011180
4. Heater can assembly
8.5kW P12120701
9.5kW P12120702
5. Stabiliser valve/solenoid
assembly P12120806
6. PRD & ‘O’ ring 82800450
7. Inlet pipe assembly S12721002
8. Trimplate
white 7053978
– TCO shield 7052871
– Neon and switch assembly P12720903
9. Cover assembly - white S25720600
10. Start/Stop switch assembly 82301310
SPARE PARTS
2
10
9
8
7
6
5
4
3
2
1
