Triumph Lumen-x lazer Operation instructions

888-996-2729-1

1353-378-668-1:XAF

moc.stropsedalacse@gameroom

ytilauqtsehgihehtfoerastcudorpruotahterusneotevirtseW

fi,revewoH.strapgnissimrostcefedgnirutcafunamfoe

erfdna

,tcudorpwenruoyhtiwsmelborpynaevahuoy

EROTSEHTOTTINRUTERTONOD ,

:@eerfllotsutcatnocesaelp

:otetirwrO

stropSedalacsE

tnemtrapeDecivreSremotsuC

988xoB.O.P

60774NI,ellivsnavE

date code (if,rebmunledomruoyedivorpesaelpstropSedalacsEgnitcatnocnehW

erasrebmunesehT.traptnemecalp

eragnitseuqerfirebmuntrapdna,)elbacilppa

.launamsrenwosihtnidna,gnigakcap,tcudorpehtnodetacol

rebmuNledoMruoY

.straptuobagniriuqninehwdate coderuoyevahesaelP

45-6800W/F

888-996-2729-1llaCecivreSremotsuCroF1stropSedalacsE1602©

Date Code: 2 - 45-6800W/F - - HL

Purchase Date:

PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

Make sure you understand the following tips before you begin to assemble your hockey table.

1. Start all bolts by hand before tightening.

2. Some drawings or images in this manual may not look exactly like your product. Please

read and understand the text before starting each assembly step.

TWO ADULTS ARE REQUIRED TO ASSEMBLE

THIS 72” LUMEN-X LAZER

AIR HOCKEY TABLE

Assembly Tips

Tools Required:

READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND

SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO

ADULTS ARE NEEDED TO PUT THIS HOCKEY TABLE

TOGETHER.

T1 - Allen Wrench (Included)

IMPORTANT! READ EACH STEP

IN THIS MANUAL BEFORE YOU

BEGIN THE ASSEMBLY.

Phillips Screwdriver

Furniture Polish and Cloth

ATTENTION:

1. Read all instructions-All the safety and operating instructions should be read carefully before the hockey game is

played.

2. Caution-This is not a toy and is intended for use by or under the supervision of adults. Adults should review safety

guidelines with children to avoid possible risk of electric shock or other injuries.

3. Power sources-This hockey game should be operated only from 110-120V A.C., 60 cycle current as indicated on

the identification label. If you are not sure of the type of power supply to your home, consult your appliance dealer

or local power company.

4. Power cord protection-Power cord should be routed so that it is not likely to be walked on or pinched by items

placed upon or against it. Pay particular attention to cords at plugs, convenience receptacles, and the point of exit

from the game.

5. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

6. Object and liquid entry-Never push objects of any kind into this game through openings as they may touch

dangerous voltage points or short-out parts which could result in a fire or electric shock. Never spill liquid of any

kind on the game.

7. Ventilation-Openings in the game are provided for the exhaust air to create a cushion effect. The openings on the

air blower are for the intake air. Keep clear of the air blower when it is on. Do not put hand or other objects near

the intake openings. To ensure reliable operation of the game and protect it from overheating these openings must

not be blocked or covered.

8. Damage requiring service-Unplug the game from the wall outlet.

Do not attempt to service the blower yourself as opening or removing covers may expose you to dangerous

voltage or other hazards. Refer servicing to qualified service personnel under the following conditions.

A. When the power supply cord or plug is damaged.

B. If liquid has spilled, or objects have fallen into the blower.

C. When the air blower exhibits a distinct change in performance e.g. abnormal noise, this indicates a need for

service.

9. CAUTION-ELECTRICALLY OPERATED PRODUCT-Not recommended for children

under 8 years of age. As with all electrical products, precautions should be observed

during handling and use to reduce the risk of electric shock.

10. We recommend that the game be periodically examined for conditions that may result in the risk of fire, electrical

shock, or injury to persons. In the event such conditions exist,the game should not be used until properly repaired.

11. RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING-When using electric appliances, basic precautions should always be followed, including the following:

A) Read all the instructions before using the appliances.

B) To reduce the risk of injury, close supervision is necessary when an appliance is used near children.

C) Do not contact moving parts.

D) Only use attachment recommended or sold by the manufacturer.

E) Do not use outdoors.

F) For a cord-connected appliance, the following shall be included:

G) To disconnect, turn all controls to the off position, then remove plug from outlet.

H) Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

I) Unplug from outlet when not in use and before servicing or cleaning.

J) Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or

damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or

electrical or mechanical adjustment.

SAVE THESE INSTRUCTIONS

WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any

Solid-State Speed Control Device.

For Household use only.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS

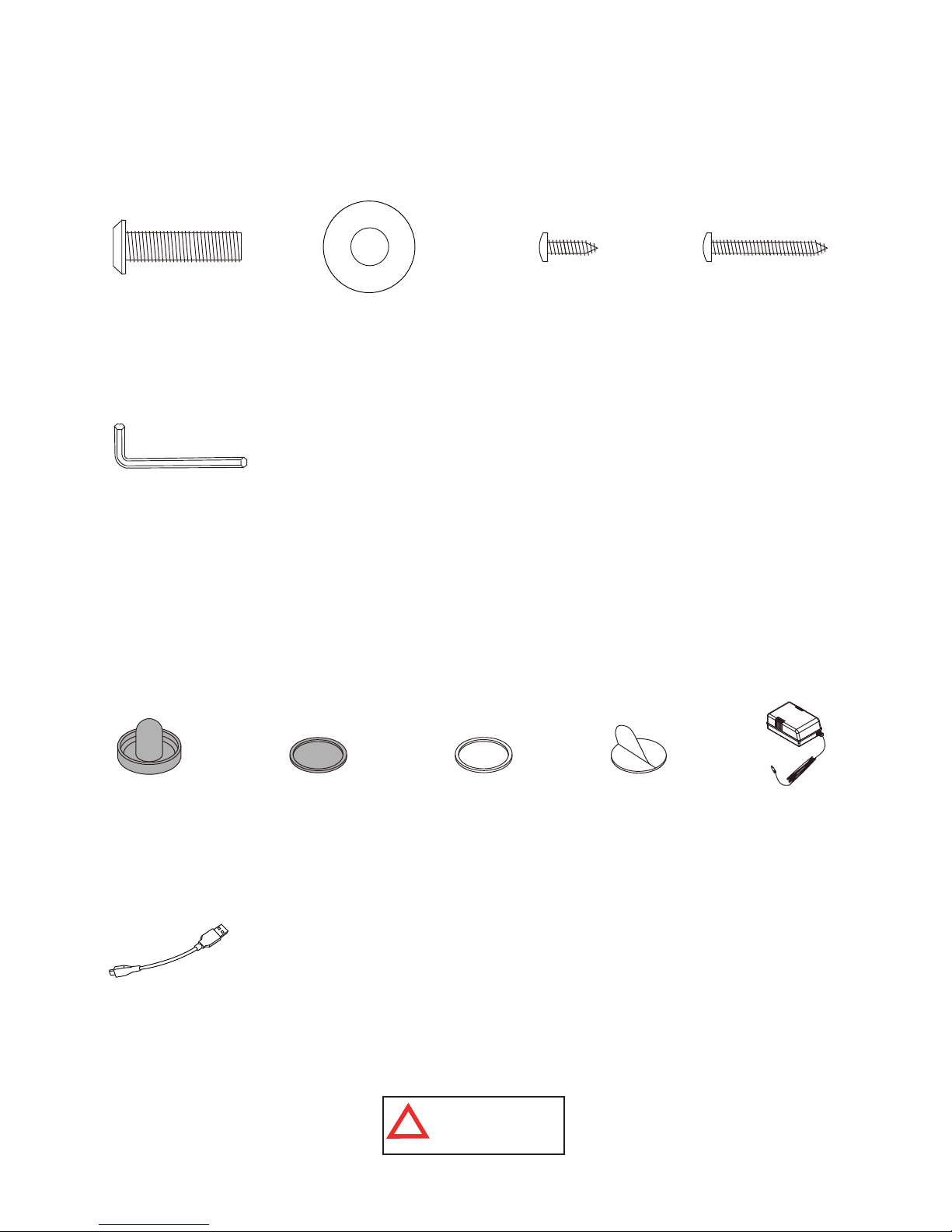

HARDWARE IDENTIFIER

(To Scale)

(Not to Scale)

ACCESSORIES IDENTIFIER

(Not to Scale)

H3 - 3.5 mm x 12 mm

Phillips Round

Head Screw

(24 pcs)

H1 - 8 mm x 28 mm

Allen Head Bolt

(12 pcs)

H2 - 8.5 mm x 22 mm

Flat Washer

(12 pcs)

T1 - Allen Wrench

(1 pc)

H4 - 3.5 mm x 28 mm

Phillips Round

Head Screw

(2 pcs)

A4 Felt Pads may already

be attached to A1 Strikers.

A3 - Red Puck

(2 pcs)

A1 - BLUE

LED Striker

(2 pcs)

A2 - Clear with

BLUE LED Puck

(1 pc)

A4 - Felt Pad

(2 pcs)

A5 - A/C

Adapter

(1 pc)

NOTE:

A6 - USB

Cable

(1 pc)

WARNING:

CHOKING HAZARD

Small parts.

Not for children under 3 yrs.

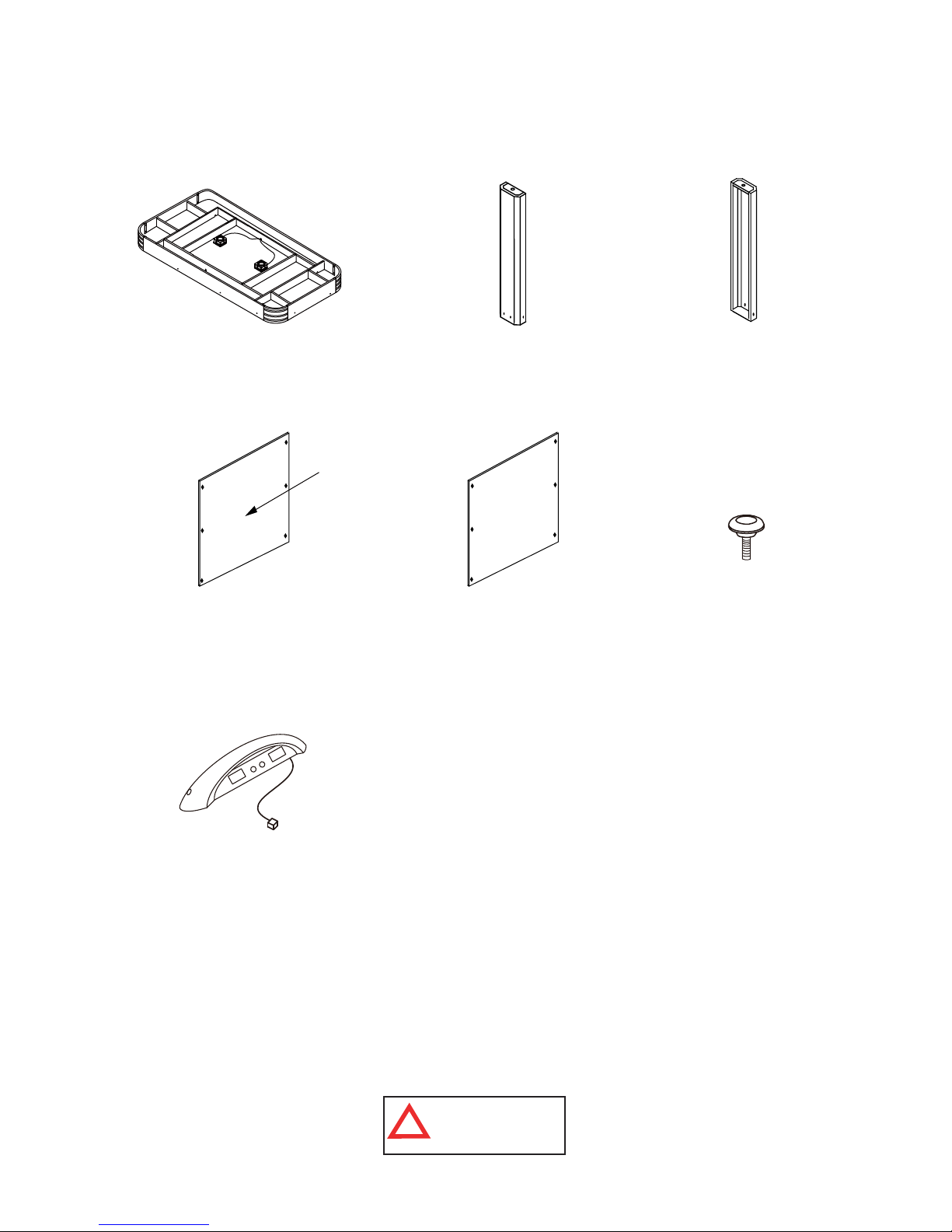

PARTS IDENTIFIER

(Not to Scale)

P1 - Air Hockey Cabinet

(1 pc)

P2 - Right Leg

(2 pcs)

P3 - Left Leg

(2 pcs)

WARNING:

CHOKING HAZARD

Small parts.

Not for children under 3 yrs.

P4 - End Leg Panel

with Graphic Artwork

(2 pcs)

P5 - End Leg Panel

without Graphic Artwork

(2 pcs)

P6 - Leg Leveler

(4 pcs)

P7- Electronic Scorer

(1 pc)

Graphic

Artwork

(Packed

under table)

(Packed

under table)

PARTS REQUIRED:

12 pcs - H1 Allen Head Bolt 2 pcs - P2 Right Leg

12 pcs - H2 Flat Washer 2 pcs - P3 Left Leg

1 pc - P1 Air Hockey Cabinet 1 pc - T1 Allen Wrench

FIGURE 1

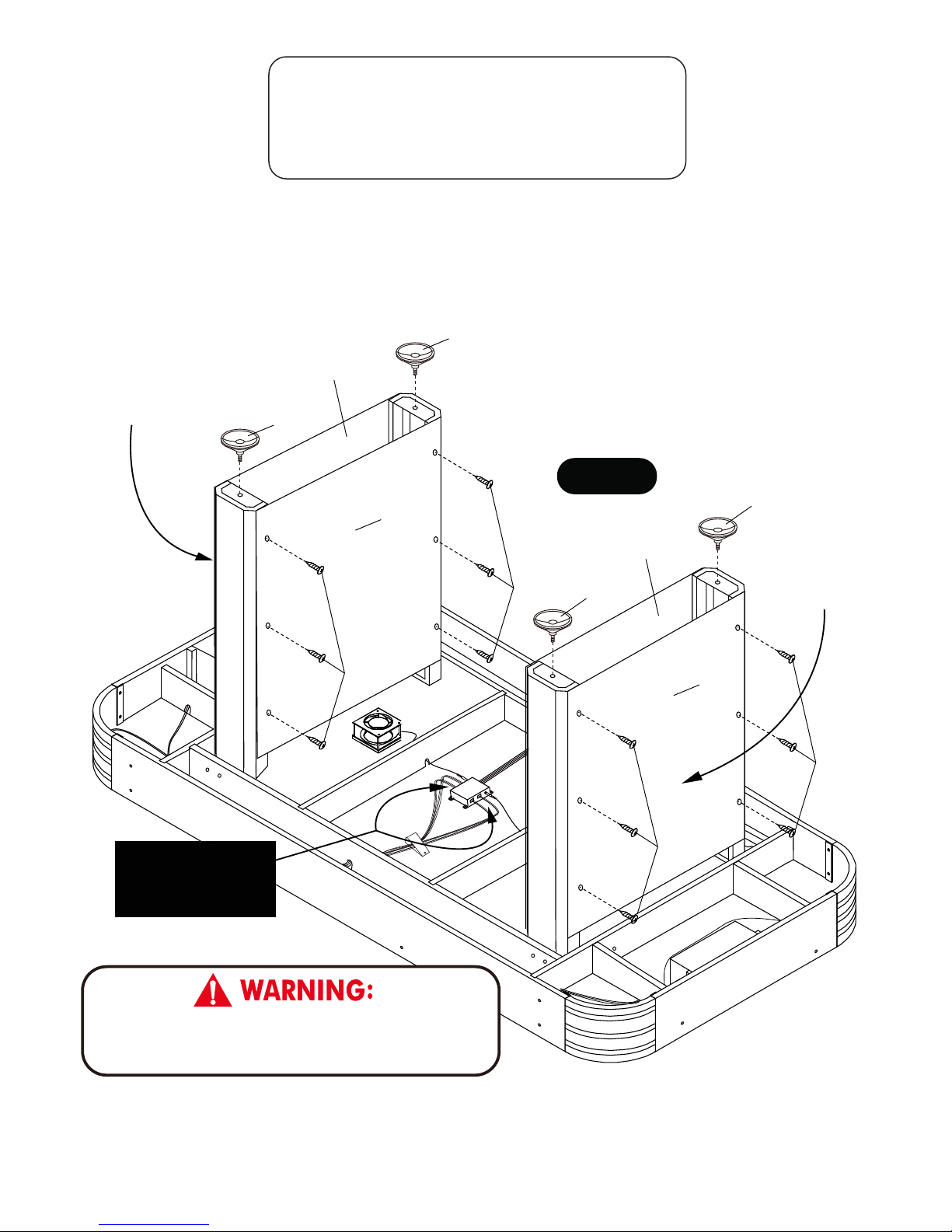

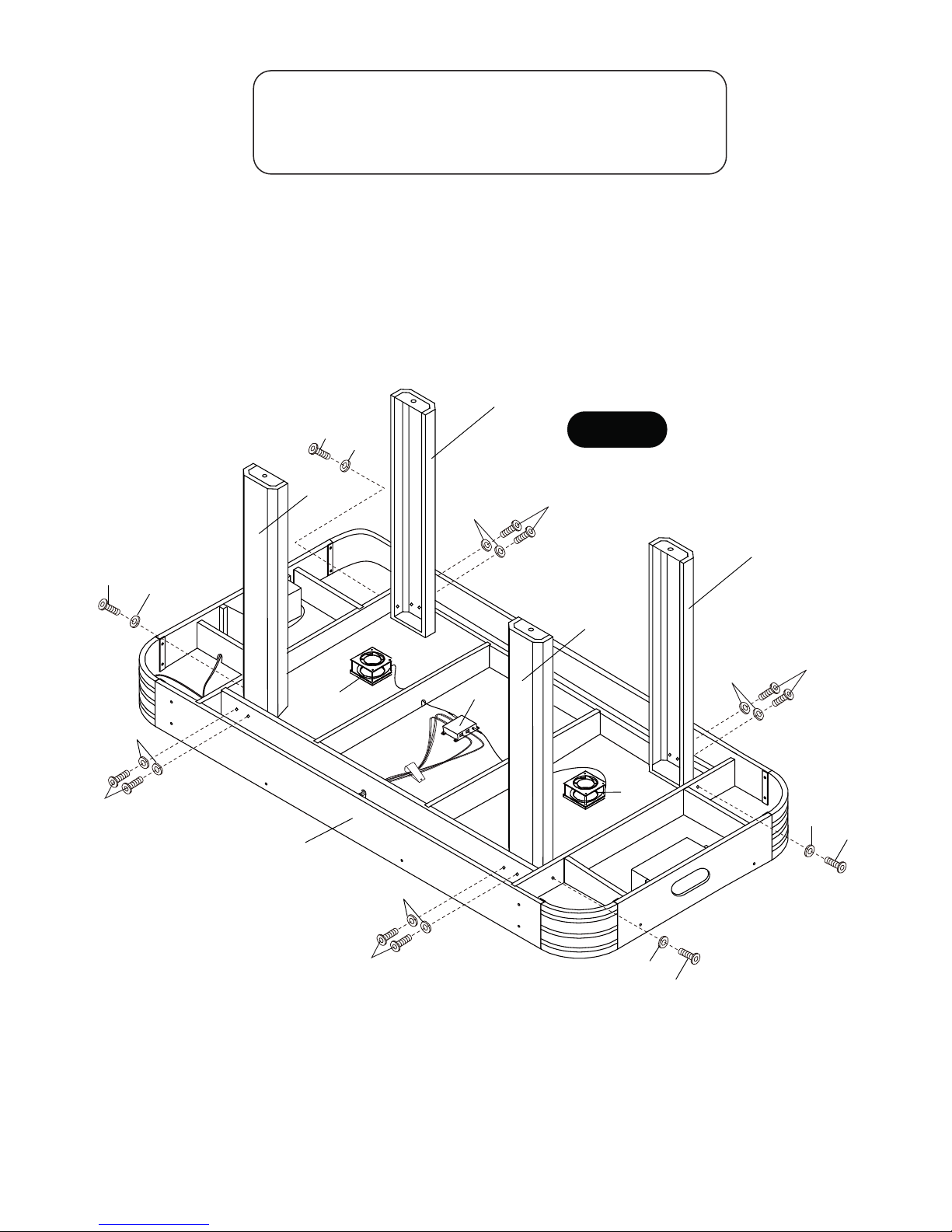

STEP 1:

Leave P1 Air Hockey Table Cabinet face down in carton to assemble.

Install P2 Right Legs and P3 Left Legs onto P1 Air Hockey Cabinet using H1 Allen Head Bolts and

H2 Flat Washers as shown in FIGURE 1. Use Allen Wrench T1 to tighten Bolts.

H1 H2

H2 H1

PARTS REQUIRED:

24 pcs - H3 Phillips Round Head Screw

2 pcs - P4 End Leg Panel with Graphic Artwork

2 pcs - P5 End Leg Panel without Graphic Artwork

4 pcs - P6 Leg Leveler

FIGURE 2

STEP 2:

Install P4 End Leg Panels with Graphic Artwork and P5 End Leg Panels without Graphic Artwork to

Legs using H3 Phillips Round Head Screws as shown in FIGURE 2.

Tighten, but do not strip out H3 Screws.

Thread P6 Leg Levelers to Legs as shown in FIGURE 2.

NOTE:

Graphic Artwork must

face out and upside down

NOTE:

Graphic Artwork

must face out and

upside down

THIS STEP REQUIRES FOUR OR MORE ADULTS.

VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON

ITS LEGS. BE CAREFUL. THE TABLE IS VERY HEAVY.

IMPORTANT NOTE:

Slightly push in on

all connectors to insure

proper connections.

PARTS REQUIRED:

2 pcs - H4 Phillips Round Head Screw

1 pc - P7 Electronic Scorer

1 pc - A5 A/C Adapter

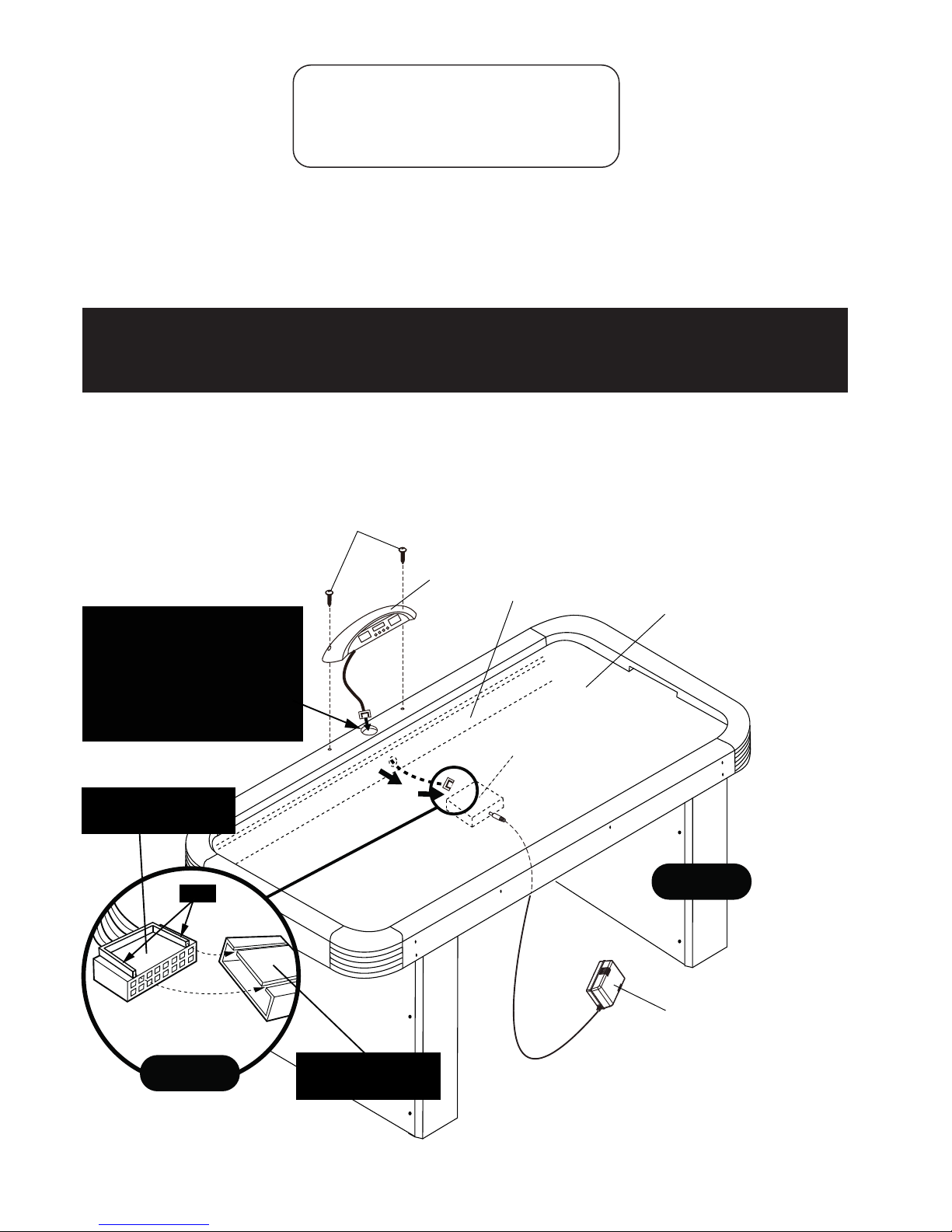

STEP 3:

First, feed the P7 Electronic Scorer plug through hole on one side of the long top apron as shown in

FIGURE 3.

Next, feed the plug through underneath support beams and connect to Main Electronic Unit C2 as

shown in FIGURE 3 and DETAIL A.

IMPORTANT NOTE: This connector will only fit into the C2 Main Electronic Unit if it is turned correctly.

It has two small plastic male tabs on the outside that must fit correctly into it’s female counterpart

socket on the C2 Main Electronic Unit. DO NOT FORCE THIS CONNECTION. A flashlight will be very

helpful to study both the male plug and female socket to insure a correct connection.

Next, install P7 Electronic Scorer onto long top apron using pilot holes with H4 Screws as shown in

FIGURE 3. Tighten, but do not strip out H4 Screws.

Connect A5 A/C Adapter onto Main Electronic Unit C2 (underneath table).

FIGURE 3

C2 Main Electronic Unit

Underneath

Support Beam

A/C Adapter

IMPORTANT NOTE:

Carefully turn connector

sideways and gently push

connector through the hole

in the top rail.

<< DO NOT FORCE ! >>

DETAIL A FEMALE COUNTERPART

SOCKET ON THE C2

MAIN ELECTRONIC UNIT

MALE CONNECTOR ON

P7 ELECTRONIC SCORER

WITH 2 TABS AS SHOWN

TABS

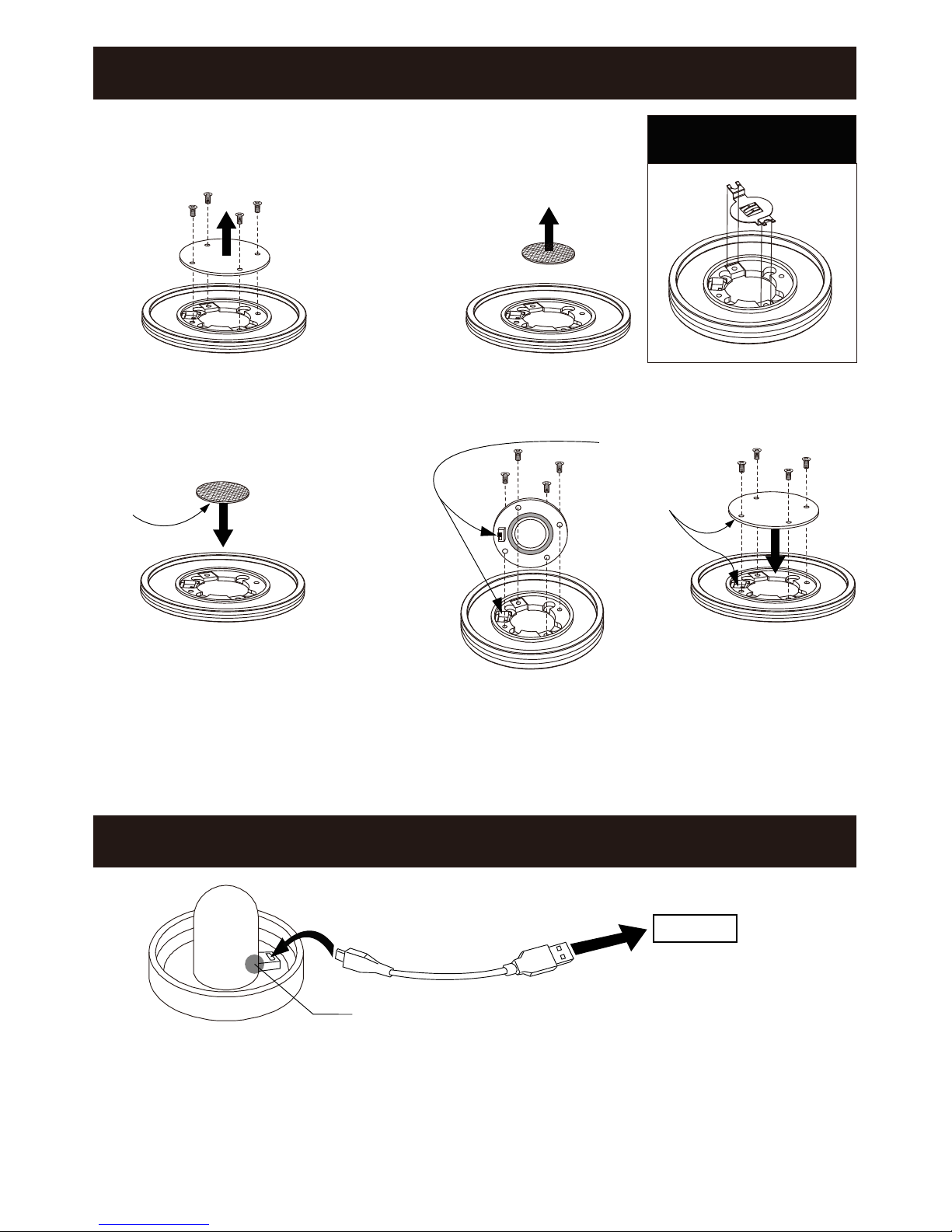

LED PUCK BATTERY CHANGE INSTRUCTION

STEP ONE:

Remove screws and back

cap from LED Puck using Small

Phillips Screwdriver (not provided).

STEP TWO:

Remove CR2016 Lithium

Battery 3V from LED Puck.

STEP THREE:

Insert new CR2016 Lithium Battery 3V

into LED Puck.

STEP FOUR:

Install back cap and secure screws with Phillps Screwdriver

(not provided).

Positive “+”

on bottom

side

LED STRIKER BATTERY CHARGE INSTRUCTION

NOTE:

Make sure the on/off

switch on the back

cap properly aligns

and fits into its slot in

the LED puck during

reassembly

IF BATTERY HOLDER BRACKET

MOVES, RE-INSTALL IT TO LED

PUCK AS SHOWN IN DIAGRAM.

USB Port

LED INDICATOR WILL LIGHT-UP DURING CHARGING AND

WILL TURN OFF WHEN ITS FULLY CHARGED.

Helpful Hint:

The LED puck battery will last approximately 7 hours of continuous play. The puck battery is not

rechargeable. Be sure to turn the switch to the “OFF” position when not in use to conserve your

battery life.

Helpful Hint:

The LED strikers each will require about 4 hours to fully charge up and will last approximately

7 hours of continuous play time. Be sure to turn the switch to the “OFF” position when not in use.

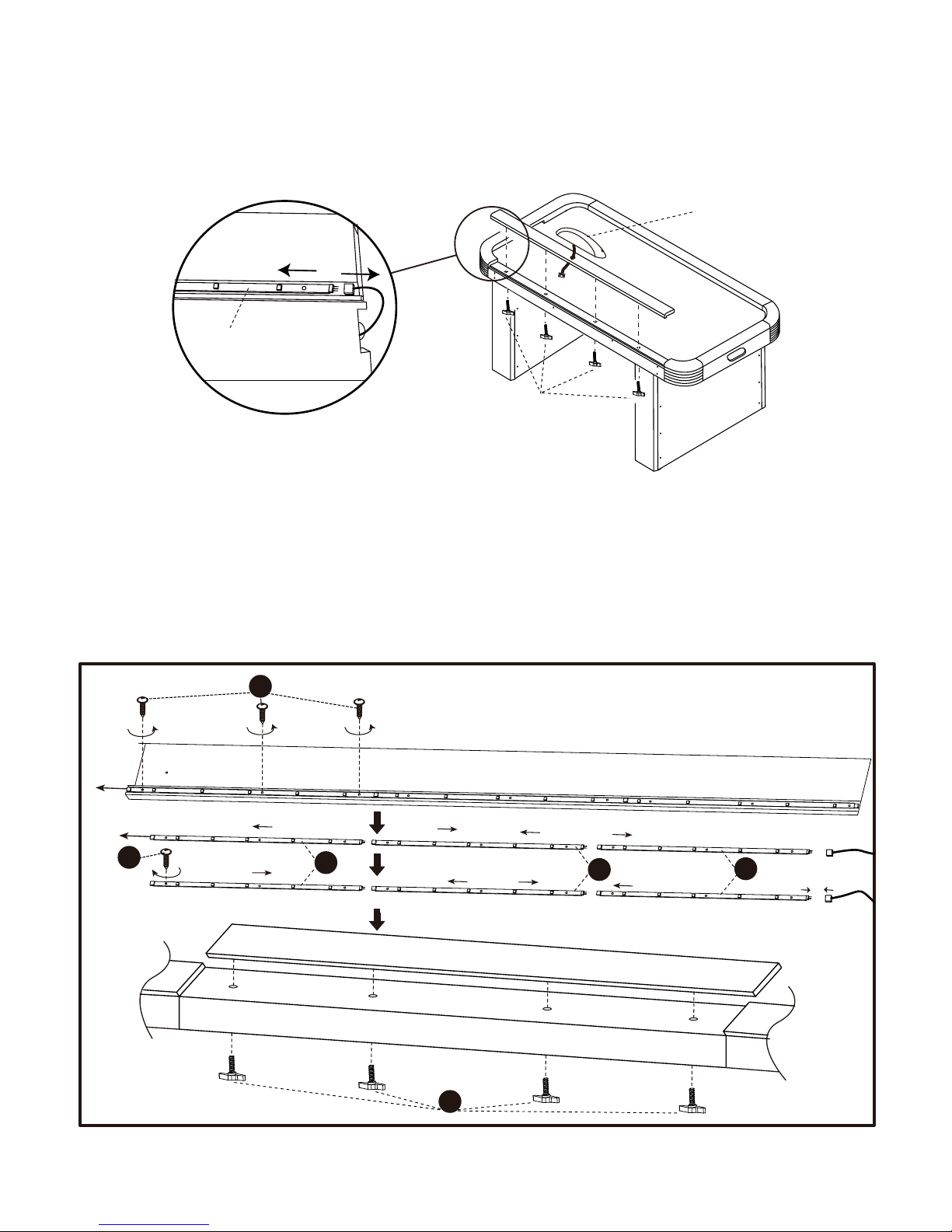

Replacement of LED Rail Lights

STEP ONE :

If the LED Rail lights need to be replaced on the P7 Electronic Scorer side, carefully unplug the

connector of P7 Electronic Scorer from the C2 Main Electronic Unit first.

Unscrew C9 wing Bolts and then unplug the C5 LED Rail Lights A.

STEP TWO :

Unscrew C8 Screws, and separate C5 LED Rail Light A, C6 LED Rail Light B and C7 LED Rail

Light C from each other.

Align the male and female connectors of the well LED Rail Light, and Install them back to Side Top

Rail using C8 Screws as shown in the diagram.

Next, connect the plug of C5 LED Rail Light A.

Install the Side Top Rail back to the table top rail using C9 Wing Bolts .

Tighten, but do not strip out C8 screws .

C7 C6 C5

Congratulations! You have now assembled your hockey table. Please note the Care and Use

instructions below to insure many years of trouble free use of your hockey table.

CARE AND USE OF YOUR HOCKEY TABLE

rofdednetnisitcudorpsihT INDOOR use only.

.5 DO NOT sit, climb or lean on the table.

DO NOT drag the table when moving it. This will damage the legs.

DO NOT set drinks on the table.

It is suggested that this table be placed close to wall thus allowing the A/C Adapter

cord to NOT be a trip hazard. Always unplug A/C Adapter from wall when table is

not in use.

For long life and best play from your air hockey table, apply spray furniture polish

to clean cloth and wipe down the playfield with air motor running to make the pucks

slide faster before first play and frequently thereafter.

4. DO NOT operate the motor if the A/C Adapter cord is damaged in any way.

Use only a suitable 120v AC household outlet, and insure the cord is not a trip hazard.

Qty

Description

Part#

PRODUCT PARTS LIST 45-6800

Qty

Description

Part#

45-6800HLH1 8 mm x 28 mm Allen Head Bolt 12

45-6800HLH2 8.5 mm x 18 mm Flat Washer 12

45-6800HLH3 3.5 mm x 12 mm

Phillips Round Head Screw 24

45-6800HLH4 3.5 mm x 28 mm

Phillips Round Head Screw 2

45-6800HLT1 Allen Wrench 1

45-6800HLA1 BLUE LED Striker 2

45-6800HLA2 Clear with BLUE LED Puck 1

45-6800HLA3 Red Puck 2

45-6800HLA4 Felt Pad 2

45-6800HLA5 A/C Adapter 1

45-6800HLA6 USB Cable 1

45-6800HLP1 Air Hockey Cabinet (no motor) 1

45-6800HLP2 Right Leg 2

45-6800HLP3 Left Leg 2

45-6800HLP4 End Leg Panel w Graphic Artwork 2

45-6800HLP5 End Leg Panel w/o Graphic Artwork 2

45-6800HLP6 Leg Leveler 4

45-6800HLP7 Electronic Scorer 1

45-6800HLC1 DC Motor (Pre-Installed) 2

45-6800HLC2 Main Electronic Unit (Pre-Installed) 1

45-6800HLC3 Corner Post (Pre-Installed) 4

45-6800HLC4 Scoring Sensor Wire (Pre-Installed) 2

45-6800HLC5 LED Rail Light A

45-6800HLC6 LED Rail Light B

45-6800HLC7 LED Rail Light C

45-6800HLC8 3 x 9mm Philips Round Head Screw 18

45-6800HLC9 Wing Bolt 8

45-6800HLK1 Hardware Kit 1

145-6800HLM1 Owner’s Manual

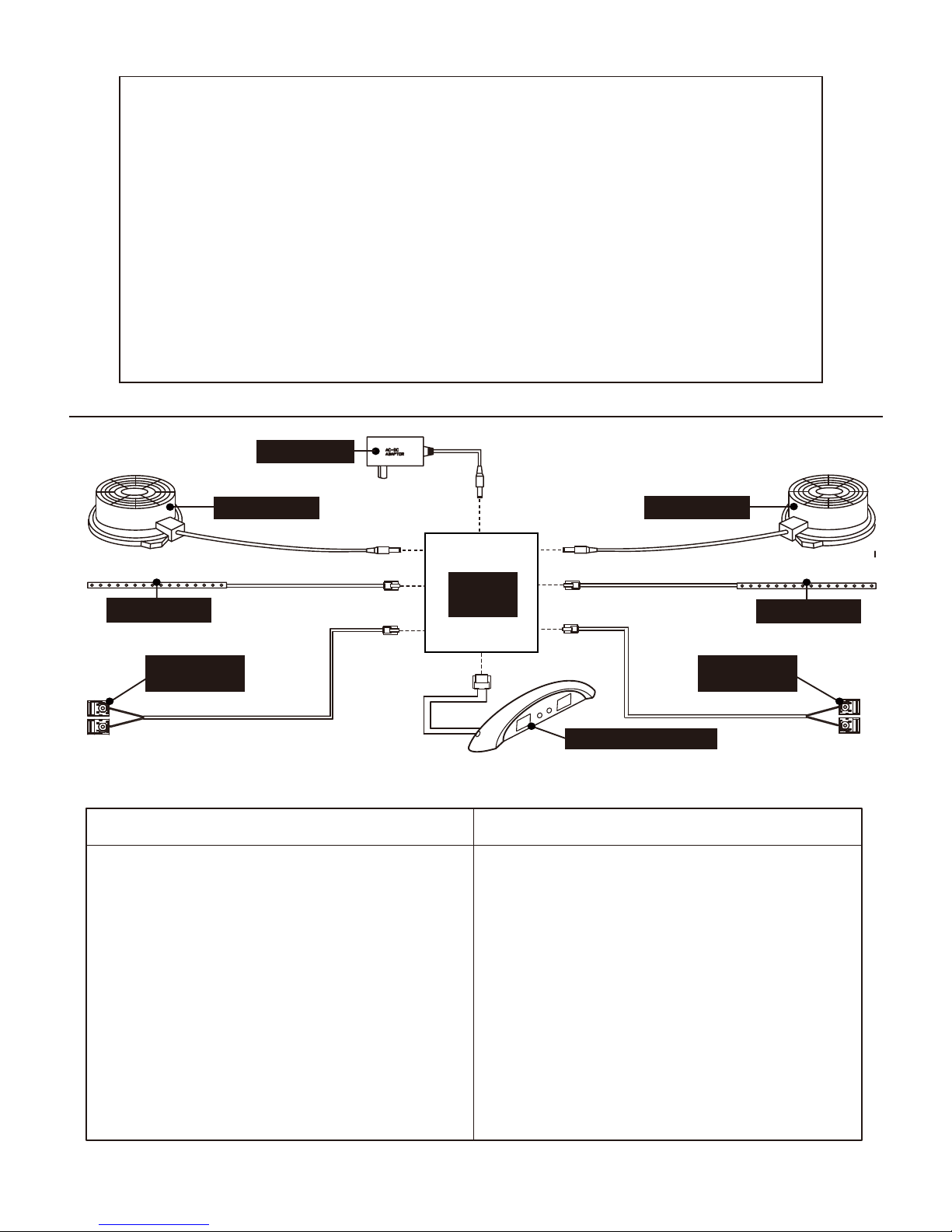

ELECTRICAL CONNECTIONS DRAWINGS

A5 - Adapter

DC1

CONTROL

SENSOR 1

LED 1

DC2

SENSOR 2 LED 2 DC3

C2 - Main

Electronic

Unit

C4 - Scoring

Sensors Wire

C4 - Scoring

Sensors Wire

LED Rail Lights

C1 - DC Motor C1 - DC Motor

P7 - Electronic Scorer

This consumer warranty extends to the original consumer purchase of any ESCALADESPORTS

Product (hereinafter referred as the "Product").

WARRANTY DURATION: This Product is warranted to the original consumer purchase of a pe-

riod of 90 days from the original purchase.

WARRANTY COVERAGE: ESCALADE SPORTS warrants to the original Consumer Purchaser

that any Product of its manufacture is free from defects in material and workmanship when used

for the intended purpose under normal use and conditions. THIS WARRANTY IS VOID IF THE

PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE,

IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PROD-

UCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL AND WORKMAN-

SHIP.

WARRANTY PERFORMANCE: During the above 90 day warranty period, ESCALADESPORTS

shall repair or replace with a comparable model, and Product, or component thereof, which may

prove defective under normal use and proper care, and which our examination shall disclose to

our satisfaction to be thus defective, please contact our Warranty Dept.

1-888-996-2729 / Warranty Dept.

Or Write us at:

Escalade® Sports, Inc. - P.O. Box 889, Evansville, IN 47706

Attn: Warranty Dept.

Or E-mail us at:

[email protected]

Other than shipping requirements no charge will be made for such repair or replacement of in-

warranty Products. ESCALADE SPORTS strongly recommends that the Product is insured for

value prior to mailing.

WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF

THIS SALE, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIM-

ITED IN DURATION TO THE ABOVE 90 DAY PERIOD. ESCALADE SPORTS

SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER

CONSEQUENTIAL OR INCIDENTAL COSTS, EXPENSES OR DAMAGES IN-

CURRED BY THE CONSUMER OF ANY OTHER USE.

Some states do not allow the exclusion or limitation of implied warranties or consequential or

incidental damages, so the above limitations or exclusions may not apply to you.

LEGAL REMEDIES: This warranty gives you specific legal rights and you may also have other

rights which may vary from state to state.

90 DAY LIMITED WARRANTY

This manual suits for next models

Table of contents

Other Triumph Video Gaming Accessories manuals

Triumph

Triumph 45-6793SKUSA User manual

Triumph LUMEN-X LAZER Operation instructions

Popular Video Gaming Accessories manuals by other brands
