Trojan 30 + User manual

OWNER’S MANUAL

ASSEMBLY
1. Remove the spreader and
components from carton and
place hopper up-side down on
a padded surface as shown.
Insert ends of leg into handle
brace as shown and align
holes. Attach brace and leg to
frame using (4) 1/4-20 x 2” hex
bolts, lockwashers, and nuts.
3. Turn spreader upright on
wheels. Insert screen into
hopper sliding it under the
screen clips. Attach the upper
handle assembly to handle
brace with the handle lever
brackets facing as shown.
Secure with (4) 1/4-20 x 1 1/2”
hex bolts, lockwashers and
nuts.
2. Slide drive and free wheel onto
axle as shown with the longer
portion of wheel hub facing the
frame. Secure free wheel with (1)
5/32 dia. x 1 1/4” cotter pin. Attach
drive wheel to axle with (1) 3/16 dia.
x 2” cotter pin.
5/32 Dia. x
1 1/4” Cotter
Pin
3/16 Dia. x
2” Cotter Pin
NOTE POSITION OF
LEVER BRACKETS
Drive Wheel
Free Wheel
Handle
Brace
Leg
1/4-20 X 2”
Hex Bolt
1/4-20 NUT
Upper Handle
Assembly Screen Screen Clip
1/4-20 X 1 1/2”
Hex Bolt
1/4-20 NUT
&
LOCKWASHER
LOCKWASHER
4. Slide handle lever between
handle brackets as shown and
secure with (1) 1/4 dia. clevis pin
and 3/32” dia. cotter pin. Make
sure lever pivots freely. Install
handle grips onto upper handle.
1/4 Dia.
Clevis Pin 3/32” Dia.
Cotter Pin
Handle
Lever
Handle
Grip

5. Install control tube to handle
lever with (1) 1/4 dia. clevis pin
and a 3/32” dia. cotter pin. Slip
opposite end of control tube over
lower control rod making sure
shutoff plate is between the lower
rod and the control tube. Secure
with a 3/32” dia. cotter pin.
Control Tube
1/4 Dia.
Clevis Pin
3/32” Dia.
Cotter Pin
Lower Rod
Shutoff Plate
Handle
Lever
1. Check the product package for the rate
setting, and recommended swath width. Loosen
rate control knob and slide rate plate to the
proper setting. The pattern is controlled by
loosening the two knobs on the discharge chute
and moving the chute closer or farther away
from the impeller (setting A, B, or C). See
“PATTERN ADJUSTMENT” for details.
2. Always fill the spreader on the driveway or
sidewalk-not on the lawn. Make sure screen is in
hopper and spreader is in the “OFF” position.
3. Start spreader moving before opening port.
Close before stopping. Always push spreader,
never pull.
4. Hold handle so top of spreader is level.
Tipping the spreader too far can cause uneven
spreading.
5. The settings and swath widths on the product
label are recommended starting points. Always
check the delivery rate and pattern on a small
area before treating a large area. Actual delivery
rate can vary due to weather conditions,
operating variables, and condition of the
product being applied. See “HOW TO
DETERMINE SPREADER SETTINGS AND
SPREAD WIDTH” for details.

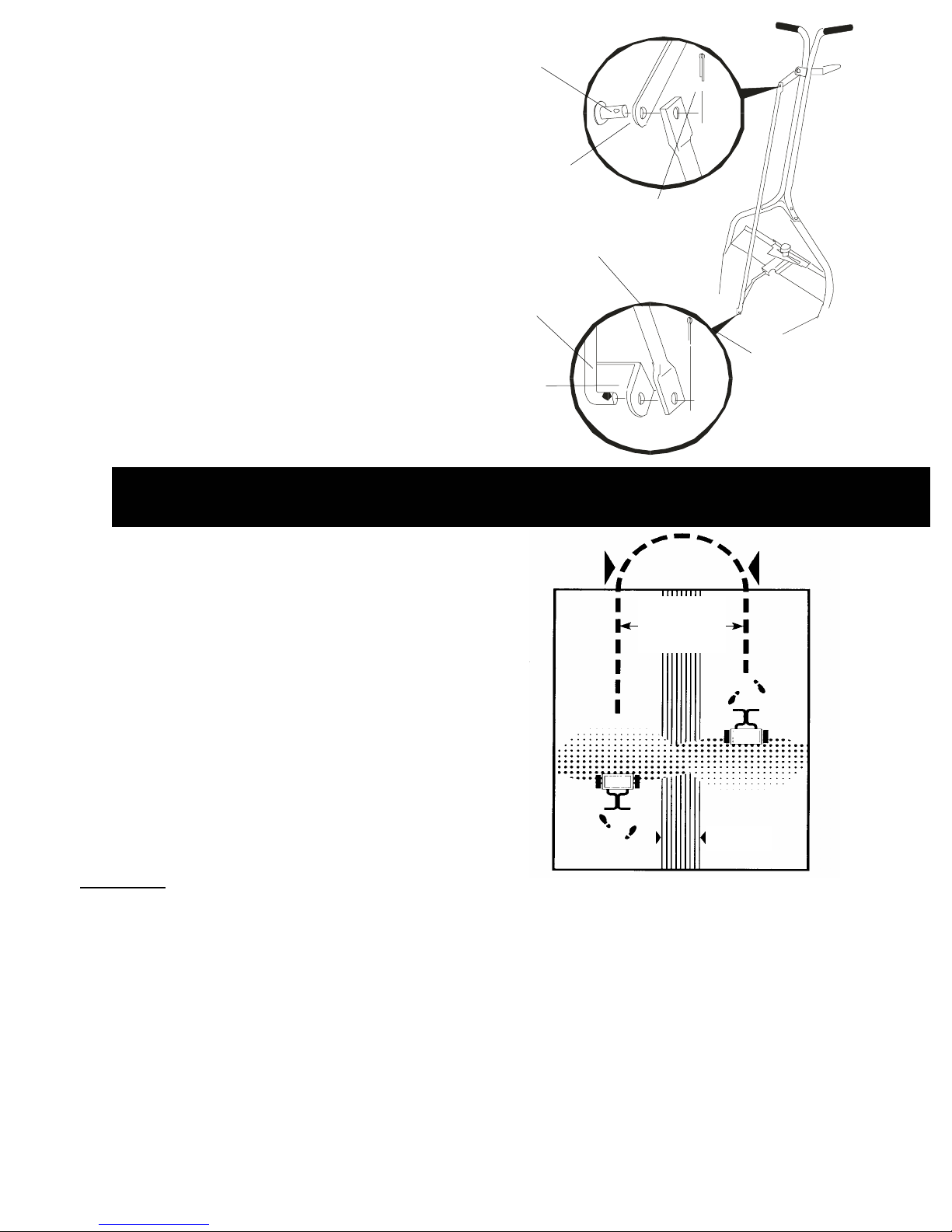

OPERATION
USE SWATH WIDTH
ON PACKAGE OR
ADJUST PER
OPERATOR’S
WALKING SPEED
6. Push spreader at a normal walking speed -
2 1/2 m.p.h. (5.5 metres in 5 seconds). Apply
header strips around area to be treated.
Space trips across the area as shown. Keep
material off flower beds, sidewalks, etc.
7. When transporting spreader, make sure that
it is in the “OFF” position. Make sure handle
lever is locked using the hitch pin through the
hole in lever.
8. Empty spreader after each use. Return
leftover material to its original container.
OVERLAP
3/32” Dia.
Cotter Pin

PATTERN ADJUSTMENT
Normal spreading of materials
requires no adjustment (factory
setting “A”) unless stated on the
package. In those cases where the
spread pattern has shifted, the
pattern can be adjusted left and
right by loosening the two knobs on
the discharge chute and moving the
chute closer or farther away from
the impeller. Settings of “A, B, and
C” are provided as reference.
Knob
Discharge
Chute
Impeller
Knob
Discharge Chute
Settings
HOW TO DETERMINE SPREADER
SETTINGS AND SPREAD WIDTH
EFFECTIVE PATTERN WIDTH
A simple visual pattern test can be made by
operating spreader over a non-turf area and
evaluating the pattern. A more accurate method
is to place a row of common, disposable, alu-
minun cake tins approximately 30 cm on
centres. Set the rate plate at a middle setting and
make 3 or 4 passes in the same direction as shown.
Pour the material collected from each
pan into individual bottles of the same size. Set
them side by side in order, and visually inspect
their volume. If the pattern is not centered
(example: volume in bottle #2 left not equal to
bottle #2 right) adjust the pattern control as
described in the “PATTERN ADJUSTMENT”
section.
Once the pattern is uniform, the effective pattern
width can be determined. The effective pattern
width is the distance out from the spreader to a
point where the amount of material is 1/2 the
average amount in the center pans. This dis-
tance is multiplied by 2 to achieve the total
effective pattern width.
Space 1’-0” on Centres Space for Wheel Track
Two major factors should be considered when determining correct spreader settings of any
product:
1. The product application rate, or the amount of material applied per 500 square meters.
2. The effective pattern width, or the actual width in which the material is applied. Label settings are a
guide and can be effected by numerous factors.
The Trojan HVO is factory calibrated. However, calibration should be checked occasionally to assure
optimum performance.
For accurate calibration Sherriff Amenity recommends the use of the Prizelawn® calibrator for the
Trojan HVO, Trojan 30+, and the Trojan Tow. For all other spreaders standard calibration procedures
should be followed. Visit www.sherriff-amenity.com for further information.

FERTILIZER
PARTICLE SIZE
BAG RATE
GRAMS / SQUARE METRE
APPROX.
SETTING
SPREAD
WIDTH
(IN METRES)
Large, heavy
particles
25
50
75
M
O
Q
3
3
3
Medium- mixed
particles
25
50
75
L
N
O
3
3
3
Small particles
(nitrogen)
5
10
15
G
J
L
3
3
3
Mixed size particles
-some fines
25
50
75
M
O
P
2
2
2
Light weight
particles
25
50
75
J
L
O
1.5
To
2
The following provides approximate settings for those units listed.
The following provides approximate
The conversions should be used as guidelines for establishing proper rate settings for the particular product being
applied. Steps for obtaining the most accurate settings are outlined in the “How to Determine Spreader Settings and
Spread Width” section of this manual.
These settings are approximate and may vary due to physical characteristics of the product. Walking speed, wear,
condition of the turf and humidity, may cause actual rate setting to deviate. No expressed nor implied warranty or
guarantee is provided as to coverage or uniformity indicated by these rate settings.
Setting
B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Prizelawn®
BF l / CBR III
Setting
B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Lesco
#029600
Setting
— B C D — E F — G H I — J K L — M N O — P Q R — S
Scotts
R8A/SR-1
Setting
D E F G H I J K L M N O P Q R S T U — V W — X Y Z
Earthway
2200/2400
Setting
5 — — — 10 — — — — 15 — — — — 20 — — — — 25 — — — — 30
Spyker
76/78-2
Setting
— 3 — — — 4 — — 5 — — 6 — — 7 — — 8 — — — 9 — — 10
RATE SETTING CONVERSION
settings when only the product weight, square foot
coverage, and visual inspection of the material is available.

1. Never store unused material in spreader.
Return unused product to its original container.
2. Wash spreader thoroughly after each use and
dry completely in sun or heated area.
3. Grease axle bearings in frame. Oil the impeller
shaft bearing in hopper, pivot points on the shut-
off plate and the spring in the housing behind the
rate plate.
4. Remove gear cover and wash gears
thoroughly. Oil all bearing areas and face of gear
teeth. Lubricate gear teeth with dry graphite. Re-
install gear cover.
5. Gear mesh should be checked on a regular
basis during high use periods. Clearance
between the axle gear and pinion gear should be
minimal but not tight. If adjustment is necessary,
loosen axle collar set screw and hold gears
together. Slide axle collar against the gear
support and tighten axle collar set screw. Spin
drive wheel. Gears should run freely and
smoothly.
6. Impeller surface should be cleaned
periodically to remove build-up of product. Build-
up can cause the spread pattern to change.
7. Tyre pressure should be 20-25 PSI.
MAINTENANCE
Axle Collar
Oil
Oil
Oil Bearing In
Hopper
Grease

CALIBRATION INSTRUCTIONS
The Trojan 30+ was factory calibrated, however, calibration should be checked occasionally to
assure optimum performance.
1. Pull the on/off lever to the “OFF” position.
Set the rate control plate to setting “B”. 3. Loosen the rate control knob and slide the rate
plate until the port is just opening. Loosen
pointer screw and move pointer until it aligns
with “B” on the rate plate. Retighten pointer
screw.
2. Flip on/off control lever to the “ON” position.
Check the port opening. It should be just open.
If adjustment is necessary, continue to step #3.
Rate Control Knob
Pointer
Rate Control Plate
Port is just open
Pointer Screw
VIEW IS
INSIDE OF
HOPPER
WARRANTY
Sherriff Amenity warrants to Purchaser the following:
1. Product will be free of defects in materials and workmanship for a period of one year from date of purchase.
2. The axle gear, gear support, pinion gear, axle, and axle bearings have a limited lifetime warranty to be free of defects in materials and workmanship.
3. Sherriff Amenity will decide in its reasonable discretion if the part(s)/unit is defective.
4. The spreader or part(s) will be shipped to Sherriff Amenity at the customer expense with a written description of defect to the attention of Sherriff
Amenity WARRANTY DEPARTMENT.
5. If the spreader is used for commercial rental the Limited Warranty shall be limited to a period of 90 days.
6. All Unit and part replacement will be performed at the reasonable discretion of Sherriff Amenity .
7. Labor charges are not covered and the unit need not be returned to the dealer for warranty service.
8. Proof of purchase must be supplied to Sherriff Amenity .
Sherriff Amenity's sole obligation under this warranty is limited to repairing or replacing the defective part. Upon replacement of any Product or
Product part, the replaced item shall become the property of Sherriff Amenity. If Sherriff Amenity determines that the Product covered by this warranty
requires service, Sherriff Amenity shall prepay return shipping charges from Sherriff Amenity. In all other instances, such charges shall be paid by Pur-
chaser. Except for loss or damage caused by Sherriff Amenity's negligence, Purchaser relieves Sherriff Amenity of responsibility for all risks of loss or
damage to the Product and its parts during the period the products are in transit to and from Sherriff Amenity .
This warranty does not extend to any Product or parts thereof that have been allowed to corrode, subjected to misuse, neglect, accident, or
modification by anyone other than Sherriff Amenity or that have been affixed to any nonstandard accessory attachment or that have been used, stored,
installed, maintained or operated in violation of Sherriff Amenity ’s instructions or standard industry practice. No agent, employee or representative of
Sherriff Amenity has any authority to bind Sherriff Amenity to any affirmation, representation or warranty concerning the Product and any affirmation,
representation or warranty made by any agent, employee or representative shall not be enforceable by Purchaser.
THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL PURCHASER AND IS EXPRESSLY IN LIEU OF ANY OTHER EXPRESS OR IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS OR INTENDED USE
FOR A PARTICULAR PURPOSE AND OF ANY OTHER OBLIGATION ON THE PART OF PSB.
SHERRIFF AMENITY SHALL NOT BE LIABLE FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL LOSS, DAMAGE OR EXPENSE
DIRECTLY OR INDIRECTLY ARISING FROM THE USE OF ANY OF THE PRODUCT INCLUDING, BUT NOT LIMITED TO, DAMAGE OR LOSS OF
OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS OR REVENUE, COST OF CAPITAL, COST OF PURCHASED OR REPLACEMENT
GOODS, OR CLAIMS OF CUSTOMERS OF PURCHASER.

No. Description Trojan 30+ No. Description Trojan 30+
1Hopper Assembly 14610-2 17 Impeller Shaft Bearing* 14312-1
1A Hopper* 14604 18 Drive Wheel 15032
2Discharge Chute* 14623 19 Leg 15189
3Discharge Chute Knob (2)* 14001 20 Impeller Shaft 15036
4A Shutoff Plate Guide-RH.* 14622 21 Pinion Gear 14833
4B Shutoff Plate Guide-LH.* 14621 22 Axle Gear 15027
5Shutoff Plate* 13353 23 Gear Cover (2) 15012
6Handle Lever Ass’y w/ Chain 14047 24 Gear Cover Clamps (3) 14868
7Handle Grip (2) 14870 25 Gear Support 15028
8Upper Handle 14907 26 Axle Collar w/ Set Scr. 14063
9Control Tube 14916 27 Axle 15037
10 Screen Clips (2) 14022 28 Axle Bearing (4) 14933
11 Hopper Screen 14603 29 Frame Assembly 15184
12 Handle Brace 15188 30 Impeller 14625
13 Rate Plate* 15191 31 Free Wheel 15033
14 Rate Control Knob* 12704 32 Agitator 14510
15 Pointer* 12708 33 Fastener Package 15035-1
16 Spring Housing Assembly* 12702-2 34 Hopper Cover 14606-1
Parts List
1. SPREADER MODEL NUMBER
2. SPREADER NAME
3. PART NUMBER
4. NAME OF PART AS SHOWN
IF YOUR LOCAL
DISTRIBUTOR CANNOT
SUPPLY PARTS,
CONTACT:
*Parts included in hopper assembly
PART OF OUR SERVICE IS
PROVIDING REPLACEMENT PARTS.
Parts may be obtained through your
local distributor. Be sure to give:
23
22
21
18
25
26
27
31
20
30
28
29
17
32
14
3
4
6
33
4
13
10
8
9
7
15
12
11
16
19
1
1
5
2
24
34
Sherriff Amenity
The Pines Fordham Road
Newmarket Suffolk, CB8 7LG
tel [phone]
fax [phone]
www. sherriff-amenity.com
