Trotec PCPC 10-1100 User manual

TRT-BA-PCPS10-1100-TC220330TTRT03-005-EN
PCPS 10-1100
EN
ORIGINAL INSTRUCTIONS
COMPRESSOR

2 EN
compressor PCPS 10-1100
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................3
Information about the device................................................7
Transport and storage...........................................................8
Start-up..................................................................................9
Operation .............................................................................11
Errors and faults..................................................................13
Maintenance ........................................................................14
Disposal ...............................................................................14
Declaration of conformity ...................................................15
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Wear hearing protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
Other symbols used on the device:
Do not leave switched on
Information marked with this symbol indicates that the
device must be switched off immediately after use.
Compressor may start up without warning
Information marked with this symbol indicates that the
device may start up without warning when it is
switched on.
For indoor use only
Information marked with this symbol indicates that the
device was not designed for outdoor use.
Indication of the sound power level LWA indB
Information marked with this symbol indicates the
sound power level LWA indB.
Device conforms to protection classII
Information marked with this symbol indicates that the
device conforms to protection classII.
Device may start up without warning
This symbol indicates that the device may start up
without warning when it is switched on.
Device may start up without warning
This symbol indicates that there is a danger to the life
and health of persons when using the tool in the rain or
during a thunderstorm.
You can download the current version of the instructions via the
following link:
PCPS 10-1100
https://hub.trotec.com/?id=41525

EN 3
compressor PCPS 10-1100
Safety
General Power Tool Safety Warnings
Warning
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term power tool in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
General Power Tool Safety Warnings– Work area
safety
•Keep work area clean and well lit. Clutter or dark areas
invite accidents.
•Do not operate power tools in explosive atmosphere,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings– Electrical
safety
•Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
General Power Tool Safety Warnings– Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication.
A moment of inattention while operating power tools may
result in serious personal injury.
•Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used
for appropriate conditions will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.

4 EN
compressor PCPS 10-1100
General Power Tool Safety Warnings– Power tool
use and care
•Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the
power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
General Power Tool Safety Warnings– Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Device-specific safety warnings for compressors
and blow-out guns
• Do not use the device in potentially explosive rooms or
areas and do not install it there.
• Make sure that the suction side is kept free of dirt and
loose objects.
• Always keep the device clean, dry and free from oil or
greases.
• Do not use the device at temperatures below +5°C or
above +40°C.
•The device is not designed for continuous operation.
Too long operation may cause overheating. Over a period
of 10minutes, do not use the compressor for more than
1.5minutes in continuous operation.
•Prevent unintentional starting.
Make sure that the device is switched off before
connecting it to the mains. Always store the device in a
way that it does not rest on the on/off switch.
•Never direct the compressed-air jet towards yourself,
other people or animals.
•Make sure that no combustible gases or liquids are
sucked in during operation. They could ignite during
compression and cause fire or explosion.
•Accessories used with this compressor must be
designed for operating pressures corresponding to or
exceeding the maximum operating pressure stated on
the compressor.
Accessories designed for a lower operating pressure may
burst and cause chips to fly around.
•Pay attention to and comply with the maximum
permissible pressure of the items to be inflated.
Excessive pressure can lead to bursting and thus cause
personal injury or property damage.
•Before disconnecting the hose coupling, make sure
that the residual pressure in the system has been
released completely. Hold the coupling end of the hose
with your hand to prevent injuries caused by the whipping
hose when disconnecting the coupling.
•Protect the compressed-air hose from severe strains
such as kinks, restrictions, solvents and sharp edges.
A defective compressed-air line can cause whipping of the
compressed-air hose and lead to personal injury.
•Only use feed hoses with a stated maximum operating
pressure equal to or higher than that of the
compressor.
Feed hosed designed for a lower operating pressure could
burst leading to personal injury or property damage. You
should only use fabric- or wire-reinforced feed hoses for
compressors with a max. pressure above 7bar.

EN 5
compressor PCPS 10-1100
Do not touch hot device parts. Please note that the
compressor and the lines can reach high temperatures
during operation and cause burns even after use of the
device. Allow the device to cool down after use. Wear
protective gloves to protect yourself against burns.
Always wear safety glasses and a respiratory mask
when using the blow-out gun.
Stirred up or blown off particles can easily be inhaled or
cause eye injuries.
Wear appropriate hearing protection during
operation. The sound pressure level LpA of this device
amounts to 94.1dB(A). Without appropriate hearing
protection this can cause hearing loss.
•Only use accessories and feed hoses equipped with a
quick coupling.
Feed hoses connected otherwise may accidentally come
loose and cause injuries due to whipping.
•Do not directly breathe in the exhaust air coming from
the device. The exhaust air may contain contaminations
such as water, oil or metal particles from inside the
compressor. This can cause damages to health.
•Make sure that the used socket is connected to a
circuit provided with sufficient overvoltage protection!
Please refer to the technical data for the corresponding
information. If used out of doors, the circuit should be
secured by means of a residual current device (RCD) with a
release current of maximally 30mA.
•Ensure the secure footing and stable positioning of the
device. During operation the compressor shall always be
placed on its rubber feet or the bottom side. Never exceed
the inclination angle of 10° (vertical pos.) or 15° (horizontal
pos.).
Intended use
Only use the device PCPS 10-1100:
• for inflating car tyres, bicycle tyres, inflatable toys, sports
equipment and beach items
• for measuring the current pressure level of an inflatable
object
• for generating compressed air for pneumatic tools
whilst adhering to the technical data.
Info
Please note that the pressure gauge is not calibrated.
We recommend using the power tool with original Trotec
accessories.
Foreseeable misuse
The device PCPS 10-1100 is not intended for commercial use.
Do not use the device in continuous operation.
The device must not be used for inflating truck/tractor tyres or
other items the specified pressure of which exceeds the
maximum operating pressure of the compressor.
The device must not be used in the food sector or for
pharmaceutical and medical purposes.
Do not use the device for filling scuba tanks with compressed
air.
Any other use than the one described in the chapter "Intended
use" is regarded as reasonably foreseeable misuse.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Personal protective equipment
Wear hearing protection.
Excessive noise can lead to hearing loss.
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
Wear protective gloves.
They protect your hands from burns, crushing injuries
and skin abrasions.

6 EN
compressor PCPS 10-1100
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Caution
Keep a sufficient distance from heat sources.
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Note
The device is not suitable for continuous operation.
Over a period of 10minutes, do not use the device for
more than 1.5minutes in continuous operation. Allow
the device to cool down for the remaining time.
Should the device be overheating nonetheless, switch
the device off and disconnect it from the mains.
Allow the device to cool down sufficiently before
switching it back on.
Behaviour in the event of an emergency/ emergency
stop function
Emergency stop:
Removing the mains plug from the mains socket results in the
function of the device immediately stopping. In order to secure
the device against accidental switch-on, leave the mains plug
disconnected.
Behaviour in the event of an emergency:
1. Switch the device off.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.

EN 7
compressor PCPS 10-1100
Information about the device
Device description
The compressor PCPS 10-1100 is suited for inflating bicycle
tyres, car tyres, air mattresses as well as inflatable toys, sports
equipment and beach items such as footballs or dinghies.
The device is equipped with a 3m compressed-air hose with
quick coupling.
The supplied compressed-air gun with integrated pressure
gauge allows for control and precise dosage of the compressed
air. The deflation valve can be used to reduce excess
compressed air in a controlled manner.
Device depiction
1
2
4
3
19
20
18
5
6
7
8
9
16
17
10
11
12
13
14
15
No. Designation
1 Transport handle
2 On/off switch with protective cover
3 Storage compartment for compressed-air hose
4 Compressed-air hose with quick coupling
5 3-fold nozzle attachments
6 Ball needle
7 Universal adapter, small
8 Presta/Dunlop valve adapter
9 Nozzle adapter
10 Pressure gauge
11 Deflation valve
12 Compressed-air gun
13 Compressed-air connector
14 Trigger
15 Compressed-air gun hose
16 Blow-out adapter
17 Universal adapter, large
18 Air inlet
19 Storage compartment for power cable
20 Storage compartment for attachments
Scope of delivery
• 1 x Compressor
• 1 x Compressed-air gun with hose (preassembled)
• 1 x Presta/Dunlop valve adapter
• 1x Ball needle
• 1 x Nozzle adapter
• 1x Universal plastic adapter with 3nozzle attachments
• 1x Universal adapter, small
• 1x Universal adapter, large
• 1 x Blow-out adapter
• 1x Manual

8 EN
compressor PCPS 10-1100
Technical data
Parameter Value
Model PCPS 10-1100
Max. pressure 8bar (116psi)
Max. air flow rate 10.8 m3/h
Suction capacity approx. 180l/min
Idle speed 3550rpm
Weight 6.0 kg
Nominal voltage ~ 230 V / 50 Hz
Power consumption 1100 W
Nominal current 4.5 A
Operating mode S3 15 % 10 min*
Cable length 5 m
Hose length 3 m
Hose diameter 12 mm
Protection class II /
Sound values according to
ISO2151
Sound pressure level LpA 94.1 dB(A)
Uncertainty KpA 3 dB(A)
Sound power level LWA 95.1 dB(A)
Uncertainty KWA 1.94 dB(A)
*Operating mode S3 15% 10min: This compressor is
designed for intermittent operation. This means that over a
period of 10min the maximum switch-on time may be 15%
(1.5min).
Wear hearing protection.
Excessive noise can lead to hearing loss.
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down.
Storage
Before storing the device, proceed as follows:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down.
• Clean the device as described in the Maintenance chapter.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• Ambient temperature below 45°C
• the compressed-air hoses must not be kinked
• Protected from dust and direct sunlight

EN 9
compressor PCPS 10-1100
Start-up
Unpacking the device
• Take the device and the accessories out of the packaging.
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
• Check the contents for completeness and look for
damages.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
• Dispose of the packaging material according to the
national regulations.
Connecting the compressed-air gun
To connect the compressed-air gun to the compressor, please
proceed as follows:
üThe device is switched off.
1. Take the compressed-air hose(4) and the compressed-air
gun(12) out of the storage compartment(3) of the
compressor.
2. Insert the compressed-air connector(13) of the
compressed-air gun(12) into the quick coupling(21) of the
compressed-air hose(4) until the quick coupling clicks into
place.
ðThe compressed-air gun is connected.
13
21
Disconnecting the compressed-air gun
Warning
Risk of injury due to whipping compressed-air hose!
Disconnecting the compressed-air hose while the
system is still pressurized can cause uncontrolled
whipping of the compressed-air hose and lead to
personal injury.
To disconnect the compressed-air gun from the compressor,
please proceed as follows:
üThe device is switched off.
1. Pull the trigger(14) of the compressed-air gun(12) to
release residual pressure from the system.
2. Pull back the sleeve(28) at the quick coupling(21) of the
compressed-air hose(4). Hold the quick coupling steady in
your hand to prevent uncontrolled release.
28
3. Take the released compressed-air gun(12) out of the
quick coupling(21).
ðThe compressed-air gun is disconnected.
Exchanging the valve adapter
Depending on the field of application, the following valve
adapters can be connected to the hose(15) of the
compressed-air gun.
No. Designation Description
6 Ball needle To be used with footballs or the like
7 Universal adapter,
small
To be used with air mattresses or the
like
8 Presta/Dunlop
valve adapter
To be used with bicycle tyres
17 Universal adapter,
large
To be used with air mattresses or the
like

10 EN
compressor PCPS 10-1100
If you want to use the compressed-air gun with a Schrader
valve, the compressed-air gun is already fully assembled and
can be directly connected using the quick-release lever(22).
If you want to use one of the valve adapters(6, 7, 8, 17), please
proceed with the following steps:
üThe device is switched off.
1. Push the quick-release lever(22) at the hose(15) of the
compressed-air gun and insert the desired valve
adapter(6, 7, 8, 17).
17
678
22
Exchanging the nozzle
To blow up inflatable items, you can connect the following
nozzles to the compressed-air hose via the supplied nozzle
adapter(9).
No. Description
23 To be used with inflatables fitted with a vent valve
24 To be used with inflatables fitted with a screw-on valve
25 To be used with standard valves with an inner diameter
of 8mm or more
To connect one of the nozzles via the nozzle adapter, please
proceed as follows:
üThe device is switched off.
1. Push the quick-release lever(22) at the hose(15) of the
compressed-air gun and insert the nozzle adapter(9).
2. Attach the desired nozzle(23, 24, 25) to the nozzle
adapter(9).
23 9
24
25
Connecting the blow-out adapter
To remove dust and dirt in poorly accessible locations, use the
blow-out adapter(16).
To connect the blow-out adapter(16), please proceed as
follows:
üThe device is switched off.
1. If the compressed-air gun is already connected to the
compressor, disconnect it from the compressor first (see
chapter Disconnecting the compressed-air gun).
2. Use an open-end wrench (SW14) to disconnect the
hose(15) from the compressed-air gun(12) by unscrewing
it counter-clockwise.
3. Fit the blow-out adapter(16) into the internal thread and
fasten it clockwise.
4. Connect the compressed-air gun to the compressor again
(see chapter Connecting the compressed-air gun).

EN 11
compressor PCPS 10-1100
Operation
Tips and notes on handling the compressor
General information:
• Keep the venting slots clear to prevent the motor from
overheating.
• The device is not suitable for continuous operation. Over a
period of 10minutes, do not use the device for more than
1.5minutes in continuous operation. Allow the device to
cool down for the remaining time.
• Only use intact, flawless valve adapters.
• Do not use the device at temperatures below+5°C, since
the motor becomes sluggish and can be difficult or
impossible to start up at these temperatures.
Switching on the compressor
Info
If you only want to check or reduce the pressure e.g. in
a car tyre, it is not necessary to switch the device on.
1. Connect the device to the mains.
2. Switch the device on by setting the on/off switch(2) to
position I.
2
Switching off the compressor
1. Switch the device off by setting the on/off switch(2) to
position 0.
2
2. Make sure that the system is depressurized by pulling the
trigger(14) of the compressed-air gun(12) after
switch-off.
3. Hold onto the mains plug while pulling the power cable out
of the mains socket.
Pressure gauge indication
1
2
3
4
5
6
8
9
10
11
12
0
7
20
40
60
80 100
140
160
170
26
28
27
No. Designation Meaning
26 Indicator scale for psi Measures the pressure in psi.
27 Indicator scale for bar Measures the pressure in bar.
28 Indicator needle Indicates the current pressure
value in psi and bar.

12 EN
compressor PCPS 10-1100
Checking the pressure
1. Connect the compressed-air gun(12) to the compressor
(see chapter Connecting the compressed-air gun).
2. Check whether a valve adapter is required for the planned
activity and, if so, connect it.
3. Connect the compressed-air gun directly to the item to be
inflated by means of the mounted valve adapter.
ðThe current pressure of the connected item will be
indicated on the pressure gauge(10).

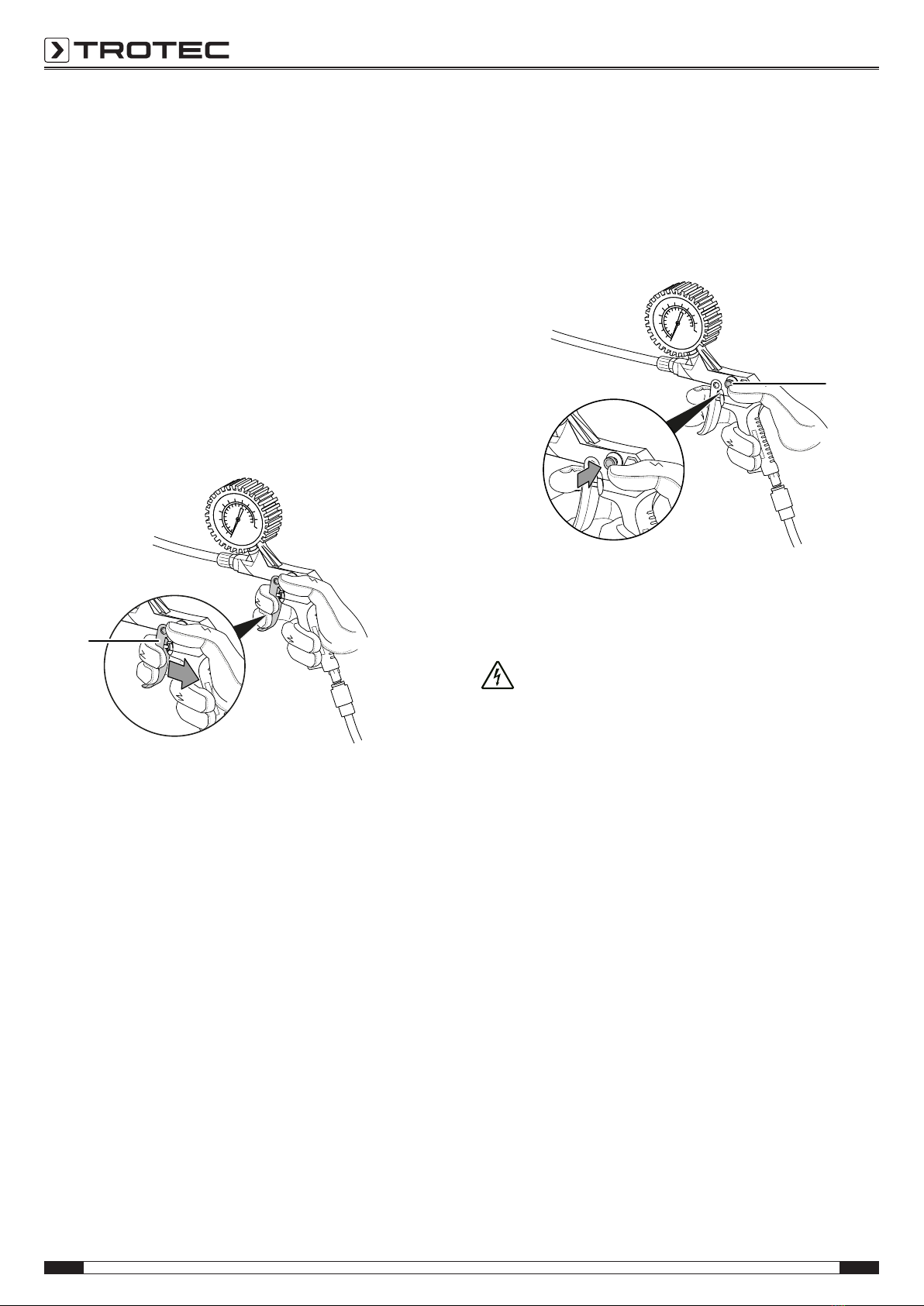

Inflating
1. Switch the device on by setting the on/off switch(2) to
position I.
ðThe compressor starts to build up pressure immediately
and is ready for use.
2. Pull and hold the trigger(14) until the desired pressure has
been reached on the pressure gauge(10).
14
3. Switch the device off by setting the on/off switch(2) to
position 0.
Deflating
If the existing pressure is too high or if the desired pressure was
exceeded during inflation, the excess air can be released. To do
so, please proceed as follows:
1. Press and hold the deflation valve(11) until the pressure
has been reduced to the desired value displayed on the
pressure gauge(10).
11
2. Disconnect the quick-release lever or any adapter used
from the inflated item.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• If required, allow the device to cool down.
• Disconnect any adapters used from the compressed-air
gun(12).
• Disconnect the compressed-air gun(12) from the
compressor (see chapter Disconnecting the
compressed-air gun).
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.

EN 13
compressor PCPS 10-1100
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Troubleshooting tasks which require the housing to be opened
must only be carried out by an authorized specialist electrical
company or by Trotec.
Light smoke or odour is emitted during the first use:
• This is not a fault. These phenomena disappear after a
brief runtime.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damage. If you
notice damages, do not try to take the device back into
operation.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Check the on-site fusing.
• Check the outside temperature. At temperatures
below+5°C, the motor becomes sluggish and can be
difficult or impossible to start up. Do not use the device at
an temperatures below+5°C.
The device is running but there is no apparent inflation/
The pressure gauge shows no pressure:
• Check the valve adapter used for proper fit. Air might be
escaping at the valve of the item to be inflated.
• Let the device run for a moment. The pressure will only be
shown on the pressure gauge after the pressure inside the
item to be inflated has exceeded the ambient pressure.
• Check the item to be inflated for leaks.
• Check the compressed-air gun for proper functioning, and
replace it if necessary.
The device is running but there is no pressure build-up:
• The check valve is leaky. Have the check valve inspected
and, if necessary, replaced by a specialist workshop.
• Check the seals. Have broken seals replaced by a
specialist workshop.
The device is running but the connected accessories do not
work:
• Check the accessories for proper functioning. Replace
defective accessories.
• Check the compressed-air hose and the quick coupling,
and have them replaced by a specialist workshop if
necessary.
The device becomes hot:
Note
The device is not suitable for continuous operation.
Over a period of 10minutes, do not use the device for
more than 1.5minutes in continuous operation. Allow
the device to cool down for the remaining time.
Should the device be overheating nonetheless, switch
the device off and disconnect it from the mains.
Allow the device to cool down sufficiently before
switching it back on.
• Check whether the device is suitable for the tasks to be
carried out.
• Keep the venting slots or air inlet and outlet clear to
prevent the motor from overheating.
Note
Wait for at least 10minutes after maintenance and
repair work. Only then switch the device back on.
The device still does not operate correctly after these
checks:
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.

14 EN
compressor PCPS 10-1100
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
Warning of electrical voltage
Maintenance tasks which require the housing to be
opened must only be carried out by authorised
specialist companies or by Trotec.
• Particularly during cleaning and maintenance, make sure
that there is no residual pressure left in the system. Bleed
the system by pulling the trigger of the connected
compressed-air gun.
Wear hearing protection.
The sound pressure level LpA of this device amounts to
94.1dB(A). Wear hearing protection during all
maintenance activities requiring the device to be
switched on.
Notes on maintenance
Inside the device, there are no parts that need to be maintained
or lubricated by the user.
Cleaning
The device should be cleaned before and after each use.
Note
The device does not have to be lubricated after
cleaning.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
• Clean the device with a soft, damp and lint-free cloth.
Make sure that no moisture enters the housing. Protect
electrical components from moisture. Do not use any
aggressive cleaning agents such as cleaning sprays,
solvents, alcohol-based or abrasive cleaners to dampen
the cloth.
• Dry the device with a soft, lint-free cloth.
• Dry the bits with a soft, lint-free cloth.
• Keep the ventilation openings free from dust deposits to
prevent overheating of the motor.
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. You can also find out about other return options
that apply for many EU countries on the website
https://hub.trotec.com/?id=45090. Otherwise, please contact an
official recycling centre for electronic and electrical equipment
authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Only for United Kingdom
According to Waste Electrical and Electronic Equipment
Regulations 2013 (2013/3113) power tools that are no longer
usable must be collected separately and disposed of in an
environmentally friendly manner.

EN 15
compressor PCPS 10-1100
Declaration of conformity
Declaration of conformity in accordance with the ECMachinery
Directive 2006/42/EC, AnnexII, Part1, SectionA
We– Trotec GmbH– declare in sole responsibility that the
product designated below was developed, constructed and
produced in compliance with the requirements of the
ECMachinery Directive in the version 2006/42/EC.
Product model/ Product: PCPS 10-1100
Product type: compressor
Year of manufacture as of: 2022
Guaranteed
sound power level LWA:97dB(A)
Relevant EUdirectives:
• 2005/88/EC: 14 Dec 2005
• 2011/65/EU: 01/07/2011
• 2014/30/EU: 29/03/2014
Applied harmonised standards:
• EN 1012-1:2010
• EN 55014-1:2017/A11:2020
• EN 55014-2:1997/A2:2008
• EN61000-3-2:2014
• EN 61000-3-3:2013
• EN 62841-1:2015
Applied national standards and technical specifications:
• EN IEC 55014-1:2021
• EN 61000-3-3:2013/A1:2019
• EN IEC 55014-2:2021
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 30.03.2022
Detlef von der Lieck, Managing Director

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
