Trotec PRDS 10-20V User manual

TRT-BA-PRDS10-20V-TC-002-EN
PRDS 10-20V
EN
OPERATING MANUAL
CORDLESS ROTARY HAMMER

1 EN
Operating manual – cordless rotary hammer PRDS 10-20V
Table of contents
Notes regarding the operating manual.................................1
Safety .....................................................................................2
Information about the device................................................6
Transport and storage...........................................................8
Start-up..................................................................................9
Operation .............................................................................12
Available accessories..........................................................14
Errors and faults..................................................................15
Maintenance ........................................................................16
Disposal ...............................................................................16

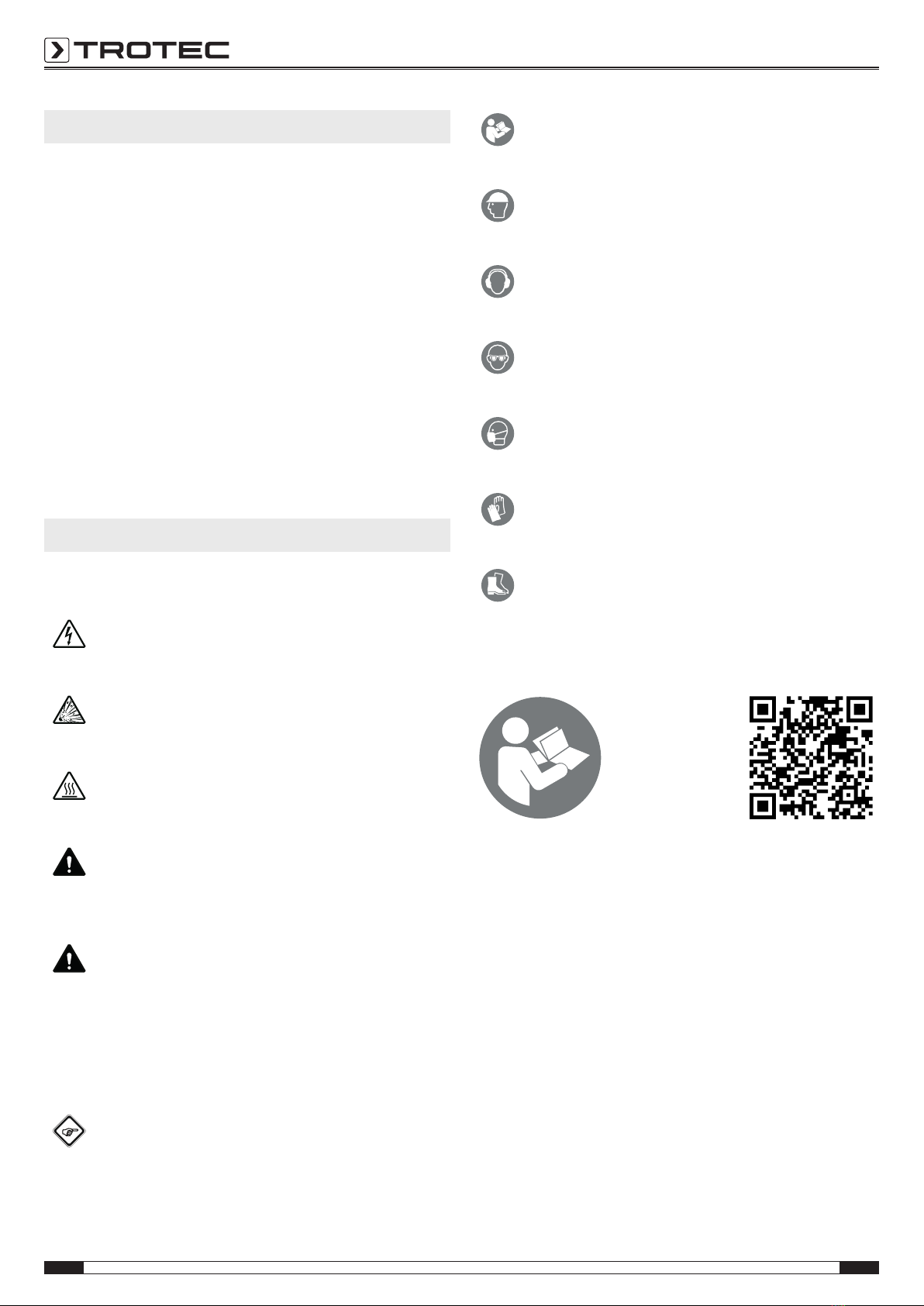

Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of explosive substances
This symbol indicates dangers to the life and health of
persons due to potentially explosive substances.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Notice
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
Wear head protection
Information marked with this symbol indicates that you
should wear protective headgear.
Wear ear protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
Wear foot protection
Information marked with this symbol indicates that you
should wear safety boots.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
PRDS 10-20V
https://hub.trotec.com/?id=41418

EN 2
Operating manual – cordless rotary hammer PRDS 10-20V
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
The term power tool used in the safety warnings refers to both
mains-operated and battery-powered electric tools (with/
without power cable).
General Power Tool Safety Warnings – Work area
safety
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings – Electrical
safety
•Power tool or power adapter plugs must match the
outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce
risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
• Hold power tool by insulated gripping surfaces when
performing an operation where the cutting accessory
may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give the
operator an electric shock.
General Power Tool Safety Warnings – Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as protective mask, non-skid safety shoes, hard
hat, hearing protection or tight-fitting protective
clothing used for appropriate conditions will
reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
• Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.

3 EN
Operating manual – cordless rotary hammer PRDS 10-20V
General Power Tool Safety Warnings – Power tool
use and care
•Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and / or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
General Power Tool Safety Warnings – Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
General Battery Pack / Charger Safety Warnings
•Use power tools only with specifically designated
battery packs. Use of any other battery packs may create
a risk of injury and fire.
•When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
•Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
•Do not charge other battery packs. The charger is only
suitable for use with the supplied battery pack and with
the voltages specified in the technical data. Otherwise,
there is a risk of fire and explosion.
•Under abusive conditions, liquid may be ejected from
the battery. Avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
•In case of damage and improper use of the battery,
vapours may be emitted. Provide for fresh air and seek
medical help in case of complaints. The vapours can
irritate the respiratory system.
•Do not open the battery. There is danger of a short
circuit.
•Do not short-circuit the battery. There is danger of
explosion.
•Batteries must not be exposed to mechanical impacts.
•Protect electrical parts against moisture. To prevent an
electric shock, never immerse them in water or other
liquids during cleaning or operation. Never hold the
charger under running water. Please observe the
instructions for cleaning and maintenance.
•The charger is only suited for indoor use.
•Keep the charger clean. Contamination entails a risk of
electric shock.
•Do not operate the charger on highly combustible
ground (e.g. paper, textiles etc.) or in an inflammable
environment. The heat generated by the charger during
charging entails a risk of fire.
•Only use the charger for charging the battery. The
charger must not be used as power supply for the power
tool.

EN 4
Operating manual – cordless rotary hammer PRDS 10-20V
Device-specific safety warnings for rotary hammers
Wear eye and mouth protection when processing
materials that may contain harmful substances (e.g.
asbestos).
•Hold the device by its insulated gripping surfaces
when performing an operation where the insertion tool
may contact hidden wiring or its own cord. Cutting a
"live" wire may make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
•Use appropriate detection equipment to track down
concealed supply lines or consult the local utility
companies. Contact with electrical lines may result in fire
and electric shock. Damaging a gas line may lead to an
explosion. Penetrating a water line causes property
damage and may cause an electric shock.
•Vibrations can be harmful to the human hand-arm
system. Keep the vibration exposure time to a minimum.
•During operation hold onto the power tool with both
hands. Make sure that you stand firmly on the ground. It is
safer to handle the power tool with two hands.
•Secure the workpiece. The grip of tensioning devices or a
vice is more secure than holding the workpiece only by
hand.
Protect yourself and others present from injuries
caused by splintering and flying bits and pieces.
Wear a hard hat, eye protection, a dust mask and safety
boots. If necessary, put up partition panels as shield
against breaking off debris.
•Before starting to work, always make sure that the
insertion tool is firmly clamped inside the drill chuck.
Insertion tools that are not locked in place could be
catapulted out of the power tool upon switch-on and lead
to injuries.
•Before switching on the power tool, ensure that the
insertion tool can move freely. If the device is switched
on with a jammed insertion tool, the resulting forces can
be extreme causing the device to kick out sideways.
•Immediately switch off the power tool if the insertion
tool gets jammed. The power tool can lash out to the side
owing to the forces that build up consequently.
•Regularly check the drill chuck for wear or damage.
•Only start a percussive power tool while holding it
against a workpiece (wall, ceiling, etc.).
•Wait until the power tool has come to a standstill,
before putting it down.
•For any work on the device, as well as during transport
or storage, set the switch for the rotational direction to
centre position (locked). This prevents unintentional
starting of the power tool.
•Processing metal creates flying sparks. Make sure that
nobody's safety is jeopardized and that there are no
combustible materials near the working area. Fire hazard!
•Avoid drilling in lead paint or other harmful materials.
•Always keep the power cable behind the device.
•Make sure that the venting slots are not covered
during operation. Do not insert any objects into the
venting slots.
•The device must always be clean, dry and free from oil
or greases.
Intended use
Only use the device PRDS 10-20V:
• for screwing in and loosening screws,
• for drilling in wood, plastic, ceramic and metal,
• for hammer drilling in brick, concrete and rock
whilst adhering to the technical data.
We recommend using the power tool with original Trotec
accessories.
Improper use
The device is not intended for drilling in natural stone.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.

5 EN
Operating manual – cordless rotary hammer PRDS 10-20V
Personal protective equipment
Wear protective headgear.
With it you protect your head from splintering, falling
and flying pieces which could cause injuries.
Wear hearing protection.
Excessive noise can lead to hearing loss.
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
Wear protective gloves.
They protect your hands from burns, crushing injuries
and skin abrasions.
Wear tight-fitting protective clothing.
This protects you from the draw-in and entanglement
hazard posed by rotating parts.
Wear safety boots.
They protect your feet from splintering, falling and
flying pieces which could cause injuries.
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket and the battery from the device!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning of explosive substances
Do not expose the battery to temperatures above
45 °C! Do not let the battery come into contact with
water or fire! Avoid direct sunlight and moisture. There
is a risk of explosion!
Warning of hot surface
The insertion tool might still be hot after the
application. Burn hazard when touching the insertion
tool.
Do not touch the insertion tool bare-handed!
Wear protective gloves!
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Warning
Do not process materials containing asbestos.
Asbestos is considered carcinogenic.
Warning
Make sure not to hit power, gas or water lines when
working with a power tool.
If necessary, use a pipe detector to check the wall you
want to drill in or slit open.
Warning
Risk of injuries caused by flying parts or bursting tool
heads.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The tool holder must be firmly locked in place before
switching the device on, for an insufficiently or
incorrectly clamped accessory could be catapulted out
of the tool holder uncontrollably upon switch-on.

EN 6
Operating manual – cordless rotary hammer PRDS 10-20V
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
Caution
Keep a sufficient distance from heat sources.
Notice
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Notice
Only change the rotational direction when the device is
at a standstill! Otherwise the device might be
damaged.
Notice
Only actuate the function selector switch when the
device is at a standstill! Otherwise the device might be
damaged.
Information about the device
Device description
The cordless rotary hammer PRDS 10-20V comes equipped with
a hammer mechanism for high impact power and is suitable for
mobile use.
The infinitely variable impact rate and speed control allows you
to optimally adjust the exertion of force to every application and
material.
The SDS-plus system tool holder makes it possible to exchange
the insertion tools easily and without the need for further tools.
An optionally installable SDS bit adapter allows the use of
standard accessories.
The device comes with a drilling setting and a hammer drilling
setting. A function selector switch permits the simple switch-
over between functions.
The integrated LED work lamp offers an improved illumination of
the workpiece or working surface.
The battery comes with its own battery level indication. As a
result you can check the current charging status without having
to connect it to the device.

7 EN
Operating manual – cordless rotary hammer PRDS 10-20V
Device depiction
12
5
3
413
14
6b
6
8
7
9
10
12
11
6a
No. Designation
1 SDS-plus system tool holder
2 Function selector switch
3 Clockwise/counter-clockwise rotation switch, lock
4 On/off switch
5 Handle
6 Battery
6a Battery level indication
6b Battery holder
7 SDS drill bit
8 Bits
9 HSS drill bit
10 SDS bit adapter
11 Extension with magnetic bit holder
12 Quick charger
13 LED work lamp
14 Dust protection cap
Scope of delivery
• 1 x Cordless rotary hammer PRDS 10-20V
• 1 x Rechargeable battery
• 1 x Quick charger
• 3 x SDS drill bits (150 mm, Ø 6/8/10 mm)
• 3 x HSS drill bits Ø 5/6/8 mm with hexagon retainer
• 4 x 50 mm bits for S2 material (5.5/PH1/PZ1/PZ2)
• 1 x SDS bit adapter
• 1 x Extension with magnetic bit holder
• 1 x Transport case
• 1x manual

EN 8
Operating manual – cordless rotary hammer PRDS 10-20V
Technical data
Parameter Value
Model PRDS10-20V
Nominal voltage 20 V
Idle speed 0 – 900 rpm
Impact frequency 0 – 5000 bpm
Impact energy 1 J
Max. drilling diameter
Wood
Metal
Concrete
16 mm
8 mm
10 mm
Protection class III /
III
Weight 1.5 kg
Battery PRDS 10-20V DC
Type Li-ion
Nominal voltage 20 V
Capacity 2.0Ah
Quick charger PRDS 10-20V AC
Input
Nominal voltage 230 – 240V/ 50Hz
Power consumption 65 W
Output
Nominal voltage 21.5 V
Charging current 2.4 A
Charging time 1 h
Cable length 1.5 m
Protection class II /
Vibration information according to EN 60745
Total vibration emission value:
Handle
Vibration emission value ah(HD)
Uncertainty K
6.314 m/s²
1.5 m/s²
Additional handle
Vibration emission value ah(HD)
Uncertainty K
4.580 m/s²
1.5 m/s²
Sound values according to EN60745
Sound pressure level LpA 82.38 dB(A)
Sound power level LWA 93.38 dB(A)
Uncertainty K 3 dB(A)
Wear hearing protection.
Excessive noise can lead to hearing loss.
Information on noise and vibration:
• The vibration level specified in these instructions was
determined by means of a measuring method standardized
in EN60745 and can be used for a device comparison. The
specified vibration emission value may also be used for a
preliminary assessment of the exposure.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
• The vibration level will change depending on the
application of the power tool and may in some cases differ
from the value specified in these instructions. The vibration
load may be underestimated if the power tool is used
regularly in such a way. For a precise estimation of the
vibration load during a certain work period, it is also
important to consider the periods during which the device
is switched off, or is running but not actually employed.
This can reduce the vibration load over the entire work
period significantly.
Transport and storage
Notice
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
Before transporting the device, observe the following:
• Switch off the device by setting the switch for clockwise/
counter-clockwise rotation to centre position(lock).
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• Allow the device to cool down.
• Remove the battery from the device.
• Remove the tool from the tool holder.
The supplied Li-ion batteries are subjects to the requirements of
dangerous goods legislation.

9 EN
Operating manual – cordless rotary hammer PRDS 10-20V
Observe the following when transporting or shipping Li-ion
batteries:
• The user may transport the batteries by road without any
additional requirements.
• If transport is carried out by third parties (e.g. air transport
or forwarding company), special requirements as to
packaging and labelling must be observed. This includes
consulting a dangerous goods specialist when preparing
the package.
– Only ship batteries if their housing is undamaged.
– Mask open terminals with tape and pack the battery in
a way that it cannot move inside the packaging.
– Please also observe any other national regulations.
Storage
Before storing the device, observe the following:
• Switch off the device by setting the switch for clockwise/
counter-clockwise rotation to centre position(lock).
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• Allow the device to cool down.
• Remove the battery from the device.
• Remove the tool from the tool holder.
• Clean the device as described in the Maintenance chapter.
• For storing the device, use the transport case included in
the scope of delivery in order to protect the device from
external influences.
• Do not store Li-ion batteries which are completely
discharged. Storing discharged batteries can lead to a
deep discharge and thus damage the battery.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• ambient temperature below 40 °C
• protected from dust and direct sunlight inside the transport
case
Start-up
Unpacking the device
• Take the transport case out of the packaging.
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
• Check the contents of the transport case for completeness
and look for damages.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
• Dispose of the packaging material according to the
national regulations.
Charging the battery
Notice
The battery can be damaged in case of improper
charging.
Remove the charger's mains plug before inserting or
removing the battery.
Never charge the battery at ambient temperatures
below 10°C or above 40°C.
The battery is partially charged upon delivery to avoid damage
to the battery caused by a deep discharge.
Prior to initial start-up and when the battery is low (only the red
LED in the battery level indication(6a) is illuminated), the
battery should be charged. To do so, please proceed as follows:
1. Slide the battery(6) into the quick charger(12) upside
down.
15
16
1 h
12
6
6a

EN 10
Operating manual – cordless rotary hammer PRDS 10-20V
2. Insert the mains plug of the quick charger(12) into a
properly fused mains socket.
ðThe red battery LED(16) lights up.
ðCharging requires approx. one hour.
3. Wait until the red battery LED(16) goes off and the green
battery LED(15) lights up.
ðThe battery(6) is fully charged.
4. Hold onto the mains plug while pulling the power cable of
the quick charger(12) out of the mains socket.
ðThe battery(6) and the quick charger(12) may have
become warm during charging.
Allow the battery(6) to cool down to room temperature.
5. Remove the battery(6) from the quick charger(12).

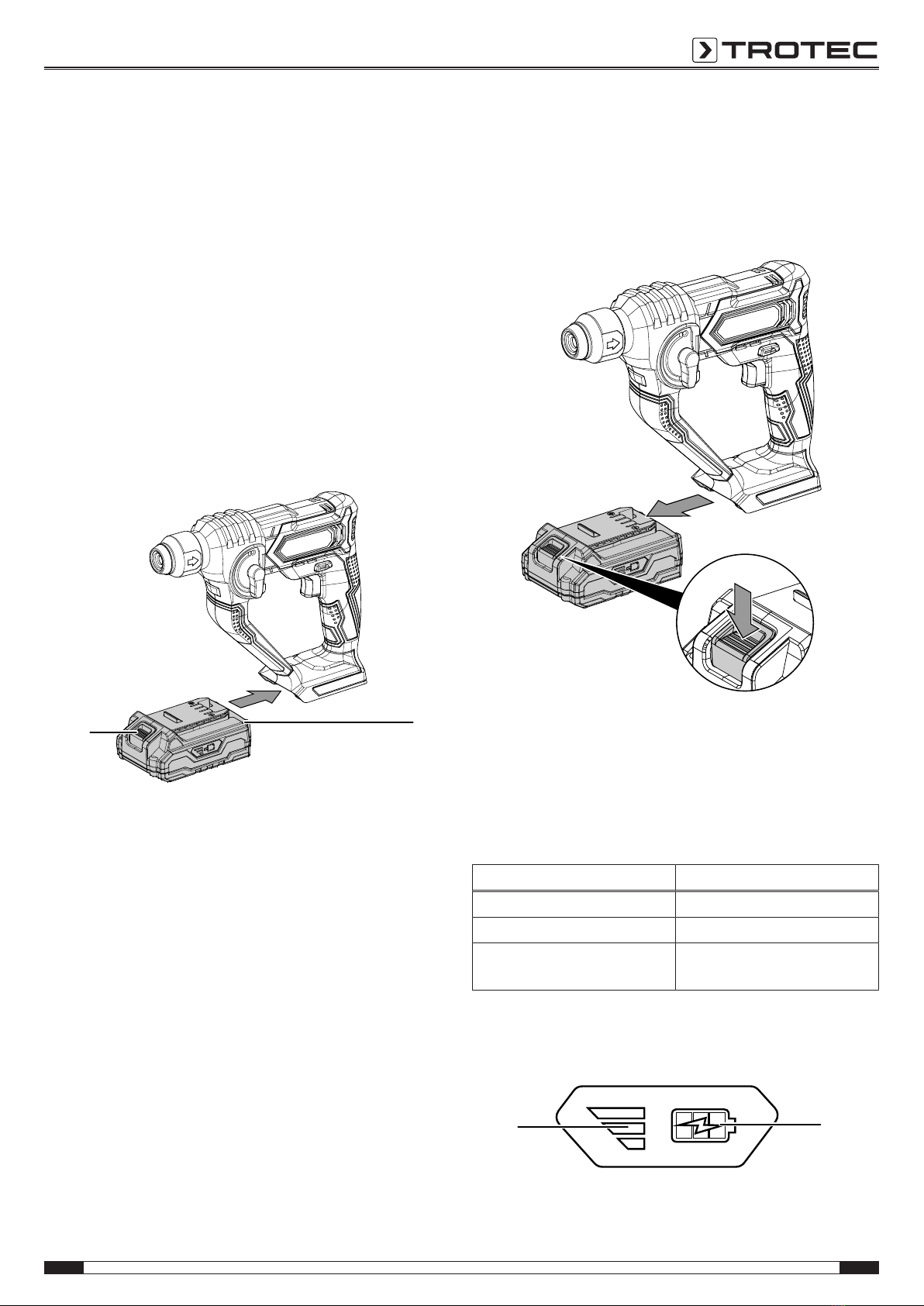

Inserting the battery
1. Set the switch for clockwise/counter-clockwise rotation(3)
to centre position(lock).
2. Slide the battery(6) onto the device until it locks in place.
6
17
Removing the battery
1. Set the switch for clockwise/counter-clockwise rotation(3)
to centre position(lock).
2. Detach the battery(6) from the device by pressing and
holding the unlocking button(17; I.) and pulling the battery
off the device (II.).
I.
II.
3. If required, charge the battery(6) as described in the
section Charging the battery.
Checking the battery status
The battery comes with an integrated battery level indication.
The battery status is displayed as follows by the three LEDs of
the battery level indication(6a):
LED colour Meaning
Green – Orange – Red maximum charge / power
Orange – Red medium charge / power
Red weak charge – Recharge the
battery.
1. Press on the battery icon(18) on the battery(6).
ðYou can read the battery status from the battery level
indication(6a).
6a 18

11 EN
Operating manual – cordless rotary hammer PRDS 10-20V
Tool change
The device comes equipped with an SDS-plus system tool
holder.
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket and the battery from the device!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Please proceed as follows to remove or insert tools:
1. Set the switch for clockwise/counter-clockwise rotation(3)
to centre position(lock).
2. Push the tool holder(1) to the rear and hold it there.
3. Insert the tool (e.g. SDS drill bit, 7) into the tool holder(1).
1
7
4. Let go of the tool holder(1).
5. Check the tool for tight fit.
The SDS adapter(10) contained in the scope of delivery allows
you to use standard bits. In addition, you can fit the SDS adapter
with the extension with magnetic bit holder(11) contained in the
scope of delivery.
Please proceed as follows to use the SDS bit adapter:
1. Push the tool holder(1) to the rear and hold it there.
2. Insert the SDS adapter(10) into the tool holder.
19 10
19
3. Let go of the tool holder(1).
4. Check the SDS adapter(10) for tight fit.
5. Pull the lock(19) of the SDS adapter to the rear and insert
a bit (e.g. HSS drill bit, 9). Alternatively, you can insert the
extension with magnetic bit holder(11).
6. Let go of the SDS adapter lock(19).
ðThe tool holder of the SDS adapter(10) is locked.
7. Make sure that the tool is attached securely.
8. Push the lock(19) of the SDS adapter to the rear to remove
the bit or the extension with magnetic bit holder(11).
Info
The SDS adapter and the extension with magnetic bit
holder allow you to use commercially available bits.

EN 12
Operating manual – cordless rotary hammer PRDS 10-20V
Operation
Tips and notes on handling the cordless rotary hammer
General information:
• The centre position of the clockwise/counter-clockwise
rotationswitch (lock) is suited for work breaks or (drill) bit
exchange.
Drilling in general:
• Take short breaks regularly during drilling. When doing so,
take the drill bit out of the drill hole so that the drill bit can
cool down.
• Secure the workpiece in a tensioning device or vice.
• Select the speed depending on the material characteristics
and the size of the drill bit:
– High speed for small drilling diameter or soft material
– Low speed for large drilling diameter or hard material
• Use a suitable aid to mark the intended location of the drill
hole.
• Select a low speed for spudding.
Drilling in metal:
• Use suitable metal drill bits (e.g. drill bits made of high-
speed steel (HSS)).
• For larger drilling diameters, use a smaller drill bit for pre-
drilling.
• To achieve ideal results, the drill bit should be cooled with
a suitable lubricant.
• Metal drill bits may also be used for drilling in plastic.
Drilling in wood:
• Use drill bits suitable for wood.
• Place a block of wood under the workpiece or drill in from
both sides so that the wood cannot break off when it is
being drilled through.
• Use a wood drill bit with centring tip. For deep drill holes,
use an auger bit; for large drilling diameters, use a
Forstner bit.
Hammer drilling in masonry / bricks:
• Use a drill bit suitable for masonry / bricks.
Screwing:
• When using screwdriver bits, always use a universal bit
holder. Only use screwdriver bits that are suitable for the
screw head.
Switching the device on and off
Wear your personal protective equipment when working with
the device.
1. Check whether the fixed tool is suitable for the intended
application.
2. Check whether the workpiece is secured and the worktop
prepared correspondingly.
3. Check whether the correct rotational direction is selected.
4. If you work with activated impact mechanism, press the
tool against the workpiece.
5. Hold onto the device with both hands.
6. Press the on/off switch(4) and hold it during operation.
You can control the speed by pressing the on/off
switch(4): press lightly for a low speed; press firmly for a
high speed.
ðThe device operates with the previously selected
settings.
4

13 EN
Operating manual – cordless rotary hammer PRDS 10-20V
7. Let go of the on/off switch(4) to stop the device.
4
8. Wait until the device has stopped before putting it away.
Selecting the operating mode
The function selector switch(2) is used to select drilling or
hammer drilling.
Notice
Only actuate the function selector switch when the
device is at a standstill! Otherwise the device might be
damaged.
1. Set the function selector switch(2) to the desired position.
2
ðOperating mode: Drilling
ðOperating mode: Hammer drilling

EN 14
Operating manual – cordless rotary hammer PRDS 10-20V

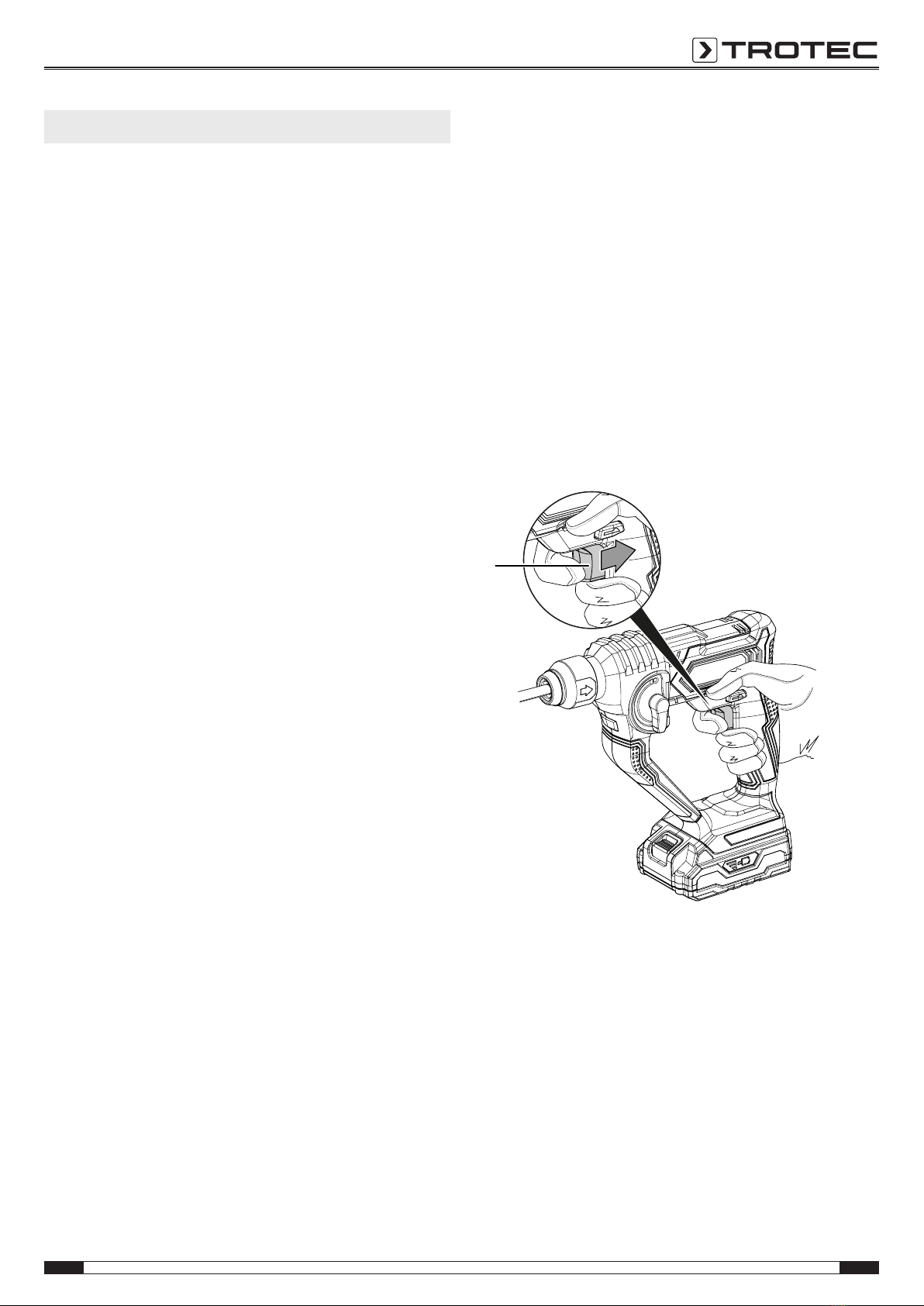

Selecting the rotational direction
Notice
Only change the rotational direction when the device is
at a standstill! Otherwise the device might be
damaged.
The motor's rotational direction can be changed by means of
the switch for clockwise/counter-clockwise rotation(3).
1. Press in the switch for clockwise/counter-clockwise
rotation(3) on the side to which the motor shall rotate.
I.
II.
3
I. Unscrewing II. Screwing in
2. Carry out a short test run to see whether the rotational
direction matches the intended application. A wrong
rotational direction may damage the tool and / or
workpiece.
3. If required, set the switch for clockwise/counter-clockwise
rotation(3) to centre position (lock) to block the on/off
switch(4).
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Set the switch for clockwise/counter-clockwise rotation(3)
to centre position(lock).
• Hold onto the mains plug while pulling the power cable of
the charger out of the mains socket.
• If required, allow the device to cool down.
• Remove the battery from the device (see Start-up chapter).
• Remove the tool from the device (see Start-up chapter).
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Available accessories
Warning
Only use accessories and additional equipment
specified in the operating manual.
Using insertion tools or accessories other than those
specified in the operating manual may cause a risk of
injury.
Accessories Article number
SDS drill bit and chisel set, 11-piece 6.205.001.101
Screw bit set, 32-piece 6.200.001.001
Spare battery Multiflex2.0Ah 20V 6.200.000.303

15 EN
Operating manual – cordless rotary hammer PRDS 10-20V
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Troubleshooting tasks which require the housing to be opened
must only be carried out by an authorized specialist electrical
company or by Trotec.
Slight smoke or odour are emitted during first use:
• This is not a fault. These phenomena disappear after a
brief runtime.
The battery does not charge:
• Check whether the battery is correctly connected to the
quick charger.
Slide the battery into the quick charger in a way that the
battery terminals engage in the quick charger. The battery
must lock in place in the quick charger.
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the fuse (home).
• Check the quick charger for damages. Should the quick
charger be damaged, stop using it. Contact the Trotec
customer service.
• Check the battery terminals for dirt. Remove any dirt.
• The battery might be defective and have to be replaced.
Only use batteries of the same type.
The device does not start:
• The battery power might be too low. Recharge the battery.
• Check whether the battery is correctly connected to the
device.
Slide the battery onto the device in a way that the battery
terminals engage. The battery must lock in place in the
device.
• Check the position of the clockwise/counter-clockwise
rotation switch. The switch must be pressed in all the way.
If the clockwise/counter-clockwise rotation switch is in
centre position (lock), the on/off switch is blocked.
• Check the battery terminals for dirt. Remove any dirt.
Info
Wait for at least 10 minutes before switching the
device back on.
The on/off switch cannot be pressed:
• Check whether the clockwise/counter-clockwise rotation
switch is in centre position (lock). Set the desired rotational
direction to unlock the tool.
The drill bit does not penetrate / hardly penetrates the
material:
• Check whether the correct operating mode is selected. The
setting for drilling or hammer drilling
should be
selected.
• Check whether the correct drill bit is selected.
• Check whether the device is set to counter-clockwise
rotation. For drilling, it is necessary to switch over to
clockwise rotation.
The device becomes hot:
• Check whether the tool is suitable for the tasks to be
carried out.
• Keep the venting slots clear to prevent the motor from
overheating.
• Select a lower speed.
Info
Wait for at least 10 minutes before switching the
device back on.
Notice
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to an authorized specialist electrical company or to
Trotec for repair.

EN 16
Operating manual – cordless rotary hammer PRDS 10-20V
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug or the battery with wet or
damp hands.
• Switch off the device.
• Allow the device to cool down completely.
• Remove the battery from the device.
Warning of electrical voltage
Maintenance tasks which require the housing to be
opened must only be carried out by authorised
specialist companies or by Trotec.
Notes on maintenance
Inside the device, there are no parts that need to be maintained
or lubricated by the user.
Cleaning
The device should be cleaned before and after each use.
Notice
The device does not have to be lubricated after
cleaning.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
• Clean the device with a soft, damp and lint-free cloth.
Ensure that no moisture enters the housing. Protect
electrical components from moisture. Do not use any
aggressive cleaning agents such as cleaning sprays,
solvents, alcohol-based or abrasive cleaners to dampen
the cloth.
• Dry the device with a soft, lint-free cloth.
• Dry the bits with a soft, lint-free cloth.
• Remove any drilling dust and, if applicable, wood chips
from the SDS tool holder.
• Keep the connecting terminals on the device and charger
clean.
• Clean the dust protection cap(14). For easier cleaning, you
can remove the dust cap from the device.
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Li-Ion
In the European Union, batteries and accumulators must not be
treated as domestic waste, but must be disposed of
professionally in accordance with Directive 2006/66/EC of the
European Parliament and of the Council of 6September 2006
on batteries and accumulators. Please dispose of batteries and
accumulators according to the relevant legal requirements.

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
