Trotec PRDS 10-230V User manual

TRT-BA-PRDS10-230V-TC-002-EN
PRDS 10-230V
EN
ORIGINAL INSTRUCTIONS
ROTARY HAMMER

1 EN
Operating manual – rotary hammer PRDS 10-230V
Table of contents
Notes regarding the operating manual.................................1
Safety .....................................................................................2
Information about the device................................................5
Transport and storage...........................................................7
Start-up..................................................................................7
Operation .............................................................................10
Available accessories..........................................................12
Errors and faults..................................................................12
Maintenance ........................................................................13
Disposal ...............................................................................14
Declaration of conformity ...................................................14
Notes regarding the operating manual
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information (e.g.
material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
operating manual must be observed.
Wear head protection
Information marked with this symbol indicates that you
should wear protective headgear.
Wear hearing protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective clothing
Information marked with this symbol indicates that you
should wear protective clothing.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
Wear foot protection
Information marked with this symbol indicates that you
should wear safety boots.
Other symbols used on the device:
Do not operate when at a standstill
Information marked with this symbol indicates that the
switch may only be operated during operation.
You can download the current version of the operating manual
and the EU declaration of conformity via the following link:
PRDS 10-230V
http://hub.trotec.com/?id=39780

EN 2
Operating manual – rotary hammer PRDS 10-230V
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Observe all the safety warnings, instructions,
illustrations and technical data provided with this
power tool.
Failure to follow the instructions below may result in
electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
The term power tool used in the safety warnings refers to both
mains-operated and battery-powered electric tools (with/
without power cable).
General Power Tool Safety Warnings – Work area
safety
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings – Electrical
safety
•Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep the cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
• Hold power tool by insulated gripping surfaces when
performing an operation where the cutting accessory
may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give the
operator an electric shock.
General Power Tool Safety Warnings – Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal
injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. The use of a dust
extraction system may reduce dust-related hazards.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.

3 EN
Operating manual – rotary hammer PRDS 10-230V
General Power Tool Safety Warnings – Power tool
use and care
•Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and / or
the battery pack, if detachable, from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools and accessories carefully. Check
for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
•Keep handles and gripping surfaces dry, clean and
free from oil and grease. Slippery handles and gripping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
General Power Tool Safety Warnings – Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Device-specific safety warnings for rotary hammers
•Use the additional handle pre-assembled at the device.
Losing control of the power tool may result in personal
injury.
•Hold the device by its insulated gripping surfaces
when performing an operation where the insertion tool
may contact hidden wiring or its own cord. Cutting a
"live" wire may make exposed metal parts of the power
tool "live" and could give the operator an electric shock.
•Use appropriate detection equipment to track down
concealed supply lines or consult the local utility
companies. Contact with electrical lines may result in fire
and electric shock. Damaging a gas line may lead to an
explosion. Penetrating a water line causes property
damage and may cause an electric shock.
•Vibrations can be harmful to the human hand-arm
system. Keep the vibration exposure time to a minimum.
•During operation hold onto the power tool with both
hands. Make sure that you stand firmly on the ground. It is
safer to handle the power tool with two hands.
•Secure the workpiece. The grip of tensioning devices or a
vice is more secure than holding the workpiece only by
hand.
Protect yourself and others present from injuries
caused by splintering and flying bits and pieces.
Wear a hard hat, eye protection, a dust mask and safety
boots. If necessary, put up partition panels as shield
against breaking off debris.
•Before starting to work, always make sure that the
insertion tool is firmly clamped inside the drill chuck.
Insertion tools that are not locked in place could be
catapulted out of the power tool upon switch-on and lead
to injuries.
•Before switching on the power tool, ensure that the
insertion tool can move freely. If the device is switched
on with a jammed insertion tool, the resulting forces can
be extreme causing the device to kick out sideways.
•Immediately switch off the power tool if the insertion
tool gets jammed. The power tool can lash out to the side
owing to the forces that build up consequently.
•Regularly check the drill chuck for wear or damage.
•Only start a percussive power tool while holding it
against a workpiece (wall, ceiling, etc.).
•Wait until the power tool has come to a standstill,
before putting it down.

EN 4
Operating manual – rotary hammer PRDS 10-230V
Intended use
Only use the device PRDS 10-230V:
• for drilling in rock, wood, metal, ceramic and plastic
• for hammer drilling in brick, concrete and rock
• for chiselling in concrete, rock and plaster
whilst adhering to the technical data.
We recommend using the power tool with original Trotec
accessories.
Improper use
The device is not intended for drilling in natural stone.
Personnel qualifications
People who use this device must:
• have read and understood the operating manual, especially
the Safety chapter.
Personal protective equipment
Wear protective headgear.
With it you protect your head from splintering, falling
and flying pieces which could cause injuries.
Wear hearing protection.
Excessive noise can lead to hearing loss.
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
Wear tight-fitting protective clothing.
This protects you from the draw-in and entanglement
hazard posed by rotating parts.
Wear safety boots.
They protect your feet from splintering, falling and
flying pieces which could cause injuries.
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Warning
Do not process materials containing asbestos.
Asbestos is considered carcinogenic.
Warning
Make sure not to hit power, gas or water lines when
working with a power tool.
If necessary, use a pipe detector to check the wall you
want to drill in or slit open.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The tool holder must be firmly locked in place before
switching the device on, for an insufficiently or
incorrectly clamped accessory could be catapulted out
of the tool holder uncontrollably upon switch-on.

5 EN
Operating manual – rotary hammer PRDS 10-230V
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
Caution
Keep a sufficient distance from heat sources.
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Behaviour in the event of an emergency
1. Switch the device off.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.
Information about the device
Device description
The rotary hammer PRDS 10-230V comes equipped with a
pneumatic hammer mechanism for high impact power and is
ideally suited for continuous high-performance operations.
The infinitely variable impact rate and speed control allows you
to optimally adjust the exertion of force to every application and
material. A function selector switch with safety lock permits the
safe switch-over between functions.
The SDS-plus system tool holder makes it possible to exchange
the insertion tools easily and without the need for further tools.
Standard drilling accessories can also be used with an
optionally installable key-type drill chuck.
The additional handle ensures more stability and safety during
the drilling / chiselling operation.
Device depiction
12 3
5
13
4
6
78
9
10
12
11
No. Designation
1 SDS-plus system tool holder
2 Fastening screw depth stop
3 Function selector switch with release button
4 Power button
5 Setting wheel speed selection
6 Depth stop
7 Key-type drill chuck with SDS shank
8 Drill chuck key
9 SDS drill bit
10 SDS flat chisel
11 SDS pointed chisel
12 Switch for the impact mechanism
13 Additional handle
Scope of delivery
• 1x Device PRDS 10-230V
• 1 x Depth stop
• 1x Key-type drill chuck with SDS shank
• 1 x Drill chuck key
• 3x SDS drill bits (8/10/12 x 250mm)
• 1x SDS flat chisel (14 x 250mm)
• 1x SDS pointed chisel (14 x 250mm)
• 1 x Additional handle
• 1 x Transport case
• 1x Manual

EN 6
Operating manual – rotary hammer PRDS 10-230V
Technical data
Parameter Value
Model PRDS10-230V
Mains connection 1/N/PE ~ 230-240 V/ 50 Hz
Power consumption 1500 W
Idle speed 0 – 750 rpm
Impact frequency 0 – 3900 spm
Impact energy 5 J
Speed levels 6
Chucking range Max. 13 mm
Max. drilling diameter
wood
metal
concrete
40 mm
13 mm
32 mm
Weight 5 kg
Protection class II /
Sound values according to EN60745
Hammer drilling
Sound pressure level 95 dB(A)
Sound power level 106 dB(A)
Uncertainty K 3 dB(A)
Chiselling
Sound pressure level 84 dB(A)
Sound power level 95 dB(A)
Uncertainty K 3 dB(A)
Vibration information according to EN60745
Vibration emission value for
hammer drilling in concrete
(ah=in)
14.8 m/s2
Uncertainty K 1.5 m/s2
Vibration emission value for
chiselling (ah=in)
15.5 m/s2
Uncertainty K 1.5 m/s2
Wear hearing protection.
Excessive noise can lead to hearing loss.
Information on noise and vibration:
• The vibration level specified in these instructions was
determined by means of a measuring method standardized
in EN60745 and can be used for a device comparison. The
specified vibration emission value may also be used for a
preliminary assessment of the exposure.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
• The vibration level will change depending on the
application of the power tool and may in some cases differ
from the value specified in these instructions. The vibration
load may be underestimated if the power tool is used
regularly in such a way. For a precise estimation of the
vibration load during a certain work period, it is also
important to consider the periods during which the device
is switched off, or is running but not actually employed.
This can reduce the vibration load over the entire work
period significantly.

7 EN
Operating manual – rotary hammer PRDS 10-230V
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down.
• Remove the tool from the tool holder.
Storage
Before storing the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down.
• Remove the tool from the tool holder.
• Clean the device as described in the Maintenance chapter.
• For storing the device, use the transport case included in
the scope of delivery in order to protect the device from
external influences.
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• ambient temperature below 40 °C
• protected from dust and direct sunlight inside the transport
case
Start-up
Unpacking the device
• Take the transport case out of the packaging.
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
• Check the contents of the transport case for completeness
and look for damages.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
• Dispose of the packaging material according to the
national regulations.
Tool change
The device comes equipped with an SDS-plus system tool
holder.
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Please proceed as follows to remove or insert tools:
1. Push the SDS-plus system tool holder(1) to the rear and
hold it there.
2. Insert the tool (e.g. the flat chisel, 10).
1
10
3. Then release the SDS-plus system tool holder(1).
4. Check the tool for tight fit.

EN 8
Operating manual – rotary hammer PRDS 10-230V
Adjusting the position of the additional handle
The additional handle is already preassembled. Do not use the
device without the additional handle.
The position of the additional handle may be adjusted by 360°
as required.
Please proceed as follows to adjust the position of the additional
handle:
1. Loosen the additional handle(13).
ðThe tensioner at the additional handle releases.
13
2. Turn the additional handle(13) into the desired position.
3. Retighten the additional handle(13).
4. Check the additional handle(13) for tight fit. If necessary,
tighten the additional handle further.
Speed selection
The required speed depends on the material and the operating
conditions and can be determined by way of field-testing.
• Select a low level for soft materials.
• Select a high level for hard materials.
The setting range covers the levels 1 - 6. You can change the
preselected speed level at any time.
• : 0 – 750 rpm
• : 0 – 3900 spm
1. Turn the setting wheel(5) to the desired speed level.
5

9 EN
Operating manual – rotary hammer PRDS 10-230V

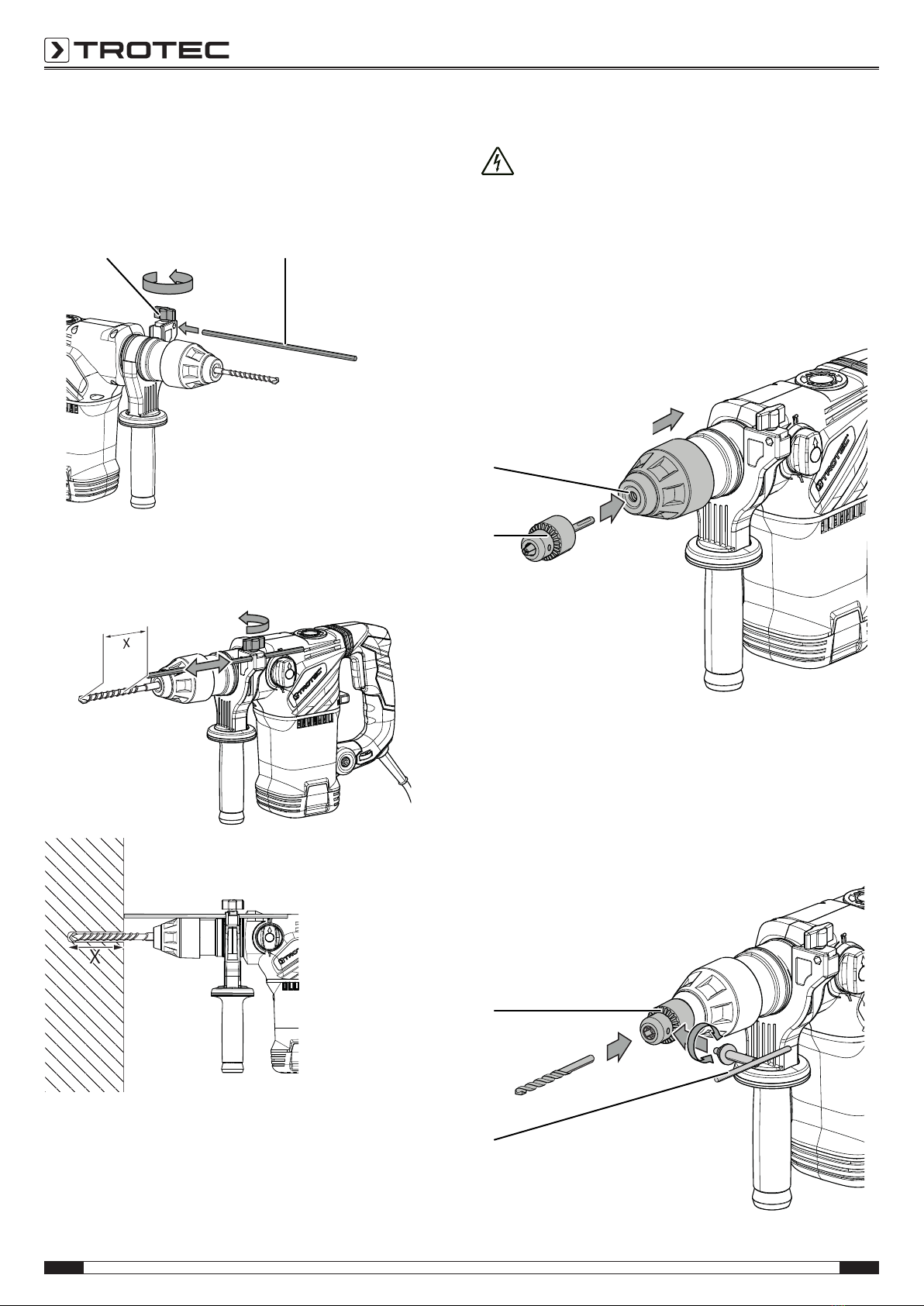

Inserting and using the depth stop (optional)
With the depth stop you can determine the penetration depth of
the drill bits.
1. Loosen the fastening screw(2) at the mount.
2. Insert the depth stop.
7
2
3. Adjust the depth stop to the desired length.
4. Retighten the screw.
Using the key-type drill chuck (optional)
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
1. Push the SDS-plus system tool holder(1) to the rear and
hold it there.
2. Put the key-type drill chuck(7) into the SDS-plus system
tool holder(1).
1
7
3. Then release the SDS-plus system tool holder(1).
4. Check the key-type drill chuck(7) for tight fit.
5. Open the key-type drill chuck(7) by means of the drill
chuck key(8).
6. Insert the tool in the key-type drill chuck(7).
7. Tighten the key-type drill chuck(7) by means of the drill
chuck key(8).
7
8

EN 10
Operating manual – rotary hammer PRDS 10-230V
Info
Only use the optional key-type drill chuck in drilling
mode!
The function selector switch with release button(3)
must be set to position and the switch for
the impact mechanism(12) to position .
Connecting the power cable
1. Insert the mains plug into a properly secured mains
socket.
Operation
Tips and notes on handling the rotary hammer
Drilling in general:
• Take short breaks regularly during drilling. When doing so,
take the drill bit out of the drill hole so that the drill bit can
cool down.
• Secure the workpiece in a tensioning device or vice.
• Select the speed depending on the material characteristics
and the size of the drill bit:
– High speed for small drilling diameter or soft material
– Low speed for large drilling diameter or hard material
• Use a suitable aid to mark the intended location of the drill
hole.
• Select a low speed for spudding.
Drilling in metal:
• Use suitable metal drill bits (e.g. drill bits made of high-
speed steel (HSS)).
• For larger drilling diameters, use a smaller drill bit for pre-
drilling.
• To achieve ideal results, the drill bit should be cooled with
a suitable lubricant.
• Metal drill bits may also be used for drilling in plastic.
Drilling in wood:
• Use drill bits suitable for wood.
• Place a block of wood under the workpiece or drill in from
both sides so that the wood cannot break off when it is
being drilled through.
• Use a wood drill bit with centring tip. For deep drill holes,
use an auger bit; for large drilling diameters, use a
Forstner bit.
Impact drilling in masonry / bricks:
• Use a drill bit suitable for masonry / bricks.
Chiselling in general:
• Use a suitable chisel.
Switching the device on and off
Wear your personal protective equipment when working with
the device.
1. Check whether the tool clamped in and the selected speed
level are suitable for the intended application.
2. Check whether the workpiece is secured and the worktop
prepared correspondingly.
3. If you work with activated impact mechanism, press the
tool against the workpiece.
4. Hold onto the device with both hands.
5. Press and hold the power button(4).
ðThe device operates with the previously selected
settings.
4
6. Let go of the on / off switch(4) to stop the device.

11 EN
Operating manual – rotary hammer PRDS 10-230V

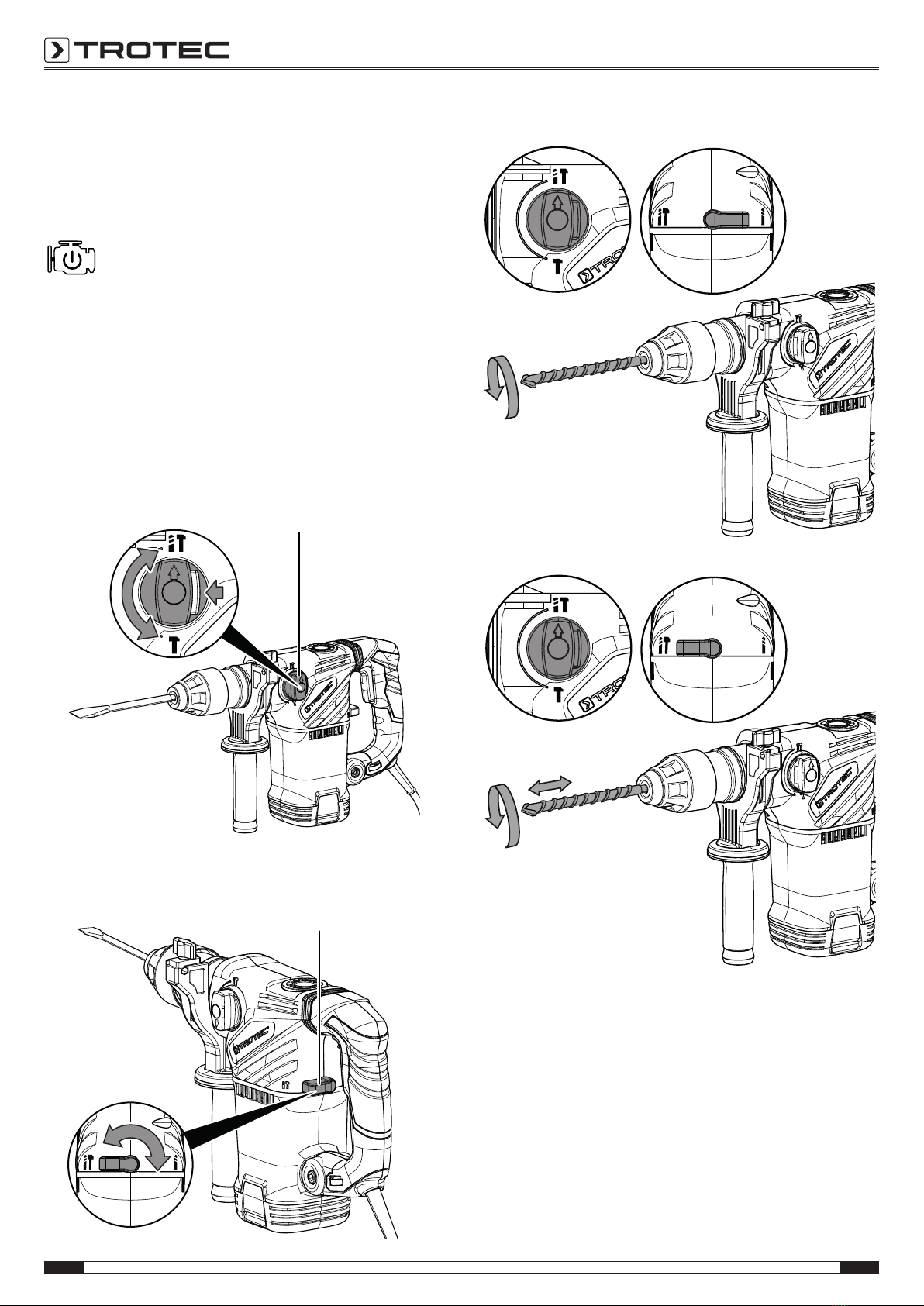

Selecting the operating mode
With the function selector switch(3) you can choose drilling /
hammer drilling or chiselling. Via the switch for the impact
mechanism(12) you either activate (hammer drilling or
chiselling) or deactivate (drilling) the impact mechanism.
Note
Only operate the function selector switch(3)
during operation! Otherwise the device might be
damaged.
Note
Only operate the switch for the impact
mechanism(12) when the device is at a standstill!
Otherwise the device might be damaged.
1. Set the function selector switch(3) to the desired position.
The function selector switch comes with a safety lock that
has to be pushed in first, before you can change the switch
position.
3
2. Set the switch for the impact mechanism(12) to the
desired position.
12
ðOperating mode: Drilling
ðOperating mode: Hammer drilling

EN 12
Operating manual – rotary hammer PRDS 10-230V
ðOperating mode: Chiselling
Info
If the function selector switch with release button(3) is
set to the position and the switch for the impact
mechanism(12) to position , the device is in idle
mode, i.e. there will be no rotation or stroke motion
due to technical reasons.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• If required, allow the device to cool down.
• Remove the tool from the device (see Start-up chapter).
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Available accessories
Warning
Only use accessories and additional equipment
specified in the operating manual.
Using insertion tools or accessories other than those
specified in the operating manual may cause a risk of
injury.
Accessories Article number
11-piece SDS drill bit and chisel set 6.205.001.101
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Troubleshooting tasks which require the housing to be opened
must only be carried out by an authorized specialist electrical
company or by Trotec.
Slight smoke or odour are emitted during first use:
• This is not a fault. These phenomena disappear after a
brief runtime.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
Info
Wait for at least 10 minutes before switching the
device back on.
The motor is running, but there is no rotation or stroke
movement:
• Check whether the function selector switch(3) is set to
the position and the switch for the impact
mechanism(12) to position . If so, the device is in idle
mode. For technical reasons there will be no rotation or
stroke motion. Use the two switches(3 and 12) to set the
desired operating mode.

13 EN
Operating manual – rotary hammer PRDS 10-230V
The drill bit does not penetrate / hardly penetrates the
material:
• Check whether the correct speed level is selected.
A higher speed level may be required in harder material.
• The setting for drilling or impact drilling
should be selected.
• Check whether the correct drill bit is selected.
• Check whether the function selector switch(3) is set to
position . This position is only suitable for chiselling.
The chisel does not penetrate / hardly penetrates the
material:
• Check whether the correct speed level is selected.
A higher speed level may be required in harder material.
• Check whether the correct tool is selected.
• Check whether the switch for the impact mechanism(12)
is set to position . This position is only suitable for
drilling.
Info
Wait for at least 10 minutes before switching the
device back on.
The device becomes hot:
• Check whether the tool is suitable for the tasks to be
carried out.
• Keep the venting slots clear to prevent the motor from
overheating.
• Select a lower speed.
Info
Wait for at least 10 minutes before switching the
device back on.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to an authorized specialist electrical company or to
Trotec for repair.
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
Warning of electrical voltage
Maintenance tasks which require the housing to be
opened must only be carried out by authorised
specialist companies or by Trotec.
Notes on maintenance
Inside the device, there are no parts that need to be maintained
or lubricated by the user.
Cleaning
The device should be cleaned before and after each use.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
• Clean the device with a soft, damp and lint-free cloth.
Ensure that no moisture enters the housing. Protect
electrical components from moisture. Do not use any
aggressive cleaning agents such as cleaning sprays,
solvents, alcohol-based or abrasive cleaners to dampen
the cloth.
• Dry the device with a soft, lint-free cloth.
• Dry the bits with a soft, lint-free cloth.
• Keep the ventilation openings free from dust deposits to
prevent overheating of the motor.
• Remove any drilling dust and, if applicable, wood chips
from the SDStool holder or key-type drill chuck.
• Slightly grease the tool holder with machine lubricant
before inserting another tool.

EN 14
Operating manual – rotary hammer PRDS 10-230V
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. For further return options provided by us please
refer to our website www.trotec24.com.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Declaration of conformity
The text below sets out the contents of the declaration of
conformity. The signed declaration of conformity can be found
at http://hub.trotec.com/?id=39780.
Declaration of conformity
In accordance with the EC Machinery Directive 2006/42/EC,
AnnexII, part1, SectionA
Herewith, we – Trotec GmbH & Co. KG – declare that the
machinery designated below was developed, constructed and
produced in compliance with the requirements of the
ECMachinery Directive in the version 2006/42/EC.
Product model/ Product: PRDS 10-230V
Product type: rotary hammer
Year of manufacture as of: 2016
Relevant EU directives:
• 2011/65/EU: 1July 2011
• 2014/30/EU: 29March 2014
Applied harmonised standards:
• EN ISO 12100:2010
• EN55014-1:2006+A2:2011
• EN 55014-2:2015
• EN 60745-1:2009+A11: 2010
• EN60745-2-6:2010
• EN61000-3-2:2014
• EN 61000-3-3:2013
Applied national standards and technical specifications:
• AfPS GS 2014:01 PAK
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH & Co. KG
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 06.12.2016
Detlef von der Lieck, Managing Director

Trotec GmbH & Co. KG
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
