Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning of hot surface
This symbol indicates dangers to the life and health of
persons due to hot surface.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
Wear head protection
Information marked with this symbol indicates that you
should wear protective headgear.
Wear hearing protection
Information marked with this symbol indicates that you
should wear hearing protection.
Wear safety glasses
Information marked with this symbol indicates that you
should wear eye protection.
Wear a protective mask
Information marked with this symbol indicates that you
should wear a protective mask.
Wear protective clothing
Information marked with this symbol indicates that you
should wear protective clothing.
Wear protective gloves
Information marked with this symbol indicates that you
should wear protective gloves.
Wear foot protection
Information marked with this symbol indicates that you
should wear safety boots.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
PRDS 11-230V
https://hub.trotec.com/?id=42747

EN 3
rotary hammer PRDS 11-230V
Safety
General Power Tool Safety Warnings
Warning
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term power tool in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
General Power Tool Safety Warnings– Work area
safety
•Keep work area clean and well lit. Clutter or dark areas
invite accidents.
•Do not operate power tools in explosive atmosphere,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
General Power Tool Safety Warnings– Electrical
safety
•Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
•Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is
unavoidable, use a residual current device(RCD)
protected supply.
Use of an RCD reduces the risk of electric shock.
General Power Tool Safety Warnings– Personal
safety
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence of
drugs, alcohol or medication.
A moment of inattention while operating power tools may
result in serious personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites
accidents.
•Remove any adjusting key or wrench before turning
the power tool on.
A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
•Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situation.
•Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool
safety principles. A careless action can cause severe
injury within a fraction of a second.

4 EN
rotary hammer PRDS 11-230V
General Power Tool Safety Warnings– Power tool
use and care
•Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the
power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
General Power Tool Safety Warnings– Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
Device-specific safety warnings for rotary hammers
Wear ear protectors when impact drilling. Exposure
to noise can cause hearing loss.
•Use the additional handle pre-assembled at the device.
Losing control of the power tool may result in personal
injury.
•Hold the power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory or fasteners may contact hidden wiring or
its own cord. Cutting accessory contacting a "live" wire
may make exposed metal parts of the power tool "live"
and could give the operator an electric shock.
•Use appropriate detection equipment to track down
concealed supply lines or consult the local utility
companies. Contact with electrical lines may result in fire
and electric shock. Damaging a gas line may lead to an
explosion. Penetrating a water line causes property
damage and may cause an electric shock.
•Vibrations can be harmful to the human hand-arm
system. Keep the vibration exposure time to a minimum.
•During operation hold onto the power tool with both
hands. Make sure that you stand firmly on the ground. It is
safer to handle the power tool with two hands.
•Secure the workpiece. The grip of tensioning devices or a
vice is more secure than holding the workpiece only by
hand.
Protect yourself and others present from injuries
caused by splintering and flying bits and pieces.
Wear a hard hat, eye protection, a dust mask and safety
boots. If necessary, put up partition panels as shield
against breaking off debris.
•Before starting to work, always make sure that the
insertion tool is firmly clamped inside the drill chuck.
Insertion tools that are not locked in place could be
catapulted out of the power tool upon switch-on and lead
to injuries.
•Before switching on the power tool, ensure that the
insertion tool can move freely. If the device is switched
on with a jammed insertion tool, the resulting forces can
be extreme causing the device to kick out sideways.
•Immediately switch off the power tool if the insertion
tool blocks. The power tool can lash out to the side owing
to the forces that build up consequently.

EN 5
rotary hammer PRDS 11-230V
•Regularly check the drill chuck for wear or damage.
•Only start a percussive power tool while holding it
against a workpiece (wall, ceiling, etc.).
•Wait until the power tool has come to a standstill,
before putting it down.
Safety instructions when using long drill bits
•Never operate at higher speed than the maximum
speed rating of the drill bit. At higher speeds, the bit is
likely to bend if allowed to rotate freely without contacting
the workpiece, resulting in personal injury.
•Always start drilling at low speed and with the bit tip
in contact with the workpiece. At higher speeds, the bit
is likely to bend if allowed to rotate freely without
contacting the workpiece, resulting in personal injury.
•Apply pressure only in direct line with the bit and do
not apply excessive pressure. Bits can bend causing
breakage or loss of control, resulting in personal injury.
Intended use
Only use the device PRDS 11-230V:
• for drilling in rock, wood, metal, ceramic and plastic
• for hammer drilling in brick, concrete and rock
• for chiselling in concrete, rock and plaster
whilst adhering to the technical data.
We recommend using the power tool with original Trotec
accessories.
Foreseeable misuse
The device is not intended for drilling in natural stone.
Any other use than the one described in the chapter "Intended
use" is regarded as reasonably foreseeable misuse.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Personal protective equipment
Wear protective headgear.
With it you protect your head from splintering, falling
and flying pieces which could cause injuries.
Wear hearing protection.
Excessive noise can lead to hearing loss.
Wear eye protection.
With it you protect your eyes from splintering, falling
and flying pieces which could cause injuries.
Wear a protective mask.
It saves you from inhaling harmful dusts generated
when processing workpieces.
Wear protective gloves.
They protect your hands from burns, crushing injuries
and skin abrasions.
Wear tight-fitting protective clothing.
This protects you from the draw-in and entanglement
hazard posed by rotating parts.
Wear safety boots.
They protect your feet from splintering, falling and
flying pieces which could cause injuries.

6 EN
rotary hammer PRDS 11-230V
Residual risks
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
Warning
Toxic dusts!
The harmful / toxic dusts produced during operation
pose of risk to the health of the operator and persons
in the vicinity.
Wear eye protection and a dust mask!
Warning
Do not process materials containing asbestos.
Asbestos is considered carcinogenic.
Warning
Make sure not to hit power, gas or water lines when
working with a power tool.
If necessary, use a pipe detector to check the wall you
want to drill in or slit open.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Warning
The tool holder must be firmly locked in place before
switching the device on, for an insufficiently or
incorrectly clamped accessory could be catapulted out
of the tool holder uncontrollably upon switch-on.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
Caution
Keep a sufficient distance from heat sources.
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Behaviour in the event of an emergency/ emergency
stop function
Emergency stop:
Removing the mains plug from the mains socket results in the
function of the device immediately stopping. In order to secure
the device against accidental switch-on, leave the mains plug
disconnected.
Behaviour in the event of an emergency:
1. Switch the device off.
2. In an emergency, disconnect the device from the mains
feed-in: Hold onto the mains plug while pulling the power
cable out of the mains socket.
3. Do not reconnect a defective device to the mains.

EN 7
rotary hammer PRDS 11-230V
Information about the device
Device description
The rotary hammer PRDS 11-230V comes equipped with a
pneumatic hammer mechanism for high impact power and is
ideally suited for continuous high-performance operations.
The infinitely variable impact rate and speed control allows you
to optimally adjust the exertion of force to every application and
material. A function selector switch with safety lock permits the
safe switch-over between the functions drilling, hammer drilling
or chiselling as well as the change of the chisel position by up
to 360°.
The SDS-plus system tool holder makes it possible to exchange
the insertion tools easily and without the need for further tools.
Standard drilling accessories can also be used with an
optionally installable key-type drill chuck.
The additional handle ensures more stability and safety during
the drilling / chiselling operation.
Device depiction
12 3
5
13
4
16
12
6
78
9
10
15
11
14
No. Designation
1 SDS-plus system tool holder
2 Fastening screw depth stop
3 Function selector switch with release button
4 On/off switch
5 Setting wheel speed selection
6 Depth stop
7 Key-type drill chuck with SDSshank
8 Drill chuck key
9 SDS drill bit
10 SDS flat chisel
11 SDS pointed chisel
12 Switch for the impact mechanism
13 Additional handle
14 Dust protection cap
15 Lubricant container
16 Operating light
Scope of delivery
• 1x Device PRDS 11-230V
• 1 x Depth stop
• 1x Key-type drill chuck with SDSshank
• 1 x Drill chuck key
• 3x SDSdrill bits (8/10/12x 150 mm)
• 1x SDSflat chisel (14x 250mm)
• 1x SDSpointed chisel (14x 250mm)
• 1 x Additional handle
• 1x Dust protection cap
• 1x Lubricant container
• 1 x Transport case
• 1x Manual

8 EN
rotary hammer PRDS 11-230V
Technical data
Parameter Value
Model PRDS11-230V
Power supply 1/N/PE ~ 230V/ 50Hz
Power input 1600W
Idle speed 0–800rpm
Impact frequency 0–4000bpm
Impact energy 6 J
Speed levels 5
Chucking range Max. 13mm
Max. drilling diameter
Wood
Metal
Concrete
40mm
13 mm
32 mm
Weight 6kg
Protection class II /
Sound values according to EN60745
Hammer drilling
Sound pressure level LpA 93.5 dB(A)
Sound power level LWA 104.5 dB(A)
Uncertainty K 3 dB(A)
Vibration information according to EN60745
Vibration emission value for
hammer drilling in concreteah15.037 m/s2
Uncertainty K 1.5 m/s2
Vibration emission value for
chisellingah14.868 m/s2
Uncertainty K 1.5 m/s2
Wear hearing protection.
Excessive noise can lead to hearing loss.
Information on noise and vibration:
• The vibration level specified in these instructions was
determined by means of a measuring method standardized
in EN60745 and can be used for a device comparison. The
specified vibration emission value may also be used for a
preliminary assessment of the exposure.
Caution
Vibration emissions can cause a health hazard if the
device is used for an extended period of time or if it is
not properly handled and maintained.
• The vibration level will change depending on the
application of the power tool and may in some cases differ
from the value specified in these instructions. The vibration
load may be underestimated if the power tool is used
regularly in such a way. For a precise estimation of the
vibration load during a certain work period, it is also
important to consider the periods during which the device
is switched off, or is running but not actually employed.
This can reduce the vibration load over the entire work
period significantly.

EN 9
rotary hammer PRDS 11-230V
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the transport case included in
the scope of delivery in order to protect the device from external
influences.
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down.
• Remove the tool from the tool holder.
Storage
Before storing the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down.
• Remove the tool from the tool holder.
• Clean the device as described in the Maintenance chapter.
• For storing the device, use the transport case included in
the scope of delivery in order to protect the device from
external influences.
When the device is not being used, observe the following
storage conditions:
• Dry and protected from frost and heat
• Ambient temperature below 45°C
• Protected from dust and direct sunlight inside the transport
case
Start-up
Unpacking the device
• Take the transport case out of the packaging.
Warning of electrical voltage
Electric shock from insufficient insulation.
Check the device for damages and proper functioning
before each use.
If you notice damages, no longer use the device.
Do not use the device when the device or your hands
are damp or wet!
• Check the contents of the transport case for completeness
and look for damages.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
• Dispose of the packaging material according to the
national regulations.
Tool change
The device comes equipped with an SDS-plus system tool
holder.
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Please proceed as follows to remove or insert tools:
1. Push the SDS-plus system tool holder(1) to the rear and
hold it there.
2. Insert the tool (e.g. the flat chisel, 10).
1
10
3. Then release the SDS-plus system tool holder(1).
4. Check the tool for tight fit.

10 EN
rotary hammer PRDS 11-230V

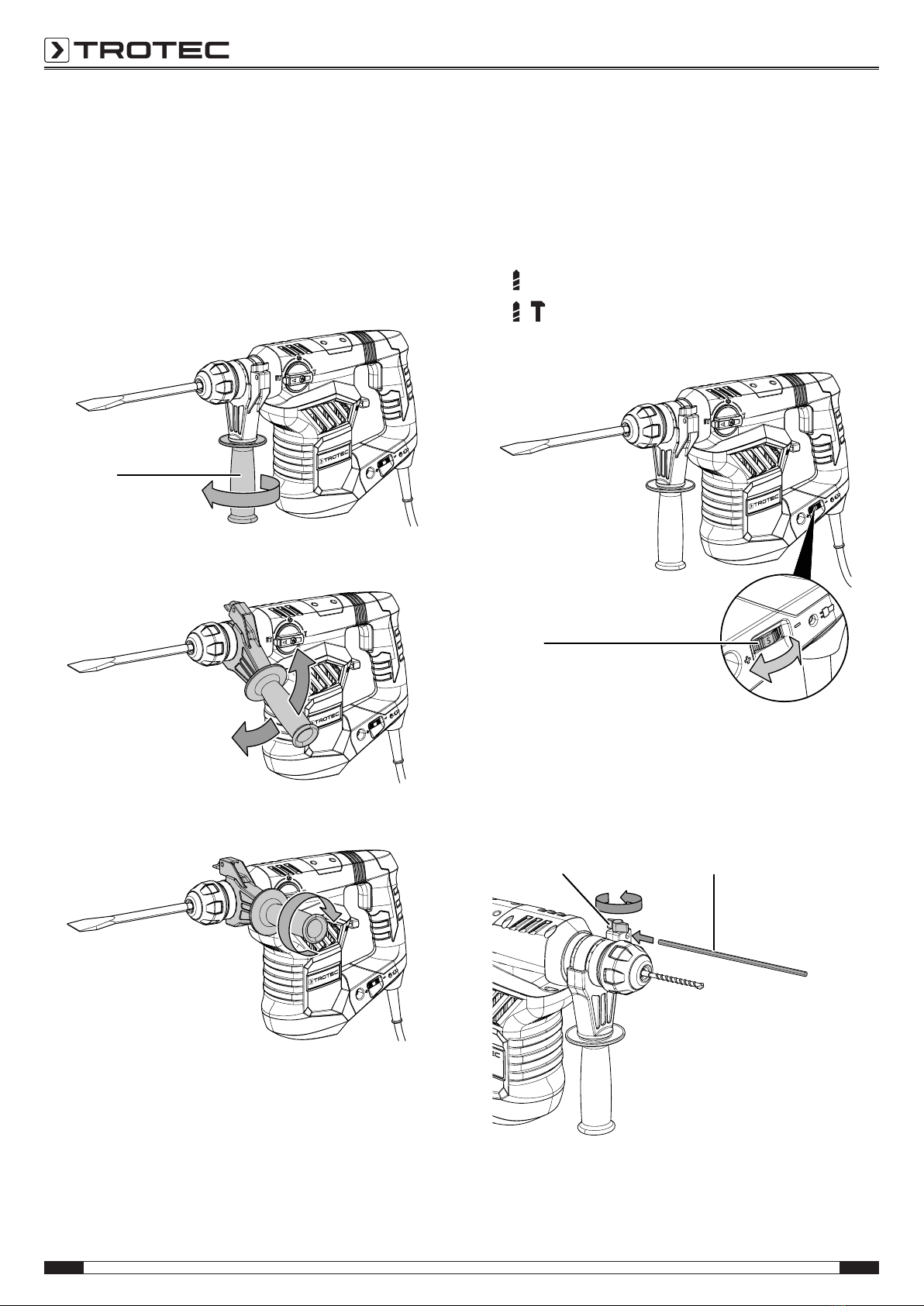

Adjusting the position of the additional handle
The additional handle is already preassembled. Do not use the
device without the additional handle.
The position of the additional handle may be adjusted by 360°
as required.
Please proceed as follows to adjust the position of the additional
handle:
1. Loosen the additional handle(13).
ðThe tensioner at the additional handle releases.
13
2. Turn the additional handle(13) into the desired position.
3. Retighten the additional handle(13).
4. Check the additional handle(13) for tight fit. If necessary,
tighten the additional handle further.
Speed selection
The required speed depends on the material and the operating
conditions and can be determined by way of field-testing.
• Select a low level for soft materials.
• Select a high level for hard materials.
The setting range covers the levels1–5. You can change the
preselected speed level at any time.
• : 0– 800rpm
• : 0– 4000bpm
1. Turn the setting wheel (5) to the desired speed level.
5
Inserting and using the depth stop (optional)
With the depth stop you can determine the penetration depth of
the drill bits.
1. Loosen the fastening screw(2) at the mount.
2. Insert the depth stop(6).
26

EN 11
rotary hammer PRDS 11-230V
3. Adjust the depth stop(6) to the desired length.
4. Retighten the screw.
Using the dust protection (optional)
Use the dust protection cap(14) to protect yourself and your tool
from falling dust particles during overhead drilling work.
1. Insert the drill bit through the dust protection cap(14) into
the SDS-plus system tool holder(1).
14
Using the key-type drill chuck (optional)
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Do not touch the mains plug with wet or damp hands.
Hold onto the mains plug while pulling the power cable
out of the mains socket.
1. Push the SDS-plus system tool holder(1) to the rear and
hold it there.
2. Put the key-type drill chuck (7) into the SDS-plus system
tool holder(1).
1
7
3. Then release the SDS-plus system tool holder(1).
4. Check the key-type drill chuck (7) for tight fit.

12 EN
rotary hammer PRDS 11-230V
5. Open the key-type drill chuck (7) by means of the drill
chuck key (8).
6. Insert the tool in the key-type drill chuck(7).
7. Tighten the key-type drill chuck(7) by means of the drill
chuck key (8).
7
8
Info
Only use the optional key-type drill chuck in drilling
mode!
The function selector switch with release button(3)
must be set to position and the switch for the
impact mechanism (12) to position .
Connecting the power cable
1. Insert the mains plug into a properly secured mains
socket.
ðThe operating light(16) will be illuminated as soon as
the power cable is plugged in.
Operation
Tips and notes on handling the rotary hammer
Drilling in general:
• Take short breaks regularly during drilling. When doing so,
take the drill bit out of the drill hole so that the drill bit can
cool down.
• Secure the workpiece in a tensioning device or vice.
• Select the speed depending on the material characteristics
and the size of the drill bit:
– High speed for small drilling diameter or soft material
– Low speed for large drilling diameter or hard material
• Use a suitable aid to mark the intended location of the drill
hole.
• Select a low speed for spudding.
Drilling in metal:
• Use suitable metal drill bits (e.g. drill bits made of
high-speed steel (HSS)).
• For larger drilling diameters, use a smaller drill bit for
pre-drilling.
• To achieve ideal results, the drill bit should be cooled with
a suitable lubricant.
• Metal drill bits may also be used for drilling in plastic.
Drilling in wood:
• Use drill bits suitable for wood.
• Place a block of wood under the workpiece or drill in from
both sides so that the wood cannot break off when it is
being drilled through.
• Use a wood drill bit with centring tip. For deep drill holes,
use an auger bit; for large drilling diameters, use a
Forstner bit.
Impact drilling in masonry / bricks:
• Use a drill bit suitable for masonry / bricks.
Chiselling in general:
• Use a suitable chisel.

EN 13
rotary hammer PRDS 11-230V
Switching the device on and off
Wear your personal protective equipment when working with
the device.
1. Check whether the fixed tool is suitable for the intended
application.
2. Check whether the speed level is suitable for the intended
application.
3. Check whether the workpiece is secured and the worktop
prepared correspondingly.
4. If you work with activated impact mechanism, press the
tool against the workpiece.
5. Hold onto the device with both hands.
6. Press the on/off switch(4) and hold it during operation.
You can control the speed by pressing the on/off
switch(4): press lightly for a low speed; press firmly for a
high speed.
ðThe device operates with the previously selected
settings.
4
7. Let go of the on/off switch(4) to stop the device.
8. Wait until the device has stopped before putting it away.
Selecting the operating mode
The function selector switch (3) is used to select drilling,
hammer drilling or chiselling or to adjust the chisel position by
up to 360°. Via the switch for the impact mechanism(12) you
either activate (hammer drilling or chiselling) or deactivate
(drilling) the impact mechanism.
1. Set the function selector switch(3) to the desired position.
The function selector switch comes with a release button
that has to be pushed in first, before you can change the
switch position.
2. Set the switch for the impact mechanism (12) to the
desired position.
12

14 EN
rotary hammer PRDS 11-230V
ðOperating mode: Drilling
ðOperating mode: Hammer drilling
ðOperating mode: Chiselling
Function: Changing the position of the chisel
If you want to adjust the tool's position before or during the
chiselling operation, please proceed as follows:
1. Stop the tool by letting go of the on/off switch(4).
2. Turn the function selector switch(3) to the position.
3. Turn the tool manually into the desired position.
360°
4. Turn the function selector switch(3) back to the
position to continue working.

EN 15
rotary hammer PRDS 11-230V
Info
If the function selector switch(3) is set to the
position and the switch for the impact mechanism (12)
to position , the device is in idle mode, i.e. there
will be no rotation or stroke motion due to technical
reasons.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• If required, allow the device to cool down.
• Remove the tool from the device (see Start-up chapter).
• Clean the device according to the Maintenance chapter.
• Store the device according to the Transport and storage
chapter.
Available accessories
Warning
Only use accessories and additional equipment
specified in the instructions.
Using insertion tools or accessories other than those
specified in the instructions may cause a risk of injury.
Accessories Article number
11-piece SDS drill bit and chisel set 6.205.001.101
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
Troubleshooting tasks which require the housing to be opened
must only be carried out by an authorized specialist electrical
company or by Trotec.
Light smoke or odour is emitted during the first use:
• This is not a fault. These phenomena disappear after a
brief runtime.
The device does not start:
• Check the power connection.
• Check the power cable and mains plug for damage. If you
notice damages, do not try to take the device back into
operation.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Check the on-site fusing.
Info
Wait for at least 10 minutes before switching the
device back on.
The motor is running, but there is no rotation or stroke
movement:
• Check whether the function selector switch(3) is set to the
position and the switch for the impact mechanism(12)
to position . If so, the device is in idle mode. For
technical reasons there will be no rotation or stroke
motion. Use the two switches(3 and 12) to set the desired
operating mode.
The drill bit does not penetrate / hardly penetrates the
material:
• Check whether the correct speed level is selected.
A higher speed level may be required in harder material.
• The setting for drilling or impact drilling should
be selected.
• Check whether the correct drill bit is selected.
• Check whether the function selector switch(3) is set to
position . This position is only suitable for chiselling.

16 EN
rotary hammer PRDS 11-230V
The chisel does not penetrate / hardly penetrates the
material:
• Check whether the correct speed level is selected.
A higher speed level may be required in harder material.
• Check whether the correct tool is selected.
• Check whether the switch for the impact mechanism(12)
is set to position . This position is only suitable for
drilling.
Info
Wait for at least 10 minutes before switching the
device back on.
The device becomes hot:
• Check whether the tool is suitable for the tasks to be
carried out.
• Keep the venting slots clear to prevent the motor from
overheating.
• Select a lower speed.
Info
Wait for at least 10 minutes before switching the
device back on.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
The device still does not operate correctly after these
checks:
Please contact the customer service. If necessary, bring the
device to an authorised specialist electrical company or to
Trotec for repair.
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Allow the device to cool down completely.
Warning of electrical voltage
Maintenance tasks which require the housing to be
opened must only be carried out by authorised
specialist companies or by Trotec.
Notes on maintenance
• Regularly lubricate the tool holder(1) after use by means
of grease from the provided lubricant container(15).
Cleaning
The device should be cleaned before and after each use.
Warning of electrical voltage
There is a risk of a short-circuit due to liquids
penetrating the housing!
Do not immerse the device and the accessories in
water. Make sure that no water or other liquids can
enter the housing.
• Clean the device with a soft, damp and lint-free cloth.
Make sure that no moisture enters the housing. Protect
electrical components from moisture. Do not use any
aggressive cleaning agents such as cleaning sprays,
solvents, alcohol-based or abrasive cleaners to dampen
the cloth.
• Dry the device with a soft, lint-free cloth.
• Dry the bits with a soft, lint-free cloth.
• Keep the ventilation openings free from dust deposits to
prevent overheating of the motor.
• Remove any drilling dust and, if applicable, wood chips
from the SDStool holder or key-type drill chuck.
• Slightly grease the tool holder with machine lubricant
before inserting another tool.

EN 17
rotary hammer PRDS 11-230V
Disposal
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration. You can also find out about other return options
that apply for many EU countries on the website
https://hub.trotec.com/?id=45090. Otherwise, please contact an
official recycling centre for electronic and electrical equipment
authorised for your country.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
Declaration of conformity
Declaration of conformity in accordance with the ECMachinery
Directive 2006/42/EC, AnnexII, Part1, SectionA
We– Trotec GmbH– declare in sole responsibility that the
product designated below was developed, constructed and
produced in compliance with the requirements of the
ECMachinery Directive in the version 2006/42/EC.
Product model/ Product: PRDS 11-230V
Product type: rotary hammer
Year of manufacture as of: 2021
Relevant EUdirectives:
• 2011/65/EU: 01/07/ 2011
• 2014/30/EU: 29/03/2014
• 2015/863/EU: 31/03/2015
Applied harmonised standards:
• EN 55014-1:2017
• EN 60745-1:2009/A11:2010
• EN60745-2-6:2010
Applied national standards and technical specifications:
• EN 55014-2:2015
• EN 61000-3-3:2013/A1:2019
• EN IEC 61000-3-2:2019
Manufacturer and name of the authorised representative of
the technical documentation:
Trotec GmbH
Grebbener Straße 7, D-52525 Heinsberg
Phone: [phone]
E-mail: [email protected]
Place and date of issue:
Heinsberg, 16.06.2021
Detlef von der Lieck, Managing Director

Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
[phone]
[phone]
[email protected]
www.trotec.com
