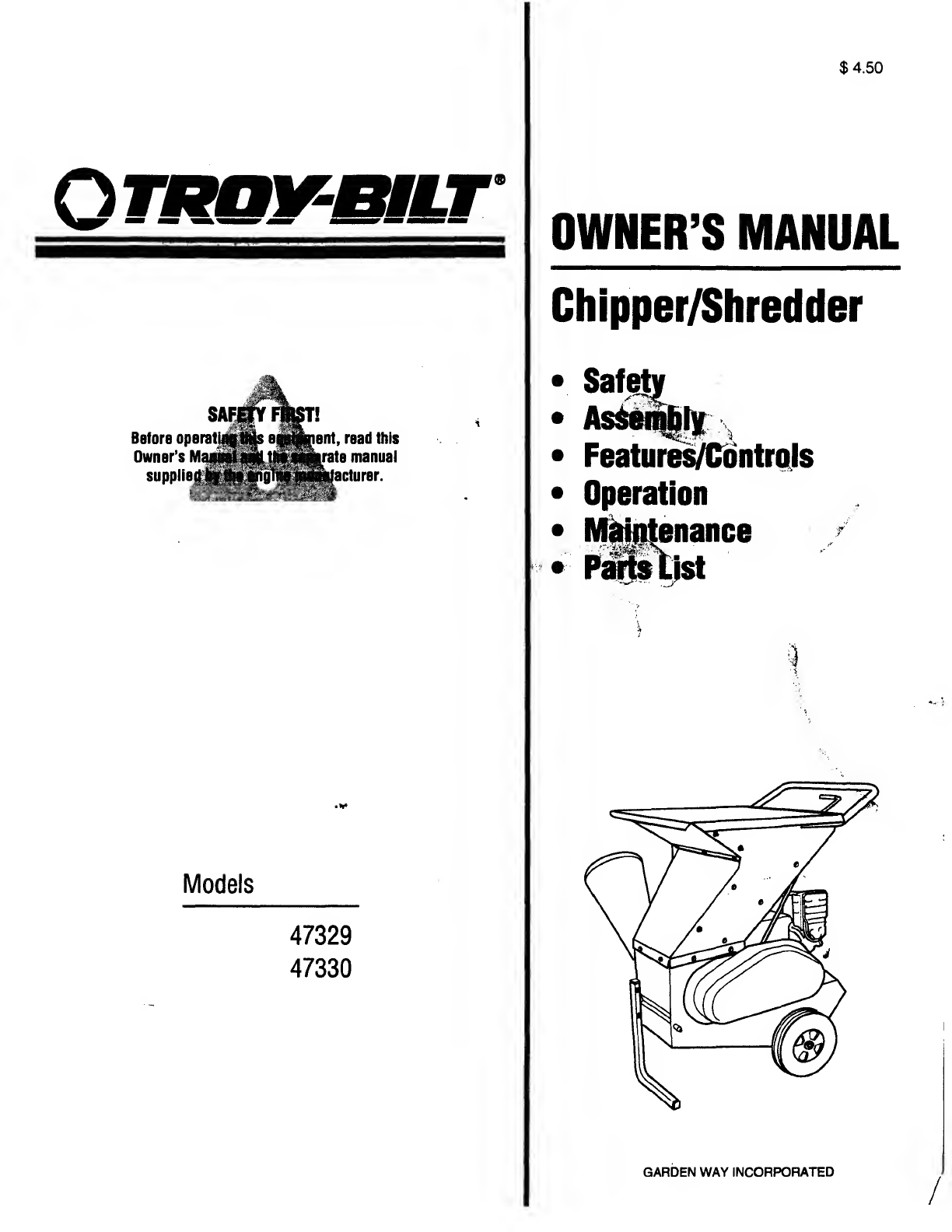

Troy-bilt 47329 User manual

$4.50

SAFftY

FIRST!

Before

operating

tigs

epjgjgient,

read

this

Owner’s

MamA

«p

tl»

fjjnrate

manual

supplied

by

angina

nwatacturer.

OWNER’S

MANUAL

Chipper/Shredder

•

Safety

•

Assembly

•

Features/Controls

•

Operation

•

Maintenance

•

ParbUtt

*

9

Models

47329

47330

GARDEN

WAY

INCORPORATED

/

2

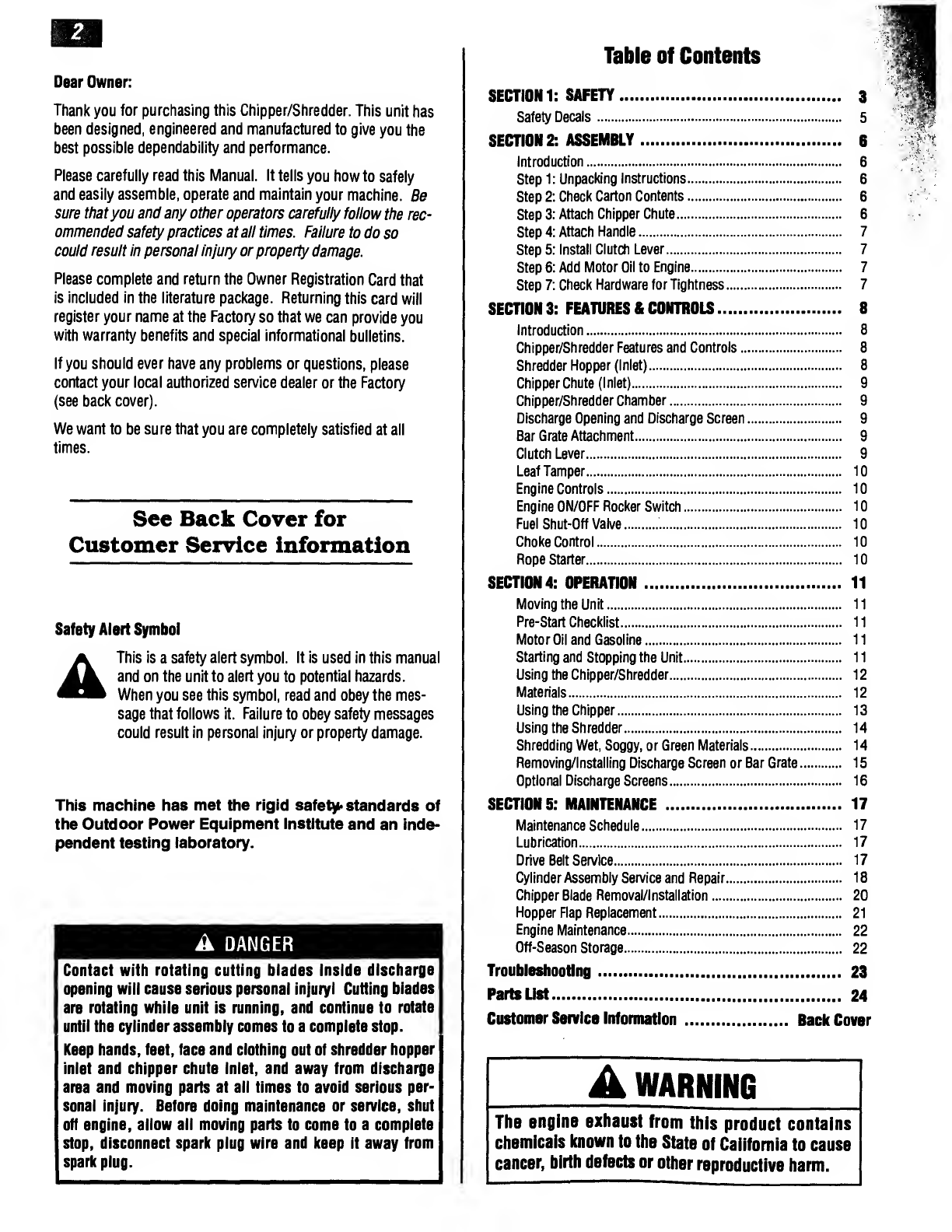

Table

of

Contents

Dear

Owner:

Thank

you

for

purchasing

this

Chipper/Shredder.

This

unit

has

been

designed,

engineered

and

manufactured

to

give

you

the

best

possible

dependability

and

performance.

Please

carefully

read

this

Manual.

It

tells

you

how

to

safely

and

easily

assemble,

operate

and

maintain

your

machine.

Be

sure

that

you

and

any

other

operators

carefully

follow

the

rec¬

ommended

safety

practices

at

all

times.

Failure

to

do

so

could

result

in

personal

injury

or

property

damage.

Please

complete

and

return

the

Owner

Registration

Card

that

is

included

in

the

literature

package.

Returning

this

card

will

register

your

name

at

the

Factory

so

that

we

can

provide

you

with

warranty

benefits

and

special

informational

bulletins.

If

you

should

ever

have

any

problems

or

questions,

please

contact

your

local

authorized

service

dealer

or

the

Factory

(see

back

cover).

We

want

to

be

sure

that

you

are

completely

satisfied

at

all

times.

See

Back

Cover

for

Customer

Service

information

Safety

Alert

Symbol

This

is

a

safety

alert

symbol.

It

is

used

in

this

manual

and

on

the

unit

to

alert

you

to

potential

hazards.

When

you

see

this

symbol,

read

and

obey

the

mes¬

sage

that

follows

it.

Failure

to

obey

safety

messages

could

result

in

personal

injury

or

property

damage.

This

machine

has

met

the

rigid

safety*

standards

of

the

Outdoor

Power

Equipment

Institute

and

an

inde¬

pendent

testing

laboratory.

A

DANGER

Contact

with

rotating

cutting

blades

inside

discharge

opening

will

cause

serious

personal

injury!

Cutting

blades

are

rotating

while

unit

is

running,

and

continue

to

rotate

until

the

cylinder

assembly

comes

to

a

complete

stop.

Keep

hands,

feet,

face

and

clothing

out

of

shredder

hopper

inlet

and

chipper

chute

inlet,

and

away

from

discharge

area

and

moving

parts

at

all

times

to

avoid

serious

per¬

sonal

injury.

Before

doing

maintenance

or

service,

shut

off

engine,

allow

all

moving

parts

to

come

to

a

complete

stop,

disconnect

spark

plug

wire

and

keep

it

away

from

spark

plug.

SECTION

1:

SAFETY.

3

Safety

Decals.

5

SECTION

2:

ASSEMBLY.

6

Introduction.

6

Step

1:

Unpacking

Instructions.

6

Step

2:

Check

Carton

Contents.

6

Step

3:

Attach

Chipper

Chute.

6

Step

4:

Attach

Handle.

7

Step

5:

Install

Clutch

Lever.

7

Step

6:

Add

Motor

Oil

to

Engine.

7

Step

7:

Check

Hardware

for

Tightness.

7

SECTION

3:

FEATURES

&

CONTROLS.

8

Introduction.

8

Chipper/Shredder

Features

and

Controls.

8

Shredder

Hopper

(Inlet).

8

Chipper

Chute

(Inlet).

9

Chipper/Shredder

Chamber.

9

Discharge

Opening

and

Discharge

Screen.

9

Bar

Grate

Attachment.

9

Clutch

Lever.

9

Leaf

Tamper.

10

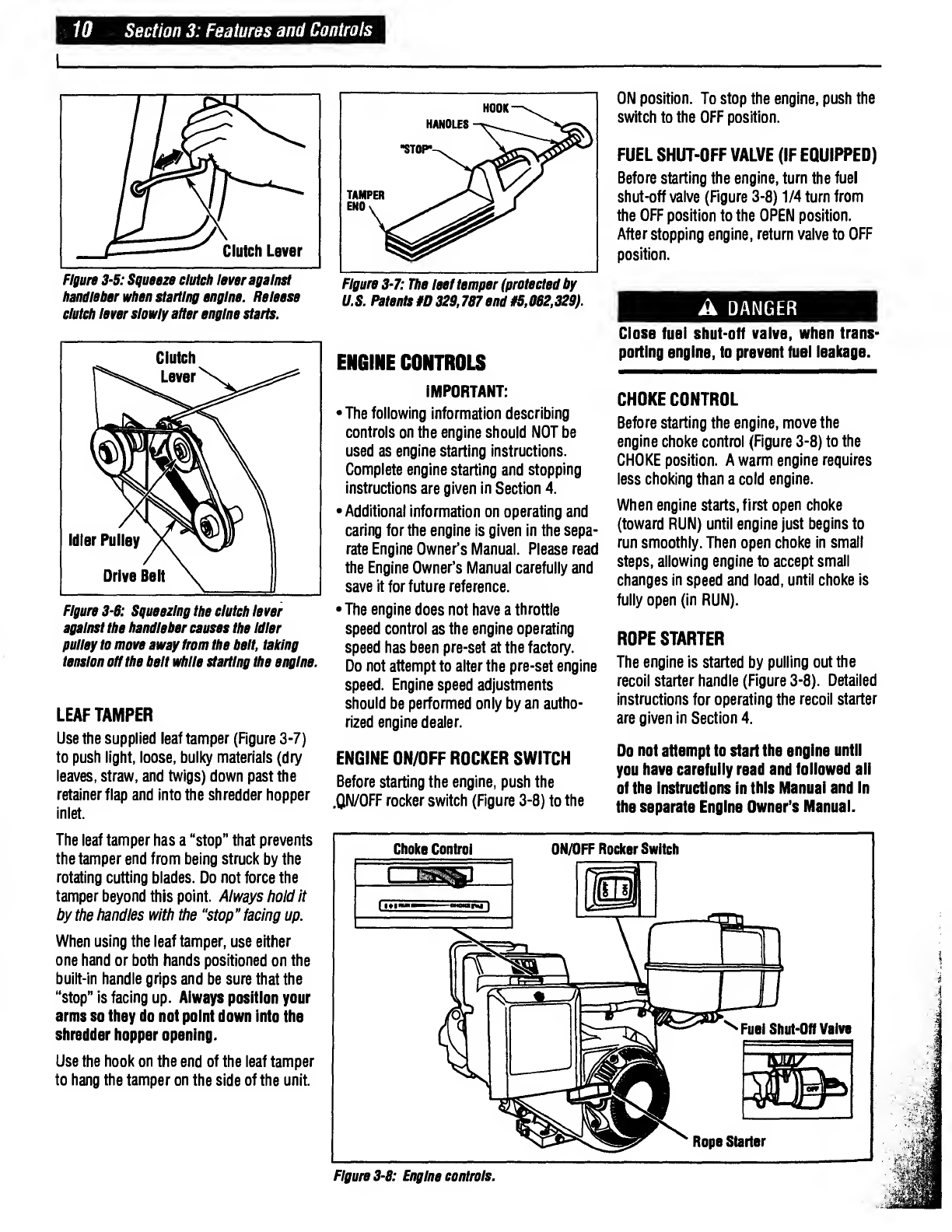

Engine

Controls.

10

Engine

ON/OFF

Rocker

Switch.

10

Fuel

Shut-Off

Valve..

10

Choke

Control.

10

Rope

Starter.

10

SECTION

4:

OPERATION

.

11

Moving

the

Unit.

11

Pre-Start

Checklist.

11

Motor

Oil

and

Gasoline.

11

Starting

and

Stopping

the

Unit.

11

Using

the

Chipper/Shredder.

12

Materials.

12

Using

the

Chipper.

13

Using

the

Shredder.

14

Shredding

Wet,

Soggy,

or

Green

Materials.

14

Removing/Installing

Discharge

Screen

or

Bar

Grate.

15

Optional

Discharge

Screens.

16

SECTION

5:

MAINTENANCE

.

17

Maintenance

Schedule.

17

Lubrication.

17

Drive

Belt

Service.

17

Cylinder

Assembly

Service

and

Repair.

18

Chipper

Blade

Removal/Installation.

20

Hopper

Flap

Replacement.

21

Engine

Maintenance.

22

Off-Season

Storage.

22

Troubleshooting.

23

Parts

List.

24

Customer

Service

Information.

Back

Cover

A

WARNING

The

engine

exhaust

from

this

product

contains

chemicals

known

to

the

State

of

California

to

cause

cancer,

birth

defects

or

other

reproductive

harm.

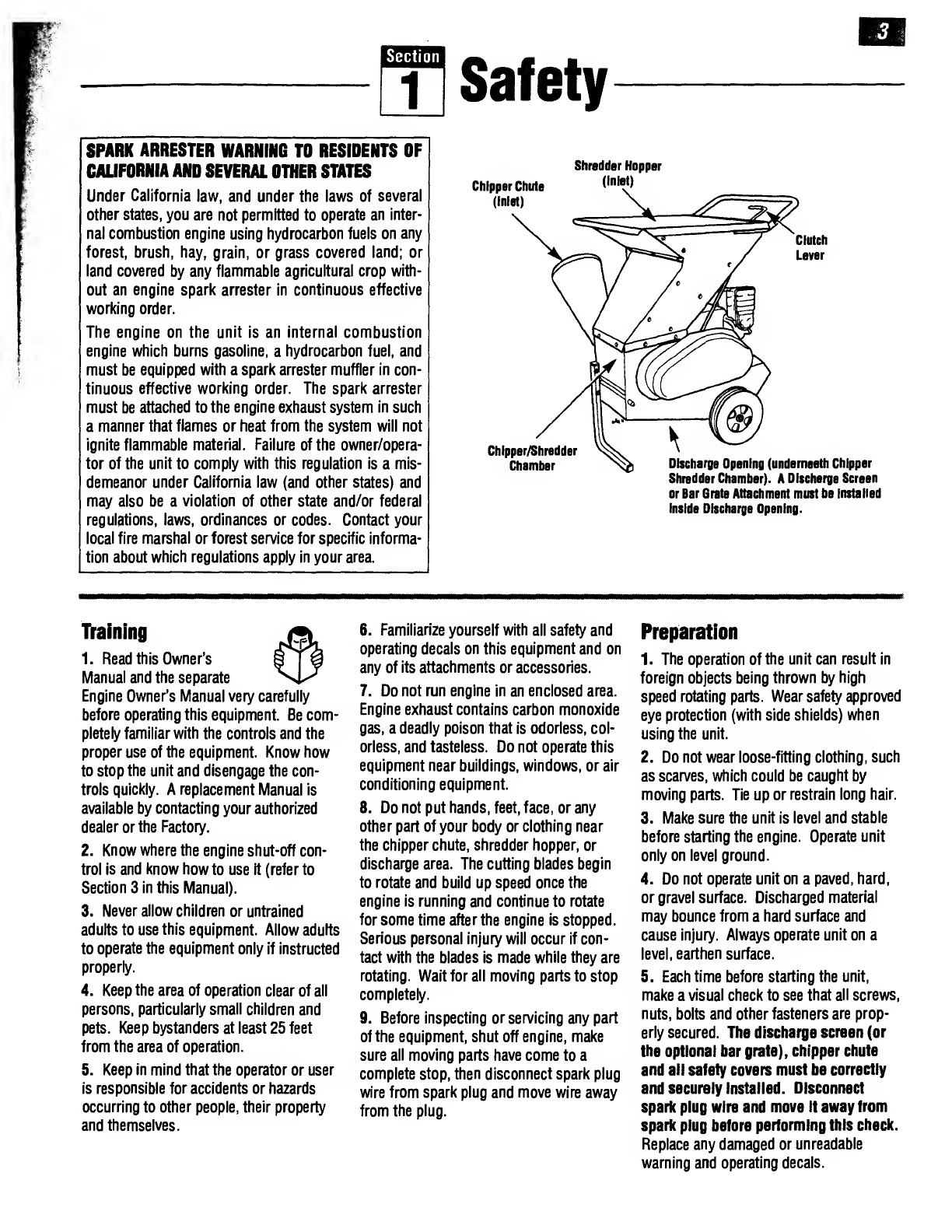

Section

Safety

SPARK

ARRESTER

WARNING

TO

RESIDENTS

OF

CALIFORNIA

AND

SEVERAL

OTHER

STATES

Under

California

law,

and

under

the

laws

of

several

other

states,

you

are

not

permitted

to

operate

an

inter¬

nal

combustion

engine

using

hydrocarbon

fuels

on

any

forest,

brush,

hay,

grain,

or

grass

covered

land;

or

land

covered

by

any

flammable

agricultural

crop

with¬

out

an

engine

spark

arrester

in

continuous

effective

working

order.

The

engine

on

the

unit

is

an

internal

combustion

engine

which

burns

gasoline,

a

hydrocarbon

fuel,

and

must

be

equipped

with

a

spark

arrester

muffler

in

con¬

tinuous

effective

working

order.

The

spark

arrester

must

be

attached

to

the

engine

exhaust

system

in

such

a

manner

that

flames

or

heat

from

the

system

will

not

ignite

flammable

material.

Failure

of

the

owner/opera¬

tor

of

the

unit

to

comply

with

this

regulation

is

a

mis¬

demeanor

under

California

law

(and

other

states)

and

may

also

be

a

violation

of

other

state

and/or

federal

regulations,

laws,

ordinances

or

codes.

Contact

your

local

fire

marshal

or

forest

service

for

specific

informa¬

tion

about

which

regulations

apply

in

your

area.

Shredder

Hopper

inside

Dlscherge

Opening.

Training

1.

Read

this

Owner’s

Manual

and

the

separate

Engine

Owner’s

Manual

very

carefully

before

operating

this

equipment.

Be

com¬

pletely

familiar

with

the

controls

and

the

proper

use

of

the

equipment.

Know

how

to

stop

the

unit

and

disengage

the

con¬

trols

quickly.

A

replacement

Manual

is

available

by

contacting

your

authorized

dealer

or

the

Factory.

2.

Know

where

the

engine

shut-off

con¬

trol

is

and

know

how

to

use

it

(refer

to

Section

3

in

this

Manual).

3.

Never

allow

children

or

untrained

adults

to

use

this

equipment.

Allow

adults

to

operate

the

equipment

only

if

instructed

properly.

4.

Keep

the

area

of

operation

clear

of

all

persons,

particularly

small

children

and

pets.

Keep

bystanders

at

least

25

feet

from

the

area

of

operation.

5.

Keep

in

mind

that

the

operator

or

user

is

responsible

for

accidents

or

hazards

occurring

to

other

people,

their

property

and

themselves.

6.

Familiarize

yourself

with

all

safety

and

operating

decals

on

this

equipment

and

on

any

of

its

attachments

or

accessories.

7.

Do

not

run

engine

in

an

enclosed

area.

Engine

exhaust

contains

carbon

monoxide

gas,

a

deadly

poison

that

is

odorless,

col¬

orless,

and

tasteless.

Do

not

operate

this

equipment

near

buildings,

windows,

or

air

conditioning

equipment.

8.

Do

not

put

hands,

feet,

face,

or

any

other

part

of

your

body

or

clothing

near

the

chipper

chute,

shredder

hopper,

or

discharge

area.

The

cutting

blades

begin

to

rotate

and

build

up

speed

once

the

engine

is

running

and

continue

to

rotate

for

some

time

after

the

engine

is

stopped.

Serious

personal

injury

will

occur

if

con¬

tact

with

the

blades

is

made

while

they

are

rotating.

Wait

for

all

moving

parts

to

stop

completely.

9.

Before

inspecting

or

servicing

any

part

of

the

equipment,

shut

off

engine,

make

sure

all

moving

parts

have

come

to

a

complete

stop,

then

disconnect

spark

plug

wire

from

spark

plug

and

move

wire

away

from

the

plug.

Preparation

1.

The

operation

of

the

unit

can

result

in

foreign

objects

being

thrown

by

high

speed

rotating

parts.

Wear

safety

approved

eye

protection

(with

side

shields)

when

using

the

unit.

2.

Do

not

wear

loose-fitting

clothing,

such

as

scarves,

which

could

be

caught

by

moving

parts.

Tie

up

or

restrain

long

hair.

3.

Make

sure

the

unit

is

level

and

stable

before

starting

the

engine.

Operate

unit

only

on

level

ground.

4.

Do

not

operate

unit

on

a

paved,

hard,

or

gravel

surface.

Discharged

material

may

bounce

from

a

hard

surface

and

cause

injury.

Always

operate

unit

on

a

level,

earthen

surface.

5.

Each

time

before

starting

the

unit,

make

a

visual

check

to

see

that

all

screws,

nuts,

bolts

and

other

fasteners

are

prop¬

erly

secured.

The

discharge

screen

(or

the

optional

bar

grate),

chipper

chute

and

all

safety

covers

must

be

correctly

and

securely

installed.

Disconnect

spark

plug

wire

and

move

it

away

from

spark

plug

before

performing

this

check.

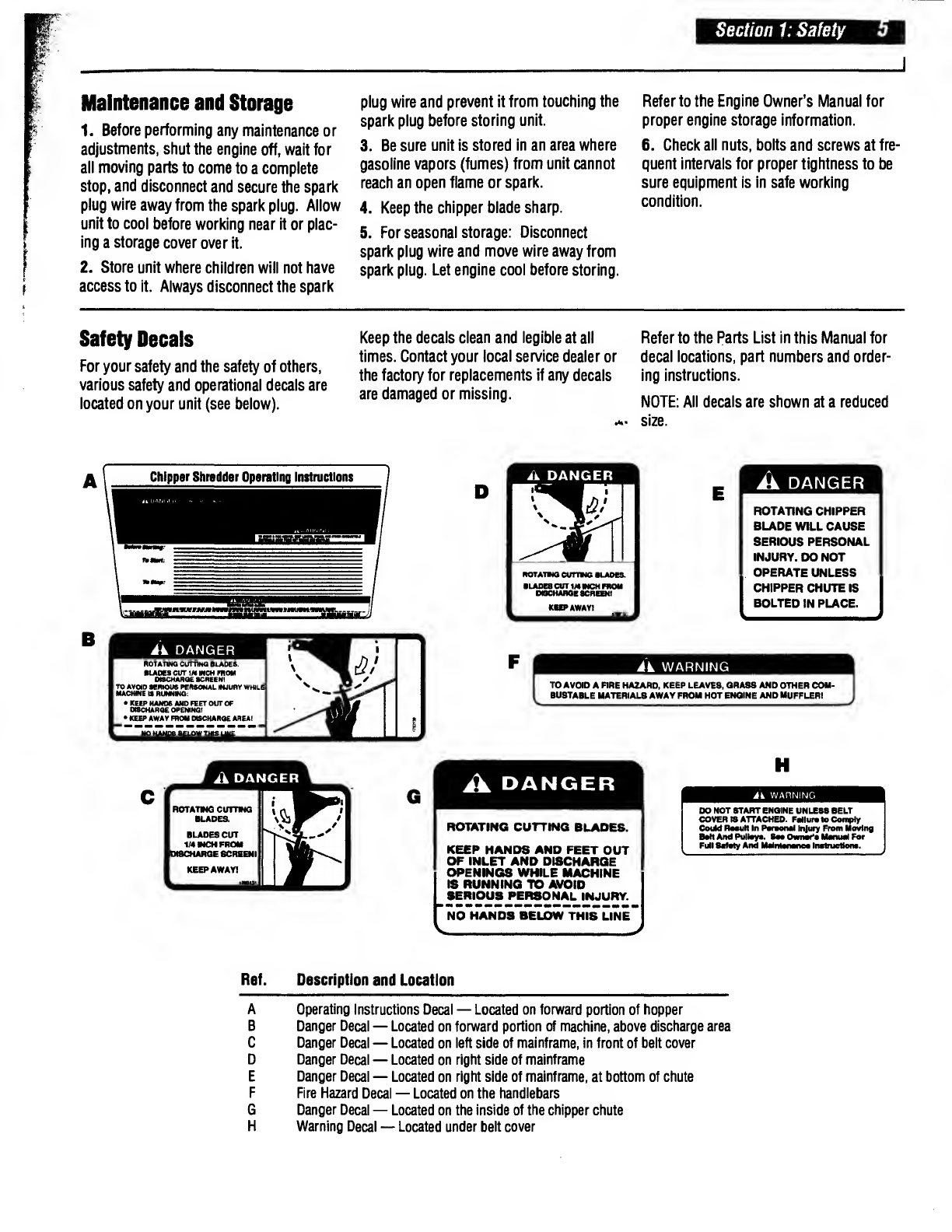

Replace

any

damaged

or

unreadable

warning

and

operating

decals.

4

Section

1:

Safety

6.

Handle

fuel

with

care.

It

is

highly

flammable

and

has

explosive

vapors.

Take

these

precautions:

a.

Use

an

approved

fuel

container.

b.

Add

fuel

before

starting

engine.

Never

remove

fuel

tank

cap

or

add

fuel

while

engine

is

running

or

when

engine

is

hot.

Operators

shall

not

smoke.

c.

Keep

matches,

cigarettes,

cigars,

pipes,

open

flames,

and

sparks

away

from

the

fuel

tank

and

fuel

container.

d.

Fill

fuel

tank

outdoors

and

with

extreme

caution.

Never

fill

fuel

tank

when

indoors.

Use

a

funnel

or

spout

to

prevent

spillage.

e.

Replace

all

fuel

tank

and

fuel

con¬

tainer

caps

securely.

f.

If

fuel

is

spilled,

do

not

attempt

to

start

engine,

but

move

machine

away

from

area

of

spillage

and

avoid

creat¬

ing

any

source

of

ignition

until

fuel

vapors

have

dissipated.

7.

Never

make

adjustments

to

your

equip¬

ment

when

the

engine

is

running

or

spark

plug

wire

is

connected

(unless

specifically

recommended

in

Owner’s

Manual).

Operation

1.

Secure

the

spark

plug

wire

away

from

the

spark

plug

and

remove

any

unpro¬

cessed

material

from

inside

the

unit

before

starting

the

unit.

2.

Do

not

feed

metal,

rocks,

bottles,

nails,

cans,

or

any

other

foreign

objects

into

the

chipper

chute

or

shredder

hopper.

Pro¬

cess

organic

materials

only!

3.

Keep

your

face

and

body

away

from

shredder

hopper

and

chipper

chute.

4.

Keep

hands,

feet,

face

and

clothing

away

from

shredder

hopper

inlet,

chip¬

per

chute

inlet,

and

discharge

area

to

avoid

serious

personal

injury.

5.

Keep

hands

and

feet

out

of

discharge

opening

when

machine

is

running.

Rotating

cutting

blades

inside

opening

will

cause

serious

personal

injury.

6.

Do

not

put

hands,

feet,

face

or

any

other

part

of

your

body

or

clothing

near

chipper

chute,

shredder

hopper

or

dis¬

charge

area.

The

cutting

blades

begin

to

rotate

and

build

up

speed

once

the

engine

is

running

and

continue

to

rotate

for

some

time

after

engine

is

stopped.

Serious

per¬

sonal

injury

will

occur

if

contact

with

blades

is

made

while

they

are

rotating.

Wait

for

all

moving

parts

to

stop

completely.

7.

Do

not

use

hands

or

feet

to

clear

mate¬

rial

from

discharge

area

or

discharge

opening.

8.

Do

not

stand

in

front

of

discharge

area

when

operating

unit.

Material

exits

quickly

from

discharge

screen

and

discharge

opening

and

can

cause

serious

personal

injury.

9.

Do

not

allow

chipped

or

shredded

material

to

build

up

in,

or

clog

the

dis¬

charge

area

—

clogging

prevents

proper

discharge

of

materials

and

can

result

in

kickback

of

material

up

through

the

shred¬

der

hopper

or

chipper

chute.

To

remove

material

from

discharge

area,

first

shut

off

engine,

allow

all

moving

parts

to

stop

completely,

and

disconnect

spark

plug

wire

and

keep

it

from

touching

the

plug.

Then

use

a

long-handled

shovel

or

a

long

stick.

NEVER

USE

HANDS

OR

FEET

TO

CLEAR

MATERIAL

FROM

DISCHARGE

AREA

OR

DISCHARGE

OPENING)

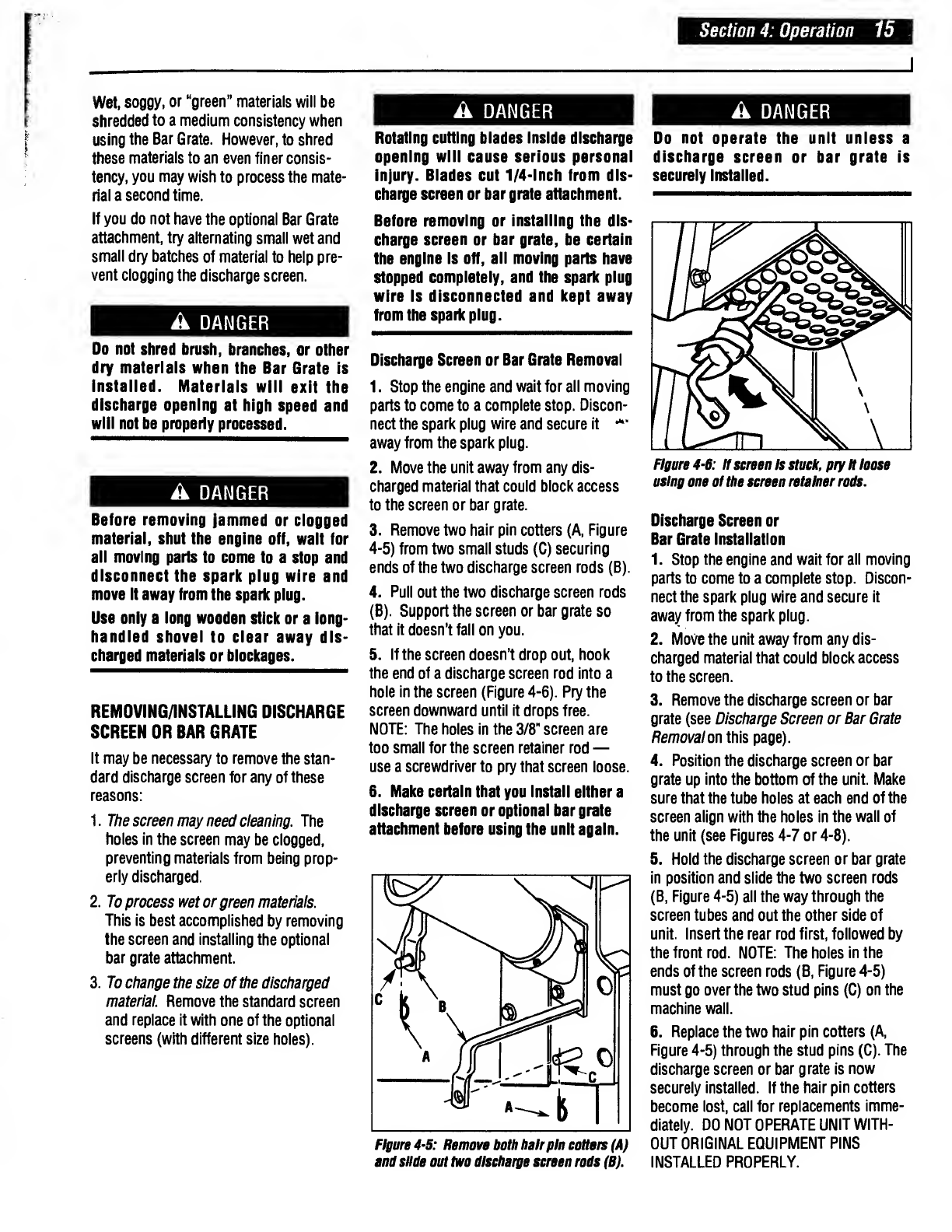

ROTAT¬

ING

BLADES

CUT

1/4-INCH

FROM

DIS¬

CHARGE

SCREEN

(OR

BAR

GRATE).

KEEP

AWAYI

NEVER

PUT

HANDS

OR

FEET

IN

DISCHARGE

AREA

OR

DISCHARGE

OPENING

I

10.

Shut

engine

off

immediately

if

unit

strikes

a

foreign

object

or

develops

an

unusual

noise

or

vibration.

When

engine

is

off

and

all

moving

parts

have

come

to

a

complete

stop,

disconnect

spark

plug

wire

and

keep

it

away

from

plug.

Then

proceed

as

follows:

a.

Inspect

for

damage.

b.

Remove

all

foreign

objects.

c.

Check

for

loose

parts

or

hardware

and

tighten

if

loose.

d.

Replace

or

repair

damaged

parts

before

starting

engine.

11.

Keep

engine

surfaces

clean

and

free

of

leaves,

grass,

oil,

grease,

or

any

other

combustible

material

to

avoid

fires

and/or

engine

damage.

12.

If

the

unit

jams

or

becomes

clogged,

shut

the

engine

off.

Wail

imlil

all

moving

parts

have

come

lo

a

complete

stop.

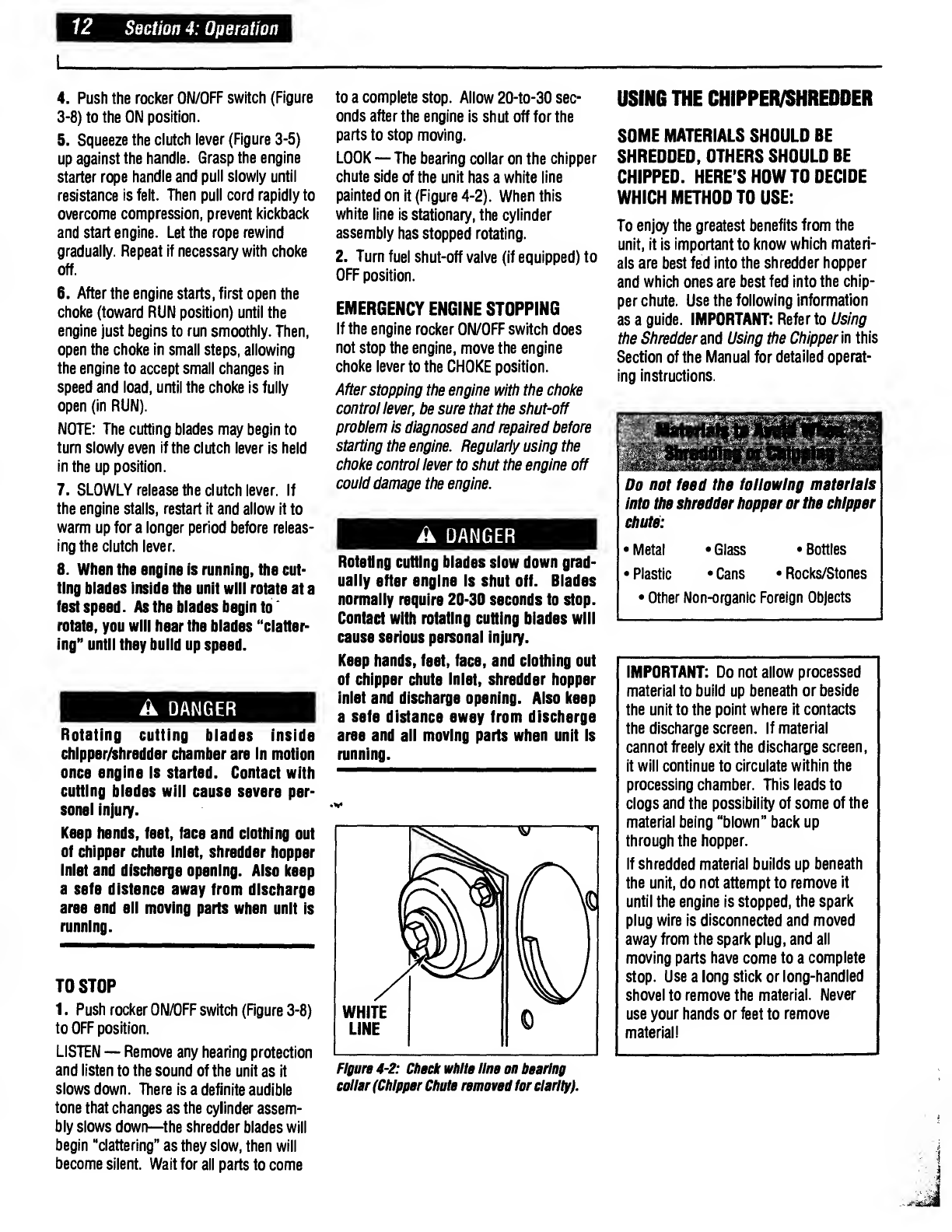

(The

bearing

collar

on

the

chipper

chute

side

of

the

unit

has

a

white

line

painted

on

it.

When

this

white

line

is

stationary,

the

cylinder

assembly

has

stopped

rotat¬

ing.)

Disconnect

spark

plug

wire

and

prevent

it

from

touching

spark

plug

before

inspecting

shredder

hopper

inlet,

chipper

chute

inlet,

internal

cutting

chamber,

dis¬

charge

screen

(or

the

optional

bar

grate)

and

discharge

area.

Use

a

long

wooden

stick

(or

a

long-handled

shovel)

to

clear

jammed

material.

13.

Keep

all

safety

shields,

guards,

screens,

and

deflectors

properly

secured

and

in

good

condition.

Do

not

operate

unit

unless

shredder

hopper

and

chipper

chute

are

securely

bolted

in

place

and

a

discharge

screen

(or

optional

bar

grate)

is

correctly

installed

in

unit.

14.

Processed

material

exits

at

high

speed

from

discharge

opening.

Keep

away

from

discharge

opening

and

dis¬

charge

area

while

operating

unit.

15.

Do

not

over-reach

when

feeding

mate¬

rial

into

shredder

hopper

or

chipper

chute.

Always

keep

arms

parallel

to

ground

while

feeding

material

into

shredder

hopper.

Use

the

leaf

tamper

(supplied)

to

push

leaves

down

into

shredder

hopper.

When

chipping,

keep

arms

per¬

pendicular

(at

a

90°

angle)

to

chipper

chute.

Keep

proper

footing

and

good

bal¬

ance

at

all

times.

16.

Do

not

tamper

with

engine

governor

settings

on

machine.

The

governor

con¬

trols

the

maximum

safe

operating

speed

and

protects

engine

and

all

moving

parts

from

damage

caused

by

overspeed.

Con¬

tact

your

nearest

authorized

dealer

if

an

engine

governor

problem

exists.

17.

Do

not

transport

or

move

unit

while

engine

is

running.

18.

Rotating

cutting

blades

do

not

stop

for

20

-

30

seconds

after

engine

has

been

shut

off.

You

can

tell

when

the

rotating

cylinder

stops

by

watching

the

white

line

on

the

cylinder

bearing

collar.

When

this

white

line

is

stationary,

the

cylinder

has

stopped

rotating.

19.

Take

all

possible

precautions

when

leaving

machine

unattended.

Always

stop

the

engine.

Disconnect

the

spark

plug

wire

and

prevent

it

from

touching

the

plug.

20.

Never

operate

unit

if

you

are

tired

or

under

the

influence

of

alcohol,

drugs

or

medication.

21.

Do

not

touch

hot

muffler,

cylinder,

fins

or

other

engine

parts

which

can

causa

burns.

Section

1:

Safety

5

Maintenance

and

Storage

1.

Before

performing

any

maintenance

or

adjustments,

shut

the

engine

off,

wait

for

all

moving

parts

to

come

to

a

complete

stop,

and

disconnect

and

secure

the

spark

plug

wire

away

from

the

spark

plug.

Allow

unit

to

cool

before

working

near

it

or

plac¬

ing

a

storage

cover

over

it.

2.

Store

unit

where

children

will

not

have

access

to

it.

Always

disconnect

the

spark

plug

wire

and

prevent

it

from

touching

the

spark

plug

before

storing

unit.

3.

Be

sure

unit

is

stored

in

an

area

where

gasoline

vapors

(fumes)

from

unit

cannot

reach

an

open

flame

or

spark.

4.

Keep

the

chipper

blade

sharp.

5.

For

seasonal

storage:

Disconnect

spark

plug

wire

and

move

wire

away

from

spark

plug.

Let

engine

cool

before

storing.

Refer

to

the

Engine

Owner’s

Manual

for

proper

engine

storage

information.

6.

C

heck

all

nuts,

bolts

and

screws

at

fre

quent

intervals

for

proper

tightness

to

be

sure

equipment

is

in

safe

working

condition.

Safety

Decals

For

your

safety

and

the

safety

of

others,

various

safety

and

operational

decals

are

located

on

your

unit

(see

below).

Keep

the

decals

clean

and

legible

at

all

times.

Contact

your

local

service

dealer

or

the

factory

for

replacements

if

any

decals

are

damaged

or

missing.

Refer

to

the

Parts

List

in

this

Manual

for

decal

locations,

part

numbers

and

order¬

ing

instructions.

NOTE:

All

decals

are

shown

at

a

reduced

size.

44

DANGER

i

ROTATING

CUTTING

BLADES.

BLADES

CUT

IN

INCH

PROM

DISCHARGE

SCREEN!

TO

AVOID

SERIOUS

PERSONAL

INJURY

WHILE

MACHINE

IS

RUNNING:

•

KEEP

HANDS

AND

FEET

OUT

OF

DISCHARGE

OPENING!

•

KEEP

AWAY

FROM

DISCHARGE

AREA!

A

DANGER

ROTATING

CHIPPER

BLADE

WILL

CAUSE

SERIOUS

PERSONAL

INJURY.

DO

NOT

OPERATE

UNLESS

CHIPPER

CHUTE

IS

BOLTED

IN

PLACE.

44

WARNING

TO

AVOID

A

FIRE

HAZARD,

KEEP

LEAVES,

GRASS

AND

OTHER

COM-

BUSTABLE

MATERIALS

AWAY

FROM

HOT

ENGINE

AND

MUFFLER!

ik

DANGER

ROTATING

CUTTING

BLADES.

KEEP

HANDS

AND

FEET

OUT

OF

INLET

AND

DISCHARGE

OPENINGS

WHILE

MACHINE

IS

RUNNING

TO

AVOID

SERIOUS

PERSONAL

INJURY.

NO

HANDS

BELOW

THIS

LINE

V_y

4k

WARNING

DO

NOT

START

ENGINE

UNLESS

BELT

COVER

IS

ATTACHED.

Fsilurs

to

Comply

Could

Rosult

In

Porsonol

injury

From

Moving

Bolt

And

Pulloys.

Soo

Ownsr's

Manual

For

Full

Safety

And

Maintenance

I

ns

truction

s

.

Ref.

Description

and

Location

A

Operating

Instructions

Decal

—

Located

on

forward

portion

of

hopper

B

Danger

Decal

—

Located

on

forward

portion

of

machine,

above

discharge

area

C

Danger

Decal

—

Located

on

left

side

of

mainframe,

in

front

of

belt

cover

D

Danger

Decal

—

Located

on

right

side

of

mainframe

E

Danger

Decal

—

Located

on

right

side

of

mainframe,

at

bottom

of

chute

F

Fire

Hazard

Decal

—

Located

on

the

handlebars

G

Danger

Decal

—

Located

on

the

inside

of

the

chipper

chute

H

Warning

Decal

—

Located

under

belt

cover

6

Section

mmi

m

■

|

2]

Assembly

A

WARNING

To

prevent

personal

injury

or

property

damage,

do

not

start

the

engine

until

all

assembly

steps

are

complete

and

you

have

read

and

understand

the

safety

and

operating

instructions

in

this

Manual.

INTRODUCTION

For

best

results,

read

these

instructions

in

their

entirety

before

you

attempt

to

assem¬

ble

your

new

equipment.

STEP

1:

UNPACKING

INSTRUCTIONS

1.

Inspect

the

unit

immediately.

If

you

find

or

suspect

damage,

contact

the

carrier

(trucking

company)

right

away

and

tell

the

carrier

you

wish

to

file

a

claim.

2.

Remove

any

packing

material

from

around

the

unit.

Remove

the

chipper

chute

(item

2,

Figure

2-1)

and

clutch

lever

(item

7,

Figure

2-1)

from

the

top

of

the

machine.

Remove

the

package

containing

loose

parts.

Be

sure

to

check

thoroughly

for

any

parts

before

disposing

of

the

carton

or

any

of

the

packing

materials.

3.

Use

a

pry

bar

to

remove

any

wooden

blocks

from

the

front

stand

assembly.

Have

an

assistant

help

you

move

the

unit

off

the

wood

pallet.

(shown

at

reduced

sizes).

STEP

2:

CHECK

CARTON

CONTENTS

Check

that

you

have

the

items

listed

below

and

shown

in

Figure

2-1.

Contact

your

authorized

dealer

or

the

factory

if

any

items

are

missing

or

damaged.

(1)

Engine/mainframe

assembly

(not

illustrated).

(1)

Chipper

chute

(No.

2,

Figure

2-1).

(4)

1/4"-20

x

5/8'

round

hd.

carriage

bolts

(No.

3,

Figure

2-1).

(1)

Handle

(No.

4,

Figure

2-1)

-

shipped

upside

down

on

shredder

hopper.

(4)

1/4“-20

x

1-1/4“

flange

hd.

cap

screws

(No.

5,

Figure

2-1).

(10)

1/4“-20

toplock

nuts

(No.

6,

Figure

2-1).

(1)

Top

section

of

clutch

lever

(No.

7,

Figure

2-1).

(1)

Vinyl

grip

for

clutch

lever

(No.

8,

Figure

2-1).

(2)

1/4"-20

x

3/4"

hex

hd.

cap

screws

(No.

9,

Figure

2-1).

(1)

Leaf

tamper

(No.

10,

Figure

2-1).

Tools

needed

for

assembly:

(2)

7/16"

wrenches*

(1)

3/8"

wrench*

(1)

1/2"

wrench*

(1)

Flat

blade

screwdriver

*

You

may

substitute

an

adjustable

wrench.

A

DANGER

The

chipper

blade

is

extremely

sharp

—

do

not

touch

the

blade

while

installing

the

chipper

chute.

When

the

engine

is

running,

the

chipper

blade

revolves

at

high

speed.

The

chipper

chute

must

be

securely

attached

before

operating

the

unit.

STEP

3:

ATTACH

CHIPPER

CHUTE

1.

Find

the

safety

message

decal

(C,

Figure

2-2)

located

inside

the

large

open¬

ing

of

the

chipper

chute

(B).

IMPORTANT:

The

chute

must

be

installed

so

that

the

safety

message

decal

(C)

can

be

read

when

the

operator

looks

down

into

the

chute.

2.

Insert

the

small

end

of

the

chipper

chute

(B,

Figure

2-2)

into

the

chipper

chute

mounting

base

(A)

and

align

the

four

square

holes

in

the

chipper

chute

with

the

four

round

holes

in

the

mounting

base.

Check

that

the

safety

message

decal

(C)

is

positioned

as

shown

in

Figure

2-2.

3.

Reach

inside

the

chipper

chute

and

insert

four

1/4"-20

x

5/8"

round

head

car¬

riage

bolts

(D,

Figure

2-2)

out

through

the

four

holes.

Add

1/4"-20

toplock

nuts

(E)

and

tighten

securely.

STEP

4:

ATTACH

HANDLE

1.

U

sing

two

7/16"

wrenches,

remove

the

handle

(F,

Figure

2-3)

and

discard

the

screws

and

nuts.

Turn

the

handle

over

and

position

it

as

shown

in

Figure

2-3.

The

bend

in

the

handle

must

face

upward

as

shown.

2.

Insert

one

1/4“-20

x

1-1/4"

flange

head

screw

(G,

Figure

2-3)

down

through

the

forward

holes

in

the

shredder

hopper

and

handlebar.

Loosely

add

one

1/4“-20

toplock

nut

(H).

Repeat

on

the

other

side.

3.

Install

the

remaining

two

screws

(I)

and

nuts

(H).

Tighten

all

four

screws

and

nuts

with

3/8"

and

7/16’

wrenches.

Section

2:

Assembly

7

J

STEP

5:

INSTALL

CLUTCH

LEVER

1.

Insert

the

angled

end

of

the

upper

clutch

lever

section

(J,

Figure

2-4)

up

through

the

hole

in

the

lip

of

the

shredder

hopper.

Slide

the

vinyl

grip

(K)

onto

the

handle.

2.

Turn

the

lever

so

that

the

handle

faces

inward,

as

shown

in

Figure

2-4.

Attach

the

lever

top

section

(J)

to

the

lever

bottom

section

(L)

using

two

1/4'-20

x

3/4'

screws

(M)

and

1/4"-20

toplock

nuts

(N).

Tighten

securely.

Figure

2-4:

Connect

top

section

(J)

of

dutch

lever

to

bottom

section

(L).

STEP

6:

ADD

MOTOR

OIL

TO

ENGINE

Refer

to

the

separate

Engine

Owner’s

Manual

(included

in

the

unit’s

literature

package)

for

correct

oil

specifications

and

capacities.

IMPORTANT:

The

unit

is

shipped

without

oil

in

the

engine

crankcase.

Do

not

start

the

unit

without

first

adding

oil

to

the

engine.

Severe

damage

will

result

if

the

engine

is

run

without

oil.

1.

Make

sure

the

engine

is

level.

2.

Add

motor

oil

according

to

the

instruc¬

tions

provided

in

the

engine

manufac¬

turer’s

Engine

Owner’s

Manual.

STEP

7:

CHECK

HARDWARE

FOR

TIGHTNESS

Inspect

the

screws,

nuts

and

bolts

on

the

unit

and

tighten

any

loose

hardware.

IMPORTANT:

This

completes

the

assem¬

bly

steps.

Be

sure

to

read

the

rest

of

this

Manual,

and

the

separate

Engine

Owner’s

Manual,

before

you

attempt

to

operate

your

chipper/shredder.

8

Section

31

Features

and

Controls

A

WARNING

Before

operating

your

machine,

carefully

read

and

under¬

stand

all

safety,

controls,

and

operating

instructions

in

this

Manual,

in

the

separate

Engine

Owner’s

Manual,

and

on

the

decals

on

the

machine.

Failure

to

follow

these

instructions

can

result

in

serious

per¬

sonal

injury.

INTRODUCTION

This

Section

describes

the

location

and

function

of

the

main

fea¬

tures

and

controls

on

your

chipper/shredder.

Refer

to

Section

4:

Operation

for

detailed

operating

instructions.

IMPORTANT:

Refer

to

the

separate

Engine

Owner’s

Manual

for

detailed

information

about

the

controls

on

the

engine.

A

DANGER

The

cutting

blades

inside

the

chipper/shredder

chamber

rotate

when

the

engine

is

started.

Contact

with

rotating

blades

will

cause

severe

personal

injury.

Keep

hands,

face,

feet

and

clothing

away

from

chipper

chute

inlet,

shredder

hopper

inlet,

discharge

opening

and

dis¬

charge

area

at

all

times.

CHIPPER/SHREDDER

FEATURES

AND

CONTROLS

SHREDDER

HOPPER

(INLET)

The

shredder

hopper

(see

Figures

3-1

and

3-1

A)

is

the

opening

at

the

top

of

the

unit

for

material

to

be

shredded.

Material

up

to

1/2'

in

diameter

can

be

processed

through

the

shredder

hopper.

In

the

shredder

chamber,

rotating

cutting

blades

shreS

the

material.

A

rubber

retainer

flap

(Figure

3-1

A)

is

installed

at

the

shredder

hopper

opening.

Material

is

pushed

past

this

retainer

flap

(using

only

the

leaf

tamper

supplied

with

unit)

and

enters

the

shredder

chamber.

The

retainer

flap

prevents

kickback

of

materialsl

Do

not

use

the

unit

unless

the

retainer

flap

is

securely

fastened

and

is

hanging

freely

inside

the

hopper

opening.

Immediately

replace

the

retainer

flap

if

it

is

torn

or

damaged.

A

DANGER

Shredded

particles

can

kick

back

up

through

the

shredder

hopper

inlet.

The

retainer

flap

is

designed

to

reduce

kick-

back

of

particles

and

must

be

in

place

and

securely

fastened.

Before

using

the

chipper/shredder,

be

sure

the

retainer

flap

is

securely

fastened.

Failure

to

do

so

can

result

in

serious

personal

injury.

Also

make

sure

you

are

wearing

protective

and

approved

safety

goggles

or

g

lasses.

Figure

3-1A:

Rotating

shredder

cutting

blades

cut

1/4"away

from

discharge

screen—KEEP

HANDS

AND

FEET

AWAY

from

discharge

area

at

all

times

to

avoid

serious

personal

Injury.

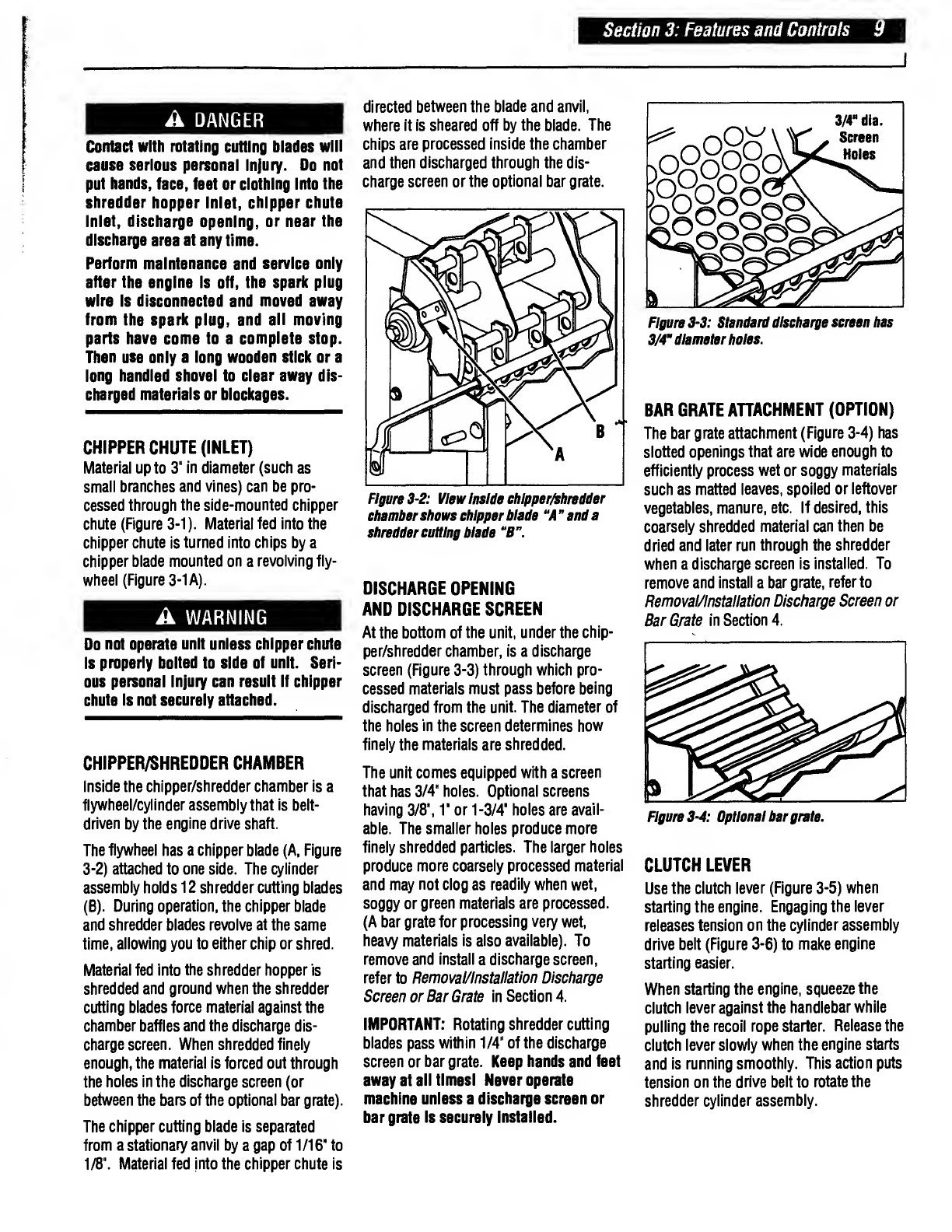

A

DANGER

Contact

with

rotating

cutting

blades

will

cause

serious

personal

injury.

Do

not

put

hands,

face,

feet

or

clothing

into

the

shredder

hopper

inlet,

chipper

chute

inlet,

discharge

opening,

or

near

the

discharge

area

at

any

time.

Perform

maintenance

and

service

only

after

the

engine

is

off,

the

spark

plug

wire

is

disconnected

and

moved

away

from

the

spark

plug,

and

all

moving

parts

have

come

to

a

complete

stop.

Then

use

only

a

long

wooden

stick

or

a

long

handled

shovel

to

clear

away

dis¬

charged

materials

or

blockages.

CHIPPER

CHUTE

(INLET)

Material

up

to

3"

in

diameter

(such

as

small

branches

and

vines)

can

be

pro¬

cessed

through

the

side-mounted

chipper

chute

(Figure

3-1).

Material

fed

into

the

chipper

chute

is

turned

into

chips

by

a

chipper

blade

mounted

on

a

revolving

fly¬

wheel

(Figure

3-1A).

A

WARNING

Do

not

operate

unit

unless

chipper

chute

is

properly

bolted

to

side

of

unit.

Seri¬

ous

personal

injury

can

result

if

chipper

chute

is

not

securely

attached.

CHIPPER/SHREDDER

CHAMBER

Inside

the

chipper/shredder

chamber

is

a

flywheel/cylinder

assembly

that

is

belt-

driven

by

the

engine

drive

shaft.

The

flywheel

has

a

chipper

blade

(A,

Figure

3-2)

attached

to

one

side.

The

cylinder

assembly

holds

12

shredder

cutting

blades

(B).

During

operation,

the

chipper

blade

and

shredder

blades

revolve

at

the

same

time,

allowing

you

to

either

chip

or

shred.

Material

fed

into

the

shredder

hopper

is

shredded

and

ground

when

the

shredder

cutting

blades

force

material

against

the

chamber

baffles

and

the

discharge

dis¬

charge

screen.

When

shredded

finely

enough,

the

material

is

forced

out

through

the

holes

in

the

discharge

screen

(or

between

the

bars

of

the

optional

bar

grate).

The

chipper

cutting

blade

is

separated

from

a

stationary

anvil

by

a

gap

of

1/16'

to

1/8".

Material

fed

into

the

chipper

chute

is

Section

3:

Features

and

Controls

9

J

directed

between

the

blade

and

anvil,

where

it

is

sheared

off

by

the

blade.

The

chips

are

processed

inside

the

chamber

and

then

discharged

through

the

dis¬

charge

screen

or

the

optional

bar

grate.

Figure

3-2:

View

Inside

chlpper/shredder

chamber

shows

chipper

blade

"A

”

and

a

shredder

cutting

blade

“B".

DISCHARGE

OPENING

AND

DISCHARGE

SCREEN

At

the

bottom

of

the

unit,

under

the

chip¬

per/shredder

chamber,

is

a

discharge

screen

(Figure

3-3)

through

which

pro¬

cessed

materials

must

pass

before

being

discharged

from

the

unit.

The

diameter

of

the

holes

in

the

screen

determines

how

finely

the

materials

are

shredded.

The

unit

comes

equipped

with

a

screen

that

has

3/4"

holes.

Optional

screens

having

3/8",

r

or

1-3/4'

holes

are

avail¬

able.

The

smaller

holes

produce

more

finely

shredded

particles.

The

larger

holes

produce

more

coarsely

processed

material

and

may

not

clog

as

readily

when

wet,

soggy

or

green

materials

are

processed.

(A

bar

grate

for

processing

very

wet,

heavy

materials

is

also

available).

To

remove

and

install

a

discharge

screen,

refer

to

Removal/lnstallation

Discharge

Screen

or

Bar

Grate

in

Section

4.

IMPORTANT:

Rotating

shredder

cutting

blades

pass

within

1/4"

of

the

discharge

screen

or

bar

grate.

Keep

hands

and

feet

away

at

all

times!

Never

operate

machine

unless

a

discharge

screen

or

bar

grate

is

securely

installed.

Figure

3-3:

Standard

discharge

screen

has

3/4"

diameter

holes.

BAR

GRATE

ATTACHMENT

(OPTION)

The

bar

grate

attachment

(Figure

3-4)

has

slotted

openings

that

are

wide

enough

to

efficiently

process

wet

or

soggy

materials

such

as

matted

leaves,

spoiled

or

leftover

vegetables,

manure,

etc.

If

desired,

this

coarsely

shredded

material

can

then

be

dried

and

later

run

through

the

shredder

when

a

discharge

screen

is

installed.

To

remove

and

install

a

bar

grate,

refer

to

Removal/lnstallation

Discharge

Screen

or

Bar

Grate

in

Section

4.

Figure

3-4:

Optional

bar

grate.

CLUTCH

LEVER

Use

the

clutch

lever

(Figure

3-5)

when

starting

the

engine.

Engaging

the

lever

releases

tension

on

the

cylinder

assembly

drive

belt

(Figure

3-6)

to

make

engine

starting

easier.

When

starting

the

engine,

squeeze

the

clutch

lever

against

the

handlebar

while

pulling

the

recoil

rope

starter.

Release

the

clutch

lever

slowly

when

the

engine

starts

and

is

running

smoothly.

This

action

puts

tension

on

the

drive

belt

to

rotate

the

shredder

cylinder

assembly.

10

Section

3:

Features

and

Controls

Figure

3-5:

Squeeze

clutch

lever

against

handlebar

when

starting

engine.

Release

clutch

lever

slowly

after

engine

starts.

Figure

3-6:

Squeezing

the

clutch

lever

against

the

handlebar

causes

the

Idler

pulley

to

move

away

from

the

belt,

taking

tension

off

the

belt

while

starting

the

engine.

LEAF

TAMPER

Use

the

supplied

leaf

tamper

(Figure

3-7)

to

push

light,

loose,

bulky

materials

(dry

leaves,

straw,

and

twigs)

down

past

the

retainer

flap

and

Into

the

shredder

hopper

inlet.

The

leaf

tamper

has

a

“stop”

that

prevents

the

tamper

end

from

being

struck

by

the

rotating

cutting

blades.

Do

not

force

the

tamper

beyond

this

point.

Always

hold

it

by

the

handles

with

the

“stop”

facing

up.

When

using

the

leaf

tamper,

use

either

one

hand

or

both

hands

positioned

on

the

built-in

handle

grips

and

be

sure

that

the

“stop”

is

facing

up.

Always

position

your

arms

so

they

do

not

point

down

into

the

shredder

hopper

opening.

Use

the

hook

on

the

end

of

the

leaf

tamper

to

hang

the

tamper

on

the

side

of

the

unit.

Figure

3-7:

The

leaf

tamper

(protected

by

U.S.

Patents

*D

329,787and

85,082,329).

ENGINE

CONTROLS

IMPORTANT:

•

The

following

information

describing

controls

on

the

engine

should

NOT

be

used

as

engine

starting

instructions.

Complete

engine

starting

and

stopping

instructions

are

given

in

Section

4.

•

Additional

information

on

operating

and

caring

for

the

engine

is

given

in

the

sepa¬

rate

Engine

Owner’s

Manual.

Please

read

the

Engine

Owner’s

Manual

carefully

and

save

it

for

future

reference.

•

The

engine

does

not

have

a

throttle

speed

control

as

the

engine

operating

speed

has

been

pre-set

at

the

factory.

Do

not

attempt

to

alter

the

pre-set

engine

speed.

Engine

speed

adjustments

should

be

performed

only

by

an

autho¬

rized

engine

dealer.

ENGINE

ON/OFF

ROCKER

SWITCH

Before

starting

the

engine,

push

the

.CUM/OFF

rocker

switch

(Figure

3-8)

to

the

ON

position.

To

stop

the

engine,

push

the

switch

to

the

OFF

position.

FUEL

SHUT-OFF

VALVE

(IF

EQUIPPED)

Before

starting

the

engine,

turn

the

fuel

shut-off

valve

(Figure

3-8)

1/4

turn

from

the

OFF

position

to

the

OPEN

position.

After

stopping

engine,

return

valve

to

OFF

position.

A

DANGER

Close

fuel

shut-off

valve,

when

trans¬

porting

engine,

to

prevent

fuel

leakage.

CHOKE

CONTROL

Before

starting

the

engine,

move

the

engine

choke

control

(Figure

3-8)

to

the

CHOKE

position.

A

warm

engine

requires

less

choking

than

a

cold

engine.

When

engine

starts,

first

open

choke

(toward

RUN)

until

engine

just

begins

to

run

smoothly.

Then

open

choke

in

small

steps,

allowing

engine

to

accept

small

changes

in

speed

and

load,

until

choke

is

fully

open

(in

RUN).

ROPE

STARTER

The

engine

is

started

by

pulling

out

the

recoil

starter

handle

(Figure

3-8).

Detailed

Instructions

for

operating

the

recoil

starter

are

given

in

Section

4.

Do

not

attempt

to

start

the

engine

until

you

have

carefully

read

and

followed

all

of

the

instructions

in

this

Manual

and

in

the

separate

Engine

Owner’s

Manual.

Figure

3-8:

Engine

controls.

41

Operation

A

WARNING

Before

operating

the

unit,

carefully

read

and

understand

all

safety,

controls

and

operating

instructions

in

this

Manual,

in

the

separate

Engine

Owner’s

Manual,

and

the

decals

on

the

machine.

Failure

to

follow

these

instructions

can

result

in

serious

personal

injury.

A

DANGER

Contact

with

rotating

cutting

blades

inside

the

discharge

opening

will

cause

serious

personal

injury.

The

cutting

blades

inside

the

discharge

opening

cut

1/4-inch

from

the

discharge

screen

or

optional

bar

grate.

Keep

hands

and

feet

out

of

discharge

opening

and

away

from

discharge

area

while

machine

is

running,

and

while

blades

are

coming

to

a

stop.

MOVING

THE

UNIT

The

unit

can

be

pushed

or

pulled

by

the

handlebar.

Before

moving

the

unit,

the

engine

and

all

moving

parts

must

be

com¬

pletely

stopped.

The

unit

weighs

over

250

ibs.

Use

cau¬

tion

when

rolling

the

unit

and

carefully

balance

the

weight

of

the

unit

over

the

wheel

axle.

Improper

handling

can

lead

to

injury!

Follow

the

instructions

below.

1.

STOP

THE

ENGINE

and

wait

for

all

parts

to

stop

completely.

Disconnect

spark

plug

wire

from

spark

plug

and

pre¬

vent

it

from

touching

spark

plug.

2.

Grasp

the

handlebar

with

both

hands

and

put

one

foot

on

the

rear

of

the

engine

deck

(Figure

4-1).

Place

the

other

foot

firmly

on

the

ground.

3.

Steady

the

unit

with

your

foot

and

slowly

pull

the

handlebar

backward

until

you

find

the

balance

point

(center

of

grav¬

ity).

Use

caution

when

tilting

the

unit

to

make

sure

it

doesn’t

fall

on

you.

Maintain

the

balance

point

as

you

carefully

remove

your

toot

from

the

engine

deck.

4.

Watch

for

obstacles.

Keep

a

firm

grip

on

the

handlebar

and

slowly

pull

or

push

the

unit.

On

smooth,

level

ground

it

is

easier

to

push

the

unit.

Pulling

is

easier

if

the

wheels

must

go

over

ruts

or

obstacles.

5.

W

hen

you

reach

your

destination,

put

your

foot

back

on

the

engine

deck

and

let

the

unit

tilt

forward

slowly

until

the

front

stand

is

on

the

ground.

The

unit

must

be

level

and

stable.

Operate

the

unit

only

on

a

level,

earthen

surface.

Figure

4-1:

Moving

the

unit.

PRE-START

CHECKLIST

Before

starting

the

engine,

perform

this

Pre-Start

Checklist

and

read

this

Section

completely.

•

Check

engine

oil

level

(see

Motor

Oil

and

Gasoline

in

this

Section).

•

Fill

the

fuel

tank

(see

Motor

Oil

and

Gasoline

in

this

Section).

•

Make

sure

all

bystanders

and

pets

are

at

least

25

feet

away

from

the

area

of

operation.

•

Put

on

safety

goggles,

hearing

protec¬

tion,

sturdy

work

gloves

and

sturdy

footwear.

Do

not

wear

loose-fitting

clothing

that

can

get

caught

in

moving

parts.

•

Check

for

foreign

objects

in

the

chipper

chute

and

the

shredder

hopper.

•

Check

that

the

chipper

chute

is

correctly

and

securely

attached.

•

Check

that

the

discharge

screen

(or

the

optional

bar

grate,

if

installed)

is

cor¬

rectly

and

securely

installed.

(See

Removing/Installing

Discharge

Screen

or

Bar

Grate

in

this

Section.)

Check

for

clogged

holes

in

the

discharge

screen

and

clean

them,

if

needed,

with

a

stick.

•

Be

sure

that

all

hardware

is

securely

fastened.

•

Reconnect

spark

plug

wire

to

spark

plug.

IMPORTANT:

Use

unit

only

on

an

earthen,

level

surface.

Do

not

use

unit

on

hard

sur¬

faces

like

concrete,

asphalt,

brick,

gravel

or

rocks,

where

discharged

materials

can

rebound

off

a

hard

surface

and

cause

seri¬

ous

personal

injury

or

property

damage.

MOTOR

OIL

AND

GASOLINE

Before

starting

the

engine,

check

the

motor

oil

level

and

the

gasoline

level.

1.

C

heck

motor

oil

level

before

starting

engine

and

after

every

8

hours

of

opera¬

tion.

Refer

to

Engine

Owner’s

Manual

for

how

to

check,

add

and

change

oil.

A

DANGER

GASOLINE

IS

HIGHLY

FLAMMABLE

AND

ITS

VAPORS

ARE

EXPLOSIVE.

Follow

the

gasoline

safety

rules

in

this

Manual

(Section

1)

and

in

the

separate

Engine

Owner’s

Manual.

Failure

to

follow

gasoline

safety

instruc¬

tions

can

result

in

serious

personal

injury

and

property

damage.

2.

A

dd

Gasoline.

Refer

to

the

Engine

Owner's

Manual

for

correct

gasoline

spec¬

ifications.

Fill

the

gasoline

tank

slowly

and

carefully.

Allow

space

inside

the

gasoline

tank

to

allow

for

fuel

expansion.

Clean

up

all

fuel

spills

before

starting

the

engine.

STARTING

AND

STOPPING

THE

UNIT

TO

START

1.

Follow

the

Pre-Start

Checklist

(at

left)

and

read

this

Section

of

the

Manual

com¬

pletely.

Make

sure

you

are

wearing

safety

glasses,

hearing

protection

and

sturdy

footwear.

2.

Turn

fuel

shut-off

valve

(if

equipped)

1/4

turn

to

OPEN

position.

See

Figure

3-8.

3.

Move

the

engine

choke

control

(Figure

3-8)

to

the

CHOKE

position.

A

warm

engine

requires

less

choking

than

a

cold

engine.

12

Section

4:

Operation

4.

Push

the

rocker

ON/OFF

switch

(Figure

3-8)

to

the

ON

position.

5.

Squeeze

the

clutch

lever

(Figure

3-5)

up

against

the

handle.

Grasp

the

engine

starter

rope

handle

and

pull

slowly

until

resistance

is

felt.

Then

pull

cord

rapidly

to

overcome

compression,

prevent

kickback

and

start

engine.

Let

the

rope

rewind

gradually.

Repeat

if

necessary

with

choke

off.

6.

After

the

engine

starts,

first

open

the

choke

(toward

RUN

position)

until

the

engine

just

begins

to

run

smoothly.

Then,

open

the

choke

in

small

steps,

allowing

the

engine

to

accept

small

changes

in

speed

and

load,

until

the

choke

is

fully

open

(in

RUN).

NOTE:

The

cutting

blades

may

begin

to

turn

slowly

even

if

the

clutch

lever

is

held

in

the

up

position.

7.

SLOWLY

release

the

clutch

lever.

If

the

engine

stalls,

restart

it

and

allow

it

to

warm

up

for

a

longer

period

before

releas¬

ing

the

clutch

lever.

8.

When

the

engine

is

running,

the

cut¬

ting

blades

inside

the

unit

will

rotate

at

a

fast

speed.

As

the

blades

begin

to

rotate,

you

will

hear

the

blades

“clatter¬

ing”

until

they

build

up

speed.

A

DANGER

Rotating

cutting

blades

inside

chipper/shredder

chamber

are

in

motion

once

engine

is

started.

Contact

with

cutting

blades

will

cause

severe

per¬

sonal

injury.

Keep

hands,

feet,

face

and

clothing

out

of

chipper

chute

inlet,

shredder

hopper

inlet

and

discharge

opening.

Also

keep

a

safe

distance

away

from

discharge

area

and

all

moving

parts

when

unit

is

running.

TO

STOP

1.

Push

rocker

ON/OFF

switch

(Figure

3-8)

to

OFF

position.

LISTEN

—

Remove

any

hearing

protection

and

listen

to

the

sound

of

the

unit

as

it

slows

down.

There

is

a

definite

audible

tone

that

changes

as

the

cylinder

assem¬

bly

slows

down—the

shredder

blades

will

begin

“clattering”

as

they

slow,

then

will

become

silent.

Walt

for

all

parts

to

come

to

a

complete

stop.

Allow

20-to-30

sec¬

onds

after

the

engine

is

shut

off

for

the

parts

to

stop

moving.

LOOK

—

The

bearing

collar

on

the

chipper

chute

side

of

the

unit

has

a

white

line

painted

on

it

(Figure

4-2).

When

this

white

line

is

stationary,

the

cylinder

assembly

has

stopped

rotating.

2.

Turn

fuel

shut-off

valve

(if

equipped)

to

OFF

position.

EMERGENCY

ENGINE

STOPPING

If

the

engine

rocker

ON/OFF

switch

does

not

stop

the

engine,

move

the

engine

choke

lever

to

the

CHOKE

position.

After

stopping

the

engine

with

the

choke

control

lever,

be

sure

that

the

shut-off

problem

is

diagnosed

and

repaired

before

starting

the

engine.

Regularly

using

the

choke

control

lever

to

shut

the

engine

off

could

damage

the

engine.

A

DANGER

Rotating

cutting

blades

slow

down

grad¬

ually

after

engine

is

shut

off.

Blades

normally

require

20-30

seconds

to

stop.

Contact

with

rotating

cutting

blades

will

cause

serious

personal

injury.

Keep

hands,

feet,

face,

and

clothing

out

of

chipper

chute

inlet,

shredder

hopper

inlet

and

discharge

opening.

Also

keep

a

safe

distance

away

from

discharge

area

and

all

moving

parts

when

unit

is

running.

Figure

4-2:

Check

white

line

on

bearing

collar

(Chipper

Chute

removed

for

clarity).

USING

THE

CHIPPER/SHREDDER

SOME

MATERIALS

SHOULD

BE

SHREDDED,

OTHERS

SHOULD

BE

CHIPPED.

HERE’S

HOW

TO

DECIDE

WHICH

METHOD

TO

USE:

To

enjoy

the

greatest

benefits

from

the

unit,

it

is

important

to

know

which

materi¬

als

are

best

fed

into

the

shredder

hopper

and

which

ones

are

best

fed

into

the

chip¬

per

chute.

Use

the

following

information

as

a

guide.

IMPORTANT:

Refer

to

Using

the

Shredder

and

Using

the

Chipper

in

this

Section

of

the

Manual

for

detailed

operat¬

ing

instructions.

Do

not

food

the

following

materials

into

the

shredder

hopper

or

the

chipper

chute:

•

Metal

•

Glass

•

Bottles

•

Plastic

•

Cans

•

Rocks/Stones

•

Other

Non-organic

Foreign

Objects

-mJ

IMPORTANT:

Do

not

allow

processed

material

to

build

up

beneath

or

beside

the

unit

to

the

point

where

it

contacts

the

discharge

screen.

If

material

cannot

freely

exit

the

discharge

screen,

it

will

continue

to

circulate

within

the

processing

chamber.

This

leads

to

clogs

and

the

possibility

of

some

of

the

material

being

“blown”

back

up

through

the

hopper.

If

shredded

material

builds

up

beneath

the

unit,

do

not

attempt

to

remove

it

until

the

engine

is

stopped,

the

spark

plug

wire

is

disconnected

and

moved

away

from

the

spark

plug,

and

all

moving

parts

have

come

to

a

complete

stop.

Use

a

long

stick

or

long-handled

shovel

to

remove

the

material.

Never

use

your

hands

or

feet

to

remove

material!

P^liStaNMwKiii^

Listed

below

are

materials

suitable

for

shredding,

along

with

any

special

pro¬

cessing

conditions.

NOTE:

If

the

mate¬

rial

is

wet

or

green,

refer

to

the

special

processing

instructions

Shredding

Wet,

Soggy,

or

Green

Materials

in

this

Section.

Material

Conditions

Branches,

Twigs

Up

to

1/2*

in

diameter.

Several

may

be

shredded

at

once

if

diameter

of

bundle

is

less

than

1/2'.

Cut

to

3-5

foot

lengths.

Leaves,

Grass

Clippings,

Brush,

Hay,

Straw

and

other

light,

loose

Organic

Material

No

special

conditions.

Vines,

Stalks

Up

to

1/2”

in

diameter

and

2-3

feet

long.

Paper,

Cardboard

(corrugated)

No

special

conditions.

Newspaper

Feed

one

or

two

sec¬

tions

at

a

time.

Organic

Waste

Materials

and

Organic

Garbage

Remove

all

metal,

bot¬

tles,

cans,

rocks,

plastic,

etc.

before

processing.

Wood

Chips

Use

chips

previously

processed

by

chipper,

if

finer

chips

are

desired.

Manure

Use

of

Bar

Grate

Attach¬

ment

recommended.

A

DANGER

Rotating

cutting

blades

cut

within

1/4-

incii

from

the

discharge

screen.

Never

put

hands

or

feet

near

discharge

open¬

ing

or

discharge

area

while

unit

is

oper¬

ating!

Contact

with

cutting

blades

will

cause

serious

personal

injury.

If

shredded

material

builds

up

under

the

unit

during

operation,

do

not

attempt

to

remove

it

until

the

engine

is

stopped,

the

spark

plug

wire

is

disconnected

and

moved

away

from

the

plug,

and

all

moving

parts

have

come

to

a

complete

stop.

Then

use

a

long

stick

or

long-han¬

dled

shovel

to

move

the

material

out

of

the

way.

Never

use

your

hands

or

feet

to

remove

discharged

material.

roflPlacad

Listed

below

are

materials

suitable

for

chipping,

along

with

any

special

pro¬

cessing

conditions.

Material

Conditions

Branches

Up

to

3'

in

diameter,

depending

on

hardness.

Wood

with

extremely

hard

knots

will

not

pro¬

cess

well.

Short,

thick

Branches

(left

over

when

a

long

branch

is

pro¬

cessed)

Short,

thick

branches

up

to

3'

in

diameter

can

be

chipped

by

pushing

them

into

chute

using

*

another

long

branch.

Lumber

Up

to

3'

in

diameter.

Remove

nails,

metal

parts

before

chipping.

Stalks,

Vines

From

1'

to

3'

in

diame¬

ter.

Cut

to

2-3

foots

lengths

before

chipping.

USING

THE

CHIPPER

IMPORTANT:

Always

wear

safety

goggles

(with

side

shields),

appropriate

gloves,

and

hearing

protection.

Review

and

follow

the

safety

rules

in

this

Manual.

A

DANGER

Do

not

put

hands

inside

chipper

chute.

The

rotating

cutting

blade

inside

chute

will

cause

serious

personal

injury.

•

After

the

engine

is

started

and

has

built

up

speed,

the

unit

is

ready

to

use.

•

Position

yourself

on

either

side

of

the

chipper

chute.

Grip

one

end

of

a

branch

(maximum

3"

diameter)

with

both

hands

and

feed

the

other

end

of

the

branch

into

the

chipper

chute.

Do

not

feed

the

branch

into

the

chipper

chute

with

your

arms

pointing

into

the

chipper

chute

—

keep

your

arms

perpendicular

(at

a

90°

angle)

to

the

chute.

See

Figure

4-3.

Keep

the

branch

away

from

your

body

to

avoid

any

bounce-back

and

do

not

over-reach.

Hold

the

branch

firmly

to

control

the

rate

of

feed

at

all

times.

Section

4:

Operation

13-'%

•

Evenly

rotate

the

branch

to

help

prevent

the

bark

from

turning

into

long

strips

that

can

get

tangled

around

the

internal

cylin¬

der

shaft.

Rotating

the

branch

also

improves

the

cutting

action

of

the

chipper

blade.

•

Feed

the

branch

slowly

into

the

chipper

chute

until

just

a

few

inches

of

the

branch

stick

out

from

the

top

of

the

chipper

chute.

NEVER

put

your

hands

inside

the

chipper

chute

—

serious

personal

injury

can

resultl

Short

stubs

of

branches

may

be

pushed

through

the

chipper

with

the

next

branch.

•

If

the

engine

slows

down

under

load,

reduce

feed

pressure

and

allow

the

engine

to

regain

full

speed

before

continuing.

Overloading

the

chipper

could

result

in

damage

to

the

belt

or

engine.

NOTE:

If

the

chipper

is

not

cutting

branches

efficiently,

the

chipper

blade

could

be

dull,

or

the

wood

could

be

partic¬

ularly

hard.

Try

processing

another

type

of

wood

to

see

if

it

cuts

more

easily.

If

not,

check

the

condition

of

the

chipper

blade.

Refer

to

Chipper

Blade

Removal

and

Installation

in

Section

5.

Figure

4-3:

Feeding

a

branch

Into

the

chip¬

per

chute.

Always

position

your

body

and

arms

so

your

arms

are

holding

the

material

at

a

90*

angle

to

the

chipper

chute.

14

Section

4:

Operation

USING

THE

SHREDDER

IMPORTANT:

Always

wear

safety

goggles

(with

side

shields),

appropriate

gloves,

and

hearing

protection.

Read

and

follow

the

safety

rules

in

this

Manual.

A

DANGER

Contact

with

rotating

cutting

blades

will

cause

serious

personal

injury.

The

blades

rotate

when

engine

is

on

and

slow

gradually

after

engine

is

shut

off.

Keep

hands,

feet

and

clothing

out

of

chipper

Inlet,

shredder

feed

inlet

and

discharge

opening

when

unit

is

running.

•

When

the

engine

starts,

the

cutting

blades

inside

the

chipper/shredder

cham¬

ber

will

begin

to

revolve

at

a

high

rate

of

speed.

The

shredder

is

then

ready

to

use.

•

Do

not

feed

material

into

the

shredder

hopper

from

the

engine

side

of

the

unit.

Always

avoid

the

hot

muffler

on

the

engine.

•

When

feeding

material

into

the

shred¬

der,

stand

a

foot

or

two

away

from

the

hopper

opening

and

keep

your

arms

and

hands

parallel

to

and

several

inches

above

the

top

edge

of

the

hopper.

See

Figure

4-

4.

Do

not

point

hands

or

arms

downward

toward

the

hopper

opening

or

put

hands

or

arms

inside

the

hopper.

•

Feed

materials

into

the

shredder

slowly,

and

in

limited

quantities,

until

you

become

familiar

with

its

operation.

Bulk

and

lengths

can

be

increased

gradually

if

the

material

is

being

processed

easily.

Do

not

overload

the

shredder

as

doing

so

will

cause

the

engine

speed

to

decrease

significantly.

•

A

steady

flow

of

materials

into

the

shredder

hopper

provides

the

most

effec¬

tive

results.

The

rate

of

feed

for

small

branches,

vines

(2-3

foot

lengths

only),

and

brush

can

be

controlled

by

lightly

pushing

and

guiding

the

free

end

of

the

material

until

it

extends

above

the

top

of

the

hopper.

At

this

point,

LET

GO

OF

THE

MATERIAL.

The

cutting

blades

can

tug

suddenly

at

material

being

fed

into

the

hopper.

Do

not

hold

onto

the

material

I

Always

hold

material

loosely

and

be

ready

to

let

go

of

it

quickly.

A

DANGER

The

rotating

shredder

blades

can

tug

suddenly

at

material

being

fed

into

the

shredder

hopper.

Contact

with

cutting

blades

will

cause

severe

personal

injury.

Do

not

hold

on

too

tightly

to

branches

and

vines.

Do

not

feed

material

straight

down

into

the

hopper

with

your

arm

pointing

downward

toward

the

opening.

Instead,

keep

your

arms

parallel

to

the

ground

and

several

inches

above

the

top

edge

of

the

hopper.

NOTE:

It

is

best

to

cut

long

branches

into

3-5

foot

lengths

and

vines

to

2-3

foot

lengths

before

feeding

them

into

the

shredder

hopper.

When

shredding

wet

material,

mix

dry

material

in

with

it.

Alter¬

nating

wet

and

dry

material

helps

prevent

material

from

sticking

inside

the

shredder

chamber.

Very

wet

materials

should

be

processed

using

the

optional

Bar

Grate

at¬

tachment.

Refer

to

Shredding

Wet,

Soggy,

or

Green

Materials

in

this

Section

for

other

methods

of

processing

wet

or

green

materials.

Also:

•

Do

not

put

any

part

of

your

body

or

clothing

inside

the

shredder

hopper

or

near

the

discharge

area.

•

Stand

clear

of

the

discharge

area.

•

Keep

face

and

body

away

from

the

dis¬

charge

area.

•

Use

the

leaf

tamper

(Figure

4-4)

**

supplied

with

the

unit

to

push

bulky

material

into

the

shredder

hopper.

DO

NOT

USE

YOUR

HANDS!

•

When

feeding

loose

material,

such

as

leaves,

straw

or

grass

clippings,

just

drop

the

material

into

the

shredder

opening

and

push

it

into

the

shredder

hopper

using

the

leaf

tamper

(supplied).

Do

not

allow

com¬

bustible

materials

to

contact

the

hot

engine.

•

If

the

engine

slows

down

under

load,

stop

feeding

material

and

allow

the

engine

to

regain

full

speed

before

continuing.

Overloading

the

shredder

could

result

in

damage

to

the

belt

or

engine.

•

All

shredded

material

will

be

forced

through

the

discharge

screen

at

the

bottom

of

the

unit.

Always

keep

clear

of

the

discharge

to

avoid

injury

from

materi¬

als

exiting

the

unit

at

high

speed.

The

standard

discharge

screen

supplied

with

the

unit

has

3/4-inch

holes.

This

screen

is

best

for

processing

most

dry

materials

such

as

brush

and

dry

leaves.

To

install

a

different

size

screen,

refer

to

Removing/Installing

Discharge

Screen

or

Bar

Grate

in

this

Section.

Figure

4-4:

Using

the

leaf

tamper

to

process

material

into

tho

shredder

hopper.

A

DANGER

To

avoid

a

fire

hazard,

keep

leaves,

grass

and

other

combustible

materials

away

from

the

engine

and

muffler)

A

DANGER

The

discharge

opening

and

discharge

area

are

dangerous.

Rotating

cutting

blades

inside

the

discharge

opening

cut

1/4-inch

from

the

discharge

screen.

To

avoid

serious

personal

injury,

keep

hands,

feet,

and

clothing

out

of

the

dis¬

charge

opening

and

away

from

the

dis¬

charge

area.

Follow

all

safety

rules.

SHREDDING

WET,

SOGGY,

OR

GREEN

MATERIALS

Wet

or

“green”

materials

(such

as

wet,

matted

leaves,

vegetables,

“green”

vegeta¬

tion

like

squash

vines,

etc.)

can

clog

the

3/4”

holes

in

the

standard

discharge

screen,

depending

on

the

moisture

con¬

tent

of

the

material.

To

help

avoid

clogging,

try

shredding

this

material

with

the

optional

1-3/4'

discharge

screen.

If

clogging

persists,

install

the

optional

Bar

Grate

attachment.

See

Removing/Installing

Discharge

Screen

or

Bar

Grate

in

this

Section

for

detailed

instructions.

Wet,

soggy,

or

“green”

materials

will

be

shredded

to

a

medium

consistency

when

using

the

Bar

Grate.

However,

to

shred

these

materials

to

an

even

finer

consis¬

tency,

you

may

wish

to

process

the

mate¬

rial

a

second

time.

if

you

do

not

have

the

optional

Bar

Grate

attachment,

try

alternating

small

wet

and

small

dry

batches

of

material

to

help

pre¬

vent

clogging

the

discharge

screen.

A

DANGER

Do

not

shred

brush,

branches,

or

other

dry

materials

when

the

Bar

Grate

is

installed.

Materials

will

exit

the

discharge

opening

at

high

speed

and

will

not

be

properly

processed.

A

DANGER

Before

removing

jammed

or

clogged

material,

shut

the

engine

off,

wait

for

all

moving

parts

to

come

to

a

stop

and

disconnect

the

spark

plug

wire

and

move

it

away

from

the

spark

plug.

Use

only

a

long

wooden

stick

or

a

long-

handled

shovel

to

clear

away

dis¬

charged

materials

or

blockages.

REMOVING/INSTALLING

DISCHARGE

SCREEN

OR

BAR

GRATE

It

may

be

necessary

to

remove

the

stan¬

dard

discharge

screen

for

any

of

these

reasons:

1.

The

screen

may

need

cleaning.

The

holes

in

the

screen

may

be

clogged,

preventing

materials

from

being

prop¬

erly

discharged.

2.

To

process

wet

or

green

materials.

This

is

best

accomplished

by

removing

the

screen

and

installing

the

optional

bar

grate

attachment.

3.

To

change

the

size

of

the

discharged

material.

Remove

the

standard

screen

and

replace

it

with

one

of

the

optional

screens

(with

different

size

holes).

A

DANGER

Rotating

cutting

blades

inside

discharge

opening

will

cause

serious

personal

injury.

Blades

cut

1/4-inch

from

dis¬

charge

screen

or

bar

grate

attachment.

Before

removing

or

installing

the

dis¬

charge

screen

or

bar

grate,

be

certain

the

engine

is

off,

all

moving

parts

have

stopped

completely,

and

the

spark

plug

wire

is

disconnected

and

kept

away

from

the

sparkplug.

Discharge

Screen

or

Bar

Grate

Removal

1.

Stop

the

engine

and

wait

for

all

moving

parts

to

come

to

a

complete

stop.

Discon¬

nect

the

spark

plug

wire

and

secure

it

-

■

away

from

the

spark

plug.

2.

Move

the

unit

away

from

any

dis¬

charged

material

that

could

block

access

to

the

screen

or

bar

grate.

3.

Remove

two

hair

pin

cotters

(A,

Figure

4-5)

from

two

small

studs

(C)

securing

ends

of

the

two

discharge

screen

rods

(B).

4.

Pull

out

the

two

discharge

screen

rods

(B).

Support

the

screen

or

bar

grate

so

that

it

doesn’t

fall

on

you.

5.

If

the

screen

doesn’t

drop

out,

hook

the

end

of

a

discharge

screen

rod

into

a

hole

in

the

screen

(Figure

4-6).

Pry

the

screen

downward

until

it

drops

free.

NOTE:

The

holes

in

the

3/8"

screen

are

too

small

for

the

screen

retainer

rod

—

use

a

screwdriver

to

pry

that

screen

loose.

6.

Make

certain

that

you

install

either

a

discharge

screen

or

optional

bar

grate

attachment

before

using

the

unit

again.

Figure

4-5:

Remove

both

hair

pin

cotters

(A)

and

slide

out

two

discharge

screen

rods

(B).

Section

4:

Operation

15

J

A

DANGER

Do

not

operate

the

unit

unless

a

discharge

screen

or

bar

grate

is

securely

installed.

Figure

4-6:

If

screen

Is

stuck,

pry

It

loose

using

one

of

the

screen

retainer

rods.

Discharge

Screen

or

Bar

Grate

Installation

1.

Stop

the

engine

and

wait

for

all

moving

parts

to

come

to

a

complete

stop.

Discon¬

nect

the

spark

plug

wire

and

secure

it

away

from

the

spark

plug.

2.

Move

the

unit

away

from

any

dis¬

charged

material

that

could

block

access

to

the

screen.

3.

Remove

the

discharge

screen

or

bar

grate

(see

Discharge

Screen

or

Bar

Grate

Removal

on

this

page).

4.

Position

the

discharge

screen

or

bar

grate

up

into

the

bottom

of

the

unit.

Make

sure

that

the

tube

holes

at

each

end

of

the

screen

align

with

the

holes

in

the

wall

of

the

unit

(see

Figures

4-7

or

4-8).

5.

Hold

the

discharge

screen

or

bar

grate

in

position

and

slide

the

two

screen

rods

(B,

Figure

4-5)

all

the

way

through

the

screen

tubes

and

out

the

other

side

of

unit.

Insert

the

rear

rod

first,

followed

by

the

front

rod.

NOTE:

The

holes

in

the

ends

of

the

screen

rods

(B,

Figure

4-5)

must

go

over

the

two

stud

pins

(C)

on

the

machine

wall.

6.

Replace

the

two

hair

pin

cotters

(A,

Figure

4-5)

through

the

stud

pins

(C).

The

discharge

screen

or

bar

grate

is

now

securely

installed.

If

the

hair

pin

cotters

become

lost,

call

for

replacements

imme¬

diately.

DO

NOT

OPERATE

UNIT

WITH¬

OUT

ORIGINAL

EQUIPMENT

PINS

INSTALLED

PROPERLY.

16

Section

4:

Operation

2qPXo%o°>&

Figure

4-7:

The

discharge

screen

must

be

positioned

as

shown

above.

The

holes

In

the

tubes

at

the

screen

ends

must

align

with

the

holes

In

the

machine

wall.

Reinstall

discharge

screen

rods

and

then

hairpin

cotters.

A

DANGER

Do

not

shred

brush,

branches

or

other

material

when

bar

grate

is

installed.

Materials

will

exit

discharge

opening

at

high

speeds

and

will

not

be

properly

processed.

OPTIONAL

DISCHARGE

SCREENS

In

addition

to

the

standard

discharge

screen

with

3/4'

diameter

holes

and

the

bar

grate

attachment,

there

are

three

other

screens

to

choose

from

with

3/8“,

1',

and

1-3/4“

diameter

holes.

The

smaller

the

hole

size

in

the

screen,

the

more

finely

shredded

materials

can

be

processed.

Consider

the

screens

with

the

large

hole

sizes

if

you

are

working

with

coarser

materials

or

wish

to

minimize

clogging.

See

the

Parts

List

in

this

Manual

for

part

numbers.

Figure

4-8:

The

bar

grate

must

be

positioned

as

shown

above.

The

holes

In

the

tubes

at

the

grate

ends

must

align

with

the

holes

In

the

machine

wall.

Reinstall

discharge

screen

rods

and

then

hairpin

cotters.

Section

Maintenance

A

WARNING

Moving

parts

on

the

unit

can

cause

seri¬

ous

personal

injury.

Shut

off

the

engine,

let

all

moving

parts

stop

completely,

disconnect

the

spark

plug

wire

and

prevent

it

from

touching

the

spark

plug

before

performing

any

maintenance

or

service

procedures.

i

:

.

Maintenance

i

Schedule

Before

Each

Use

Every

25

Hrs.

of

Operation

Annually

At

End

of

Season

Prior

to

Storing

Comments

Check

engine

oil

level

/

Every

8

hrs.

Check

hardware

for

tightness

✓

✓

Check

that

engine

Is

free

of

flammable

debris

✓

/

(4)

Change

engine

oil

✓

(1)

✓

(4)

Service

engine

air

cleaner

/(2)

(4)

Replace

spark

plug

(4)

Clean

unit

✓

✓

✓

Inspect

engine

spark

arrester

(3)

(4)

Check

belt

condition.

•*'

/

✓

Clean

engine

cooling

system

S

(5)

(4)

Clean

engine

fuel

filter

(3)

(4)

(1)

Change

after

the

first

5

hours

of

operation.

(2)

Service

more

often

under

dusty

conditions

or

when

airborne

debris

is

present.

(3)

Every

50

hours

of

operation

if

engine

is

equipped

with

this

item.

(4)

See

Engine

Owner’s

Manual

for

instructions.

(5)

Every

100

hours

or

every

season.

EQUIPMENT

MAINTENANCE

Follow

the

Maintenance

Schedule

above

to

keep

your

equipment

properly

maintained.

See

the

separate

Engine

Owner’s

Manual

for

specific

engine

maintenance

informa¬

tion

and

instructions.

LUBRICATION

There

are

no

parts

or

assemblies

on

the

unit

(other

than

the

engine)

that

require

periodic

lubrication.

DRIVE

BELT

SERVICE

After

eveiy

25

operating

hours,

examine

the

drive

belt

for

cuts,

cracks,

fraying

or

other

damage.

See

Figure

5-1.

Examine

the

clutch

lever

operation

to

see

that

it

moves

the

idler

pulley

properly.

The

idler

pulley

is

spring-loaded

and

maintains

ten¬

sion

on

the

belt

until

the

clutch

lever

is

squeezed

to

take

tension

off

the

belt

for

easier

engine

starting.

BELT

INSPECTION

1.

Stop

engine

and

wait

for

all

parts

to

come

to

a

complete

stop.

Disconnect

spark

plug

wire

and

secure

it

away

from

spark

plug.

2.

Remove

the

four

screws

securing

the

belt

cover.

Remove

the

belt

cover.

3.

R

eplace

the

belt

if

it

is

worn

or

dam¬

aged

(refer

to

Belt

Removal/Installation

below).

Replace

belt

cover

and

reconnect

spark

plug

wire.

BELT

REMOVAL/INSTALLATION

Belt

Removal

1.

Stop

engine

and

wait

for

all

parts

to

come

to

a

complete

stop.

Disconnect

spark

plug

wire

and

secure

it

away

from

spark

plug.

2.

Remove

the

four

screws

securing

the

belt

cover.

Remove

the

belt

cover.

3.

Loosen

(do

not

remove)

nut

securing

wire

belt

guide

(A,

Figure

5-2).

Move

belt

guide

away

from

idler

pulley

(B).

4.

Push

idler

pulley

(B,

Figure

5-2)

down¬

ward

and

remove

belt

from

pulleys.

Belt

Installation

1.

Place

the

belt

in

the

grooves

of

the

two

main

pulleys.

2.

Push

idler

pulley

(B,

Figure

5-2)

down

and

route

belt

into

groove

of

Idler

pulley.

3.

Position

the

wire

belt

guide

1/16"-1/8“

away

from

the

belt.

Tighten

the

nut

to

secure

the

belt

guide

in

place.

4.

Reinstall

belt

cover

and

reconnect

spark

plug

wire.

Figure

5-2:

To

remove

belt,

loosen

belt

guide

(A)

and

push

Idler

pulley

(B)

down.

18

Section

5:

Maintenance

A

WARNING

Before

inspecting,

cleaning

or

servicing

the

machine,

shut

off

engine,

wait

for

all

moving

parts

to

come

to

a

complete

stop,

disconnect

spark

plug

wire

and

move

wire

away

from

spark

plug.

Failure

to

follow

these

instructions

can

result

in

serious

personal

injury

or

property

damage.

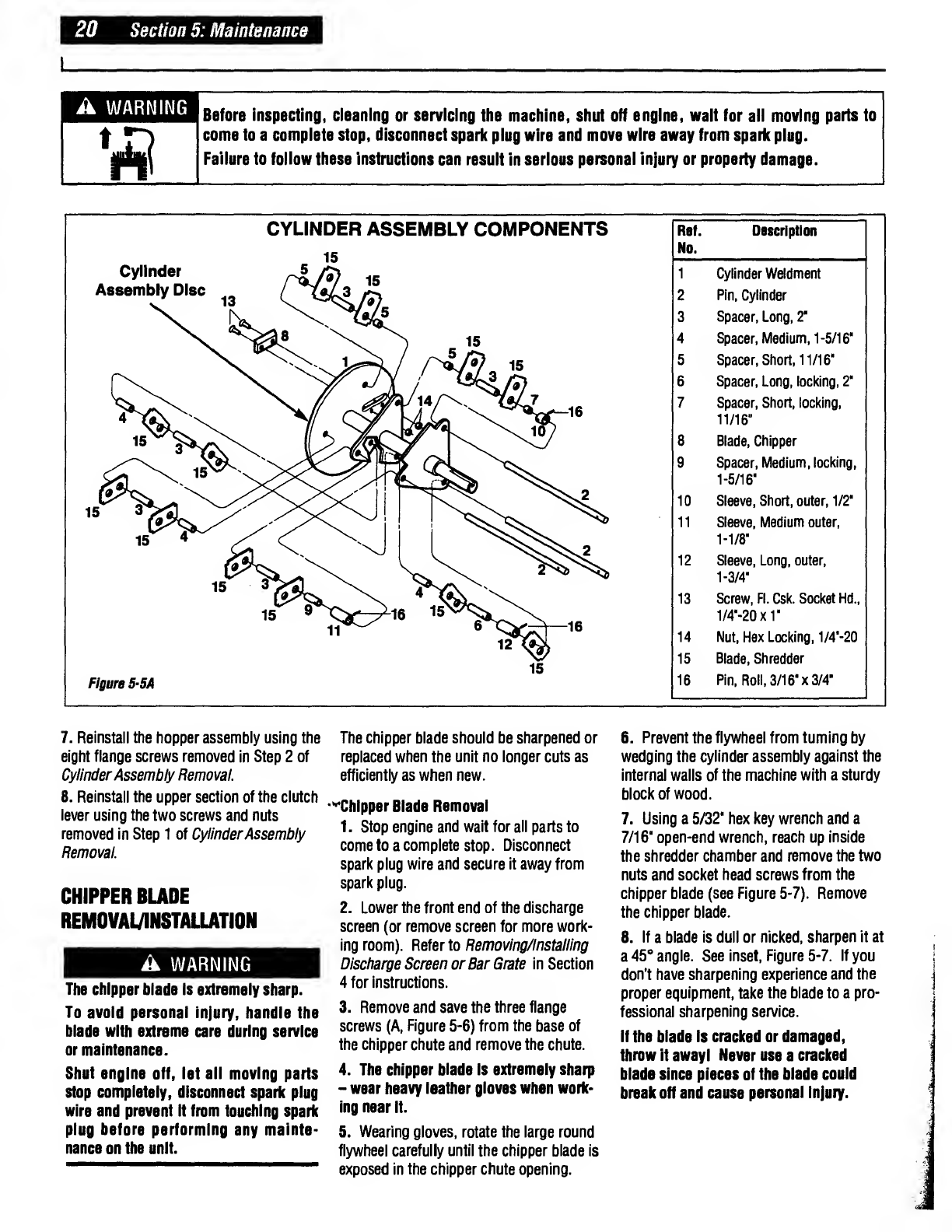

CYLINDER

ASSEMBLY

SERVICE

AND

REPAIR

A

WARNING

Before

performing

any

maintenance

on

the

unit,

stop

the

engine,

wait

for

all

moving

parts

to

stop

and

disconnect

spark

plug

wire.

Wear

gloves

when

working

with

the

cylinder

assembly

to

protect

against

cuts.

Cylinder

Assembly

Removal

1.

Remove

the

upper

clutch

lever

section

from

the

lower

section

by

removing

the

two

screws

and

nuts.

2.

Remove

the

eight

flange

screws

secur¬

ing

the

shredder

hopper

to

the

unit.

Remove

the

hopper.

3.

Remove

the

discharge

screen

or

bar

grate

(see

Removing/Installing

Discharge

Screen

or

Bar

Grate

in

Section

4).

Remove

the

belt

cover

as

described

in

Belt

Removal/lnstallation

in

this

Section.

A

WARNING

Wear

sturdy

work

gloves

and

be

careful

handling

the

cylinder

assembly.

Many

cutting

edges

on

the

assembly

can

cause

severe

cuts.

Be

especially

care-

ful

near

the

chipper

blade.

4.

Remove

the

snap

ring

that

secures

the

cylinder

pulley

to

the

cylinder

assembly.

Carefully

note

(for

later

reassembly)

the

location

of

all

hardware

securing

cylinder

pulley

to

cylinder.

Remove

the

cylinder

pulley.

5.

Loosen

set

screw

that

secures

bearing

locking

collar

on

cylinder

shaft

(located

under

cylinder

pulley).

Remove

the

lock¬

ing

collar

from

the

cylinder

shaft

by

turn¬

ing

the

collar

against

the

direction

of

the

shaft

rotation.

Use

a

hammer

and

a

punch

to

loosen

the

collar

(Figure

5-3).

6.

Place

a

long

wooden

stick

down

the

shredder

hopper

to

prevent

the

cylinder

assembly

from

rotating.

Remove

the

cap¬

screw

securing

the

other

end

of

the

cylin¬

der

shaft.

Remove

the

remaining

washers

and

spacers

from

the

cylinder

shaft.

Note

that

there

is

a

felt

washer

at

each

end

of

the

shaft

to

protect

the

bearings.

Also

note

the

location

of

all

hardware

for

reassembly.

Remove

the

stick

from

the

Jiopper.

A

WARNING

Take

special

care

to

note

the

exact

or¬

der

and

placement

of

all

parts

on

the

cylinder

assembly

for

reassembly.

It

is

recommended

that

the

cylinder

pins

and

all

components

be

marked

before

disas¬

sembly

to

aid

in

correct

reassembly.

If

there

are

any

questions

about

correct

placement

and

order

of

cylinder

assem¬

bly

parts,

refer

to

the

cylinder

assembly

parts

breakdown

(located

in

the

parts

list).

Failure

to

follow

these

instruc¬

tions

could

result

in

severe

personal

injury

or

property

damage.

NOTE:

An

assistant

will

be

needed

for

the

next

step.

7.

P

ut

on

sturdy

work

gloves

and

safety

glasses.

Hold

the

cylinder

assembly

through

the

hopper

opening.

Remove

the

six

flange

screws

(keep

any

washers

with

screws)

retaining

the

cylinder

shaft

bear¬

ings

and

the

closure

plate

to

the

main

frame.

The

cylinder

assembly

can

now

be

lowered

out

of

the

unit.

The

shredder

blades

(flails)

on

the

cylinder

assembly

can

be

rotated

or

flipped

if

dull

(Figure

5-4).

The

shredder

blades

use

only

one

cutting

edge

at

a

time.

Cylinder

Assembly

Disassembly

NOTE:

Roll

pins

(see

Figures

5-5

and

5-5A)

secure

the

three

cylinder

pins

in

the

cylinder

assembly.

The

roll

pins

must

be

driven

from

the

assembly

with

a

5/32"

punch

and

hammer.

The

pins

will

come

out

in

only

one

direction

through

the

outer

sleeves

(Figure

5-5).

1.

Securely

clamp

the

cylinder

assembly

by

the

chipper

flywheel

in

a

vise.

Position

Section

5:

Maintenance

19

Before

Inspecting,

cleaning

or

servicing

the

machine,

shut

off

engine,

wait

for

all

moving

parts

to

come

to

a

complete

stop,

disconnect

spark

plug

wire

and

move

wire

away

from

spark

plug.

Failure

to

follow

these

instructions

can

result

in

serious

personal

injury

or

property

damage.

the

assembly

so

one

of

the

roll

pins

can

be

driven

out

with

a

punch

and

a

hammer.

2.

Carefully

inspect

the

holes

in

the

outer

sleeve.

One

hole

is

larger

than

the

other.

Position

the

sleeve

so

the

roll

pin

will

be

pushed

out

of

the

cylinder

assembly

through

the

LARGER

hole

(it

will

not

pass

through

smaller

hole).

Use

penetrating

oil

to

loosen

sleeve

if

it

does

not

spin

easily.

3.

Tap

the

roll

pin

out

of

the

cylinder

pin,

the

spacer,

and

the

LARGER

hole

in

the

sleeve

with

a

5/32"

punch

and

a

hammer.

4.

Discard

the

used

roll

pin.

Disassemble

the

cylinder

pin,

spacers

and

shredder

blades

located

on

the

cylinder

pin.

5.

Rotate

the

cylinder

assembly

to

access

the

remaining

cylinder

pin

assemblies

and

repeat

the

disassembly

procedure.

Cylinder

Assembly

Component

Repair

NOTE:

Refer

to

the

Parts

List

pages

for

part

numbers

when

ordering

cylinder

assembly

components.

A

WARNING

Before

performing

any

maintenance

on

the

unit,

stop

the

engine,

wait

for

ail

moving

parts

to

stop

and

disconnect

spark

plug

wire.

Wear

gloves

when

working

with

the

cylinder

assembly

to

protect

against

cuts.

1.

Flip

or

rotate

the

shredder

blades

as

needed

to

expose

fresh

cutting

surfaces

(Figure

5-4).

Replace

the

blade

if

all

cut¬

ting

surfaces

are

dull.

2.

Replace

any

spacers

or

sleeves

that

are

worn

or

damaged.

Use

original

equipment

replacements

only!

See

the

Parts

List

for

part

numbers

when

ordering.

3.

Thoroughly

clean

and

inspect

all

parts.

Remove

any

burrs

that

could

prevent

the

parts

from

fitting

properly.

Cylinder

Assembly

Reassembly

1.

S

ecurely

clamp

the

cylinder

assembly

by

the

chipper

flywheel

in

a

vise.

Position

the

assembly

to

allow

reassembly

of

the

cylinder

pins.

2.

Slide

the

correct

locking

spacer

inside

the

correct

sleeve

(refer

to

the

Parts

List,

if

necessary).

Line

up

the

roll

pin

hole

in

the

sleeve

and

the

spacer.

3.

Carefully

inspect

the

holes

in

the

sleeve

and

note

that

one

hole

is

larger.

Use

a

pliers

to

hold

a

new

roll

pin

(never

reuse

a

roll

pin)

and

tap

it

through

the

LARGE

hole

in

the

sleeve,

and

into

the

top

hole

in

the

spacer

(Figure

5-5).

Tap

the

roll

pin

into

the

spacer

only

until

it

is

flush

with

the

bottom

surface

of

the

top

hole.

A

WARNING

The

cylinder

pin

rows

must

be

properly

assembled

and

then

secured

with

new

roll

pins

before

unit

is

operated.

Failure

to

follow

these

instructions

could

result

in

severe

injury

or

property

damage.

4.

Feed

one

cylinder

pin

into

the

cylinder

assembly

with

the

correct

spacers

and

shredder

blades

in

the

proper

order

and

placement.

Refer

to

the

Parts

List,

or

to

Figure

5-5A,

if

you

are

unsure

about

the

proper

order

and

placement

of

the

cylinder

assembly

parts.

Slide

the

pre-assembled

spacer/sleeve/roll

pin

assembly

onto

the

end

of

the

cylinder

pin.

5.

Rotate

the

pre-assembled

spacer/sleeve/roll

pin

assembly

until

the

hole

in

the

cylinder

pin

is

aligned

with

the

holes

in

a

spacer

and

sleeve.

6.

Coat

the

exposed

surface

of

the

roll

pin

with

Loctite®

242

(or

equivalent)

remov¬

able

thread

sealant.

Allow

the

sealant

to

cure

for

24

hours

before

using

the

unit.

7.

Use

a

hammer

and

5/32"

punch

to

tap

the

roll

pin

into

the

holes

in

the

cylinder

pin

and

spacer.

Stop

when

the

ends

of

the

roll

pin

are

flush

with

the

outside

edges

of

the

spacer.

8.

The

sleeve

must

spin

freely.

If

it

doesn’t

spin,

check

to

make

sure

the

roll

pin

is

not

protruding

beyond

the

outside

edges

of

the

spacer.

9.

Rotate

the

cylinder

assembly

as

needed

to

reassemble

the

other

cylinder

pins

and

their

component

parts.

Cylinder

Assembly

Installation

1.

Insert

ends

of

cylinder

shaft

through

closure

plates

on

unit.

Slide

the

bearings

onto

ends

of

the

cylinder

shaft.

2.

Lift

the

cylinder

assembly/closure

plate/bearing

assembly

up

into

the

unit.

Secure

the

cylinder

assembly/closure

plate/bearing

assembly

to

the

mainframe

with

the

six

flange

screws

removed

in

Step

7

of

Cylinder

Assembly

Removal.

The

four

longer

(Grade

8)

flange

screws

and

the

5/16"

lock

washers

are

installed

through

the

bearings

and

closure

plates;

the

two

shorter

screws

are

used

with

the

closure

plates

alone.

Tighten

the

screws

securely

(if

you

have

a

torque

wrench,

tighten

to

30

ft

./lbs).

3.

Secure

the

end

of

the

cylinder

shaft

opposite

the

pulley

with

the

hardware

removed

in

Step

6

of

Cylinder

Assembly

Removal.

Tighten

the

capscrew

securely.

4.

Install

the

locking

collar

removed

in

Step

5

of

Cylinder

Assembly

Removal,

onto

the

pulley

end

bearing

on

the

cylinder

shaft.

Lock

the

collar

down

by

turning

the

bearing

flange

counter-clockwise

with

a

hammer

and

punch

(Figure

5-3).

Apply

Loctite®

242

(or

equivalent)

removable

thread

sealant

to

the

collar

set

screw.

Tighten

the

set

screw

to

lock

the

collar

down

against

the

bearing

flange.

Allow

the

sealant

to

cure

for

24

hours

before

using

the

unit.

5.

Assemble

the

pulley

on

the

cylinder

shaft,

using

the

hex

key

and

all

other

hard¬

ware

removed

in

Step

4

of

Cylinder

Assembly

Removal.

Secure

the

pulley

(sheave)

with

the

snap

ring

removed

in

that

step.

6.

Install

the

drive

belt.

Make

sure

the

belt

is

properly

routed

under

any

belt

guides

(if

equipped).

Reinstall

the

belt

cover

using

the

four

screws

removed

in

Step

3

of

Cylinder

Assembly

Removal.

A

WARNING

Do

not

operate

unit

without

belt

cover

in

place.

Failure

to

follow

these

instruc¬

tions

could

result

in

severe

personal

injury.

20

Section

5:

Maintenance

A

WARNING

Before

inspecting,

cleaning

or

servicing

the

machine,

shut

off

engine,

wait

for

all

moving

parts

to

come

to

a

complete

stop,

disconnect

spark

plug

wire

and

move

wire

away

from

spark

plug.

Failure

to

follow

these

instructions

can

result

in

serious

personal

injury

or

property

damage.

CYLINDER

ASSEMBLY

COMPONENTS

Ref.

No.

Description

1

Cylinder

Weldment

2

Pin,

Cylinder

3

Spacer,

Long,

2“

4

Spacer,

Medium,

1-5/16“

5

Spacer,

Short,

11/16“

6

Spacer,

Long,

locking,

2“

7

Spacer,

Short,

locking,

11/16"

8

Blade,

Chipper

9

Spacer,

Medium,

locking,

1-5/16“

10

Sleeve,

Short,

outer,

1/2“

11

Sleeve,

Medium

outer,

1-1/8*

12

Sleeve,

Long,

outer,

1-3/4“

13

Screw,

FI.

Csk.

Socket

Hd.,

1/4“-20x

1“

14

Nut,

Hex

Locking,

1/4“-20

15

Blade,

Shredder

16

Pin,

Roll,

3/16“

x

3/4“

7.

Reinstall

the

hopper

assembly

using

the

eight

flange

screws

removed

in

Step

2

of

Cylinder

Assembly

Removal.

8.

Reinstall

the

upper

section

of

the

clutch

lever

using

the

two

screws

and

nuts

removed

in

Step

1

of

Cylinder

Assembly

Removal.

CHIPPER

BLADE

REMOVAL/INSTALLATION

A

WARNING

The

chipper

blade

is

extremely

sharp.

To

avoid

personal

injury,

handle

the

blade

with

extreme

care

during

service

or

maintenance.

Shut

engine

off,

let

all

moving

parts

stop

completely,

disconnect

spark

plug

wire

and

prevent

it

from

touching

spark

plug

before

performing

any

mainte¬

nance

on

the

unit.

The

chipper

blade

should

be

sharpened

or

replaced

when

the

unit

no

longer

cuts

as

efficiently

as

when

new.

"Chipper

Blade

Removal

1.

Stop

engine

and

wait

for

all

parts

to

come

to

a

complete

stop.

Disconnect

spark

plug

wire

and

secure

it

away

from

spark

plug.

2.

Lower

the

front

end

of

the

discharge

screen

(or

remove

screen

for

more

work¬

ing

room).

Refer

to

Removing/Installing

Discharge

Screen

or

Bar

Grate

in

Section

4

for

instructions.

3.

Remove

and

save

the

three

flange

screws

(A,

Figure

5-6)

from

the

base

of

the

chipper

chute

and

remove

the

chute.

4.

The

chipper

blade

is

extremely

sharp

-

wear

heavy

leather

gloves

when

work¬

ing

near

it.

5.

Wearing

gloves,

rotate

the

large

round

flywheel

carefully

until

the

chipper

blade

is

exposed

in

the

chipper

chute

opening.

6.

Prevent

the

flywheel

from

turning

by

wedging

the

cylinder

assembly

against

the

internal

walls

of

the

machine

with

a

sturdy

block

of

wood.

7.

Using

a

5/32"

hex

key

wrench

and

a

7/16“

open-end

wrench,

reach

up

inside

the

shredder

chamber

and

remove

the

two

nuts

and

socket

head

screws

from

the

chipper

blade

(see

Figure

5-7).

Remove

the

chipper

blade.

8.

If

a

blade

is

dull

or

nicked,

sharpen

it

at

a

45°

angle.

See

inset,

Figure

5-7.

If

you

don’t

have

sharpening

experience

and

the

proper

equipment,

take

the

blade

to

a

pro¬

fessional

sharpening

service.

If

the

blade

is

cracked

or

damaged,

throw

it

away!

Never

use

a

cracked

blade

since

pieces

of

the

blade

could

break

off

and

cause

personal

injury.

Other manuals for 47329

1

This manual suits for next models

1

Table of contents

Other Troy-Bilt Chipper manuals

Troy-Bilt

Troy-Bilt 204 User manual

Troy-Bilt

Troy-Bilt CS4265 Series User manual

Troy-Bilt

Troy-Bilt 410 Series User manual

Troy-Bilt

Troy-Bilt 410 Series User manual

Troy-Bilt

Troy-Bilt Tomahawk 47265 Owner's manual

Troy-Bilt

Troy-Bilt Tomahawk 4 HP Owner's manual

Troy-Bilt

Troy-Bilt CS4265 User manual

Troy-Bilt

Troy-Bilt CSV 206 User manual

Troy-Bilt

Troy-Bilt 410 Series User manual

Popular Chipper manuals by other brands

Timberwolf

Timberwolf TW190TR manual

Greencut

Greencut GE212X Maintenance Guide

Echo

Echo Bear Car CH45342 (77412) specification

FHM

FHM BX42 Operations & parts manual

DR

DR 10 HP CHIPPER Safety & Operating Instructions

IMC

IMC pc2 series 4 Installation operating & maintenance manual

Band-it

Band-it 20XP Operating & parts manual

Spartan Equipment

Spartan Equipment SC2170 Operator's manual

Garland

Garland 1280 QG instruction manual

Craftsman

Craftsman CHIP-N-VAC 486.24517 Operator's manual

Snapper

Snapper E55140BV Operator's manual

Timberwolf

Timberwolf TW150DHB manual

Echo

Echo CH4540* Brochure & specs

DR

DR 18.0 HP Safety and operating instructions

Jensen

Jensen 560804147 operating instructions

Victory

Victory BX42S Operator's manual

Vermeer

Vermeer BC230 XL Rental Center Guide

Farmi Forest Corporation

Farmi Forest Corporation CH180HF OPERATION, MAINTENANCE AND SPARE PARTS MANUAL
