Troy-Bilt TBE304 User manual

769-26004 / 00 01/21
Lawn Edger
(4-Cycle, 30 cc)
Operator’s Manual
IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.
SAVE THESE INSTRUCTIONS
Coupe-bordures de pelouse
(4 Temps, 30 cc)
Manuel de l’utilisateur
IMPORTANT : Lisez attentivement ce manuel avant d'utiliser ce produit. Respectez toutes
les instructions.
CONSERVEZ CES INSTRUCTIONS
Bordeadora de césped
(4 Tiempos, 30 cc)
Manual del Operador
IMPORTANTE: Lea este manual por completo antes de utilizar este producto. Siga todas las
instrucciones.
CONSERVE ESTAS INSTRUCCIONES

2
English (Original Instructions). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Français (Traduction des instructions d’origine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Español (Traducción de las instrucciones originales). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
WARNING:This product can expose you to chemicals including
engine exhaust, which is known to the State of California to cause cancer, and
carbon monoxide, which is known to the State of California to cause birth
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
AVERTISSEMENT :Ce produit peut vous exposer à des
produits chimiques, notamment les gaz d'échappement du moteur reconnus par
l'État de Californie comme étant cancérogène, et le monoxyde de carbone,
reconnu par de l'État de Californie comme provoquant des malformations
congénitales ou d'autres problèmes de reproduction. Pour en savoir plus,
consultez le site www.P65Warnings.ca.gov.
ADVERTENCIA:Este producto puede exponerlo a productos
químicos, incluidos gases de escape del motor, indicados por el estado de
California como causantes de cáncer, y monóxido de carbono, indicado por el
estado de California como causante de defectos de nacimiento u otros daños
reproductivos. Para obtener más información, visite: www.P65Warnings.ca.gov.

3
TABLE OF CONTENTS
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

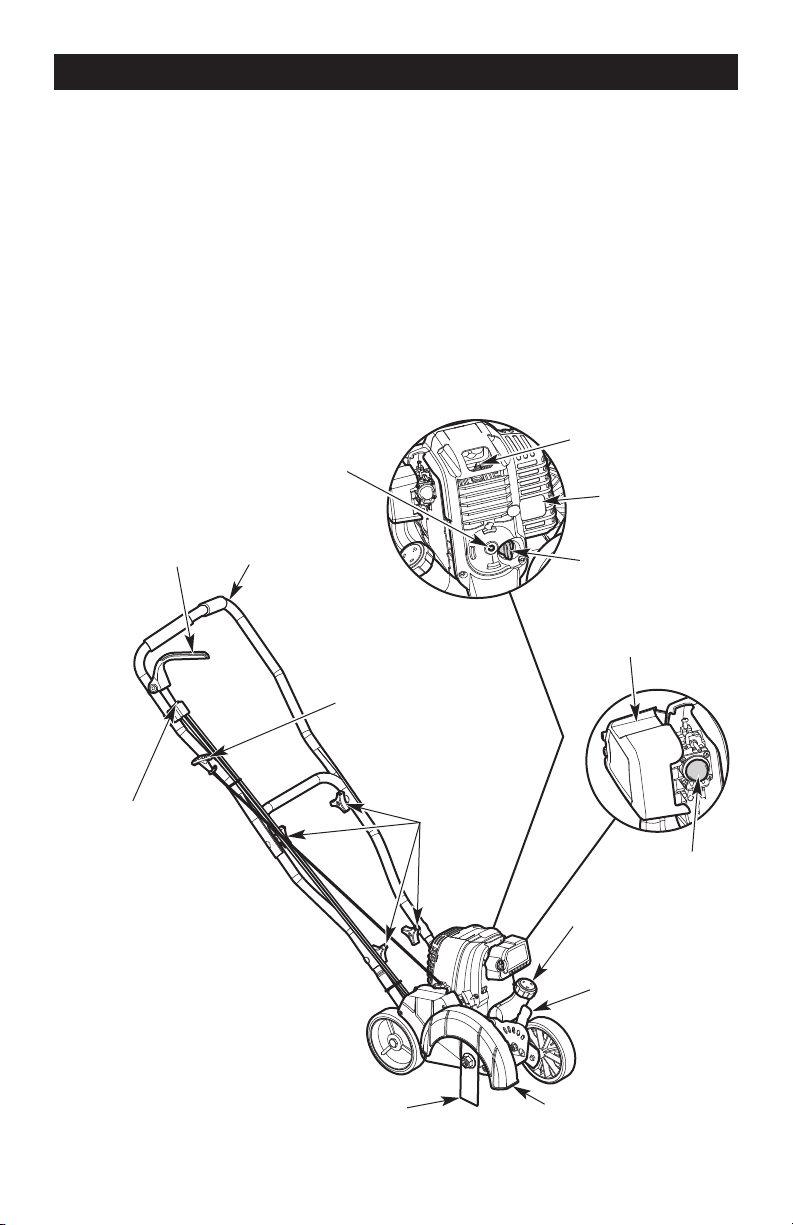

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Oil and Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Starting and Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
All information, illustrations, and specications in this manual are based on the latest product information
available at the time of printing. We reserve the right to make changes at any time without notice.
The product may vary slightly from the illustrations contained in this manual.
NOTE: This operator's manual covers multiple models. Features may vary by model. Not all features in
this manual are applicable to all models. The model depicted may dier from yours.

4
SAFETY
SPARK ARRESTOR NOTE
NOTE: For users on U.S. Forest Land and in the states of California, Maine, Oregon and
Washington. All U.S. Forest Land and the state of California (Public Resources Codes
4442 and 4443), Oregon and Washington require, by law that certain internal
combustion engines operated on forest brush and/or grass-covered areas be
equipped with a spark arrestor, maintained in eective working order, or the engine
be constructed, equipped and maintained for the prevention of re. Check with
your state or local authorities for regulations pertaining to these requirements.
Failure to follow these requirements could subject you to liability or a ne. This
unit is factory equipped with a spark arrestor. If it requires replacement, contact
your local service dealer to install the appropriate muer assembly.
SYMBOL MEANING
WARNING:Signals a SERIOUS hazard.
Failure to obey a safety WARNING symbol CAN result in serious injury to yourself
or to others.
CAUTION:Signals a MODERATE hazard.
Failure to obey a safety CAUTION symbol MAY result in property damage or
injury to yourself or to others.
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and their explanations, deserve your careful attention and understanding. The
safety warnings do not by themselves eliminate any danger. The instructions or warnings
they give are not substitutes for proper accident prevention measures.
NOTE: Advises you of information or instructions vital to the operation or maintenance of
the equipment.
DANGER:Signals an EXTREME hazard.
Failure to obey a safety DANGER symbol WILL result in serious injury or death to
yourself or to others.
WARNING:Read the operator’s manual and follow all warnings
and safety instructions. Failure to do so can result in serious injury to the
operator and/or bystanders.

5
• IMPORTANT SAFETY INSTRUCTIONS •
READ ALL INSTRUCTIONS BEFORE OPERATING
• Read the instructions carefully. Be familiar with the controls and proper use of the unit.
Know how to stop the unit and disengage the controls quickly.
• Stay alert. Do not operate this unit when tired, ill or under the inuence of alcohol,
drugs or medication.
• Never allow children to operate the unit. Teens must be trained, accompanied and
supervised by an adult. Never allow adults to operate the unit without proper instruction.
• All guards and safety attachments must be installed properly before operating the unit.
• Inspect the unit before use. Check for damaged parts. Check for fuel leaks. Make sure all
parts operate properly. Make sure all fasteners are in place and secure. Make sure all
moving parts are properly aligned and are not bound. Replace parts that are cracked,
chipped, or damaged in any way. Have all damaged or improperly working parts
repaired or replaced by an authorized service center. Do not operate the unit with loose
or damaged parts.
• Be aware of risk of injury to the head, hands and feet.
• Carefully inspect the area before starting the unit. Remove rocks, broken glass, nails,
wire, string and other objects that may be thrown or become entangled with the unit.
• Clear the area of children, bystanders and pets; keep them outside a 50-foot (15 m)
radius, at a minimum. Even then, they are still at risk from thrown objects. Encourage
bystanders to wear eye protection. If you are approached, stop the unit immediately.
• Squeeze the throttle control and check that it returns automatically to the idle position.
Make all adjustments or repairs before using the unit.
• Do not change the engine governor settings or overspeed the engine.
• This unit is intended for occasional, household use only.
WARNING:When using the unit, all safety instructions must be
followed. Please read these instructions before operating the unit in order to
ensure the safety of the operator and any bystanders. Please keep these
instructions for later use.

6
WHILE OPERATING
• Wear safety glasses or goggles that meet current ANSI / ISEA Z87.1 standards and are
marked as such. Wear ear/hearing protection when operating this unit. Wear a face
mask or dust mask if the operation is dusty.
• Wear heavy long pants, boots, gloves and a long sleeve shirt. Do not wear loose
clothing, jewelry, short pants, sandals or go barefoot. Secure hair above shoulder level.
• Use the unit only in daylight or good articial light.
•Avoid accidental starting. Be in the starting position whenever pulling the starter rope. The
operator and unit must be in a stable position while starting. Refer to Starting and Stopping.
• Use the right tool. Only use this tool for its intended purpose. Only use the unit as
described in this manual.
• Always hold the unit with both hands when operating. Keep a rm grip on the handle.
• Do not overreach. Always keep proper footing and balance. Take extra care when
working on stairs, steep slopes or inclines.
• Keep hands, face, and feet away from all moving parts. Do not touch or try to stop
moving parts.
• Do not touch the engine, gear housing or muer. These parts get extremely hot from
operation, even after the unit is turned o.
• Do not operate the unit faster than the speed needed to do the job. Do not run the unit
at high speed when not in use.
• Do not force the unit. It will do a better, safer job when used at the intended rate.
SAFETY WARNINGS FOR GAS UNITS
• Store fuel only in containers specically designed and approved for the storage of such
materials.
• Always stop the engine and allow it to cool before lling the tank. Never remove the
fuel tank cap or add fuel when the engine is hot. Always loosen the fuel tank cap slowly
to relieve any pressure in the tank before fueling.
• Always add fuel in a clean, well-ventilated outdoor area where there are no sparks or
ames. DO NOT smoke.
• Never operate the unit without the fuel cap securely in place.
• Avoid creating a source of ignition for spilled fuel. Wipe up any spilled fuel from the unit
immediately, before starting the unit. Move the unit at least 30 ft. (9.1 m) from the
fueling source and site before starting the engine. DO NOT smoke.
• Never start or run the unit inside a closed room or building. Breathing exhaust fumes
can kill. Operate this unit only in a well-ventilated outdoor area.
WARNING:Gasoline is highly ammable and its vapors can
explode if ignited. Take the following precautions:

7
• Always turn the unit o when operation is delayed or when moving from one location
to another. Make sure all moving parts come to a complete stop.
• If the unit strikes or becomes entangled with a foreign object, stop the unit
immediately. Check for damage. If damaged, do not restart or operate the unit until it is
repaired. Do not operate the unit with loose or damaged parts.
• Turn the engine o and disconnect the spark plug for maintenance or repair.
• Use only original equipment manufacturer (OEM) replacement parts and accessories for
this unit. These are available from your authorized service dealer. Use of any other parts
or accessories could lead to serious injury to the user, or damage to the unit, and void
the warranty.
• Keep the unit clean. Carefully remove vegetation and other debris that could block
moving parts.
• To reduce re hazard, replace a faulty muer and spark arrestor. Keep the engine and
muer free from grass, leaves, excessive grease or carbon build up.
• If the unit starts to vibrate abnormally, stop the unit immediately. Inspect the unit for
the cause of the vibration. Vibration is generally an indicator of trouble.
EDGER SAFETY
• Make sure the blade is not in contact with anything before starting the unit.
• The blade should remain stationary when the engine idles. If it does not, refer to
Adjusting the Idle Speed.
• Use extreme caution when reversing or pulling the unit towards you.
• Blade thrust may occur when the spinning blade contacts an object that it does not
immediately cut. Blade thrust can be violent enough to propel the unit and/or operator
in any direction, possibly causing a loss of control. Blade thrust can occur without
warning if the blade snags, stalls or binds. This is more likely to occur in areas where it is
dicult to see the material being cut.
• The blade will continue to spin after the unit is turned o. A coasting blade can cause
serious injury. Maintain control of the unit until all moving parts have stopped.
• Do not operate the unit with a bent, cracked or dull blade. Replace bent, cracked or dull
blades.
• The blade may become very sharp from use. Always wear heavy gloves when handling,
replacing or cleaning the blade.

8
OTHER SAFETY WARNINGS
• Maintain the unit with care. Follow all maintenance instructions in this manual.
•Do not perform maintenance procedures other than those described in this manual. All
service, other than the maintenance procedures described in this manual, should be
performed by an authorized service dealer.
• Never remove, modify or make inoperative any safety device furnished with the unit.
• Before inspecting, maintaining, cleaning, storing, transporting or replacing any parts on
the unit:
1. Stop the unit. Refer to Starting and Stopping.
2. Make sure all moving parts have stopped.
3. Allow the unit to cool.
4. Disconnect the spark plug wire.
• Secure the unit while transporting.
• Never store the unit with fuel in the tank, inside a building where fumes may reach an
open ame (pilot lights, etc.) or sparks (switches, electrical motors, etc.).
• Store the unit in a dry place, secured or at a height to prevent unauthorized use or
damage. Keep the unit out of the reach of children.
• Never douse or squirt the unit with water or any other liquid. Keep handles dry and
clean (free from debris, oil and grease). Clean the unit after each use. Refer to Cleaning
and Storage. Do not use solvents or strong detergents.
• Keep these instructions. Refer to them often and use them to instruct other users. If you
loan this unit to others, also loan them these instructions.
SAVE THESE INSTRUCTIONS

9
SAFETY & INTERNATIONAL SYMBOLS
This operator's manual describes safety and international symbols and pictographs that
may appear on this product. Read the operator's manual for complete safety, assembly,
operating and maintenance and repair information.
SYMBOL MEANING
SAFETY ALERT SYMBOL
Indicates danger, warning or caution. May be used in conjunction with other
symbols or pictographs.
READ OPERATOR'S MANUAL
WARNING:Read the operator’s manual(s) and follow all
warnings and safety instructions. Failure to do so can result in serious injury
to the operator and/or bystanders.
WEAR EYE AND HEARING PROTECTION
WARNING:Thrown objects and loud noise can cause severe
eye injury and hearing loss. Wear eye protection meeting current ANSI / ISEA
Z87.1 standards and ear protection when operating this unit. Use a full face
shield when needed.
WEAR FOOT PROTECTION
Always wear heavy-duty, non-slip footwear when operating this unit.
WEAR HAND PROTECTION
Always wear heavy-duty, non-slip gloves when handling this unit.
UNLEADED FUEL
Always use clean, fresh unleaded fuel.
OIL
Refer to operator’s manual for the proper type of oil.
DO NOT USE E85 FUEL IN THIS UNIT
CAUTION:It has been proven that fuel containing greater than
10% ethanol will likely damage this engine and void the warranty.

10
ON / OFF STOP CONTROL
ON / START / RUN
ON / OFF STOP CONTROL
OFF or STOP
PRIMER BULB
Push the primer bulb, fully and slowly, 10 times.
THROWN OBJECTS CAN CAUSE SEVERE INJURY
WARNING:Small objects can be propelled at high speed,
causing injury.
KEEP BYSTANDERS AWAY
WARNING:Keep all bystanders, especially children and pets, at
least 50 feet (15 m) from the operating area.
HOT SURFACE
WARNING:Do not touch a hot muer or cylinder. You may get
burned. These parts get extremely hot from operation. When turned o, they
remain hot for a short time.
ROTATING BLADE CAN CAUSE SEVERE INJURY
WARNING:Stop the engine and allow the blade to stop
moving before replacing the blade, or before cleaning or performing any
maintenance. Keep hands and feet away from moving parts.
SYMBOL MEANING

11
KNOW YOUR UNIT
APPLICATIONS
• Edging along paths, driveways, rockeries, etc.
NO ASSEMBLY TOOLS REQUIRED
On / O Switch
Spark Plug
Muer
Fuel Cap
Starter Rope Grip
Throttle Control
NOTE: The model depicted may dier from yours.
Handlebar
Knobs
Oil Fill Plug
Depth
Adjustment
Lever
Blade Shield
Edger Blade
Air Filter Cover
Primer Bulb
Electric Start Port
(not included with all units)

12
SPECIFICATIONS*
* All specications are based on the latest product information available at the time of printing. We
reserve the right to make changes at any time without notice.
Canada: This spark ignition system complies with Canadian ICES-002.
ASSEMBLY
ASSEMBLING THE HANDLE
Installing the Middle Shaft
1. Slide the middle shaft onto the lower shafts (Fig. 1). Keep the throttle cable and wire assembly to
the front of the unit.
2. Align the holes on the middle shaft with the holes on the lower shafts (Fig. 1).
3. Insert a bolt into each of the aligned holes (Fig. 2).
4. Install a washer onto each bolt (Fig. 2).
5. Install a knob onto each bolt (Fig. 2). Tighten the knobs securely.
Installing the Upper Shaft
1. Position the upper shaft onto the middle shaft. Make sure the“V” bend in the handle is pointing up
(toward the front of the unit) and that the throttle control is on the right side when the operater is
standing in the operating position (Fig. 13). Keep the throttle cable and wire assembly to the front
of the unit.
2. Align the holes on the upper shaft with the holes on the middle shaft (Fig. 3).
3. Insert a bolt into each of the aligned holes (Fig. 3).
4. Install a washer onto each bolt (Fig. 3).
5. Install a knob onto each bolt (Fig. 3). Tighten the knobs securely.
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-Cooled, 4-Cycle
Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 cc (1.83 cu. in.)
Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025 in. (0.635 mm)
Spark Plug (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Champion® RDZ4H or Equivalent Plug
Spark Plug (Canada). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Champion® QDZ4H or Equivalent Plug
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SAE 30 Oil
Crankcase Oil Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.04 . oz. (90 ml)
Fuel Tank Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 . oz. (444 ml)
Approximate Unit Weight (No Fuel) (Varies by Model). . . . . . . . . . . . . . . . . . . . . . . . 24 - 25 lbs. (10.9 - 11.3 kg)
Cutting Depth (Maximum) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.75 in. (4.5 cm)

13
Fig. 1
Fig. 2
Middle Shaft
Fig. 3
Lower Shafts
Holes
Washer
Bolt
Bolt
Washer
Knobs
Throttle
Control
Upper Shaft
Washer
Washer
Bolt
Bolt
Knobs
Middle Shaft

14

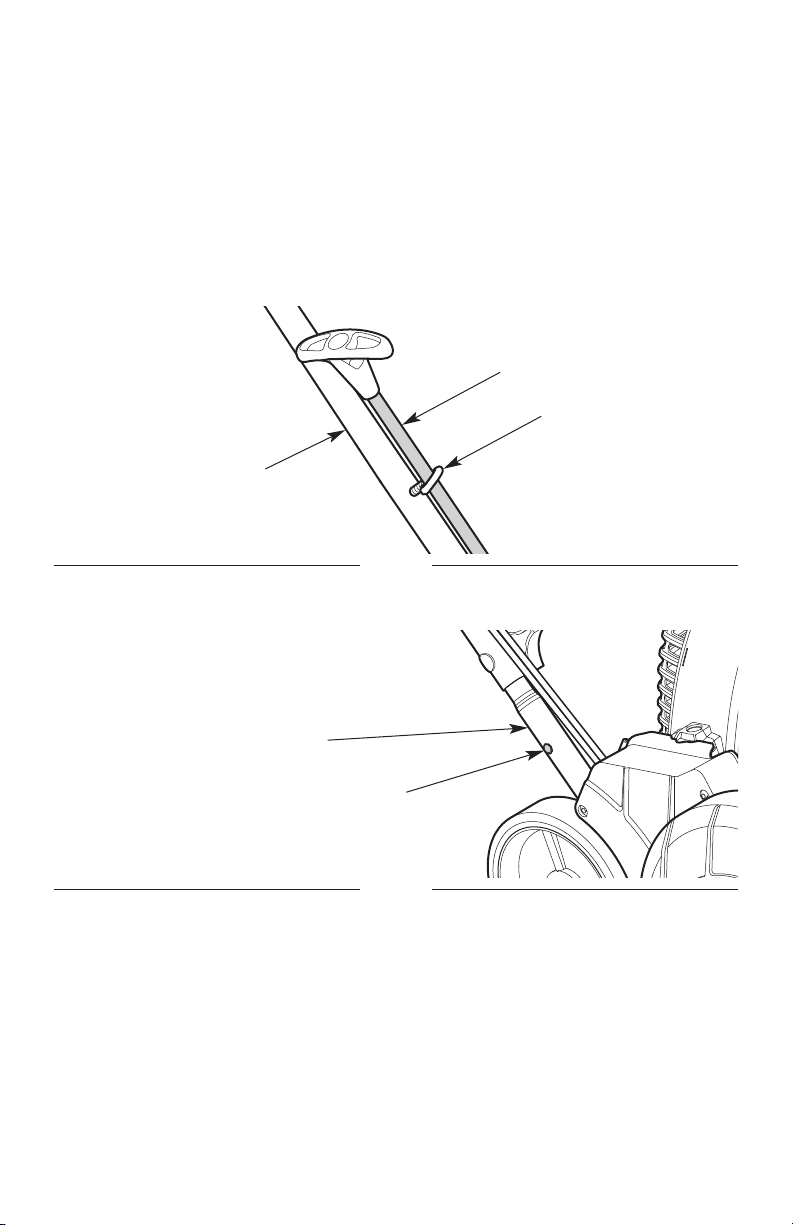

Fig. 4
Starter Rope
Securing the Starter Rope, Throttle Cable and Wire Assembly
1. Pull the starter rope and run it through the eye hook (Fig. 4).
2. Insert a zip tie into the hole on the lower shaft (Fig. 5). Loop the zip tie around the throttle cable
and wire assembly (Fig. 7). Secure the zip tie, but do not tighten it completely. Leave a small loop.
3. Use wire cutters to trim excess zip tie material.
4. Repeat steps 2 - 3 with the hole on the upper shaft (Fig. 6).
NOTE: DO NOT run the throttle cable and wire assembly through the eye hook.
NOTE: DO NOT bend or pinch the throttle cable or wire assembly.
Fig. 5
Hole
Eye Hook
Upper Shaft
Lower Shaft

15

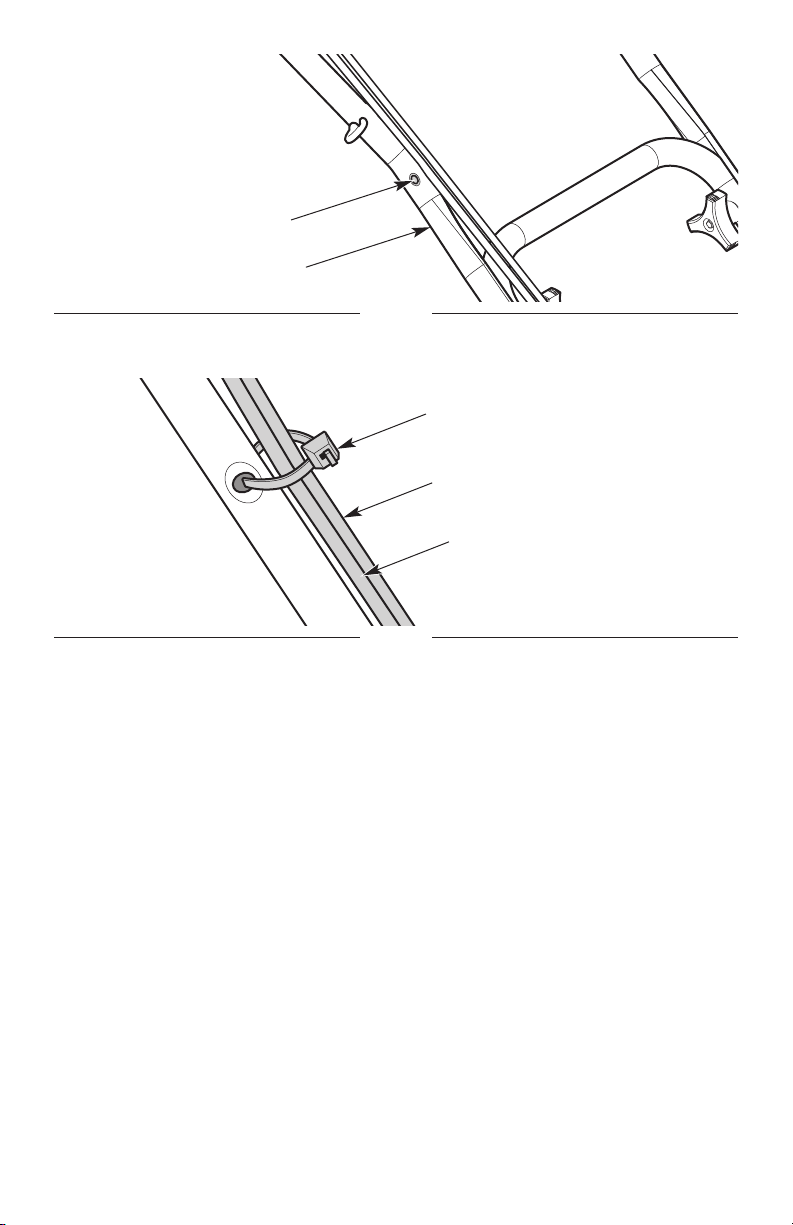

Fig. 6
Hole
Upper Shaft
Fig. 7
Zip Tie
Throttle Cable
Wire Assembly

16
OIL AND FUEL
USING THE RIGHT OIL
Use a high-quality SAE 30 weight oil. DO NOT use dirty oil. Failure to use clean oil of the correct type
can cause premature engine wear and failure.
ADDING OIL: INITIAL USE
NOTE: This unit was shipped without oil in the crankcase. Oil must be added before starting the unit.
NOTE: Never add oil to the fuel tank. This unit has a four-cycle engine. DO NOT mix oil with gasoline.
1. Set the unit on a at, level surface.
2. Unscrew the oil ll plug (Fig. 8).
3. Pour 3.04 uid oz. (90 ml) of oil into the oil ll hole (Fig. 8).
NOTE: This unit comes with a 3.04 uid oz. (90 ml) container of oil.
NOTE: DO NOT overll. Refer to Checking the Oil Level.
4. Wipe up any oil that may have spilled.
5. Make sure the O-ring is in place on the oil ll plug (Fig. 8).
6. Reinstall the oil ll plug.
WARNING: DO NOT overll the crankcase.
OVERFILLING THE CRANKCASE MAY CAUSE SERIOUS PERSONAL INJURY.
Fig. 8
Oil Fill Plug
Oil Fill Hole
O-Ring

17
USING THE RIGHT FUEL
The use of old fuel is the most common cause of performance problems. Use only fresh, clean
unleaded gasoline.
NOTE: This unit has a four-cycle engine. DO NOT mix oil with gasoline.
Denition of Blended Fuels
Today's fuels are often a blend of gasoline and oxygenates such as ethanol, methanol or MTBE (ether).
Alcohol-blended fuel absorbs water. As little as 1% water in the fuel can make fuel and oil separate,
forming acids when stored. ALWAYS use fresh fuel (less than 30 days old).
NOTE: Dispose of old fuel according to federal, state and local regulations.
Using Blended Fuels
If using a blended fuel:
• Always use fresh unleaded gasoline
• Use a fuel additive
Using Fuel Additives
Use a fuel additive to inhibit corrosion and minimize gum deposits. Add 0.8 oz. (23 ml) of fuel additive
per gallon of fuel, according to the instructions on the container. NEVER add fuel additives directly to
the unit's fuel tank.
CAUTION: DO NOT USE E85 FUEL IN THIS UNIT.
It has been proven that fuel containing greater than 10% ethanol will likely damage this
engine and void the warranty.
FUELING THE UNIT
1. Position the unit with the fuel cap facing up.
2. Slowly remove the fuel cap.
3. Place the fuel container spout into the fuel tank ll hole and ll the tank.
NOTE: DO NOT overll the tank.
4. Wipe up any fuel that may have spilled.
5. Reinstall the fuel cap.
6. Move the unit at least 30 ft. (9.1 m) from the fuel container and the fueling site before starting the engine.
WARNING: Gasoline is extremely ammable. Ignited vapors may explode. Always
stop the engine and allow it to cool before lling the fuel tank. Do not smoke while lling
the tank. Keep sparks and open ames at a distance from the area.
WARNING: Remove the fuel cap slowly to avoid injury from fuel spray. Never operate
the unit without the fuel cap securely in place.
WARNING: Add fuel in a clean, well-ventilated outdoor area. Wipe up any spilled fuel
immediately. Avoid creating a source of ignition for spilled fuel. Do not start the engine
until fuel vapors dissipate.

18
STARTING AND STOPPING
WARNING: Operate this unit only in a well-ventilated outdoor area. Carbon
monoxide exhaust fumes can be lethal in a conned area.
WARNING: Avoid accidentally starting the unit. To avoid serious injury, the operator
and the unit must be in a stable position when pulling the starter rope (Fig. 11).
WARNING:The blade may rotate during the starting process. Always stand in the
starting position. Use one foot to hold the wheels in place. Tilt the unit back slightly to
bring the blade o the ground.
STOPPING INSTRUCTIONS
1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/O switch in the O (O) position until the engine comes to a complete stop
(Fig. 9).
STARTING INSTRUCTIONS
NOTE: There is no need to turn the unit on. The On/O switch is in the On ( I ) position at all times (Fig. 9).
Before Starting the Unit
1. Check the oil level. Refer to Checking the Oil Level.
2. Fill the fuel tank. Refer to Fueling the Unit.
Starting the Unit
1. Slowly press and release the primer bulb 10 times (Fig. 10).
2. Stand in the starting position (Fig. 11). Hold the handlebar rmly with one hand. Hold the starter
rope with the other hand. Use one foot to hold the wheels in place.
3. Tilt the unit back slightly to bring the blade o the ground.
4. Squeeze and hold the throttle control (Fig. 9).
5. Continue to hold the throttle control. Pull the starter rope with a controlled and steady motion
until the unit starts (Fig. 11).
IF... the engine does not start after pulling the starter rope 10 times, repeat the starting procedure.
IF... the engine fails to start after 3 attempts, begin the starting procedure with step 2.
IF... the engine stops while the throttle control is squeezed, repeat the starting procedure.
IF THE ENGINE IS HOT... repeat the starting procedure.

19
Fig. 9
On / O Switch
(I = On / O = O)
Throttle Control
Fig. 11
Starting
Position
Starter Rope Grip
Fig. 10
Primer Bulb

20
USING THE ELECTRIC START ACCESSORY
Some units can be started with an optional electric start accessory (items sold separately). Electric-
start-capable units are labeled as such and include an electric start port (Fig. 12).
Please contact your local retailer, call the Customer Support Department or visit our website for more
information.
Read the Operator's Manual that came with the electric start accessory before attempting these instructions.
STOPPING INSTRUCTIONS
1. Release the throttle control and allow the engine to idle.
2. Press and hold the On/O switch in the O (O) position until the engine comes to a complete stop
(Fig. 9).
STARTING INSTRUCTIONS
NOTE: There is no need to turn the unit on. The On/O switch is in the On ( I ) position at all times (Fig. 9).
Before Starting the Unit
1. Check the oil level. Refer to Checking the Oil Level.
2. Fill the fuel tank. Refer to Fueling the Unit.
Starting the Unit
1. Slowly press and release the primer bulb 10 times (Fig. 10).
2. Stand in the starting position (Fig. 11). Hold the handlebar rmly with one hand. Use one foot to
hold the wheels in place.
3. Tilt the unit back slightly to bring the blade o the ground.
4. Insert the electric start accessory into the electric start port (Fig. 12).
5. Squeeze and hold the throttle control (Fig. 9).
6. Continue to hold the throttle control. Run the electric start accessory in intervals no longer than 2
seconds each until the unit starts.
7. Remove the electric start accessory from the unit, unless specied otherwise in the electric start
accessory Operator's Manual.
IF... the engine does not start after running the electric start accessory for 10 intervals, repeat the
starting procedure.
IF... the engine fails to start after 3 attempts, begin the starting procedure with step 2.
IF... the engine stops while the throttle control is squeezed, repeat the starting procedure.
IF THE ENGINE IS HOT... repeat the starting procedure.
