True Fitness CS800 User manual

(including children) with reduced physical , sensory or mental capabilities ,
or lack of experience and knowledge , unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.
-Children should be supervised to ensure that they do not play with the appliance.
Warning: keep out of reach of children
Safety Instructions , Warnings And Precautions
تﺎطﺎﯾﺗﺣﻻا - تارﯾذﺣﺗﻟا - نﺎﻣﻷا تﺎﻣﯾﻠﻌﺗ
ًﺎﯾﻧدﺑ نﯾﻠھؤﻣﻟا رﯾﻐﻟا صﺎﺧﺷﻷا و لﺎﻔطﻷا ﻰﻠﻋ ًادﺟ يرورﺿﻟا نﻣ :ًادـﺟ مﺎـھ رـﯾذـﺣـﺗ
مدﻋ مﮭﯾﻠﻋ بﺟﯾ ﺔﯾﻓﺎﻛﻟا ةرﺑﺧﻟا و ﺔﻓرﻌﻣﻟا كﻠﺗ مﮭﯾدﻟ رﻓوﺗﺗﻻ نﯾذﻟا صﺎﺧﺷﻷا و ًﺎﯾﻠﻘﻋوأ ًﺎﯾﺳﺣ وأ نﺎﻛ
لﺑﻗ نﻣ بﺛﻛ نﻋ مﮭﺗرﺷﺎﺑﻣ و مﮭﮭﯾﺟوﺗ و مﮭﺗﺑﻗارﻣ و مﮭﯾﻠﻋ فارﺷﻹا مﺗ اذإ ﻻإ ًﺎﺗﺎﺑ ًﺎﻌﻧﻣ زﺎﮭﺟﻟا مادﺧﺗﺳا
و ةزﮭﺟﻷا كﻠﺗ لﺛﻣ مادﺧﺗﺳإ دﻋاوﻗ و لوﺻﺄﺑ ﺔﯾﻓﺎﻛ و ﺔﻣﺎﺗ ﺔﻓرﻌﻣ مﮭﯾدﻟ و نﯾﯾﻓارﺗﺣا و نﯾﺻﺻﺧﺗﻣ سﺎﻧأ
. تدﺟ و نإ ﺎﮭﻣادﺧﺗﺳا ءوﺳ نﻋ ﺔﻣﺟﺎﻧﻟا و ﺔﺑﺗرﺗﻣﻟا رطﺎﺧﻣﻟا
Caution: This appliance is not intended for use by persons ,
40
truefitness.com / 800.426.6570 / 1.636.272.7100

truefitness.com / 800.426.6570 / 1.636.272.7100

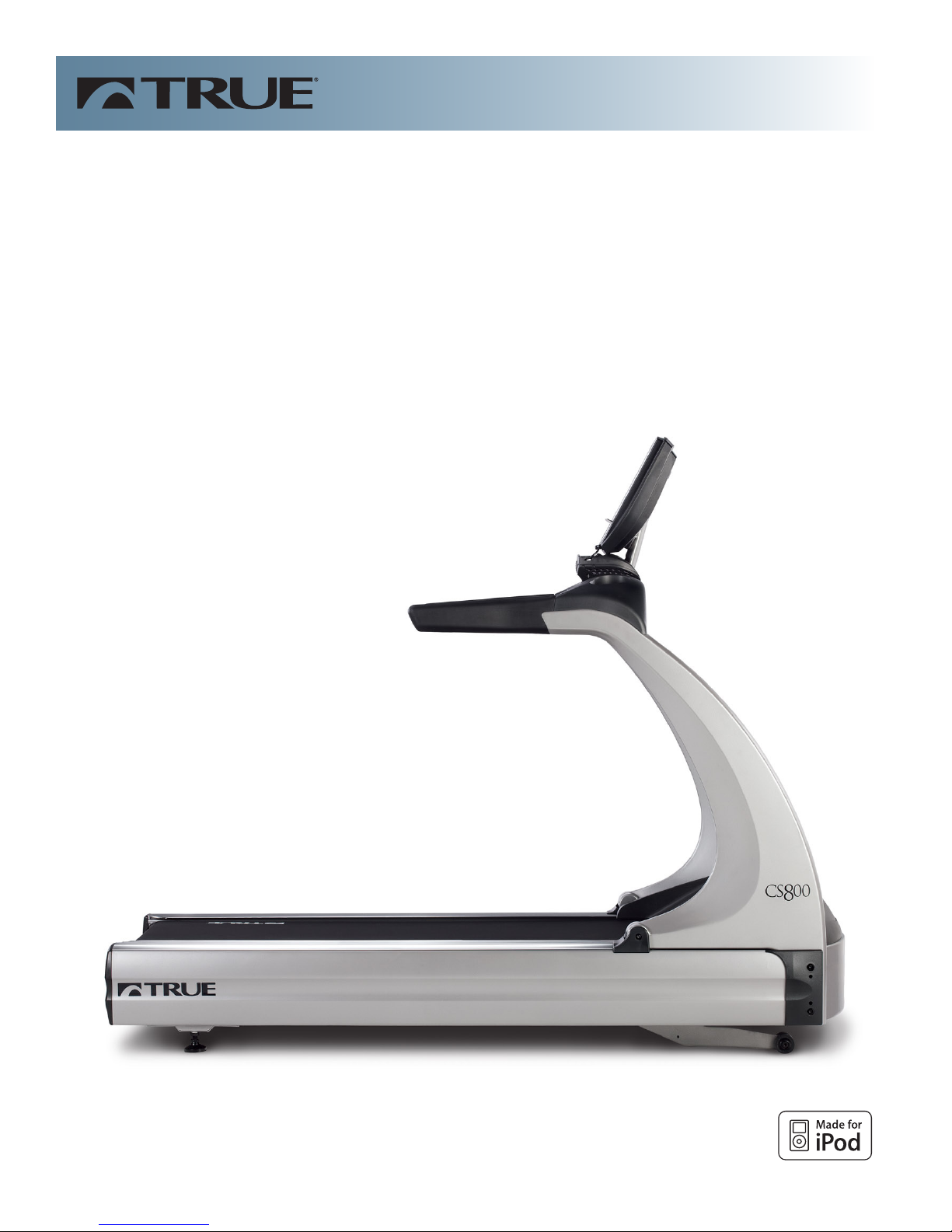

CS800 Treadmill
Owner’s Manual
CS800 يرﺟﻟا زﺎﮭﺟ
ﺔﯾﺑرﻌﻟﺎﺑ مﻋدﻣ كﻟﺎﻣﻟا لﯾﻟد

truefitness.com / 800.426.6570 / 1.636.272.7100 2
Frank Trulaske, founder and CEO of TRUE®, has had the same simple philosophy of delivering
superior products, service and support for over 29 years. Today, TRUE is the global leader in
premium cardio equipment for the commercial and residential markets. Our goal is to be
the leader in technology, innovation, performance, safety and style. TRUE has received many
awards for its commercial and retail product over the years and remains the benchmark
for the industry. Fitness facilities and consumers invest in TRUE products for their durable
commercial platforms used in all cardio products, commercial, light commercial and
residential alike.
The proud manufacturing traditions of quality and the culture of innovation at TRUE has
given rise to a full line of truly extraordinary treadmills, indoor cycles and elliptical cross-
trainers. As a result, people all over the world are benefiting f om the TRUE experience.
Innovation across the full product line has made TRUE successful and is a trademark of
the TRUE heritage. TRUE’s patented Heart Rate Control® technology is just one of the
remarkable ways we deliver simple and superior performance every user can enjoy, and most
importantly, use to achieve personal health and fitness goal .
TRUE strives to perfect biomechanically correct and orthopedically comfortable, functional
products. Whether it be the mesh seat in the recumbent bike, the Soft Step® in the elliptical
cross-trainers or the Soft System® in our treadmills, we deliver the best.
At the heart of our success is the relentless and systematic life testing of both our products
and their components. We have dedicated employees who understand our philosophy to
deliver the best products in the world.
Our goal is not to sell the most cardio products in the world, but to deliver the world’s best
premium equipment for our customers’ health and fitness solution .
To own a TRUE machine is to be part of an exclusive fitness ommunity that delivers results
– your results.
Thank you for becoming a part of the TRUE experience.

truefitness.com / 800.426.6570 / 1.636.272.7100
Table of contents
3
Chapter 1: Safety Instructions............................................4
Chapter 2: Treadmill Overview..........................................9
Chapter 3: Display Console.................................................10
A. 15” Touchscreen
B. 11” Custom LCD
Chapter 4: Programming & Operation............................16
A. 15” Touchscreen
B. 11” Custom LCD
Chapter 5: Care & Maintenance........................................21
Chapter 6: Troubleshooting................................................23
Chapter 7: Additional Information...................................25
IMPORTANT:
Product specific tions, features & software are subject to change without notice.
Chapter 8: Information In Arabic Language..................26

truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 1: Safety Instructions
4
Chapter 1: Safety Instructions
Chapter 2: Treadmill Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
Chapter 8: Information In Arabic Language

truefitness.com / 800.426.6570 / 1.636.272.7100 5
Chapter 1: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: Health related injuries may result from incorrect or excessive use of exercise equipment.
TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an
exercise program, particularly if the user has a family history of high blood pressure or heart disease, is
over the age of 45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year.
TRUE also recommends consulting a fitness p ofessional on the correct use of this product. If at any time
while exercising the user experiences faintness, dizziness, pain or shortness of breath, he or she must stop
immediately.
This CS800 Full Commercial treadmill is intended for commercial use.
WARNING: READ ALL INSTRUCTIONS BEFORE USING THE TREADMILL.
WARNING: Do not move the treadmill by lifting the console. Do not use the console as a handlebar during
a workout.
WARNING: To reduce the risk of electrical shock, always unplug this TRUE product before cleaning or
attempting any maintenance activity.
DANGER: To reduce the risk of electric shock, always unplug the treadmill before cleaning.
WARNING: To reduce the risk of burns, fi e and electric shock or injury to persons, follow these
instructions:
• Attach the safety clip to your clothing before each workout and while the treadmill is in use.
• Avoid exiting treadmill while leaving the tread belt in motion.
• Never walk or jog backwards on the treadmill.
• This equipment should never be left unattended when plugged in.
• To avoid injury stand on the straddle covers before starting the treadmill.
• Do not exceed maximum user weight as outlined in the product specific tion section of this manual.
• Wear shoes with rubber or high traction soles. Do not use shoes with heels, leather soles, cleats or spikes.
Make sure no stones are embedded in the soles. Do not use this product in bare feet. Keep all loose
clothing, shoelaces and towels away from moving parts.

truefitness.com / 800.426.6570 / 1.636.272.7100 6
Chapter 1: Safety Instructions
• Do not operate the treadmill while being covered with a blanket, plastic, or anything that insulates or stops
airfl w.
• Close supervision is necessary if the treadmill is used by children or near children. Also applies to disabled
persons.
• Use this treadmill only for its intended use as described in this manual.
• Do not use attachments not recommended by the manufacturer.
• Never operate this treadmill if it has a damaged power cord or plug, if it is not working properly, if it
has been damaged or dropped, or if it has been submerged in water. In these cases, a qualified se vice
technician should examine this treadmill.
• Do not use the power cord as a handle for transporting.
• Do not run the power cord along the side or under the treadmill.
• Keep the power cord away from heated surfaces.
• Position this product so the power cord plug is accessible to the user.
• Never operate the equipment with the air vents blocked. Keep air vents free from clogs.
• Never drop or insert any object into any opening.
• Do not reach into or underneath the unit, or tip it on its side during operation.
• Use the side handrails whenever additional stability is required. In case of emergency, such as tripping,
the side handrails should be grabbed and the user should place his/her feet on the straddle covers. The
front handlebars should be used to grasp the heart rate sensors or to rest the hand on while operating the
activity zone keys, but not for stability, emergency, or continuous use.
• Use indoors only.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• To disconnect power cord, first tu n power switch to the off position, then emove plug from outlet.
• Allow only trained personnel to service this equipment.

truefitness.com / 800.426.6570 / 1.636.272.7100 7
Chapter 1: Safety Instructions
• Never use near water or while wet. Using this treadmill around a pool, hot tub or sauna will void the
warranty.
• Avoid the possibility of bystanders being struck or caught between moving parts by making sure that they
are out of reach of the treadmill while it is in operation.
• Allow only one person at a time on the treadmill while it’s operating.
• Ensure that the back of the treadmill is placed at least 39” away from a wall or other obstructions.
• Ensure that the sides of the treadmill are placed at least 20” away from a wall or other obstructions.
• Never place liquids of any type directly on the unit except in the accessory tray or bottle holders.
Containers with lids are recommended.
• Do not allow animals on or near the treadmill while it’s operating.
• Consult your physician before beginning any exercise program.
• Do not use if you have a cold or fever.
GROUNDING INSTRUCTIONS
WARNING: To reduce the risk of burns, fi e, electric shock or injury, it is imperative to connect each
product to a properly grounded electrical outlet. A risk of electrical shock may result from improper
connection of the equipment’s grounding conductor. Check with a qualified ele trician if you are unsure
about proper grounding techniques. Do not modify the plug provided with this product. If it will not fit an
electrical outlet, have a proper outlet installed by a qualified ele trician. Your TRUE Fitness product must
be properly grounded to reduce risk of shock if the treadmill malfunctions. Your treadmill is equipped with
an electrical cord, which includes an equipment grounding conductor and a grounding plug. The plug must
be inserted into an outlet that has been properly installed and grounded in accordance with all local codes
and ordinances. A temporary adapter cannot be used to connect this plug to a two-pole receptacle in North
America. If a properly grounded 120 Volt/20 Amp outlet is not available, a qualified ele trician must install
one.

truefitness.com / 800.426.6570 / 1.636.272.7100 8
Chapter 1: Safety Instructions
POWER REQUIREMENTS FOR PRODUCTS
Information Sheet 2010
NOTE: Read and understand all instructions on this
sheet and in the Owner’s manual before plugging
any TRUE power cord into an electrical outlet.
This information sheet will help you identify the
voltage and cords you need where you live and
will outline requirements for:
•Grounded, dedicated lines
•Voltage
•Power cords
•Power adapters
•Extension cords
For example, in the United States some TRUE treadmills
require a circuit rated 115 VAC, 60 Hz and 20 amps. See
Figure 1. However, a home typically has 15 amp outlets.
In this case, contact an electrician to install a 20 amp dedi-
cated line prior to use. See Figure 2.
115 VAC 60 Hz 20 amps
Outlet RatingStandard US
Frequency
Standard US
Residential
Voltage
Figure 1
Improper connection of the equipment-
grounding conductor can result in risk
of electric shock. Check with a qualified
in doubt as to whether the equipment
dedicated line. Seek a qualified electrician
to perform any modifications to the cord
or plug. TRUE is not responsible for
injuries or damages as a result of cord or
plug modification.
electrician or service provider if you are
is properly grounded or installed on a
Place cords away from heat (such as
baseboards). Use care to arrange any
cord so it doesn’t become an obstacle.
Grounded, Dedicated Line
TRUE equipment must be grounded. If it should malfunction
or break down, grounding provides a path of least resistance
for electric current to reduce the risk of electric shock.
TRUE cords (except for cycle adapters) have an equipment-
grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances where you live. Do not use a ground plug
adapter to adapt the power cord to a non-grounded outlet.
Do not use a GFCI outlet or GFCI circuit breaker.
Extension Cords
Do not use an extension cord to supply power
to any TRUE product.
A dedicated line will assure that adequate power is
available for safe operation over the life of your
TRUE Product.
Voltage
Voltage required for your unit is located on the serial
number decal (usually on the front of the unit). Depending
on where you live voltage requirements differ.
Figure 2
Typical US
15 Amp Outlet Typical US
20 Amp Outlet
Parallel
Slots
800.246.6570/truefitness.com/Copyright 2010
Figure 2
(Residential) (Used with
Commercial Products)
!DANGER:
!CAUTION:

truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 2: Treadmill Overview
9
Chapter 1: Basic Safety
Chapter 2: Treadmill Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
Chapter 8: Information In Arabic Language
Console
Contact Heart Rate
Safety Key
Handrails
Belt
Straddle Covers
Belt
Adjustment
Decline Foot
(Optional)

truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 3: Display Console
10
Chapter 1: Safety Instructions
Chapter 2: Treadmill Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
Chapter 8: InformationIn Arabic Language

truefitness.com / 800.426.6570 / 1.636.272.7100 11
Chapter 3: Display Console
Display Console Options
This TRUE Fitness commercial treadmill has several console options. Depending on the console that came
with this treadmill, the workouts, programming and operation of the treadmill may differ. The console options
available on this machine are:
Integrated 15” LCD with Touchscreen technology that has a built-in TV, integrated iPod® connectivity with music
and video featuring onscreen navigation, Scenic Landscape Perspectives, USB connectivity, NTSC/ATSC/OAM
digital tuner or PAL/SECAM tuner
11” Custom LCD with optional integrated wireless entertainment control, integrated iPod® connector
Please refer to the information in this manual for basic operation information. For more detailed information
please visit www.truefitness.com/.
15” LCD with Touchscreen
11” Custom LCD

truefitness.com / 800.426.6570 / 1.636.272.7100 12
Chapter 3: Display Console
Safety, warning and
Quick Start information
USB jack
Headphone jack
Integrated iPod®
connectivity
15” LCD with Touchscreen Touch the HRC Button
to choose one of fi e
heart rate control
programs available
If weight loss is the
primary goal, touch
to choose one of fi e
weight loss programs
available
Touch to see a list of available
pre-set and custom* workouts
Touch Quick Start
to begin a manual
workout
Language Options
*In development, please ask a Sales Rep. for availability

truefitness.com / 800.426.6570 / 1.636.272.7100 13
Chapter 3: Display Console
15” touchscreen Sample Screens - data displays
Data entry
After selecting a program
the data entry screen will
guide a user to enter
workout parameters.
Use keypad to enter
personal data such as age
and weight
data display
This is one example of a
data display. Applicable
data related to the current
workout will be displayed.
There are several options
for data display available.
Use arrows to adjust
speed
Media
Volume
Control
Buttons
Use arrows to adjust
incline
Media
Control
Buttons
one-touch speed adjustment buttons

truefitness.com / 800.426.6570 / 1.636.272.7100 14
Chapter 3: Display Console
15” touchscreen Sample Screen
Media displays
This is one example of a
media display, specifically
the iPod® interface. There
are additional media display
screens for video and other
media.
control your
iPod® from the
touchscreen
volume controls
This is one example of
the television interface
display.
Control and monitor your
workout while viewing
the television
channel controls

truefitness.com / 800.426.6570 / 1.636.272.7100 15
Chapter 3: Display Console
11” Custom LCD
Safety, warning and
Quick Start information
USB jack
Headphone jack
Integrated iPod®
connectivity
Media Controls
Program
Options
Quick Speed
Controls
Change
Display
Program
Options
Volume
Controls
Fan
Controls

truefitness.com / 800.426.6570 / 1.636.272.7100
Chapter 4: Programming &
Operation
16
Chapter 1: Safety Instructions
Chapter 2: Treadmill Overview
Chapter 3: Display Console
Chapter 4: Programming & Operation
Chapter 5: Care & Maintenance
Chapter 6: Troubleshooting
Chapter 7: Additional Information
Chapter 8: InformationIn Arabic Language

truefitness.com / 800.426.6570 / 1.636.272.7100 17
Chapter 4: Programming &
Operation
Programming & Operation
15” Touchscreen:
Here is a list of programming options available on your CS800 treadmil with a 15” Touchscreen.
Programming and operation may dier depending on the type of console. For more information on
programming and operation please visit www.truefitnes .com/programs.
Quick Start: Begin a manual workout by pressing START. (A manual workout is a
workout where all aspects of the workout -workout time, distance, speed and incline-
are decided by the user.
Weight Loss: If weight loss is your primary goal, these programs will get you to an
ideal workout.
•Calorie Goal: This workout allows you to choose the number of calories you wish to burn
within a specified orkout time.
•Weight Loss Hills: Hill workout divided in work and rest segments with a max speed of 4mph.
•Rolling Hills: A series of gradual increasing and decreasing incline changes that simulate
rolling hills.
•Walk & Run Intervals: Segments in this workout are divided in walk and run segments.
•HRC Weight Loss: Based on age, this is a heart rate controlled workout at 65% of your
maximum heart rate.
HRC: Heart Rate Control monitors your heart rate and automatically adjusts speed and
incline to keep it within a preselected range.
•Target HRC: The treadmill takes control of speed and incline to maintain the users target
Heart Rate.
• HRC Weight Loss: Based on age, this is a heart rate controlled workout at 65% of your
maximum heart rate.
•Aerobic HRC: Based on age, this is a heart rate controlled workout at 80% of your maximum
heart rate.
•Distance HRC: 4 fi ed-distance HR workouts put the treadmill in control of the user’s speed
and incline to maintain the users target Heart Rate.

truefitness.com / 800.426.6570 / 1.636.272.7100 18
Chapter 4: Programming &
Operation
• Interval HRC: User determines WORK heart rate and treadmill reduces REST portion of each
interval to 65% of speed and incline
Performance:
• Cardio Challenge: Speed and incline increase to a set maximum at the mid-point of the
workout, then decrease to the finish.
• Speed Workouts: Speed Intervals: Speed intervals are divided in work and rest segments.
• Speed Ramp: Speed increases to the entered maximum speed at the mid-point of the
workout, then decreases to the finish.
• Incline Workouts: Incline Intervals: Incline intervals are divided in work and rest segments.
• One Big Hill: Incline increases to a maximum at the mid-point of the workout, then decreases
to the finish.
• Distance Workouts: Pre determined distance workout. This workout will only run the selected
workout distance of 5K, 10K, 2mi or 4mi.
Fitness Tests:
• Gerkin Fitness Test: A fitness est used to estimate your VO2 max. This test increases speed and
incline gradually every minute and ends at the point where your heart rate reaches 85% of the
maximum for your age.
• Army Fitness Test: This is a 2-Mile running test measured against age and gender calculations.
• Navy Fitness Test: This is a 1.5 mile running test measured against age and gender.
• Air Force Test: This is a 1.5 mile running test measured against age and gender.
• Marines Test: This is a 3-Mile running test measured against calculations for male and female.

truefitness.com / 800.426.6570 / 1.636.272.7100 19
Chapter 4: Programming &
Operation
Programming & Operation: 11” Custom LCD:
Here are a list of programming options available on your CS800 treadmill with an 11” Custom LCD Console.
Programming and operation may dier depending on the type of console. For more information on
programming and operation please visit www.truefitnes .com.
Program Category:
Quick Start: Begin a manual workout by pressing START. (A manual workout is a
workout where all aspects of the workout -workout time, distance, speed and incline-
are decided by the user.
Pre-set Workouts
• Calorie Burn: A walking workout where max speed is 4 mph.
• Hill Intervals: Walking intervals with grade alternate between hills and nearly fl t in two-
minute segments.
• Speed Intervals: Zero-incline walking or running intervals are in one-minute segments.
• Speed Ramp Up: No incline changes; gradually increases speed then decreases speed,
changing once per minute.
• Glute Buster: A steady pace with a ramp up in incline to the middle of the workout, then a
gradual decline until the end of the workout.
• Leg Shaper: Similiar to Glute Buster, but with varying incline changes throughout the
workout.
• Cardio Challenge: Similiar to Speed Ramp Up, except both speed and incline change
throughout the workout.
• Sports Training: Similiar to Speed Intervals, but with varying speed changes throughout the
workout.
HRC (Heart Rate Control) Workouts
• Time-based constant HRC: pick a target heart rate and exercise for an amount of time you
select.
• Cruise Control: while in any workout, set your current heart rate as your target heart rate by
pressing a single key.
