TBB-24-48G-SD
TBB-24-48G-SD
6/07
True’s refrigerated back bar coolers
are designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior - heavy duty, wear
resistant laminated black vinyl
front and sides. Matching black
aluminum back. All stainless steel
counter top.
Interior - 300 series stainless steel
floor with 1/2
" (13 mm) reinforced
lip and heavy gauge galvanized
steel walls.
NSF-7 approved for packaged and
bottled product.
Self closing, positive seal doors.
“Low-E”, double pane thermal
glass door assemblies. The latest in
energy efficient technology.
Entire cabinet structure is foamed-
in-place using high density, CFC
free, polyurethane insulation.
24" Back Bar Cooler:
Glass Slide Door
R
Model Doors
Capacity
Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
12 oz.
Cans
1/2
Barrels
TBB-24-48G-SD 2 61
6-pks
2449
1/8
1248
237/8
607
355/8
905
1/3
1/3
115/60/1
230-240/50/1
7.6
3.4
5-15P
▲
7
2.13
280
127
†Depth does not include 1" (26 mm) for rear bumpers. ▲Plug type varies by country.
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TBB-24-48G-SD TFJX45E TFJX45S TFJX45P TFJX453
TBB-24-48G-SD
DESIGN
• True’s refrigerated back bar coolers
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True merchandisers a more
efficient low velocity, high volume airflow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
• Condensing unit accessed from behind
front grill, slides out for easy cleaning and
maintenance.
CABINET CONSTRUCTION
• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.
• Interior - 300 series stainless steel floor
with 1/2" (13 mm) reinforced lip and
heavy gauge galvanized steel walls.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized base rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
DOORS
• “Low-E”, double pane thermal glass door
assemblies. The latest in energy efficient
technology.
• Self-closing doors. Counter-balanced
weight system for smooth, even, positive
closing.
• Each door fitted with 12" (305 mm) long
handle.
SHELVING
• Four (4) adjustable, heavy duty, black PVC
coated wire shelves 173/8"L x 161/4"D
(442 mm x 413 mm). Four (4) chrome
plated shelf clips included per shelf.
• Aluminum shelf support pilasters.
Shelves are adjustable on 1/2" (13 mm)
increments.
LIGHTING
• Fluorescent interior lighting. Safety
shielded.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Designed to accommodate a variety
of beer kegs. Doors must be removed
to place 1/2barrels in cabinet and then
reinstalled.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230-240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒ Additional shelves.
❒ TrueTrac one liter or wine bottle
organizers.
❒ TrueTrac 12oz. (355ml) bottle organizers.
❒Remote cabinets (condensing units
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R

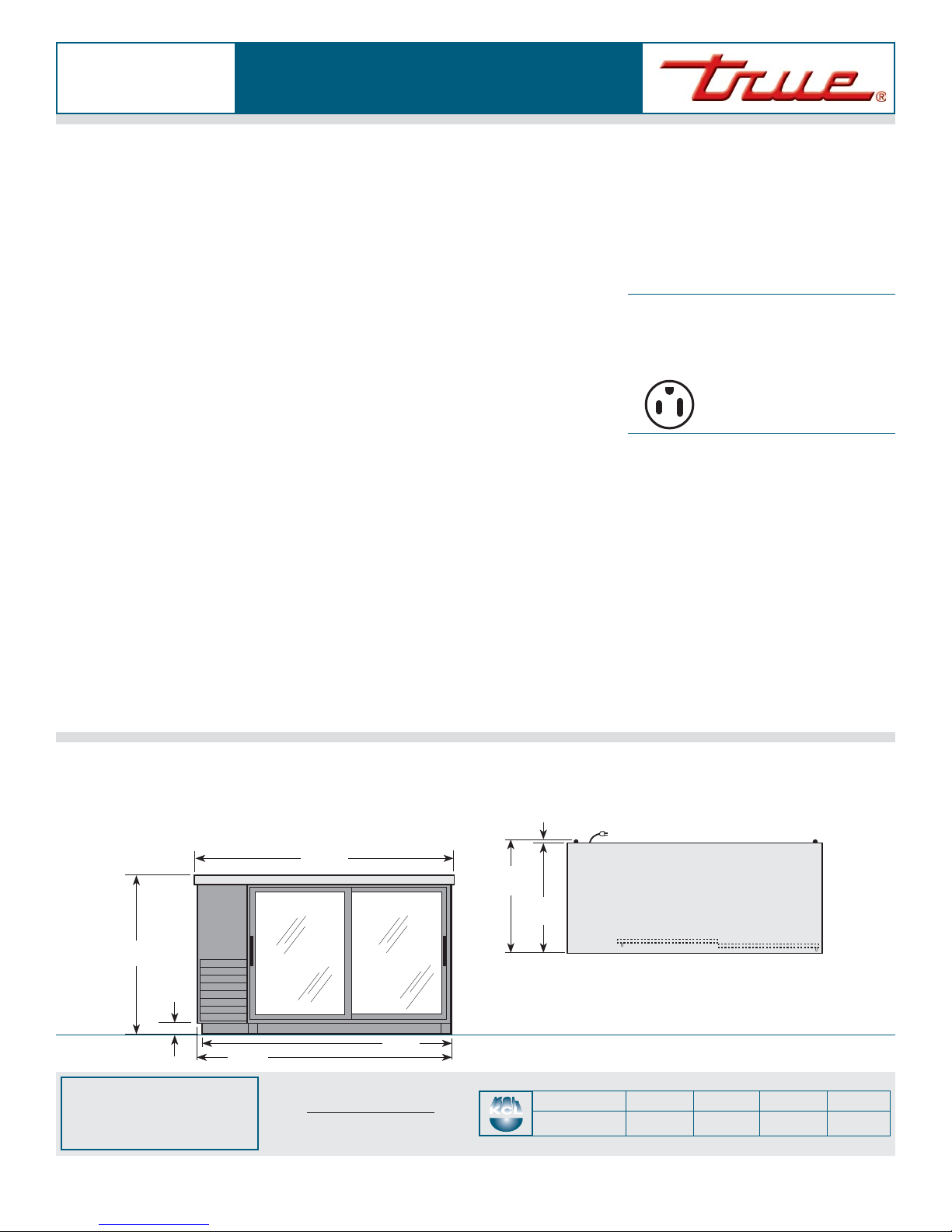

ELEVATION PLAN VIEW
24" Back Bar Cooler:
Glass Slide Door
2"
(51 mm)
355/8"
(905 mm)
491/16"
(1247 mm)
2313/16"
(605 mm)
477/8"
(1217 mm)
2413/16"
(631 mm)
1"
(26 mm)
473/8"
(1204 mm)
