True TR2F-4HS User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TR2F-4HS
TR2F-4HS
*Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs,
and 1" (26 mm) for system mechanical components.
6/07
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs and exceptional food
safety.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen
foods and ice cream.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Equipped with one (1) interior
kit option per full section, factory
installed. Four (4) different
interior kits available.
Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door hinges.
Lifetime guaranteed recessed
door handles.
Automatic defrost system
time-initiated, temperature-
terminated. Saves energy
consumption and provides
shortest possible defrost cycle.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
TR Series:
Reach-In Solid Half Door Freezer
R
®
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
LDH
*
TR2F-4HS 4 56
1586
513/8
1305
345/8
880
781/4
1988
3/4115/60/1 13.0 5-20P 9
2.74
704
320

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TR2F-4HS TFQX59E TFQX59S TFQY54P TFQX593
TR2F-4HS
DESIGN
• True’s solid door reach-in’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials
and components to provide the user with colder
product temperatures, lower utility costs and
exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary tube
system using environmentally friendly (CFC free)
404A refrigerant.
• Extra large evaporator coil balanced with higher
horsepower compressor and large condenser
maintains -10°F (-23.3°C) cabinet temperature.
Ideal for both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating evaporator fan
motor(s) and larger fan blades give True reach-
in’s a more efficient low velocity, high volume
airflow design. This unique design ensures faster
temperature recovery and shorter run times in the
busiest of foodservice environments.
• Top mounted refrigeration system with evaporator
positioned out of food zone to maximize capacity.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible defrost
cycle.
• Automatic evaporator fan motor delay during
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front,
sides, back and bottom.
• Interior - 300 series stainless steel liner and floor.
• Insulation - entire cabinet structure and solid doors
are foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail dipped
in rust inhibiting enamel paint for corrosion
protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter stem
castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior and liners. Doors
open within cabinet dimension.
• Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors with 120° stay open
feature. Lifetime guaranteed door hinges.
• Magnetic door gaskets of one piece construction,
removable without tools for ease of cleaning.
SHELVING
• One (1) factory installed, interior kit option per full
section. Four (4) different interior kits available
(see Kit Options). Pilasters and tray slides are
factory installed at no charge.
LIGHTING
• Incandescent interior lighting - light activated by
rocker switch mounted above top doors, safety
shielded.
MODEL FEATURES
• Exterior digital temperature display, available with
either °F or °C.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Backguards improve airflow.
• Minimum wattage heater in cabinet frame and
doors.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/60/1 phase - 20 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒6" (153 mm) stainless steel legs.
❒Stainless steel rail skirt for use with legs (field
installed).
❒ Metal door handles (factory installed).
❒ Novelty baskets.
❒Electronic temperature control (factory installed).
❒Curb mountable units.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information.
KIT OPTIONS
❒Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support of one
(1) 18"L x 26"D (458 mm x 661 mm) pan or two (2)
14"L x 18"D (356 mm x 458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod tray
slides and pilasters (factory installed), rim support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan.
❒Kit #3: Six (6) sets of universal type tray slides and
pilasters (factory installed), bottom support of one
(1) 18"L x 26"D (458 mm x 661 mm) pan, two (2)
14"L x 18"D (356 mm x 458 mm) pans or two (2)
12"L x 20"D (305 mm x 508 mm) pans
❒Kit #4: Three (3) chrome shelves
23
1
/ 2 "L x 27
3
/ 4 "D
(597 mm x 705 mm
). Four (4) shelf supports
included per shelf (factory installed). Shelves
adjustable on 6” (153 mm) increments. Optional
wall mounted shelf support pilasters (factory
installed) with four (4) shelf clips per shelf
available on
1
/ 2 " (13 mm) increments.
❒Additional kit option components available
individually.
115/60/1
NEMA-5-20R
TR Series:
Reach-In Solid Half Door Freezer

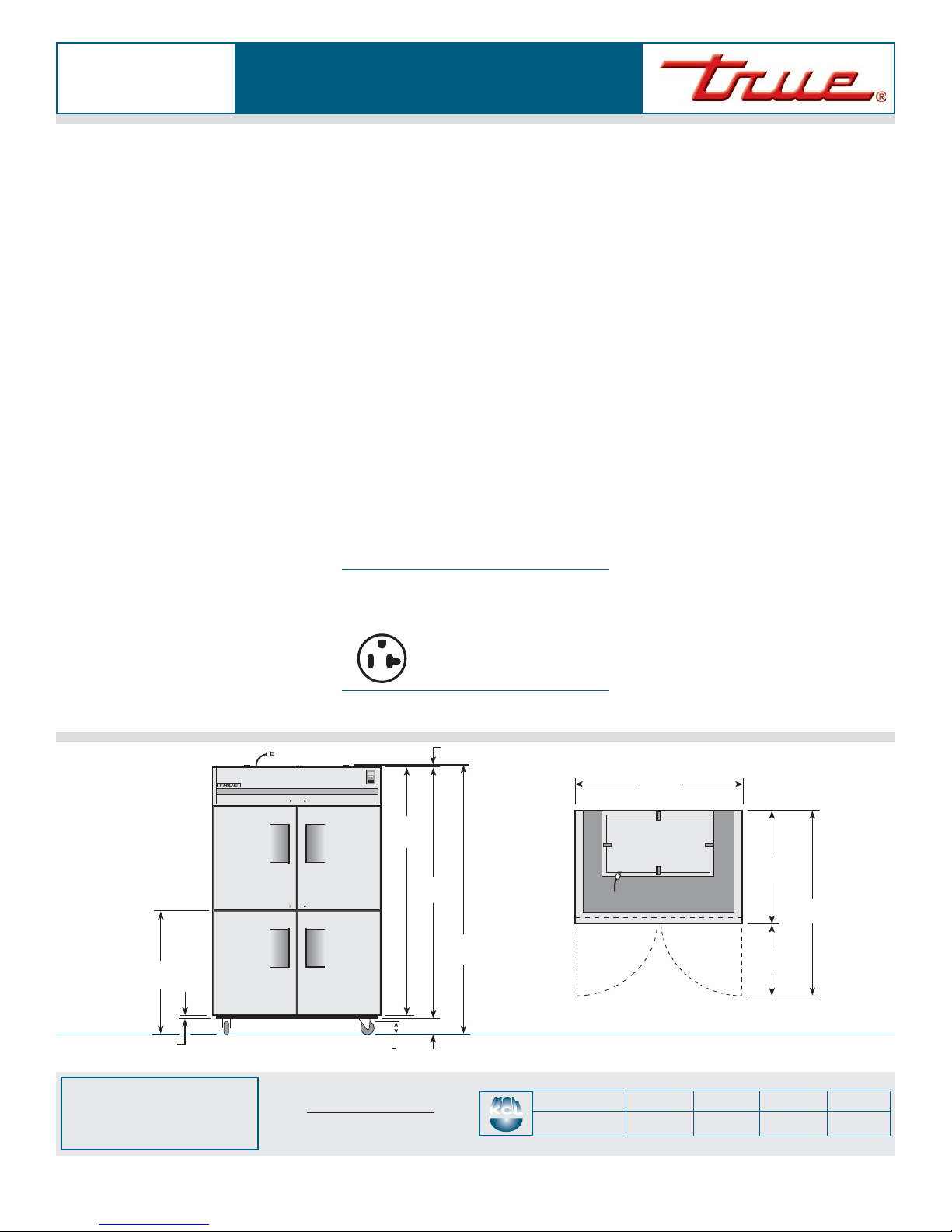

ELEVATION
783/16"
(1986 mm)
843/16"
(2139 mm)
5"
(127 mm)
1"
(26 mm)
PLAN VIEW
77"
(1956 mm)
13/16"
(31 mm)
385/8"
(982 mm)
345/8"
(880 mm)
2317/32"
(598 mm)
585/32"
(1478 mm)
513/8"
(1305 mm)
4"
(102 mm)
