True TR1FRI-1S User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
TR1FRI-1S
TR1FRI-1S
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TR1FRI-1S 1 37
1048
35
889
341/2
877
833/4
2128
3/4115/60/1 12.0 5-15P 9
2.74
485
220
†Depth does not include 41/4" (108 mm) for ramp.
*Height does not include 1" (26 mm) for system mechanical components.
2/07
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs and exceptional food
safety.
Oversized, factory balanced,
refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen
food and ice cream.
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Designed to accept roll-in racks
(inboard castors) with a maximum
dimension of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm).
One (1) heavy gauge stainless
steel ramp standard.
Three (3) lifetime guaranteed,
cam-lift hinges. Full 180º open
capability with a stay open
feature at 120º.
Automatic defrost system
time-initiated, temperature-
terminated. Saves energy
consumption and provides
shortest possible defrost cycle.
Entire cabinet structure and
solid door are foamed-in-place
using high density, CFC free,
polyurethane insulation.

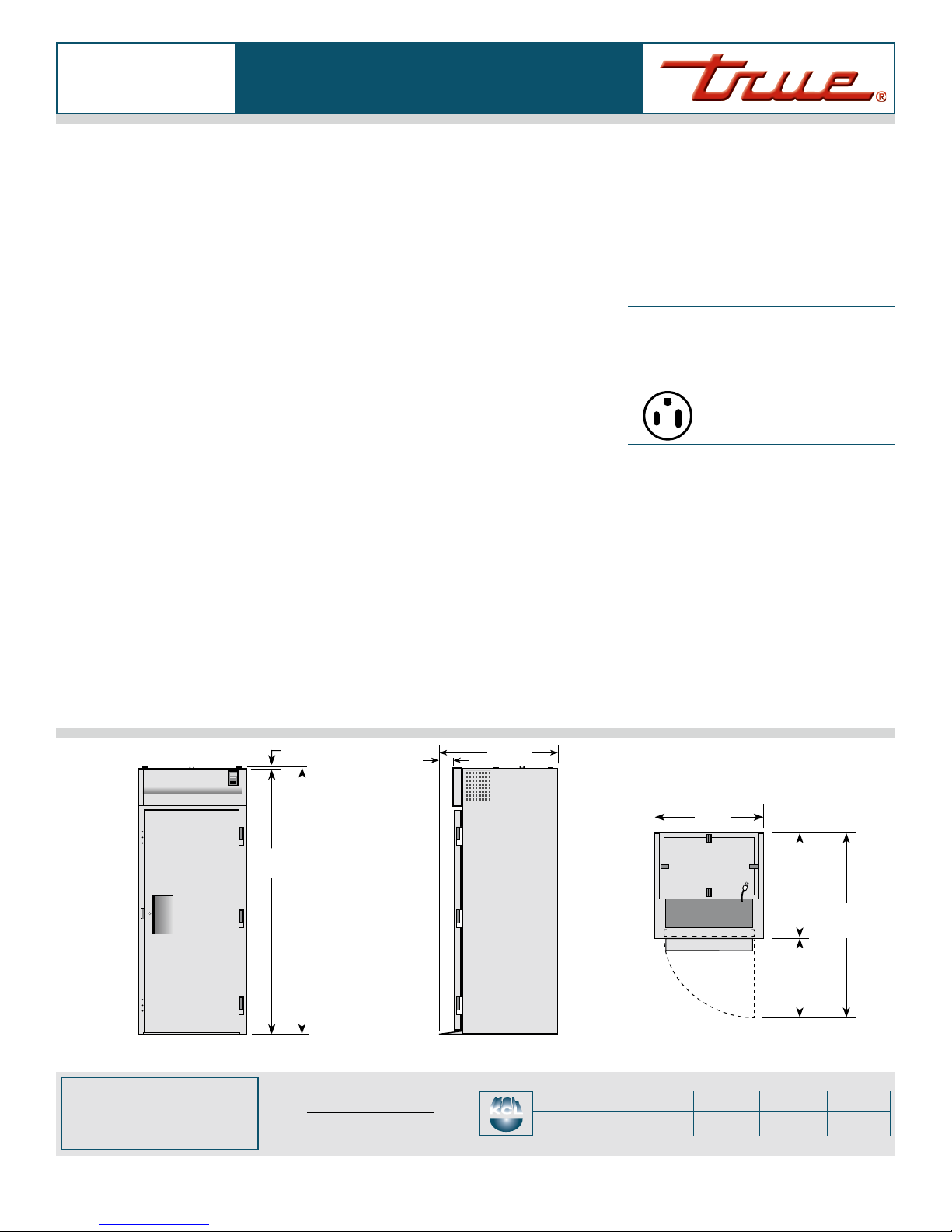

TR Series:
Roll-In Solid Door Freezer
R
®

STANDARD FEATURES
Model:
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
TR1FRI-1S TFQY51E TFQY64S TFQY51P TFQY643
TR1FRI-1S
DESIGN
• True’s solid door roll-in’s are designed
with enduring quality that protects your
long term investment.
• Designed using the highest quality
materials and components to provide the
user with colder product temperatures,
lower utility costs and exceptional food
safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 404A
refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor and
large condenser maintains -10°F (-23.3°C)
cabinet temperature. Ideal for both
frozen foods and ice cream.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True roll-in’s a more efficient
low velocity, high volume airflow
design. This unique design ensures
faster temperature recovery and shorter
run times in the busiest of foodservice
environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone
to maximize capacity.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest
possible defrost cycle.
• Automatic evaporator fan motor delay
during defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel door,
front, sides, back and bottom.
• Interior- 300 series stainless steel liner
and floor.
• Insulation - entire cabinet structure and
solid door are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• One (1) heavy gauge stainless steel ramp.
• Designed to accept roll-in racks (inboard
castors) with maximum dimensions of
27"L x 29"D x 66"H (686 mm x 737 mm x
1677 mm).
DOOR
• 300 series stainless steel. Door opens
within cabinet dimension.
• Door lock standard.
• Lifetime guaranteed recessed door
handle. Door fitted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet
metal interlock to ensure permanent
attachment.
• Wiper gaskets for positive seal, reversible.
• Three (3) lifetime guaranteed, cam-lift
hinges. Full 180º open capability with a
stay open feature at 120º.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
• Door is field reversible.
LIGHTING
• Incandescent interior lighting, safety
shielded.
MODEL FEATURES
• Exterior digital temperature display,
available with either °F or °C display.
• Evaporator epoxy coated to eliminate the
potential of corrosion.
• Minimum wattage heater in cabinet
frame.
• Interior bumpers protect cabinet walls
from abuse caused by roll-in carts.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ Metal door handle (factory installed).
❒ Electronic temperature control (factory
installed).
❒ Correctional facilities options.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R
TR Series:
Roll-In Solid Door Freezer
ELEVATION PLAN VIEW
833/4"
(2128 mm)
843/4"
(2153 mm)
347/16"
(875 mm)
30"
(762 mm)
647/16"
(1637 mm)
35"
(889 mm)
1"
(26 mm)
RIGHT VIEW
3811/16"
(983 mm)
41/4"
(108 mm)
