True TA1F-1G User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
TA1F-1G
TA1F-1G
Model Doors
Capacity
(Cu. Ft.)
(liters)
# of
Shelves
Cabinet Dimensions
(inches)
(mm)
LD†H*
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TA1F-1G 1 31
878
329
737
347/8
886
781/4
1988
3/4115/60/1 10.2 5-15P 9
2.74
N/A
N/A
†Depth does not include 13/8 " (35 mm) for door handle.
* Height does not include 5 " (127 mm) for castors and 1 " (26 mm) for system mechanical components.
5/05
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs and exceptional food
safety.
Oversized, factory balanced,
refrigeration system holds-10°F
(-23.3°C). Ideal for both frozen
foods and ice cream.
300 series stainless steel exterior
front, sides, back and bottom.
The very finest stainless with
higher tensile strength for fewer
dents and scratches.
NSF approved, white aluminum
interior liner. 300 series stainless
steel door liner and floor with
coved corners.
Triple pane thermal glass door.
Adjustable, heavy duty, PVC
coated shelves.
Positive seal self-closing door with
90° stay open feature. Lifetime
guaranteed door hinges and
torsion type closure system.
Entire cabinet structure is foamed-
in-place using high density, CFC
free, polyurethane insulation.
Automatic defrost system
time-initiated, temperature-
terminated. Saves energy
consumption and provides
shortest possible defrost cycle.
TA Series:
Reach-In Glass Door Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TA1F-1G
TA1F-1G
5"
(127 mm)
DESIGN
• True’s glass door reach-in’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials
and components to provide the user with
colder product temperatures, lower utility
costs and exceptional food safety.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains -10°F (-23.3°C) cabinet
temperature. Ideal for both frozen foods and
ice cream.
• Sealed, cast iron, self-lubricating evaporator
fan motor and larger fan blades give True
reach-in’s a more efficient low velocity, high
volume airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone to
maximize capacity.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel front, sides,
back and bottom.
• Interior- white aluminum side walls and back
liner. 300 series stainless floor with coved
corners.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOOR
• Triple pane thermal glass assembly with
extruded aluminum frame. Door opens within
cabinet dimension. Door lock standard.
• Positive seal self-closing door with 90° stay
open feature. Lifetime guaranteed door
hinges.
• Door fitted with 15" (381 mm) long extruded
aluminum handle.
• Magnetic door gasket of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• Three (3) adjustable, heavy duty PVC coated
wire shelves 25"L x 27
3
/ 4 "D (635 mm x
705 mm) (shipped separately). Four (4)
shelf supports included per shelf. Shelves
adjustable on 6" (153 mm) increments.
• Four (4) different interior kits available (see
Kit Options). Pilasters and tray slides require
field installation (shipped separately).
LIGHTING
• Fluorescent interior lighting.
MODEL FEATURES
• Exterior mounted digital temperature
monitor.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Backguard improves airflow.
• Minimum wattage heater in cabinet frame
and door.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒6" (153 mm) stainless steel legs.
❒Additional shelves.
❒Electronic temperature control (factory
installed).
❒Curb mountable units.
❒Remote cabinets (condensing unit supplied
by others), consult factory technical service
department for BTU information.
KIT OPTIONS
• Kit #1: Nine (9) sets of #1 type tray slides
(factory installed), bottom support of (1) 18"L
x 26"D (458 mm x 661 mm) pan or (2) 14"L x
18"D (356 mm x 458 mm) pans.
• Kit #2: One (1) set half-section #2 steel rod
tray slides (factory installed), rim support of (1)
18"L x 26"D (458 mm x 661 mm) pan.
• Kit #3: Six (6) sets of universal type tray slides
(factory installed), bottom support of (1) 18"L
x 26"D (458 mm x 661 mm) pan, (2) 12"L x
20"D (305 mm x 508 mm) pans or (2) 14"L x
18"D (356 mm x 458 mm) pans.
• Kit #4: Three (3) chrome shelves 25"L x 27
3
/ 4 "D
(635 mm x 705 mm). Four (4) shelf supports
included per shelf. Shelves adjustable on 6"
(153 mm) increments.
• Additional kit option components available
individually.

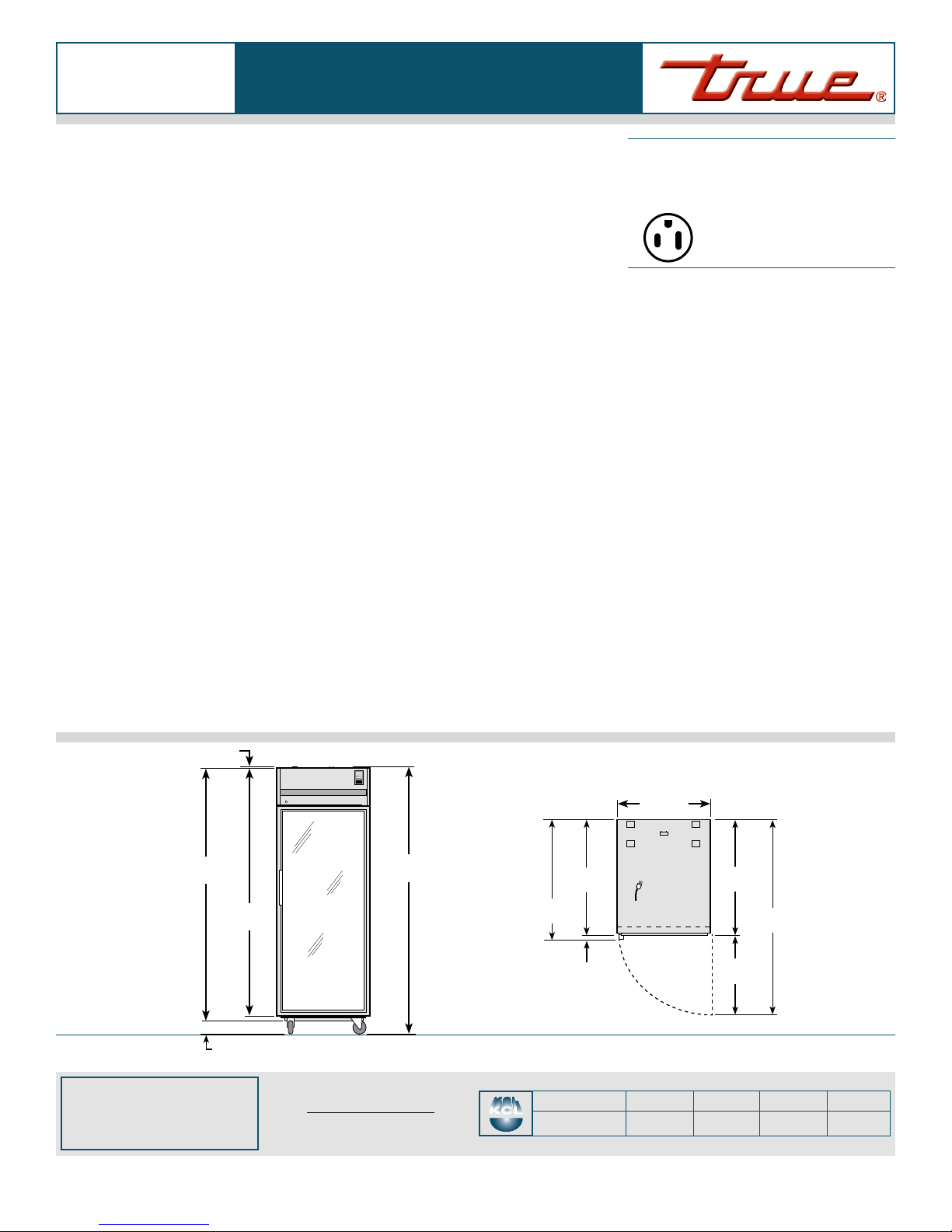

ELEVATION PLAN VIEW
115/60/1
NEMA-5-15R
TA Series:
Reach-In Glass Door Freezer
345/8"
(880 mm)
2611/16"
(678 mm)
615/16"
(1558 mm)
783/16"
(1986 mm)
1"
(26 mm)
843/16"
(2139 mm)
29"
(737 mm)
3425/32"
(884 mm)
365/32"
(919 mm)
77"
(1956 mm)
13/8"
(35 mm)
