True TRCB-36 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
5
YEAR
COMPRESSOR
WARRANTY
USA
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
T-23F-2
T-23F-2
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH
*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
T-23F-2 2 23
652
327
686
291/2
750
783/8
1991
1/2
1/2
115/60/1
230-240/50/1
10.4
5.5
5-15P
▲
9
2.74
300
137
* Height does not include 5
" (127 mm) for castors or 6 " (153 mm) for optional legs. ▲Plug type varies by country.
12/05
True’s solid door reach-in’s are
designed with enduring quality that
protects your long term investment.
Designed using the highest quality
materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today’s food service
marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser maintains -10°F
(-23.3°C). Ideally suited for both
frozen foods and ice cream.
300 series stainless steel solid doors
and front. The very finest stainless
with higher tensile strength for
fewer dents and scratches.
Adjustable, heavy duty PVC coated
shelves.
Positive seal self-closing doors.
Lifetime guaranteed door hinges and
torsion type closure system.
Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.
Bottom mounted units feature:
”No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest, most
grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
T Series:
Reach-In Solid Half Door Freezer
R
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Elevation Right Plan 3D
PLAN VIEW
T-23F-2 TFGY07E TFGY07S TFEY03P TFGY073
T-23F-2
835/16 "
(2117 mm)
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s
food service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) R404A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser maintains -10°F (-23.3°C). Ideally
suited for both frozen foods and ice cream.
• Sealed, cast iron, self-lubricating evaporator
fan motor and larger fan blades give True
reach-in’s a more efficient low velocity,
high volume airflow design. This unique
design insures faster temperature recovery
and shorter run times in the busiest of food
service environments.
• Bottom mounted condensing unit positioned
for easy cleaning. Compressor runs in coolest
and most grease free area of the kitchen.
Allows for storage area on top of unit.
• Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel front grill
and shroud. Anodized quality aluminum
exterior ends and back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior with white
aluminum door liner to match cabinet
interior. Doors extend full width of cabinet
shell. Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handles that are foamed-in-place
with a sheet metal interlock to insure
permanent attachment.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Three (3) adjustable, heavy duty PVC coated
wire shelves 227/8"L x 231/4"D (582 mm x
591 mm). Four (4) chrome plated shelf clips
to be included per shelf.
• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.
LIGHTING
• Incandescent interior lighting - safety
shielded. Lights activated by rocker switch
mounted above top door.
MODEL FEATURES
• Exterior mounted temperature monitor.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Rear airflow guards prevent product from
blocking optimal airflow.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒Alternate door hinging. (factory installed)
❒Additional shelves.
❒Half door bun tray racks. Each holds up to
eleven 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately)
(airflow guards need
to be removed).
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires 404A
refrigerant). Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R

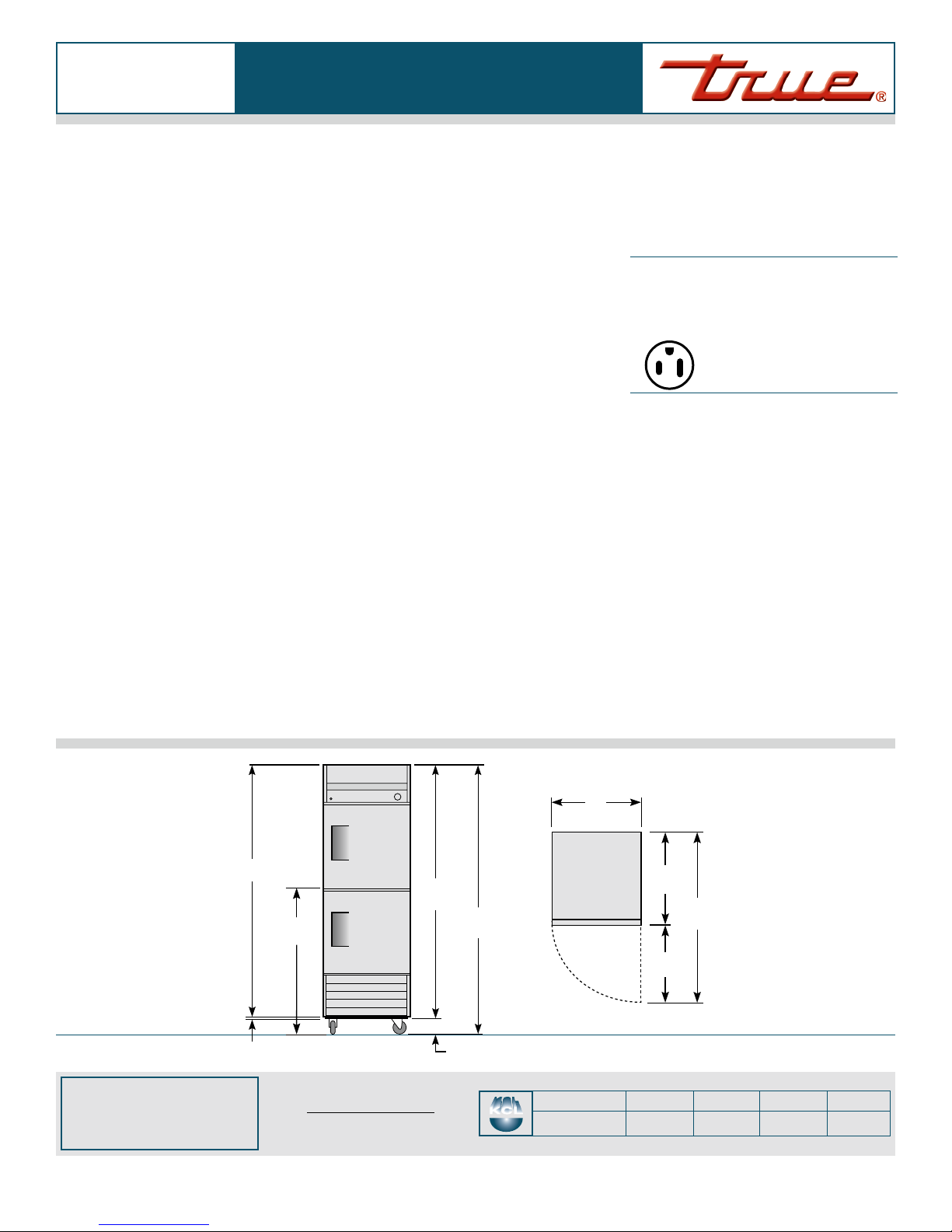

ELEVATION PLAN VIEW
27 "
(686 mm)
785/16 "
(1990 mm)
5 "
(127 mm)
551/32 "
(1398 mm)
2517/32 "
(649 mm)
291/2 "
(750 mm)
T Series:
Reach-In Solid Half Door Freezer
13/8 "
(35 mm)
7615/16 "
(1955 mm)
469/16 "
(1183 mm)
