True TR1DT-2HS User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TR1DT-2HS
TR1DT-2HS
Model Doors
Capacity
(Cu. Ft.)
(liters)
Ref. Frz.
Cabinet Dimensions
(inches)
(mm)
LD
†H*
HP
Ref. Frz. Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TR1DT-2HS 213
369
13
369
29
737
345/8
880
781/4
1988
1/51/3115/60/1 13.2 5-20P 9
2.74
480
218
†Depth does not include 23/8
" (60 mm) for rear freezer condensate enclosure.
* Height does not include 5 " (127 mm) for castors or 6 " (153 mm) for optional legs, and 1 " (26 mm) for system mechanical components .
6/07
R
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower
utility costs and exceptional food
safety.
Oversized, factory balanced,
refrigeration systems. Top section
refrigerator holds 33°F to 38°F
(.5°C to 3.3°C). Bottom section
freezer holds -10°F (-23.3°C).
300 series stainless steel exterior
and interior. The very finest
stainless with higher tensile
strength for fewer dents and
scratches.
Equipped with one (1) interior kit
option, factory installed. Four (4)
different interior kits available.
Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door hinges.
Lifetime gauranteed recessed
door handles.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
TR Series:
Reach-In Solid Half Door Dual Temperature Refrigerator/Freezer
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
1"
(26 mm)
TR1DT-2HS TFQH01E TFQH01S TFQH01P TFQH013
TR1DT-2HS
DESIGN
• True’s solid door reach-in’s are designed with
enduring quality that protects your long term
investment.
• Designed using the highest quality materials
and components to provide the user with colder
product temperatures, lower utility costs and
exceptional food safety.
REFRIGERATION SYSTEM
• Two independent, self contained refrigeration
systems; CFC free, environmentally friendly and
factory balanced.
• R134A refrigerator refrigerant - R404A freezer
refrigerant.
• Extra large evaporator coils balanced with
higher horsepower compressors and large
condensers maintains 33°F to 38°F (.5°C to
3.3°C) in the refrigerator section and -10°F
(-23.3°C) in the freezer section.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
reach-in’s a more efficient low velocity, high
volume airflow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
• Top mounted refrigeration system with
evaporator positioned out of food zone to
maximize interior capacity.
• Freezer automatic defrost system is time-
initiated, time-terminated.
• Automatic evaporator fan motor delay during
defrost cycle.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front,
sides, back and bottom.
• Interior- 300 series stainless steel liner and floor.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior and liners.
Doors open within cabinet dimension.
• Door locks standard.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Positive seal self-closing doors with 120° stay
open feature. Lifetime guaranteed door hinges.
• Magnetic door gaskets of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• One (1) factory installed, interior kit option.
Four (4) different interior kits available (see Kit
Options). Pilasters and tray slides are factory
installed at no charge.
LIGHTING
• Compartmentalized incandescent interior
lighting (one per door), safety shielded.
MODEL FEATURES
• Two (2) exterior digital temperature displays.
Available with either °F or °C.
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Backguard in freezer section improves airflow.
• Minimum wattage heater in cabinet frame and
in freezer door.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/60/1 phase, 20 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒6" (153 mm) stainless steel legs.
❒Stainless steel rail skirt for use with legs (field
installed).
❒Metal door handles (factory installed).
❒Novelty baskets.
❒Electronic temperature control (factory
installed).
❒Curb mountable units.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information.
KIT OPTIONS
❒Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (factory installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.
❒Kit #2: One (1) set half-section #2 steel rod
tray slides and pilasters (factory installed), rim
support of one (1) 18"L x 26"D (458 mm x 661
mm) pan.
❒Kit #3: Six (6) sets of universal type tray slides
and pilasters (factory installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans or
two (2) 12"L x 20"D (305 mm x 508 mm) pans.
❒Kit #4: Three (3) chrome shelves 25"L x 273/4"D
(635 mm x 705 mm). Four (4) shelf supports
included per shelf (factory installed); adjustable
on 6" (153 mm) increments. Optional wall
mounted shelf support pilasters (factory
installed) with four (4) shelf clips per shelf
available; adjustable on 1/2" (13 mm) increments.
❒Additional kit option components available
individually.

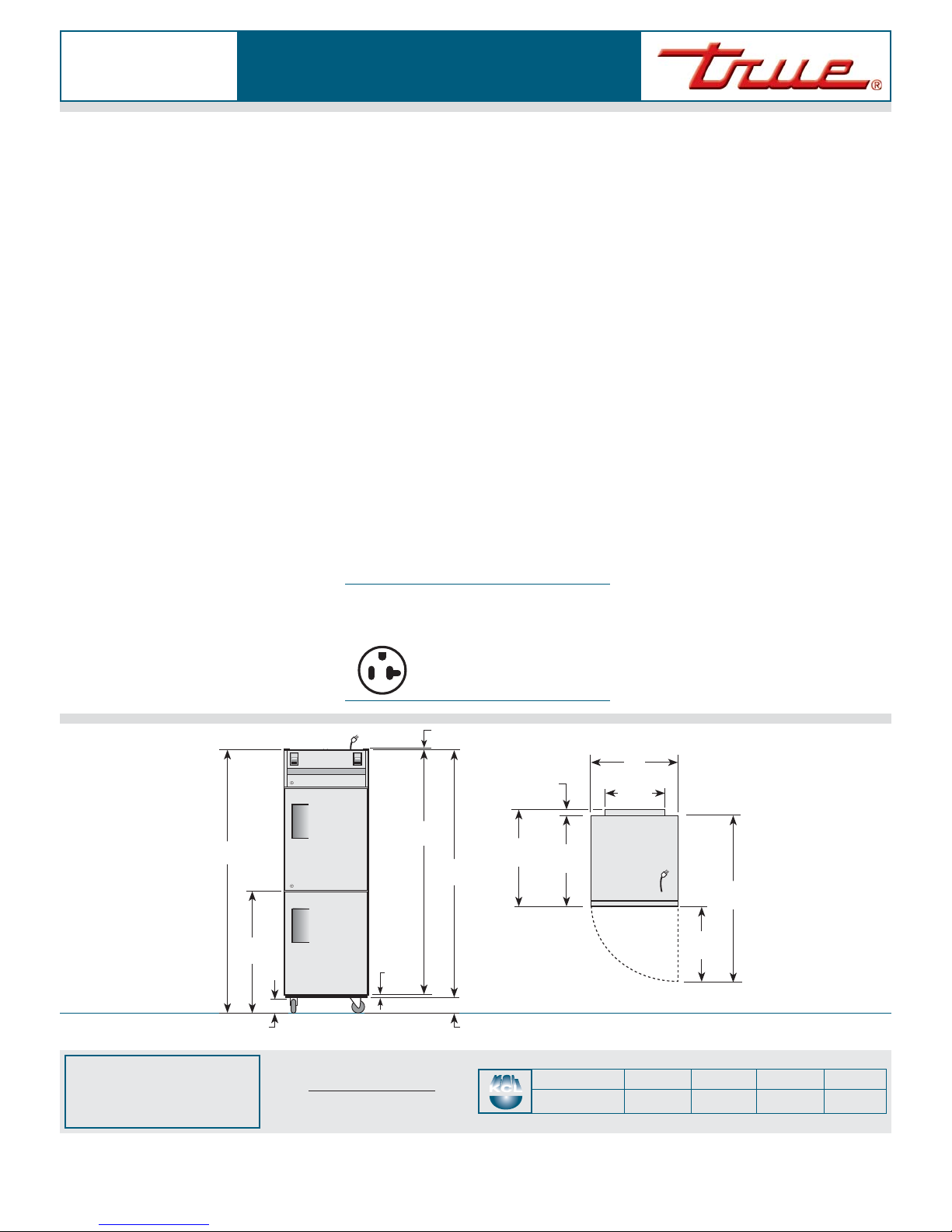

ELEVATION PLAN VIEW
843/16"
(2139 mm)
5"
(127 mm)
29"
(737 mm)
2623/32"
(679 mm)
6111/32"
(1559 mm)
783/16"
(1986 mm)
345/8"
(880 mm)
115/60/1
NEMA-5-20R
TR Series:
Reach-In Solid Half Door Dual Temperature
Refrigerator/Freezer
13/16"
(31 mm)
191/16"
(231 mm)
3615/16"
(939 mm)
25/16"
(59 mm)
77"
(1956 mm)
39"
(991 mm)
4"
(102 mm)
