True TS-28-PT User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
AVAILABLE AT:
TS-28-PT
TS-28-PT
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LDH*
HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TS-28-PT 2 28
793
329
737
351/8
893
783/8
1991
1/2115/60/1 9.6 5-15P 9
2.74
390
177
* Height does not include 5 " (127 mm) for castors or 6 " (153 mm) for optional legs.
True’s TS series is the choice for the
exclusive 300 series stainless steel
commercial application.
Pass-thru design allows for
convenient rear loading and front
access for serving.
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety and
the best value in today’s food
service marketplace.
Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.
300 series stainless steel interior and
exterior. The very finest stainless
with higher tensile strength for
fewer dents and scratches.
Adjustable, heavy duty chrome
shelves.
Positive seal self-closing door(s).
Lifetime guaranteed door hinges
and torsion type closure system.
Bottom mounted units feature:
“No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest,
most grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
1/07
Deep TS Series:
Pass-Thru 300 Series Stainless Steel Solid Door Refrigerator
®
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Elevation Right Plan 3D
PLAN VIEW
TS-28-PT TFQH11E TFQH14S TFQH14P TFQH143
TS-28-PT
835/16"
(2117 mm)
DESIGN
• True’s solid door reach-in’s are designed with
enduring quality that protects your long term
investment.
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to
3.3°C) for the best in food preservation.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
reach-in’s a more efficient, low velocity, high
volume airflow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food service
environments.
• Bottom mounted condensing unit positioned
for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of
unit.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel doors, front,
back and sides.
• Interior - 300 series stainless steel liner and
floor.
• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• 300 series stainless steel exterior and liner.
Doors extend full width of cabinet shell. Door
locks standard.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Lifetime guaranteed recessed door handles.
Each door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Three (3) adjustable, heavy duty chrome
shelves 25"L x 269/16"D (635 mm x 674 mm).
Four (4) plastic support knobs included
per shelf. Shelving ships separately (field
installed).
• Four (4) different interior kits available (see
Kit Options). Pilasters and tray slides are
shipped separately (requires field installation).
LIGHTING
• Incandescent interior lighting - safety
shielded. Lights activated by rocker switch
mounted above top doors.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Exterior mounted solar, digital temperature
display.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1 phase
- 15 amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead time may apply.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒Additional shelves.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant), consult factory technical service
department for BTU information.
❒ Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (field installed)(shipped separately),
bottom support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan or two (2) 14"L x
18"D (356 mm x 458 mm) pans.
❒ Kit #2: One (1) set half-section #2
steel rod tray slides and pilasters (field
installed)(shipped separately), rim support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan.
❒ Kit #3: Six (6) sets of universal type tray
slides and pilasters (field installed)(shipped
separately), bottom support of one (1) 18"L x
26"D (458 mm x 661 mm) pan, two (2) 12"L x
20"D (305 mm x 508 mm) pans or two (2) 14"L
x 18"D (356 mm x 458 mm) pans.
❒Kit #4: Three (3) PVC coated shelves 25"L x
27
3
/ 4 "D (635 mm x 705 mm). Four (4) shelf
supports included per shelf (field installed).
Shelves adjustable on 6" (153 mm) increments.
❒ Additional kit option components available
individually.
115/60/1
NEMA-5-15R

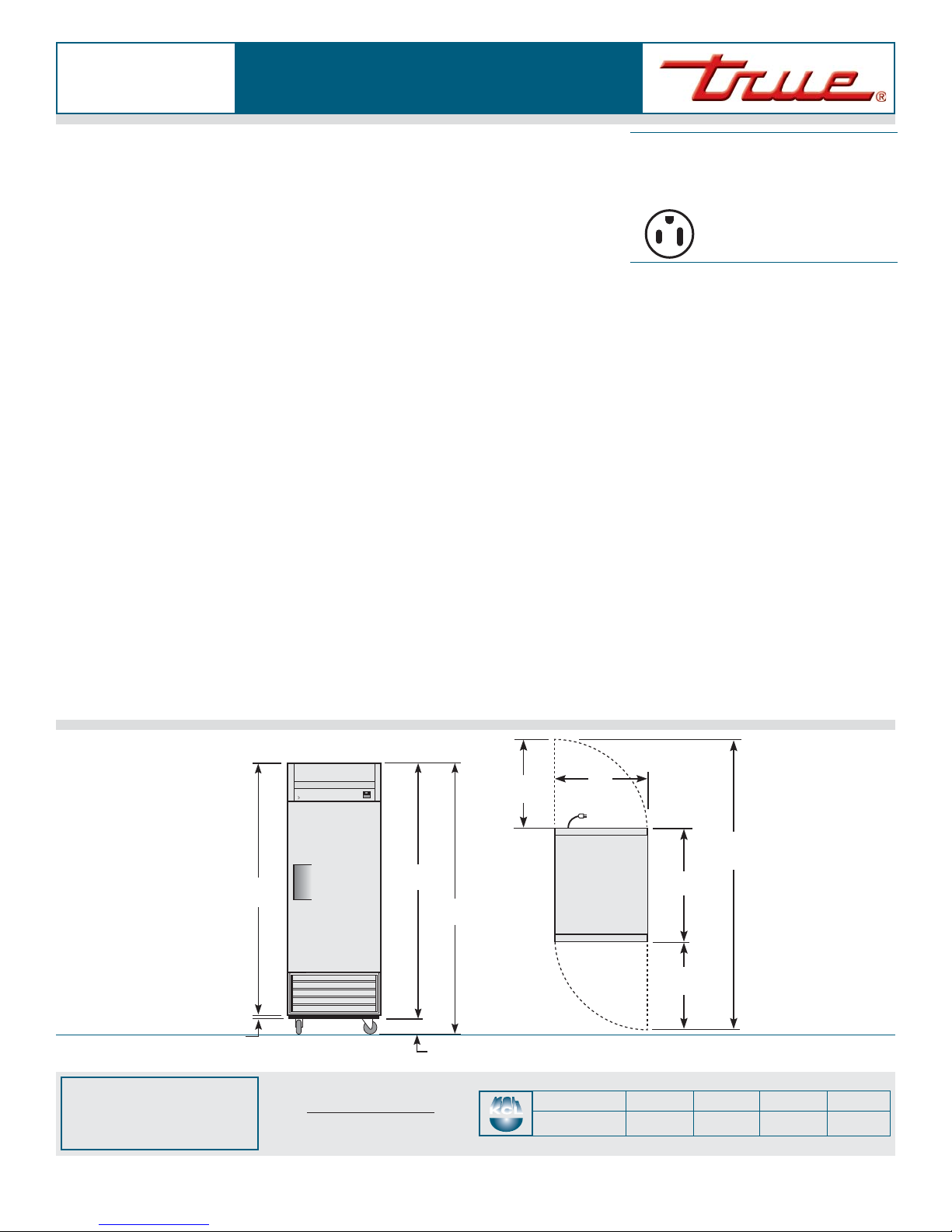

ELEVATION PLAN VIEW
29"
(737 mm)
785/16"
(1990 mm)
5 "
(127 mm)
901/8"
(2290 mm)
2717/32"
(700 mm)
351/16"
(891 mm)
Deep TS Series:
Pass-Thru 300 Series Stainless Steel Solid Door
Refrigerator
13/8 "
(35 mm)
7615/16 "
(1955 mm)
2717/32"
(700 mm)
