True TUC-27 User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TUC-27
TUC-27
Model Doors
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-27 1 6.5
185
227
5/8
702
301/8
766
293/4
756
1/6
1/4
115/60/1
230-240/50/1
3.9
2.9
5-15P
▲
7
2.13
190
87
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs.
6/07
R
True’s undercounter units are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.
Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Front breathing.
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Heavy duty PVC coated wire
shelves.
Undercounter:
Solid Door Refrigerator
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
293/4"
(756 mm)
125/8"
(321 mm) 75/16"
(186 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
TUC-27 TFQY01E TFQY01S TFQY01P TFQY013
TUC-27
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform product temperatures.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C) for the best
in food preservation.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True undercounter units a
more efficient low velocity, high volume
airflow design. This unique design ensures
faster temperature recovery and shorter
run times in the busiest of food service
environments.
• Condensing unit access in back of cabinet,
slides out for easy maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
solid door are foamed-in-place using high
density, CFC free, polyurethane insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm) work
surface height.
DOOR
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Door fitted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
• Positive seal self-closing door with 90° stay
open feature. Door swings within cabinet
dimensions.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC coated
wire shelves 231/4"L x 16"D (591 mm x
407 mm). Four (4) chrome plated shelf clips
included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter castors.
❒ Barrel lock (factory installed).
❒ Basic overshelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Stacking collar.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
white polyethylene cutting board.
Requires “L” brackets.
❒ 30" (762 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.
❒ Heavy duty, 16 gauge tops.
❒ Exterior rectangular digital thermometer
(factory installed).
❒ ADA compliant models with 34"
(864 mm) work surface height.
❒ Low profile models with 317/8"
(810 mm) work surface height.
❒ Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R

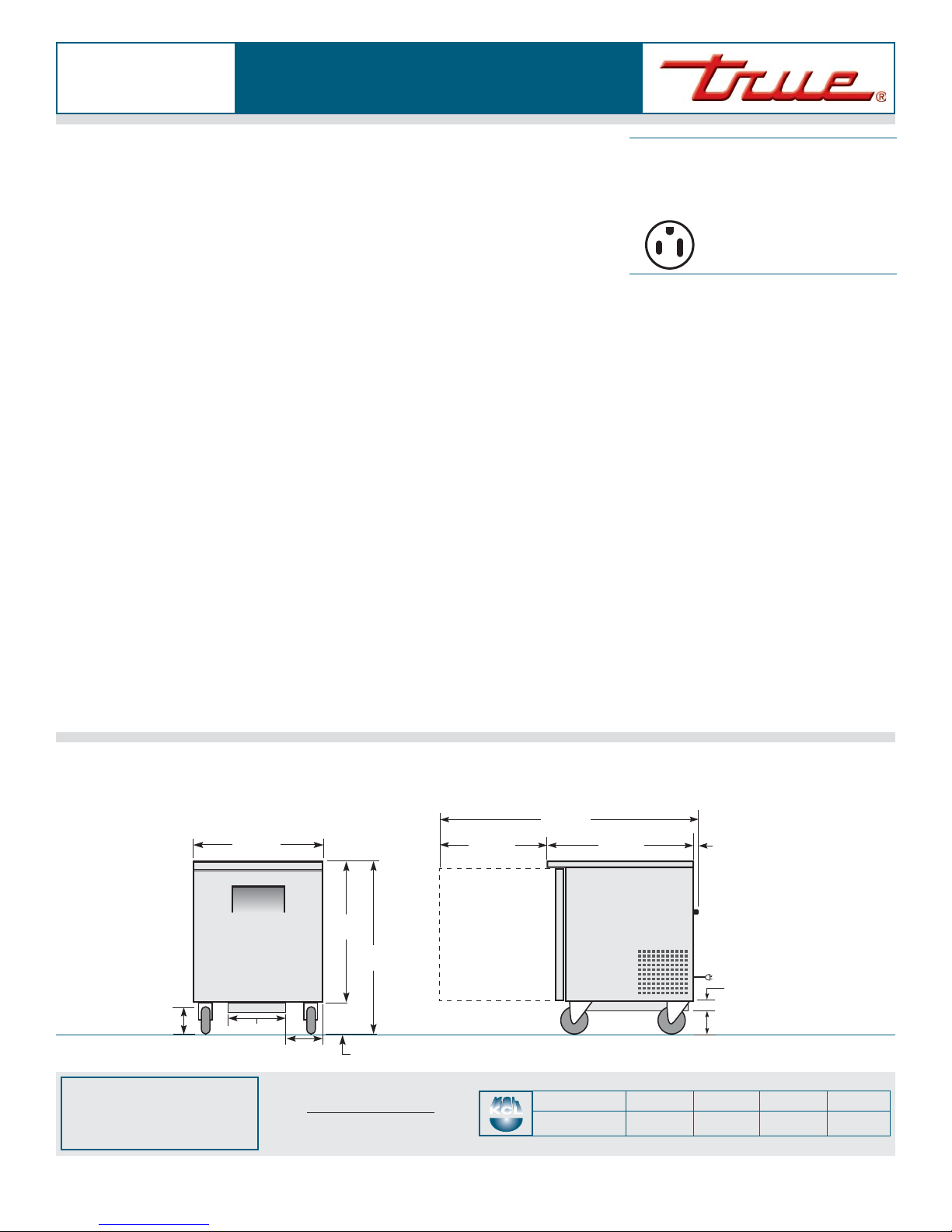

ELEVATION RIGHT VIEW
279/16"
(701 mm)
Undercounter:
Solid Door Refrigerator
5529/32"
(1421 mm)
301/16"
(764 mm)
2427/32"
(632 mm) 1"
(26 mm)
25/16"
(59 mm)
37/8"
(99 mm)
5"
(127 mm)
