True TS-28G-PT User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
AVAILABLE AT:
TS-28G-PT
TS-28G-PT
Model
Doors
Fr/Bk
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TS-28G-PT 1/1 28
793
329
737
351/4
896
783/8
1991
1/2
1/2
115/60/1
230-240/50/1
9.6
5.0
5-15P
▲
9
2.74
385
175
True’s TS series is the choice for the
exclusive 300 series stainless steel
commercial application.
Pass-thru design allows for convenient rear
loading and front access for serving.
Designed using the highest quality
materials and components to provide the
user with colder product temperatures,
lower utility costs, exceptional food safety
and the best value in today’s food service
marketplace.
Oversized, factory balanced, refrigeration
system holds 33°F to 38°F (.5°C to 3.3°C) for
the best in food preservation.
300 series stainless steel interior and
exterior front, rear and sides. The very
finest stainless with higher tensile strength
for fewer dents and scratches.
Energy efficient, “Low-E”, double pane
thermal insulated glass front door.
Glass front door features patented
integrated door light (IDL) system for high
product visibility.
Adjustable, heavy duty chrome shelves.
Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
Bottom mounted units feature:
”No stoop” lower shelf.
Storage on top of cabinet.
Compressor performs in coolest, most
grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
8/07
Deep TS Series:
300 Series Stainless Steel Glass Door Pass-Thru Refrigerator
®
R
*Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs. ▲Plug type varies by country.
†Depth does not include 13/8" (35 mm) for front door handle.
Shown with optional tray slides

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Elevation Right Plan 3D
PLAN VIEW
TS-28G-PT TFGY25E TFGY25S TFGY23P TFGY253
TS-28G-PT
835/16"
(2117 mm)
DESIGN
• True’s glass door pass-thru’s are designed with
enduring quality that protects your long term
investment.
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly (CFC
free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to 3.3°C)
for the best in food preservation.
• Sealed, cast iron, self-lubricating evaporator
fan motor(s) and larger fan blades give True
pass-thru’s a more efficient low velocity, high
volume airflow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food service
environments.
• Bottom mounted condensing unit positioned
for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of unit.
CABINET CONSTRUCTION
• Exterior - 300 series stainless steel front, rear
and sides.
• Interior - 300 series stainless steel liner and
floor.
• Insulation - entire cabinet structure and solid
rear door is foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with 4" (102 mm) diameter
stem castors - locks provided on front set.
DOORS
• Front door - “Low-E”, double pane thermal
insulated glass assembly with extruded
aluminum frame. Rear doors - 300 series
stainless steel exterior and liner. Door extends
full width of cabinet shell.
• Door locks standard.
• Front glass door fitted with 15" (381 mm) long
extruded aluminum handle. Rear solid door
fitted with lifetime guaranteed 12"
(305 mm) long recessed handle that is foamed-
in-place with a sheet metal interlock to ensure
permanent attachment.
• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
• Magnetic door gaskets of one piece
construction, removable without tools for ease
of cleaning.
SHELVING
• Three (3) adjustable, heavy duty chrome shelves
25"L x 269/16"D (635 mm x 674 mm) (shipped
separately). Four (4) support knobs included
per shelf (field installed). Shelves are adjustable
on 6" (153 mm) increments
• Four (4) different interior kits available (see Kit
Options). Pilasters and tray slides require field
installation (shipped separately).
LIGHTING
• Fluorescent interior lighting. Glass door utilizes
full-length, patented, integrated door light
(IDL) system. Safety shielded.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate the
potential of corrosion.
• Exterior solar, digital temperature display.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and ready
for final connection to a 115/60/1 phase 15 amp
dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead time may apply.
❒230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒Additional shelves.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.
KIT OPTIONS
Upcharge applies. Lead times may apply.
❒ Kit #1: Nine (9) sets of #1 type tray slides and
pilasters (field installed) (shipped separately),
bottom support of one (1) 18"L x 26"D (458 mm
x 661 mm) pan or two (2) 14"L x 18"D (356 mm
x 458 mm) pans.
❒ Kit #2: One (1) set half-section #2 steel rod tray
slides and pilasters (field installed) (shipped
separately), rim support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan.
❒ Kit #3: Six (6) sets of universal type tray
slides and pilasters (field installed) (shipped
separately), bottom support of one (1)
18"L x 26"D (458 mm x 661 mm) pan, two (2)
12"L x 20"D (305 mm x 508 mm) pans or two (2)
14"L x 18"D (356 mm x 458 mm) pans.
❒ Kit #4: Three (3) PVC coated wire shelves
25"L x 269/16"D (635 mm x 674 mm) (shipped
separately). Four (4) shelf support knobs
included per shelf (field installed); adjustable
on 6" (153 mm) increments.
❒ Additional kit option components available
individually.
115/60/1
NEMA-5-15R

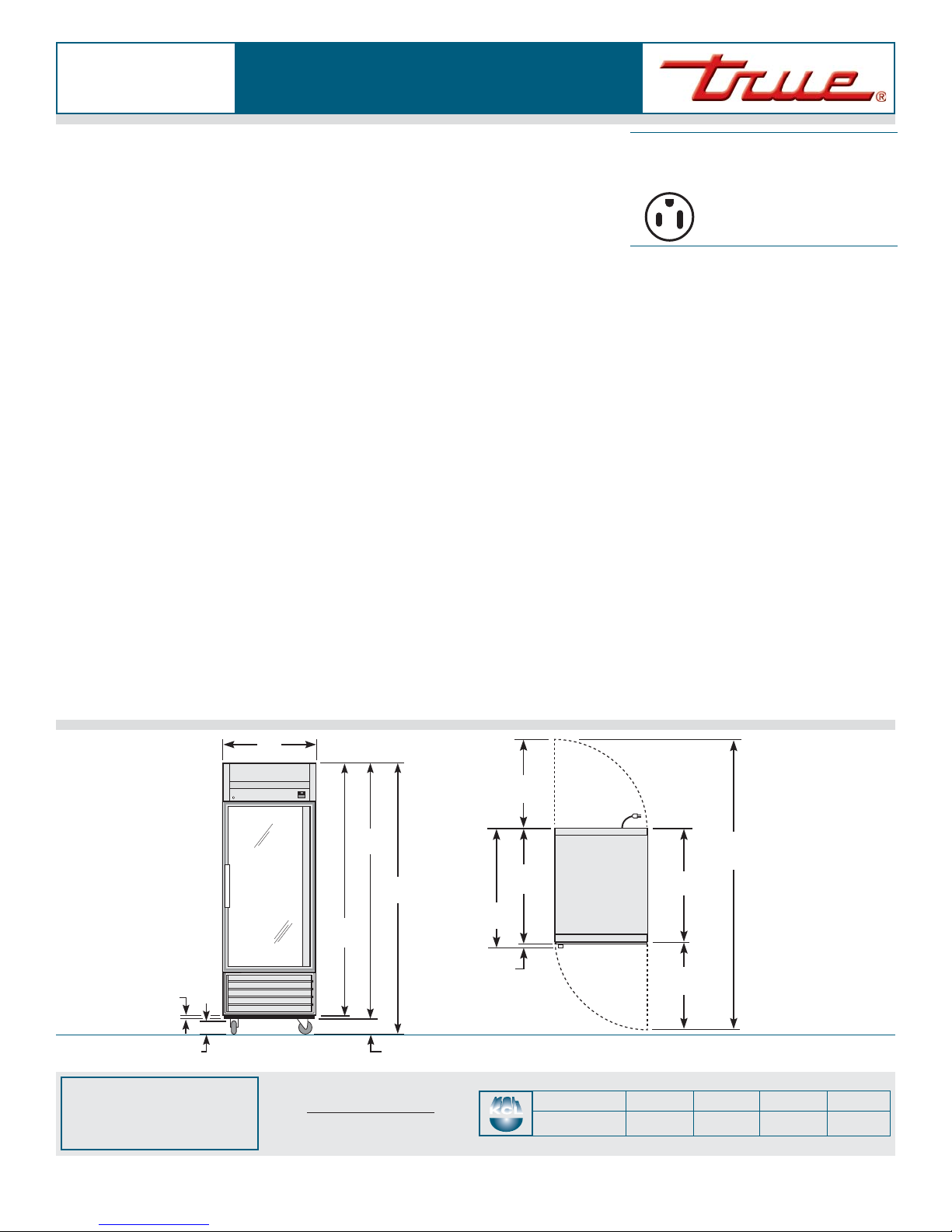

ELEVATION PLAN VIEW
29"
(737 mm)
785/16"
(1990 mm)
5 "
(127 mm)
901/8"
(2290 mm)
2717/32"
(700 mm)
351/16"
(891 mm)
Deep TS Series:
300 Series Stainless Steel Glass Door Pass-Thru
Refrigerator
13/8 "
(35 mm)
7615/16 "
(1955 mm)
2717/32"
(700 mm)
4 "
(102 mm)
13/8"
(35 mm)
3619/32"
(930 mm)
357/32"
(891 mm)
