ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
AVAILABLE AT:
G4SM-23
G4SM-23
Model Door
Capacity
(Cu. Ft.)
(liters) Shelves
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
G4SM-23 1 23
652
427
686
297/8
759
785/8
1998
1/2
1/2
115/60/1
230-240/50/1
10.0
5.0
5-15P
▲
9
2.74
375
171
†Depth does not include 13/8" (35 mm) for door handle. ▲Plug type varies by country.
12/05
The world’s #1 manufacturer of
glass door merchandisers.
True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs
in a unique merchandiser that creates
a dynamic 360° product display.
Oversized, factory balanced,
refrigeration system holds 33°F to 38°F
(.5°C to 3.3°C).
Exterior - attractive, high luster copper
aluminum finish with black trim.
Interior - attractive, NSF approved,
white aluminum interior liner with
300 series stainless steel floor.
Door is self closing with a positive
seal, torsion type closure system.
“Low-E”, double pane thermal glass
in door assembly, sides and rear. The
latest in energy efficient technology.
Illuminated exterior front sign panel.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Bottom mounted units feature
”No stoop” lower shelf to maximize
product visibility
Storage on top of cabinet.
Easily accessible condenser coil
for cleaning.
Glass Door Merchandiser:
Glass Four Sided Refrigerator
R

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
G4SM-23 TFAY10E TFAY10S TFAY10P TFAY103
G4SM-23
DESIGN
• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder
product temperatures, and lower utility
costs in a stylish merchandiser that creates a
dynamic 360° product display.
REFRIGERATION SYSTEM
• Factory engineered, self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan blades
give True merchandisers a more efficient
low velocity, high volume airflow design.
This unique design insures more consistent,
colder holding temperatures and faster
recovery in high use situations.
• Bottom mounted condensing unit
positioned for easy maintenance; “no
stoop” lower shelf maximizes visibility
by raising merchandised product to
higher level.
CABINET CONSTRUCTION
• Exterior - attractive, high luster copper
aluminum finish with black trim.
• Low-E, double pane thermal glass door
assembly, sides and rear. The latest in
energy efficient technology.
• Interior - attractive, NSF approved, white
aluminum interior liner with 300 series
stainless steel floor.
• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail fitted with leg levelers.
• Illuminated exterior front sign panel.
Variety of sign options available.
DOOR
• “Low-E”, double pane thermal glass door
assembly with extruded aluminum frame.
The latest in energy efficient technology.
• Self closing door. Positive seal, torsion type
closure system.
• Door fitted with 15" (381 mm) long
extruded aluminum handle.
• Magnetic door gasket of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
• Four (4) adjustable, heavy duty, black PVC
coated wire shelves 235/8"L x 207/8"D
(601 mm x 631 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2"(13 mm) increments.
LIGHTING
• Front lighting system utilizes two (2) full-
length, safety shielded fluorescent bulbs
for enhanced, shadow-free illumination.
• Cabinet lighting utilizes electronic ballast
and T-8 bulbs for brighter illumination,
longer bulb life and increased energy
efficiency.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• See our website www.truemfg.com for
latest color and sign offerings.
• Convenient clean-out drain built in cabinet
floor.
• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230-240V / 50 Hz.
❒Black exterior.
❒White exterior.
❒Rosewood exterior.
❒Black aluminum interior liner.
❒6"(153 mm) standard legs.
❒6"(153 mm) seismic/flanged legs.
❒21/2"(64 mm) diameter castors.
❒4"(102 mm) diameter castors.
❒Red wine thermostat.
❒Chocolate thermostat.
❒White wine thermostat.
❒Barrel locks.
❒Novelty baskets.
❒Black shelves.
❒TrueTracIII gravity feed organizers.
❒True offers five versions of the G4SM-23
with a variety of features to increase the
merchandiser’s function and versatility,
allowing it to be customized to your needs.
❒Remote cabinets (condensing unit supplied
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
115/60/1
NEMA-5-15R

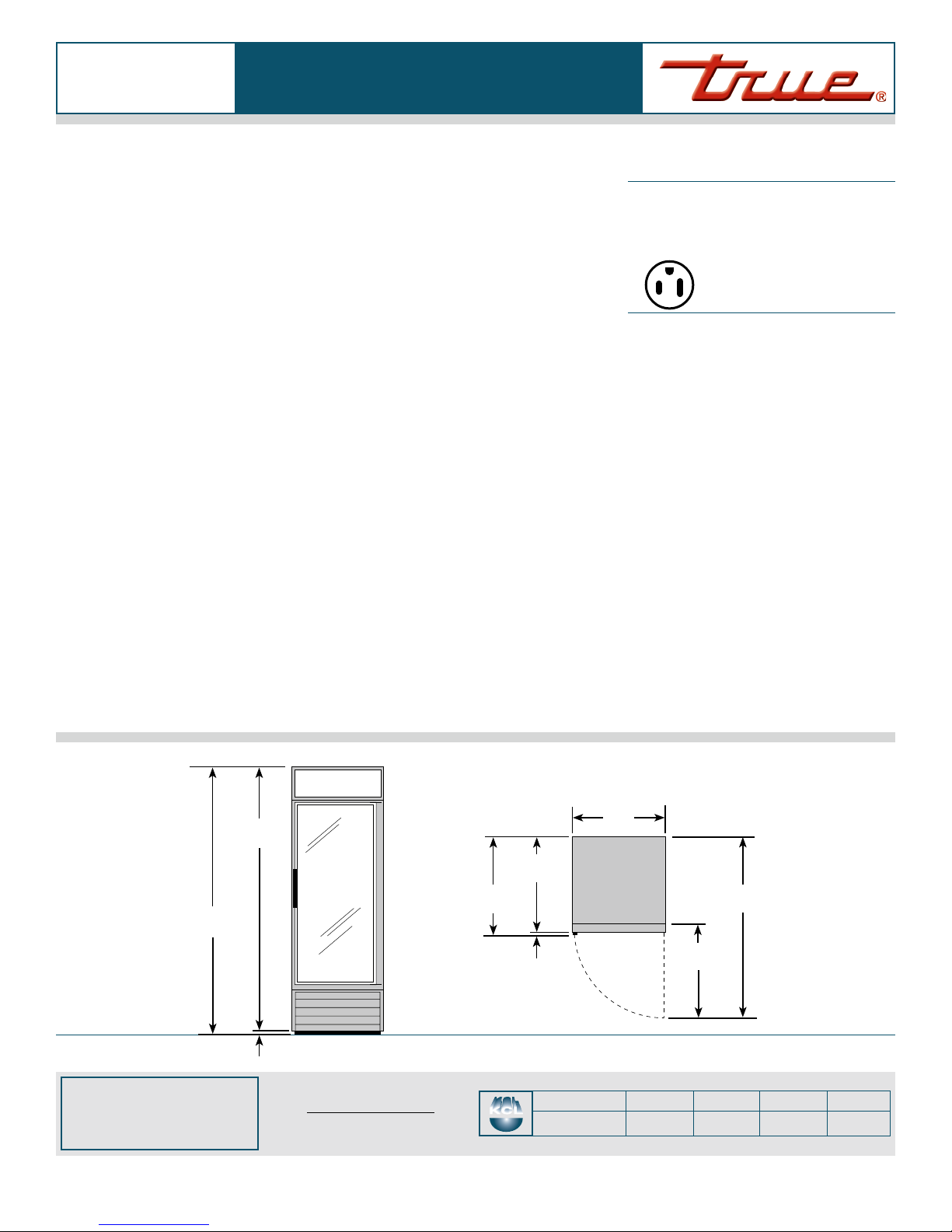

ELEVATION PLAN VIEW
Glass Door Merchandiser:
Glass Four Sided Refrigerator
7615/16"
(1955 mm)
785/8"
(1998 mm)
13/8"
(35 mm)
27"
(686 mm)
307/8"
(785 mm)
2913/16"
(758 mm)
13/32"
(28 mm)
543/4"
(1391 mm)
2415/16"
(634 mm)
