ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TUC-60D-4
TUC-60D-4
Model Drawers
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LD
†H*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TUC-60D-4 4 15.5
439
603/8
1534
301/8
766
293/4
756
1/5
1/3
115/60/1
230-240/50/1
5.1
4.2
5-15P
▲
7
2.13
380
173
†Depth does not include 1
" (26 mm) for rear bumpers. ▲Plug type varies by country.
*Height does not include 61/4
" (159 mm) for castors or 6 " (153 mm) for optional legs.
4/06
R
True’s undercounter units are
designed with enduring quality
that protects your long term
investment.
Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.
Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
All stainless steel front, top
and cabinet ends. Matching
aluminum finished back.
Front breathing.
Each drawer accommodates
one (1) full size 12"L x 20"W x
6"D (305 mm x 508 mm x
153 mm) food pan (sold
separately).
Foamed-in-place, high density
polyurethane insulation (CFC
free).
Undercounter:
Drawered Refrigerator
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

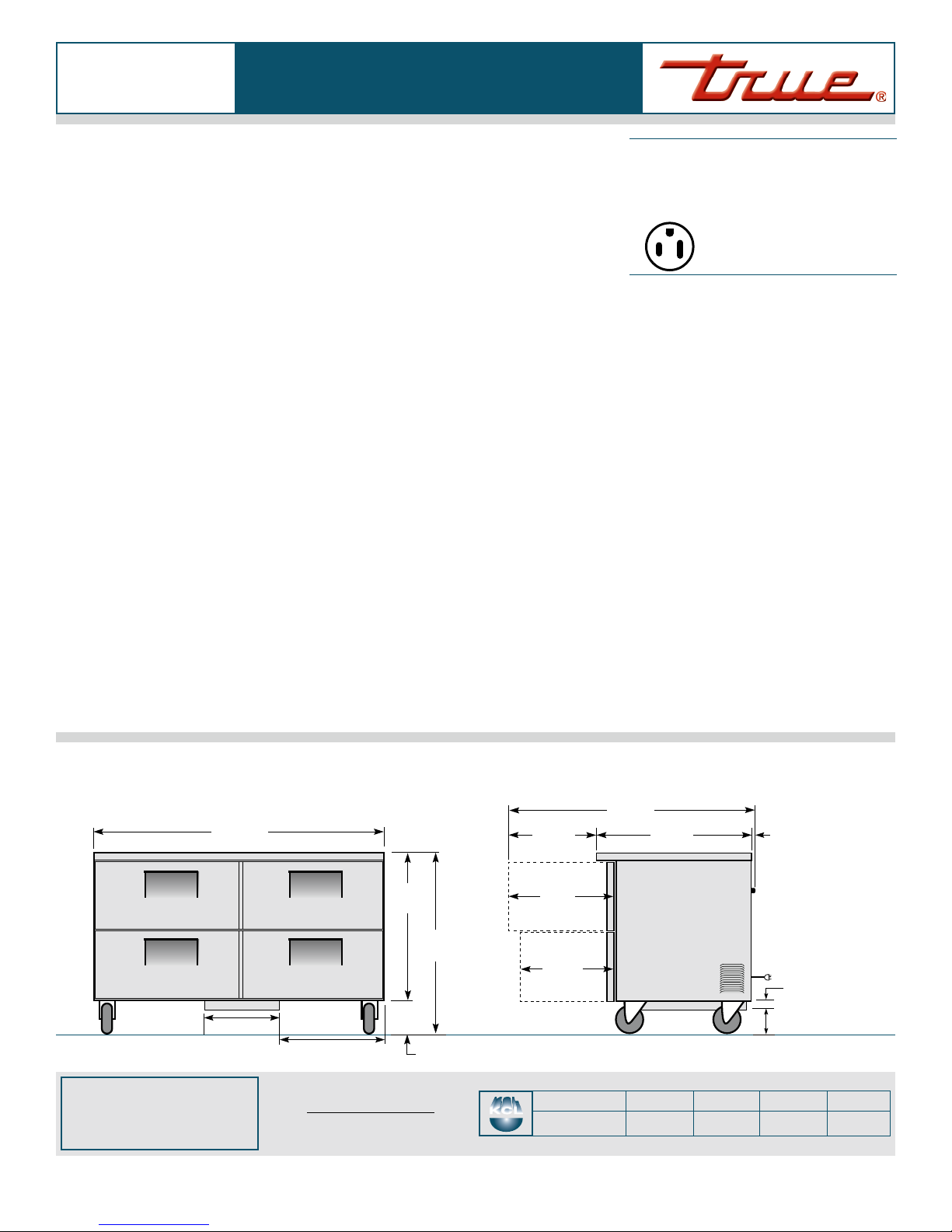

Model Elevation Right Plan 3D
PLAN VIEW
KCL
125/8"
(321 mm) 243/4"
(629 mm)
TUC-60D-4 TFQY07E TFQY05S TFQY07P TFQY073
TUC-60D-4
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
• Oversized, factory balanced refrigeration
system with guided airflow to provide
uniform product temperature.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to
3.3°C) for the best in food preservation.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True undercounter units a
more efficient low velocity, high volume
airflow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of food
service environments.
• Condensing unit access in back of cabinet,
slides out for easy
maintenance.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
finished back.
• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless floor
with coved corners.
• Insulation - entire cabinet structure and
drawer facings are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• 5" (127 mm) diameter stem castors - locks
provided on front set. 36"
(915 mm) work surface height.
DRAWERS
• Stainless steel exterior with white
aluminum liner to match cabinet interior.
• Each drawer fitted with 12" (305 mm)
long recessed handle that is foamed-
in-place with a sheet metal interlock to
insure permanent attachment.
• Magnetic drawer gaskets of one piece
construction, removable without tools for
ease of cleaning.
• Drawers include heavy duty all stainless
steel slides
PAN CAPACITY
• Each drawer accommodates one (1) full
size 12"L x 20"W x 6"D (305 mm x
508 mm x 153 mm) food pan (sold
separately). Drawer will support varying
size pan configurations with pan divider
bars (drawer pans and divider bars
optional).
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• NSF-7 compliant for open food product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for final connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒230 - 240V / 50 Hz.
❒6" (153 mm) standard legs.
❒6" (153 mm) seismic/flanged legs.
❒21/2" (64 mm) diameter castors.
❒ Basic overshelf.
❒Sandwich/salad service shelf.
❒Single utility shelf.
❒Double utility shelf.
❒30" (762 mm) deep, 1/2" (13 mm) thick,
white polyethylene cutting board.
Requires “L” brackets.
❒30" (762 mm) deep, 1/2" (13 mm) thick
composite cutting board. Requires “L”
brackets.
❒Heavy duty 16 gauge tops.
❒Exterior digital thermometer (must be
factory installed).
❒ADA compliant models with 34"
(864 mm) work surface height.
❒Low profile models with recessed castors.
317/8" (810 mm) work surface height.
❒Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
115/60/1
NEMA-5-15R
ELEVATION
605/16"
(1532 mm)
293/4"
(756 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
Undercounter:
Drawered Refrigerator
25/16"
(59 mm)
37/8"
(99 mm)
1711/16"
(450 mm)
4615/16"
(1193 mm)
301/16"
(764 mm)
1"
(26 mm)
1911/16"
(501 mm)
157/8"
(404 mm)
RIGHT VIEW
