TRADITIONAL REACH-INS
INSTALLATION MANUAL
Congratulations!
You have just purchased the finest commercial refrigerator
available. You can expect many years of trouble-free operation.
Table of Contents
Safety Information
Safety Precautions & Proper Disposal......................................................3
Installation
Prior to Installation, Ownership.................................................................4
Wiring Instruction Advisement & Wire Gauge Chart .........................5
Uncrating............................................................................................................6
Locating, Leveling Legs, and Castors.......................................................7
Leveling & Sealing Cabinet to the Floor.................................................8
Electrical Installation & Safety ....................................................................9
Cabinet Setup
Standard Accessories..................................................................................10
Cabinet Operation
Startup, Temperature Control & Light Switch Location .................11
Flex Control ....................................................................................................12
General Sequence of Operation.............................................................13
Maintenance, Care & Cleaning
Cleaning the Condenser Coil...................................................................14
Stainless Steel Equipment Care & Cleaning .......................................16
Cabinet Adjustments, Servicing & Component Replacement
Servicing & Replacing Components......................................................17
Slide Door Operation & Adjustment.....................................................17
Warranty
Warranty (US & Canada Only)..................................................................21
TRUE MANUFACTURING CO., INC.
T-49-HC
TSD-69
North America – Canada
and Caribbean
Warranty Phone: [phone]
Warranty Fax: [phone]
Technical Phone: [phone]
Warranty Email:
[email protected]
Technical Email:
[email protected]
7:00 – 7:00 CST Monday – Thursday.
7:00 – 6:00 Friday. 8:00 – 12:00 Saturday.
Mexico
Phone: [phone]
Toll Free in Mexico: 01 800 202 0687
service-[email protected]
9:00 am – 5:30 pm M–F
Latin America
Phone: [phone]
[email protected]
9:00 am – 5:30 pm M–F
UK, Ireland, Middle East,
Africa and India
Phone: [phone]
service-[email protected]
8:30 am – 5:00 pm M–F
European Union and
Commonwealth of
Independent States
Phone: [phone]
service-[email protected]
8:00 am – 5:00 pm M–F
Australia
Phone: [phone]
[email protected]
8:30 am – 5:00 pm M–F
*975523*
INSTALLATION MANUAL
TRADITIONAL REACH-INS
Original Instructions
TRUE MANUFACTURING CO., INC.
2001 East Terra Lane • O’Fallon, Missouri 63366-4434
(636)-240-2400 • FAX [phone] • International FAX [phone] • (800)-325-6152
Parts Department (800)-424- TRUE • Parts Department FAX# [phone]
T-23-HC

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 2 of 22
Notes

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 3 of 22
truemfg.com
How to Maintain Your True Refrigerator to Receive the Most Efficient and Successful Operation
You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best
quality materials available. Your TRUE cooler, when properly maintained, will give you many years of trouble-free service.
WARNING – Use this appliance for its intended purpose as described in this Installation Manual.
• Take care during operation, maintenance or repairs to avoid
cuts or pinching from any part/component of the cabinet.
• Units may pose a tipping hazard while uncrating, during
installation, or when moving the unit.
• Ensure the unit is properly installed and located in accordance
with the Installation Instructions before use.
• This appliance is not to be used, cleaned or maintained by
persons (including children) with reduced physical, sensory or
mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction.
• DO NOT allow children to play with the appliance or climb,
stand, or hang on the unit's shelves to prevent damage to the
refrigerator and personal injury.
• DO NOT touch the cold surfaces in the freezer compartment
when hands are damp or wet. Skin may stick to these extremely
cold surfaces.
• Unplug the refrigerator before cleaning and making repairs.
• Setting temperature controls to the 0 position or powering
off an electronic control may not remove power from all
components (e.g., light circuits, perimeter heaters, and
evaporator fans).
• DO NOT store or use gasoline, or other flammable vapors and
liquids, in the vicinity of this or any other appliance.
• DO NOT store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Keep fingers out of the “pinch point” areas; clearances between
the doors and cabinet are necessarily small; be careful closing
doors when children are in the area.
• DO NOT use electrical appliances inside the food storage
compartments of the units unless the appliances are of the
type recommended by the manufacturer.
NOTE: All servicing must be performed by a qualified
technician.
See the serial label inside the cabinet for the units refrigeration type. For Hydrocarbon Refrigeration (R290 only), see below:
DANGER – Risk of fire or explosion. Flammable refrigerant used. DO NOT use mechanical devices to defrost
refrigerator. DO NOT puncture refrigerant tubing; follow handling instructions carefully. To be repaired only by trained
service personnel.
DANGER – Risk of fire or explosion (flammable refrigerant used), consult repair manual/owner’s guide before
attempting to service this product. All safety precautions must be followed. Dispose of properly in accordance with
local and federal regulations. Follow all safety precautions.
CAUTION – Keep all ventilation openings clear of obstruction in the appliance enclosure or in the structure housing
the appliance.
DANGER!
RISK OF CHILD
ENTRAPMENT
Proper Disposal of the Cabinet
Child entrapment and suffocation are not problems of the past.
Junked or abandoned refrigerators are still dangerous, even if
they will sit for “just a few days.” If you are getting rid of your old
refrigerator, please follow the instructions below to help prevent
accidents.
Before throwing away your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily
climb inside.
DANGER – Risk of fire or explosion. Flammable
insulation and/or refrigerant used. Dispose of all
in accordance with local and federal regulations.
Follow all safety precautions.
Cabinet Disposal Warning
Refrigerant Safety & Warning Information
Basic Safety & Warning Precautions

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 4 of 22
Notice to Customer
Loss or spoilage of products in your
refrigerator/freezer is not covered by
warranty. In addition to following
recommended installation procedures, you
must run the refrigerator/freezer for 24 hours
prior to usage to verify its proper operation
Installation
Ownership
To ensure that your unit works properly from the first day, it must
be installed properly. We highly recommend a trained refrigeration
mechanic and electrician install your TRUE equipment. The cost of
a professional installation is money well spent.
Before you start to install your TRUE unit, carefully inspect it for
freight damage. If damage is discovered, immediately file a claim
with the delivery freight carrier.
TRUE is not responsible for damage incurred during shipment.
Cabinet Specification
This appliance is rated for open food storage.
Cabinet Location
• Appliance tested to IEC EN 60335-2-89 Climate Class 5 [109°F
(43°C) temperature, 40% relative humidity] for safety.
• Appliance tested to EN 23953-2:2015 Climate Class 3 [77°F
(25°C), 55% relative humidity] for performance.
• For proper operation, ambient temperatures shall not be less
than 60°F (15.5°C)
• Appliance is not suitable for outdoor use.
• Appliance is not suitable for an area where a pressure washer or
hose may be used.
• Ensure the location will provide adequate clearances and
sufficient airflow for the cabinet.
• Ensure the power supply for the cabinet matches the cabinet
specification sheet or cabinet data plate and is within the
rated voltage (+/-5%). Also, that the amp rating of the circuit is
correct and that it is properly grounded.
• The cabinet should always be plugged into its own individual
dedicated electrical circuit. The use of adapter plugs and
extension cords is prohibited.
CLEARANCES
TOP SIDES BACK
T-Series Refrigerator 0" 0" 1" (25.4 mm)
T-Series Freezer 12" Open
(304.8 mm) 0" 3" (76.2 mm)
WARNING – Warranty is void if ventilation is insufficient.
Prior to Installation

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 5 of 22
truemfg.com
115
Volts Distance In Feet To Center of Load
AMPS 20 30 40 50 60 70 80 90 100 120 140 160
2 14 14 14 14 14 14 14 14 14 14 14 14
3 14 14 14 14 14 14 14 14 14 14 14 12
4 14 14 14 14 14 14 14 14 14 12 12 12
5 14 14 14 14 14 14 14 12 12 12 10 10
6 14 14 14 14 14 14 12 12 12 10 10 10
7 14 14 14 14 14 12 12 12 10 10 10 8
8 14 14 14 14 12 12 12 10 10 10 8 8
9 14 14 14 12 12 12 10 10 10 8 8 8
10 14 14 14 12 12 10 10 10 10 8 8 8
12 14 14 12 12 10 10 10 8 8 8 8 6
14 14 14 12 10 10 10 8 8 8 6 6 6
16 14 12 12 10 10 8 8 8 8 6 6 6
18 14 12 10 10 8 8 8 8 8 8 8 5
20 14 12 10 10 8 8 8 6 6 6 5 5
25 12 10 10 8 8 6 6 6 6 5 4 4
30 12 10 8 8 6 6 6 6 5 4 4 3
35 10 10 8 6 6 6 5 5 4 4 3 2
40 10 8 8 6 6 5 5 4 4 3 2 2
45 10 8 6 6 6 5 4 4 3 3 2 1
50 10 8 6 6 5 4 4 3 3 2 1 1
230
Volts Distance In Feet To Center of Load
AMPS 20 30 40 50 60 70 80 90 100 120 140 160
5 14 14 14 14 14 14 14 14 14 14 14 14
6 14 14 14 14 14 14 14 14 14 14 14 12
7 14 14 14 14 14 14 14 14 14 14 12 12
8 14 14 14 14 14 14 14 14 14 12 12 12
9 14 14 14 14 14 14 14 14 12 12 12 10
10 14 14 14 14 14 14 14 12 12 12 10 10
12 14 14 14 14 14 14 12 12 12 10 10 10
14 14 14 14 14 14 12 12 12 10 10 10 8
16 14 14 14 14 12 12 12 10 10 10 8 8
18 14 14 14 12 12 12 10 10 10 8 8 8
20 14 14 14 12 10 10 10 10 10 8 8 8
25 14 14 12 12 10 10 10 10 8 8 6 6
30 14 12 12 10 10 10 8 8 8 6 6 6
35 14 12 10 10 10 8 8 8 8 6 6 5
40 14 12 10 10 8 8 8 6 6 6 5 5
50 12 10 10 8 6 6 6 6 6 5 4 4
60 12 10 8 6 6 6 6 6 5 4 4 3
70 10 10 8 6 6 6 5 5 4 4 2 2
80 10 8 8 6 6 5 5 4 4 3 2 2
90 10 8 6 6 5 5 4 4 3 3 1 1
100 10 8 6 6 5 4 4 3 3 2 1 1

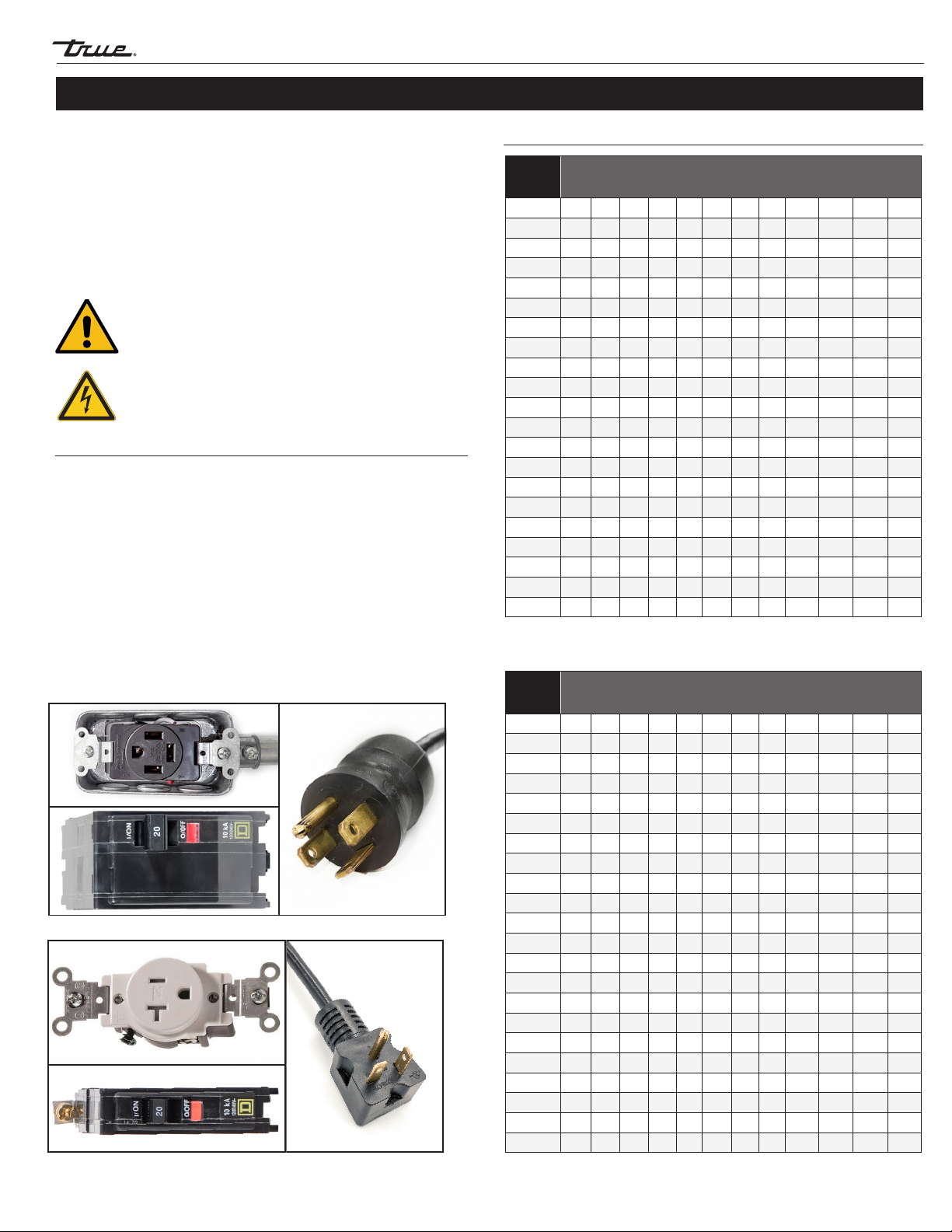

Wire Gauge Chart
Installation (cont.)
Wiring Conversion
Receptacle Box
1. Turn off the circuit breaker
2. Disconnect the existing receptacle.
3. Cap the red wire.
4. Connect the black, white, and green wires to the 3-prong
NEMA 5-20P plug per instructions on the receptacle.
Breaker Panel
1. Disconnect and remove the existing double-pole breaker.
2. Install a single-pole breaker
3. Connect the black wire to the replacement breaker
4. Cap the red wire
5. Turn on the circuit breaker.
Wiring Instruction Advisement (115V only)
Follow the instructions below to convert your TRUE unit from
a 4-wire circuit and a 4-prong NEMA 14-20P (see components
in fig. 1) to a 3-wire circuit and a 3-prong NEMA 5-20P (see
components in fig. 2).
NOTE: Power cord conversion kit available for purchase
to match current installation location’s wiring
configuration
CAUTION – It is the customer’s responsibility to make
sure receptacle wiring meets all local electrical codes.
TRUE recommends hiring a licensed qualified
electrician to make this change.
Fig. 1. 4-wire configuration and 4-prong NEMA 14-20P/20R.
Fig. 2. 3-wire configuration and 3-prong NEMA 5-20P/20R.
CAUTION – Electrical shock or burn hazard. Unplug the
unit or turn off the power supply before proceeding.

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 6 of 22
Installation (cont.)
WARNING – Units may pose a tipping hazard
while uncrating, during installation, or when
moving the unit.

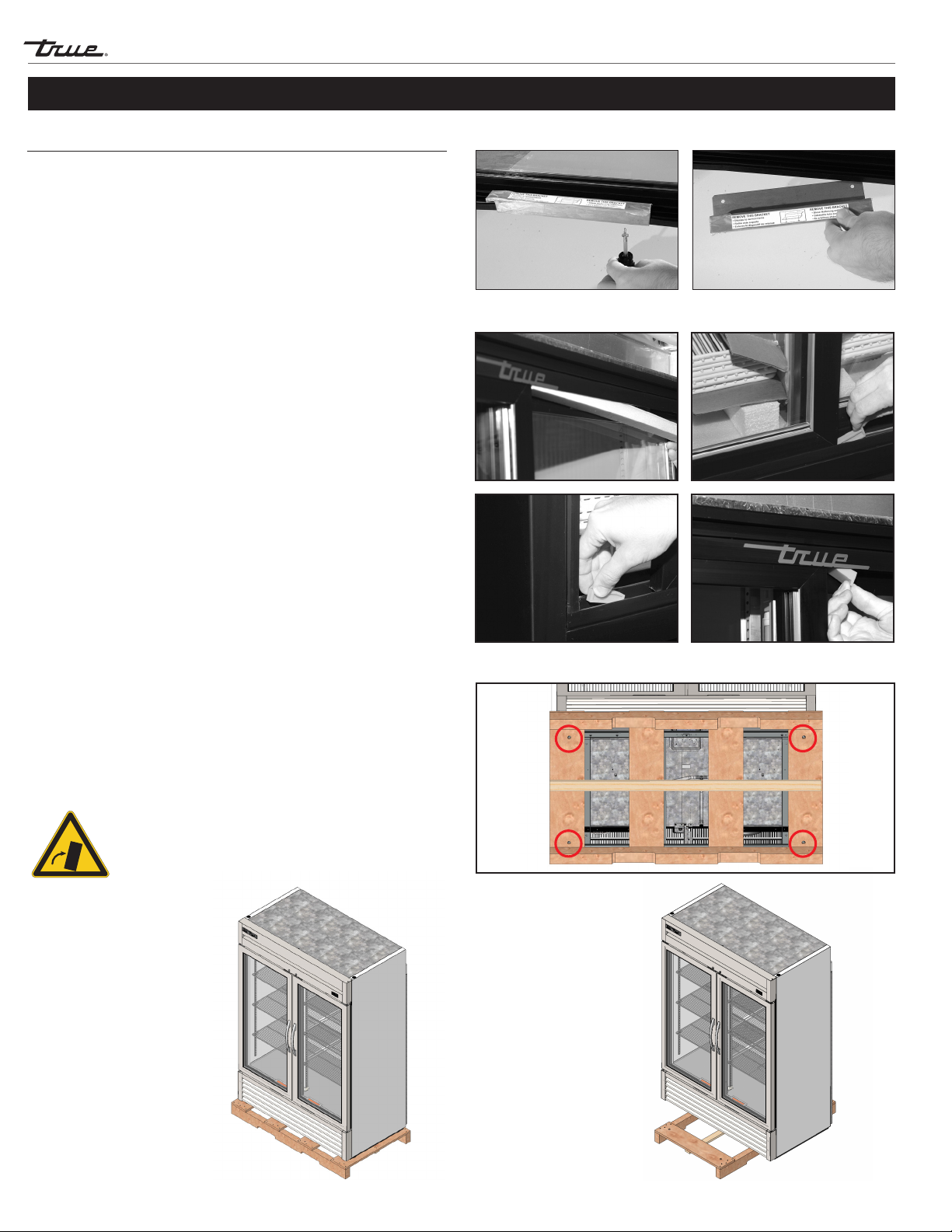

Fig. 1. Remove the exterior packaging.
Fig. 4. Shipping bolt locations.
Fig. 5. If leveling legs or castors
will be used, rotate the cabinet
on the skid.
Uncrating
Tools Required
• Adjustable wrench
• Phillips screwdriver
• Level
The following procedure is recommended for uncrating the unit:
1. Remove the outer packaging (cardboard and bubble wrap
or Styrofoam corner and clear plastic). See fig. 1. Inspect for
concealed damage. Again, immediately file a claim with
the freight carrier if there is damage.
NOTE: DO NOT remove the shipping bracket (glass swing
doors; fig. 2) or the shipping blocks (glass slide doors; fig. 3)
until the unit is installed in its final location. Do not discard;
use the bracket/blocks when next moving the cabinet.
2. With an adjustable wrench, remove all shipping bolts securing
the wood skid to the bottom of the cabinet. See fig. 4.
NOTE: Move the unit as close as possible to the final location
before removing the wooden skid. Some models may require
removing the front and/or rear grill/cover to access the
shipping bolts.
3. If leveling legs or castors will not be used, remove the
cabinet from the wood skid and set the skid aside.
NOTE: DO NOT lift the cabinet by the countertops, doors,
drawers, or grills.
If leveling legs or castors will be used, rotate the cabinet on
the skid (see fig. 5) and see the installation instructions on
page 7.
NOTE: Remember to leave cabinet upright for 24 hours before
plugging into a power source. Keys for cabinet with door locks are
located in the warranty packet.
Fig. 2. Remove the glass swing door shipping bracket, if so equipped. Do not
discard.
Fig. 3. Glass slide door shipping block locations. Remove if so equipped and do not
discard.

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 7 of 22
truemfg.com
Installation (cont.)
Installing 6" Leveling Legs or Castors
Adjustable legs will provide 6" (152 mm) of clearance under the
cabinet. Castors provide cabinet mobility.
NOTE: If the cabinet has a center leveling screw, castor, or leg,
make sure it is adjusted properly so it makes full contact with
the floor after the cabinet has been leveled.
Required Tools
Adjustable Wrench
6" Leveling Legs
1. Access the bottom of the cabinet and thread the leveling legs
into the rail. See figs. 3 and 4.
2. Verify that the cabinet is level.
3. If the cabinet is not level, gently lift and support the low end
of the cabinet. With an adjustable wrench, screw the bottom
stem of the leveling leg in or out to level and support the
cabinet. See fig. 5.
Castors
1. Loosen the castor bolt enough to slide the provided castor
shims between the castor bearing and the bottom rail of
the cabinet. See fig. 6.
2. Install the desired number of shims. If more than one shim is
used, turn the slots at a 90˚ angle to each other, so the slots do
not align. See figs. 7 and 8.
3. Tighten and secure the shims and castors with the optional
castor wrench. Lower the cabinet and verify that it is level. If
the cabinet is not level, repeat the process until the cabinet is
level and supported.
Fig. 1. Turn the leveling legs clockwise to lower the unit.
Cabinet Location
1. Ensure that the drain hose or hoses are positioned in the pan.
2. Free the plug and cord from inside the lower rear of the cooler
(DO NOT plug in).
3. Place the unit close enough to the electrical supply so that the
extension cords are never used.
Fig. 2. Turn the leveling legs counterclockwise to raise the unit.
Rail End
Snug Fit
Here
Leg
Lower Rail
Assembly
Bo
ttom Stem
Fig. 5. Turn the bottom stem to level the
cabinet.
Fig. 3. Locate the threaded hole in the
rail.
Fig. 4. Screw in the leveling legs.
Fig. 6. Loosen castor bolt.
Fig. 8. Position multiple shims at
90˚ angles.
Fig. 7. Install shim(s).
Leveling Shim
Lower Rail Assembly
Bearing Race
Snug Fit Here
Rail End
Castor
Castor Stem
Installing Standard Leveling Legs
Leveling legs are provided to assist with the leveling of the cabinet.
1. Access the bottom of the cabinet and locate the
leveling legs.
2. The leveling legs may be threaded in or out to
achieve a level and supported cabinet.
See fig. 1 and 2.

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 8 of 22
Installation (cont.)
Leveling
Proper leveling of your TRUE cooler is critical to operating success
(for non-mobile models). Leveling impacts effective condensate
removal and door operation.
Level the unit front-to-back and side-to-side.
1. Position the level on the inside floor of the unit near the doors
(the level should be parallel to cabinet front). Level the cabinet.
2. Position the level at the inside rear of cabinet (again, the level
should be placed parallel to cabinet back). Level the cabinet.
3. Perform procedures similar to steps 1 and 2 by placing the
level on inside floor (left and right side, parallel to the depth of
the cooler). Level the cabinet.
NOTE: If the cabinet has a center leveling screw, castor, or leg,
make sure it is adjusted properly so it makes full contact with
the floor after the cabinet has been leveled.
Sealing the Cabinet to the Floor
Asphalt floors are susceptible to chemical attack. A layer of tape
may be placed on the floor prior to applying the sealant to protect
the floor.
1. Position the cabinet, allowing 3" (73 mm) between the wall
and the rear of the cabinet to ensure proper ventilation.
2. Level the cabinet. The cabinet should be level side-to-side
and front-to-back. To check that the cabinet is level, place a
carpenter's level on the interior cabinet floor in four places:
a. Position the level on the inside floor of the cabinet, near
the doors (the level should be placed parallel to the cabinet
front). Level the cabinet.
b. Position the level at the inside rear of the cabinet (the level
should be placed parallel to the cabinet back). Level the
cabinet.
c. Perform procedures similar to a. and b. by placing the level
on the left and right inside floor (level should be parallel to
the cabinet sides). Level the cabinet.
3. Draw an outline of the cooler base on the floor.
4. Raise and block the front side of the cabinet.
5. Apply a bead of NSF-approved sealant (see list below) to the
floor, 1/2" (13 mm) inside the front part of the outline drawn in
step 4. The bead of sealant must be heavy enough to seal the
entire cabinet surface when the cabinet is lowered on top of
the sealant.
6. Raise and block the rear of the cabinet.
7. Apply sealant to the floor on the other three sides, as outlined
in step 5.
8. Examine the cabinet to ensure that it is sealed to the floor
around the entire perimeter.
NSF-Approved Sealants
• 3M #ECU800 Caulk
• 3M #ECU2185 Caulk
• 3M #ECU1055 Bead
• 3M #ECU1202 Bead
• Armstrong Cork – Rubber Caulk
• Products Research Co. #5000 Rubber Caulk
• G.E. Silicone Sealer
• Dow Corning Silicone Sealer
P

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 9 of 22
truemfg.com
Installation (cont.)
Cabinet Wiring Diagram
The cabinet's wiring diagram is in the exterior servicing
compartment space of the cabinet.
A copy of the wiring diagram may also be obtained at
www. TRUEmfg.com/support/serial-number-lookup
How to Connect Electricity
• The power cord from this appliance is equipped with a
grounding plug which minimizes the possibility of electric
shock hazard.
• The wall outlet and circuit should be checked by a licensed
electrician to make sure the outlet is properly grounded.
• If the outlet is a standard 2-prong outlet, it is your personal
responsibility and obligation to have it replaced with the
properly grounded wall outlet.
• DO NOT, under any circumstances, cut or remove the ground
prong from the power cord. For personal safety, this appliance
must be properly grounded.
• Before your new unit is connected to a power supply, check
the incoming voltage with a voltmeter. If the recorded voltage
is less than the rated voltage for operation (+/-5%) and amp
rating, correct immediately. Refer to cabinet data plate for this
voltage requirement.
• The refrigerator/freezer should always be plugged into a
dedicated electrical circuit. This provides the best performance
and prevents building wiring circuits from being overloaded,
which could cause a fire hazard from overheated wires.
• Never unplug your refrigerator/freezer by pulling on the power
cord. Always grip plug firmly and pull straight out from the
outlet.
• When moving the refrigerator/freezer, for any reason, be careful
not to roll over or damage the power cord.
• Repair or replace immediately all power cords that have
become frayed or otherwise damaged. DO NOT use a power
cord that shows cracks or abrasion damage along its length or
at either end.
• If the supply power cord is damaged, it should be replaced with
original equipment manufacturer (OEM) components. To avoid
hazard this should be done by a licensed service provider.
NEMA Plug Configurations
60 HZ USE ONLY!
TRUE uses these types of NEMA plugs shown. If you DO NOT have
the proper outlet, have a licensed electrician verify and install the
correct power source.
International (IEC) Plugs Only
International cabinets may be supplied with a power cord that will
require installation. Install this cord before connecting the unit to a
power source.
NOTE: International plug configurations will vary by country
and voltage
Installation
Fully seat the power cord into the cabinet receptacle until it locks
in position. See fig. 1.
Removal
Depress the red button. See fig. 2.
Fig. 1. Fully insert the power cord into
the receptacle.
Fig. 2. Push the red button to remove
the plug.
Use of Adapter Plugs
NEVER USE AN ADAPTER PLUG! An adapter plug alters the
original OEM plug configuration when connecting it to a power
source.
TRUE will not warranty any refrigerator/freezer that has been
connected to an adapter plug.
Use of Extension Cords
NEVER USE AN EXTENSION CORD! An extension cord is
determined to be any component that adds length to the original
OEM power cord when connecting it to a power source.
TRUE will not warranty any refrigerator/freezer that has been
connected to an extension cord.
Electrical Installation & Safety

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 10 of 22
Cabinet Setup
Shelf
Clip
Shelf
Shelf
Organizer
Pillaster
(I-beam)
Shelf
Standards
Retainer
Clip
T-Series
& GDM-5
Airflow
Guard
WARNING – DO NOT use pliers or
any crimping tools when installing
shelf clips. Altering shelf clips in any
way can lead to shelving instability.
Standard Accessories
Shelf Installation
1. Hook the shelf clips into the shelf standards. See fig. 1.
2. Push up on the bottom of the clip. See fig. 2.
NOTE: You may need to squeeze or twist the bottom of the
shelf clip for proper installation. Position all four shelf clips
equal in distance from the floor for flat shelves. Lower the
front of gravity-feed TrueTrac organizers for proper feed.
3. Ensure the shelf clip is not loose or able to wiggle out of the
shelf standard. See figs. 3 and 4.
4. Place the shelves on the shelf clips with the cross support bars
facing down.
NOTE: Be sure all shelf corners are properly seated.
Installation Tips
• Install all the shelf clips before installing any shelves.
• Start at the bottom shelf and work your way up.
• Always lay the back of each shelf down on the rear clips before
the front.
Shelf Adjustment
Shelving is adjustable for customer application. This cabinet meets
the IEC Shelf Weight Capacity of 47lb/ft²(230kg/m²).
Fig. 1. Installing top tab of shelf clip. Fig. 2. The bottom tab of the shelf clip
will fit tightly
Fig. 3. You may need to squeeze or twist
the bottom of the shelf clip to install.
Fig. 5. T-Series models include an airflow guard on the rear shelves to
maintain an air space at the rear of the cabinet.
Fig. 4. Installed shelf clip..
TrueTrac Organizers
TrueTrac organizers come with a package of shelf retainer clips.
Install the clips on the side of the organizer towards the rear.
See fig. 5.

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 11 of 22
truemfg.com
Cabinet Operation
Startup
• The compressor is ready to operate when the unit is purchased.
All you need to do is plug in the cooler.
• Excessive tampering with the control could lead to service
difficulties. If replacing the temperature control is ever needed,
be sure to order the replacement from your TRUE dealer or
recommended service agent.
• Good air flow inside your TRUE unit is critical. Take care to
prevent product from pressing against the sides or back
wall and coming within 4" (101.6 mm) of the evaporator
housing. Refrigerated air off the evaporator coil must circulate
throughout the cabinet for even product temperatures.
NOTE: If the unit is disconnected or shut off, wait 5 minutes
before restarting.
RECOMMENDATION – Before loading product, run your TRUE
unit empty for 24 hours to verify proper operation. Remember,
our factory warranty DOES NOT cover product loss!

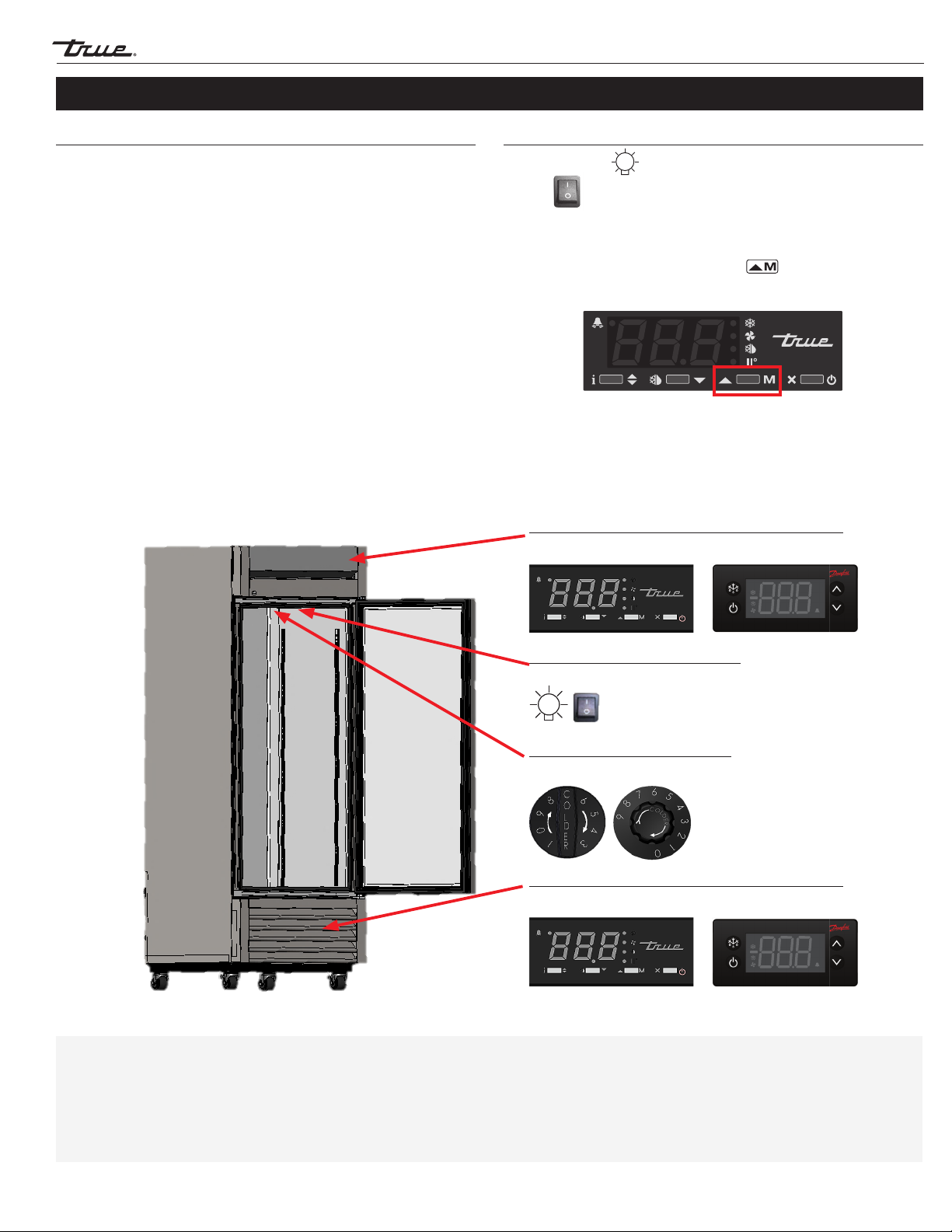

Temperature Control & Light Switch Location
The light symbol shows the approximate location of the light
switch.
The electronic temperature control can act as a light switch.
To control the light, press the up arrow .
FOR MORE INFORMATION
For more information regarding a cabinet's general sequence of operation, including
basic temperature control adjustments, please visit our website:
www.truemfg.com/support/resource-library
Electronic Temperature Control with Digital Display
On the front of top panel.
Light Switch on Glass Door Models
Inside top ceiling.
Mechanical Temperature Control
Inside top ceiling.
Electronic Temperature Control with Digital Display
Behind the front bottom louvered grill.
ECO°C
°F
ECO°C
°F

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 12 of 22
Cabinet Operation (cont.)
Flex Control
The Flex Control shifts the cabinet temperature control settings
between that of a cooler and freezer. Flip the switch behind the
front louver grill to change between modes. See location in the
figures below.

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 13 of 22
truemfg.com
Cabinet Operation (cont.)
Refrigerator and Freezer Cabinets
When the cabinet is plugged in
• Interior lights will illuminate on glass door models (see previous page for light switch location).
• An electronic control with digital display will illuminate (if installed).
• There may be a short delay before the compressor and/or evaporator fan(s) start. This delay may be determined by time or by
temperature, which could be the result of an initial defrost event that will last at least 6 minutes.
• The temperature control/thermostat may cycle the compressor and evaporator fan(s) on and off together. Every cabinet will
require a defrost event to ensure the evaporator coil remains clear of frost and ice buildup. Defrost is initiated by a defrost timer or
by the electronic control.
EXCEPTION – Models TSID, TDBD, TCGG, and TMW do not have an evaporator fan(s).
• The temperature control/thermostat senses either an evaporator coil temperature or air temperature, NOT product temperature.
• An analog thermometer, digital thermometer, or electronic control display may reflect the refrigeration cycle swings of up and
down temperatures, NOT product temperature. The most accurate method to determine a cabinet's operation is to verify
the product temperature.
• Refrigerators with mechanical temperature controls will defrost during every compressor off-cycle.
• Freezers with mechanical temperature controls will defrost by time initiation as determined by a defrost timer.
EXCEPTION – Models TFM, TDC, THDC and TMW require a manual defrost. The frequency of this manual defrost will
depend on the cabinet's usage and ambient conditions.
• An electronic control with a digital display (if installed) will show def during defrost.
NOTE: The display may have a short delay before showing a temperature after a defrost event has expired and instead
show def during a refrigeration cycle.
• Models with an analog or digital thermometer may show higher than normal temperatures during defrost.
• A refrigerator will use the evaporator fans to clear the coil during defrost.
EXCEPTION – Models TSID, TDBD, and TCGG do not have an evaporator fan(s).
• A freezer will use heaters to clear the evaporator coil during defrost.
NOTE: The evaporator coil heater and drain tube heater are only energized during defrost. Defrost is terminated when a
specific evaporator coil temperature is reached or by a time duration.

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 14 of 22
Maintenance, Care & Cleaning

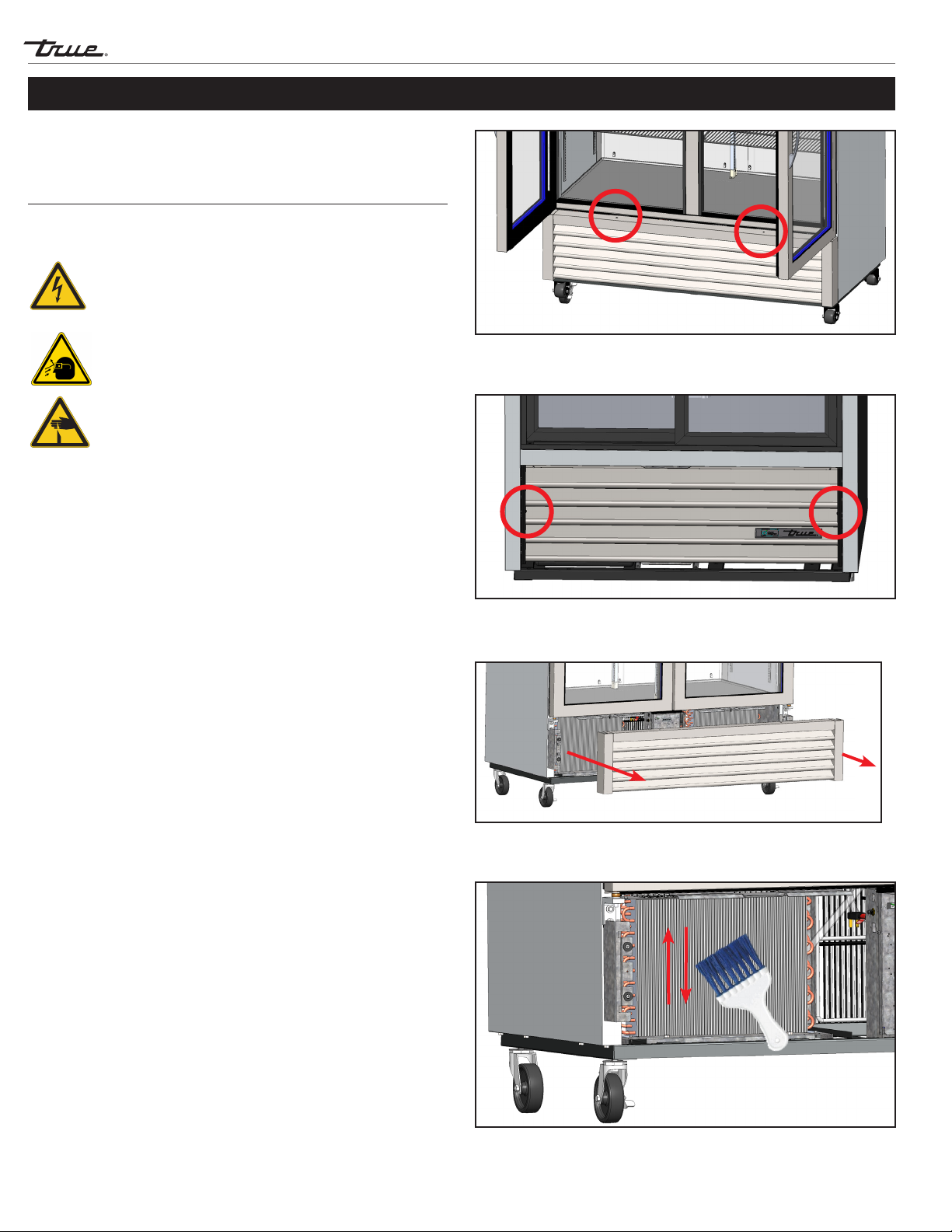

Fig. 4. Never brush across the coil fins.
Fig. 1. Swing door louver grill screw location.
Fig. 2. Slide door louver grill screw locations.
Fig. 3. Carefully remove the grill.
CAUTION - Take care during operation, maintenance or repairs
to avoid cuts or pinching from any cabinet part/component.
Cleaning the Condenser Coil
When using electrical appliances, basic safety precautions should
be followed, including the following:
WARNING – Electrical shock or burn hazard.
Unplug the unit or turn off the power supply before
proceeding. DO NOT clean appliance with a pressure
washer or hose.
CAUTION – Risk of eye injury. Eye protection is
recommended.
CAUTION – Coil fins are sharp. Gloves are
recommended.
Tools Required
• 1/4" nut driver
• 3/8" nut driver
• Stiff bristle brush
• Tank of compressed air
• Vacuum cleaner
• Flashlight
• Eye protection
• Gloves
1. Disconnect power to unit.
2. Remove the front louvered grill from the cabinet. See fig. 1-3.
3. With a stiff bristle brush, carefully clean accumulated dirt from
the front condenser coil fins See fig. 4.
4. With dirt removed from the surface of the coil, use a flashlight
to verify that you can see through the coil and observe the
condenser fan blade spinning. See fig. 5.
If the view is clear, reinstall louvered grill, connect unit to
power and verify operation.
If the view is still blocked with dirt, proceed to step 6.
5. Remove the condenser base bolts. See fig. 6.
6. Remove the condenser coil brackets.
7. Carefully slide the condensing unit out (tubing connections are
flexible). Gently blow compressed air or CO₂ through the coil
until it is clean. See fig. 7.
8. Carefully vacuum any dirt around and behind the condensing
unit area.
9. Replace the coil brackets. Then carefully slide the compressor
assembly back into position and replace the bolts. See fig. 8.
10. Reinstall the louvered grill, connect power to the unit, and
verify operation.

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 15 of 22
truemfg.com
Maintenance, Care & Cleaning (cont.)
Important Warranty Information
THE CLEANING OF THE CONDENSER IS NOT COVERED BY
WARRANTY!
If you have any questions, please contact your local TRUE
Manufacturing Service Department. See the front cover for
locations and contact information.
• Condenser coils accumulate dirt and require cleaning every 30
days or as needed.
• A dirty condenser coil can result in non-warranteed repairs and/
or cabinet failure.
• Proper cleaning involves removing dust from the condenser by
using a soft brush, vacuuming the condenser with a shop vac,
or using CO₂, nitrogen or pressurized air.
• Do not place any filter material in front of the condensing coil.
• On most units, the condenser is accessible by removing the
cabinet's outer grill cover.
• If you cannot remove the dirt adequately, please contact your
licensed refrigeration service provider.
Fig. 8. Carefully slide the condensing unit back into position and replace the bolts.
Fig. 5. Verify all blockages have been removed.
Fig. 6. Remove condenser base bolts.
Fig. 7. Carefully slide the condensing unit out.

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 16 of 22
Maintenance, Care & Cleaning (cont.)
Stainless Steel Care & Cleaning
CAUTION – DO NOT use any steel wool, abrasive or chlorine-
based products to clean stainless steel surfaces.
Stainless Steel Opponents
There are three basic things which can break down your stainless
steel’s passivity layer and allow corrosion to form.
• Scratches from wire brushes, scrapers, steel pads, and other
items that can be abrasive to stainless steel’s surface.
• Deposits left on your stainless steel can leave spots. You may
have hard or soft water depending on what part of the country
you live in. Hard water can leave spots. Hard water that is
heated can leave deposits if left to sit too long. These deposits
can cause the passive layer to break down and rust your
stainless steel. All deposits left from food prep or service should
be removed as soon as possible.
• Chlorides which are present in table salt, food and water, as well
as in household and industrial cleaners. These are the worst
type of chlorides to use on stainless steel.
Stainless Steel Cleaning and Restoration
DO NOT use stainless steel cleaners or similar solvents to clean
plastic or powder-coated parts. Instead, use warm soapy water.
• For routine cleaning and removal of grease and oil, apply white
vinegar, ammonia, or any good commercial detergent* with a
soft cloth or sponge.
• Stainless steel polish (e.g., Zep® Stainless Steel Polish, Weiman®
Stainless Steel Cleaner & Polish, Nyco® Stainless Steel Cleaner
& Polish, or Ecolab® Ecoshine®) and olive oil can act as a barrier
against fingerprints and smears.
• Degreasers* (e.g., Easy-Off® Specialty Kitchen Degreaser or
Simple Green® Industrial Cleaner & Degreaser) are excellent for
removal of grease, fatty acids, blood and burnt-on foods on all
surfaces.
* DO NOT use detergents or degreasers with chlorides or phosphates.
• For restoration/passivation or removing stubborn stains and
discoloration, Brillo® Cameo®, Zud® Cleanser, Ecolab® Specifax™
First Impression® Metal Polish, Sheila Shine, or talc can be
applied by rubbing in the direction of the polish lines.
NOTE: The use of proprietary names is intended for example
only and does not constitute or imply an endorsement.
Omission of proprietary cleansers from this list does not imply
inadequacy.
8 Tips to Help Prevent Rust on Stainless Steel
Maintain the Cleanliness of Your Equipment
Avoid build-up of hard stains by cleaning frequently. Use
cleaners at the recommended strength (alkaline chlorinated or
non-chloride).
Use the Correct Cleaning Tools
Use non-abrasive tools when cleaning your stainless steel products.
The stainless steel’s passive layer will not be harmed by soft cloths
and plastic scouring pads.
Clean Along Polishing Lines
Polishing lines ("grain") are visible on some stainless steels. Always
scrub parallel to polishing lines when visible. Use a plastic scouring
pad or soft cloth when you cannot see the grain.
Use Alkaline, Alkaline-Chlorinated or Non-Chloride
Cleaners
While many traditional cleaners are loaded with chlorides, the
industry is providing an ever increasing choice of non-chloride
cleaners. If you are not sure of your cleaner’s chloride content,
contact your cleaner supplier. If they tell you that your present
cleaner contains chlorides, ask if they have an alternative.
Avoid cleaners containing quaternary salts, as they can attack
stainless steel, causing pitting and rusting.
Rinse
When using chlorinated cleaners, you must rinse and wipe dry
immediately. It is better to wipe standing cleaning agents and
water as soon as possible. Allow the stainless steel equipment to
air dry. Oxygen helps maintain the passivity film on stainless steel.
Never Use Hydrochloric Acid (Muriatic Acid) on
Stainless Steel
Even diluted, hydrochloric acid can cause corrosion, pitting and
stress corrosion cracking of stainless steel.
Water Treatment
To reduce deposits, soften hard water when possible. Installation
of certain filters can remove corrosive and distasteful elements.
Salts in a properly maintained water softener can also be to your
advantage. Contact a treatment specialist if you are not sure of the
proper water treatment.
Regularly Restore & Passivate Stainless Steel
Stainless steel gets its stainless properties from the protective
chromium oxides on its surface. If these oxides are removed by
scouring, or by reaction with harmful chemicals, then the iron in
the steel is exposed and can begin to oxidize, or rust. Passivation is
a chemical process that removes free iron and other contaminants
from the surface of stainless steel, allowing the protective
chromium oxides to re-form.

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 17 of 22
truemfg.com
Cabinet Adjustments, Servicing, & Component Replacement
NOTE: Any cabinet adjustments are to be made AFTER the
cabinet has been verified level and properly supported.
Servicing & Replacing Components
• Replace component parts with OEM (original equipment
manufacturer) components.
• Have a licensed service provider service your unit to minimize
the risk of possible ignition due to incorrect parts or improper
service and to ensure the operator's health and safety.
• Unplug the refrigerator/freezer before cleaning or making
any repairs. Setting temperature controls to the 0 position or
powering off an electronic control may not remove power
from all components (e.g., light circuits, perimeter heaters, and
evaporator fans).
Slide Door Operation – Door Removal
DO NOT use the side latch before removing the slide door. The
tension on the door cord is needed to execute these operation
instructions. Doors cannot be removed unless they are positioned
as stated in these instructions.
1. Position the doors as described below:
Two-Door Units
Slide the front door so it is centered on the cabinet. See figs. 1
and 2.
Three-Door Units
Center the middle door on the left edge of the right door. See
fig. 3.
2. After centering, lift the door and tilt the top of the door back
until the rollers are out of the top channel. Then, swing the
bottom of the door out of the bottom channel. See fig. 4.
Two-Door units skip to step 5
3. Slide the right door to the left and align the left edge with the
beginning of the TRUE Logo at the top of the door frame (see
fig. 5). Then lift the door out of the track as described in step 2
(see fig. 4).
4. Slide the left door to the right and align the right edge with
the end of the TRUE Logo at the top of the door frame (see
fig. 6). Then lift door out of track same way as fig. 4.
5. Remove the door cord from the roller bracket. See figs. 7 and 8.
NOTE: The door cord will either be nylon cord or metal
cable. The black plastic tab holding the door cord slides out
the back.
6. Let the door cord slowly retract back into the door side
channel.
7. When reinstalling the door, be sure the door cord grommet
attaches to roller slot closest to the pulley. See fig. 9

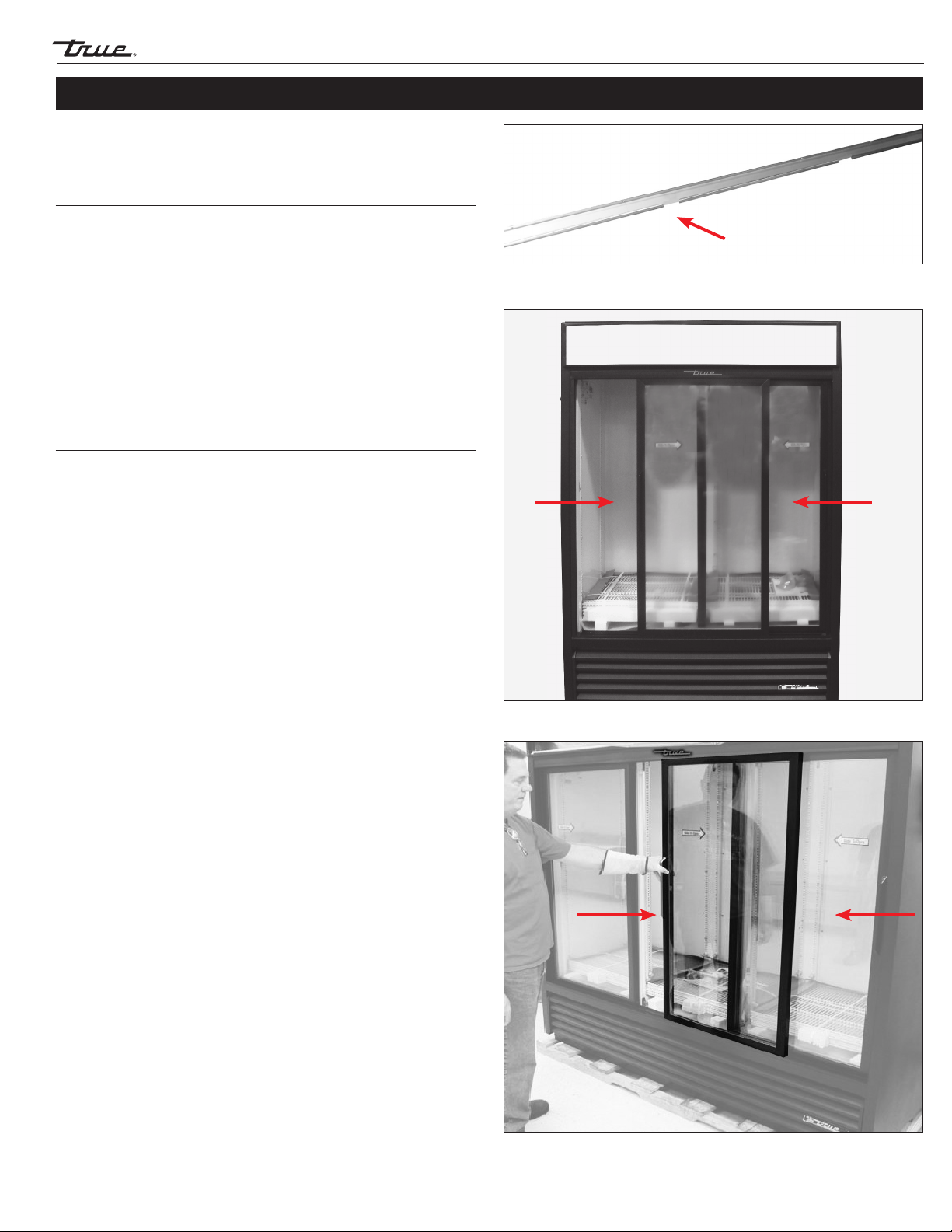

Fig. 1. Door channel openings (two-door units ONLY).
Fig. 2. Two-Door Units: Position the front door at the center of the cabinet.
Fig. 3. Three-Door Units: Center the middle door on the left edge of the right door.
CENTERED DOORCENTERED DOOR
CENTERED DOORCENTERED DOOR

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 18 of 22
Fig. 7. Remove the door cord from the roller bracket.
Fig. 8. Slide the black tab holding the door cord out the back
Fig. 9. Be sure the door cord is in the roller slot closest to the pulley.
Cabinet Adjustments, Servicing & Component Replacement (cont.)
Fig. 4. Carefully remove the door.
Fig. 5. Align the left edge of the right door with the left edge of the True logo.
Fig. 6. Align the right edge of the left door with the right edge of the TRUE logo.

TRADITIONAL REACH-INS
TEC_TM_121 | REV. A | EN 03/3/2021 Page 19 of 22
truemfg.com
Cabinet Adjustments, Servicing & Component Replacement (cont.)
Slide Door Operation – Door Adjustment
Only adjust the cabinet after it has been installed in its final location
and correctly leveled.
1. Completely close the slide doors and check for openings. If
there are any gaps/openings between the closed doors and
cabinet, the doors will need to be adjusted.
2. With a 7/16" wrench or adjustable wrench and 1/8" Allen
wrench, loosen the roller and move it along the slotted hole.
After the adjustment has been made tighten the roller into
place. See fig. 1.
Slide Door Operation – Hold-Open Feature
The hold-open feature keeps
the door in the open position.
1. Slide the door open.
2. Latch the door in the open
position from the back side
of door (notch in track). See
figs. 1 and 2.
NOTE: Figs. 1 and 2 show
the rear view of the door
and track.
Fig. 1. Adjust the roller.
Fig. 1. Door latch is in the open position (engaged with notch). Fig. 2. Door latch is in the closed position (disengaged from
notch).
FOR MORE INFORMATION
For additional maintenance instruction, please visit the media center at
www.truemfg.com

TRADITIONAL REACH-INS truemfg.com
TEC_TM_121 | REV. A | EN03/3/2021Page 20 of 22
Notes
