TRUlink 29578 User manual

1
USER GUIDE
WIRELESS USB HOST ADAPTER
Model: 29578

TABLE OF CONTENTS
Introduction.................................................................................................................................................2
Features......................................................................................................................................................3
System Requirements.................................................................................................................................4
Package Contents.......................................................................................................................................5
Device Overview
Wireless USB Host Adapter..............................................................................................................6
Software/Device Installation........................................................................................................................7
Using the Wireless USB Manager.............................................................................................................13
Technical Specifications............................................................................................................................17
Cables To Go One Year Warranty............................................................................................................18
Important Safety Information.....................................................................................................................19
Appendix
Association with other devices.........................................................................................................20
Cable Association Procedure...........................................................................................................21
Pin Association Procedure...............................................................................................................23
1

INTRODUCTION
Thank you for purchasing the TruLink™ Wireless USB Host Adapter. This product utilizes the latest in
wireless technology, so you can connect USB enabled devices such as printers, external hard drives,
and digital cameras, monitors/displays up to 30 feet away. This adapter will transmit information from
your PC to any Certified Wireless USB™ devices. With a highly secure connection you can use this
product in settings such as corporate offices, classrooms, or in your home office/entertainment system.
NOTE: In order for this adapter to operate, you must have a Certified Wireless USB Device in which it
can communicate with. We recommend that you read this manual thoroughly and retain for future
reference.
2

FEATURES
Certified by the USB-IF, guaranteeing connectivity with all Certified Wireless USB™ products
Based on Ultra Wide Band technology, providing speedy data transfer and low power consumption
Convenient plug-and-play connectivity, with simple software installation and setup
3

SYSTEM REQUIREMENTS
Microsoft® Windows® XP 32-bit with Service Pack 3 or higher
or Microsoft® Vista® 32-bit/64-bit
4

PACKAGE CONTENTS
Wireless USB Host Adapter for your computer
One (1) Dipole Antenna
USB Extender with Cradle
Quick Start Guide
Driver CD w/electronic User Guide
Pin-Association stickers
5

DEVICE OVERVIEW
WIRELESS USB HOST ADAPTER
1. Link: Data Connection Indicator
•LED is solid when transfer device is connected
•LED blinks when data is being transferred
2. PWR: Power
•LED is solid when powered by the PC
1 2
6

DEVICE OVERVIEW
SOFTWARE/DEVICE INSTALLATION
IMPORTANT NOTE:
•If you have purchased this TruLink Wireless USB Host Adapter as an additional adapter to
other TruLink Wireless USB Host Adapter/s and you have already installed the software on
your PC, step 1 (software installation) can be skipped.
•If installing on Windows XP, Service Pack 3 (SP3) is required. Verify that this has been
installed before installing the Wireless USB software.
•If installing the software, make sure that the Wireless USB Host Adapter and Wireless USB
devices are not connected to the computer, and the Wireless USB devices are not
powered.
Step 1-Installing the software
Insert the CD provided and the screen below will appear
7

SOFTWARE/DEVICE INSTALLATION
This will take you to the TruLink Wireless USB Kit InstallShield Wizard.
Click “Next” to go to proceed with the install.
Read and accept the Wireless USB Kit software License
Agreement by clicking “Yes”.
8

SOFTWARE/DEVICE INSTALLATION

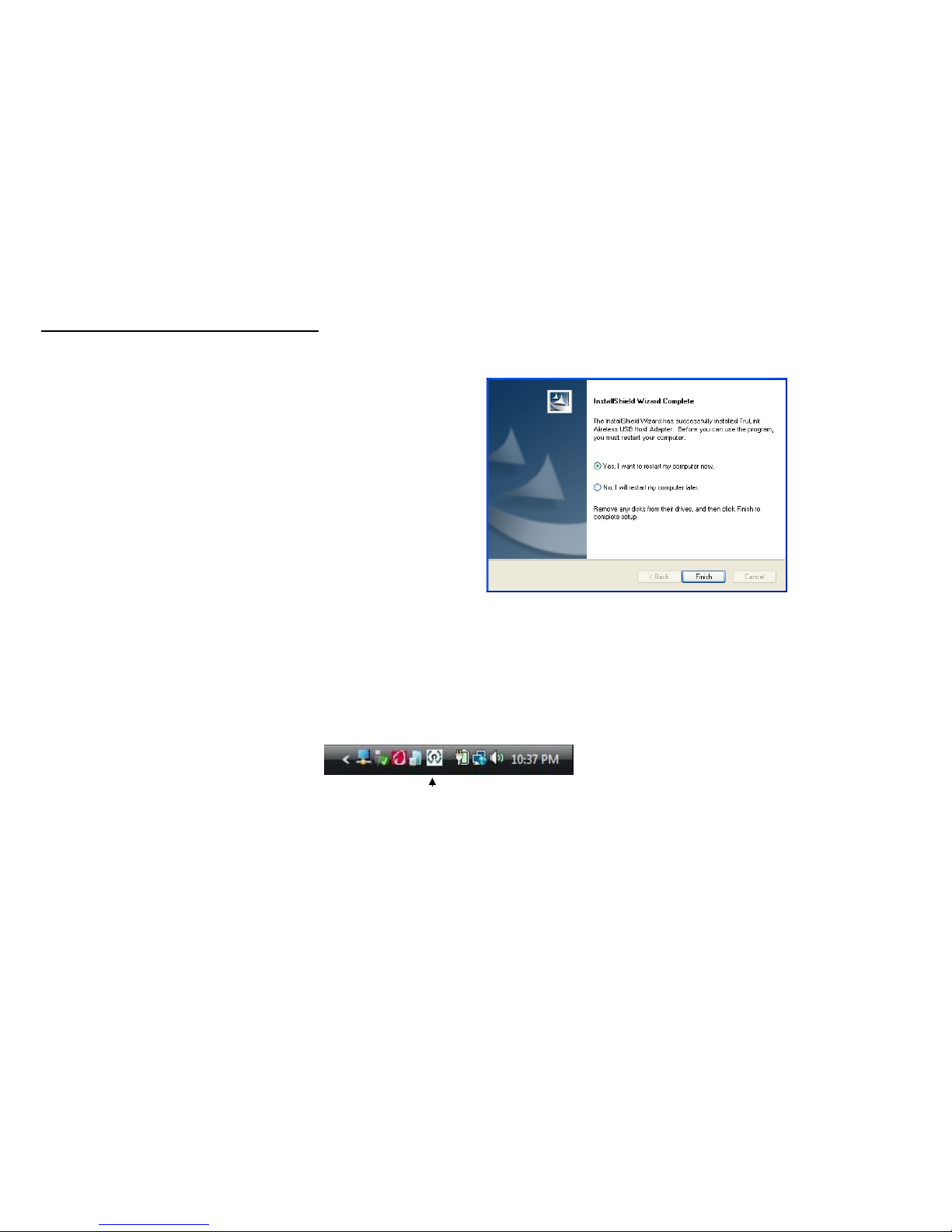

After the software installs your installation is complete
and you can click the “Finish” button to exit the wizard.
Important: reboot/restart if prompted.
Step 2-Driver Installation for the Wireless USB Host Adapter (for first time installation)

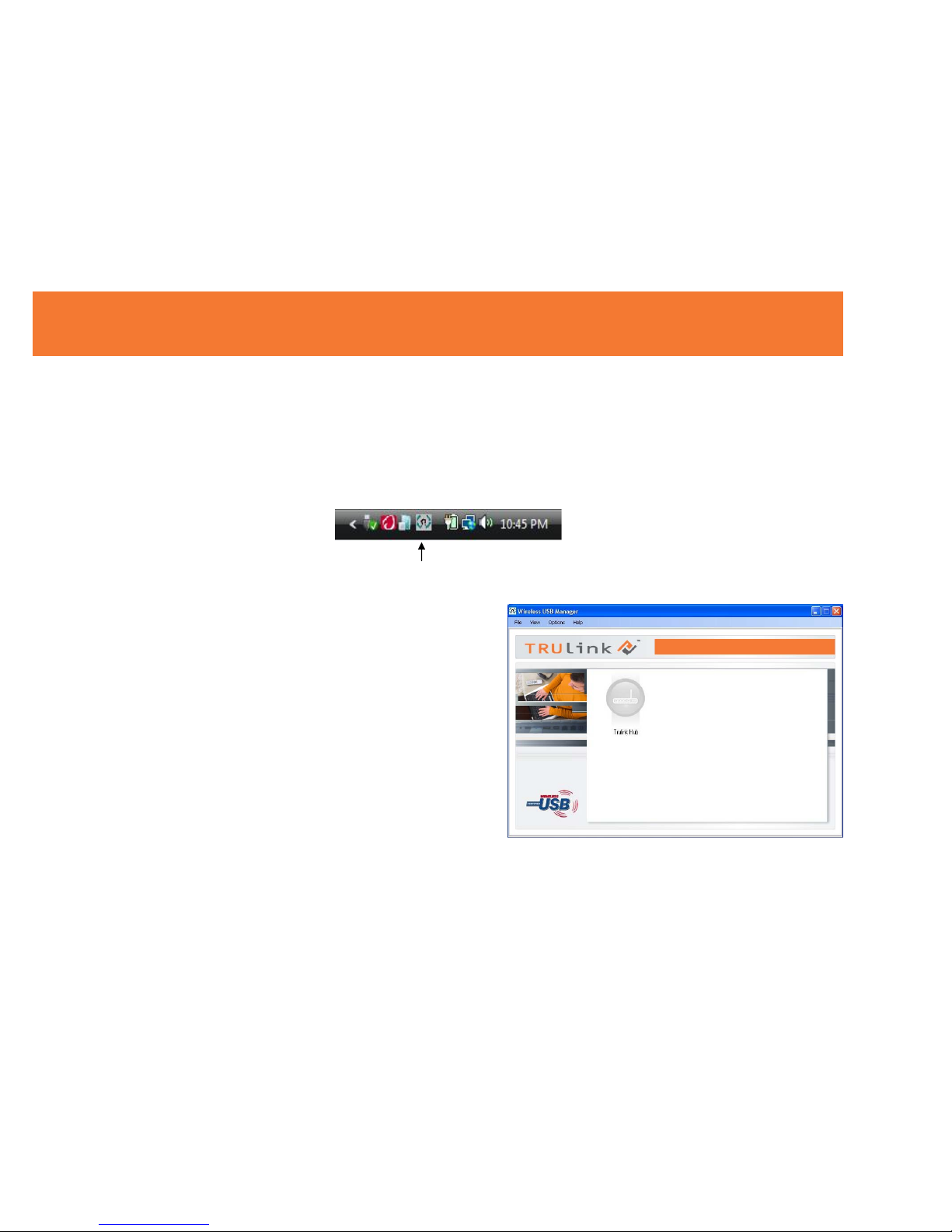

1. Open the Wireless USB Manager by double-clicking the icon on the icon tray at the bottom of your
desktop.

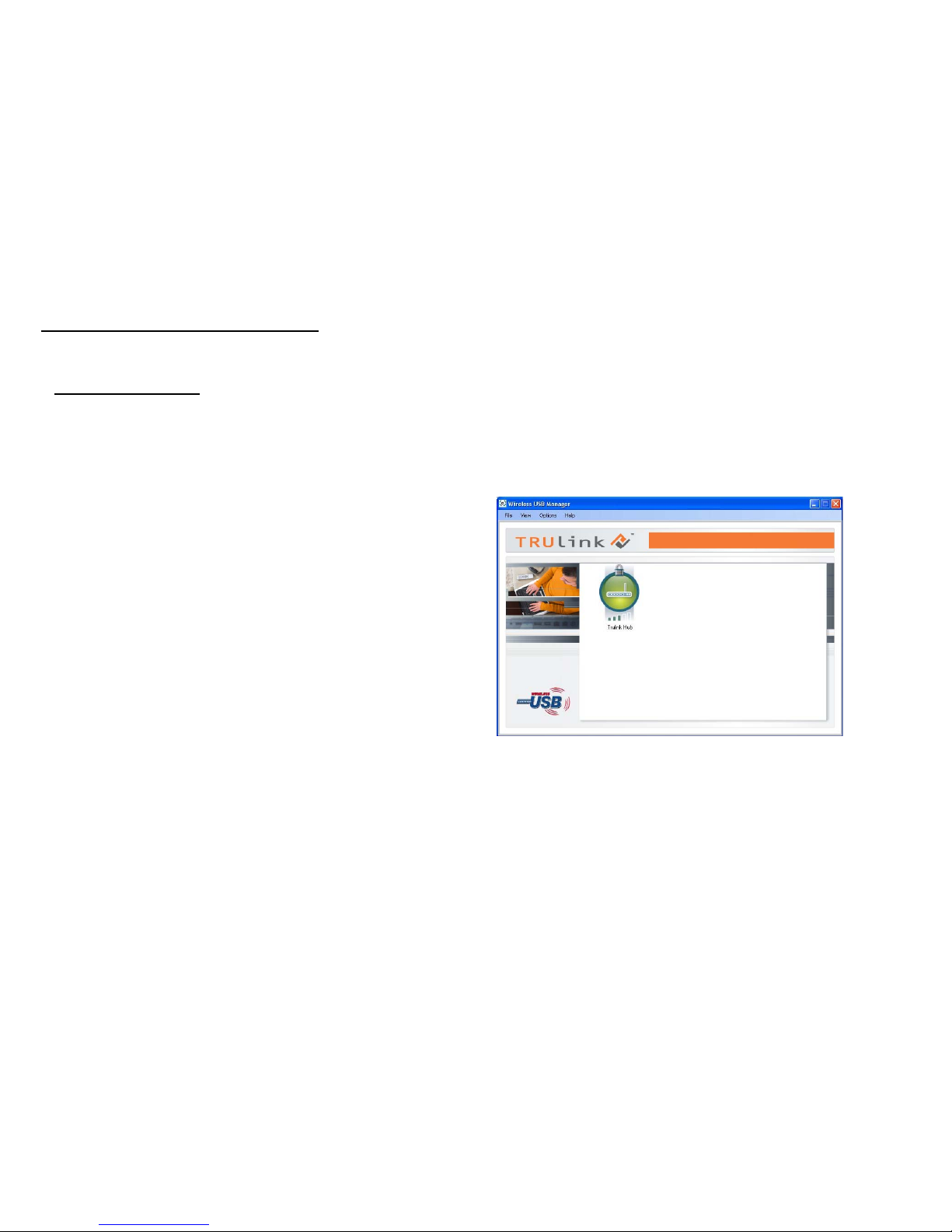

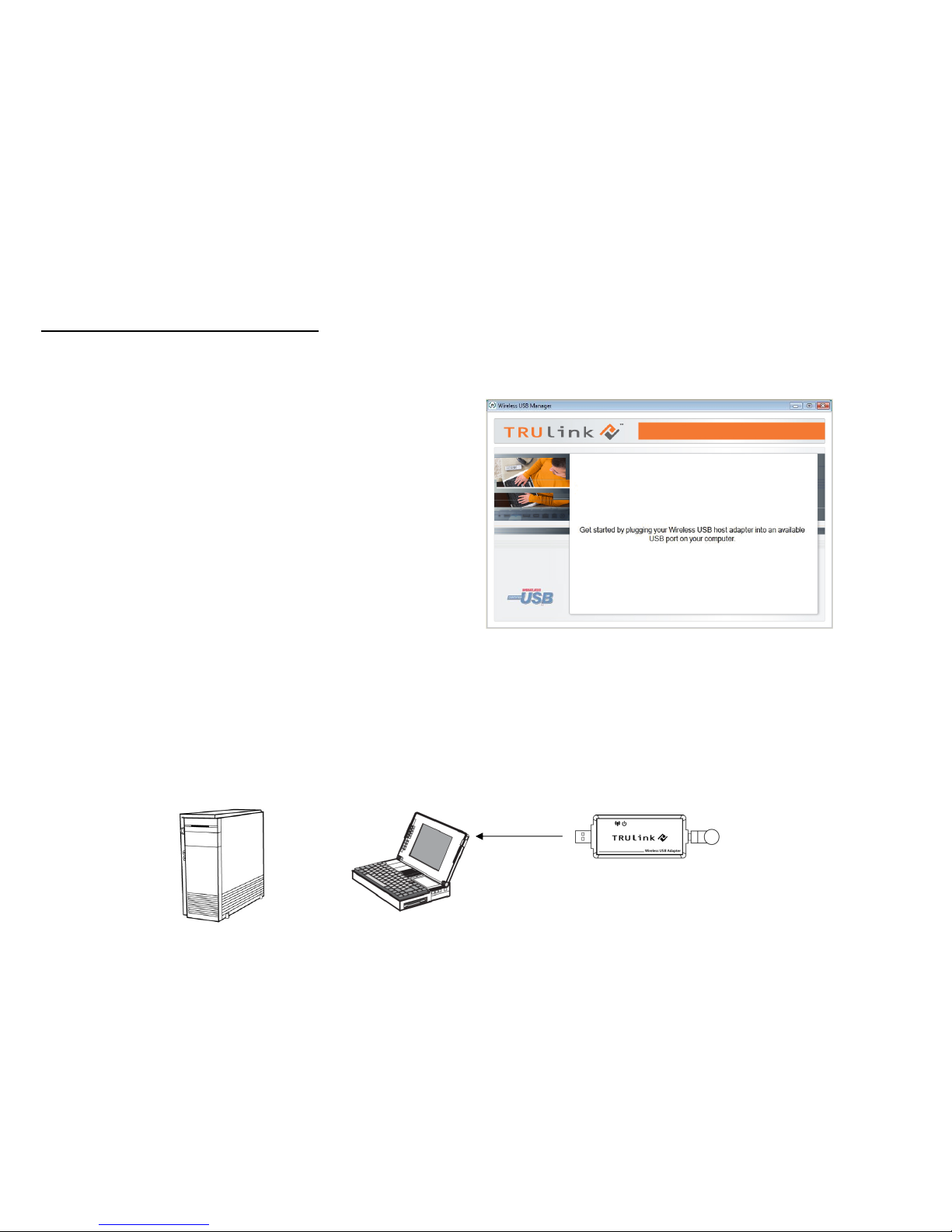

Figure: TruLink Wireless USB Manager
9
