Truma Aventa eco User manual

Rooftop Air Conditioning System
Operating instructions
To the consumer
To be kept in the vehicle.
This document is part of the product.
Read and observe this operating instruction
before operating the appliance for the first
time.
Installation and service must be performed
by a certified service technician or service
agency.
R
certified to
UL 60335-1:2016 / CAN/CSA-C22.2
No. 60335-1:16
UL 60335-2-40:2019 / CAN/CSA-C22.2
No. 60335-2-40-19
USA: 47 CFR Part 15 Subpart B
Canada: ICES-003 (B) / NMB-003 (B)
Aventa eco / comfort

240091-00680 · 00 · 07/2021
Aventa eco / comfort
EN
Contents
1 About These Instructions ...................... 3
1.1 Document number ....................................... 3
1.2 Validity .............................................................. 3
1.3 Target group ................................................... 3
1.4 Icons and Meanings ..................................... 3
1.5 Warnings ......................................................... 3
1.6 Abbreviations and glossary ........................ 3
2 Intended Use ............................................... 4
2.1 Intended use ................................................... 4
2.2 Not intended for use .................................... 4
2.3 Certification .................................................... 4
2.4 Installation, dismantling, conversion ....... 4
3 Safety Instructions ................................... 5
3.1 General safety ................................................ 5
3.2 Operator/vehicle owner’s obligations ...... 5
3.3 Safe operation ................................................ 6
3.4 Handling faults ............................................... 6
4 Product Description ................................. 6
4.1 Construction ................................................... 6
4.2 Function ........................................................... 7
4.3 Condensation ................................................. 7
4.4 Clearance ......................................................... 8
4.5 Product labeling ............................................ 9
4.6 Air distribution in the interior ..................... 9
4.7 Remote control ............................................ 10
4.8 IR receiver ..................................................... 13
4.9 Holder for remote control ......................... 14
4.10 Accessories .................................................. 15
5 Start-Up ....................................................... 16
5.1 Start-up information ................................... 16
5.2 Pairing the remote control and air
conditioning system ................................... 16
6 Operation ..................................................... 16
6.1 Information on using air conditioning
systems .......................................................... 16
6.2 Switch air conditioner on and off ........... 18
6.3 Operating modes ........................................ 18
6.4 Adjust fan ...................................................... 19
6.5 Set temperature unit .................................. 19
6.6 Set the room temperature ........................ 19
6.7 Set clock ........................................................ 20
6.8 Set timer ........................................................ 20
6.9 Reset ............................................................... 21
6.10 Resend ........................................................... 22
6.11 Set time format ............................................ 22
6.12 Multi-zone mode ......................................... 22
6.13 Set air flow .................................................... 23
7 Cleaning and Maintenance ................. 25
7.1 Keep air inlets and air outlets free .......... 26
7.2 Keep the condensation drain free .......... 26
8 Repair ............................................................ 27
9 Service and Maintenance ................... 27
9.1 Insert/change batteries .............................. 27
9.2 Filter change ................................................. 28
10 Faults ............................................................. 29
10.1 Unstable power supply .............................. 29
10.2 Problems during operation ....................... 29
11 Disposal and Recycling ........................ 30
12 Technical Data .......................................... 31
12.1 Dimensions ................................................... 31
12.2 Stickers ......................................................... 32
13 Warranty ...................................................... 32

40091-00680 · 00 · 07/2021
About These InstructionsAventa eco / comfort
3EN
1 About These Instructions
These instructions are part of the product.
Always carry the operating instructions in the
vehicle.
Also make safety instructions accessible to
other users.
1.1 Document number
The document number of these instructions is
printed on each inside page in the footer and on
the back page.
The document number consists of
• Part number (10 digits)
• Revision status (2 digits)
• Publication date (month/year)
1.2 Validity
These instructions apply exclusively to
roof-mounted air conditioning systems for the
North American market (USA and Canada) and
relate to the following series:
• Aventa eco
• Aventa comfort
hereinafter referred to as “air conditioner” or
Aventa.
1.3 Target group
These instructions are designed for users.
Gender-specific differentiation is dispensed
with to ensure easier legibility. The appropri-
ate terms apply accordingly to ensure equal
treatment for all genders.
1.4 Icons and Meanings
Icon Meaning
Warns about dangers for people
Specialist
Additional information for under-
standing or optimizing workflows.
Icon for an action.
Something has to be done here.
*
Optional parts
(Fig. 3-1) Reference to a graphic
e.g., Figure 3 - Number 1
1.5 Warnings
Warnings are used in these instructions to warn
people about damage to people and property.
Always read and observe warnings.
Warning word Meaning
DANGER
Danger for people.
Non-observation results in
death or serious injuries.
WARNING
Danger for people.
Non-observation can result in
death or serious injuries.
CAUTION
Danger for people.
Non-observation can result in
minor injuries.
NOTICE Information on preventing
damage to property
1.6 Abbreviations and glossary
Term Meaning
LED Light Emitting Diode
Line power
Power that is supplied to the
vehicle from outside. Usually
a connection is set up from a
power supply socket on the
campsite with an extension
cable to the vehicle’s external
socket.
IR Infrared
LCD Liquid Crystal Display

440091-00680 · 00 · 07/2021
Intended Use Aventa eco / comfort
EN
2 Intended Use
2.1 Intended use
The Aventa eco / comfort roof-mounted air con-
ditioner is designed for installation on the roof
of a recreational vehicle (RV) during or after its
manufacturing and is intended solely for private
use. The Aventa eco / comfort is designed solely
for air conditioning in living areas. The Truma
roof air conditioner cools the interior area quiet-
ly, efficiently and quickly to the set temperature.
It can be controlled using the remote control
included with delivery, the optionally available
Truma CP plus (referred to below as CP plus or
CP plus control panel) or with a third-party oper-
ating panel via the RV C bus.
2.2 Not intended for use
Any use apart from the intended use is
prohibited.
This applies, for example, to install and operate
in:
• Boats and other watercraft
• Hunting/forest cabins, weekend houses or
awnings
• Mobile homes, construction trailers
• Apartments and houses
• Construction machinery, agricultural
machinery
• Food trucks
Defective, improperly installed, or units used
contrary to the recommended use should not
be used.
2.3 Certification
• The air conditioner was approved and certi-
fied by TEi (Testing Engineers International).
• UL 60335-1:2016 / CAN/CSA-C22.2
No. 60335-1:16
• UL 60335-2-40:2019 / CAN/CSA-C22.2
No. 60335-2-40-19
• Electromagnetic compatibility was tested and
certified to the following standards:
• USA: 47 CFR Part 15 Subpart B
• Canada: ICES-003 (B) / NMB-003 (B);
2.4 Installation, dismantling,
conversion
Only qualified and trained personnel
(specialists) may install, repair and
perform the functional testing of the
Truma product in compliance with the
installation and operating instructions
and generally approved engineering practices.
Specialists are people who, on the basis of their
professional training and qualifications, their
knowledge of and experiences with the Truma
products and the applicable standards, perform
the required work correctly and can identify
possible dangers.
The following applies for non-specialists:
Do not open the air conditioner.
Do not mount the air conditioner at other
places and do not install it in other vehicles.
Do not dismantle the air conditioner, convert
it or repair it yourself.
Only have installation, dismantling or conver-
sion work done by trained specialists.

40091-00680 · 00 · 07/2021
Safety InstructionsAventa eco / comfort
5EN
3 Safety Instructions
3.1 General safety
Non-observation of the provisions in the operat-
ing instructions can result in serious damage to
property and gravely endanger people’s health or
life.
Read and follow safety instructions precisely
to rule out dangers and damage to people and
property.
Observe applicable local laws, guidelines and
standards on the air conditioner’s use and
operation.
The refrigerant circuit contains the refriger-
ant R 410A and may only be opened in the
workshop.
The air inlets/air outlets on the external unit
and on the air distributor or the ducted sys-
tem must not be obstructed under any cir-
cumstances. Please ensure this to guarantee
the air conditioner functions flawlessly.
To prevent the compressor running dry,
which will result in premature wear and tear,
the air conditioner must not be operated at
a side angle of more than 8% / 4.5°. Do not
operate cooling mode for longer than 10 min-
utes in the inclined position, as condensation
that forms might not be able to drain and
could possibly run into the vehicle.
The condensation drains must always be free
during operation.
Operate the air conditioner at outside tem-
peratures of 16-45°C / 61-113°F.
Operate the air conditioner only when the
housing and cable are not damaged.
Do not place fingers or objects in the ventila-
tion grilles.
To avoid damage to the appliance, do not use
sharp or hard objects.
In case of fire, use only approved extinguish-
ing agents; if water is used to extinguish fire,
there is a risk of electric shock.
3.2 Operator/vehicle owner’s
obligations
3.2.1 Operating instructions for your safety
The operating instructions are an important doc-
ument and part of the product. They are intend-
ed for users and contain information that is im-
portant for safety. Only the procedures specified
in the operating instructions are safe.
If the operating instructions are not observed,
persons may be seriously injured or the air con-
ditioner may be damaged.
Read and observe the section on safety be-
fore operating the appliance for the first time.
Always keep the operating instructions near
the product.
3.2.2 Safety through care and maintenance
Installation, maintenance, and repairs should
be done only by specialists who are familiar
with the hazards associated with handling
electrical appliances, refrigerants, and air
conditioners. Improper work can result in
considerable danger.
Tasks such as opening the system, undoing
fixing points, assembly and dismantling, in-
spection and repairs should be carried out
only by specialists
Hot/steam and high-pressure cleaners must
not be used.
When cleaning the vehicle, make sure that
no water gets into the air conditioner (e.g. do
not spray water directly into air conditioner
openings).
3.2.3 Safety with an approved power
supply
For fault free operation and to prevent elec-
tronic damages use only a power supply with
a pure sine wave (no voltage spikes) e.g. volt-
age transformers, generators, and inverters.

640091-00680 · 00 · 07/2021
Product Description Aventa eco / comfort
EN
3.3 Safe operation
Electric shock from bare, damaged pow-
er cables.
With damage on a mains lead:
Switch the power supply off, e.g. via fuses
or circuit breakers (CB) on the vehicle’s main
distribution board. Disconnect power supply.
Secure against switching on again.
Have the damaged wiring replaced by the
manufacture or a qualified technician.
Fire hazard caused by overheated cable
drum.
If the power cord to the vehicle is coiled be
aware that high current consumption can cause
it to heat up.
If the power cord to the vehicle is coiled be
aware that high current consumption can
cause it to heat up.
Use cable with a minimum cross-section of
3 x AWG 12 / 3 x 3.3 mm²
3.4 Handling faults
Have faults rectified immediately by a
specialist.
Only rectify faults yourself if their rectifica-
tion is described in section “10 Faults” on
page29.
3.4.1 What to do with unusual sounds and
smells
Switch the roof air conditioner off.
Have the roof air conditioner checked by a
specialist.
4 Product Description
The Truma Aventa roof-mounted air conditioner
is designed for installation on the vehicle roof
(Fig. 1).
The air conditioner is available in two variants.
• Truma Aventa eco with 13500 BTU/h
• Truma Aventa comfort with 15000 BTU/h
Fig. 1
4.1 Construction
The air conditioner consists of the external unit
and a remote control. The interior air distributor
is another component of the air conditioner, de-
pending on the installation.
4.1.1 External unit
The air conditioner’s external unit (Fig. 2-1) is in-
stalled on the vehicle’s roof (Fig. 2-2).
4.1. 2 Air distributor*
The air conditioner’s air distributor
(Fig. 2-3) is installed on the ceiling inside the ve-
hicle (Fig. 2-2).
3
2
1
Fig. 2

40091-00680 · 00 · 07/2021
Product DescriptionAventa eco / comfort
7EN

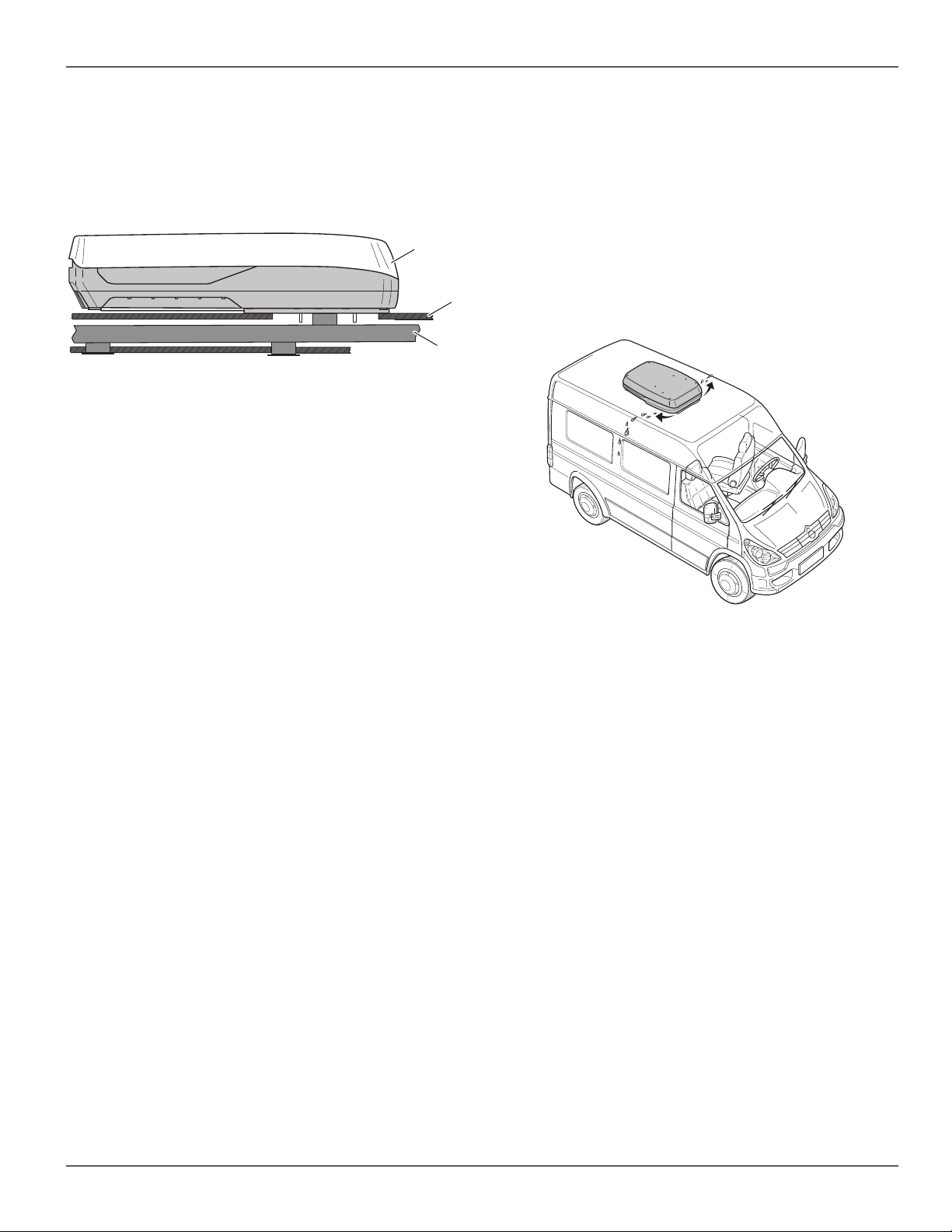

4.1.3 Ducted system
The ducted system (Fig. 3-3) for the air condi-
tioner (Fig. 3-1) runs inside the ceiling and is
part of the vehicle.
3
2
1
Fig. 3
4.2 Function
Compressor air conditioners function like a re-
frigerator: A refrigerant circulates in a closed
circulatory system. The gaseous refrigerant is
liquefied in a heat exchanger under the pressure
of a compressor. In the evaporator heat and
moisture are removed from the supplied room
air and then dissipated outside.
A fan distributes the cooled and dehumidified
air via the air distribution system into the vehi-
cle. The roof-mounted air conditioner ensures
cool air inside the vehicle.
4.3 Condensation
4.3.1 External condensation drain
Condensation is drained via the vehicle’s roof.
Holes are provided in the bottom of the external
unit for this, through which the condensation
drains.
With longer air conditioner operation, pools
of water can form under or beside the
vehicle.
Fig. 4
In most cases the condensation would run to
the front or rear of the vehicle.

840091-00680 · 00 · 07/2021
Product Description Aventa eco / comfort
EN

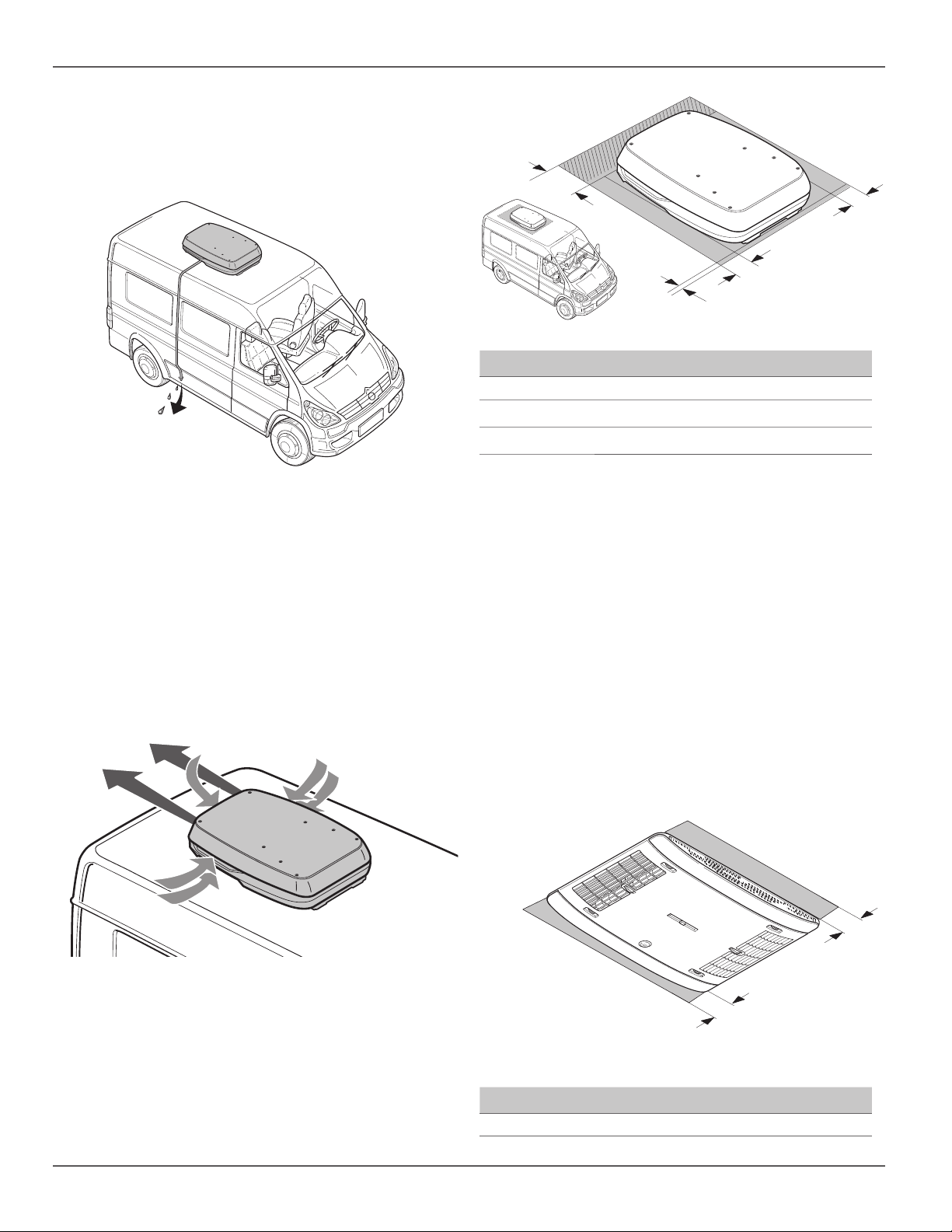

4.3.2 Internal condensation drain*
The condensation is drained via an internal hose
system. The tube system is configured different-
ly depending on the vehicle manufacturer.
Fig. 5
4.4 Clearance
4.4.1 External unit clearance
The air conditioner draws in cooling air at both
sides and, after it passes the heat exchanger,
blows it out to the rear. For safe operation, the
air inlets and air outlets must not be obstructed
or misaligned.
Fig. 6
Around the external unit, the distances to possi-
ble roof structures must be adhered to.
b
c
a
a
Fig. 7
Dimension Value in in. Value in mm
a 4 ⁄ in. 102 mm
b 10 in. 25.4 mm
c 110 in. 279.4 mm
Install later additions (solar systems, roof
railing, satellite system, other roof structures)
outside the clearance area.
Stored items (surfboards, tents) must be out-
side the clearance area.
4.4.2 Internal unit/air distributor clearance
The clearance around the air distributor must
guarantee unobstructed blowing out. There
must also be clearance around the suction area
(8-a).
The swivel range of flaps and doors must be
taken into account.
a
a
Fig. 8
Dimension Value in in. Value in mm
a 1 ⁄ 40

40091-00680 · 00 · 07/2021
Product DescriptionAventa eco / comfort
9EN

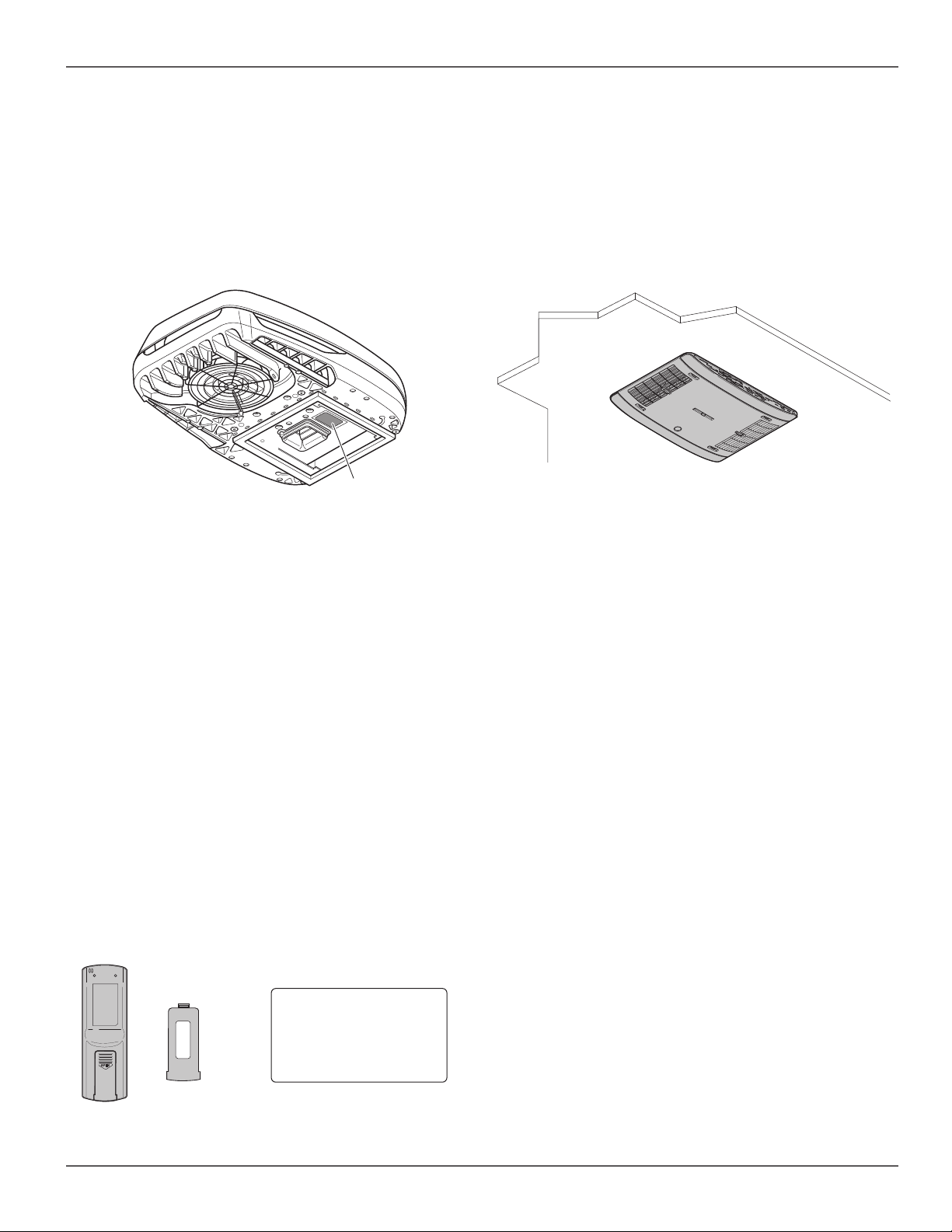

4.5 Product labeling
The device type and the serial number are print-
ed on the type plates.
4.5.1 Air conditioner type plate
There is a type plate with the air conditioner’s
data (Fig. 9-1) on the bottom of the air condi-
tioner in the air distributor area.
1
Fig. 9
A second type plate (duplicate) is also delivered
with the air conditioner. After installation, the
vehicle manufacturer will possibly have placed
this type plate in the operating instructions or at
an easy-to-access point in the vehicle.
4.5.2 Air distributor type plate
The air distributor does not have its own type
plate.“4.8 IR receiver” on page13
4.5.3 Remote control type plate
There is a sticker with the remote control’s data
on the inside of the battery holder’s cover.
• Part number
• Hardware status (HW)
• Software status (SW)
• Production date
40091-00596
HW 01 00
SW C 01.00.00
04/32
Fig. 10
4.6 Air distribution in the interior
4.6.1 Air distribution via the air distributor*
The warm room air is drawn in via the air dis-
tributor, through filters. The warm room air is
cooled by the air conditioner and flows directly
via the air distributor into the interior. The air
distributor is below the ceiling.
Fig. 11
The air distributor has four individually adjust-
able outlets. The air flow can therefore be dis-
pensed evenly and draft-free and distributed in
the vehicle.
(See: “6.13 Set air flow” on page23).
An integrated filter system in the air distributor
cleans the interior air. As the air distributor is
very flat, almost complete freedom of move-
ment is maintained.
The IR receiver for communication with the re-
mote control is on the air distributor (See: “4.8
IR receiver” on page13).

10 40091-00680 · 00 · 07/2021
Product Description Aventa eco / comfort
EN
4.6.2 Air distribution via the vehicle roof
The warm room air is drawn in via the ducted
system in the ceiling. The cooled air flows from
the air conditioner via the ducted system into
the interior. The ducted system is between the
vehicle roof and the ceiling. It is installed by the
vehicle manufacturer and varies from model to
model.
See: Vehicle manufacturer’s operating
instructions.
Fig. 12
4.7 Remote control
The air conditioner can be controlled with a re-
mote control.
The remote control switches off automatically
after about one minute to save the battery.
NOTICE
Heat can damage the remote control
Do not leave the remote control in di-
rect sunlight or on heaters.
4.7.1 Button panels
The remote control has two button panels.
The buttons for the most important functions
are on the top button panel. It is always visible.
The buttons for advanced functions are on the
bottom button panel. This can be concealed
with a cover.
Push the cover down (Fig. 13-1).
Bottom button panel is visible.
Push the cover up (Fig. 13-2).
Bottom button panel is concealed.
TIMER HOURS MIN
ON
OFF
MODE
TEMP
Aventa
MODE
TEMP
Aventa
Aventa
TIMER HOURS MIN
RESET
ON
OFF
MODE
TEMP

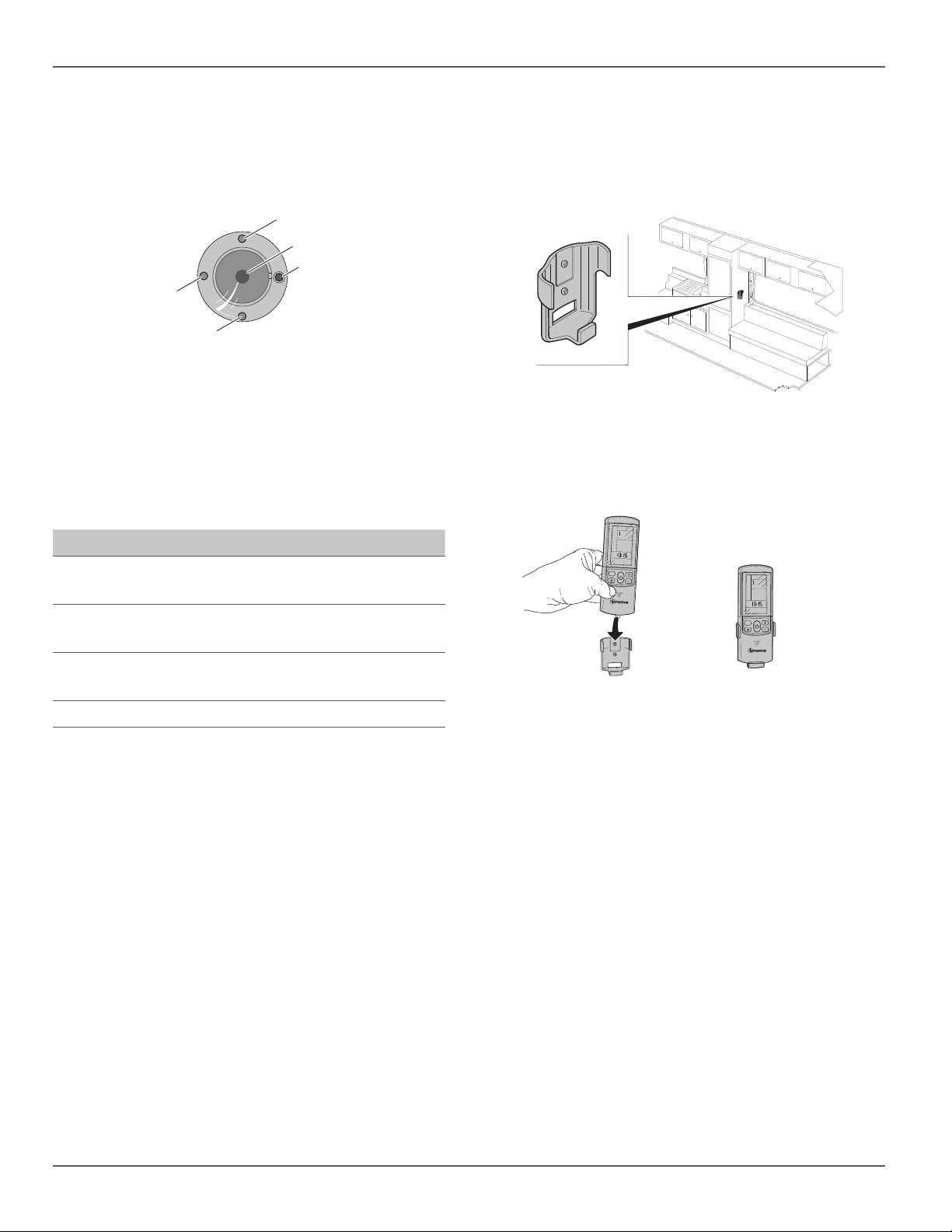

1
2
Fig. 13

40091-00680 · 00 · 07/2021
Product DescriptionAventa eco / comfort
11EN
4 .7. 2 Top button panel
The top button panel includes the following
functions:
MODE
TEMP
Aventa
MODE
TEMP
Fig. 14
Icon Function name
MODE
Select operating modes
FAN
Set fan operating level
ON/OFF
On/Off switch
TEMP +
TEMP -
Set temperature
4.7.3 Bottom button panel
The bottom button panel includes the following
functions:
MODE
TEMP
Aventa
RESET
MIN
HOURS
OFF
TIMER
ON
RESET
MIN
HOURS
OFF
TIMER
ON
Fig. 15
Icon Function
TIME
Show / set time
NIGHT
Quiet mode
DEHUMIDIFY
Dehumidify air conditioner
TIMER ON
TIMER OFF
Switch timer on/off
HOURS +
HOURS -
Set hours
SETUP
Setup
MIN +
MIN -
Set minutes
RESEND
Send last settings
RESET
Reset

12 40091-00680 · 00 · 07/2021
Product Description Aventa eco / comfort
EN
4.7.4 Display
The remote control has an LCD that shows
the current settings. The display does not have
background lighting.
MODE
TEMP
Aventa
Fig. 16
Icon Meaning
Cooling mode
Night mode
Dehumidify
Automatic mode
Circulating air mode
Setup
Resend
Climate zone number
Fan setting low
Fan setting medium
Fan setting high
Temperature value
Degrees Celsius
Degrees Fahrenheit
Time display (AM / PM)
On / Off

40091-00680 · 00 · 07/2021
Product DescriptionAventa eco / comfort
13EN
4.7.5 IR transmitter
Remote control signals are sent with infrared
waves to the IR receiver in the air distributor
(Fig. 17) or to the wall-mounted IRreceiv-
er(Fig. 18).
There is an IR transmitter diode for this at the
top of the remote control.
Infrared waves behave like light waves.
To operate the air conditioner, point the re-
mote control at the IR receiver.
NOTICE
Do not cover the IR receiver.
The IR receiver must be free for fault-free
operation.
Do not stick labels or similar over the
IR receiver.
Do not cover the IR receiver (e.g. with
curtains).
TIMER HOURS MIN
RESET
ON
OFF
MODE
TEMP
Aventa
Fig. 17
TIMER HOURS MIN
RESET
ON
OFF
MODE
TEMP
Aventa
Aventa
Fig. 18
4.8 IR receiver
Depending on the vehicle and installation sit-
uation, the IR receiver can be installed in the
air distributor or in the wall panel. Several
IRreceivers can also be installed in one vehicle
(multi-zone mode).
4.8.1 Air distributor IR receiver*
The remote control signals are received by
an IRreceiver (Fig. 19-2) on the air distributor
(Fig. 19-1) and passed on to the air conditioner’s
control unit.
2
1
Fig. 19
4.8.2 Wall-mounted IR receiver*
The remote control signals are received by

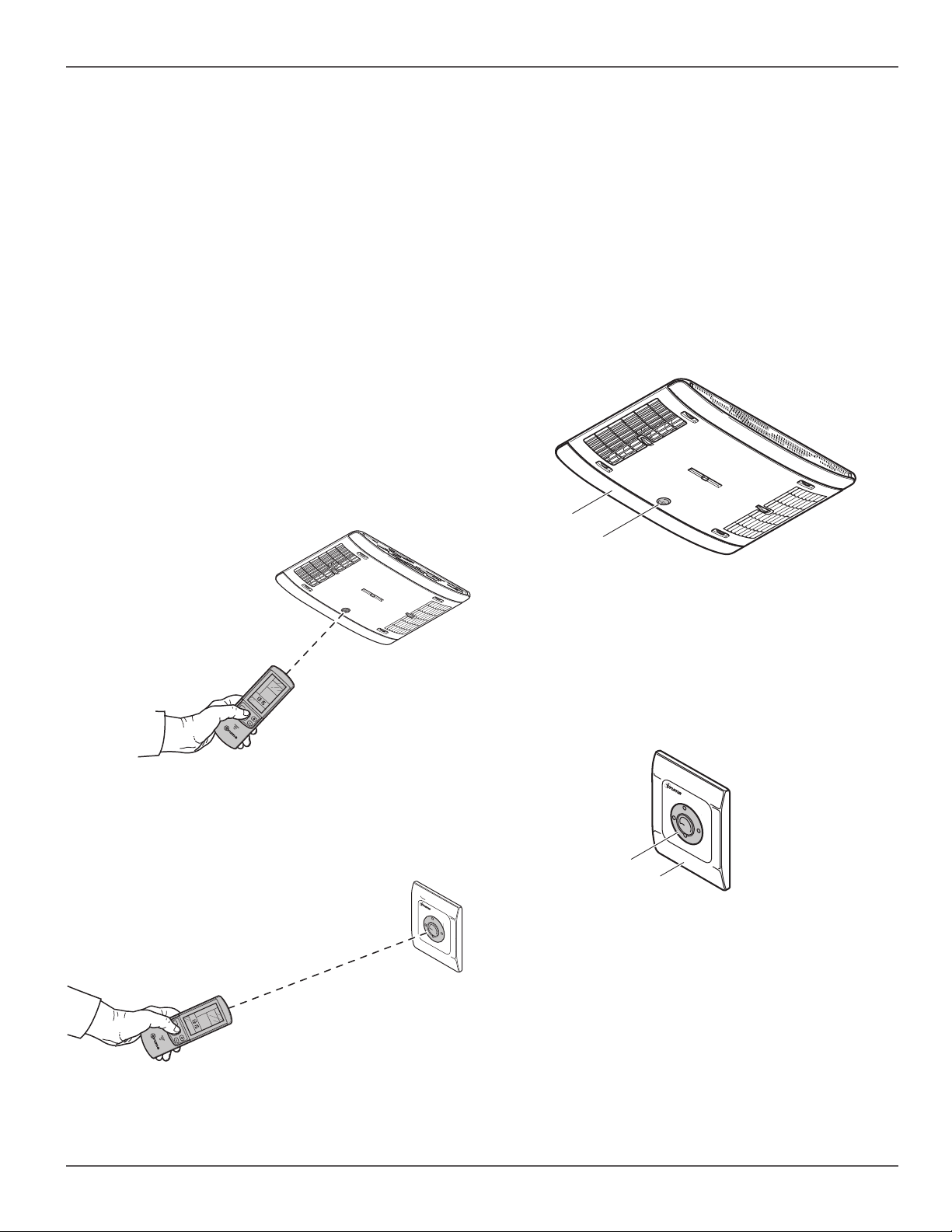

an IRreceiver (Fig. 20-2) in the wall panel
(Fig. 20-1) and passed on to the air conditioner’s
control unit.
Aventa
2
1
Fig. 20

14 40091-00680 · 00 · 07/2021
Product Description Aventa eco / comfort
EN
4.8.3 IR receiver
The IR receivers of the air distributor and the
wall panel are set up the same and have the fol-
lowing display and control panels:
1
2
3
4
5
Fig. 21
1 Green LED
2 Infrared sensor
3 ON-OFF button
4 Yellow LED
5 Red LED
LED display Meaning
Green LED
lights
Air conditioner operating ¹
Green LED
flashes
IR receiver receives signals
from the remote control²
Yellow LED
lights
Power supply unstable ³
Red LED lights Malfunction
1) The green LED lights when the air condition-
er is switched on and goes off after approx.
30 seconds. The LED lighting during the night
therefore doesn’t disturb anyone. The air condi-
tioner remains switched on.
2) The green LED flashes only with correct pair-
ing of remote control and air conditioner or cli-
mate zone.
3) See: “10 Faults” on page29 and “6.1.2
Operation with generator or power inverter” on
page16.
4.9 Holder for remote control
There is a holder for the remote control, which,
for example, can be mounted on a wall in the
vehicle (Fig. 22).

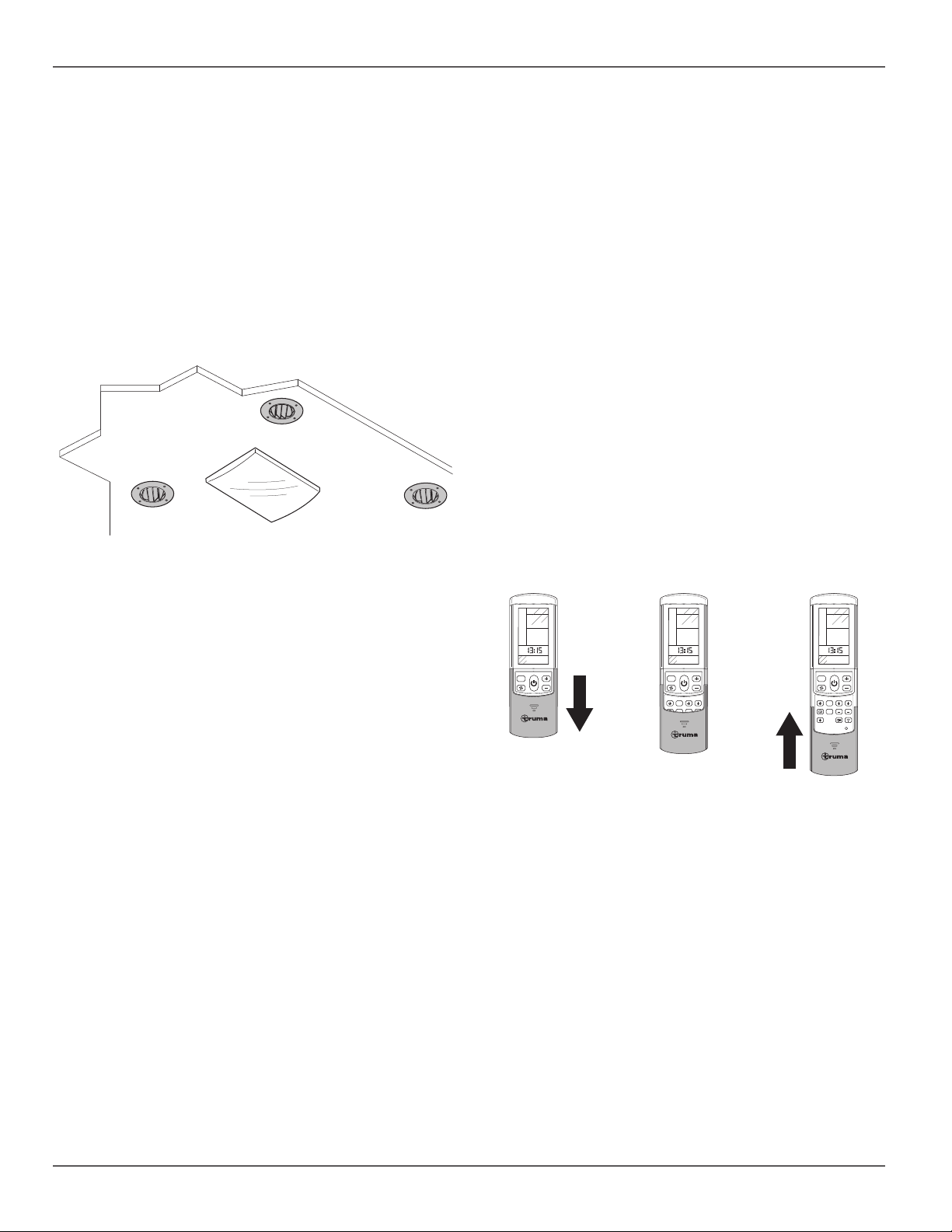

Fig. 22
Place or remove the remote control from
above into or out of the holder (Fig. 23).
TIMER HOURS MIN
RESET
ON
OFF
MODE
TEMP
AM
Aventa
TIMER HOURS MIN
RESET
ON
OFF
MODE
TEMP
AM
Aventa
Fig. 23

40091-00680 · 00 · 07/2021
Product DescriptionAventa eco / comfort
15EN
4.10 Accessories
There are various accessories for the air condi-
tioner. These can be installed with the air condi-
tioner, depending on the vehicle manufacturer.
4.10.1 Wall-mounted IR receiver*
If a Truma air distributor is not installed on the
vehicle roof, the remote control signals will be
received by an external IR receiver.
The vehicle manufacturer installs the external
IRreceiver on an inside wall.
Aventa
Fig. 24
4.10. 2 Truma CP plus*
The air conditioner can be controlled with the
Truma CP plus digital control panel (available as
an option).
The CP plus control panel has an automatic
climate control function. This automatically con-
trols the room temperature together with the
Truma Aventa eco / comfort air conditioner and
a Truma Combi / Truma VarioHeat heater.
A Truma Combi / Truma VarioHeat heater
must be installed to use the automatic cli-
mate control function.

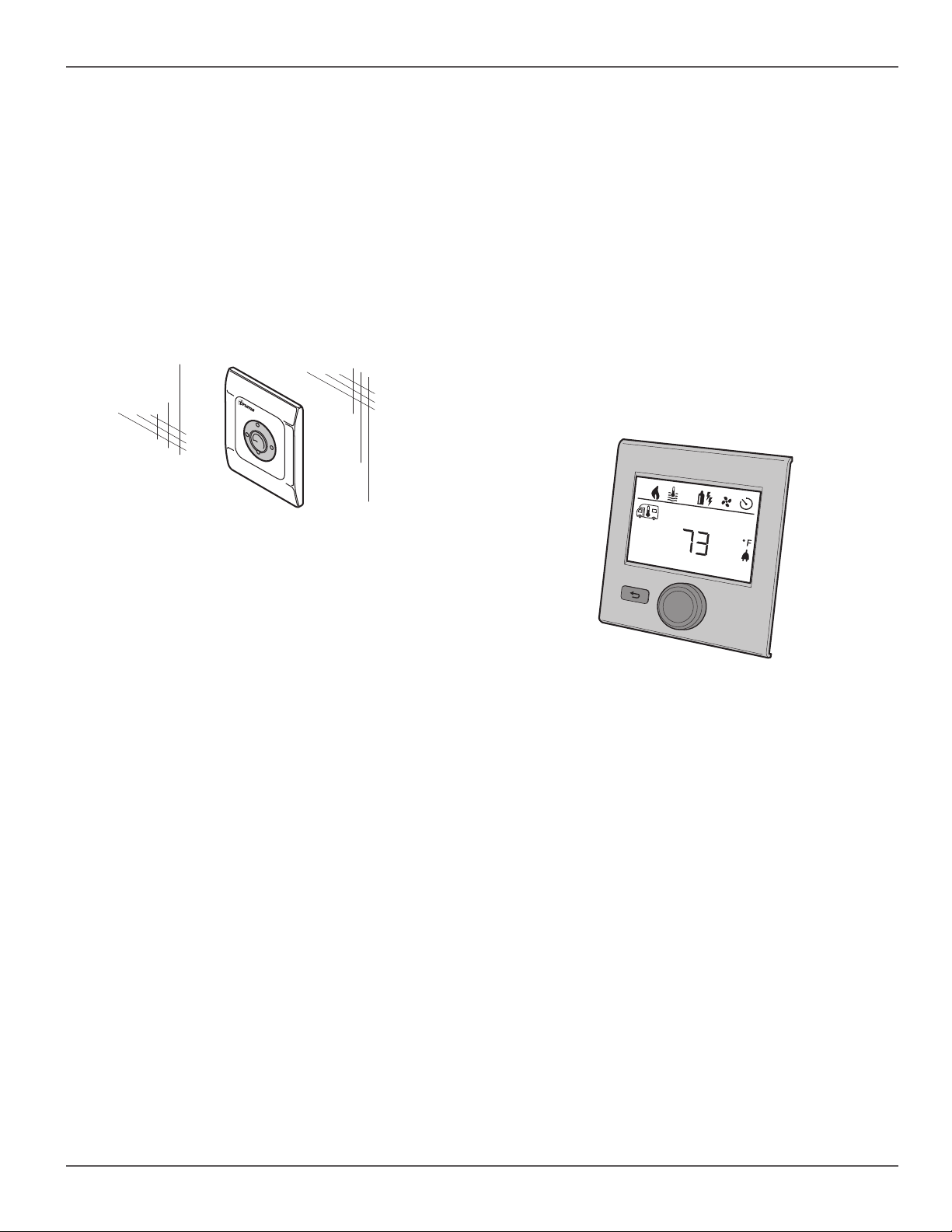

boost
auto
Fig. 25
The vehicle manufacturer installs the CP plus on
an inside wall.
Operation
See separate CP plus control panel operating
instructions.

16 40091-00680 · 00 · 07/2021
Start-Up Aventa eco / comfort
EN
5 Start-Up
5.1 Start-up information
The installer pairs the remote control and the
air conditioning system.
If a new or replacement remote control is re-
quired, it must be paired with the IR receiver.
Before switching on, ensure that the camp-
site’s power supply fuse protection is ade-
quate for the total power requirements of the
vehicle.
To perform the individual switching com-
mands the remote control must be pointed at
the IR receiver.
5.2 Pairing the remote control and
air conditioning system
Insert batteries in the remote control.
The Setup icon flashes.
Perform reset if the Setup icon does not flash:
Press the RESET button for 3 seconds,
with a pen, for example.
All icons are shown briefly on the display.
The Setup icon flashes.
Aim the remote control at the IR receiver of
the corresponding air conditioning system or
climate zone.
Press and hold the SETUP button. Observe
the IR receiver.
When the green LED on the IR receiver flash-
es, release the SETUP button.
The remote control has been paired with the
air conditioner.
The setup icon goes out and the air condi-
tioner starts in circulating air mode with the
fan at its lowest setting.
5.2.1 Just one air conditioner is installed
If only one air conditioner is installed in the vehi-
cle, “1” is displayed on the screen. If a different
number (2, 3, 4, 5) is displayed after pairing, the
SETUP button was depressed for too long.
Repeat pairing until “1” is displayed.
5.2.2 Several air conditioners are installed
(See: “6.12 Multi-zone mode” on page22)
The remote control is paired with the climate
zone just like an individual air conditioner is.
Each remote control and climate zone must be
paired separately.
The remote control sends the number of the
climate zones from 1 to 5 repeatedly to the
corresponding air conditioning system. When
the numbers are being counted, the send
icon flashes briefly 3 times on the display.
If the number matches the configuration of
the air conditioner, the green LED on the
IRreceiver flashes and you must immediately
release the SETUP button.
After pairing, the associated number of the cli-
mate zone (1 to 5) is displayed permanently on
the remote control.
6 Operation
6.1 Information on using air
conditioning systems
6.1.1 Check current consumption
The air conditioning system is configured for
current consumption up to 20 A.
Before switching on, check that the campsite
has adequate fuse protection (20 A).
6.1.2 Operation with generator or power
inverter
The air conditioner can be operated with a pow-
er inverter or generator. The following specifica-
tions are recommended:
• Power inverter type: Pure sine-wave voltage
• Nominal voltage: 110V - 130V AC
• Phase: 1
• Frequency: 60Hz. +/- 5%
• Inrush current capability: 250 ms with 115V /
60ARMS.
• Loads: ohmic and inductive
• Recommended power: min. 3000 W
Truma does not define the size of the gener-
ator in recreational vehicles. When sizing the
generator, the total power consumption of
your RV must be considered. Generators will

40091-00680 · 00 · 07/2021
OperationAventa eco / comfort
17EN
lose power at high altitudes and if they are
not maintained regularly.
NOTICE
The wrong power supply can cause
damage to and malfunctions in the
air conditioner.
With regard to the power supply, use
only sources with a pure sine wave
(e.g. voltage transformer, generator)
and without voltage spikes.
6.1.3 Incline
To prevent the compressor running dry, which
will result in premature wear and tear, the air
conditioner must not be operated at a side an-
gle of more than 8% (4.5°).
NOTICE
Damage caused by parking the vehi-
cle at an angle.
It cannot be ensured that the condensate
will drain. The service life and functions of
the compressor will be adversely aect-
ed.
Park the vehicle at a maximum lateral
and longitudinal angle of 8%.
6.1.4 Reduce heat radiation
To save power and cool the living area quicker:
Park the vehicle in the shade.
Close blinds or curtains.
Clean the vehicle roof regularly, as dirty roofs
heat up more.
6.1.5 Optimize interior climate
To ensure a healthy interior climate the differ-
ence between the inside temperature and the
outside temperature should not be set too high.
The circulated air is cleaned and dried during
operation. A pleasant interior climate is gener-
ated by drying the high-humidity air, even with
low differences in temperature.
Ventilate the vehicle thoroughly before oper-
ating the air conditioner, to remove accumu-
lated hot air from the vehicle.
Keep all doors and windows closed during
cooling mode, so condensation does not
form on the air distributor.
Direct the air flow in the room so it keeps the
air in the room moving.
6.1.6 Settings for fast cooling
• Set fan level to high
• Set front/rear air distribution to medium
• Set floor/ceiling air distribution to ceiling
(See: “6.13 Set air flow” on page23)

18 40091-00680 · 00 · 07/2021
Operation Aventa eco / comfort
EN
6.2 Switch air conditioner on and
off
The air conditioner can be switched on and off
via the remote control.
The air conditioner can also be controlled
with a control panel installed in the vehicle,
such as the CP plus, which is available as
an option. If a third-party control panel is in-
stalled, read the operating instructions.
If the remote control is not at hand or the bat-
teries are low, the air conditioner can also be
switched on and off manually via a button on
the IR receiver. The air conditioner runs in cool-
ing mode with a low fan setting.
6.2.1 Switch air conditioner on (remote
control)
Press the ON/OFF button on the remote
control.
The set icons are shown on the remote con-
trol’s display.
The green LED on the IR receiver flashes
briefly.
The air conditioner is switched on.
The last settings are active.
6.2.2 Switch air conditioner off (remote
control)
Press the ON/OFF button on the remote
control.
Only the time is then shown on the remote
control’s display.
The green LED on the IR receiver flashes
briefly.
The air conditioner is switched off.
6.2.3 Switch air conditioner on (buttons)
Press the ON/OFF button on the IR receiver
(Fig. 21-3) for one second, e.g. with a pen.
The green LED on the IR receiver flashes
briefly.
The air conditioner is switched on.
The air conditioner starts with the following
settings: Cooling mode, fan: low, tempera-
ture: 22°C / 72°F.
6.2.4 Switch air conditioner off (buttons)
Press the ON/OFF button on the IR receiver
(“Fig. 21” on page14) for one second, e.g.
with a pen.
The green LED on the IR receiver flashes
briefly.
The air conditioner is switched off.
6.3 Operating modes
The air conditioner operates in the following
modes:
Icon Operating mode
Cooling mode
Automatic mode
Circulating air mode
Dehumidify
Night mode
6. 3.1 Set operating mode
Press the MODE button one or more
times.
The desired operating mode is shown on the
display with the corresponding icons.
The green LED on the IR receiver flashes
briefly.
The desired operating mode is set.
6.3.2 Cooling mode
The room air is dehumidified and cooled in the
cooling mode. The compressor switches off
when the room temperature set on the remote
control is reached.
The circulated air fan continues running for
ventilation.
If the set room temperature is exceeded, the air
conditioner automatically switches to cooling
mode again.
The air is dehumidified during the cooling
process. If the air humidity is very high when
the cooling process in the vehicle begins,
condensation can form on the bottom of
the air distributor. Therefore keep doors and

40091-00680 · 00 · 07/2021
OperationAventa eco / comfort
19EN
windows closed and select the highest oper-
ating level.
6.3.3 Automatic mode
In automatic mode, in addition to cooling mode,
the fan setting is selected from four levels ac-
cording to the room temperature.
6.3.4 Circulating air mode
In the circulating air mode the interior air is cir-
culated and cleaned by the filters.
6.3.5 Night mode
In night mode, interior and exterior fans run at
low speed and therefore especially quiet.
Night mode deactivates the selected fan set-
ting (low, medium, high) and activates cooling
mode.
Press the “NIGHT” button.
The cooling mode and night mode icons
are shown on the display.
The green LED on the IR receiver flashes
briefly.
Night mode is set.
Press the button again to switch Night mode
off. The air conditioner is then operated with the
previous settings again.
6.3.6 Dehumidify
Dehumidify mode reduces humidity in the
room. The selected fan level setting (low, me-
dium, high) is deactivated and cooling mode is
activated.
Press the DEHUMIDIFY button.
The cooling mode and dehumidify icons
are shown on the display.
The green LED on the IR receiver flashes
briefly.
The air conditioner dehumidifies the room.
Press the button again to switch dehumidify
mode off. The air conditioner is then operated
with the previous settings.
6.4 Adjust fan
The interior air fan has three operating levels.
Icon Operating level
Low
Medium
High
Press the FAN button for the desired oper-
ating level one or more times.
The fan’s desired operating level is shown on
the display.
The green LED on the IR receiver flashes
briefly.
The desired operating level is set.
In the automatic mode the FAN button
has no function.
6.5 Set temperature unit
The temperature on the display can be shown in
degrees Fahrenheit (°F) or degrees Celsius (°C).
Press the TEMP and TEMP buttons at
the same time.
The temperature display changes between
°F and °C.
6.6 Set the room temperature
The room temperature can be set in a range
from 62°F / 16°C to 88°F / 31°C in steps of
one degree.
Set the room temperature with the tempera-
ture selection buttons, TEMP and TEMP
.
The desired room temperature is shown on
the display.
The green LED on the IR receiver flashes
briefly.
The desired room temperature is set.

20 40091-00680 · 00 · 07/2021
Operation Aventa eco / comfort
EN
6.7 Set clock
After replacing the battery, when changing to or
from daylight saving time, or when changing to
a different time zone, you have to set the time
manually. If a timer is active, the time cannot be
changed.
Press the TIME button.
The time is shown flashing on the display.
Set the current hour with the HOURS and
HOURS buttons.
Set the current minute with the MIN and
MIN buttons.
Press the TIME button again or wait ap-
prox. 10 seconds.
The time is shown on the display
The time is set.
The clock shows 12 am at midday. At mid-
night it shows 00:00 am.
6.8 Set timer
Two timers can be programmed.
• Timer ON
The air conditioner is switched off. The time
set in the Timer determines when the air con-
ditioner is switched on.
• Timer OFF
The air conditioner is switched on. The time
set in the Timer determines when the air con-
ditioner is switched off.
The Timer can be set in a range of minimum
15 minutes to maximum 24 hours. Times set in
the Timer of less than 15 minutes are rounded
up to 15 minutes.
Only one Timer can be active at one time.
If a timer is active, all buttons except
ON/OFF , RESEND , TIMER and TIMER
have no function.
Times set in the Timer are only sent to the air
conditioner when the TIMER or TIMER
buttons have been pressed.
If the remote control goes to stand-by mode
after approx. one minute and a timer is active,
then, next to the current time, the Timer set
time is shown on the display with the corre-
sponding Timer ON or Timer OFF icons.
When the timer has been programmed, no fur-
ther communication between the remote con-
trol and the IR receiver is required for the Timer
function to operate.
The remote control can be placed after the
programming in the holder or in a drawer, for
example.
6. 8.1 Program Timer ON
Switch the air conditioner on with the remote
control.
The air conditioner runs with the last settings
made.
Set the desired operating mode and room
temperature.
Press the TIMER button.
The Timer ON icon is shown on the display.
The Timer flashes.
Set the Timer set time with the HOURS
and HOURS buttons.
Set the minutes with the MIN and MIN
buttons.
Confirm the setting with the TIMER
button.
The time set in the Timer is shown on the dis-
play with the ON icon.
The time set in the Timer is sent to the air
conditioner.
The green LED on the IR receiver flashes
briefly.
The air conditioner switches off and the Timer
starts.
Wait. After approx. one minute the remote
control goes to stand by. If the ON/OFF
button is pressed after Timer programming,
the air conditioner switches on again and the
time set in the Timer is deleted.
When the time set for Timer ON is reached, the
air conditioner starts automatically with the pre-
viously selected settings.
