TSL Horti Tech ROI-E680 User manual

ROI-E680
LED user manual
Installation and Operating Instructions

introductions:
PLEASE READ
THESE INSTRUCTIONS
BEFORE USING
THE PRODUCT

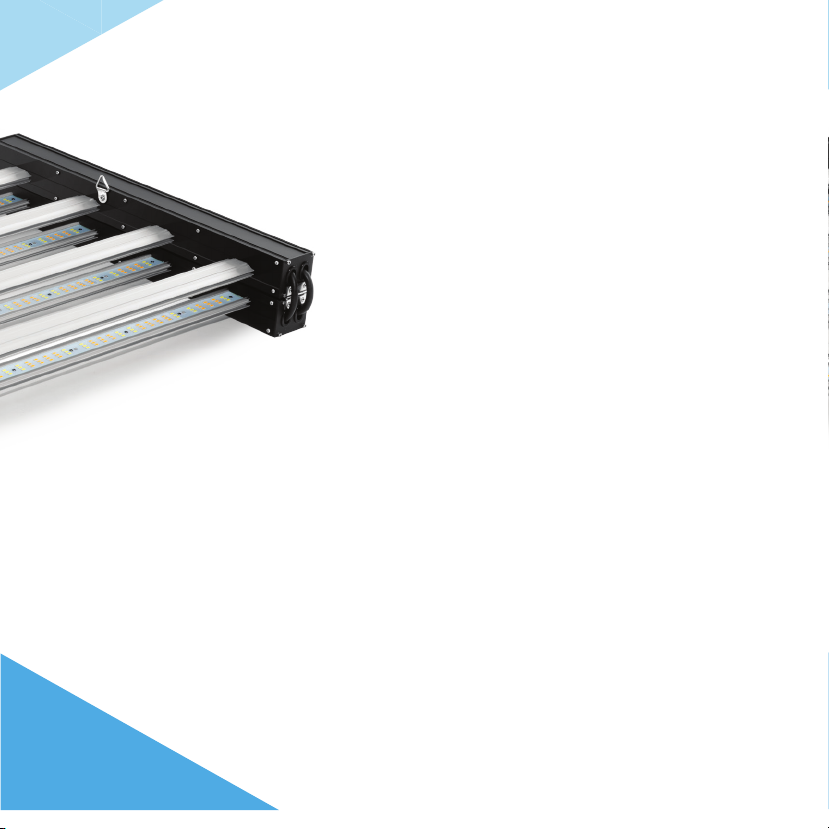

Thank you for purchasing the ROI-E680 system.The Roi-E680
Horticulture LED System. An inspired collaboration between two
of the most respected lighting companies in horticulture industry.
TSL Horti Tech and Grower’s Choice have joined forces with their
years of innovative experience to create this high performance
and cost-effective lighting solution for commercial horticulture.
01
02
Technical
Specifications:
Light Source
Spectrum
PPF
Input Power
Efficacy
Fixture Dimension | Wright
Mounting Height
Thermal Management
Dimming
Light Distribution
Lifetime
Power Factor
Certifications
Warranty
≥6” (15.2cm) Above Canopy
Passive
0-10V
120°
L90: >54,000 hrs
>90%
IP65, ETL, CE
3 Years Standard Warranty
LED
GC-3K Full Phase
1700 μmol/s
680W
2.5 μmol/s
42.4” L x 42” W x 2.4” H | 30lbs
107.7cm L x 106.7cm W x 6.2cm H | 13.6kg
SPECIFICATIONS
MAX AMPERAGE BY VOLTAGE SERVICE
VOLTAGE 120V 208V 240V 277V
AMPERAGE 5.872A 3.346A 2.945A 2.618A
2.4”(6.2CM)
42”(106.7CM)
42”(106.7CM)
42.4”(107.7CM)
* PPF calculations complied using our
in-house integrating sphere measurements
and typical spectroadiometric data for
each LED to determine the fixture perfor-
mance. Actual photometric results may
vary within the LED's manufacturer's bin
tolerance.
* Wattage values are typical expected
values. TSL Horti Tech maintains a
tolerance of +/- 10% range on flux and
power consumption. Target light level can
vary from projected levels depending on
ambient temperature, room reflections
values, and other conditions.

introductions:
PLEASE READ
THESE INSTRUCTIONS
BEFORE USING
THE PRODUCT
Thank you for purchasing the ROI-E680 system.The Roi-E680
Horticulture LED System. An inspired collaboration between two
of the most respected lighting companies in horticulture industry.
TSL Horti Tech and Grower’s Choice have joined forces with their
years of innovative experience to create this high performance
and cost-effective lighting solution for commercial horticulture.
01
02
Technical
Specifications:
Light Source
Spectrum
PPF
Input Power
Efficacy
Fixture Dimension | Wright
Mounting Height
Thermal Management
Dimming
Light Distribution
Lifetime
Power Factor
Certifications
Warranty
≥6” (15.2cm) Above Canopy
Passive
0-10V
120°
L90: >54,000 hrs
>90%
IP65, ETL, CE
3 Years Standard Warranty
LED
GC-3K Full Phase
1700 μmol/s
680W
2.5 μmol/s
42.4” L x 42” W x 2.4” H | 30lbs
107.7cm L x 106.7cm W x 6.2cm H | 13.6kg
SPECIFICATIONS
MAX AMPERAGE BY VOLTAGE SERVICE
VOLTAGE 120V 208V 240V 277V
AMPERAGE 5.872A 3.346A 2.945A 2.618A
2.4”(6.2CM)
42”(106.7CM)
42”(106.7CM)
42.4”(107.7CM)
* PPF calculations complied using our
in-house integrating sphere measurements
and typical spectroadiometric data for
each LED to determine the fixture perfor-
mance. Actual photometric results may
vary within the LED's manufacturer's bin
tolerance.
* Wattage values are typical expected
values. TSL Horti Tech maintains a
tolerance of +/- 10% range on flux and
power consumption. Target light level can
vary from projected levels depending on
ambient temperature, room reflections
values, and other conditions.

Safety
Warnings:
The ROI series LED system is
passively cooled with absolutely
no moving components. Do not
try to open or disassemble the
fixture, it contains no service
parts inside. Doing so may
cause harm to the fixture and
void warranty.
03
04
• Always adhere to the local rules and
regulations when installing or using the fixture.
• Wearing protective gloves and glasses is
recommended during installation.
• Always disconnect from the mains before
performing any maintenance to the fixture.
• The fixture will get hot during operation. Do
not touch while the light is on. Keep this
product away from children.
• Always allow at least 10 minutes for the
fixture to cool down before handling.
• Do not touch the LED diodes.
• Keep the power cord away from hot
surface.
• Do not plug this system into a supply
voltage other than what is instructed on
the fixture.
• Do not use the fixture when the power
cord is damaged.
• Do not use the fixture when the unit has
been dropped, or its enclosure or bars are
damaged.
WARNING
Risk of electrical shock.
To reduce the possibility
of serious injury, always
take the proper precautions
and unplug the fixture
before moving or cleaning.
CAUTION
To reduce the risk of
overheating or fire, never
place operating fixtures
face down on a flush
surface. Always allow for
adequate ventilation of
fixtures and power supplies.
CAUTION – RISK OF PERSONAL INJURY
Disconnect power before servicing or installing luminaire. Lighted fixture
may be hot. To reduce risk of injury, turn off or disconnect power and
allow to cool before handling. Fixture must be grounded in accordance
with appropriate codes. Failure to do so may result in serious injury or
death. Be sure all power is off prior to installing fixture.
CAUTION
LED and heat sink surfaces
may be hot. Allow sufficient
cooling time before handling.
CAUTION
To prevent eye damage,
avoid looking directly at the
unshielded LEDs.
WARNING
Light bars and power supply are
splash-proof but not waterproof. In the
event that the light bar becomes
submersed, first disengage the circuit
breaker, then unplug the fixture before
proceeding to remove from water.

Safety
Warnings:
The ROI series LED system is
passively cooled with absolutely
no moving components. Do not
try to open or disassemble the
fixture, it contains no service
parts inside. Doing so may
cause harm to the fixture and
void warranty.
03
04
• Always adhere to the local rules and
regulations when installing or using the fixture.
• Wearing protective gloves and glasses is
recommended during installation.
• Always disconnect from the mains before
performing any maintenance to the fixture.
• The fixture will get hot during operation. Do
not touch while the light is on. Keep this
product away from children.
• Always allow at least 10 minutes for the
fixture to cool down before handling.
• Do not touch the LED diodes.
• Keep the power cord away from hot
surface.
• Do not plug this system into a supply
voltage other than what is instructed on
the fixture.
• Do not use the fixture when the power
cord is damaged.
• Do not use the fixture when the unit has
been dropped, or its enclosure or bars are
damaged.
WARNING
Risk of electrical shock.
To reduce the possibility
of serious injury, always
take the proper precautions
and unplug the fixture
before moving or cleaning.
CAUTION
To reduce the risk of
overheating or fire, never
place operating fixtures
face down on a flush
surface. Always allow for
adequate ventilation of
fixtures and power supplies.
CAUTION – RISK OF PERSONAL INJURY
Disconnect power before servicing or installing luminaire. Lighted fixture
may be hot. To reduce risk of injury, turn off or disconnect power and
allow to cool before handling. Fixture must be grounded in accordance
with appropriate codes. Failure to do so may result in serious injury or
death. Be sure all power is off prior to installing fixture.
CAUTION
LED and heat sink surfaces
may be hot. Allow sufficient
cooling time before handling.
CAUTION
To prevent eye damage,
avoid looking directly at the
unshielded LEDs.
WARNING
Light bars and power supply are
splash-proof but not waterproof. In the
event that the light bar becomes
submersed, first disengage the circuit
breaker, then unplug the fixture before
proceeding to remove from water.

05
06
Contents:
• ROI-E680 LED System
• 9’ Connecting Cable
• Information Page
• User Manual
Not Included:
• Carabiner Cables
• Controller
• Installation kit
• Glasses

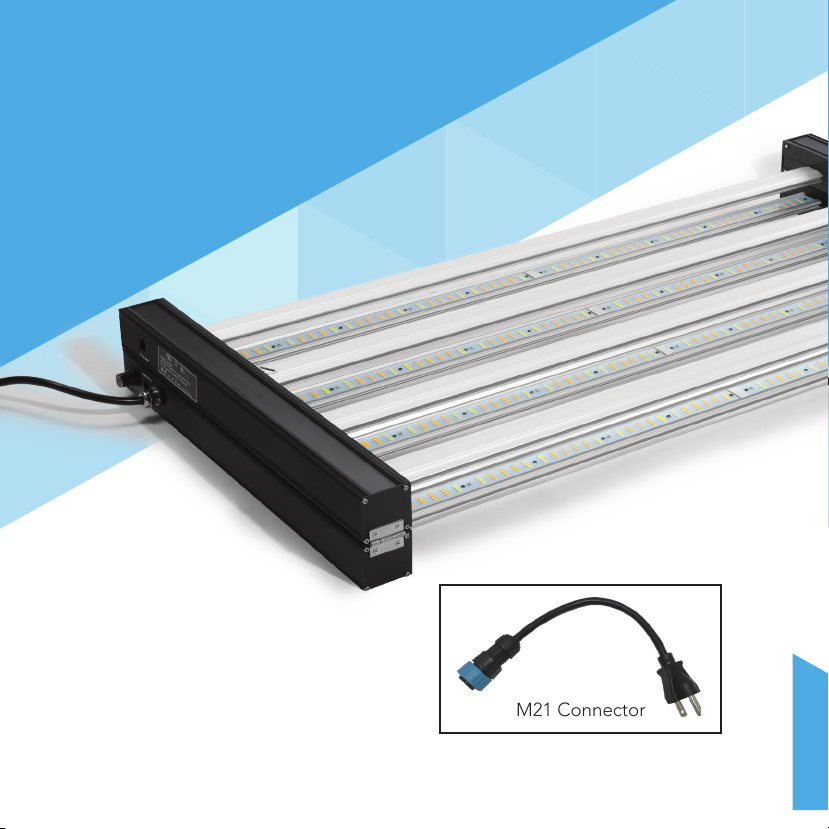

M21 Connector

05
06
Contents:
• ROI-E680 LED System
• 9’ Connecting Cable
• Information Page
• User Manual
Not Included:
• Carabiner Cables
• Controller
• Installation kit
• Glasses
M21 Connector

installation:
• Switch off mains power
• We always recommend using certified or qualified
installation professional to ensure optimal performance
and safety.
• Unbox fixture and place on flat, stable surface.
• Unfold the fixture with LEDs facing down.
07
08
• Warning: Do not handle the fixture using the LED bars as it can result
damage to the light and performance.
Only lift from the primary fixture structure as shown below.
• The ROI Series can be mounted to the supporting structure or frame by suspend-
ing with carabiner cables (not provided) or other suspension means using the four
mounting rings on the fixture. Maximum fixture weight: 30 lbs
• Mount the light bars at least 8'' from the top of your canopy for optimal light
efficiency and uniformity. Always allow for adequate ventilation of fixture.
8”(20CM)

installation:
• Switch off mains power
• We always recommend using certified or qualified
installation professional to ensure optimal performance
and safety.
• Unbox fixture and place on flat, stable surface.
• Unfold the fixture with LEDs facing down.
07
08
• Warning: Do not handle the fixture using the LED bars as it can result
damage to the light and performance.
Only lift from the primary fixture structure as shown below.
• The ROI Series can be mounted to the supporting structure or frame by suspend-
ing with carabiner cables (not provided) or other suspension means using the four
mounting rings on the fixture. Maximum fixture weight: 30 lbs
• Mount the light bars at least 8'' from the top of your canopy for optimal light
efficiency and uniformity. Always allow for adequate ventilation of fixture.
8”(20CM)

09 10
Warranty:
TSL Horti Tech warrants the mechanical and electronic components of
their product to be free of defects in material and workmanship if
used under normal operating conditions for a period of three (3) years
from the original date of purchase. If the product shows any defects
within this period and that defect is not due to user error or improper
use, TSL Horti Tech shall, at its discretion, either replace or repair the
product using suitable new or reconditioned products or parts. TSL
Horti Tech arranty liability extends only to the replacement cost of the
product. In case TSL Horti Tech decides to replace the entire product,
the limited warranty shall apply to the replacement product for the
remaining initial warranty period.
TSL Horti Tech shall not be held responsible
for any damage caused by the operation of
the unit, be it incidental or consequential or
any type including, without limitation, damage
or injury caused to other products or
machinery or buildings. Nor will responsibility
be accepted for loss of time or profit, loss of
finished product, or for any inconvenience
caused in any way whatsoever.

09 10
Warranty:
TSL Horti Tech warrants the mechanical and electronic components of
their product to be free of defects in material and workmanship if
used under normal operating conditions for a period of three (3) years
from the original date of purchase. If the product shows any defects
within this period and that defect is not due to user error or improper
use, TSL Horti Tech shall, at its discretion, either replace or repair the
product using suitable new or reconditioned products or parts. TSL
Horti Tech arranty liability extends only to the replacement cost of the
product. In case TSL Horti Tech decides to replace the entire product,
the limited warranty shall apply to the replacement product for the
remaining initial warranty period.
TSL Horti Tech shall not be held responsible
for any damage caused by the operation of
the unit, be it incidental or consequential or
any type including, without limitation, damage
or injury caused to other products or
machinery or buildings. Nor will responsibility
be accepted for loss of time or profit, loss of
finished product, or for any inconvenience
caused in any way whatsoever.

TSL ROI-E680 LED System Instructions revised - January 11, 2019
Tel: [phone]
E-mail: [email protected]
Website: www.growersc.com
Address: 1500 S Milliken Ave, Suite B, Ontario, CA, 91761
