TT RC Sport Playerunknow's Battlegrounds PUBG Buggy User manual

Please read all the instructions and familiarize yourself with the product and its controls before operation.
1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model, its manual,
and its construction before assembly or operation. Adult supervision is necessary for children operating this model.
2. Always keep this instruction manual on hand during assembly and for operating reference.
3. Do not use a power screwdriver to install screws into plastic parts. A power screwdriver's high rotation speed can heat up the screw
being installed which can result in some melting of the plastic parts or stripped threads.
4. For best performance, it is important to make sure all the moving parts can move freely without binding.
5. This product, its parts, and its assembly tools can be harmful to your health. Always exercise extreme caution when assembling and
operating this product. Keep away from any high speed rotating parts during operation.
在您開始操作本產品之前，請詳閱本產品說明書。
1. 本產品為高性能模型產品非一般玩具，組裝與操作過程皆需由成人陪同。
請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。
2. 請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。
3. 請勿使用電動工具旋緊自攻螺絲於塑膠零件上，可能導致塑膠零件融化或滑牙。
4. 請檢視所有活動部位零件是否不受干涉、可靈活作動，以達車輛最佳性能。
5. 此項商品具有相當之危險性，於組裝、操控上的不熟悉都可能造成自身或他人的傷害。
STEP 1 DIFFERENTIAL 差速器 ------------------------------------- P3
STEP 2 GEAR BOX SET 齒輪箱組 -------------------------------- P4
STEP 3 MOTOR DRIVE SET 馬達傳動組 ------------------------- P5
STEP 4 REAR SUSPENSION 後擺臂 ------------------------------ P6
STEP 5 REAR SHOCKS 後避震器 --------------------------------- P6
STEP 6 EXHAUST PIPE 排氣管 ------------------------------------ P7
STEP 7 SERVO 伺服器 --------------------------------------------- P7
STEP 8 STEERING ROD 轉向拉桿 -------------------------------- P8
STEP 9 FRONT SUSPENSION 前擺臂 ----------------------------- P8
STEP 10 BODY ASSEMBLY 車主體 --------------------------------- P9
STEP 11 ESC AND RECEIVER 電子變速器與接收機 ------------- P10
STEP 12 DRIVER SET 駕駛人偶 ------------------------------- P10 . P11
STEP 13 ROLL CAGE 防滾籠 --------------------------------------- P13
STEP 14 SHOCK MOUNT 避震器架 -------------------------------- P14
STEP 15 FRONT SHOCKS 前避震器 -------------------------------- P15
STEP 16 FRONT STEERING KNUCKLE 前轉向輪座 --------------- P15
STEP 17 REAR KNUCKLE 後輪座 ---------------------------------- P16
STEP 18 TIRES AND WHEELS 輪胎與輪框 ------------------------ P16
STEP 19 TIRE 輪胎 -------------------------------------------------- P17
STEP 20 BATTERY 電池 ---------------------------------------------- P17
PARTS LIST 零件表 ---------------------------------------------- P18 . P19
Hex Driver Tool Set
( 1.5/2.0 )
六角板手組
SAFETY PRECAUTIONS 安全注意事項
2 >>>
INDEX 索引
TOOLS REQUIRED FOR ASSEMBLY 組裝維修工具
SYMBOL REFERENCE KEY 說明書符號說明
Build right and left assembly
組裝左和右配件
Build front and rear assembly
組裝前和後配件
Assemble the parts two times
組裝相同配件兩次
Assemble the parts four times
組裝相同配件四次
Xwrench
十字套筒

PG-21071
DIFFERENTIAL 差速器 STEP 1
<<< 3
M2x10mm x4
10x15x4mm x2
6x2.5mm x2
10x15x4
10x15x4
M2x10
M2x10
M2x10 M2x10
6x2.5 6x2.5
PG-21087
PG-21089
PG-21094
PG-21091
PG-21023
PG-21092
PG-21090
PG-21026
PG-21027
PG-21027
PG-21096

4 >>>
GEAR BOX SET 齒輪箱組 STEP 2
M2.5x6mm x3
M2.5x10
M2.5x10mm x5
M2.5x14mm x3
M2.5x6mm x1
M3x6mm x1
5x10x4mm x2
5x11x4mm x1
M2x8mm x1
M3x14mm x1
M2.5x10
M3x6
M3x14
M2.5x6M2.5x6
M2.5x6
M2.5x6
M2.5x10
M2.5x10
M2.5x14
M2.5x14
M2.5x14
M2x8
M2.5x10
5x10x4
5x10x4
5x11x4
M2.5x6
PG-21085
PG-21098
PG-21086 PG-21003
PG-21100
PG-21107
PG-21109
PG-21072
PG-21124
PG-21093
PG-21041
PG-21042
PG-21124
PG-21124
PG-21100
PG-21124
PG-21101
PG-21028
PG-21024

<<< 5
MOTOR DRIVE SET 馬達傳動組 STEP 3
M2.5x6mm x2
M2.5x12mm x4
M3x6mm x2
M3x10mm x2
M3x3mm x1
M2.5x6
M2.5x6
M3x6
M3x6
M3x10
M3x10
M2.5x12
M3x3M3x3
M2.5x12
Tighten the screws with one sheet of paper
inserted between both gears.
PG-21111
PG-21088
PG-21102
PG-21133
PG-21104
PG-21125
PG-21124
PG-21123
PG-21123
PG-21123
PG-21098
PG-21117
M2.5x12M2.5x12
M2.5x12M2.5x12

FRONT
REAR
6 >>>
REAR SUSPENSION 後擺臂
REAR SHOCKS 後避震器
STEP 4
STEP 5
36x2.5mm x2
M3x2.5x6x6mm x2
4x1.5mm x2
M2x8mm x6
REAR
REAR
FRONT
FRONT
M3x2.5x6x6
M2x8
M2x8
4x1.5
36x2.5
PG-21074
PG-21076
PG-21079
PG-21080
PG-21081
PG-21083
PG-21114
PG-21095
PG-21082
PG-21084
PG-21095
PG-21122
PG-21094
PG-21122

90
<<< 7

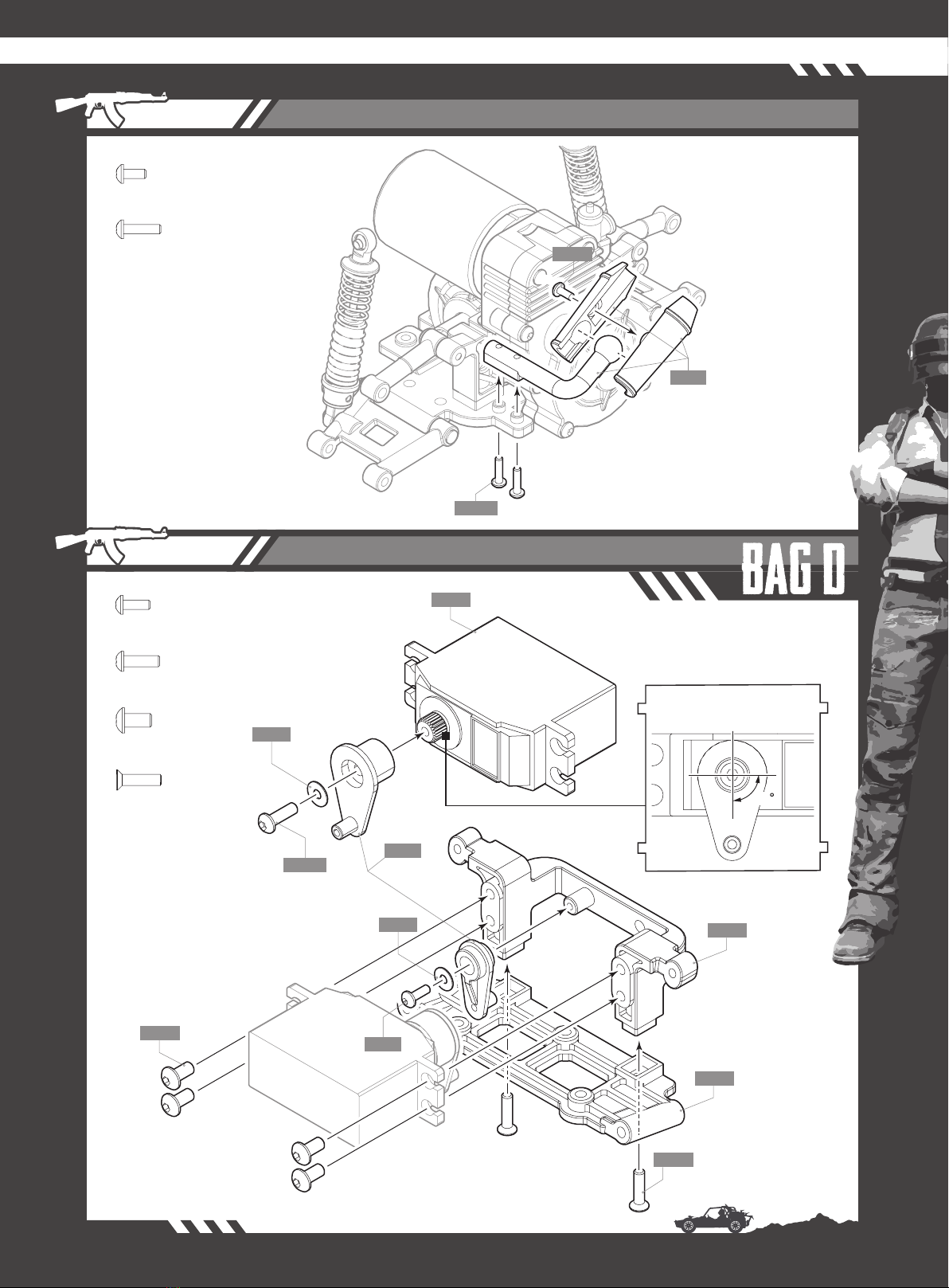

EXHAUST PIPE 排氣管
SERVO 伺服機
STEP 6
STEP 7
M2x5mm x1
M2x8mm x2
M2x6mm x1
M2.5x8mm x1
M3x6mm x4
M2.5x10mm x2
M2x8
M2.5x8
M3x6
M3x6
M3x6
M3x6
M2x6
M2.5x10
M2.5x10
M2x8
M2x5
Install when servo is in neutral
position.
PG-21100
PG-21117
PG-21119
PG-21126
PG-21130
PG-21123
PG-21123
PG-21095
PG-21102
PG-21099
PG-21110
PG-21127
PG-21127

8 >>>

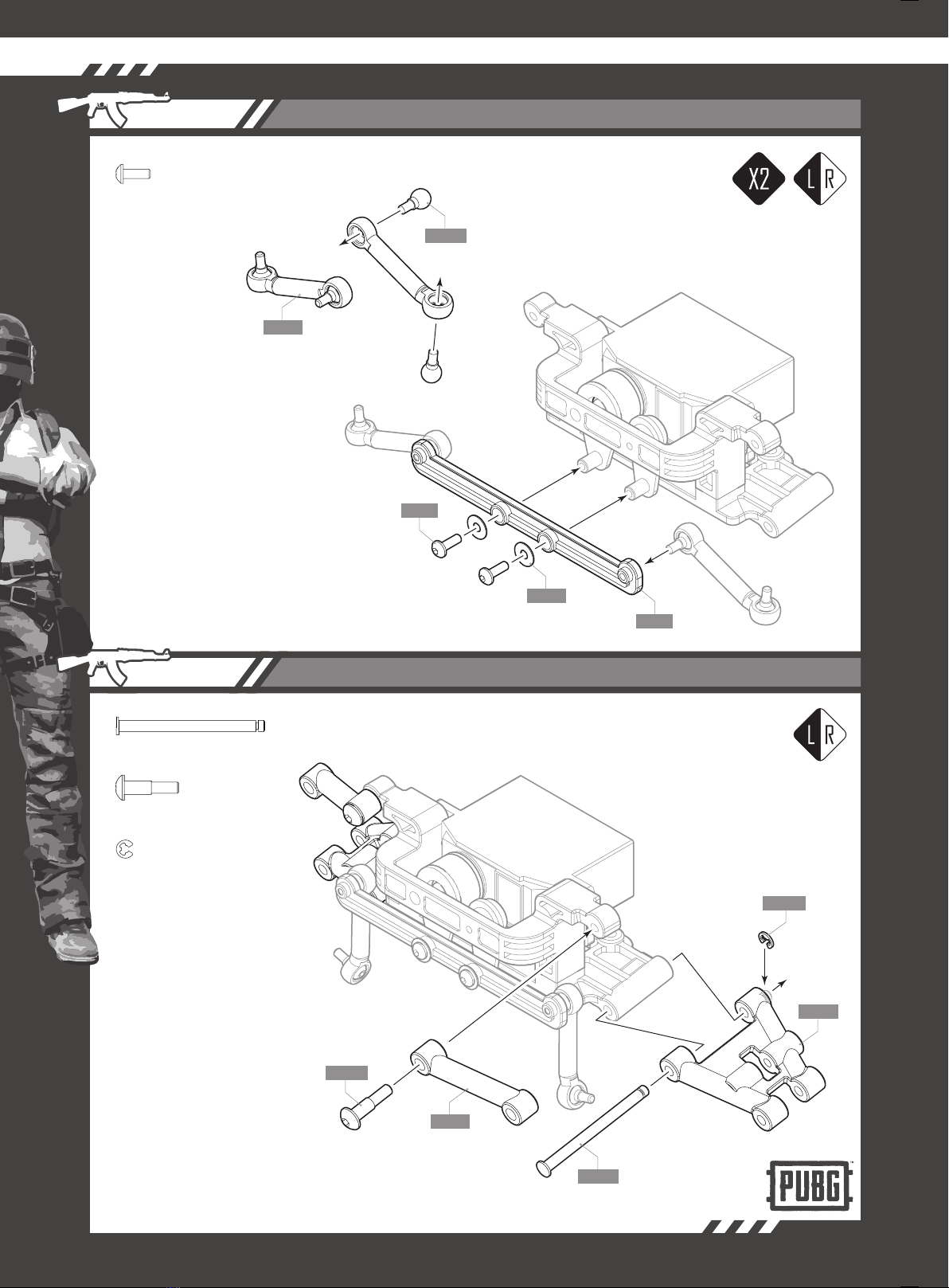

STEP 8
STEP 9
STEERING ROD 轉向拉桿
FRONT SUSPENSION 前擺臂
M2x6mm x2
32.4x2.5mm x2
M3x2.5x6x6mm x2
4x1.5mm x2
M2x6
M3x2.5x6x6 32.4x2.5
4x1.5
M2x6
PG-21074
PG-21077
PG-21079
PG-21122
PG-21122
PG-21122
PG-21127
PG-21110
PG-21119
PG-21094

<<< 9

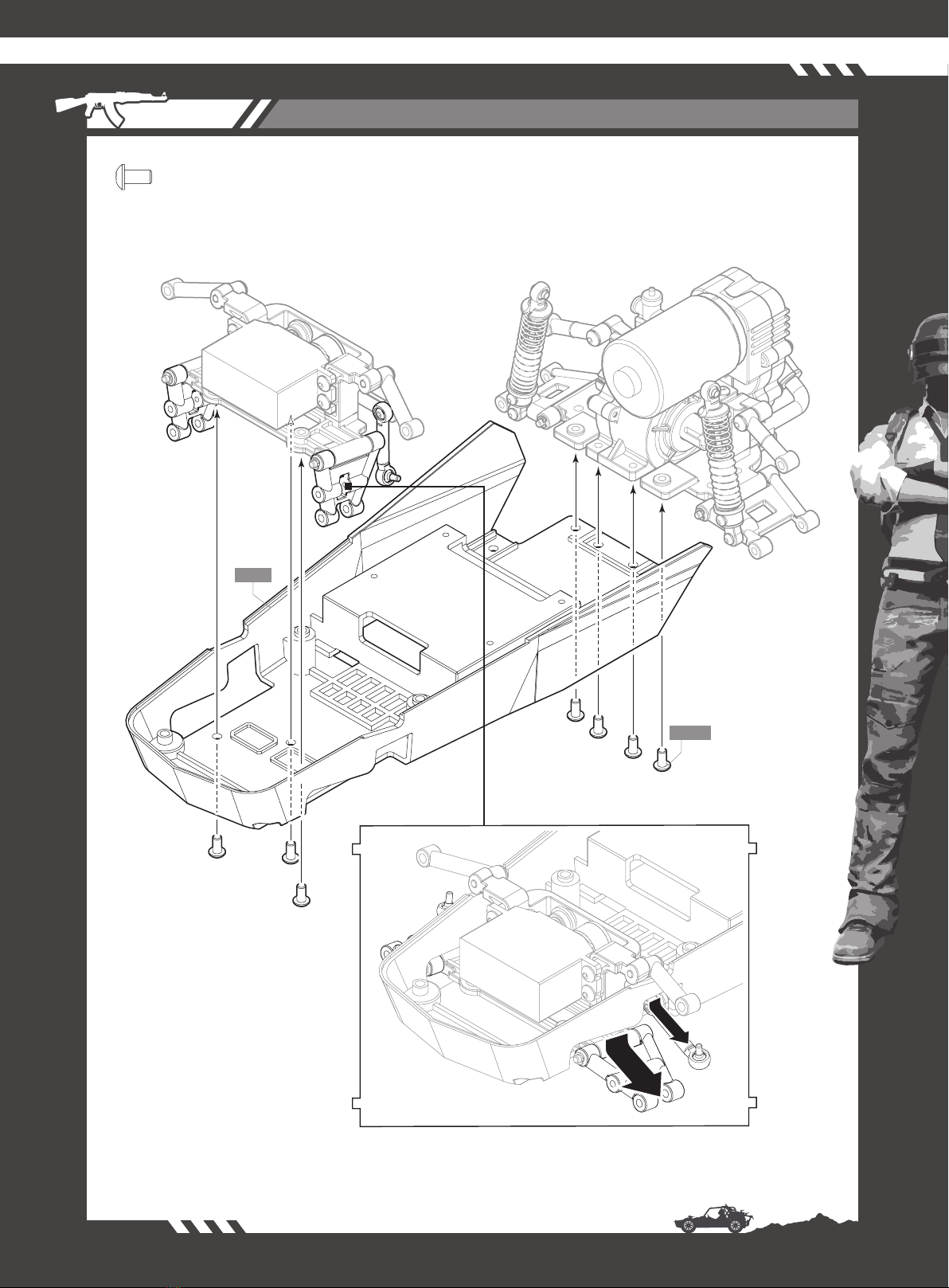

BODY ASSEMBLY 車主體 STEP 10
M3x6mm x7
M3x6 M3x6
M3x6
M3x6
M3x6
M3x6
M3x6
PG-21102
PG-21118

8810286 PUBG BUGGY 1/2
8810286 PUBG BUGGY 2/2
BA
A
B
C
C
10 >>>

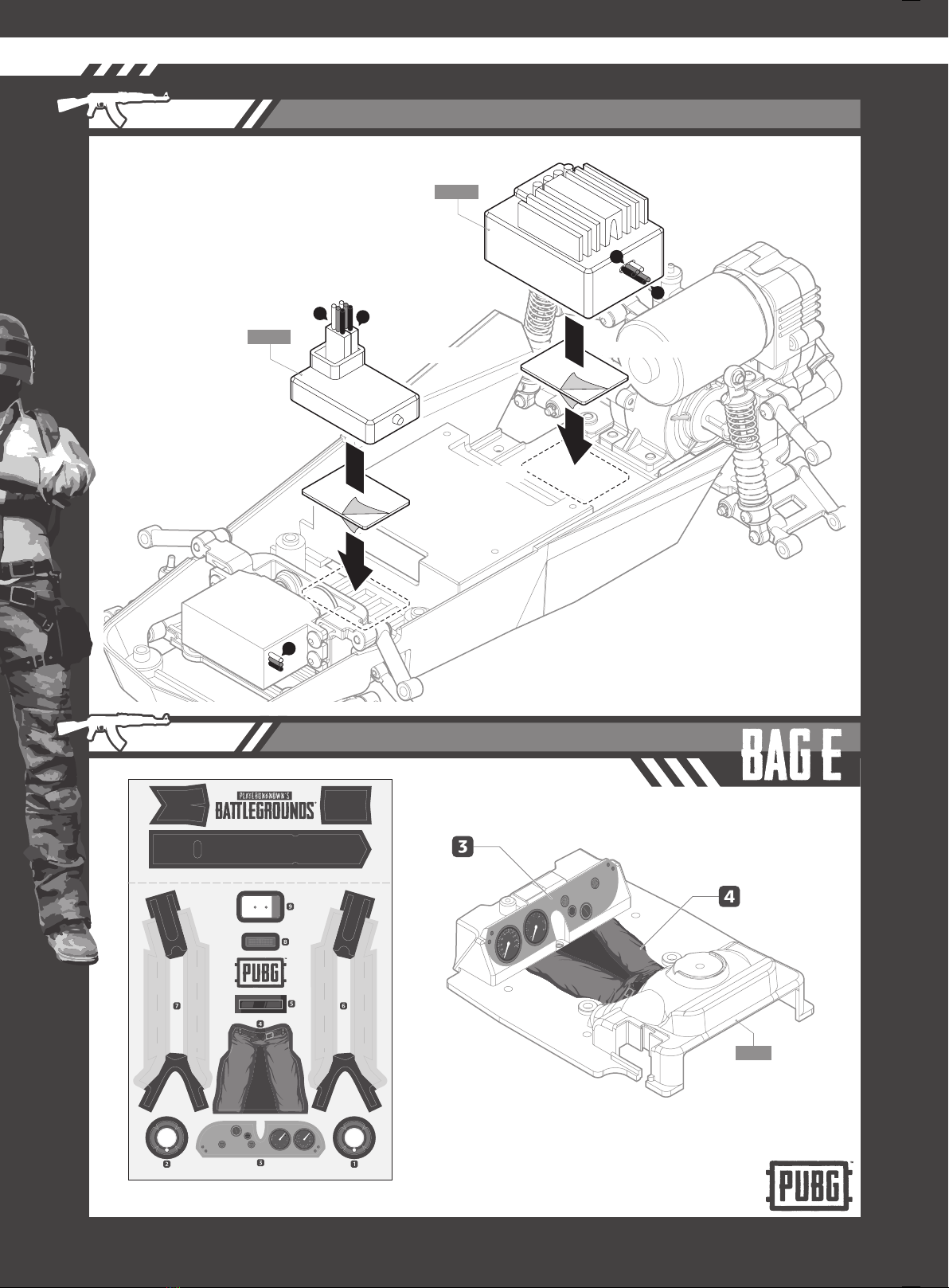

STEP 11
STEP 12
ESC AND RECEIVER 電子變速器與接收機
DRIVER SET 駕駛人偶
*Receiver is not included.
*ESC is not included.
2 Sided tape is not included.
2 Sided tape is not included.
PG-21039
PG-21037
PG-21117
PG-21129

8810286 PUBG BUGGY 1/2
8810286 PUBG BUGGY 2/2
BA
A
B
C
C
<<< 11

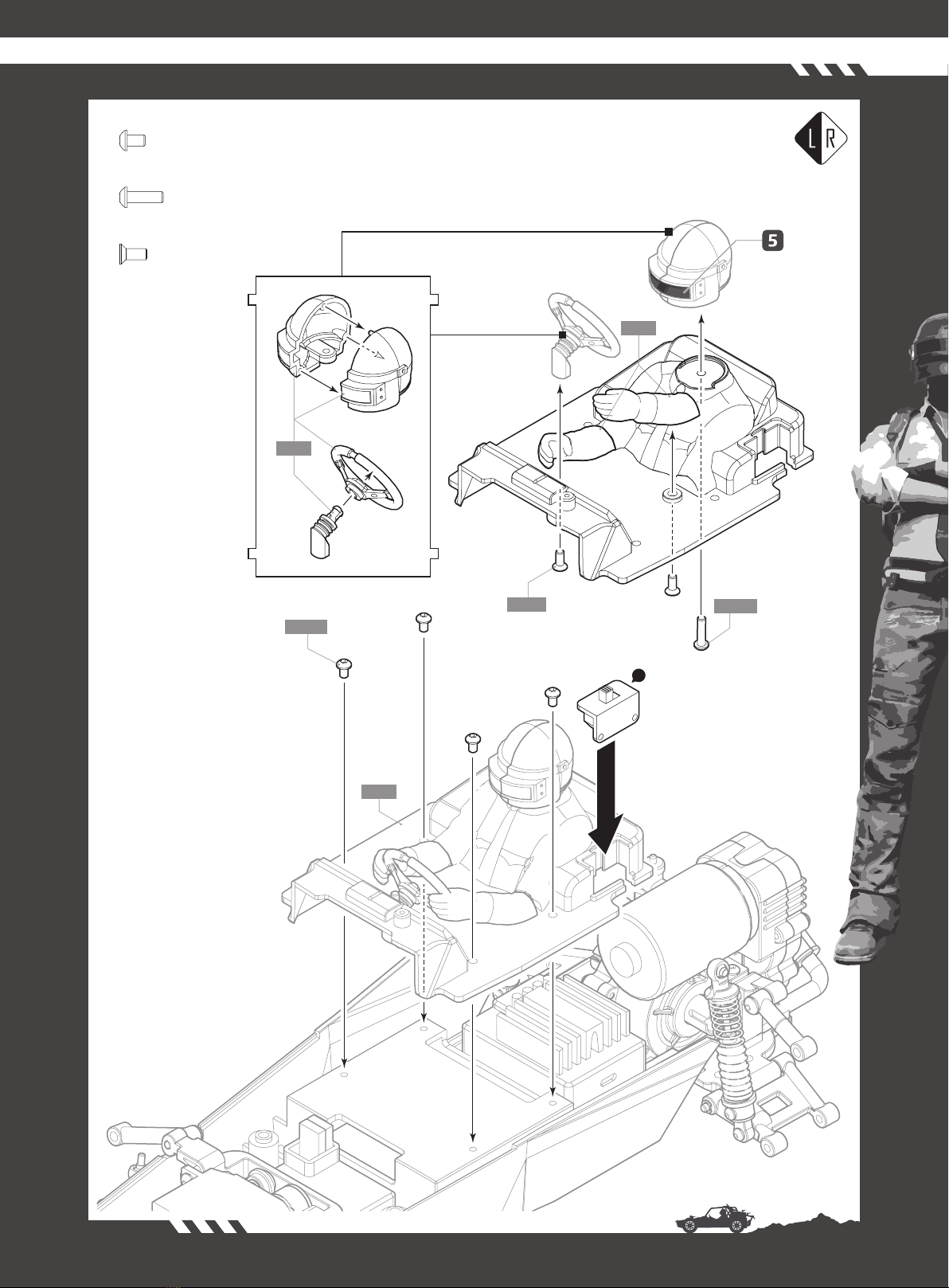

M2.5x4mm x4
M2.5x8mm x1
M2.5x6mm x3
M2.5x4
M2.5x4
M2.5x4
M2.5x4
M2.5x6
M2.5x6
M2.5x8
*Power switch
PG-21117
PG-21097
PG-21107 PG-21099
PG-21117
PG-21117

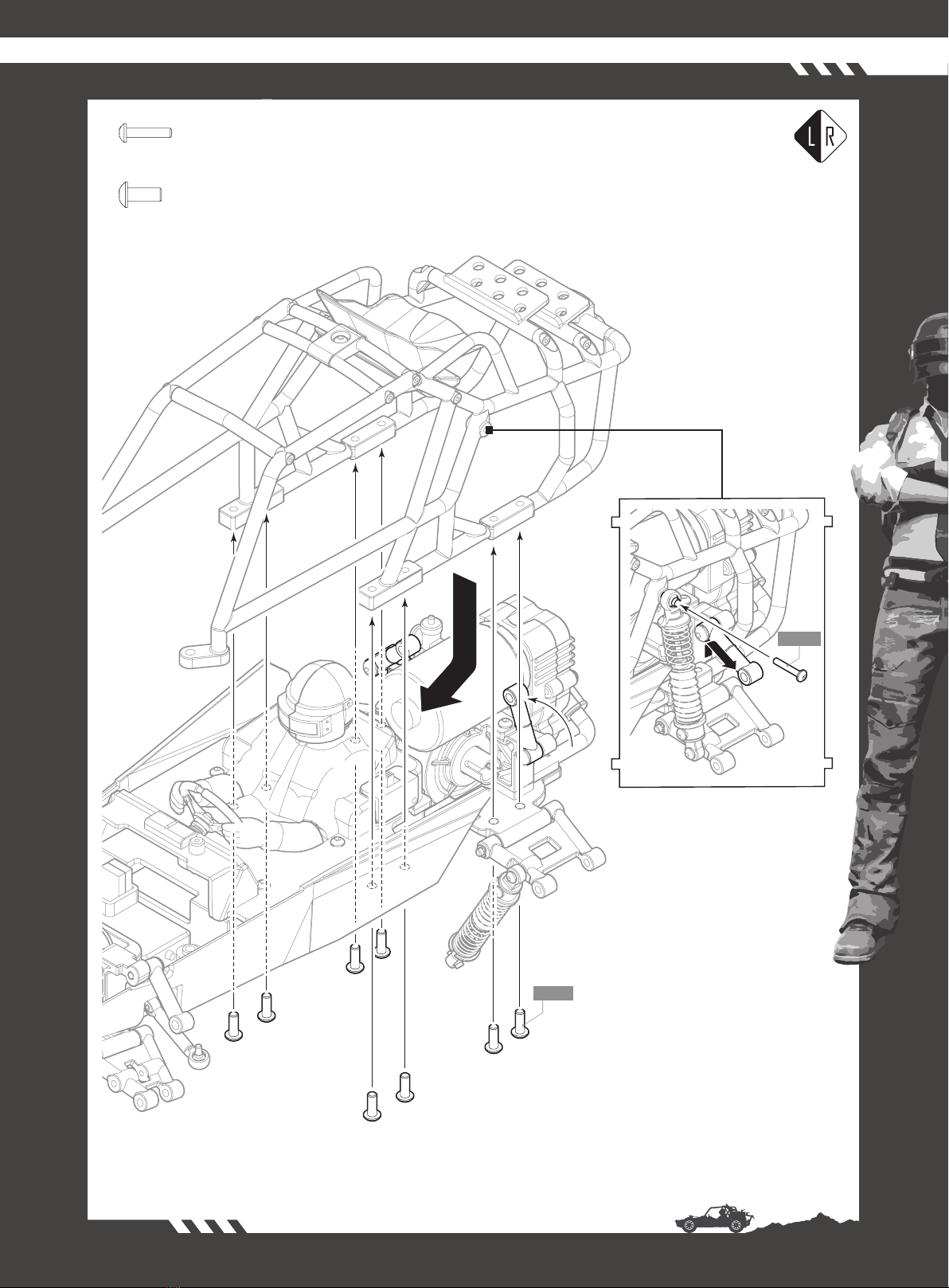

STEP 13 ROLL CAGE 防滾籠
M2.5x4mm x1
M2.5x6mm x1
M2x8mm x14
Fold in half
M2.5x4
M2.5x6
12 >>>
PG-21097
PG-21098
PG-21117
PG-21121
PG-21121
PG-21120
PG-21108
PG-21121
M2x8
M2x8
M2x8
M2x8
M2x8
M2x8
M2x8

M2x10mm x2
M3x8mm x8
M2x10
M3x8
M3x8
M3x8
M3x8
M3x8
M3x8
M3x8
M3x8
<<< 13
PG-21103
PG-21096

FRONT
BAG G STEP 5
STEP 14 SHOCK MOUNT 避震器架
M2x6mm x4
M3x12mm x2
M3x16mm x2
M2x6
M2x6
M2x6
M2x6
M3x16
M3x16
M3x12
M3x12
14 >>>
PG-21106
PG-21105
PG-21113
PG-21110
PG-21118
PG-21117

FRONT
BAG G STEP 5

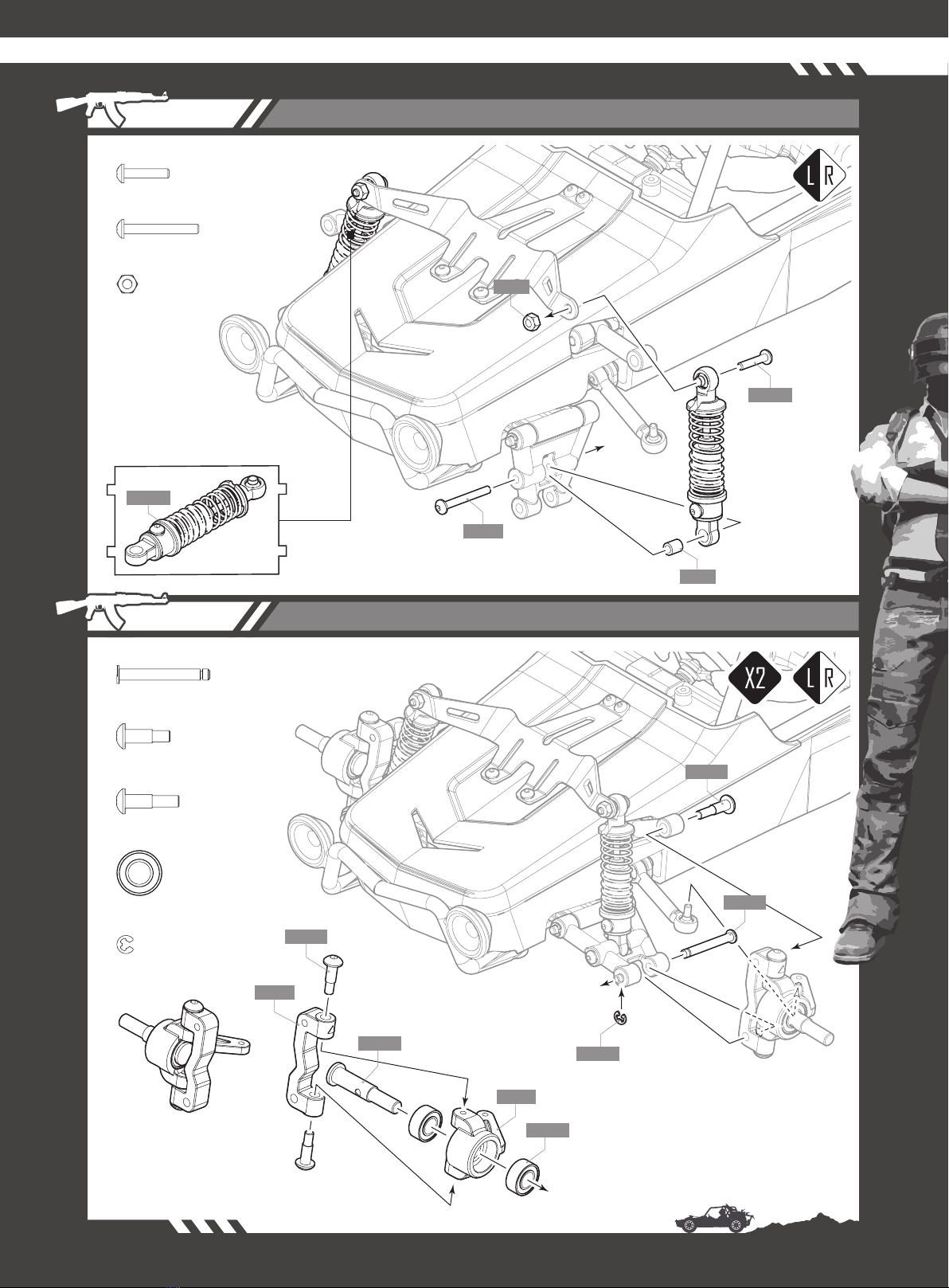

FRONT SHOCKS 前避震器
FRONT STEERING KNUCKLE 前轉向輪座
STEP 15
STEP 16
M2x10mm x2
M2x17mm x2
M2 x2
M2
M2x17
M2x10
5x10x4mm x4
20x2.5mm x2
M3x2.5x6x4mm x4
M3x2.5x6x6mm x2 M3x2.5x6x6
M3x2.5x6x4
4x1.5mm x2 20x2.5
4x1.5
M3x2.5x6x4
5x10x4
5x10x4
<<< 15
PG-21075
PG-21078
PG-21069
PG-21079
PG-21080
PG-21096
PG-21132
PG-21112
PG-21114
PG-21122
PG-21085
PG-21094
PG-21122

FRONT
REAR
FRONT REAR
LEFT
RIGHT
STEP 17
STEP 18
REAR KNUCKLE 後輪座
TIRES AND WHEELS 輪胎與輪框
M3x2.5x6x6
5x10x4
5x10x4
30x2.5mm x2
M3x2.5x6x6mm x2
5x10x4mm x4
4x1.5mm x2
30x2.5
4x1.5
16 >>>
PG-21073
PG-21079
PG-21070
PG-21075
PG-21122
PG-21085
PG-21094
Use instant bonding glue (CA)

FRONT
REAR
FRONT REAR
LEFT
RIGHT
TIRE 輪胎
BATTERY 電池
STEP 19
STEP 20
M2x10mm x4
M2x10
M4
M4 x4
*Battery is not included.
<<< 17
PG-21115
PG-21058
PG-21004
PG-21116
PG-21080
PG-21119 PG-21036

PG-21003 SPUR GEAR SHAFT PIN (2PCS)
>>> 中差齒固定軸 PIN 2X7.8 (2PCS)
PG-21004 WHEEL NUT PIN (4PCS)
>>> 輪胎轉接座 PIN (4PCS)
PG-21023 DIFF BEVEL GEAR 39T (1PC)
>>> 大齒輪 39T (1PC)
PG-21024 PINION GEAR 16T (1PC)
>>> 小齒輪 16T (1PC)
PG-21026 GEAR DIFF CASE (1PC)
>>> 差速殼 (1PC)
PG-21027 DIFFERENTIAL SET (1PC)
>>> 差速組 (1PC)
PG-21028 CENTER SPUR GEAR 56T (1PC)
>>> 中差齒 56T (1PC)
PG-21036 Li-ion 850mAh BATTERY (1PC)
>>> 850mAh 鋰鐵電池 T插(1PC)
PG-21037 BRUSHED WATERPROOF ESC (1PC)
>>> 防水電子變速器 (1PC)
PG-21039 2.4G RADIO SET (1SET)
>>> 2.4G 遙控器組 (1SET)
PG-21041 CENTER DIFF GEAR (1PC)
>>> 中差減速齒 (1PC)
PG-21042 BEARING 3x6x2.5 (2PCS)
>>> 軸承 3x6x2.5 (2PCS)
PG-21058 M4 LOCK NUT (4PCS)
>>> M4 尼帽 (4PCS)
PG-21059 USB CHARGER 7.4V (1PC)
>>> USB 充電線 7.4V( 輸出 500mAh) (1PC)
PG-21069 PUBG BUGGY FRONT WHEEL AXLE (2PCS)
>>> PUBG BUGGY 前輪軸 (2PCS)
PG-21070 PUBG BUGGY REAR OUTDRIVE (2PCS)
>>> PUBG BUGGY 後接杯 (2PCS)
PG-21071 PUBG BUGGY DIFF. OUTDRIVE (2PCS)
>>> PUBG BUGGY 差速接杯 (2PCS)
PG-21072 PUBG BUGGY GEAR SHAFT (4PCS)
>>> PUBG BUGGY 大直齒固定軸 (4PCS)
PG-21073 PUBG BUGGY REAR DOGBONE (2PCS)
>>> PUBG BUGGY 後狗骨 38mm (2PCS)
PG-21074 PUBG BUGGY ARMS PIN F/R (2PCS ea.)
>>> PUBG BUGGY 擺臂插銷 (2PCS ea.)
PART# DESCRIPTION 品名 PART# DESCRIPTION 品名
PG-21075 PUBG BUGGY KNUCKLE PIN F/R (2PCS ea.)
>>> PUBG BUGGY 輪座插銷 (2PCS ea.)
PG-21076 PUBG BUGGY SHOCK BALLEND SET (4PCS)
>>> PUBG BUGGY 避震器球頭 (4PCS)
PG-21077 PUBG BUGGY STEERING BALL END (4PCS)
>>> PUBG BUGGY 轉向拉桿球頭 (4PCS)
PG-21078 PUBG BUGGY C-HUB SCREW (4PCS)
>>> PUBG BUGGY C 座螺絲 (4PCS)
PG-21079 PUBG BUGGY LINK SCREW (8PCS)
>>> PUBG BUGGY 前後拉桿螺絲 (8PCS)
PG-21080 PUBG BUGGY COMPLETE SHOCKS SET (2PCS ea.)
>>> PUBG BUGGY 前後筒身完成組 ( 各兩隻 ) (2PCS ea.)
PG-21081 PUBG BUGGY FRONT SHOCK SHAFT (2PCS)
>>> PUBG BUGGY 前避震軸心 (2PCS)
PG-21082 PUBG BUGGY FRONT SHOCK SPRING (2PCS)
>>> PUBG BUGGY 前避震彈簧 - 紅色 (2PCS)
PG-21083 PUBG BUGGY REAR SHOCK SHAFT (2PCS)
>>> PUBG BUGGY 後避震軸心 (2PCS)
PG-21084 PUBG BUGGY REAR SHOCK SPRING (2PCS)
>>> PUBG BUGGY 後避震彈簧 - 紅色 (2PCS)
PG-21085 BALL BEARING 5X10X4 (4PCS)
>>> 5x10x4 防塵軸承 (4PCS)
PG-21086 BALL BEARING 5X11X4 (4PCS)
>>> 5x11x4 防塵軸承 (4PCS)
PG-21087 BALL BEARING 10X15X4 (4PCS)
>>> 10x15x4 防塵軸承 (4PCS)
PG-21088 18T PINION GEAR (1PC)
>>> 18T 馬達齒 (1PC)
PG-21089 14T GEAR (2PCS)
>>> 14T 大傘齒 (2PCS)
PG-21090 SHIM 5x11.5x0.2 (3PCS)
>>> 5mm 大傘齒墊片 5x11.5x0.2 (3PCS)
PG-21091 PUBG BUGGY DIFF. SHIM (1PC)
>>> PUBG BUGGY 差速墊片 (1PC)
PG-21092 O-RINGS 5X7.5X1.5 (5PCS)
>>> O環5x7.5x1.5(紅色)
(5PCS)
PG-21093 PIN 3.0x13.8 (4PCS)
>>> PIN 3.0x13.8mm (4PCS)
PG-21094 E-CLIPS 1.5mm & 2.5mm (4PCS ea.)
>>> E扣組 (1.5mm & 2.5mm) (4PCS ea.)
18 >>>

PG-21115 PUBG BUGGY FRONT TIRE COMPLETE SET (2 SETS)
>>> PUBG BUGGY 前輪胎完成組 (2入) (2 SETS)
PG-21116 PUBG BUGGY REAR TIRE COMPLETE SET (2 SETS)
>>> PUBG BUGGY 後輪胎完成組 (2入) (2 SETS)
PG-21117 PUBG BUGGY DRIVER ACCESSORIES (1SET)
>>> PUBG BUGGY 車殼配件組 (1SET)
PG-21118 PUBG BUGGY CHASSIS SET (1SET)
>>> PUBG BUGGY 底盤組 (1SET)
PG-21119 PUBG BUGGY BATTERY TRAY SET (1SET)
>>> PUBG BUGGY 電池盒組 (1SET)
PG-21120 PUBG BUGGY ROLL CAGE SET (L/R) (1SET)
>>> PUBG BUGGY 防滾架組(左/右)
(1SET)
PG-21121 PUBG BUGGY ROLL CAGE SET (TOP) (1SET)
>>> PUBG BUGGY 防滾架組 ( 上 ) (1SET)
PG-21122 PUBG BUGGY SUSPENSION ARMS SET (F/R) (1SET)
>>> PUBG BUGGY 擺臂拉桿組 (1SET)
PG-21123 PUBG BUGGY ARMS MOUNT SET (1SET)
>>> PUBG BUGGY 擺臂拉桿固定組 (1SET)
PG-21124 PUBG BUGGY GEARBOX SET (1SET)
>>> PUBG BUGGY 齒輪箱組 (1SET)
PG-21125 PUBG BUGGY BRUSHED MOTOR (1PC)
>>> PUBG BUGGY 380 有刷馬達 (1PC)
PG-21126 PUBG BUGGY SERVO (1PC)
>>> PUBG BUGGY 伺服機 (1PC)
PG-21127 PUBG BUGGY SHIM 2x6x0.4 (6pcs)
>>> PUBG BUGGY 墊片 (2x6x0.4) (6PCS)
PG-21128 PUBG BUGGY SERVO LEAD EXTENSION (1PC)
>>> PUBG BUGGY 伺服器延長線 (1PC)
PG-21129 PUBG BUGGY BODY DECAL (1PC)
>>> PUBG BUGGY 車殼貼紙 (1PC)
PG-21130 BUTTON HEAD SCREW M2x5 (6PCS)
>>> 圓頭內六角螺絲 M2x5 (6PCS)
PG-21132 BUTTON HEAD SCREW M2x17 (6PCS)
>>> 圓頭內六角螺絲 M2x17 (6PCS)
PG-21133 BUTTON HEAD SCREW M2.5x12 (6PCS)
>>> 圓頭內六角螺絲 M2.5x12 (6PCS)
PART# DESCRIPTION 品名 PART# DESCRIPTION 品名
PG-21095 BUTTON HEAD SCREW M2.0x8 (6PCS)
>>> 圓頭內六角螺絲 M2x8 (6PCS)
PG-21096 BUTTON HEAD SCREW M2.0x10 (6PCS)
>>> 圓頭內六角螺絲 M2x10 (6PCS)
PG-21097 BUTTON HEAD SCREW M2.5x4 (6PCS)
>>> 圓頭內六角螺絲 M2.5x4 (6PCS)
PG-21098 BUTTON HEAD SCREW M2.5x6 (6PCS)
>>> 圓頭內六角螺絲 M2.5x6 (6PCS)
PG-21099 BUTTON HEAD SCREW M2.5x8 (6PCS)
>>> 圓頭內六角螺絲 M2.5x8 (6PCS)
PG-21100 BUTTON HEAD SCREW M2.5x10 (6PCS)
>>> 圓頭內六角螺絲 M2.5x10 (6PCS)
PG-21101 BUTTON HEAD SCREW M2.5x14 (6PCS)
>>> 圓頭內六角螺絲 M2.5x14 (6PCS)
PG-21102 BUTTON HEAD SCREW M3.0x6 (6PCS)
>>> 圓頭內六角螺絲 M3x6 (6PCS)
PG-21103 BUTTON HEAD SCREW M3.0x8 (6PCS)
>>> 圓頭內六角螺絲 M3x8 (6PCS)
PG-21104 BUTTON HEAD SCREW M3.0x10 (6PCS)
>>> 圓頭內六角螺絲 M3x10 (6PCS)
PG-21105 BUTTON HEAD SCREW M3.0x12 (6PCS)
>>> 圓頭內六角螺絲 M3x12 (6PCS)
PG-21106 BUTTON HEAD SCREW M3.0x16 (6PCS)
>>> 圓頭內六角螺絲 M3x16 (6PCS)
PG-21107 FLAT HEAD SCREW M2.5x6 (6PCS)
>>> 平頭內六角螺絲 M2.5x6 (6PCS)
PG-21108 FLAT HEAD SCREW M2x8 (6PCS)
>>> 平頭內六角螺絲 M2x8 (6PCS)
PG-21109 FLAT HEAD SCREW M3.0x6 (6PCS)
>>> 平頭內六角螺絲 M3x6 (6PCS)
PG-21110 CAP HEAD SCREW M2.0x6 (6PCS)
>>> 有頭螺絲 M2x6 (6PCS)
PG-21111 SET SCREWS M3x3 (4PCS)
>>> M3x3 止付 (4PCS)
PG-21112 M2 LOCK NUT (6PCS)
>>> M2 防鬆螺帽 (6PCS)
PG-21113 PUBG BUGGY FRONT SHOCK MOUNT (1PC)
>>> PUBG BUGGY 前避震器固定板 (1PC)
PG-21114 PUBG BUGGY SPACERS (4PCS)
>>> PUBG BUGGY 下拉桿頭襯套 (4PCS)
<<< 19

# 20003
