CONTENT ONE
Main Interface

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game
Main Main Interface
Basic Mode
Standard lighting effect selection
Reset / Tt Forum Registration / Product Info / Close / Settings
Reset : Reset all current settings
Tt Forum Registration : Register to our Tt FORUM.
Product Info : for more product information
Close : Close Tt eSPORTS DRACONEM RGB GUI Software
Minimize :
Product Series
Highlights which DRACONEM RGB
Series currently in use: Soft/Hard
Lighting Effect Option
Change lighting effects
Apply
Click ‘Apply’ after completing desired profile and import settings
01
Tt eSPORTS/Facebook/Language
Tt eSPORTS: Visit Tt eSPORTS website
Facebook: Visit Tt eSPORTS Facebook page
Language: Current Language
Profile
Select up to 3 profiles
Firmware Update
Check for firmware update
Color Selection
Manually enter desired color scheme
via 0~255 selection or choose from
color palette.
Animated Display
Preview your lighting effect before
applying

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game 02
Profile Settings
Software offers up to 3 individual profile settings for color customization.
Profile Selection
Choose from Profile 1 to 3
BASIC Mode
Four Effects for you to select and customize on DRACONEM RGB.
FW UPDATE
Check for latest firmware update and download if required.
Animated Display
Preview color customization with animated display.

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game
EFFECT LAYERS : Choose lighting effects
Effects preview, Static, Pulse, Wave & Spectrum Running
Adjust lighting effects
SPEED : Adjust speed of lighting effect
COLOR : Select color of lighting effect
POWER : ON/OFF
BRIGHTNESS : Adjust brightness levels
APPLY: Select to save settings
Color preview
Color selection via color palette
Manual color selection from 0 to 255 range
03

GUI Software User GuideTt eSPORTS | DRACONEM RGB
CONTENT FOUR
Light Settings

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game
SPECTRUM RUNNING
SPEED : Adjust speed of lighting effect
POWER : ON/OFF
SLEEP MODE : Switch off all lighting when display is turned off
BRIGHTNESS : Adjust brightness levels
APPLY: Select to save settings
04

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game
PULSE
SPEED : Adjust speed of lighting effect
EFFECT MODE RANDOM : Random color cycle
EFFECT MODE ALRERNATING : Two color cycle
POWER : ON/OFF
SLEEP MODE : Switch off all lighting when display is turned off
BRIGHTNESS : Adjust brightness levels
APPLY: Select to save settings
05

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game
WAVE
SPEED Adjust speed of lighting effect
EFFECT MODE RANDOM : Random color cycle
POWER : ON/OFF
ROTATION : CLOCKWISE & COUNTER CLOCKWISE
BRIGHTNESS : Adjust brightness levels
APPLY: Select to save settings
06

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game
STATIC
COLOR : Choose the color
POWER : ON/OFF
ROTATION : CLOCKWISE & COUNTER CLOCKWISE
BRIGHTNESS : Adjust brightness levels
APPLY: Select to save settings
07

GUI Software User GuideTt eSPORTS | DRACONEM RGB
CONTENT FIVE
Firmware Update

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game 08
How to update Firmware Firmware Update

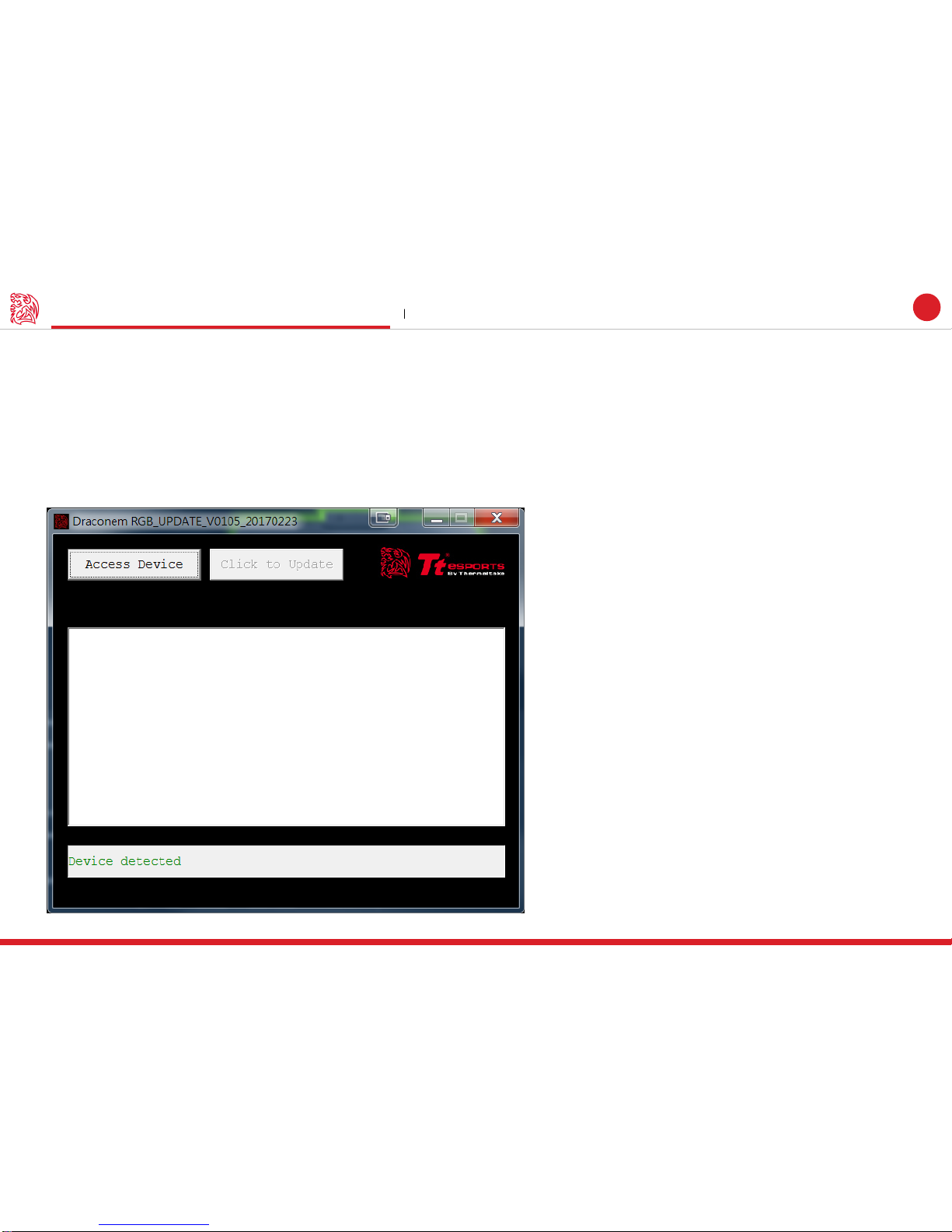

Updating Firmware
①Access Device
②Click to update
Please note:
Whilst firmware is updating, do not unplug device, turn off your computer or exit the software. This may result in the
device become unstable.

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game 09
How to update Firmware Firmware Update
STEP 1
Click FW UPDATE to check version
STEP 2
Access Device

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game 10
How to update Firmware Firmware Update
STEP 3
Update the latest version

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game 11
How to update Firmware Firmware Update
STEP 4
Whilst firmware is updating, do
not unplug device, turn off your
computer or exit the software. This
may result in the device become
unstable.

GUI Software User Guide
Tt eSPORTS | DRACONEM RGB
Challenger is the Game 12
How to update Firmware Firmware Update
Update finished
