Tuputech TupuCheck Pro User manual

Pro
TupuCheck
Face Recognition & Thermometric
Access Control Terminal
User Manual
Please read this Manual carefully before use.
TupuCheck Pro

Please read this Manual carefully before use.
CONTENTS
· 1-Preface
· 2-FCC regulations
· 3-Safety Precautions
· 4-Packing List
· 5-Appearance
· 6-Power Supply
· 7-Installation Precautions
· 8-Installation Instructions
· 9-Basic Operation
01
01-03
04
05
05
06
06
07-11
12-26

To ensure safety and prevent any damage, please read
this manual carefully before installation and follow the
instructions herein. Store this manual in a secure place
for future reference.
2AWGCTUPUCHECKPRO This device complies with Part
15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Note: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
1-Preface
2-FCC regulations
01
NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR
ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHO-
RIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.
NOTE: This equipment has been tested and found to

02
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and
receiver.
-- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV techni-
cian for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. This
device and its antenna must not be co-located or
operating in conjunction with any other antenna or
transmitter. To comply with FCC RF exposure compliance
requirements, this grant is applicable to only Mobile

04
Do not move the device by pulling the power cord or any
cable (ignorance may cause the pull off of interfaces)；
Do not leave the lens pointed at the sun, lasers or other
bright light sources. Intense light may cause the image
sensor to deteriorate and damage.
Do not place the device in extremely hot (refer to the
specification of the device for the detailed operating
temperature), cold, dusty or damp locations, and do not
expose it to high electromagnetic radiation;
Please use correct power adaptor (ignorance may cause
damage to the device);
The product is for indoor use. The device cover for indoor
use shall be kept from water and moisture. If installing
the device outdoors, waterproof measures should be
taken to keep the raindrop from entering;
3-Safety Precautions
2.1
2.2
2.3
2.4
2.5
Configurations. The antennas used for this transmitter
must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located
or operating in conjunction with any other antenna or
transmitter.”

Item Quantity Unit
4-Packing List
Turnstile mounting bracket (optional) 1 set
Access Control Terminal 1 set
Wall mounting bracket (optional) 1 set
124mm
263.5mm
23mm
5-Appearance
4.1 Dimension 4.2 Wiring
05
GND
D1
D0
12V
GND
D1
D0
12V Wiegand 26/RS-485
Relay
USB
RJ45 Ethernet
RS485
DC12V-2A

Make sure the device work under stable power supply
and network.
Prepare for a Type 86 Switch Box；
7-Installation Precautions
7.1 Before installation
Device should be installed 1.5m high, the distance for
face recognition is 0.5m-2m，and the optimal distance
for temperature measurement is 50cm.
For the use as access controller, the device should not
be installed far from the access.
7.2 Position for installation and recognition area:
Please use correct power adaptor, DC12V (regulated), to
operate this device. The powe tolerance of this unit is
DC 12V ± 10% (DC10.8V~13.2V), over maximum DC12V
power input may result in the damage of the device.
6-Power Supply
06
1
1
2
2

M4*25mm screw
8-Installation Instructions
Install the Type 86 Switch Box 1.5m high on the wall;
Fix the wall-mounting bracket to the Type 86 Switch Box
with 2 M4x25mm screw;
Pull the network cable and power-supply cable into the
Type 86 Switch Box (to enable the access control with
device, control line also needs to be included)
8.1 Wall mounting
Installatioin of wall mount bracket
07
3
1
2

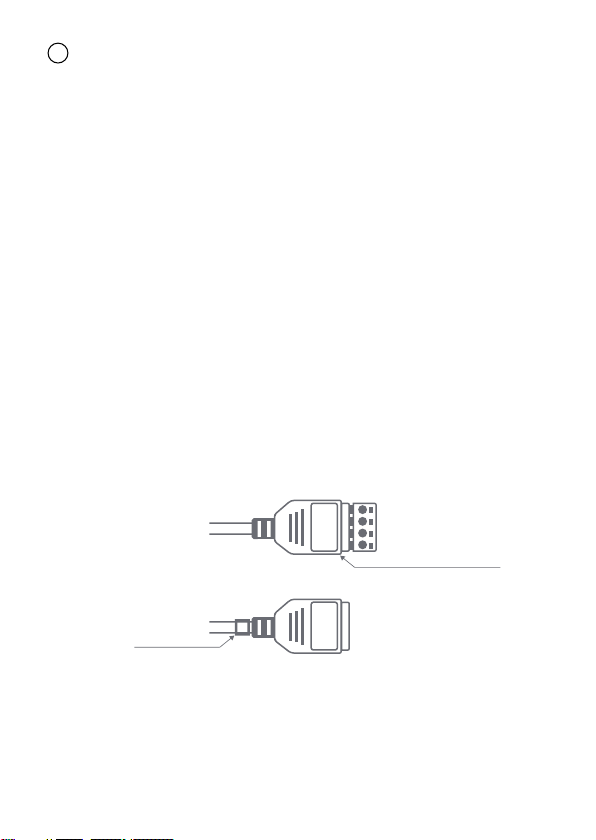

Note: To connect the relay
Option A: Terminal with ring, the port labeled “12V” can
be used as NO, and the port labeled “GND” can be used
as COM
Option B: Terminal without ring, the port labeled “GND”
can be used as COM, and the port labeled “D1” can be
used as NO
Ring
Port label
GND
D1
D0
12V
GND
D1
D0
12V
08
Connect the network cable to the RJ45 Ethernet inter-
face, connect the power to the DC power supply, (to
enable access control system, also need to connect
control line for access control to the relay interface), put
all the cables into the Switch Box.
4

3.5cm hole
Insert the main device into the wall-mounting bracket
(refer to the solid arrow), and fix the main device with 3
screws (refer to the dotted arrow).

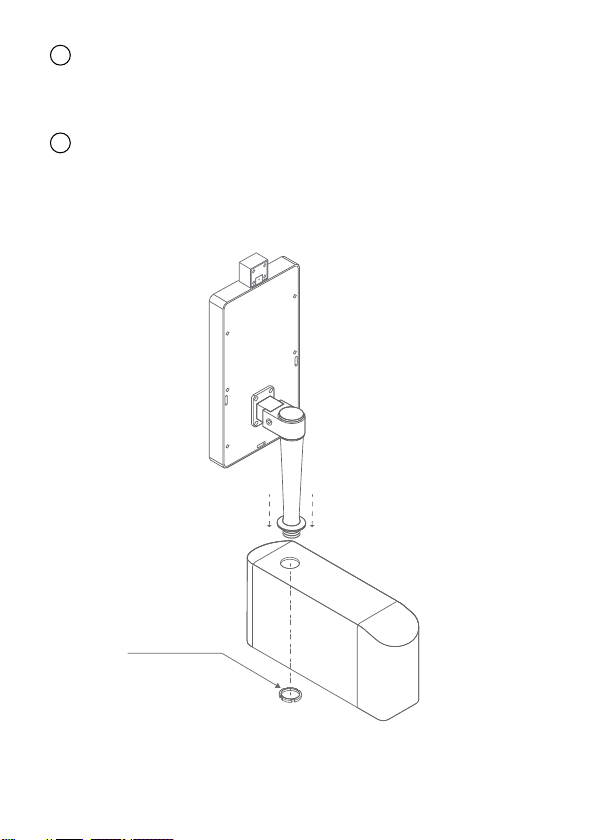

8.2 Turnstile mounting
Turnstile
09
5
Drill holes of 3.5cm in diameter on the turnstile's surface;
1
Align the device with bracket

Screw nut
Install the device with bracket
10
Install the turnstile to the designate place and run the
network cable and power cable inside the turnstile
based on safety standards;
Use screw nut to install the device to the turnstile;
2
3

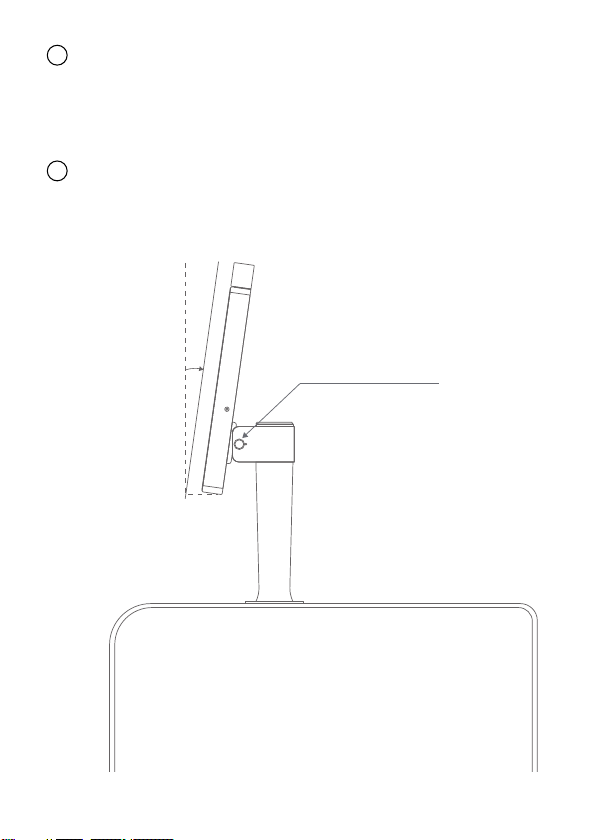

Adjust the elevation of the bracket for the best angle of
recognition.
Screws for elevation
adjustment
Adjust the elevation angle
11
Connect the network cable to the RJ45 Ethernet inter-
face, connect the power to the DC power supply,
connect the delay to delay interface, run all the cables
into the turnstile;
4
5

Relay signal
LAN/WLAN
9-Basic Operation
Registered Staff “Recognition success”
Text Display
Unregistered Person No text
Registered image
Image Display
Face detection frame
Registered Staff
Unregistered Person
Interface display for recognized staff
9.2 Staff Recognition & Interface Display
Measured body temperature
Temperature Display
Measured body temperature
“Recognition success” & body
temperature readings
Text-to-speech
Body temperature
readings
Internet
TupuCheck Pro
Entrance Guard
Router
9.1 Topology
12
1

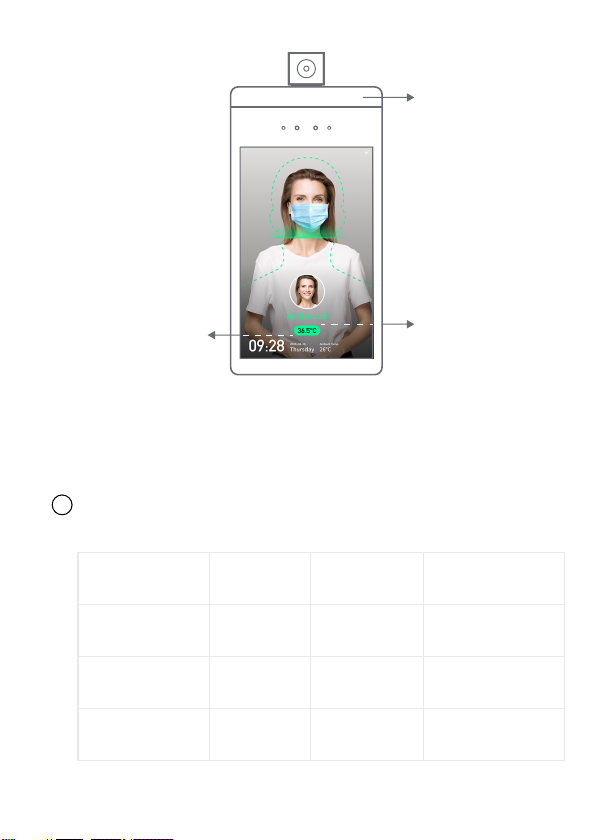

Color tag display Text-to-speech
audio prompt
Indicator light
Normal
(36℃ - 37.5℃) Green
Color Display
Low Fever
(37.5℃-38.5℃)
High Fever
(38.5℃ and above)
Yellow
Red
Green
Yellow
Red “High fever”
“Normal temperature”
Indicator Light Text-to-speech
prompt
“Low fever”
13
Interface display for temperature reading
2

Step1: Log in through https://face-access.
tuputech.com/login?lang=en with allocated account
and password.
Step2: Click on “Personnel” to the management page.
Operation by Administrator
9.3 Personnel Management
Face Access
https://face-access.tuputech.com/login
Log in
Reset
Enter the account number
Enter password
forget password
Face Access
Face Access
https://face-access.tuputech.com
Manage Captures Devices Passport User Group Personnel Alarm OPS Organization
Face Access Status
Sync
Keyword
Employee
Consumer
Blacklist
Staff
All Synchronous Not synchronous
Name
Face Access
14

Click button “Devices” for device management. Select
the correct store, and click on “Add device”. Set the
Product Model as “Face Access with Tablet PC”, fill in the
Name in and Serial Number (will be provide along with
device), VPN and MAC will be filled automatically. Then
click “OK” to submit.
In the “Organization” page, click on “Store Manage-
ment” . Select the default device language.
Click “Add region/store here”, input a name and set the
type as “Store”, then submit
Manage Captures Devices Passport User Group Personnel Alarm OPS Organization
UID:*** Digitech
Account management
Store management Parent Node
None
Config
Device default language
all Digitech
OrganNodeld:***
SUBMIT CANCEL
Digitech
Select or enter the crate store label
English
Face Access
Add region/
store here
+
Region Store
1
2
3
Manage Captures Devices Passport User Group Personnel Alarm OPS Organization
Digitech
Digitech
Keyword Use MAC、 VPN、SN to search ...
Face Access
1
2
Add Device
3
9.4 Add Devices
15

General
NewDevice
Name
Serial Number
VPN ...
:::::
MAC
Product Model FaceAccess with Tablet PC
In the “Custom” page, set Recognition Success TTS as
“#{name} {temp}”
Click “Setting” to set up more details.
Face Access
Serial Number: -
Product Model: Face Access
MAC: -
VPN: 10.100.15.10
(v1.8.55_20200411_checkin_bi)
Offline Setting
16
General
Advanced
Custom
Extra
Event Trigger
EditDevice
Recognition Success Text -Recognition Failed Text -
Security Code Success Text -Security Code Failed Text -
Recognition Success TTS #{name} {temp} Recognition Success TTS -
Security Code Success TTS -Security Code Failed TTS -
Face Detecting Interval (ms) 1000 Environment Temperature -0.4
Upload IR Image NoYes
Show Avatar No
Yes
Screen-Touching Enabled NoYes
Default Launcher Enabled No
Yes
OkCancel

To use device with entrance guard or turnstile, click on
the button to set up relay signal output.
Name it as “Relay and type as ”Internal Relay”, then
submit. Click on the relay and navigate to the relay
setting page, check for both outputs.
Face Access
Serial Number: -
Product Model: Face Access
MAC: -
VPN: 10.100.15.10
(v1.8.55_20200411_checkin_bi)
Offline Setting
NewDevice
Relay Name
OkCancel
Relay
Relay Type Intemal Relay
EditRelay
Relay Name
OkCancel
Relay
Relay Type
Output
Intemal Relay
Output 1 Output 2
17

In the page of “Event Trigger”, customer can easily set
the conditions and events, to guide the device to have
various reaction under different conditions.
9.5 Set Event Triggers
Condition:
-Temperature < 37.5℃ and Successfully Recognized
Events:
-Broadcasting: recognized face & measured tempera-
ture (Customize the voice text as “#{name} #{temp}”)
-Open the door
-Turn on the green light
Example 1:
General
Advanced
Custom
Extra
Event Trigger
EditDevice
The trigger is the tool that customizing the behavior
of the device for different situations.
Create Trigger
OkCancel
18
