TurboTronic CYCLONE V11 User manual

INSTRUCTION MANUAL
Folding Tube Cyclonic Vacuum Stick
TT-CV11
www.zline-world.com
EN

DearCustomer, thank you for buying CYCLONE V11
Smart Folding Vacuum Stick by TurboTronic®.
With TT-CV11 NO MORE BENDING OVER: The tube can be folded to any angle you
need so that you can easily clean the bottom of the bed and furniture without bending
over and squatting. LED Headlights help you see dust and debris that might otherwise
have been missed and make cleaning under furniture much easier.
Pleaseread theseoperatinginstructions carefully before installation andcommissioningin
ordertofamiliarizeyourself withyour new device and
to achievemaximum operational safety. Inparticular, the safety regulationsmust be
observed to avoid accidents and damage. We recommend that youkeep the
instructions carefully for future reference.

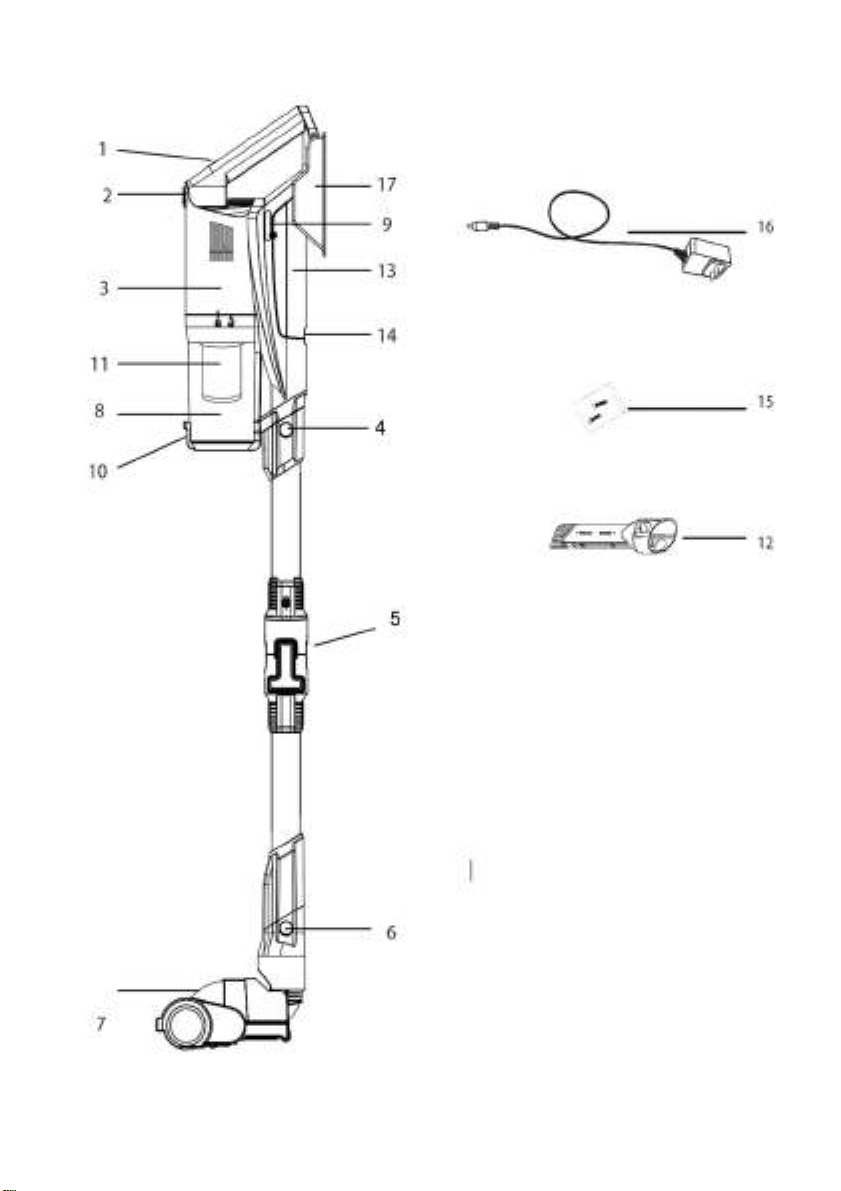

Description of the device
1. 1 Suction power button
2. ON/ OFF button
3. Motor unit
4. Release button for suction pipe or Nozzle /
brush in manual suction mode
5. Folding pipe
6. Release button for floor nozzle (or nozzle /
brush if mounted on the suction pipe)
7. Electric floor nozzle
8. Dust containers
9. Battery charge status indicator
10. Open button the dust container flap
11. HEPA filter with sponge cover and
cyclone insert
12. 2 in 1 crevice nozzle
13. Battery
14. Release button to remove the
battery
15. Screws for wall bracket
16. Charger (mains adapter)
17. Wall bracket
18. Cleaning brush
Notes on the 2-in-1 crevice nozzle
As a nozzle without a brush, it is ideal for vacuuming sofa cracks, corners, stairs, etc.
Use as a nozzle with a brush for vacuuming furniture, bookshelves, smooth surfaces,
and more.

SPECIAL SAFETY INSTRUCTIONS FOR YOUR
CYCLE CLEANER
Keep the device away from heaters, fire, flames, and cigarettes. If the air intake
opening is blocked or the suction pipe or a nozzle or brush is blocked, you must
switch the vacuum cleaner off immediatelywith the ON / OFF button.
Removethereasonfortheblockagebeforeyouswitchthedeviceonagain. Do not
vacuum up large or pointed objects. Therefore, you should removetheseobjects
from the floor beforevacuuming. Do not vacuum any flammableor burning/ glowing
substances (e.g. cigarette ends) or liquids.
Only operate the vacuum cleaner with the correctly installed cycloneinsertand
HEPAfilter.
Empty the dust container regularly.
Chargethebatteryevery 3months,even if thedevicehas notbeen putintooperation,
toprotectagainst deep discharge(seenote"Periodicchargingofthe battery").

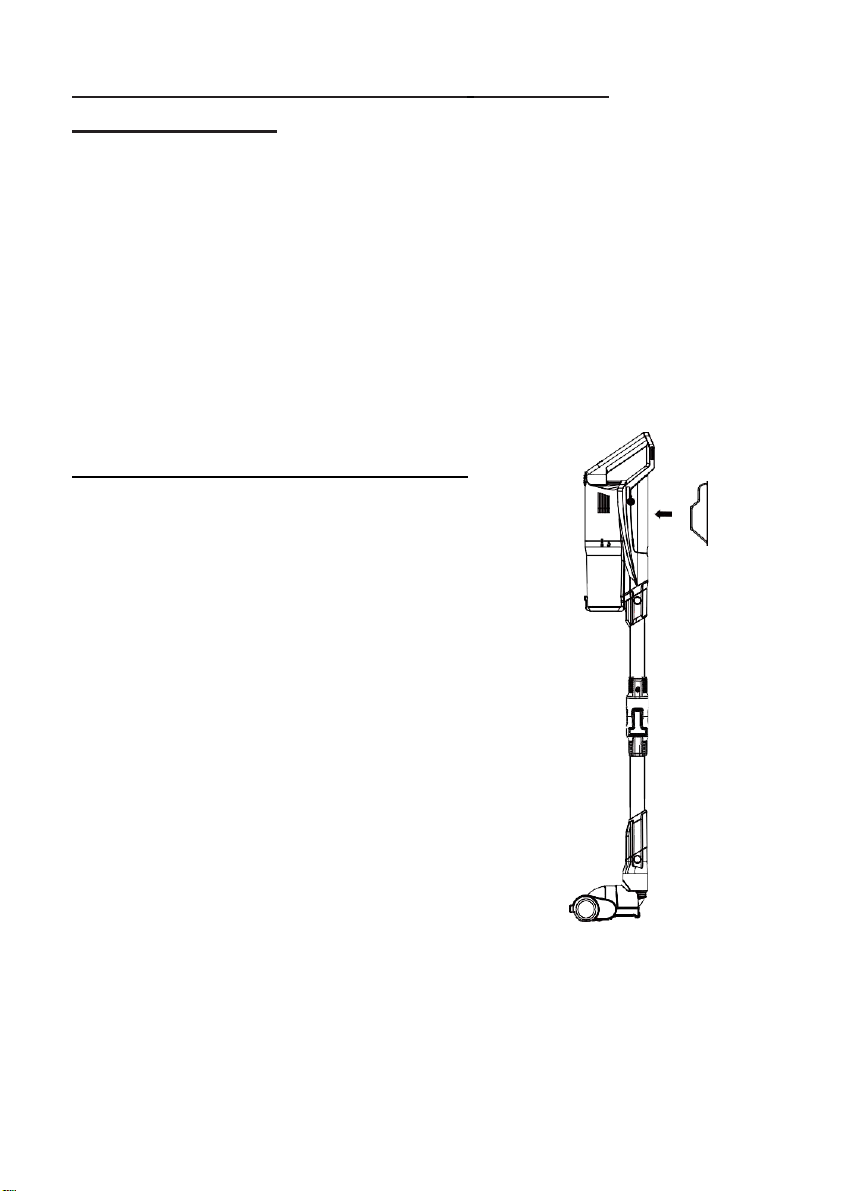

INSTALL THE WALL SUSPENSION
1. Screw the wall bracket (17) with the screws at a
suitable height on the wall. It should be installednear
an electrical outlet.
2. The device's suspension device is located on therear of
the motor handle.
3. Hang the cyclone suction device on the hangingdevice
on the wall mounting.

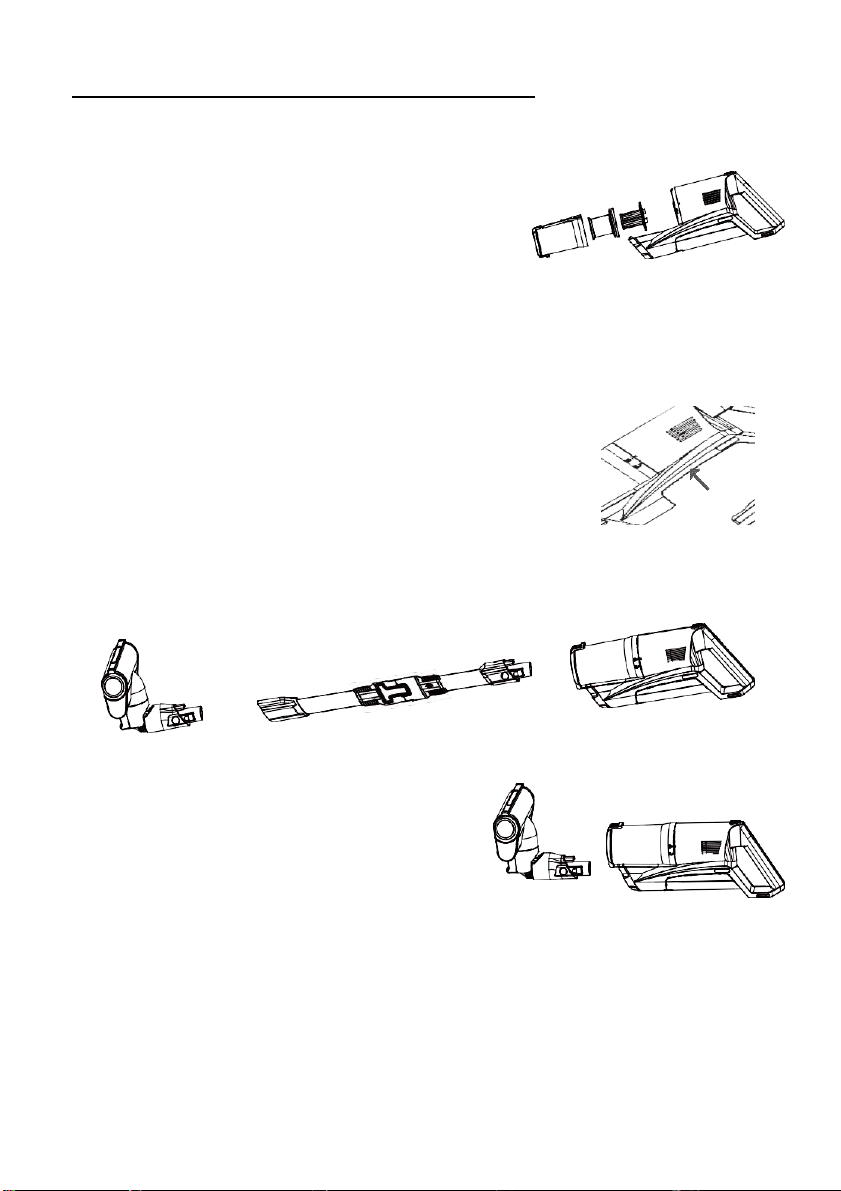

ASSEMBLY OF THE VACUUM CLEANER
1. Insert the filter in the dust container
a) Place the HEPA filter in the cyclone insert
b) Place the cyclone insert in the dust container. lt is 360
2. Install the dust container in the motor unit
a) Place the dust container on motor unit according to icon indication.
b) Rotate the dust container to make the arrow reach the position of the lock sign.
3. Attach the battery to the motor unit Snap the battery intothe battery
compartment andthen push it intothe motor unit until you hear a click.
4. Mount the folding pipe and floor nozzle on the motor unit
Note: You can also insert the floor nozzle
directly into the connection opening of the
motor unit until it clicks into place.

5. Remove folding pipe and floor nozzle
a) To disconnect the intake manifold from the motor unit, press theupper
release button (4).
b) To remove the floor nozzle from the suction pipe, press the lowerunlocking
button (6).

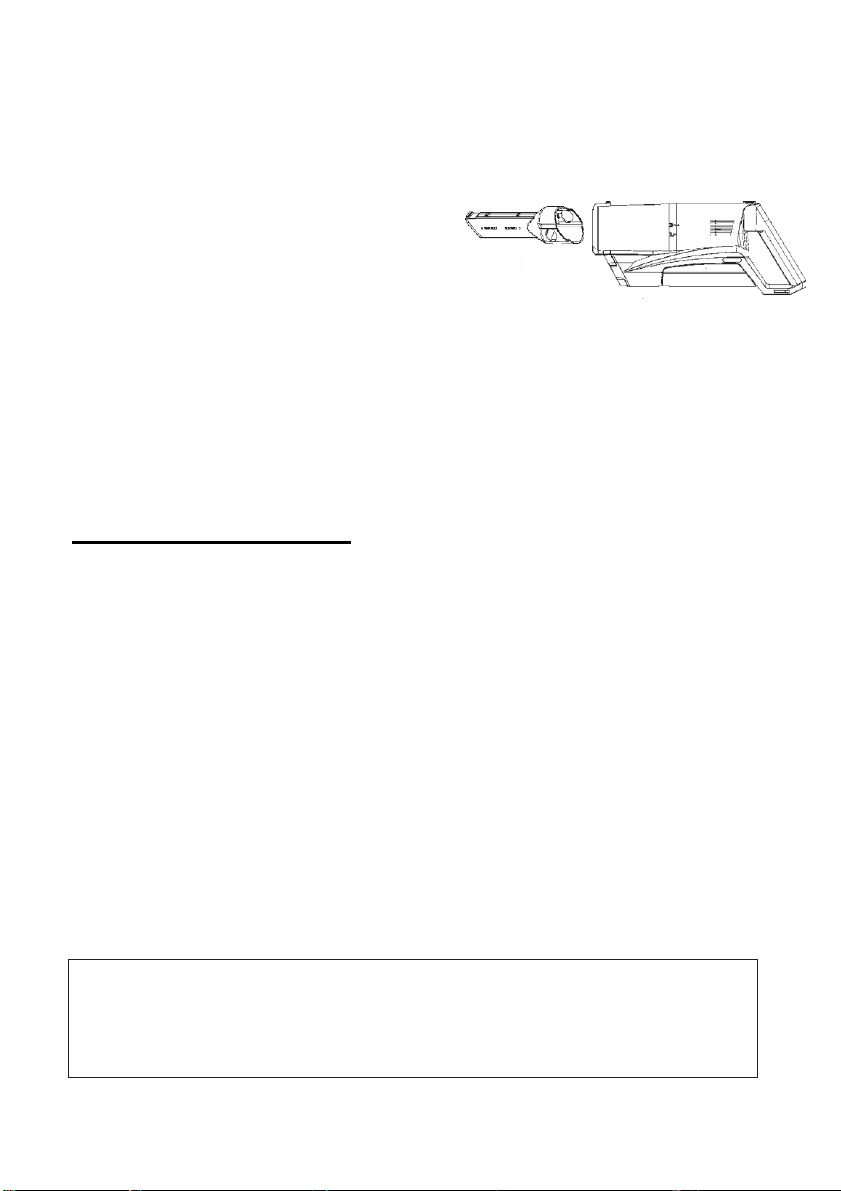

6. Mount the 2 in 1 nozzle on the device
a) Cyclone vacuum cleaner as a
Hand vacuum cleaner
use: 2-in-1 nozzle directly into
the connection opening of the
motor unit. Mount the 2-in-1 nozzle on the device until it clicks in.
b) Use a 2-in-1 nozzle with a suction pipe. Insert the nozzle into the lower
openingof thesuction piper untilit clicks into place.This variantis ideal for
vacuuming ceilings or narrow stairs.
To remove, press the release button and remove the nozzle.
CHARGE THE BATTERY
STEP 1
Use only the supplied AC adapter as a charger for the battery. Hang the assembled
vacuum cleaner on the wall mounting, the battery is in the motor unit.
STEP 2
Insert the charger plug into the device socket. Insert the charger plug into an electrical
outlet. The top light of the battery indicator flashes during charging. Charge the battery
with the charger for 4 -5 hours before using the vacuum cleaner.
Warning: Always keep the battery and charger dry. For charging, the battery must
always be in the device, never removed.
STEP 3
As soon as four bars light up in the charging status display (9), the battery is fully
charged and the device can be put into operation.
ATTENTION:
Always fully charge the device before first using.
As the suction power drops, please clean the dust cup, cyclone insert, HEPA, and
sponge and charge the device.
IMPORTANT: PERIODIC CHARGINGOF THE BATTERY
To prevent deep discharge, the battery must be charged every 3 months even
when not in use. Failure to follow this procedure willvoidthewarrantyonthebattery.
Ourtechnicalservicecandeterminewhether a batteryisdeeply discharged.

EMPTY DUST CONTAINER
When the dust container is full, you should empty it to maintain full suction
power.
The device must be switched off beforehand and the battery removed from the
motor unit (press the release button (14) before emptying the dust container).
1. Turn the dust container to separate it from the motor unit.
2. Holdtheflapofthedust containeroverawastebin andpressthebutton
(10)toopentheflap.Emptydust anddirt.
3. Close the flap again so that it clicks into place. Put the empty dust
container back into the device.
CLEANING THE DUST CONTAINER, THE CYCLONE INSERT
AND THE FILTER
Whenthewindtunnel isblocked,themachinewillshutdownautomatically.The LED
on the battery will flash for 5 seconds and the machine will beepfor 5 seconds. This
means youshould cleanthe wind tunnel and wash the HEPAand sponge.
From timetotime, you should remove and clean the dust container andthecyclone insert
with the HEPA filter, at the latest when you notice that the suction power is
deteriorating.
1. Turn the dust container (8) and remove it from the device. Empty it as
described inthe chapter "Emptying the dust container".
2. Take the cyclone insert and the HEPA filter out of the dust container.
3.Knock out the dust from the cyclone, insert, and thespongecover or clean
3. them with a brush.
4. You can also clean the cyclone insert, HEPA filter, and the sponge cover
under lukewarm water.
5. Rinse the dust container under lukewarm water, dry itwith a soft cloth,and
then let it air dry completely.
6. After you have completed this, cover the sponge onto the HEPA filter
andinstall the HEPA filter into the cyclone insert and put them back into
the device and close the flap so that it engages.
Attention:
Before using, ensure all of the cleaned parts are totally dry.
The filter system must be installed to avoid the dust going into your operation system,
causing noise or abad smell.Ifthis happens, pleasestop and check your device.

CLEANING THE VACUUM CLEANER
When the device is switched off and disconnected from the charger, youcan
wipe the device with a dry cloth.
Do not use abrasive rags or cleaners, steel wool, acetone, or alcohol.Never
immerse the vacuum cleaner in water.
Store the device in a dry, cool place out of the reach of children.

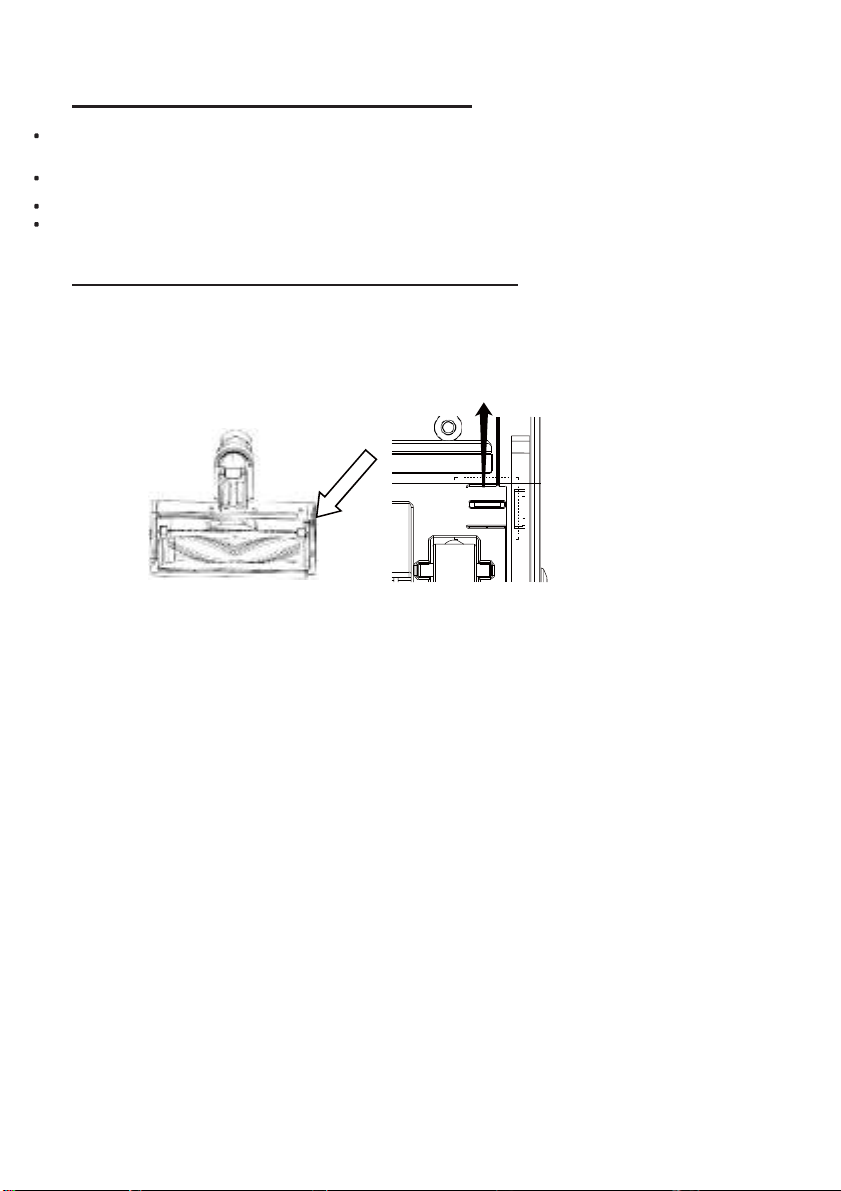

CLEAN THE ELECTRIC FLOOR NOZZLE
Hair and lint can get caught in the brush, which must be removed fromtime to
time so that the suction power does not deteriorate.
1.Slidethe button onthe bottom of thefloor nozzletotheleft andremovethe
cover.
2.Remove the cylinder brush. Use scissors tocut the hair and lint caughtin the
cylinder brush and remove them.
3.After cleaning, put the cylinder brush back inthe nozzle, put the coveron it,
and push the button to the right again.

PROBLEM SOLVING

IMPORTANT SAFETY INSTRUCTIONS
In order to avoid injuries caused by electricity such as electric shock, short circuits,
or fire, we ask you to always observe the following safety regulations:
Make sure that you never touch the live parts! Electric shock can result in serious
injury or even death.
Only connect the charger to an AC outlet with a voltage of 120V/60HZ The
minimum fuse protection for the socket is 6 amps. The socket should be secured
with a residual current circuit. Please be sure to observe the applicable local
ordinances and regulations.
The device must never be operated without supervision or used for other
purposes. Use only the accessories supplied with this vacuum cleaner.
Never use this device to vacuum water, liquids, flammable or explosive
substances or materials, burning or hot ashes, matches, cigars, or substances
harmful to health.
Never use to pick up powder-like substances, such as flour, as this could increase
the risk of engine damage.
Never pick up pointed or sharp objects. E.g., nails, needles, etc.
Never cover the device while it is in operation.
Never store or place the device near heat sources such as an oven, stove,
heating, or heat-emitting devices. Never use the device in potentially explosive
areas. Protect the battery from heat and use and store at temperatures between
0°- 40°C.
Never place the device near bathtubs, swimming pools, or containers filled with
water where there is a risk of it falling into the water. The product coming in
contact with water could cause electric shock.
Never immerse the vacuum cleaner or charger in water!
Only clean the device with a dry cloth.
Do not use or store the device outdoors. Never expose the vacuum cleaner or
battery to moisture or rain or bring it into contact with water. Never vacuum wet
surfaces. The device should not be exposed to the sun for long periods.
Always fully charge the battery before using it for the first time or after a long
period of non-use. If you do not want to use the device for a long time, the battery
must still be charged every 3 months (see note "Periodic charging of the battery").
The device is not designed for commercial use.
Set up the device in a safe environment so that is cannot be knocked or tipped
over. The surface should be flat and dry. Special care is required when using the
device on stairs.
Electrical devices are not toying for children. Never leave the vacuum cleaner
unattended when children are around and place it out of reach of children.
Children should never be allowed to play with the packaging material as there is a
risk of suffocation from plastic bags. Always keep the cyclone suction device,
battery, and charger away from children under 8 years of age.
Persons with limited experience, physical, sensory, andmental abilities, as well as
children over 8 years of age are not allowed to use the vacuum cleaner unless
they are supervised by a person responsible for their safety or instructed by them
exactly how to use the device.
Children under 8 years of age are not allowed to use the vacuum cleaner. Persons
under the influence of alcohol and medication must not use the device.

Power supplies must never be plugged in or unplugged with wet hands. The
device must never be used with wet or damp hands. Never pull on the cable to
disconnect the charger from the mains, but always on the mains plug.
Only use the device with the supplied battery, a different battery could damage the
device or injure you.
Only charge the device with the supplied charger / mains adapter.
Never throw or stab the battery.
Never remove or insert the battery with wet hands.
Never use the device while it is being charged.
Always bring the device to your point of sale for repairs and only use original spare
parts. Never remove permanently installed covers or carry out repairs yourself as
this will increase the risk of electric shock.
Use the device only with a faultless charger, power cord, and plug and protect it
from moisture. If the device is not working properly, is damaged, or has become
wet.
Do not operate it under any circumstances and have it checked by your sales
office. This also applies to the nozzle, brush, and suction pipe.
Do not insert anything into the device openings. Never cover air openings.
Do not use the device if the nozzles, pipe, or air intake are blocked. Always
remove the blockage before switching the device on again. Keep suction
openings, nozzles, and brushes away from the face, body, hair, jewelry, and
clothing.
Only use the device with a dry and correctly installed cyclone insert and HEPA
filter as well as the dust container.
If you attach or remove accessories, the device must be disconnected from the
charging station.
Improper repairs or handling can result in considerable risks for the user and the
environment. We accept no liability for damage caused by incorrect use, non-
compliance with local safety regulations, or use other than that specified in this
manual.
Improper repairs or handling can result in considerable risks for the user and the
environment. We accept no liability for damage caused by incorrect use, non-
compliance with local safety regulations, or use other than that specified in this
manual.

DISPOSAL AND GUARANTEE DISPOSAL
Disused devices must be made unusable and must not be disposed on
with the household waste. Please take your device to the next
collection of recyclables, so that recyclable material is reused and your
device is disposed of in an environmentally friendly way.
DISPOSAL OF THE BATTERY
This lithium-ion battery uses the latest technology and will serve you
well for several years. However, since lithium-ionbatteries also
contain substances that are dangerous for theenvironment, they
must not be disposed of with normal household waste.
Before you dispose of the cyclone vacuum, remove the battery, glue
the battery ends with a firm adhesive tape and take the battery to a
collection of valuablematerials so that it
can berecycled or disposed of in an environmentally friendly matter.
LIMITED WARRANTY
Limited Warranty applies to purchases made from authorized retailers of
TurboTronic®.
TurboTronic®Warranty coverage applies to the original owner and to the original
product only and is not transferable.
TurboTronic®warrants that the unit shall be free from defects in material and
workmanship. Limited Warranty apply only when it is used under normal household
conditions and maintained according to the requirements outlined in the Owner’s
Guide, subject to the following
conditions and exclusions:
What is covered by this warranty?
1. The original unit and/or non-wearable parts deemed defective, in TurboTronic®sole
discretion, will be repaired or replaced
2. TurboTronic®reserves the right to replace the unit with one of equal or greater
value.
What is not covered by this warranty?
1. Normal wear and tear of wearable parts (such as blending vessels, lids, cups,
blades, blender bases, removable pots, racks, pans, etc.), which require regular
maintenance and/or replacement to ensure the proper functioning of your unit, are not

covered by this warranty.
2. Any unit that has been tampered with or used for commercial purposes.
3. Damage caused by misuse, abuse, negligent handling, failure to perform required
maintenance (e.g., failure to keep the well of the motor base clear of food spills and
other debris), or damage due to mishandling in transit.
4. Consequential and incidental damages.
5. Defects caused by repair persons not authorized by TurboTronic®. These defects
include damages caused in the process of shipping, altering, or repairing the
TurboTronic®product (or any of its parts) when the repair is performed by a repair
person not authorized by TurboTronic®.
6. Products purchased, used, or operated outside Europe.
Illustrations may differ from actual product.
We are constantly striving to improve our products, therefore the specifications
contained herein are subject to change without notice.
TurboTronic®and Z-Line®are registered trademarks of Z-GLOBAL B.V.B.A ®.
