TURFCO TurnAer XT8 User manual

INSTALLATION AND
PARTS LIST
TURFCO®
Riding Aerator Drop Seeder
Attachment
Product Number 86511
Manual Number 671229 Rev A
DANGER - IF INCORRECTLY USED THIS MACHINE CAN CAUSE SEVERE INJURY.
THOSE WHO USE AND MAINTAIN THIS MACHINE SHOULD BE TRAINED IN ITS
PROPER USE, WARNED OF ITS DANGERS, AND SHOULD READ THE ENTIRE
MANUAL BEFORE ATTEMPTING TO SET-UP, OPERATE OR SERVICE THE MACHINE.
TURFCO MFG. INC.
1655 101st. Avenue NE ● Minneapolis, MN 55449-4420 USA
Phone [phone] ● FAX [phone] ● www.turfcodirect.com
2018 Turfco Mfg., Inc.

286511 Rev A
The Turfco 86511 Riding Aerator Drop Seeder Attachment is for Turfco XT8 Riding Aerator
product number 85399.
Intended Use
86511 Drop Seeder Attachment
The Turfco 86511 Riding Aerator Drop Seeder Attachment ts all XT8 Riding Aerators.
Seeder is a drop spreader with gate controls up by the console. An electric motor turns an
agitator inside the hopper. Effective width of drop seeder is 30” wide, same as aeration width.
Hopper capacity is 2.5 cubic feet.
DO NOT ALTER the TURFCO XT8 Riding Aerator or the 86511 Riding Aerator Drop Seeder
Attachment in any manner other than specied to install the kit. Unauthorized alterations
may affect operation, performance, and may result in injury or death to the operator as well as
other individuals in the work area. Unauthorized alterations will void the warranty.
DO NOT USE the drop seeder attachment to spread anything other than seed. This includes
fertilizer, salt, etc. Spreading anything other than seed voids the warranty of BOTH the
seeder attachment and the XT8 Riding Aerator.
Safety First!!
WARNING
To Avoid Serious Injury,
Work Safely and Always wear the Appropriate Safety Gear.
Read and Understand this Entire Installation Manual Before
Installing any Components.
Read and Understand the Entire Operator’s Manual for the XT8 Riding Aerator Before
Installing any Components.
Read and Understand All Safety Warnings and Decals in the manual and on the machine.
Safety on the job should always be a top priority. Training and experience are important factors in the safe operation
of tools and equipment. Be trained and familiar with the tools used to install the Auxiliary Control Kit. Work in a clean
dry work area. If using electrically powered equipment, check for proper grounding.
WARNING
THE ENGINE EXHAUST FROM THESE PRODUCTS CONTAIN CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
OPERATE ONLY IN AREAS WITH ADEQUATE VENTILATION. DO NOT OPERATE ENGINE IN ENCLOSED
AREAS.

3
86511 Rev A
GATE LEVER
BATTERY HARNESS
HITCH PIN
HOPPER
MOUNTING LATCH
Installing Drop Seeder Attachment to an XT8 Riding Aerator
(See Figures 1 thru 9)
Step 1. Turn the engine ignition key to OFF. Disconnect both battery cables.
Step 2. (See Figure 2) Install hopper mount into receiver hitch
***REQUIRES TWO PEOPLE TO LIFT SEEDER
A. Slide hopper mount into receiver hitch
B. Install hitch pin to secure mount to aerator
86511 Drop Seeder Attachment
HITCH PIN
RECEIVER
HOPPER MOUNT
Figure 1
Figure 2

486511 Rev A
MOUNTING LATCH
LATCH ROD
86511 Drop Seeder Attachment
Step 3. (See Figure 3) Tighten mounting latch
A. Turn latch rod to tighten latch to aerator frame
B. Verify that all the play in the receiver hitch has been removed after tightening latch
rod
Step 4. (See Figure 4) Remove two console carriage bolts
A. Remove and discard two console carriage bolts (7/16” socket)
Figure 3
Figure 4
CARRIAGE BOLTS

5
86511 Rev A
BOLTS AND SPACERS
86511 Drop Seeder Attachment
Step 5. (See Figure 5) Install control mounting spacers
A. Install two ¼-20 X 2.5 bolts and spacers where carriage bolts were removed
B. Bolts go from the inside out (7/16” socket and wrench)
Step 6. (See Figure 6) Install controls to console
A. Attach controls mount to the two bolts and spacers
B. Install and tighten two wingnuts
Figure 5
Figure 6
WINGNUTS
CONTROLS MOUNT

686511 Rev A
DOUBLE SPADE
CONNECTOR
HOURMETER
86511 Drop Seeder Attachment

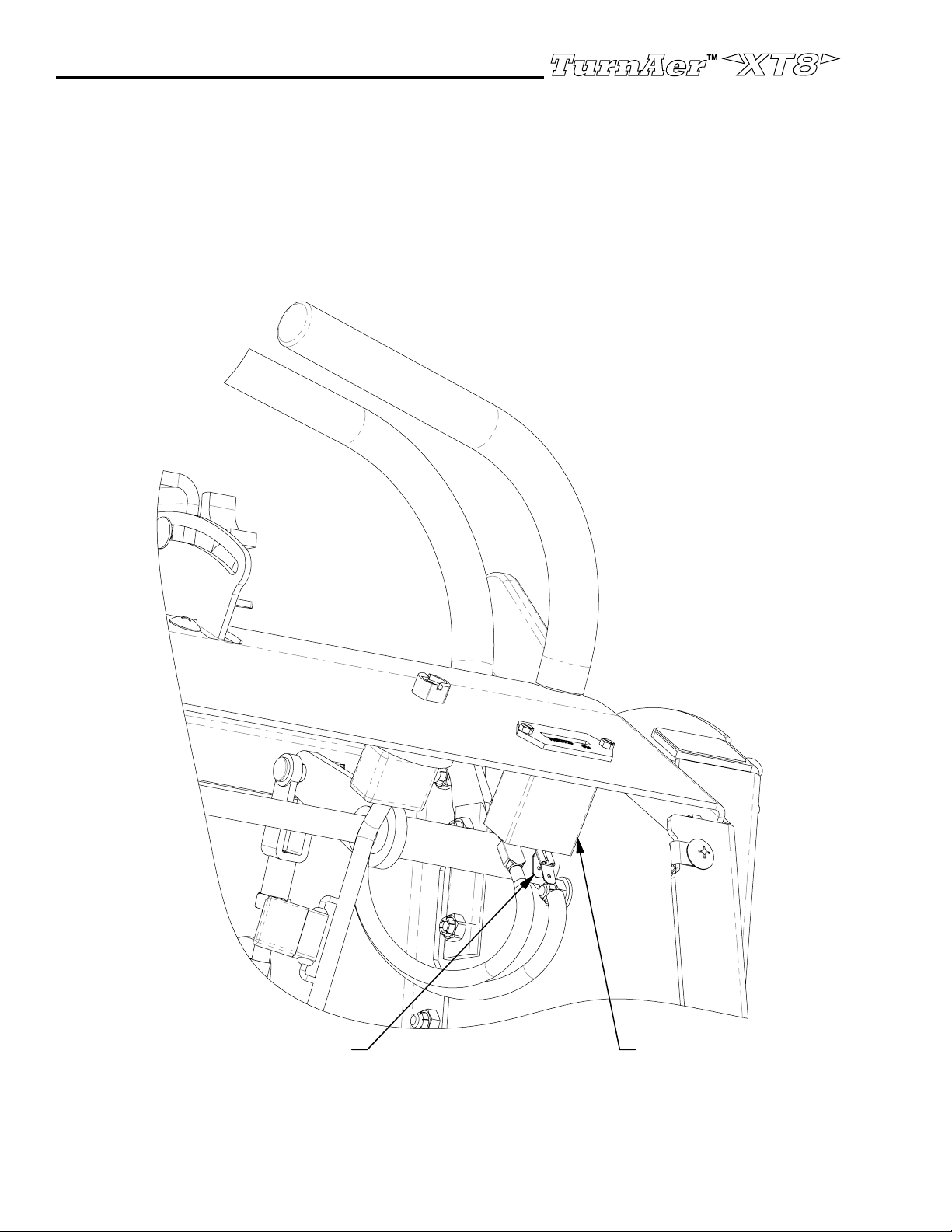

Step 7. (See Figure 7) Install double spade connector to hour meter
A. Remove red wire from aerator harness from + terminal on hour meter
B. Install female portion of double spade connector to hour meter + terminal
C. Connect red wire from aerator harness on to one of the male spades on the double
spade connector
Figure 7

7
86511 Rev A
86511 Drop Seeder Attachment

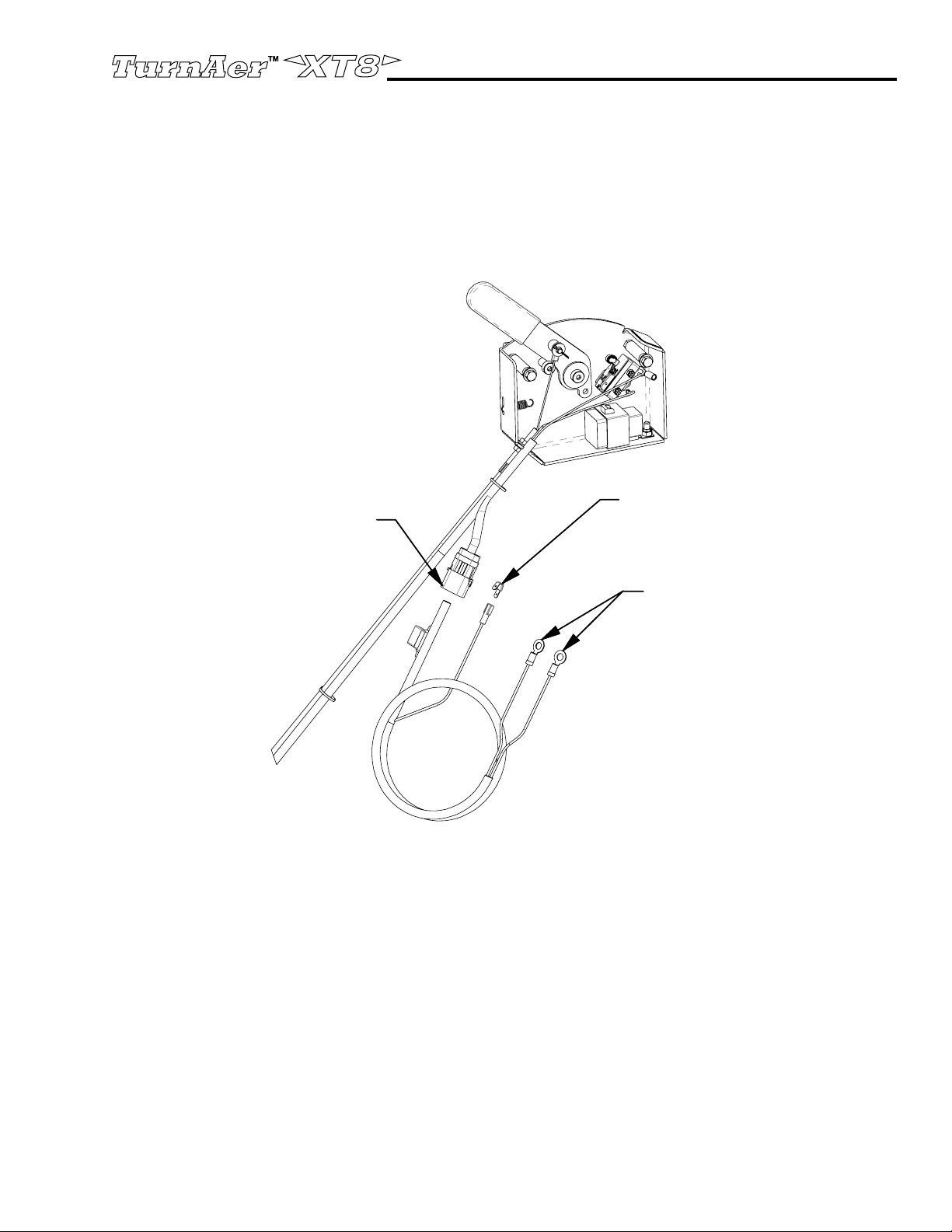

Step 8. (See Figure 8) Install battery harness
A. Attach ring terminals to battery. Red wire to +, black wire to -
B. Connect pink wire to double spade connector on hourmeter
C. Connect three pin connector to main wiring harness
Step 9. Test seeder
A. Reattach battery cables
B. Turn key to ON position
C. Move gate lever to ON, hopper gate should open, electric motor should turn
on to turn the agitator inside the hopper
Figure 8
RING TERMINALS
3 PIN CONNECTOR
DOUBLE SPADE
CONNECTOR

886511 Rev A
86511 Drop Seeder Attachment
Removing Seeder Attachment from Aerator
Before removing seeder attachment from aerator, turn ignition key to OFF position.
A. Unplug battery harness from controller
B. Remove wingnuts from controls mounting bracket, take off controls
C. Loosen mounting latch rod
D. Remove hitch pin and pull entire hopper assembly out of aerator receiver.
Clean seeder thoroughly for off season storage. Store seeder indoors and out of the elements.
Seeder Setup Before Operation
Calibrate for Gate Setting
Step 1. Determine operation speed
A. Measure off 88 feet
B. Drive aerator in same manner as you will be spreading seed
a. If spreading before/after aerating, drive with tines out of ground
b. If spreading while aerating, drive with tines in ground at aerating depth
C. Record the amount of time in seconds it takes to go the 88 feet
D. Take 60 divided by recorded time, this is your speed in miles per hour
(for example 12 seconds to travel 88 feet is 5 mph)
Speed in Miles Per Hour: __________
Step 2. Set rate dial setting
A. See Seed Application Chart on Page 9 for a starting point
Step 3. Remove lid and put under seeder to catch seed. Put enough seed in hopper for test
Step 4. With key in ON position, open seed gate lever for 1 minute then close (agitator should
be turning in hopper)
Step 5. Weigh the amount of seed caught in lid
Step 6. Calculate rate in lbs of seed per 1000 square feet
Rate = lbs caught in 1 min ÷ (mph X 0.22) = ___________________
Step 7. Compare Rate calculated above with the recommended application rate for the seed
on the seed bag. Adjust rate dial setting and re-calibrate until it matches recommended appli-
cation rate
Rate Dial Setting: __________

9
86511 Rev A
86511 Drop Seeder Attachment
Seeder Operation
A. Drop seeder has same effective width as the aerator.
B. Seed will start to drop as soon as the gate lever is pushed to open. Note the seed
will fall at the front of the aerator, whereas the aerator tines are at the rear of
the aerator, so plan accordingly when deciding when to open and close the gate
lever.
C. The electric motor turning the agitator inside the hopper will automatically turn on
and off with the gate lever open and close.
D. Drop seeder applies a constant amount, so if operator slows down the forward
speed a heavier application of seed will occur.
Spreader Settings for Common Grass Seeds
Type
Of
Seed
Perennial
Ryegrass
Bluegrass
Fescue
Approximate Pounds Of Seed Per 1000 Square Feet
At 5 mph (if operating at a different speed see calculation below)
SEED GATE DIAL SETTING
1 2 3 4 5 6 7 8 9 10 11 12
2.1
1.50.60.3Mixture 16.414.59.77.34.5 20.9
SEED APPLICATION CHART
2.01.50.5 18.214.710.57.64.5 20.0
2.41.50.80.5 11.89.77.76.24.1 12.7
3.61.81.10.7 19.116.412.38.66.4 22.70.2
Calibration Instructions
1. Determine operation speed
- Measure 88 ft, drive aerator with tines in the ground at aerating depth
- Record time in seconds to travel 88 ft.
MPH = 60 ÷ recorded time in seconds
2. Based on chart above as a starting point, set rate dial to desired setting
3. Remove lid and put under seeder to catch seed
4. With key on, open seed gate lever for 1 minute then close (agitator in hopper should be turning)
5. Weigh amount of seed caught in lid
6. Calculate rate in lbs. of seed per 1000 square feet using the following equation:
Rate = lbs. caught in 1 minute ÷ MPH measured ÷ 0.22
7. Adjust rate dial setting if needed and re-calibrate until desired rate is achieved
*The above chart is for reference only, always calibrate to your specific
blend of seed to get an accurate application.
671228-01
671228-05
ON
OFF
DROP
SEEDER
671228-04 671228-03
671228-02
Cut Out
Cut Line
Cut Line
The green in this file is not correct -
USE TURFCO GREEN

10 86511 Rev A
86511 Drop Seeder Attachment
Rate Dial Setting (see Figure 9) To adjust application rate:
A. Gate lever in closed position
B. Loosen wingnut
C. Rotate dial (larger number larger opening)
D. Tighten wingnut
Adjustments
Figure 9

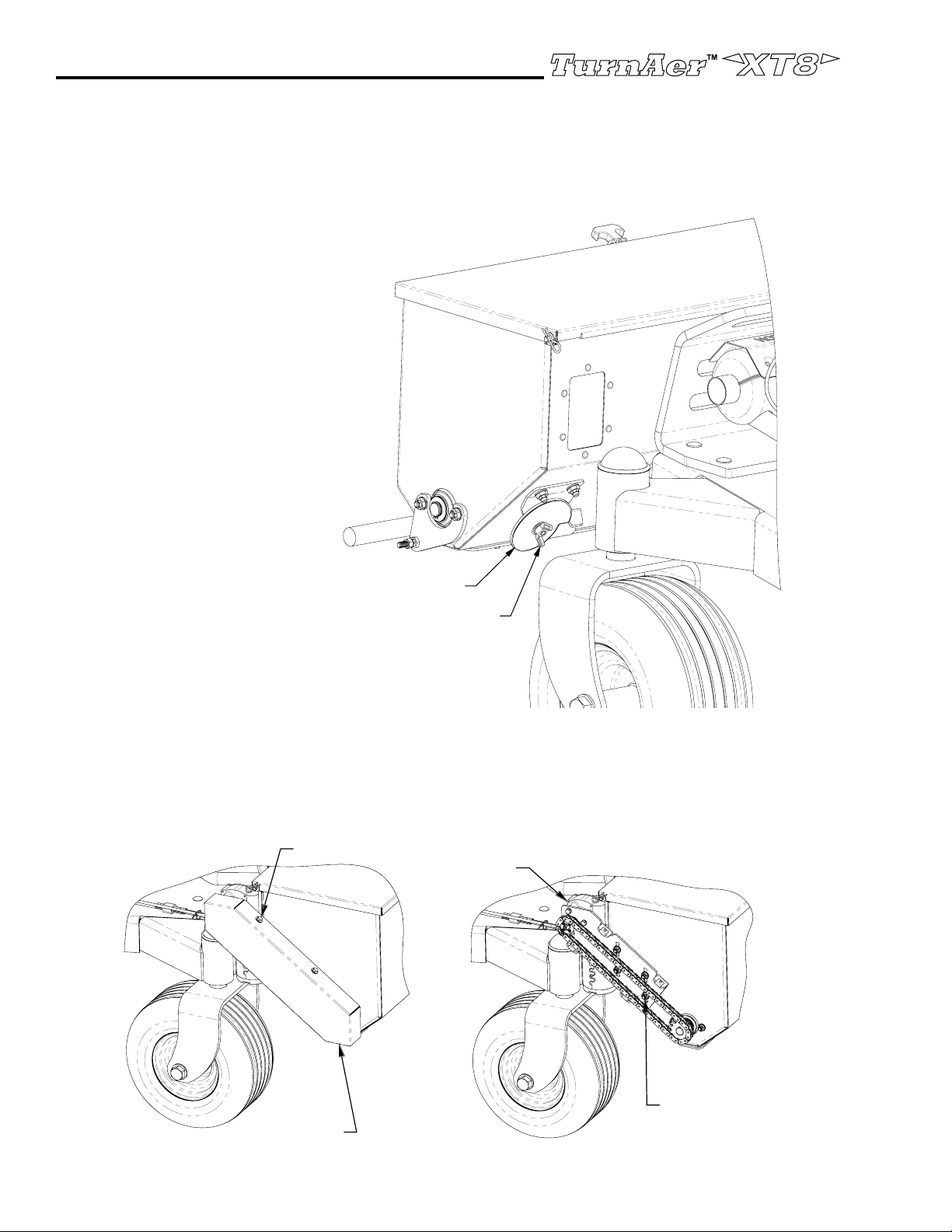

Motor Chain Tension Adjustment (see Figure 10) If agitator chain is loose/slipping:
A. Remove chain cover, 4 bolts (7/16” socket)
B. Loosen 4 nuts (1/2” socket)
C. Pull up on motor and tighten 4 nuts
D. Reinstall chain cover Figure 10
WINGNUT
DIAL
4 BOLTS
CHAIN COVER
4 NUTS
MOTOR

11
86511 Rev A
86511 Drop Seeder Attachment
Gate Cleaning (see Figure 11) If gate is sticking open:
A. Empty hopper of seed
B. Loosen eyebolt to take all the tension off the spring (1/2” wrenches)
C. Remove 8 bolts and take off gate (5/16” socket)
D. Clean off top of gate and bottom of hopper
E. Reinstall gate and re-tension spring eyebolt
Figure 11
EYEBOLT
8 BOLTS
GATE
Wiring Diagram
TO LEVER SWITCH
TO LEVER RELAY
TO POWER HARNESS
C
B
A
TO MOTOR
B
A
TO BATTERY
TO HOURMETER
COMMON & NORMALLY
CLOSED TERMINALS
______________________________________________________

12 86511 Rev A
1
2
3
4
2
5
6
7
8
9
10
11
12
4
13
14
9
15
16
6
17
18
19
20
21
22
23
15
86511 Drop Seeder Attachment
Gate Control Assembly

13
86511 Rev A
86511 Drop Seeder Attachment
Item Part Description Qty.
No. No.
1 664515 Nut, Wing, 1/4-20, Cold Forged, Zinc Plated .......................................... 2
2 444808 Nut, Hex, 5/16”-18, Nylock ...................................................................... 2
3 659318 Screw, Machine, RD HD, 6-32 X 1.0 LG. ................................................ 2
4 671221 Bolt, Shoulder, 5/16-18 X .38 OD X 5/8 LG............................................. 2
5 661467 Bolt, Carr, 1/4-20 X 3/4 GR 5, PLT.......................................................... 1
6 444830 Nut, Hex, 1/4-20, Nylock Lite Full, PLT ................................................... 2
7 671199 Spacer, .500 OD X .260 ID X 1.50 LG. ................................................... 2
8 667429 Bearing, Flanged I-Glide ......................................................................... 1
9 453023 Washer, (.281 X .625 X .062) 1/4 SAE, PLT ........................................... 3
10 658172 Screw, Cap, 1/4-20 X 2-1/2 ..................................................................... 2
11 671200 Weldment, Gate Lever ............................................................................ 1
12 499059 Washer, (.391 X 1.250 X .094)................................................................ 1
13 671204 Spring, Extension, .359 OD X 1.50 LG. .................................................. 1
14 663542 Pin, Cotter, 1/16 X 3/4 PLTD ................................................................... 1
15 658395 Cable, Brake Assembly ........................................................................... 1
16 659319 Nut, Hex, #6-32, Flexloc.......................................................................... 2
17 669571 Relay, Electrical....................................................................................... 1
18 659315 Switch, Roller Lever, SPDT..................................................................... 1
19 671198 Mount, Gate Lever .................................................................................. 1
20 658022 Connector, 1/4 Push-on, Double Male/Female ....................................... 1
21 671227 Wiring Harness, Power ........................................................................... 1
22 671226 Wiring Harness, Motor ............................................................................ 1
23 663300 Cable Tie, .09 X 4” .................................................................................. 4
Gate Control Assembly

14 86511 Rev A
86511 Drop Seeder Attachment
1
3
4
5
6
2

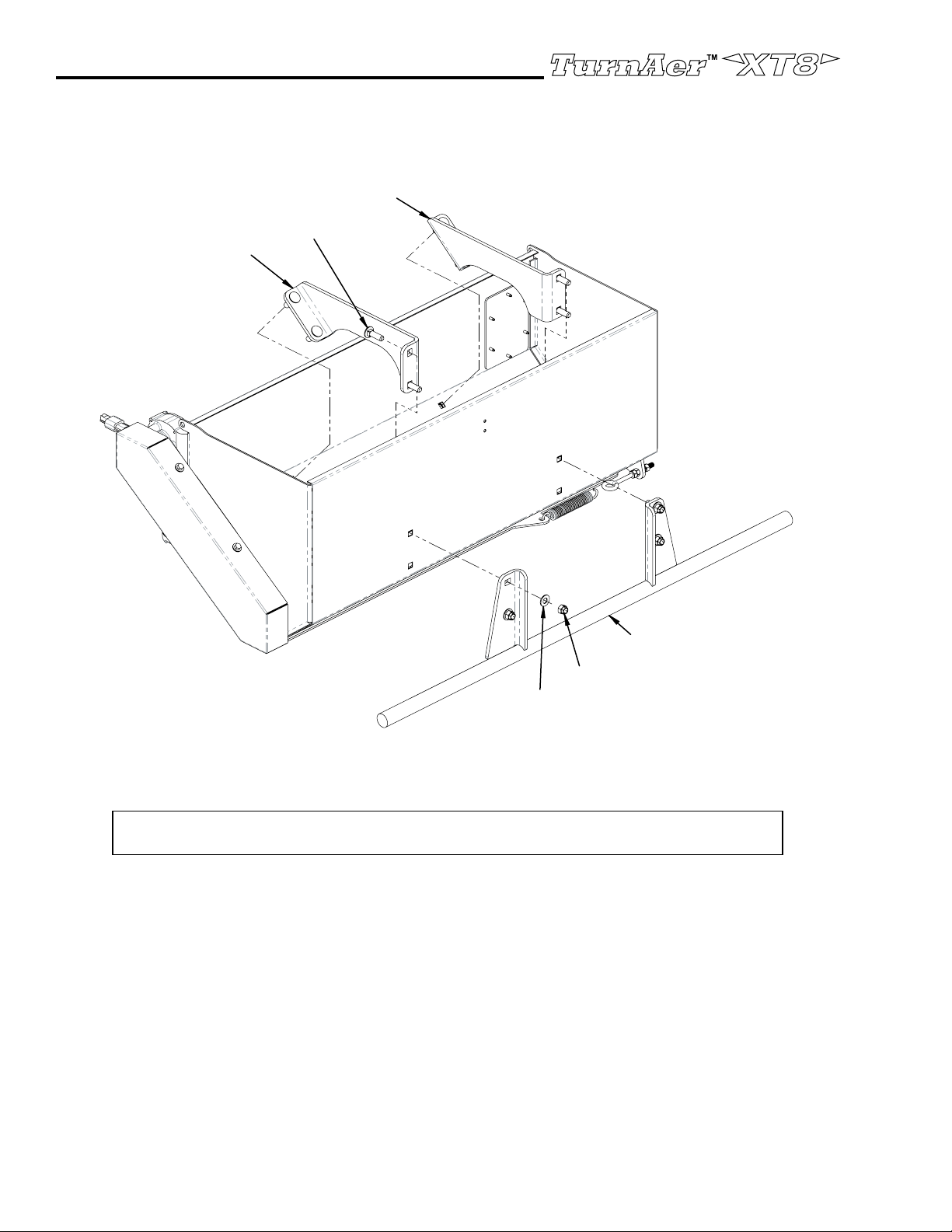

Bumper and Support, Front Assembly
Item Part Description Qty.
No. No.
1 671212 Support, Bumper, Seedbox, LH .............................................................. 1
2 440120 Bolt, Carr, 3/8-16 X 1-1/4, GR 5 .............................................................. 4
3 671213 Support, Bumper, Seedbox, RH.............................................................. 1
4 671214 Weldment, Bumper, Seedbox ................................................................. 1
5 444810 Locknut, 3/8-16 UNC, Hex, Nylon, Z....................................................... 4
6 660820 Washer, Flat, 3/8 SAE, Zinc Plated......................................................... 4

15
86511 Rev A
86511 Drop Seeder Attachment
10
9
8
7
14
6
4
12
14
13
13
12 11
3
5
1
2

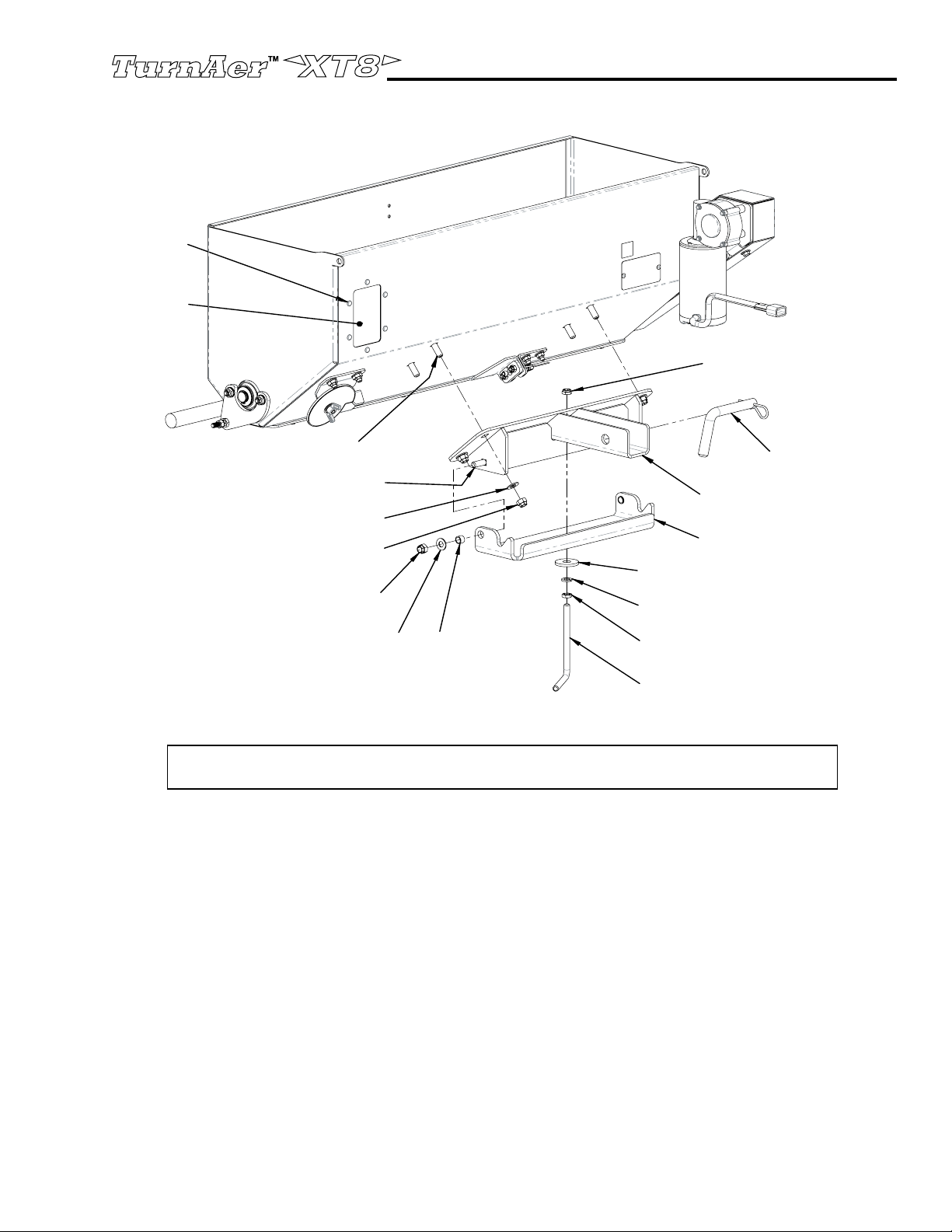

Bumper and Support, Rear Assembly
Item Part Description Qty.
No. No.
1 665323 Sight Glass, Hopper Lid .......................................................................... 1
2 665324 Rivet, Plastic ........................................................................................... 6
3 499357 Nut, Hex, 3/8-16 Nyloc, Lite Thin, PLT.................................................... 1
4 670935 Pin, Hitch, Bent, 5/8 X 3” w/Hairpin......................................................... 1
5 671205 Weldment, Seedbox Mount..................................................................... 1
6 671194 Latch, Seedbox Mount ............................................................................ 1
7 499002 Washer, Flat, 1/2” ID X 1-1/2” OD X 5/32 THK........................................ 1
8 446142 Washer, Lock, 3/8 Spring ........................................................................ 1
9 443110 Nut, Hex, 3/8-16, Full PLT....................................................................... 1
10 671195 Rod, Latch............................................................................................... 1
11 651275 Spacer, Clutch Pivot Fitting ..................................................................... 2
12 660820 Washer, Flat, 3/8 SAE, Zinc Plated......................................................... 6
13 444810 Locknut, 3/8-16 UNC, Hex, Nylon, Z....................................................... 6
14 440120 Bolt, Carr, 3/8-16 X 1-1/4, GR 5 .............................................................. 6

16 86511 Rev A
86511 Drop Seeder Attachment
A
5
6
7
4
3
2
8
10
11
16
17
13
12
14
15
12
11
9
13
1
DETAIL A
4
1
18
Metering Gate Assembly

17
86511 Rev A
86511 Drop Seeder Attachment
Item Part Description Qty.
No. No.
1 661467 Bolt, Carr, 1/4-20 X 3/4 GR 5, PLT.......................................................... 4
2 671220 Mount, Cable, Seedbox........................................................................... 1
3 453023 Washer, (.281 X .625 X.062) 1/4 SAE, PLT............................................ 2
4 444830 Nut, Hex, 1/4-20, Nylock Lite Full, PLT ................................................... 4
5 671224 Screw, Mach. #10-24 X 3/8, Hex HD, Zinc.............................................. 8
6 671222 Washer, Plastic, .562 OD X .203 ID X .045 THK, White ......................... 8
7 671188 Gate, Seedbox ........................................................................................ 1
8 668804 Spring, Extension, .75 OD X 5” LG ......................................................... 1
9 671223 Eyebolt, 5/16-18 X 3.50 PLT w/Nut ......................................................... 1
10 443106 Nut, Hex, 5/16-18, Full, PLT.................................................................... 2
11 444808 Nut, Hex, 5/16”-18, Nylock ...................................................................... 3
12 453009 Washer, Flat, 5/16 SAE........................................................................... 4
13 658240 Bolt, Carr, 5/16-18 X 3/4” ........................................................................ 3
14 671219 Mount, Dial, Seedbox.............................................................................. 1
15 671183 Weldment, Seedbox................................................................................ 1
16 658238 Nut, Wing, Nylon Insert, 5/16-18 Cold Forged ........................................ 1
17 671225 Dial, Metering, Seedbox.......................................................................... 1
18 671197 Holder, Cable End ................................................................................... 1
Metering Gate Assembly

18 86511 Rev A
86511 Drop Seeder Attachment

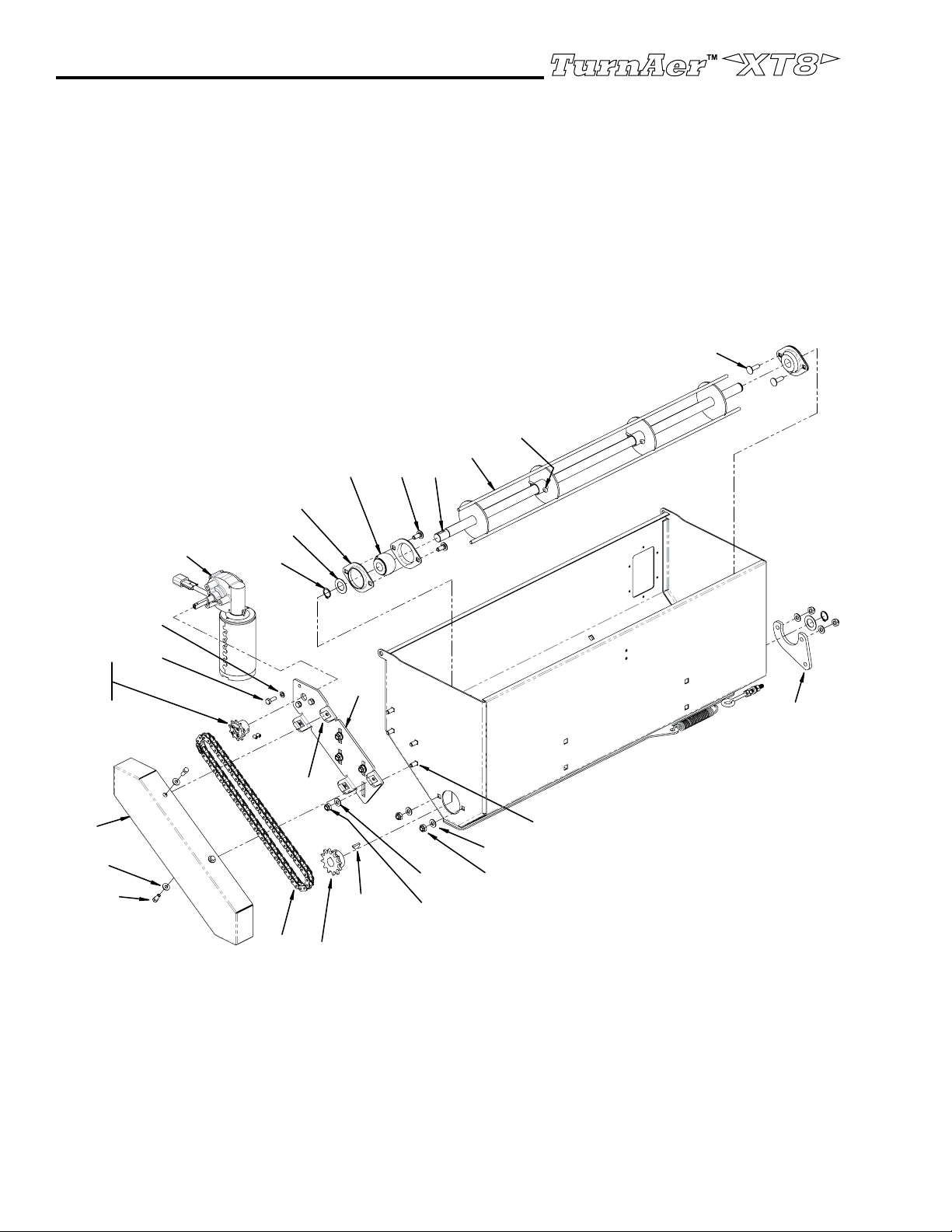

Agitator Drive Assembly
20
18
3
24
1
2
16
4
5
6
78
10
9
11
13
14
15
12
19
23
22
21
17
8
14
15
25

19
86511 Rev A
86511 Drop Seeder Attachment
Item Part Description Qty.
No. No.
1 400146 Bolt, Cap, HHCS 1/4-28 X 3/4................................................................. 3
2 446128 Washer, Lock, 1/4”, Spring, Medium ....................................................... 3
3 669348 Assembly, Seedbox Motor ...................................................................... 1
4 458013 Ring, Retaining, 3/4” ............................................................................... 2
5 499074 Washer, (.765 X 1.312 X .047)................................................................ 2
6 661179 Flangette, Two Bolt ................................................................................. 4
7 661738 Bearing, Flange, Self-Aligning 3/4 Bore Size .......................................... 2
8 658240 Bolt, Carr, 5/16-18 X 3/4” ........................................................................ 6
9 671191 Shaft, Agitator.......................................................................................... 1
10 671189 Weldment, Agitator.................................................................................. 1
11 460052 Pin, Cotter, 3/16 X 1-1/2, PLT.................................................................. 2
12 663539 Bolt, Carr, 5/16-18 X 1” ........................................................................... 2
13 671196 Mount, Spring.......................................................................................... 1
14 453009 Washer, Flat, 5/16 SAE........................................................................... 8
15 444808 Nut, Hex, 5/16”-18, Nylock ...................................................................... 8
16 671210 Motor Mount, Seedbox............................................................................ 1
17 659276 Nut, Clip, 1/4-20 ...................................................................................... 4
18 669545 Key, Woodruff, 3/4 X 3/16 ....................................................................... 1
19 656890 Sprocket, 41B12...................................................................................... 1
20 671218 Chain, RC-41 X 66 Pitches ..................................................................... 1
21 668601 Screw, Cap, 1/4-20 X 5/8, Hex HD.......................................................... 4
22 453023 Washer, (.281 X .625 X.062) 1/4 SAE, PLT ........................................... 4
23 671211 Guard, Chain, Seedbox........................................................................... 1
24 669325 Assembly, Sprocket, 10 Tooth................................................................. 1
25 669428 Screw, Set, 1/4-20 X 3/8, Steel ............................................................... 2
Agitator Drive Assembly

20 86511 Rev A
86511 Drop Seeder Attachment
Cover and Latch Assembly
4
56
8
7
7
10
8
3
9
2
1
Item Part Description Qty.
No. No.
1 667140 Bearing, I-Glide Clip 5/16” ID .................................................................. 2
2 670461 Edge Trim, 30”......................................................................................... 1
3 671193 Cover, Seedbox....................................................................................... 1
4 657116 Hair Pin Cotter, .091 Wire Dia. ................................................................ 2
5 453009 Washer, Flat, 5/16 SAE........................................................................... 2
6 671192 Rod, Seedbox Cover............................................................................... 1
7 499244 Nut, Hex, 10-24, Keps, Full ..................................................................... 3
8 662135 Screw, Slotted Round 10-24 X 1 ............................................................. 3
9 659138 Pad, Rubber, .50” Dia X .14” ................................................................... 2
10 662134 Latch, Draw ............................................................................................. 1
