TV One 1T-CT-400 Series User manual

Instruction Manual
1T-CT-400 Series
Cat.5 Extenders

Table of Contents
1.0 Introduction 2
2.0 Specifications 3
3.0 Checking Package Contents 6
4.0 Connecting The Hardware 6
5.0 Operating The Unit 9
6.0 Troubleshooting 10
7.0 Limited Warranty 11
8.0 Regulatory Compliance 11
9.0 Contact Information 12

2
1.0 INTRODUCTION
Thanks for purchasing this Cat.5 Extender Product from TV One. This Product line is
designed to transport VGA and YPbPr signals over great distances using CAT.5/5E or
CAT.6 premium grade network cables. Our professional video conversion products
have been serving the industry for over twenty years. TV One offers a full line of high
quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital
Converters (SD/HD-SDI, HDMI, DVI), Format Converters, Standards Converters,
TBC/Frame Synchronizers, Matrix Routing Switchers, Signal Distribution Amplifiers and
Cat.5 Transmission Systems.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One cannot
be held liable for the use of this hardware or any direct or indirect consequential
damages arising from its use. It is the responsibility of the user of the hardware to check
that it is suitable for his/her requirements and that it is installed correctly. All rights
reserved. No parts of this manual may be reproduced or transmitted by any form or
means electronic or mechanical, including photocopying, recording or by any
information storage or retrieval system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its policy
to modify and/or improve its products where necessary or desirable. This statement
does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognized. The TV One logo, TV One-
task and CORIO are the registered Trademarks of TV One. All other trademarks are the
property of their respective holders.
1.2 Features
The CAT.5 VGA Extender product line has many features that enable it to perform in a
superior manner. Among those features you will find:
•Transmit PC or Component Video content via Cat.5/5E or 6 Cable
•Resolutions to 1920x1200, 1080p @ 60Hz
•Range up to 300 meters (1000’)
•Gain and equalization adjustments at each receiver
•Some models with built-in Skew Correction adjustment
•Some models with Analog Stereo and S/PDIF Digital Audio
•One receiver model featuring built-in UTP Repeater

3
1.2 Transmitter Features and Compatibility Chart
Transmitter
Model Signal Type Stereo Audio Maximum Distance Cat.5 Out Compatible Receivers
1T-CT-441 RGBHV None 300M (1000’) 1 442, 444
1T-CT-443 RGBHV Yes (1) 300M (1000’) 1 442, 444, 452, 456
1T-CT-453 YPbPr Yes (1) 300M (1000’) 1 464
1T-CT-467 RGBHV Yes 300M (1000’) 8 442, 444, 452, 456
C2-1250/1250 (2) RGBHV/YPbPr No 300M (1000’) 1 442, 444, 464
Notes: (1) These models have both Analog Stereo and S/PDIF Digital Inputs.
(2) Models C2-1200 and C2-1250 are covered in a separate manual.
1.3 Receiver Features and Compatibility Chart
Receiver
Model Signal Type Stereo Audio Maximum Distance Built-in Skew Comp Compatible Transmitters
1T-CT-442 RGBHV None 150M (500’) No 441, 443, 467,
C2-1200/1250
1T-CT-444 RGBHV None 300M (1000’) Yes 441, 443, 467,
C2-1200/1250
1T-CT-452 RGBHV Yes (1) 150M (500’) No 443, 467
1T-CT-456 (2) RGBHV Yes (1) 300M (1000’) Yes 443, 467
1T-CT-464 YPbPr Yes (1) 300M (1000’) No 453, C2-1200/1250
Notes: (1) These models have both Analog Stereo and S/PDIF Digital Audio Outputs.
(2) This model has a built-in UTP Repeater to drive another Receiver at up to 1000’.
2.0 SPECIFICATIONS
2.1 General
Environmental
Operating Temperature 0° to +70° C (+32° to +158° F)
Operating Humidity 10% to 90%, Non-condensing
Storage Temperature -40° to +70° C (-40° to +158° F)
Storage Humidity 10% to 90%, Non-condensing
Warranty
Limited Warranty 2 Years Parts and Labor
Regulatory Approvals
Encoder/Decoder Unit FCC, CE, RoHS
Power Supply UL, CUL, CE, PSE, GS, RoHS
Cable Requirements
CAT.5/5E or CAT 6 Network Grade, Premium Cables
Power Requirement
All models except 1T-CT-467 External Power Supply +5 VDC@2A, Locking DC
1T-CT-467 Internal Power Supply 100-240VAC@ 50-60Hz
Accessories Included
1x Power Adapter US, UK or Euro (except 1T-CT-467)
1x User Manual CAT.5 Extender Series

4
2.2 Transmitters
Video Inputs
1T-CT-441, 443, 467 1x RGBHV via HD-15
1T-CT-453 1x YPbPr via 3x RCA
Video Outputs
1T-CT-441, 443, 467 1x RGBHV via HD-15
Audio Inputs
1T-CT-441 None
1T-CT-467 1x Analog Stereo via 3.5mm
1T-CT-443, 453 1x Analog Stereo via 3.5mm, 1x S/PDIF via Toslink
Audio Outputs
1T-CT-441 None
1T-CT-443, 453, 467 1x Analog Stereo via 3.5mm Mini Stereo
UTP Outputs
1T-CT-441, 443, 453 1x via RJ-45 Connector
Video Performance
Maximum Resolutions Up to 1920x1200, 1080p / 60Hz
Video Bandwidth 350MHz
Input Signal Levels Video 0.75mV, Sync 5V TTL
Horizontal Freq Range 15-70KHz
Vertical Freq Range 30-170Hz
Audio Performance
Input Sampling Rates 32, 44.1, 48, 96KHz
Maximum Range
All Models Up to 300M (1000’), depending upon Receiver selected
Mechanical (H-W-D)
1T-CT-441, 443, 453 88x141x32mm (1.26”x5.5”x3.5”)
1T-CT-467 44x213x134mm (1.75x8.4x5.3”)
Weight
1T-CT-441, 443, 453 240g (0.53 lbs)
1T-CT-467 860g (1.9 lbs)
Model Numbers
1T-CT-441 Transmitter for RGBHV
1T-CT-443 Transmitter for RGBHV and Stereo
1T-CT-453 Transmitter for YPbPr and Stereo
1T-CT-467 Transmitter for RGBHV with 8x UTP Outputs
Optional Accessories
RM-370T Rackmount 3 units – 1T-CT-441, 443, 453
RM-360S Rackmount 1 unit – 1T-T-467
Notes
(1) TV One Model C2-1200 and C2-1250 Video Switcher/Scalers have built in UTP
transmitters capable of sending RGBHV or YPbPr format signals up to 1000’. Check
the Spec Sheets for those products for full details. These units are compatible with
UTP Receiver models 1T-CT-442, 444, 464.

5
2.2 Receivers
UTP Inputs
All Receiver Models 1x via RJ-45 Connector
UTP Outputs
1T-CT-456 1x via RJ-45 Connector for Cat.5 Repeater function
Video Outputs
1T-CT-442, 444, 452, 456 1x RGBHV via HD-15
1T-CT-464 1x YPbPr via 3x RCA
Audio Outputs
1T-CT-442, 444 None
1T-CT-452, 456, 464 1x SPDIF via Toslink and 1x Analog via 3.5mm Mini St.
Video Performance
Maximum Resolutions Up to 1920x1200, 1080p / 60Hz
Video Bandwidth 350MHz
Output Signal Levels Video 0.75mV, Sync 5V TTL
Horizontal Freq Range 15-70KHz
Vertical Freq Range 30-170Hz
Audio Performance
Output Sampling Rate 32KHz
Maximum Range
1T-CT-442, 452 150M (500’) for RGBHV Output
1T-CT-444, 456 300M (1000’) for RGBHV Output
1T-CT-464 300M (1000’) for YPbPr Output
Signal Adjustments
All Receiver Models Equalization and Gain
1T-CT-444, 456 R-G-B Skew Compensation in 32 steps per color
Mechanical (H-W-D)
All models 89x141x32mm (1.26”x5.5”x3.5”)
Weight
All Models 240g (0.53 lbs)
Model Numbers
1T-CT-442 Receiver for RGBHV to150M
1T-CT-444 Receiver for RGBHV to 300M
1T-CT-452 Receiver for RGBHV to 150M with Stereo
1T-CT-456 Receiver for RGBHV to 300M with Stereo, UTP Repeater
1T-CT-464 Receiver for YPbPr to 300M with Stereo
Optional Accessories
RM-370T Rackmount 3 units – All Receiver Models

6
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain the
following items are contained in the shipping carton:
•1x Transmitter or Receiver unit
•1x Power Adapter (except 1T-CT-467)
•1x AC Power Cord (1T-CT-467 only)
•1x Operations Manual
Note: Please retain the original packing material should the need ever arise to return
the unit. If you find any items are missing, contact your reseller or TV One immediately.
Have the Model and Serial Number and Invoice available for reference when you call.
4.0 CONNECTING THE HARDWARE

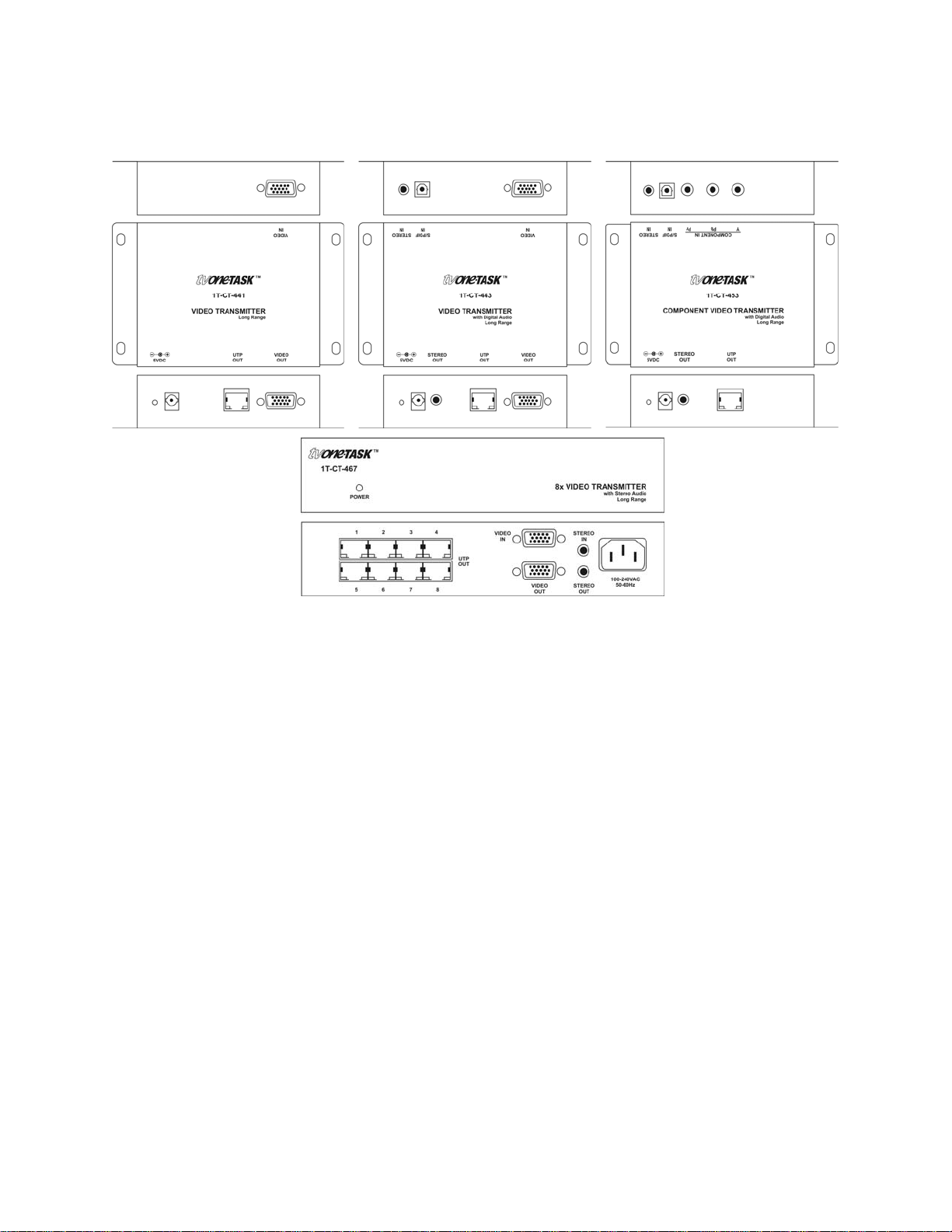

Please study the panel drawings below and become familiar with the signal input,
outputs, power requirements/inputs plus any controls present. Note: Each product has
somewhat different capabilities and therefore different cable connections are present.
Locate the drawing for the item(s) you have purchased and become familiar with the
connectors used in that product. The resolution capability of the remotely located
display devices must be capable of displaying the output of the source device. Before
connecting the CAT.5 extender system, verify that the display device on the receiving
end can support the output resolution and signal format by connecting it directly to the
source device.
4.1 Cat.5/5E/6 Cable Notes
Pins and pairing. Make sure the CAT5/5E/6 cable pin assignments are standard. The
correct pairing is straight through pin-to-pin, with pairing as follows.

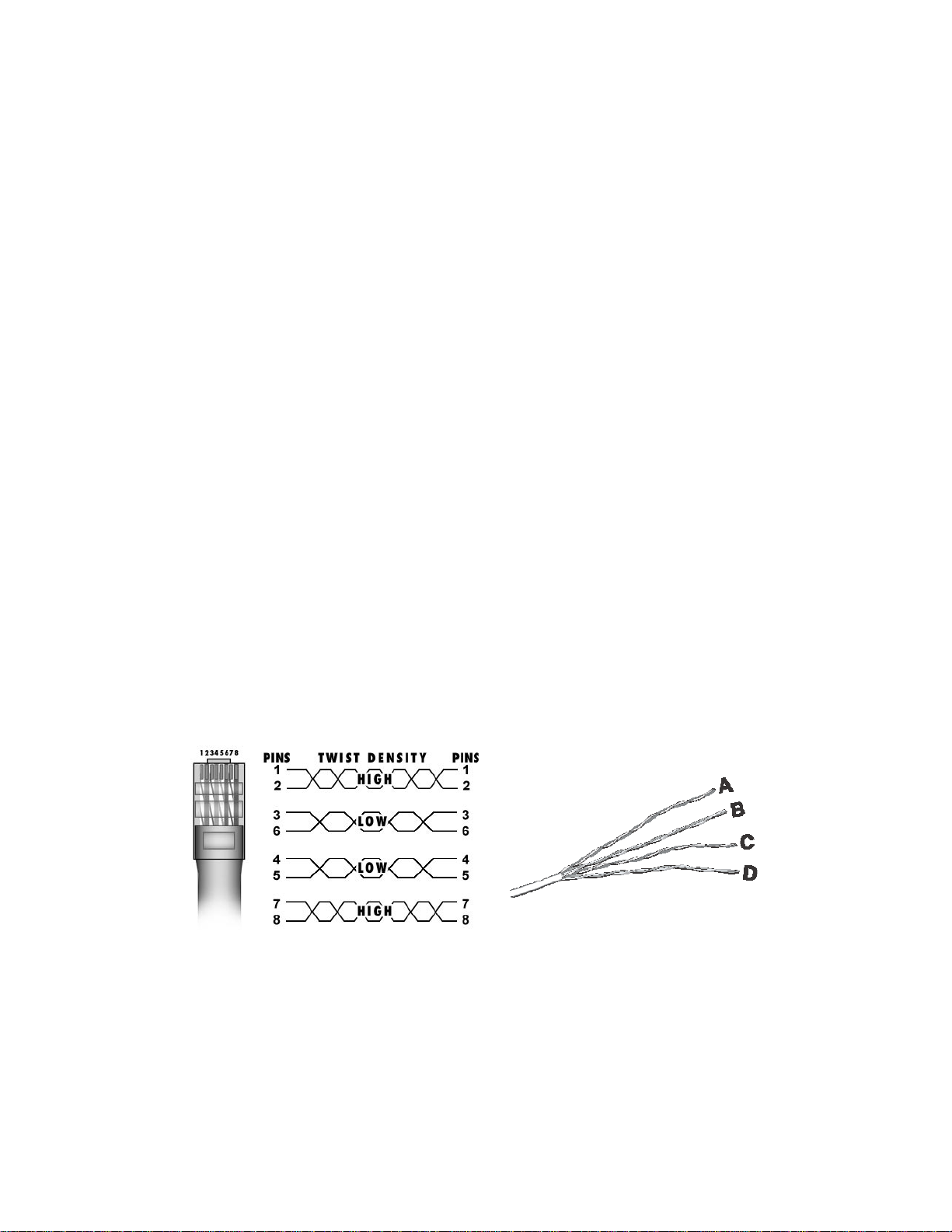

Twist density. UTP cable pairs have different twist densities (twist pitches). There are
two pairs with high density twist and two pairs with low density. Colors vary by
manufacturer. Twist densities can be seen by stripping off about 10 cm (4’) of insulation
and visually inspecting. Pairs 1-2 and 7-8 should be assigned to high density twists.
Failure to assign correct twist densities can result in image jitter. The ABCD picture
shows typical UTP cable, with pairs A and C showing a high pitch twist (assign (assign
to pin pairs 1-2 & 7- 8), and B and D with low pitch twist (assign to pin pairs 3-6 & 4-5).

7
4.2 1T-CT-400 Series Transmitters
1. Connect the source device’s video output to the VIDEO IN connector of the
Transmitter, using the appropriate cable. All models except the 1T-CT-453 have
a VIDEO OUT connector that can provide a loop-thru signal to a local monitor.
2. All Transmitter models, except the 1T-CT-441, have audio capability. Connect
either the source device’s analog stereo or S/PDIF audio output to the either the
STEREO IN connector or the S/PDIF IN connector of the Transmitter (1T-CT-467
does not have S/PDIF in). Do not connect both as this will result in interference
between the two. The system is designed to support either audio format, but not
both at the same time. The audio output of the Transmitter can provide an
analog stereo signal for local monitor. If a S/PDIF input is used, this will be
converted to analog stereo for this purpose.
3. Connect a Cat.5/5E or Cat.6 cable to the UTP OUT connector of the Transmitter.
Model 1T-CT-467 has 8 UTP Outputs. All Transmitter models support up to 300
meters (1,000’) of CAT.5/5E or CAT.6 premium grade network cables as
described in 4.1 above. Model 1T-CT-467 has 8 UTP Outputs. The Receiver
model determines the maximum distance of either 150 meters (500’) or 300
meters (1,000’) of the cable as cam be determined by checking section 4.3
below.
Note – In addition to these three Transmitter models mentioned about, TV One
Models C2-1200 and C2-1250 Video Switcher/Scalers have built-in UTP transmitters
capable of sending either RGBHV or YPbPr format signals (without audio) up to
1000 feet. Consult the manual for those units when they are being used.

8
4.2 1T-CT-400 Series Receivers
1. At the remote location, connect the other end of the Cat.5/5E or Cat.6 cable to
the UTP IN connector of the Receiver.
2. Connect the VIDEO OUT connector of the Receiver to the video input of the
remote display or other device, using the appropriate cable.
3. If the Transmitter and Receiver models chosen have audio capability, connect
the Receiver’s STEREO OUT and/or S/PDIF OUT connectors to remote display
or other audio device. Both audio outputs may be used simultaneously,
regardless of the audio signal format chosen at the transmitter.
4. Connect the supplied AC adapters first to the respective Transmitter and
Receiver and then to the AC sockets.
5. Lastly, turn on the source device and remote display. The source signal should
now appear on the remotely located display. If not, consult the Troubleshooting
section of this manual.

9
5.0 OPERATING THE UNITS
Once the connections have been made and power applied, there is little in the way of

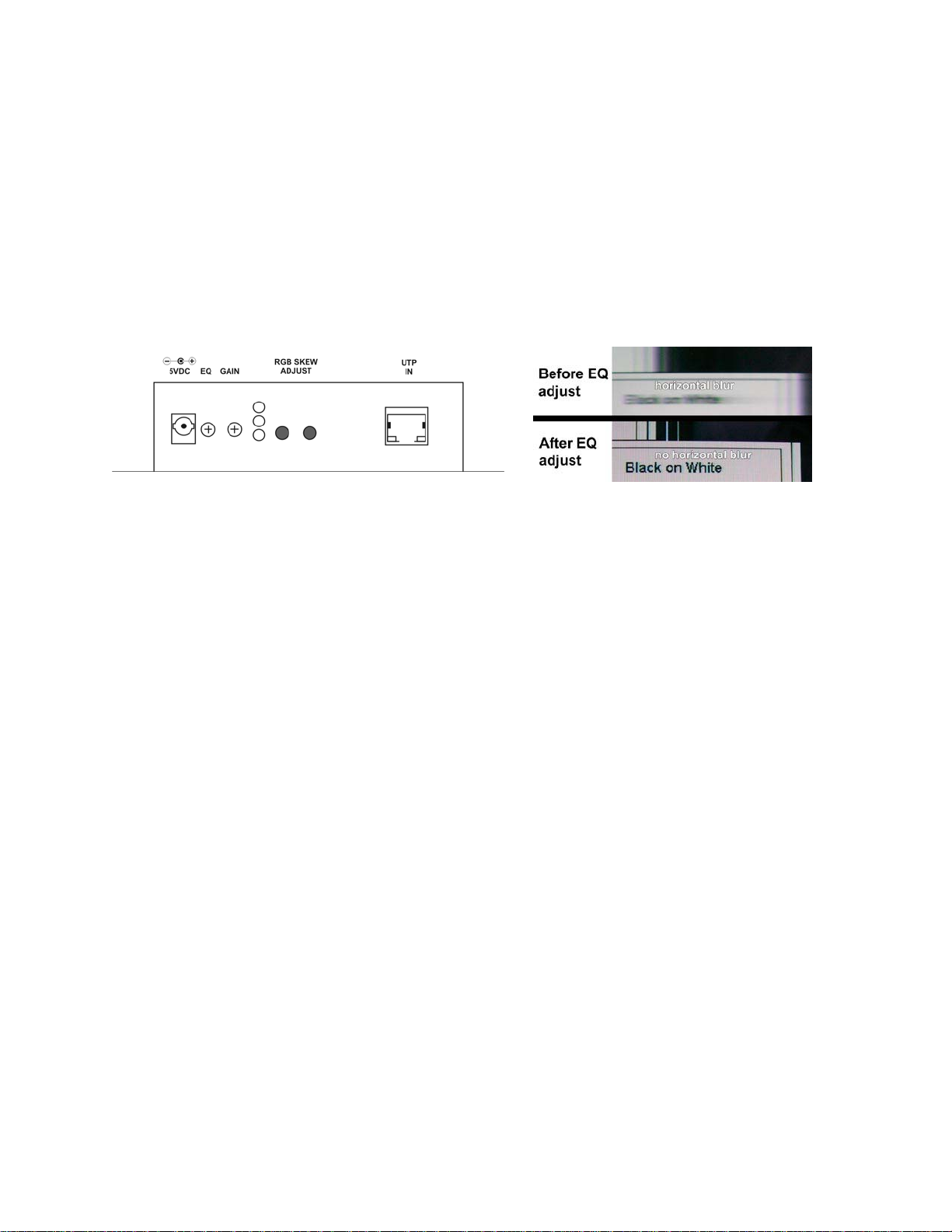

operational adjustments required. All Receivers have Equalization and Gain
adjustments. Additionally, the 1T-CT-444 and 1T-CT-456 have Skew Compensation
adjustments.
5.1 Equalization and Gain Adjustments
On all Receiver models, locate the EQ (Equalization) and GAIN adjustments on the side
of the Receiver.
On long cable runs, the high frequency detail can be lost resulting in a “soft” looking
picture. This will first show up in text where the characters will lose their sharp edges.
Adjust the EQ can sharpen the image. While viewing an image on a display connected
to the Receiver, insert a small screwdriver into the EQ adjustment on the side panel of
the Receiver. Rotate gently until the best EQ setting, as determined by image clarity, is
achieved.
Then insert the screwdriver into the GAIN adjustment, and rotate gently until the best
Gain setting, as determined by the brightness of the image is achieved. You may
notice an increase in video noise (sometimes called “snow”) in the picture at higher
gain settings so a compromise will have to be found if the cable run is at or near the
maximum length. EQ and GAIN settings are retained by the Receiver.
5.2 RGB Skew Compensation Adjustment
RGB images transmitted over long Cat.5/5E or Cat.6 cable paths can sometimes arrive
at the destination with the individual RGB pictures no longer in registration. Models 1T-
CT-444 and 1T-CT-456 have built in Skew Compensation adjustments to correct this.
This adjustment should be made after the EQ and Gain adjustments described above. A
good test pattern for RGB Skew adjustment is pictured below and is available for
download at the TV One Technical Support website http://tvone.crmdesk.com. After
saving the test pattern on the source PC, display and view it while making adjustments
on the remote display.

10
.
If you want to nudge the blue image to the left, make sure the blue LED is blinking, then
hold the nudge button in and wait until the blue LED is blinking. Then tap the Nudge Left
button repeatedly. Each tap will result in a tiny incremental move to the left. There are
32 increments in this adjustment. To shift the blue image to the right, make sure the
blue LED is still blinking and tap the Nudge Right button repeatedly. To adjust the Red
and Green images, repeat the process, making sure the color you want to adjust is
blinking. Adjust the Skew controls until the Red, Blue and Green images are vertically
aligned and the white vertical lines show no prismatic halos. When complete, release
the adjustment buttons and in 30 seconds the LED will stop blinking and the Receiver
reverts to normal operation and the Skew adjustment settings are retained in memory.
6.0 TROUBLESHOOTING
Other than faulty cables or attempting to use the product over too great of distances,
there are seldom problems with these Video Extender products.
If there is no image present at the remote location, connect the display device directly to
the source to make certain that the problem is not in the display. If an image is present
under those circumstances, make certain the transmitter and receiver(s) are receiving
power. Next make certain your Cat.5/5E/6 cable is defect free and the RJ-45 connectors
are securely attached to the cable at both ends.
After trying the above suggestions should the problem still persist, contact your dealer
for additional suggestions before contacting TV One. Should the dealer’s technical
personnel be unable to assist you, contact TV One via our support website:
http://tvone.crmdesk.com. Create a technical support request on the site and our
support team will respond within a short period of time.
Locate the RGB Skew Adjust buttons on the side of
the Receiver. While watching the remote display,
press and HOLD either RGB skew adjust button. After
three seconds, the RGB adjust indicator LED starts
blinking; Receiver is now in RGB Skew Adjust Mode.
The color of the blinking LED indicates the color being
adjusted. Colors cycle if you hold the button down
steadily.

11
7.0 LIMITED WARRANTY
LIMITED WARRANTY – With the exceptions noted in the next paragraph, TV One
warrants the original purchaser that the equipment it manufactures or sells will be free
from defects in materials and workmanship for a period of two years from the date of
purchase. Should this product, in TV One’s opinion, prove defective within this warranty
period, TV One, at its option, will repair or replace this product without charge. Any
defective parts replaced become the property of TV One. This warranty does not apply
to those products which have been damaged due to accident, unauthorized alterations,
improper repair, modifications, inadequate maintenance and care, or use in any manner
for which the product was not originally intended.
Items integrated into TV One products that are made by other manufacturers, notably
computer hard drives and liquid crystal display panels, are limited to the term of the
warranty offered by the respective manufacturers. Such specific warranties are
available upon request to TV One.
If repairs are necessary under this warranty policy, the original purchaser must obtain a
Return Authorization Number from TV One and return the product to a location
designated by TV One, freight prepaid. After repairs are complete, the product will be
returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in lieu of
all other warranties for this product, expressed or implied, and is strictly limited to two
years from the date of purchase. TV One assumes no liability to distributors, resellers or
end-users or any third parties for any loss of use, revenue or profit.
TV One makes no other representation of warranty as to fitness for the purpose or
merchantability or otherwise in respect of any of the products sold. The liability of TV
One with respect to any defective products will be limited to the repair or replacement of
such products. In no event shall TV One be responsible or liable for any damage
arising from the use of such defective products whether such damages be direct,
indirect, consequential or otherwise, and whether such damages are incurred by the
reseller, end-user or any third party.
8.0 REGULATORY COMPLIANCE
The 1T-CT-400 Series Extender products have been tested for compliance with
appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been
tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations
and/or Guidelines. This Product and Power Adapter is RoHS Compliant.
