TV One 1T-EDID-11 User manual

Instruction Manual
1T-EDID-11
EDID/CEC Selector

Table of Contents
1.0 Introduction 2
2.0 Specifications 4
3.0 Checking Package Contents 5
4.0 Connecting The Hardware 5
5.0 Operating The Unit 6
6.0 Troubleshooting 7
7.0 Limited Warranty 7
8.0 Regulatory Compliance 8
9.0 Contact Information 9

1.0 INTRODUCTION
Thanks for purchasing the 1T-EDID-11 EDID/CEC Selector product from TV One. The
1T-EDID-11 allows easy set up of the EDID and CEC parameters between a source
and display monitor. Instead of waiting for the source and display to synchronize, this
HDMI switcher saves time by using preset EDID and CEC settings to speed up the
process. It’s also easy to change your settings should that become necessary due the
selection of a different source or destination device or the purchase of new equipment.
Our professional video conversion products have been serving the industry for over
twenty years. TV One offers a full line of high quality Seamless Switchers, Video
Scalers, Up/Down/Cross Converters, Analog-Digital Converters (SD/HD-SDI, HDMI,
DVI), Format Converters, Standards Converters, TBC/Frame Synchronizers, Matrix
Routing Switchers, Signal Distribution Amplifiers and Cat.5 Transmission Systems.
1.1 Liability Statement
Every effort has been made to ensure that this product is free of errors. TV One cannot
be held liable for the use of this hardware or any direct or indirect consequential
damages arising from its use. It is the responsibility of the user of the hardware to check
that it is suitable for his/her requirements and that it is installed correctly. All rights
reserved. No parts of this manual may be reproduced or transmitted by any form or
means electronic or mechanical, including photocopying, recording or by any
information storage or retrieval system without the written consent of the publisher.
TV One reserves the right to revise any of its hardware and software following its policy
to modify and/or improve its products where necessary or desirable. This statement
does not affect the legal rights of the user in any way.
All third party trademarks and copyrights are recognized. The TV One logo, TV One-
task and CORIO are the registered Trademarks of TV One. All other trademarks are the
property of their respective holders.
1.2 Features
This 1T-EDID-11 EDID/CEC Selector has many features that enable it to perform in a
superior manner. Among these features you will find:
Compliant with HDMI v1.3 and DVI 1.0 standards
Serial data rates of up to 2.25Gbps.
Supports 12 bit Deep Color
Selectable DTV Resolutions of 720p, 1080i/p
Selectable PC resolutions of XGA, SXGA and UXGA
Supports embedded audio including Dolby Digital True HD and DTS-HD
Built in CEC support with Compliant CEC PHY
HDMI Range of up to 15 Meters (50 ft)

5
Locking +5VDC Connectors for enhanced mechanical security
2.0 SPECIFICATIONS
Video Input
HDMI & DVI-D 1x via HDMI Connector, Type A
Video Outputs
HDMI 1x via HDMI Connector, Type A
Video Signal Processing
Frequency Bandwidth 2.25Gbps
Standards Supported
HDMI, DVI (DVI via DVI to HDMI Cable Adapter)
Video Formats Supported
SD and HD Formats 480i/p, 576i/p, 720p, 1080i/p
RGB Formats Supported
DVI Equivalents VGA, SVGA, XGA, SXGA and UXGA
Embedded Audio Support
Dolby and LPCM TrueHD, DTS-HD, LPCM 7.1, LPCM 2.0.
Cable Distance
Max Distance For 1080p, 15m (50ft)
Environmental
Operating Temperature 0° to +40° C (+32° to +104° F)
Operating Humidity 20% to 90%, Non-condensing
Storage Temperature -10° to +60° C (+14° to +140° F)
Storage Humidity 20% to 90%, Non-condensing
Warranty
Limited Warranty 3 Years Parts and Labor
Regulatory Approvals
3G Extender Unit FCC, CE, RoHS
Power Supply UL, CUL, CE, PSE, GS, RoHS
Mechanical (H-W-D)
1T-EDID-11 (HWD) 30x125x90mm (1.2x4.9x3.54”)
Weight
1T-EDID-11 250g (0.55 lbs)
Power Requirement
External Power Supply 5 VDC@2A, Locking DC
Accessories Included
1x Power Adapter US, UK or Euro
1x User Manual
Model Numbers
1T-EDID-11 EDID/CEC Selector

6
3.0 CHECKING PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make certain the
following items are contained in the shipping carton:
1x 1T-EDID-11 EDID/CEC Selector
1x Power Adapter
1x Operations Manual
Note: Please retain the original packing material should the need ever arise to return
the unit. If you find any items are missing, contact your reseller or TV One immediately.
Have the Model and Serial Number and Invoice available for reference when you call.
4.0 CONNECTING THE HARDWARE

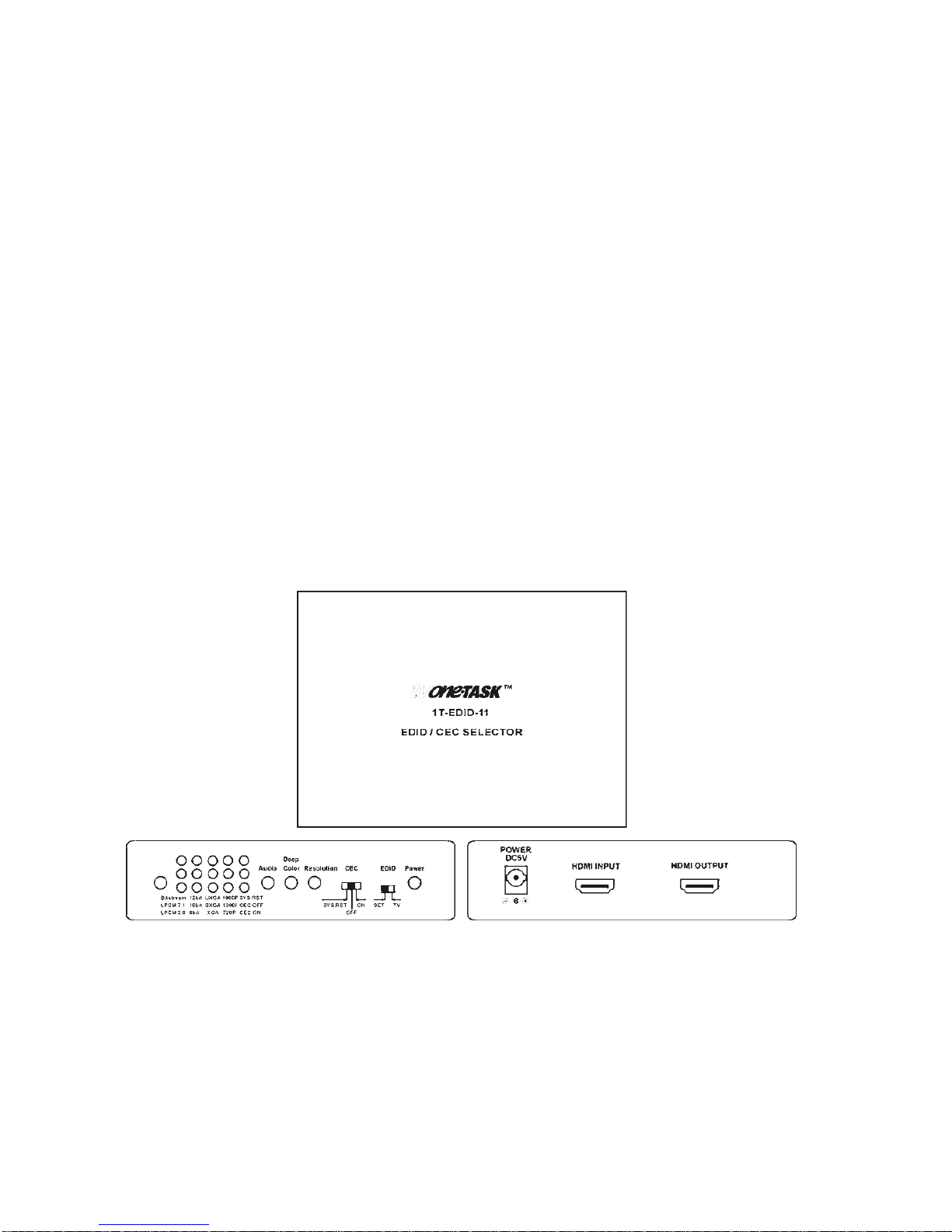

Please study the panel drawings below and become familiar with the signal input,
outputs, power requirements/inputs plus any controls present. Note: The resolution
capability of the remotely located display devices must be capable of displaying the
output of 1T-EDID-11 Selector. Before connecting the 1T-EDID/CEC Selector, verify
that the display device can support the selected resolution.
4.2 1T-EDID-11 EDID/CEC Selector
Connect the source device’s output to the HDMI IN connector of the 1T-EDID-11 using
a high quality cable.
Connect an HDMI cable to the HDMI OUTPUT connector and then to the display
device.

7
Lastly, connect the AC adapter to the unit and observe that the Power LED is
illuminated when you press the power button.
5.0 OPERATING THE UNIT
HDMI compatible display devices will eventually sort out the incoming resolution and
signal type. If capable of displaying the incoming signal, they will do so after several
seconds. The purpose of the 1T-EDID-11 is to allow you to speed up the process by
pre-selecting the appropriate signal.
The 1T-EDID-11’s controls are used as follows:
The Power button applies the output from the AC adapter to the unit’s electronics.
The Enter button is pressed after each selection is made via the other controls and
the array of LEDs are status indicators showing the signal characteristics you have
selected.
The Audio button selects the embedded audio Bitstream from Dolby: (TrueHD, DTS-
HD) or LPCM 7.1 or LPCM 2.0.
The Deep Color Button selects either a 12 bit, 10 bit or 8 bit data stream.
The Resolution Button selects UXGA, SXGA, XGA, 1080p, 1080i or 720p. (Note that
you must place the EDID selector switch in the SET position or the resolution set
function will not be able to control its parameter. When this function is used, it will only
control the resolution. Frame rate [vertical rate] will not be affected.)
Switching the CEC switch to SYS.RST causes the system to reset every 8-10
minutes forcing the display device to re-sync. If the switch is placed in the OFF
position, the 1T-EDID-11 functionality is defeated and the display device functions
according to its design parameters. Switching the CEC switch to ON will cause the 1T-
EDID-11 to function in response to your inputs. (Note that you must press the Enter
button each time you change the position of the CEC switch.)
The EDID switch will allow you to control the way your source sees your display
when it is in the SET position. Placing the switch in the TV position allows the EDID
information from your display to pass to your source normally.
Please note that when you connect a source to our 1T-EDID-11, you need to
check whether or not your source will auto-detect the EDID once the EDID is
changed. Some devices (such as the PS3) will not automatically detect that the
EDID has changed and will need to be told to re-check manually.

8
6.0 TROUBLESHOOTING
Other than faulty cables or attempting to use the product over too great a distance,
there are seldom problems with the 1T-EDID-11 EDID/CEC Selector product.
If there is no image present at the remote location, connect the display device directly to
the source to make certain that the problem is not in the display. If an image is present
under those circumstances, make certain the unit is receiving power. Next make certain
your cables are defect free and securely attached to the cable at each end. After trying
the above suggestions should the problem still persist, contact your dealer for additional
suggestions before contacting TV One. Should the dealer’s technical personnel be
unable to assist you, contact TV One via our support website:
http://tvone.crmdesk.com. Create a technical support request on the site and our
support team will respond within a short period of time.
7.0 LIMITED WARRANTY
TV One warrants the original purchaser that the equipment it manufactures or sells will
be free from defects in materials and workmanship for a fixed term from the date of
purchase. The warranty term for specific product lines is defined below.
1. TV One branded products based on TV One’s CORIO technology are warranted for
a period of five years from the date of purchase. This includes products with the
model number prefix of C2, 1T-C2, CX, A2 or S2.
2. TV One-task branded products, other than those based on TV One’s CORIO
technology mentioned above, are warranted for a period of three years from the date
of purchase. This includes products with the model number prefix of 1T, with the
exception of 1T-C2.
3. LCD Monitors are warranted for a period of three years from the date of purchase,
with the exception of the LCD panels integrated into the monitors that are supplied
by third parties. LCD panels are limited to the term and conditions of the warranty
offered by the respective LCD panel manufacturer. Such specific LCD panel
warranties are available upon request to TV One.
Should a product, in TV One’s opinion, prove defective within this warranty period, TV
One, at its option, will repair or replace this product without charge. Any defective parts
replaced become the property of TV One. This warranty does not apply to those
products which have been damaged due to accident, unauthorized alterations, improper
repair, modifications, inadequate maintenance and care, or use in any manner for which
the product was not originally intended.
If repairs are necessary under this warranty policy, the original purchaser must obtain a
Return Authorization Number from TV One and return the product to a location

9
designated by TV One, freight prepaid. After repairs are complete, the product will be
returned, freight prepaid.
LIMITATIONS - All products sold are "as is" and the above Limited Warranty is in lieu of
all other warranties for this product, expressed or implied, and is strictly limited to two
years from the date of purchase. TV One assumes no liability to distributors, resellers or
end-users or any third parties for any loss of use, revenue or profit.
TV One makes no other representation of warranty as to fitness for the purpose or
merchantability or otherwise in respect of any of the products sold. The liability of TV
One with respect to any defective products will be limited to the repair or replacement of
such products. In no event shall TV One be responsible or liable for any damage
arising from the use of such defective products whether such damages be direct,
indirect, consequential or otherwise, and whether such damages are incurred by the
reseller, end-user or any third party.
8.0 REGULATORY COMPLIANCE
The 1T-EDID-11 EDID/CEC Selector has been tested for compliance with appropriate
FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for
compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or
Guidelines. This Product and Power Adapter is RoHS Compliant.
9.0 CONTACT INFORMATION
Should you have questions or require assistance with this product in areas not covered
by this manual, please contact TV One at the appropriate location shown below.

10
TV One USA
2791 Circleport Drive
Erlanger, KY 41018
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvone.com
TV One Europe
Continental Approach
Westwood Industrial Estate
Margate, Kent CT9 4JG, UK
Tel [phone]
Fax [phone]
[email protected]
www.tvone.eu
TV One Latin America
6991 NW 82 Avenue #8
Miami, FL 33166
USA
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Mercosur
AV Diaz Velez 3965 PB
Capital Federal (1200)
Buenos Aires, Argentina
Tel [phone]
Fax [phone]
[email protected]
www.tvonela.com
TV One Asia
16F-4, No.75, Sec.1
Hsin Tai Wu Rd., Hsichih
Taipei Hsien 22101
Taiwan R.O.C.
Tel [phone]
Fax [phone]
[email protected]
www.tvoneasia.com
TV One China
Room 1007, Golden Peach Building
No. 1900 Shangcheng Road
Pudong, Shanghai
China 200120
Tel [phone]
Fax [phone]
[email protected]
www.tvonechina.com
END OF MANUAL
