Tview T718DVPL User manual

HEADREST DVD PLAYER
T718DVPL
HEADREST DVD PLAYER
This unit is manufactured with precision
elements.
Pay attention to protection against dam-
pness.
Prevent the hard object from scratching
LCD suface.
LCD may have a few color dots,which is
common for the matrix display technol-
ogy,and doesn't indicates defects or fault.
Notice to Customers

HEADREST DVD PLAYER
Features………………………………………………………...........................……………3
Disc for playback…………………………………………………….............................…..3
Precaution……………………………………………………………............................…..4
Brief Instruction………………………………………………………............................….4
Accessories………………………………………………………..........................…...4
Remote controller……………………………………………....................................5

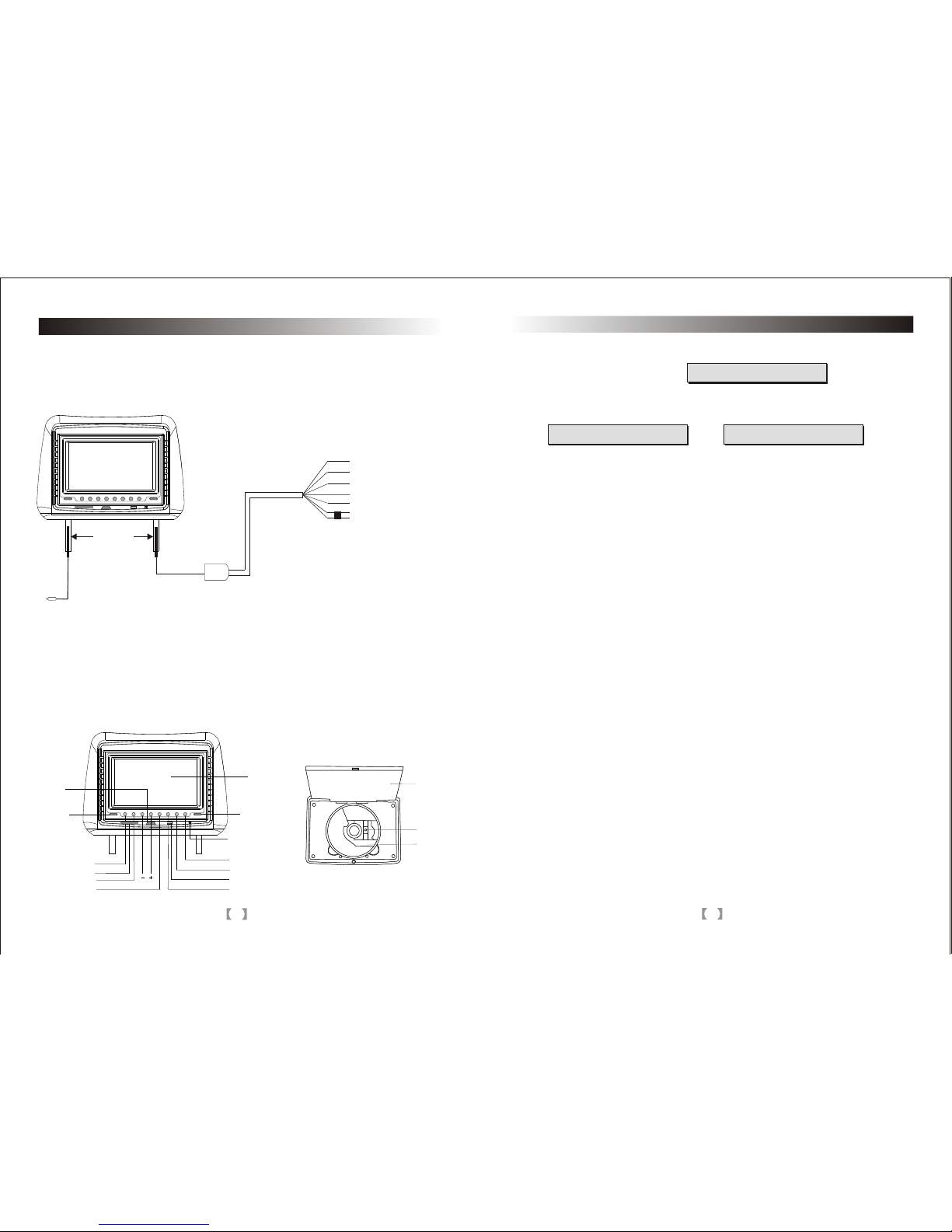

Installation and connection method………………………………...........................5
Main components………………………………………………………..............................6
Name of the Player…………………………………………………………...................6

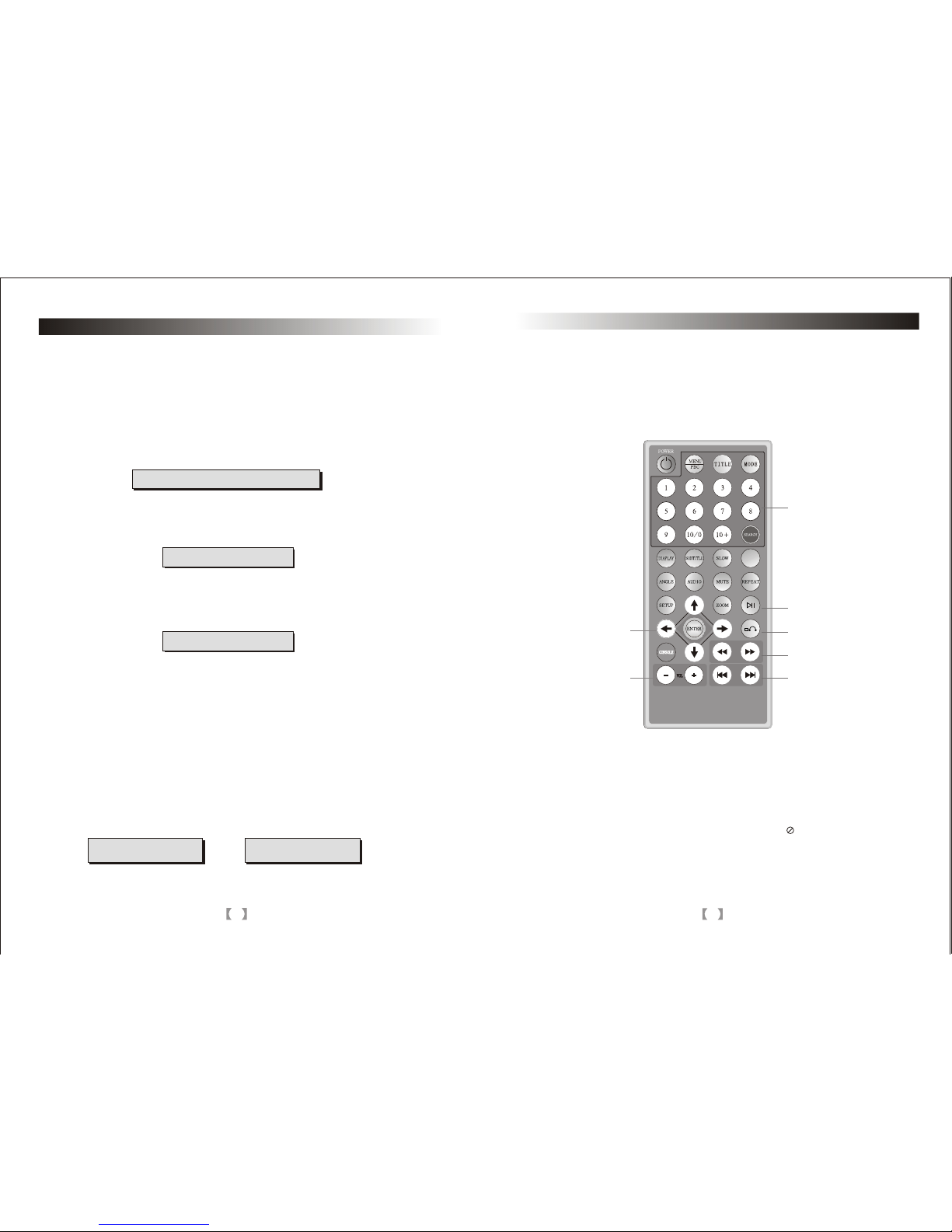

Remote control…………………………………………………….........................…..7

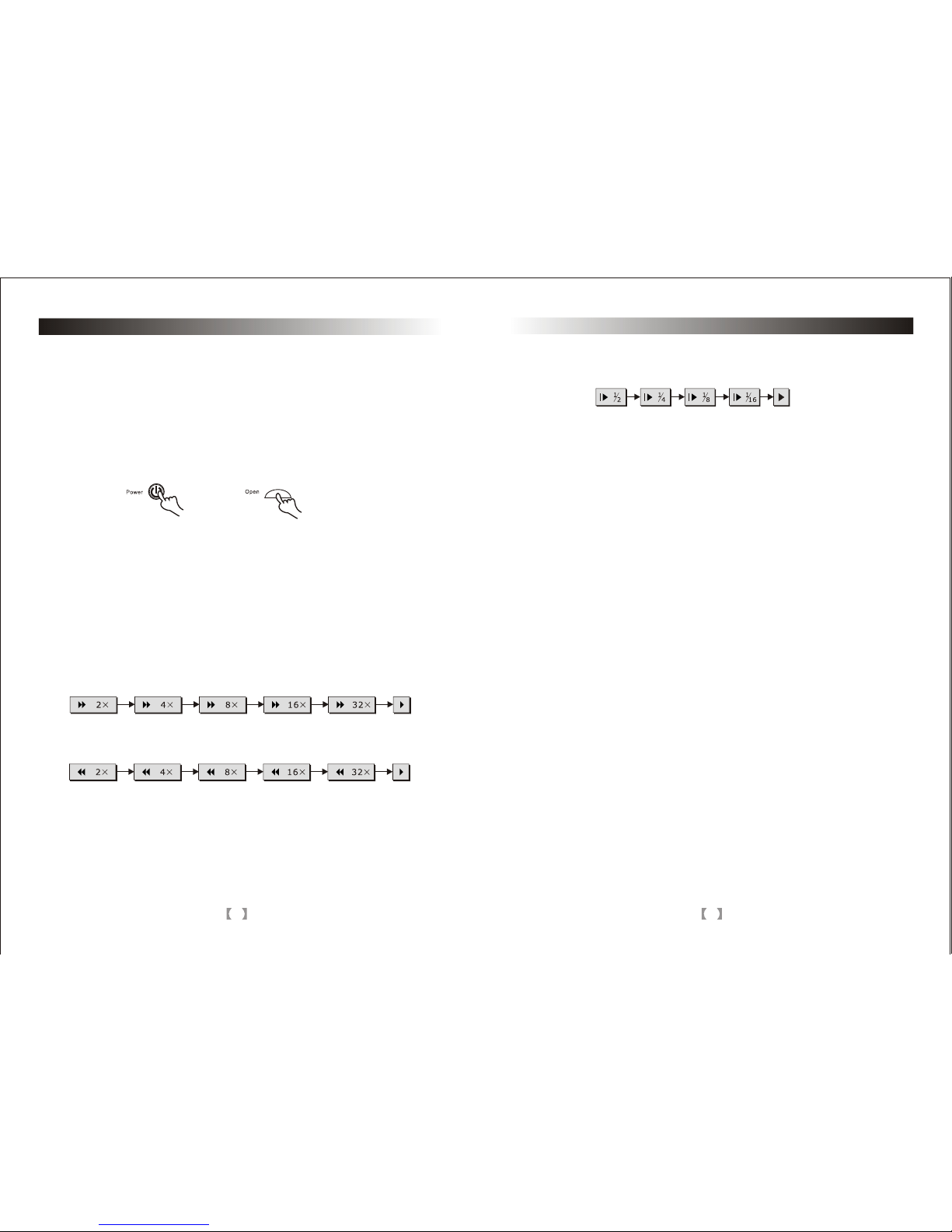

Basic Operation………………………………………………………............................….8
Function explanation………………………………………………...........................…….9
Menu/PBC………………………………………………………...........................…….9
Title/Return…………………………………………………………..........................…9
Display…………………………………………………………….........................…...10
Search…………………………………………………………….........................…… 10
Subtitle……………………………………………………………........................…….11
Audio………………………………………………………………........................…....11
Angle……………………………………………………………........................……….11
Zoom……………………………………………………………........................……….11
Repeat…………………………………………………………………......................... 12
Mute…………………………………………………………………........................…. 12
Play/Stop……………………………………………………………......................…...12
Mode switch……………………………………………………….......................…….12
Menu adjusting………………………………………………….....................………..12
Volume…………………………………………………………….......................……..12
System menu setup…………………………………………………….......................…...13
Functions operation………………………………………………….......................……..13
JPEG……………………………………………………………………..........................….14
Trouble Shooting………………………………………………………........................…..14
Technical specifications……………………………………………........................……. 15
Content
16
HEADREST DVD PLAYER
Dear customer,
Thank you very much foryour choosing ourproducts. For servingyou well after-sales,
please read theservice terms as following:
1. From yourpurchasing date, we provide one yearafter-sales service, any quality
problem which happenedunder conditions that the player can'twork without any
artificial factors.
2. User cancontact local distributing outlet or authorizedmaintenance center for
free service ifany quality problem within warranty period.
3. We will charge forsome spare parts for fixing theproblem, which happened
under artificial dissemblingor damage, even within the warrantyperiod.
4. We will charge forspare parts and documentary for fixingthe problem, which
happened beyond warrantyperiod.
Please fill thekeep this warranty card and askfor stamp from distributors/sellers.
After-sales service terms
Distributor/seller:

2
HEADREST DVD PLAYER
Please read themanual carefully before using the product and keep iteasily
accessible for futurereference.
Important instructions foryour safety:
Do not turnon, watch or operate the unit while driving.
In some countriesand regions, it may be against the laws.
The product is comprised of many precision electroniccomponents.
Self- renovation ordisassembling may cause malfunction to the device, bodily injury,
and voids yourwarranty.
Note:
Toreduce the risk of fire or electric shock, donot expose this product to rainor
moisture.
High voltage inside!Do not openor dismantle the unit. Do notrepair the unit yourself.
Takeit to your local authorized service center.
The product isa laser product. Make sure to read instruction manualbefore operating.
Do not tryto open the covers to avoid direct laser radiation.
When the coverof the unit is opened or the interlocking systemgets unlocked, the
laser light canbe visible. Direct vision of laser beam is hazardousto your eyes.
In order toprolong the life of the unit which has alarge scale of integrate circuits and
precision pick-up device.Frequently turning theunit on & off may damage the unit.
Turn unit on & off in intervals of 5 secondsor greater.
Note:
LCD may havea few color dots. This is common for the matrix displaytechnology,
and doesn't indicatedefects or faults.
15
The player doesnot work, or no disc
Insert the discor check if the disc isplaced up side down or not.Place the disc with
the playback sidedown.
The disc isdirty. Clean the disc.
The unit hasmoisture on the inside, take outthe disc and power off unit for about
one hour.
Disconnect the powercord and plug the power cordinto the wall outlet securely
again to resetunit.
The remote controldoes not work properly
There is anobstacle in the path of theremote control and the unit.
Remove the obstacle,check if remote control points toreceiver or not.
The batteries inthe remote control are depleted. Replacethe batteries with new
ones.

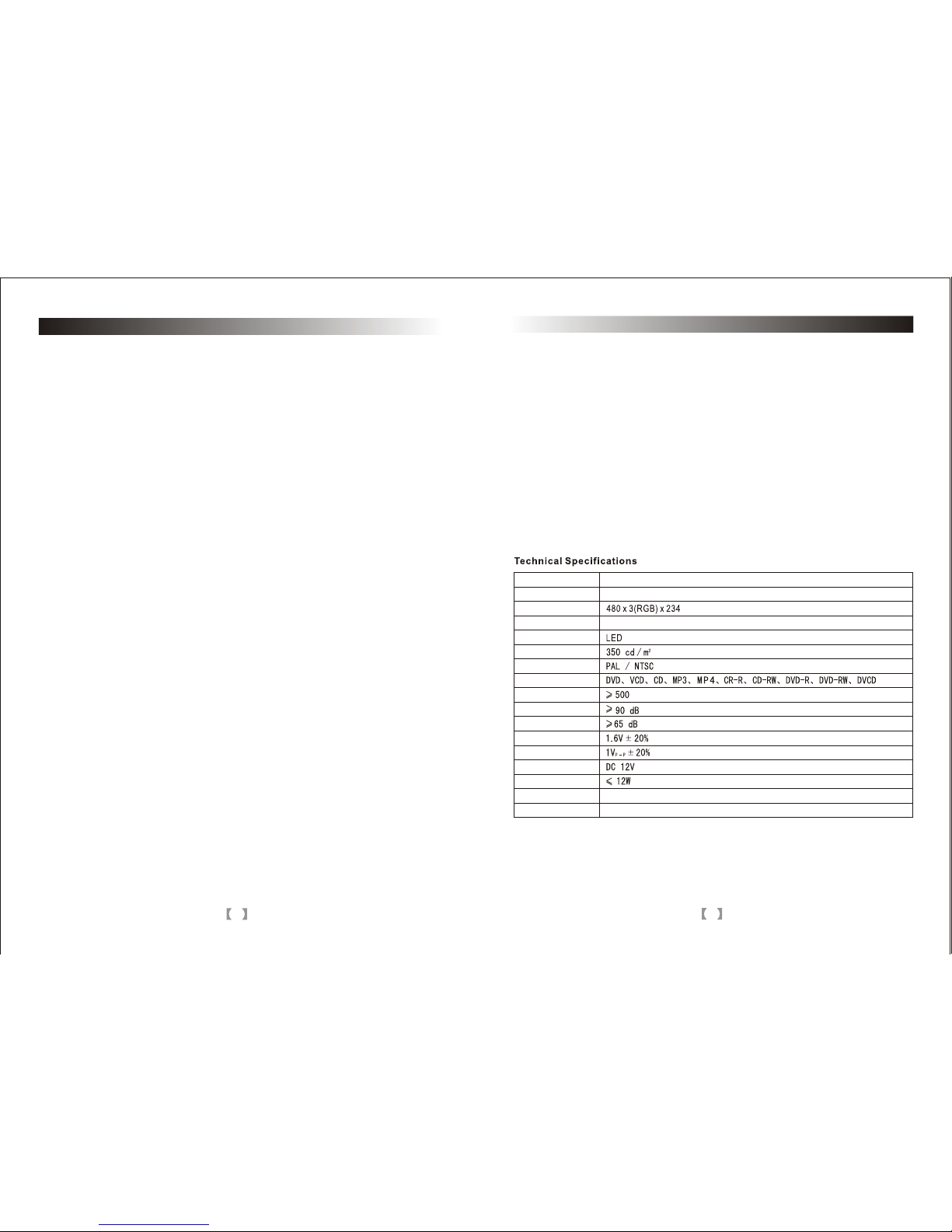

HEADREST DVD PLAYER
280mm x 220mmx 140mm
1.6kg
Compatible formats
Panel
Screen size
Pixel
Temperature
Backlight
Brightness
Color system
Resolution
S/N
Isolation
Audio input/output
Video input/output
Power supply
Power
Product Dimension
Product N.W
TFT LCD
7 Inches (16:9)
oo oo
Operation: -10 C ~ 55 C; Storage: -30 C ~ 75 C
Your attention please:
The design andspecifications are subject to change withoutnotice.

3
Features:
Title (DVD only)
The main filmcontent or accompanying feature content oradditional feature content
or music album.Each title is assigned a titlereference number enabling you to locateit
easily.
Chapter ( DVDonly)
Section of apicture or musical piece which aresmaller than titles.
A titleis composed of one or severalchapters. Each chapter is assigned achapter
number that enablesyou to locate the chapter youwant. Depending on the disc, no
chapters may berecorded.
Track (Video CD and audio CD only)
Sections of apicture or a musical piece ona video CD or an audioCD
Each track isassigned a track number, enablingyou to locate the track youwant.
Disc-related terms

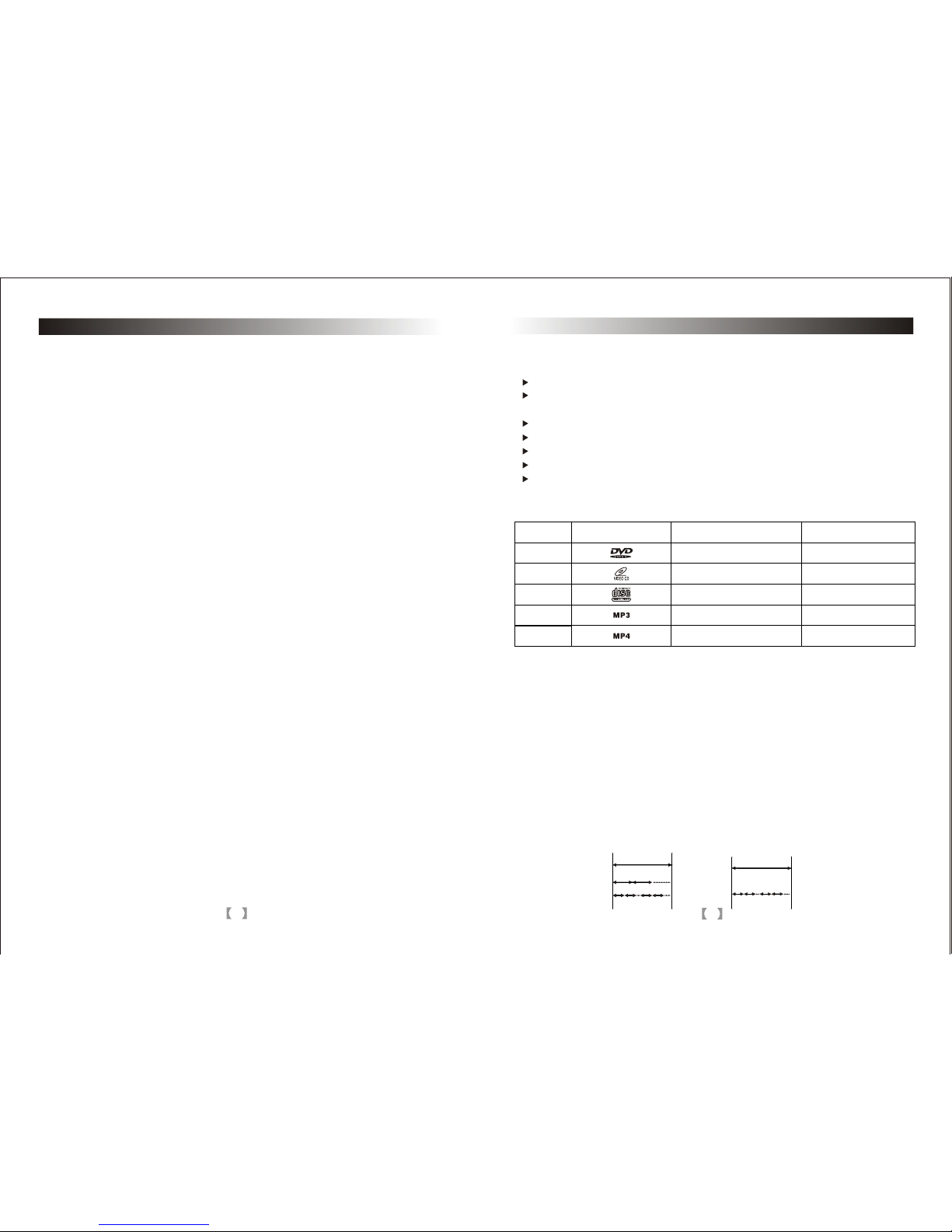

Discs for playback
Type
DVD
VCD
CD
Mp3
Mp4
Icon Content Size
Video & Audio
(dynamic image)
Video & Audio
(dynamic image)
Audio
Audio
Video & Audio
(dynamic image)
12cm/8cm
12cm/8cm
12cm/8cm
12cm/8cm
12cm/8cm
Disc
Title
Chapter
Disc
Track
Diagram of DVDdisc Diagram of VCD/CD
HEADREST DVD PLAYER
14
This unit canplay the picture CDs with JPEGformat files, which is the mostcommon
picture compressing formatpresently.
Press Number Buttonsto select Pictures
(1)Place the discin the loader correctly, and the playerstarts searching.
A massageshows on the screen.
(2)Press Number buttonsto select the picture album.
Make selection viadisc menu
(1)Place the discinto the unit, player will startsearching through the disc.
Main menu willshow on the screen, select fromNo.1 using the Direction Buttons.
Press Play toconfirm.
(2)Press Direction Buttonsto select picture in current picturealbum, press play to
start.
(3)Press Directions Buttonsto select other pictures when stopped.
(4)Return to previousmenu by selecting File while stopped.Then Press Play.
JPEG
Please reference thisTroubleshooting guide to resolve theproblems listed below:
Power off: nopower supply
please check tomake sure the plug is wellconnected and that the cable issolid.
No or badaudio cables
Please check tomake sure cables are connected properly.
Please check audiocable setup.
Please adjust thereceiving frequency to equal the transmittingfrequency.
No picture
Check to makesure cables are connected properly.
Check to makesure video Input is set upcorrectly.
Check to makesure the monitor is turned on.
Poor Picture Quality
The color is not properlyadjusted; please use the remote controllerto adjust it.
The disc is scratched orspotted.
Troubleshooting
HEADREST DVD PLAYER
Ease of Installation,Non hazardous design
135-185 mm adjustablefor the steel tubes, making itto be suitable for the seat
Requirements, the diameterof the steel tube included 10/12/12.7/14/16mm.
The display unithas built-in DVD player
Built-in wireless FMstereo transmitter
Built-in IR transmitter, to be received by headphone,without disturbing others
AV input channels, compatibleto GPS
AV output channels, couldbe connected with other monitor

4
Safety
Please check in-carvoltage before using this unit tomake sure it's compatible
with working voltage.
Be sure theplug is properly connected with socketand do not pull the powercable.
The laser of DVD loaderis hazardous to your eyes soplease do not disassemble unit
on your own,take it to a technician torepair.
Placement
oo
The storage temperaturerange is from -30 C to 75 C , operating temperature ranges
oo
from -10 C to 55 C.
Do not exposethis unit to rain or moisture.Avoid dropping or any other impact tothe
unit.
Condensation may occuron the unit under the followingcondition.
Due to assudden change in temperature and ifthe vehicle’s ACis turned on,
there will bea vapor formation on the screen.To de-vaporize itplease take outany
discs from theunit and power it ON forabout one hour.
Please wipe themachine with a soft dry cloth.
Note:
Handling the disc:
Do not touchthe playback side of the disc.Hold the disc by the edgeto keep the
that date surfacefree of fingerprints which will resultin a poor reading.
Do not stickpaper or tape on the disc.
Storing discs:
After playing, storethe disc in its case.
Do not exposethe disc to direct sunlight orsources of heat, or leave itin a parked
car exposed todirect sunlight, as there may bea considerable temperature
increase inside thecar.
Cleaning discs:
Fingerprints and duston the disc can cause poorpicture quality and sound distortion.
Before playing, cleanthe disc with a clean, softcloth. Wipe the disc from thecenter out.
Do not useany solvents such as it willdamage the surface of the disc.
Precaution
Included Accessories
Power cable
Tube (Outer)
Remote control
User Manual
Game Disc (Optional)
Joystick (Optional)
HEADREST DVD PLAYER
1 piece
4 sets (8pieces)
1 piece
1 book
1 piece
2 pieces
13
Under DVD mode,insert USB/SD/MMC/MS memory card, and pressthis on the
remote control orfront panel.
Note: Please donot removable hard disk during operation.This would lead to unit
failure.
3. USB/MMC/SD(MS)
1. Basic Operation
(1)Insert theouter TV antenna to the signal port ofthe DVD machine, and then
press the modelswitch to the TV status Bar.
(2)Press themenu key strokers switch to theTV Enactment Page, and then make
the TV system and TV sound tolocal system.
(3)Mover thecursor key to the AutomaticSearching, Press the ENTER to beginthe
Search, you canenjoy the TV programs after the search. Pressthe Auto Zoom on
the remote canenter to the searching system directly.
4. TV Function(Optional)
Put attached GamesDisk into this player, andinsert 2 attached games joysticks,
play the doubleor signal games by pressing remotecontrol and joysticks.
5. Games Function:(Optional)
Press Setup buttonin the remote control, the menusetup will then appear. This
menu includes GeneralSetup, Preference Setup, Audio Setupand Video Setup.
Press the Enterbutton to setup for single page,Move up/down to select, Move
left/right to adjust,Press Enter to confirm the desireditem.
System menu setup
Functions operation (Choosing relevant modelsfor detailed functions operation )
(1) MP3 canbe played by List mode, Programmode and mode.
(2) Press Repeatto play, repeat playing one song orplay by list.
(1) Normal mode:Place the disc into loader correctly. Player will begin to search
the disc andenter into normal playing mode.
(2) Move Directionbutton or use the number toselect the desired item in submenu,
then press Playto start.
(3) Press Stopfirst, press Direction button to selectother submenu.
2. Disc/MP4 Playing
HEADREST DVD PLAYER

5
135~185mm Included Tube SizesDiameter:
tube diameter: 12mm,12.7mm
14mm, 16mm (1set for selection)
*Press the tabon the underside of the batterycover and at the same timepull out the
battery tray.
Insert the battery.
Takethe CR2025 type battery with stamped(+)mark facing upward. Insert the battery
tray into theremote control.
*Point the remotecontroller to infrared receiver window ofyour device within 60
seconds and 3meters away, without any batteries between them.
*The life-span ofthe batteries is about one year, always replace the old setwith a new
set of batteries.
Please take outthe battery when the remote controlleris not being operated for along
time.
*Please pull outthe separation film prior to usingthe remote controller.
WARNING
Store the batterywhere children can not reach. Donot recharge, disassemble or
heat the batteryor dispose of it in afire.
Installation and wiring
Check to makesure the appearance and specification area good fit. During the
process, choose theright accessories and tools.
Installation step:
Step1: Remove originalpillow
Step2: Choose thecorrect size tube, in order tofit correctly.
Step3: Connect thepower cord and the Video cable
Step4: Set thepillow in place
Battery replacement Instructions for
Remote controller (shown in picture)
HEADREST DVD PLAYER
Pull
Push
(For reference only)
12
(1)While playing theDVD disc, press Repeat for thefirst time to repeat playing one
chapter, pressRepeat for the second time torepeat playing one title, press repeat
for the thirdtime to repeat playing the entiredisc, and press Repeat to cancel.
(2)In PBC off mode:
While playing theVCD disc, press Repeat for firsttime to repeat one song.
Press Repeat forthe second time to repeat theentire disc.
Press Repeat forthe third time to cancel.
Repeat
Press Mute oneor more times to select muteon or mute off.
Mute
While normal playing,press to Pause/Play, press andhold to Stop.
Press this buttonto select between DVD .
Note: The modewill be remembered when powered off.
Press the Menubutton and the screen will showthe display for adjusting, Press
Volume toselect desired displays: Picture, sound, mode,Press Previous/Next
to select, PressVolume to adjust or PressUp/Down button in remote control to
select, Press Left/Rightto adjust desired parameters, Press Menubutton to back,
and the parameterswill be memorized.
Note:
“Parameters Memorizing”is the setupparameter for lastPower Off.
“Setup Reset”is factory parameters,all functions can be reset.
While the unitpower off or no signal, the IR transmitterwill close automatically
after a while.
Press + -button, it's invalid for adjusting volumeof IR/FM, but valid for theplayer
and earphone.
Note: Volume canbe memorized.
and AV
Play/Stop
Mode
Menu
Volume
HEADREST DVD PLAYER

6
135~185mm
Note:
The appearance, specificationsand installation fit are not suitedfor all vehicles.
Please pay attentionto this before installation.
The headrest DVDplayer has an AV input port and anAV output port. The AV input port
can connect withother sources such as a game.The AV output port canconnect to
other displays.
Installation and wiring
Main component
Name of thePlayer
HEADREST DVD PLAYER
Video output (yellow)
Left Audiooutput (white)
Right Audiooutput (red)
Video input (yellow)
Audio input (red)
Red cord +12V
Black safety ground wire
TV IN
Cover
Laser
DVD Drive
Remote signl hole IR Transmitter
Cover switch
Earphone jack
Mode
SD/MMC/(MS)
Display
Play/Pause
Next
USB
Previous
Power
Menu
11
(2)Search by time
Press Search, screenshows:
For sample: PressNumber button to input 0,1,0,6,1,8, theplayer will play from
the point at01:06:18
(3)Playing VCD discs
Press Search tocheck the elapsed time for theentire disc, the item and the
Current item duringVCD disc will play.
Press Number buttonto input a time, the playerwill play from the point you've
selected.
While playing theDVD disc with multi-subtitles, choose thedesired subtitle,
and it willshow on the screen.
When this featureis not available on the disc,it will notshow the screen.
Note: This feature setting is validonly for discswhich has multi-language.
There is multi-languagefeature while the DVD disc isplaying.
When playing discswith this function, you can selectthe desired languageby
Pressing Audio.
The left audio,right audio and the stereo showson the screenwhile playing the
VCD.
Disc. You can select the desired languagewhen playing thedisc with dual
language.
Note: This feature setting isvalid only for the current disc which has multi-
language settings.
If the disccontains scenes recorded at different camera angles, you can change
to a different camera angle during playback. PressANGLE repeatedly during
playback to selecta desired angle. (This is onlyfor discs withthis ANGLE function )
In this mode,the dynamic or still picture canbe zoomed in by up to 4x.
press Zoom threetimes, the picture is zoomed inby 2x, 3x, 4x. Press Zoomagain
to return tothe normal playing mode.
Subtitle
Audio
Angle
Zoom
HEADREST DVD PLAYER
Title 03/10 time : :
Chapter 01/04 time : : Title 03/10 time 01:06:18

7
Note:
Because of somedifference when make the disc, some buttons maybevalid when
press the remotecontrol, and then the screen willdisplay “ ”
Panel of the Remote Control
USB/SD
Direction buttons
Volume +/-
Number buttons
Play/Pause
Stop
Fast forward
/Fast backward
Previous/Next
HEADREST DVD PLAYER
10
Press Search, inputa title, a chapter or atime and the player will startplaying
from the desiredpoint to the end point.
(1)Search a titleor a chapter:
Press Search, screenshows as below:
Press Left orRight to select one title
For example: pressNumber 3 to select title 3,select Chapter 1 by pressing direction
Buttons, the screenwill show:
User can checkthe elapsed time or remaining timeof current title and chapter by
pressing Display. Continue to press Display andthe screen will show as follows:
(1) When playDVD disc, Press Display, screen shows theelapsed time of current title,
remaining time ofcurrent title, elapsed time of currentchapter and remaining time
of current chapter, Press final time to exit.
(2) When playingVCD in PBC ON mode, PressDisplay and the screen will show
elapsed time andremaining time. Press Display for thethird time to exit.
When playing VCDin PBC OFF mode, Press Display and the screen will show the
elapsed time ofthe current item, remaining time ofthe current item, elapsed time
of the entiredisc, and remaining time of theentire disc. Press Display again toexit.
Note: When playing MP4’s, the Displayhas some features.
Display
HEADREST DVD PLAYER
Search
Title 03/10 Chapter 01/04 0:06:39
Track 01/01 01:27
Track 01/01 01:27
Title 00/10 Chapter 00/04 Title 03/10 Chapter 01/04

8
Make sure thatyou have correctly connected your unitas described earlier in this
manual.
Power on andCD loading
1. Press thePower button to turn ON (Powerindicator is OFF), as the playerwill start
loading the start-upmenu.
2. Press theOpen button to open the discflap, insert the disc, then closethe disc flap.
3.While playing DVDdiscs, please select an item inthe DVD menu or the titlemenu.
4. Press DirectionButtons or the Number Buttons toselect the desired item, then press
Enter or Playto start.
5. The player will startautomatically. Press Pause to stop temporarily, press Pause or
Play again tocancel Pause. While playing the DVDdisc, press stop for memory stop,
Press Play formemory play and press Stop twiceto stop playing and cancel memory.
6. While theDVD disc is playing, press FastForward to play at 2x, 4x,8x,16x, 32x
forward speed, thescreen will show the following.
Press Fast Backwardto play 2x,4x,8x,16x,32x reverse speed, thescreen will show the
following:
Press Play toresume to normal playing mode
Basic Operation
HEADREST DVD PLAYER
9
7. While theDVD disc is playing, press theSlow button, to play at 1/2,1/4,1/8,1/16
speeds. The screen will showas the following:
Press Play toresume to normal speed play mode.
8. Previous/Next
Toselect the previous item or chapterpress the Previous button. To select the
Next item orchapter, press the Next button.
Note:
If there isno chapter/track on the disc, thenthe above functions will be disabled
automatically.
(1)Press Menu/PBC toreturn to the main menu orthe Title menu while playing
DVD disc.
(2)While playing VCDdisc, press Menu/PBC to turn PBCon or off.
(Not functional ifDVD disc is loaded)
(3)Only if returnedto the main menu can anew song be selected in thePBC-on
mode.
(4)Pressing the numberbuttons can select one song inPBC-off mode.
(1)While playing theDVD disc, press Title toenter to the title menu directly, select
the desired itemby pressing the direction buttons ornumber buttons.
(2)While playing VCD2.0, press Title to return the previous menu; however,this
function is disabledin PBC-off mode. (Only for functional disc)
Functions Explanation
HEADREST DVD PLAYER
Menu/PBC
Title/Return
