MODEL  T080
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR IN-
JURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel
and lock the service disconnecting means to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a quali-
fied person(s) in accordance with all applicable codes and stan-
dards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Con-
ditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage elec-
trical wiring and other hidden utilities.
CEILING
VENTILATOR
READ AND SAVE THESE INSTRUCTIONS
Installer: Leave this manual with the homeowner.
Homeowner: Use and Care information on page 4.
WARNING
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected to a
GFCI (Ground Fault Circuit Interrupter) - protected branch cir-
cuit.
8. Never place a switch where it can be reached from a tub or
shower.
9. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazard-
ous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Please read specification label on product for further informa-
tion and requirements.

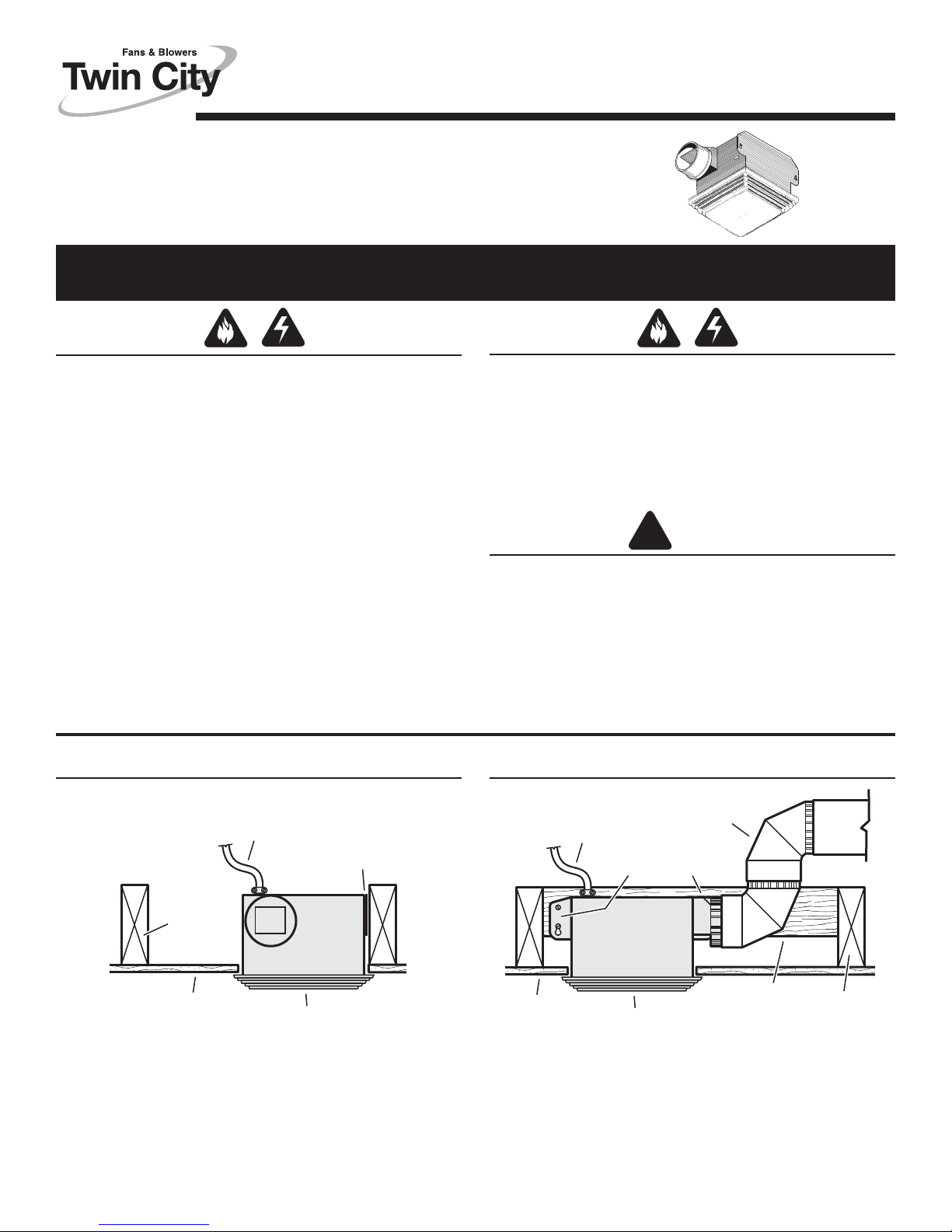

TYPICAL INSTALLATIONSTYPICAL INSTALLATIONS
16”-ON-CENTER CEILING JOISTS
Housing mounted directly to joist.
24”-ON-CENTER CEILING JOISTS
Housing mounted to additional framing.
!
HOUSING
CEILING
JOIST
MOUNTING TABS
GRILLE
CEILING
MATERIAL
POWER CABLE
HOUSING
CEILING
JOIST
MOUNTING TABS
GRILLE
CEILING
MATERIAL
POWER CABLE
4" ROUND
DUCT
ADDITIONAL
FRAMING

Page 2

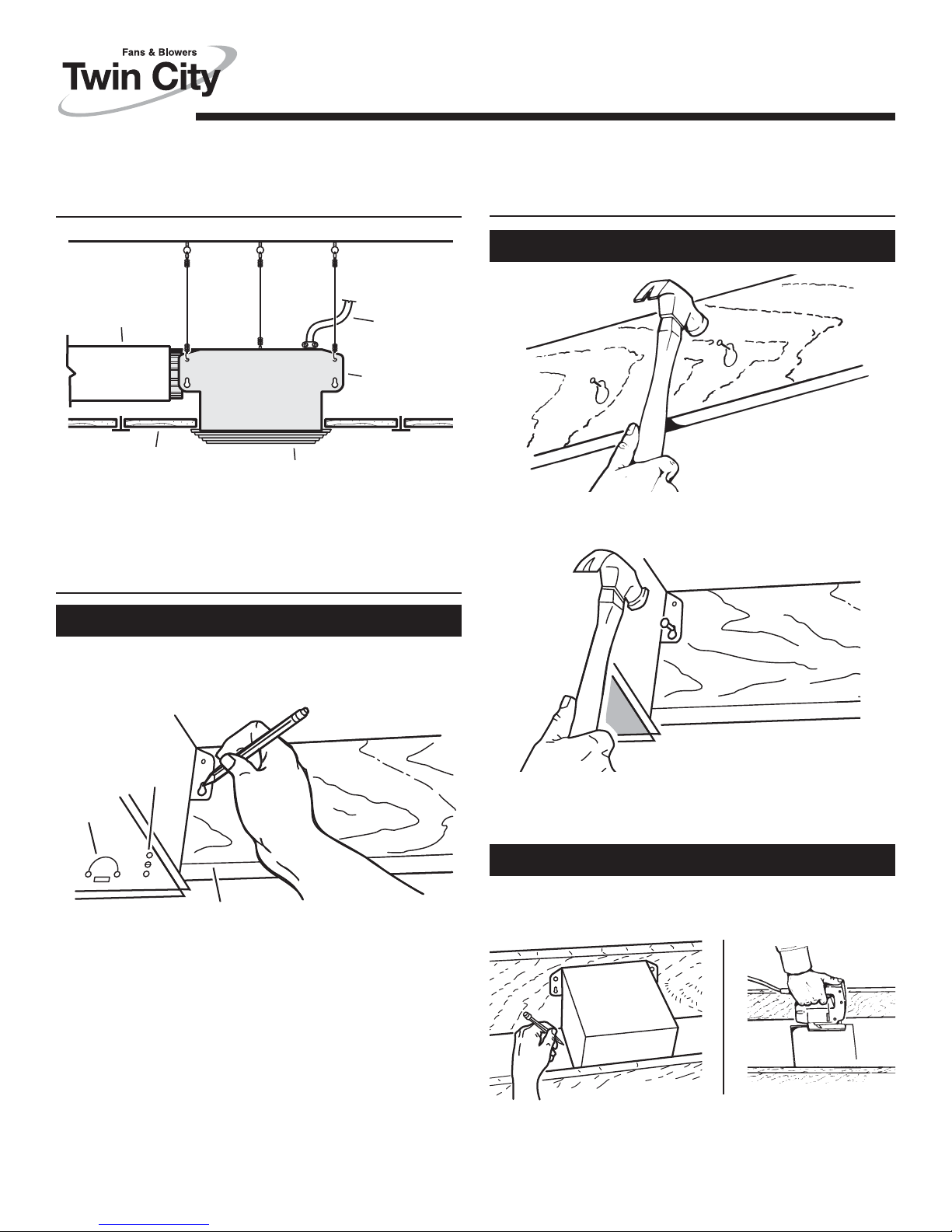

TYPICAL INSTALLATIONS
(continued)
SUSPENDED CEILINGS
Housing hung with wires - 3-point mount.
INSTALL THE HOUSING
1. Choose the location for your fan in the ceiling. For best possible
performance, use the shortest possible duct run and a minimum
number of elbows.
2. Position mounting brackets against joist so that bottom
edge of housing will be flush with finished ceiling.
Additional positioning feature for 5/8”, 1”, & 1-1/4”
thick ceiling material:
Holes in corners of housing are labeled with various
ceiling material thicknesses. Position housing so bottom
edge of joist is visible through a matched set of holes.
The housing is now in the proper position for that ceiling
material thickness.
Additional positioning feature for 1/2” thick ceiling
material:
Bend two tabs, on side of housing, 900outward. Lift
housing until tabs contact underside of joist.
Mark the keyhole slot on both mounting brackets.
3. Set housing aside and drive nails partially into joist at the top of
both keyhole marks.
4. Hang housing from nails and pound nails tight. To ensure a noise-
free mount, pound another nail through the top hole of each
mounting tab.
New Construction
INSTALL THE HOUSING
(continued)
New Construction
Existing Construction
2. In attic, position mounting brackets against joist. Trace outline of
housing on ceiling material.
3. Set housing aside and cut ceiling opening slightly larger than
marked.
1. Choose the location for your fan in the ceiling. For best possible
performance, use the shortest possible duct run and a minimum
number of elbows.
5/8
1
1-1/4
TAB
HOLES
BOTTOM EDGE OF JOIST
MOUNTING
TAB
GRILLE
SUSPENDED
CEILING MATERIAL
POWER
CABLE
4" ROUND
DUCT
HOUSING
MODEL  T080

Page 3
INSTALL THE HOUSING
(continued)
ATTACH THE GRILLE
INSTALL THE DUCTWORK
FLUSH
CONNECT THE WIRING
1. Snap the damper/duct connector onto housing. Make sure that
tabs on the connector lock into slots in housing. Top of damper/
duct connector should be flush with top of housing.
2. Connect 4” round duct to damper/duct connector and extend
duct to outside through a roof or wall cap. Check damper to
make sure that it opens freely. Tape all duct connections to make
them secure and air tight.
BLK
BLK
WHT
WHT
GRD
UNIT
SWITCH BOX
ON / OFF
SWITCH
LINE
IN
BLK
WHT
GRD
M
SCHEMATIC WIRING DIAGRAM
1. Wire unit following diagram above. Run electrical cable as direct
as possible to unit. Do not allow cable to touch sides or top of
unit after installation is complete.
4. Place housing in opening so that its bottom edge is flush
with finished ceiling. Nail to joist through keyhole on both sides.
To ensure a noise-free installation, drive another nail through
the top hole of each mounting bracket.
Existing Construction
5. Additional mounting holes are provided for installations where
access from above is inconvenient or not possible. Nail or screw
housing directly to joists or framing.
ADDITIONAL
MOUNTING
HOLES
SLOT IN
MOTOR PLATE
GRILLE
SPRING
SPRING
TABS
OPTIONAL TABS
1. Squeeze grille springs
together and insert
springs into slots in mo-
tor plate.
NOTE: If desired, rotate
grille 90oand move
springs to optional tabs.
2. Push grille up
against ceiling.
SWITCH BOX
ON / OFF SWITCH
(purchase separately)
WHITE
BLACK
GROUND
(bare)
WIRING
PLATE
120 VAC
LINE IN
RECEPTACLE
MODEL  T080

Page 4
1
3
8
6
9
10
2
11
7
12
4
5

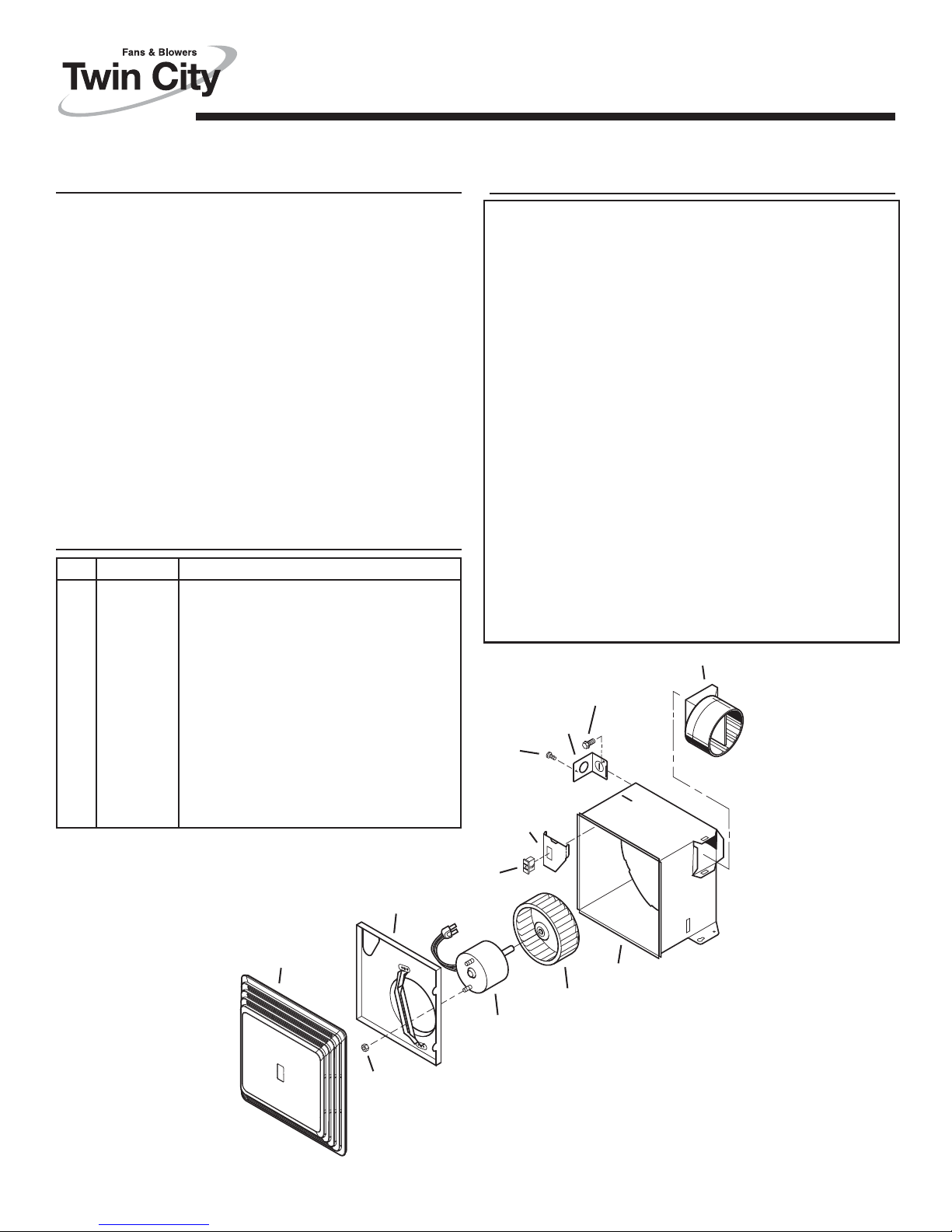

KEY PART NO. DESCRIPTION
1 97013576 Grille
2 97014926 Motor Plate
3 99080518 Motor (T080)
4 99020276 Impeller
5 99260425 Motor Nut (2 req.)
*97015159 Blower Assembly (includes Key Nos. 2 thru
5) (T080)
6 99270982 Receptacle
7 98009611 Wire Panel
*97015170 Wire Panel Assembly (includes Key Nos. 6 & 7)
8 97014922 Housing
9 97003932 Damper/Duct Connector
10 98008868 Wiring Plate
11 99150575 Screw, #8-18 x .375
12 99150574 Ground Screw
*Not shown assembled.
Order replacement parts by
“PART NO.” - not by “KEY NO.”
USE AND CARE
SERVICE PARTS
WARRANTY
WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND
LOCK OUT SERVICE PANEL BEFORE CLEANING OR SERVIC-
ING THIS UNIT.
The motor is permanently lubricated. Do not oil or disassemble
motor.
TO CLEAN GRILLE:
CAUTION: Plastic parts can be cleaned with mild, soapy water (use
a mild detergent, such as dishwashing liquid) and dried with a soft
cloth. Do not use abrasive cloth, steel wool pads, or scouring
powders.
TO CLEAN FAN ASSEMBLY:
Unplug fan assembly. To remove motor plate: Find the single tab on
the motor plate (located next to the receptacle). Push up near motor
plate tab while pushing out on side of housing. Or insert a straight-
blade screwdriver into slot in housing (next to tab) and twist
screwdriver. Gently vacuum fan, motor and interior of housing.
METAL AND ELECTRICAL PARTS SHOULD NEVER BE IM-
MERSED IN WATER.
99042959B
Limitation of Warranties and Claims
Seller warrants to the original purchaser that the goods sold hereunder shall be
free from defects in workmanship and material under normal use and service
(except in those cases where the materials are supplied by the buyer) for a period
of one year from the date of original installation or eighteen (18) months from the
date of shipment, whichever occurs first. The liability of seller under this warranty
is limited to replacing, repairing, or issuing credit (at cost, F.O.B. factory and at
seller’s discretion) for any part or parts which are returned by buyer during such
period provided that:
a. seller is notified in writing within ten (10) days following discovery of such de-
fects by buyer, or within ten (10) days after such defects should reasonably have
been discovered, whichever is less;
b. the defective unit is returned to seller, transportation charges prepaid by buyer.
c. payment in full has been received by seller or said products; and
d. seller’s examination of such unit shall disclose to its satisfaction that such de-
fects have not been caused by misuse, neglect, improper installation, repair, alter-
ation, act of God, or accident.
No warranty made hereunder shall extend to any seller product whose serial num-
ber is altered, effaced or removed. Seller makes no warranty, express or implied,
with respect to motors, switches, controls, or other components of seller’s prod-
uct, where such components are warranted separately by their respective manu-
facturers. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WAR-
RANTIES, EXPRESS OR IMPLIED, WHETHER STATUTORY OR OTHERWISE,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. In no event shall seller be liable to buyer for
indirect, incidental collateral, or consequential damages of any kind. (BUYER’S
FAILURE TO PAY THE FULLAMOUNT DUE WITHIN SIXTY (60) DAYS OF DATE
OF INVOICE SHALL OPERATE TO RELEASE SELLER FROM ANY AND ALL
LIABILITY OR OBLIGATION ARISING PURSUANT TO ANY WARRANTY, EX-
PRESS OR IMPLIED, WHETHER STATUTORY OR OTHERWISE, INCLUDING
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE, MADE IN CONNECTION WITH ANY CONTRACT FORMED
HEREUNDER. BUYER AGREES THAT SUCH FAILURE TO PAY SHALL CON-
STITUTE A VOLUNTARY WAIVER OF ANY AND ALL SUCH WARRANTIES ARIS-
ING PURSUANT TO SUCH CONTACT.)
TWIN CITY FAN & BLOWER, 5959 Trenton Lane, Minneapolis, MN 55442
MODEL  T080
