Twin Eagles TEBQ36G-C Instruction and safety manual

TWIN EAGLES GAS GRILL
INSTALLATION, USE AND CARE MANUAL
MODELS:
TEBQ30G-C
TEBQ30R-C
TEBQ36G-C
TEBQ36R-C
TEBQ42G-C
TEBQ42R-C
TEBQ54RS-C
P/N: 19198M (05/21)

A special message to our customers…
Congratulations on the purchase of your Twin Eagles grill! Our products are engineered for
precision and designed for style. Each Twin Eagles grill is manufactured in the USA at our own
state of the art facility in California.
This manual will give you easy to follow instructions for installing, operating and
maintaining your grill. Werecommend reading this manual before your first use to ensuresafety,
proper care and operation.
At Twin Eagles, we want you to enjoy grilling and spending time together as much as we
do –making memories that linger long after the grill cools down.
Thank you and welcome!
Dante Cantal
Owner and Founder
FOR YOUR RECORDS
Please record the product information below and refer to it when contacting TWIN
EAGLES. This information is found on the data nameplate, located on the bottom right hand
side of the firebox near the regulator. A second label with model number and serial number is
located under the right side of the control panel. Remove the drip tray to visually access the
nameplate from the front of the grill.
Model #:_______________________
Serial #:________________________
Date of Purchase:________________
Place of Purchase:________________
Type of gas: ____NG ____LP
WARNING: CALIFORNIA PROPOSITION 65
This product can expose you to chemicals including carbon monoxide which is known to the State of
California to cause cancer and reproductive harm. To minimize exposure to the by-products of the burning
fuel or from combustion, always operate this unit according to the use and care manual and provide good
ventilation. California law requires businesses to warn customers of potential exposure to such
substances. For more information go to www.P65Warnings.ca.gov.
AVERTISSEMENT: PROPOSITION 65 DE L'ETAT DE LA CALIFORNIE
Cet appareil peut vous exposer aux produits chimiques et au gaz monoxyde de carbonne reconnue dans
l'Etat de la Californie pour causer le cancer et des problemes de fertilite. Pour minimiser l'exposition de ces-
sous produits combustibles ou de la combustion, utiliser toujours cet appareil en conformitee au manuel
d'utilisation et d'entretien en s'assurant egalement d'une bonne ventilation. La loi de la Californie exige aux
fabricants d'informer leurs clients aux risques d'exposition potentielle a de telles substances. Pour plus
d'information, visiter le site www.P65Warnings.ca.gov

IMPORTANT SAFETY INSTRUCTIONS
WARNING! Read this manual carefully and completely before using your grill to ensure proper operation,
proper installation, proper servicing and to reduce the risk of fire, burn hazard and/ or other injury.
AVERTISSEMENT! Lire ce manuel avec soin et en entier avant l’utilisation de votre barbecue afin d’en
assurer un fonctionnement, une installation et un entretien adéquats et réduire le risque d’incendie, de brûlures
et d’autres blessures.
F O R Y O U R S A F E T Y
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
A V E R T I S S E M E N T
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur continue, évite l’appareil et appelle tout de
suite votre fournisseur de gaz ou les pompiers.
F O R Y O U R S A F E T Y
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
A V E R T I S S E M E N T
1. Ne pas entreposer ni utilizer de l’essence ni d’autres
vapuers ou liquids inflammables dans le voisinage
de l’appareil, ni de tout autre appareil.
2. Une bouteille de propane qui n’est pas raccordée en
vue de son untilisation, ne doit pas être entrpossée
dans le voisinage de cet appareil ou de tout autre
appareil.
B E F O R E L I G H T I N G
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds,
turn the burner control(s) off, wait 5
minutes, and repeat the lighting
procedure.
A V A N T D ’ A L L U M E R
L ’ A P P A R E I L
1. Lisez les instructions avant d’allumer l’appareil.
2. Ouvrez le couvercle avant d’allumer l’appareil.
3. Si l’appareil ne s’allume pas en 5 secondes, fermez
le robinet du brûleur, attendez 5 minutes, et procédez
de nouveau à l’allumage.
W A R N I N G
Electrical Grounding Instructions: This
outdoor gas cooking appliance is equipped
with a three prong (grounding) plug for your
protection against shock hazard and should be
plugged directly into a properly grounded
three prong outlet. Do not cut or remove the
third prong from this plug.
A V E R T I S S E M E N T
Instruction pour la mise à la terre electrique:
Cet appareil est muni d’une fiche à trois broches (mise à la
terre) afin de vous protéger des chocs et doit être branché
directement dans une prise de courant à trois broches
adéquatement mise à la terre. Il ne faut pas couper ou
enlever la broche de mise à la terre de cette fiche.

GENERAL SAFETY REQUIREMENTS
•The installation of this appliance must conform with local codes or, in the absence of local codes, either
the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA
B149.1 or Propane Storage and Handling Code, B149.2
•The utilization of an external electrical source requires that when installed, this outdoor cooking gas
appliance must be electrically grounded in accordance with the local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
•This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building,
garage or any other enclosed area.
•This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles and /or
boats.
•Minimum clearance of 12 inches from the back and sides of the grill to adjacent combustible
construction must be maintained. This outdoor cooking gas appliance shall not be located under
overhead-unprotected combustible constructions. (Note: To minimize the possibility of discoloration
on adjacent construction extending above the counter-top surface due to grease and hot vapors, it is
highly recommended that a clearance of 18 inches be maintained from sides and back of the grill.)
•Keep your grill in an area clear and free from combustible materials, gasoline and other flammable
vapors and liquids.
•DO NOT obstruct the flow of combustion and ventilation air to this appliance. Keep the ventilation
openings of the cylinder enclosure free and clear from debris.
•Check flexible hoses for cuts and wear that may affect the safety before each use.
•Check all gas connections for leaks with soapy water solution and brush. Never use an open flame.
(Reference page 7 for leak test procedure).
•Never use charcoal in the grill unless using with a Twin Eagles Charcoal Tray (TECT).
•Always use caution when operating the grill in a windy area (For reference, see Page 10 –Windy
Condition)
•Never use the grill without the drip pan installed and push all the way to the back of the grill. Without
the drip pan, hot grease and debris could leak downward and produce a fire hazard.
•The pressure regulator and hose assembly supplied with the Twin Eagles Gas Grill must be used.
Replacement pressure regulators and hose assemblies must be those specified by Twin Eagles.
In Massachusetts: All gas products must be installed using a “Massachusetts” licensed plumber or
gasfitter. A “T” handle type manual gas valve must be installed in the gas supply line to this appliance.
This applies to permanently installed natural gas and propane installations. This does not apply to
propane portable installations using a 20 pound tank.
To the Installer:
Please read these instructions completely before installation and give this manual to the owner.
To the Owner:
Keep this manual in a safe place for future reference.

TABLE OF CONTENTS
GETTING STARTED…………………………………………………………………………………..…….……… 1
GAS REQUIREMENTS
oGAS SAFETY REQUIREMENT…………………………………………………………….…… 3
oLP GAS HOOKUP………….………………………………………………………..…………… 4
oPORTABLE LP CONNECTION………….………………………………..…………………..… 5
oNATURAL GAS INSTALLATION……………………………………..……………………….. 6
oLEAK TEST……………………………………………………………………..………………... 7
oELECTRICAL REQUIREMENTS……………………………………………………………….. 8
LOCATING THE GRILL
oCLEARANCE TO COMBUSTIBLE CONSTRUCTION……………………………..….……… 9
oCLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION…………………….….………… 9
oWINDY CONDITIONS…………………………………………………………………………... 10

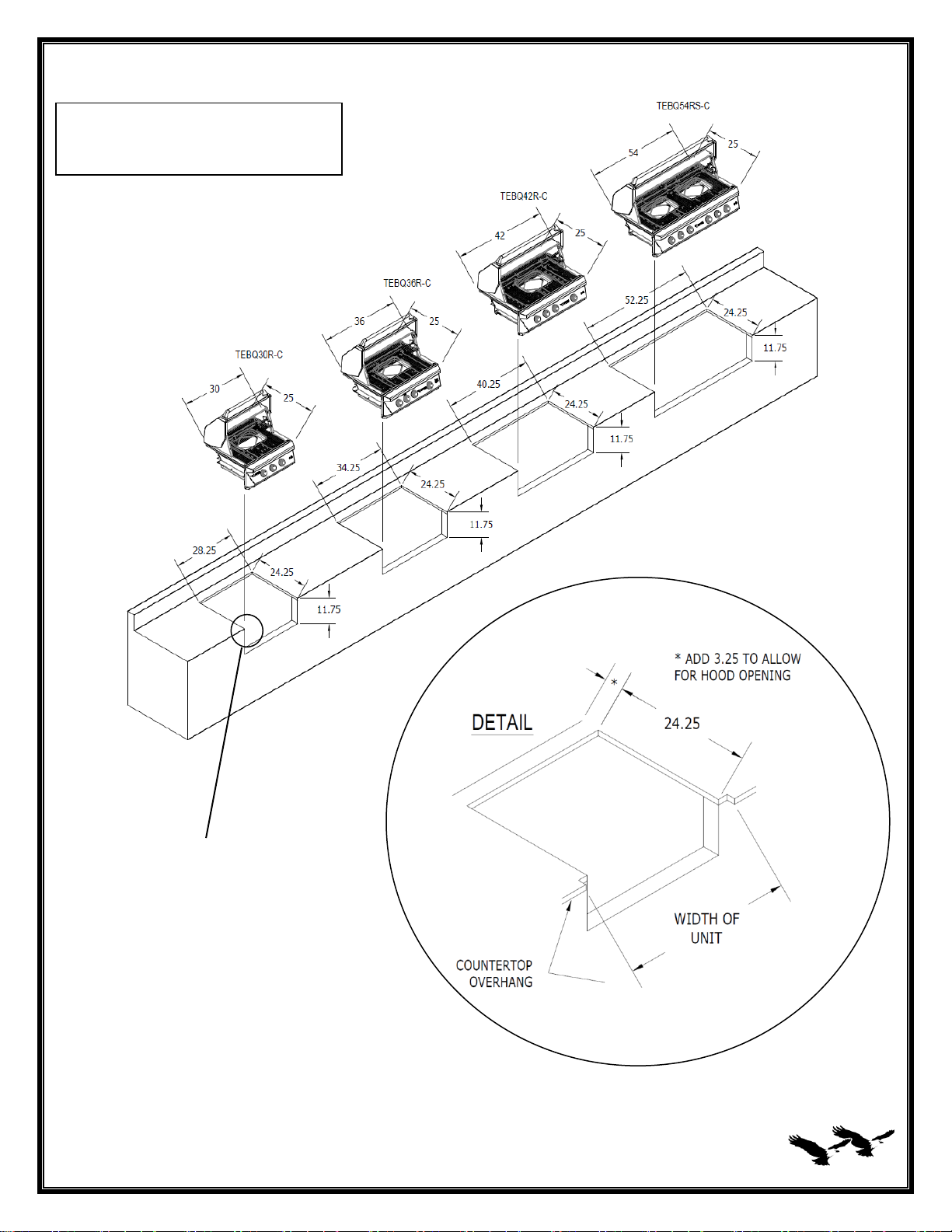

CUTOUT DIMENSIONS
oINSULATION JACKET..………………………….………………………………….………….. 11
oGRILL………………………………………………………………………………….…………. 12
ASSEMBLY INSTRUCTIONS
oBRIQUETTE TRAY…………………..………………………………………………………….. 13
oSMOKER BOX…………………..……………………………………………………………….. 13
oWARMING RACK……………………………………………………………………………….. 13
oCORRECT BURNER INSTALLATION.………………………………………………………… 14
oBURNER FLAME / AIR SHUTTER ADJUSTMENT…………………………………………… 15
OPERATING INSTRUCTIONS
oBEFORE LIGHTING THE GRILL………………………………………………………………. 16
oTO LIGHT THE GRILL BURNER….…………………………………………..……..……….… 16
oMATCH LIGHTING INSTRUCTIONS.……..………………………………………………….. 17
oUSING THE GRILL ……………………………………………………………………….…...… 17
oINTERIOR LIGHT OPERATION AND LIGHT BULB REPLACEMENT……………….…….. 17
oUSING THE ROTISSERIE BURNER……………..…………………………………….…..…… 18
oSEAR ZONE BURNER …………………………....………………………………….…..……… 18
oSMOKER BOX…………………………………..…………………………………..…….……… 19
CLEANING AND MAINTENANCE
oSTAINLESS STEEL……………………………………………………….……………………… 20
oHEX GRATES……………………………………………………………………….………….… 21
oCERAMIC BRIQUETTE TRAY….……………………………………………….….………….. 21
oU-BURNER ……………………………………………………………………….……………… 22
oSEAR ZONE BURNER………………………………………………..……................................. 22
oDRIP PAN & SMOKER BOX……………………………………………………….…………… 22
oSPIDER AND INSECT WARNING……………………………………………………………… 22
REPLACEMENT PARTS
oEXPLODED VIEW………………………………………….………………………………...….. 23
oREPLACEMENT PARTS LIST……..…………………..………………………….……..……… 24
oREPLACEMENT PARTS LIST –CONTINUED………………………………………………… 25
oWIRING DIAGRAM……………………………………………………………………………… 26
oTROUBLE SHOOTING GUIDE.....………………………………………………………..…….. 27
oLIMITED PRODUCT WARRANTY…………………………………………………...…..…….. 28
oWARRANTY REGISTRATION CARD…………………………………………………………. 29

1
GETTING STARTED
1. Remove all packaging materials, labels and protective plastic film. DO NOT LEAVE UNIT IN THE SUN
WITH PROTECTIVE PLASTIC FILM ON FOR A LONG PERIOD OF TIME AS IT WILL BECOME
DIFFICULT TO REMOVE THE FILM.
2. Check to ensure that all grill accessories listed below are included.
3. Assemble parts as per assembly instructions on page 13-14.
4. Fill out the Warranty Registration Card and mail it to the indicated address, or register online. See page 28.
Grill Accessories
TEBQ
30G
TEBQ
30R
TEBQ
36G
TEBQ
36R
TEBQ
42G
TEBQ
42R
TEBQ
54RS
Basting Pan
1
1
1
1
Hex Grate, Stainless Steel
2
2
3
3
3
3
4
Large Briquette Tray Assy. (Standard Grill)
1
1
2
2
2
2
Small Briquette Tray Assy. (Standard Grill)
2
2
2
2
2
2
Large Briquette Tray Assy. (Grill w/ Sear Zone)
1
1
1
1
2
Small Briquette Tray Assy. (Grill w/ Sear Zone)
2
2
2
2
2
2
2
Regulator, NG
(NG Grill ONLY)
PRE-INSTALLED
Regulator, LP
(LP Grill ONLY)
1
1
1
1
1
1
1
Warming Rack, (s/s)
1
1
1
1
1
1
1
Spit Rod, (s/s)
1
1
1
1
Meat Holder Forks (pair) (s/s)
1
1
1
2
Smoker Box Assy.
1
1
1
1
1
1
1

2
5. Get familiar with the knobs and burners identification below.
Grill U-Burner (Standard) located
underneath the briquette trays.
Optional Sear Zone Burner
(Standard on TEBQ54RS Only)
usually located on the left side.
Infrared Rotisserie Burner (One
standard on TEBQ30R, TEBQ36R,
TEBQ42R, and two are standard on
TEBQ54RS) located on the rear panel
above the hex-grates.
TEBQ30
TEBQ36
TEBQ42
TEBQ54RS
Grill Burner
Sear Zone (Opt)
Rotisserie
(TEBQ42R)
Grill
Burner
Sear
Zone
Left
Rotisserie
Grill
Burner
Grill
Burner
Right
Rotisserie
Grill Burner
Sear Zone (Opt)
Rotisserie
(TEBQ30R)
Grill
Burner
Grill Burner
Sear Zone (Opt)
Rotisserie
(TEBQ36R)
Grill
Burner

3
GAS SAFETY REQUIREMENTS
Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of
gas, either natural gas (NG) or Liquid Propane (LP) gas and make sure that the marking on the data plate (rating
plate) matches the gas being supplied to the grill. This information is found on the data nameplate, located on
the bottom right hand side of the firebox near the regulator. A second label with model number and serial
number is located under the right side of the control panel on the fire box. Remove the drip pan to visually
access the nameplate from the front of the grill.
All gas connections should be made by a qualified technician and in accordance with local codes and
ordinances. The installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1 or
Propane Storage and Handling Code, B149.2
WARNING:
ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH ANY HOT
SURFACE OF THE GRILL.
NEVER CONNECT THE GRILL TO AN UNREGULATED GAS SUPPLY.
L.P. GAS SAFETY REQUIREMENT
The LP-gas supply cylinder must be constructed and marked in accordance with the Specifications for LP-gas
Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standards of Canada CAN/CSA-
B339, Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods, and Commission, as
applicable; and
1. Provided with a listed overfilling prevention device.
2. Provided with a cylinder connection device compatible with the connection for outdoor cooking
appliances.
•It must be provided with a shut-off valve terminating in gas tank valve outlet. It must include a collar to
protect the cylinder valve. The cylinder supply system must be arranged for vapor withdrawal.
•Do not operate the gas grill indoors or in any enclosed area. If the gas grill is not in use, the gas must be
turned off at the supply cylinder. If the grill is to be stored indoors, disconnect the gas supply cylinder
and leave the cylinder outdoors out of reach of children and must not be stored in a building, garage or
any other enclosed area.

4
LP GAS HOOK-UP

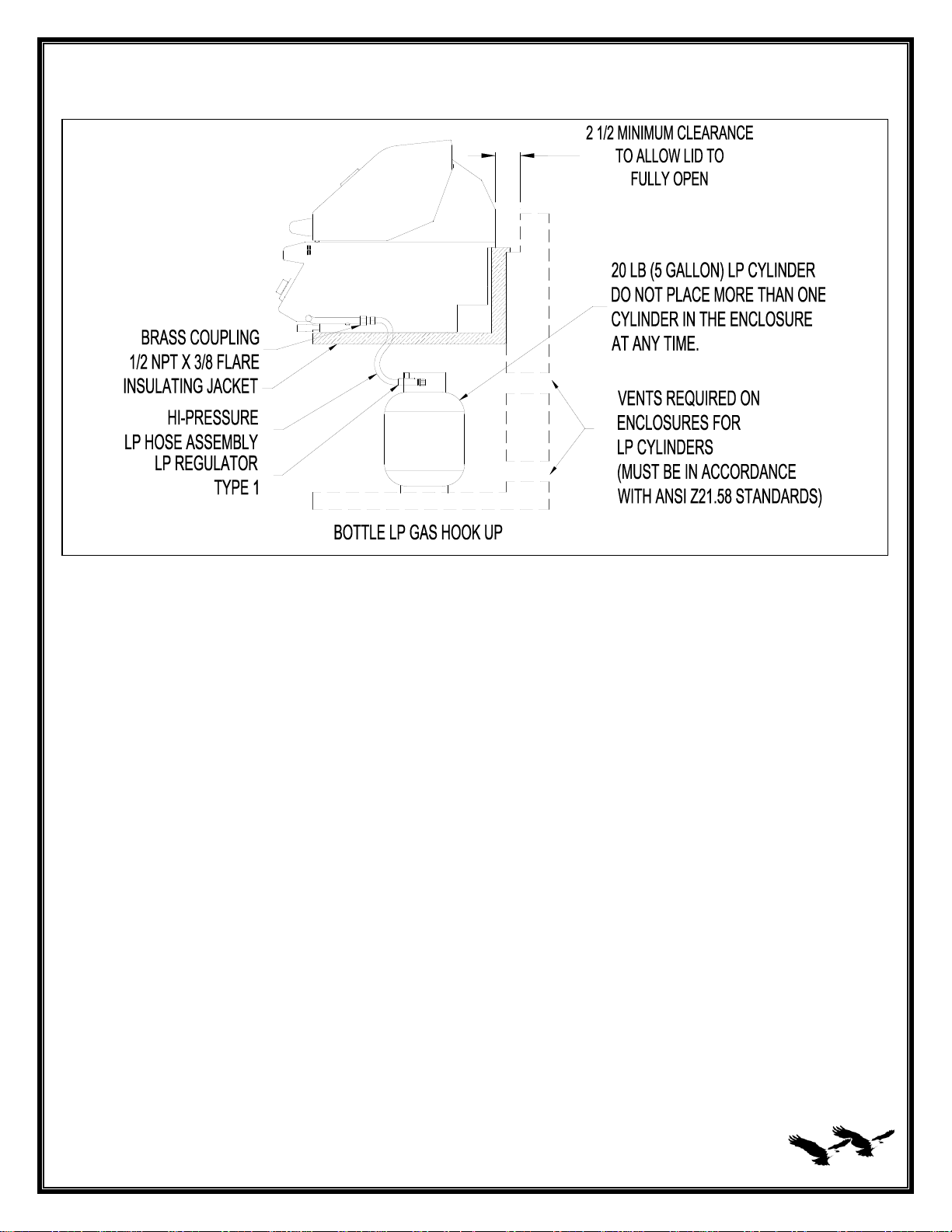

Install the factory-supplied hose and regulator assembly as shown. Connect the 3/8” flare end of the hose
to the grill coupling using a ¾” open wrench. Do not apply pipe sealant to the 3/8” flare connection. Connect the
regulator to the LP cylinder hand tighten it, do not use a wrench. Check for leaks using soapy water solution.
(Reference page 7 for leak test procedure).
Note: An enclosure for LP gas cylinder must be vented on the level of the cylinder valve and at floor level. The
effectiveness of the opening(s) for purposes of ventilation shall be determined with the LP gas supply cylinder in
place. This shall be accomplished by one of the following:
a. One side of the enclosure shall be fully open; or
b. For a cylinder enclosure having four sides, a top and a bottom, and intended for installation in a built-in
enclosure:
1. At least one ventilation opening shall be provided on the exposed exterior side of the enclosure
located within 5 in (1.27mm) of the top of the enclosure and unobstructed. The opening(s) shall
have a total free area of not less than 1 in²/lb (14.2 cm²/kg) of stored fuel capacity.
2. At least one ventilation opening shall be provided on the exposed, exterior side of the enclosure
1 in. (25.4 mm) or less from the floor level and shall have a total free area of not less than ½
in²/lb (7.1 cm²/kg) of stored fuel capacity. The upper edge shall be no more than 5 in (127 mm)
above the floor level.
3. Every opening shall have a minimum dimension so as to permit the entrance of 1/8 in (3.2 mm)
rod.
CAUTION: Provide adequate ventilation holes in the enclosure for safety
purposes in the event of a gas leak.

5
PORTABLE LP CONNECTION
One of the many features of the TWIN EAGLES grill base is the pullout slide pan for easy access to the
LP gas tank.

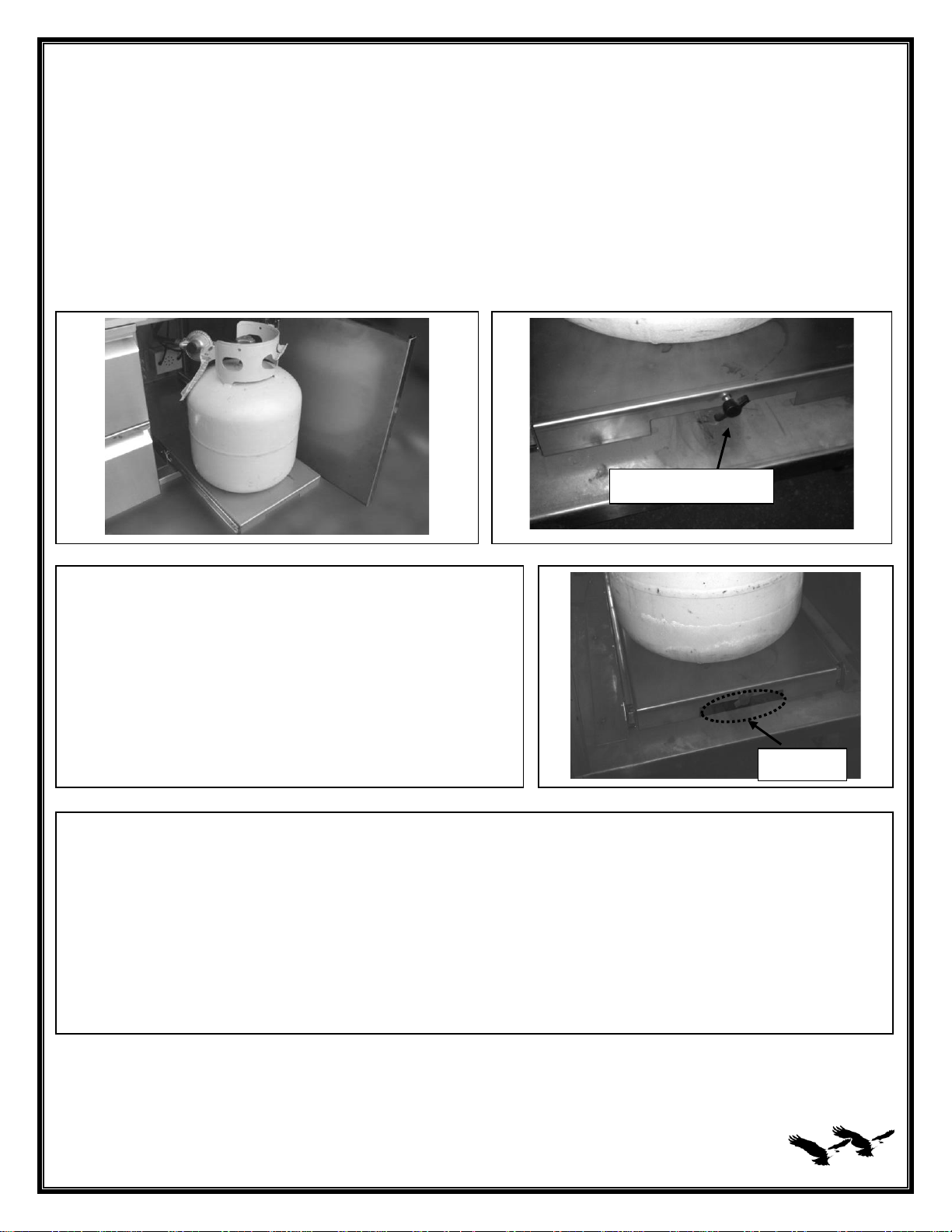

1) To install the gas cylinder, pull out the slide pan and place the cylinder onto the pan.
2) Tighten the tank holding screw to secure the gas cylinder in place.
3) Check to ensure that the tank’s gas valve on top of the cylinder is closed.
4) Connect the LP regulator (included) to the cylinder and hand-tighten only. Open the tank
valve and make sure all connections are leak tight using a soapy water solution.
(Reference page 7 for leak test procedure).
WARNING
•DO NOT STORE SPARE LP-GAS CYLINDER
UNDER OR NEAR THIS APPLIANCE.
•NEVER FILL THE CYLINDER BEYOND 80
PERCENT FULL.
•FAILURE TO DO SO A FIRE CAUSING DEATH
OR SERIOUS INJURY MAY OCCUR.
•NOTE: use only a 20-lbs (5 gallon capacity) gas cylinder,
•WARNING: DO NOT USE A DENTED OR RUSTED LP CYLINDER
•NEVER USE A CYLINDER WITH A DAMAGED VALVE.
•ALWAYS CHECK FOR LEAKS AFTER CHANGING THE LP CYLINDER.
•THE LP PRESSURE REGULATOR AND HOSE SUPPLIED WITH THIS UNIT MUST BE USED
WITHOUT ALTERATION.
CAUTION: USE EASY PULL. Use the slot at the front of the pan to push in or pull out the gas cylinder.
Do not place hand on top of the gas cylinder when pushing in or pulling out the slide pan.
Easy Pull
Tank Holding Screw

6
NATURAL GAS INSTALLATION
A typical natural gas installation is shown below. Make sure that the factory-supplied regulator is used
and installed with the arrow mark on the regulator pointing towards the gas grill. Use only pipe sealants that are
approved for use with natural and LP gases. An installer-supplied gas shutoff valve must be installed in an
accessible location.
Please note, when pressure testing, the following statements must be adhered to:
•This gas appliance and its individual shutoff valve must be disconnected from the gas supply piping
system during any pressure testing of that system at the test pressures in excess of 1/2 psi (3.5 kPa).
•This appliance must be isolated from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or
less than 1/2 psi (3.5 kPa).
GAS REGULATOR CHECK / CONVERSION
If the gas grill is factory built for natural gas, the regulator supplied is set for 4” water column. The
regulator is convertible to 10 in wc (2.48 kPa) for system LP application. Do not use with a 20-lb LP cylinder.
Make sure that the regulator is set for the correct gas type. To check, remove the brass hex cap. You will find
the conversion plastic pin attached to the cap to the underside of the cap. If the disc (1/2 in. diameter) of the pin
is close to the cap, then the regulator is set for natural gas. If the disc is at the tip of the pin, away from the brass
cap, the regulator is set for system LP application. To convert to natural gas, remove the plastic conversion pin
and invert and replace it back in a manner such that the disc is close to the brass cap. For both natural and LP,
the maximum inlet pressure is 14 in wc (3.5 kPa).
CAUTION: Provide adequate ventilation holes in the enclosure for safety purposes in
the event of a gas leak.
SET TO NG
SET TO LP

7
LEAK TEST
CAUTION BEFORE TESTING:
•NEVER USE THE GRILL WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS.
•WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME
COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM.
•DO NOT SMOKE WHILE PERFORMING THE LEAK TEST!
•To prevent fire or explosion hazard, DO NOT use or permit sources of ignition in the area while
performing a leak test. Perform leak test outdoors only.
•Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each
use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and
hose assemblies specified by Twin Eagles.
LEAK TEST
•Prepare a leak testing solution of sudsy water by mixing in a spray bottle with half liquid soap and half
water.
•Confirm that all control knobs are in the OFF position.
•Turn the main gas valve supply ON.
•Apply leak testing solution by spraying on the pipe joints, fittings, and hose.
•A gas leak is detected if;
oThere is a faint gas smell and/or…
o…growing bubbles appear on any of the connection points and/or hose, DO NOT attempt to
ignite the grill and IMMEDIATELY turn off the gas supply valve.
•When there is a gas leak, call a qualified service technician. DO NOT use the grill until the leak is
corrected.

8
ELECTRICAL REQUIREMENTS
The appliance should only be taken apart by a qualified technician, or electrical shock may occur. It is rated at
120V, 60Hz, and 4A.
REMINDER:
Keep any electrical supply cord and the fuel supply hose away from any heated features.
Electrical equipment provided with the outdoor cooking appliance shall follow these guidelines:
1. To protect against electrical shock, do not immerse cord or plugs in water or other liquid;
2. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off
parts;
3. Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the manufacturer for repair;
4. Do not let cord hang over the edge or touch hot surfaces;
5. Do not us an outdoor cooking gas appliance for purposes other than intended;
6. When connecting , first connect plug to the outdoor cooking gas appliance then plug appliance into outlet;
7. Use only Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance;
8. Never remove the grounding plug or use with an adapter of two prongs; and
9. Use only extension cords with three prong grounding plug, rated for the power of the equipment, and
approved for outdoor use with a W-A marking.
! WARNING !
Electrical Grounding Instructions:
This outdoor gas cooking appliance is equipped with a three prong (grounding) plug for
your protection against shock hazard and should be plugged directly into a properly
grounded three prong outlet. Do not cut or remove the third prong from this plug.

9
LOCATING THE GRILL
This gas appliance is designed and certified for outdoor use only. Do not locate this grill under overhead
unprotected combustible surfaces. When installed under overhead combustible surfaces, a certified ventilating
hood wider than the appliance shall be installed with a minimum distance of 36 inches above the cooking
surface.
CAUTION should be taken when grills are used near glass, vinyl siding or other temperature sensitive
construction materials. In some cases it may be necessary to increase the clearance around the grill to avoid
damage to vinyl siding. Check with the manufacturer of the siding material for details
Do not operate the grill inside a building, garage, recreation vehicle or any enclosed area. When
choosing an area, consider exposure to wind, proximity to traffic paths and length of gas supply line. Keep
gas supply lines as short as possible to reduce pressure drop. Keep the grill away from windy area but keep
the grill in a well-ventilated area. Do not obstruct the flow of combustion and ventilation air around the grill.
The supporting edges of the grill must be located level and flat. The counter should also be leveled.
CLEARANCE TO COMBUSTIBLE CONSTRUCTION
A minimum clearance of 12” from the sides and 12” from the back of the grill to adjacent vertical
combustible construction must be maintained. (Note: To minimize the possibility of discoloration on
adjacent construction extending above the counter-top surface due to grease and hot vapors, it is highly
recommended that a clearance of 18 inches be maintained from sides and back of the grill.)
DÉGAGEMENT DE TOUTE CONSTRUCTION COMBUSTIBLE
Il faut maintenir une distance minimum de 12 po (30.48 cm) sur les côtés et de 12 po (30.48 cm) sur
l’arrière du gril par rapport aux constructions combustibles verticales adjacentes. (Note: Pour minimiser la
possibilité de décoloration sur la construction adjacente s’étendant au-dessus de la surface du comptoir en
raison de la graisse et des vapeurs chaudes, il est fortement recommandé de maintenir un dégagement de 18 po
(45.72 cm). sur les côtés et l’arrière du gril.)
CLEARANCE TO NONCOMBUSTIBLE CONSTRUCTION
A minimum clearance of 2 ½” from the back of the grill above cooking surface to non-combustible
construction is required to allow the grill hood to open completely.
A minimum of 6” clearance to the sides of the grill above cooking surface to non-combustible construction
is recommended. The grill can be installed directly next to non-combustible construction below the cooking
surface.
DÉGAGEMENT DE TOUTE CONSTRUCTION INCOMBUSTIBLE
Une distance minimum de 2 ½ po (6.25 cm) de l’arrière du gril au-dessus de toute surface de cuisson à la
construction incombustible est prescrite pour permettre à la hotte d’ouvrir complètement. Une distance
minimum de 6 po (15.24 cm) des côtés du gril au-dessus de la surface de cuisson à la construction
incombustible est recommandée pour prévoir de l’espace pour le moteur de la rôtissoire et la poignée des
broches de cuisson. Le gril peut être installé directement à proximité d’une construction incombustible en-
dessous de la surface de cuisson.

10
Windy Conditions
Your TWIN EAGLES grill has been designed and engineered to produce intense heat that sears food
quickly, locking in the foods natural moisture and flavor.

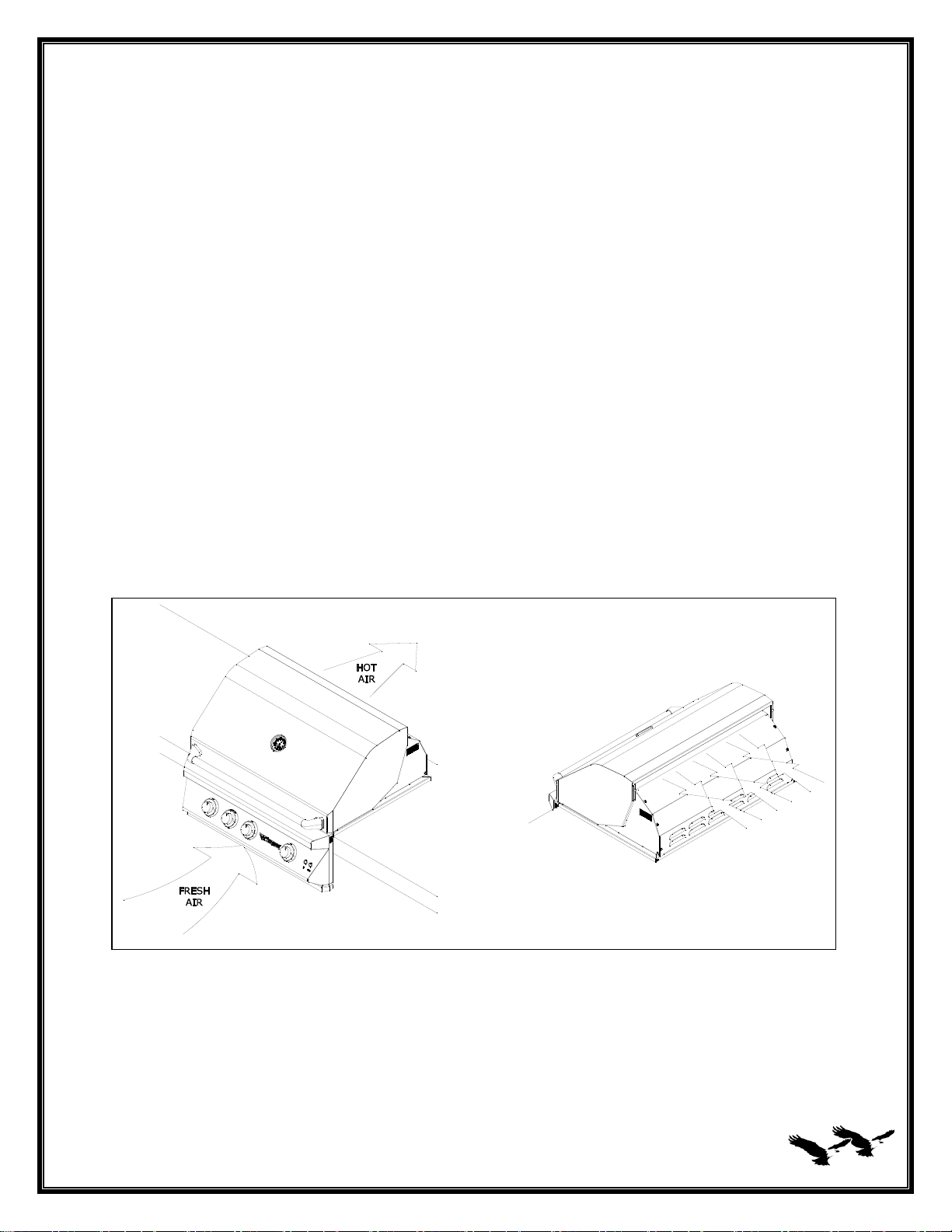

The grills burners require air for efficient burner combustion. This fresh air is pulled through a vent in the
front of your grill and the intense hot air produced by the burners is expelled through a vent in the rear.
If you are using your grill in windy conditions, the wind can disrupt this important airflow.
If the grill burners are on high and the hood is closed, wind can prevent the hot air from being expelled
through the rear vent –forcing heat to the control panel. This heat can make the hood handle and control
knobs extremely hot. In some cases, this heat can damage important components.
To prevent overheating:
•Do not leave the hood closed with the burners on high for more than 15 minutes.
•Install your grill in a location where a prevailing wind is less likely to hit the rear of the grill. If this is
not possible, install a windbreak behind your grill.
Damaged components such as wiring, control knobs, gas valves, etc. and the discoloration of the stainless
steel by using the grill in windy conditions is not covered under the product warranty.

11

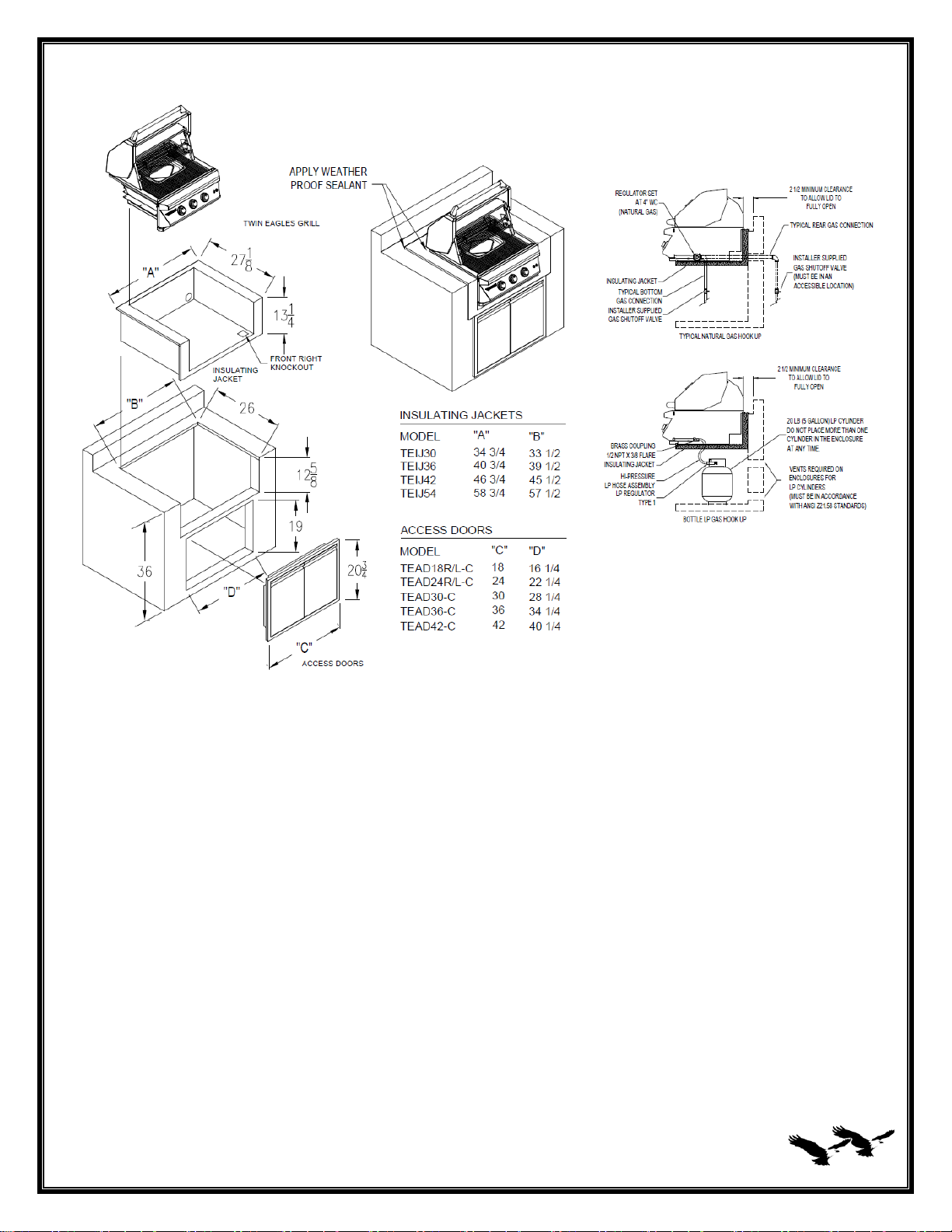

INSULATION JACKET CUT-OUT DIMENSIONS
INSULATING JACKET
WARNING:
Do not build the grill under overhead unprotected combustible construction. If the grill is to be placed into
combustible enclosure, an approved insulating jacket is necessary to prevent fire, property damage and
bodily injury. Use only Twin Eagles insulating jacket.
IMPORTANT:
When installing use front right knockout to keep power cord cool. If using LP gas cylinder and insulation
jacket (TEIJ), use aluminum flexible hose to connect LP gas cylinder to grill Regulator.

12
GRILL CUT-OUT DIMENSIONS
SEE DETAIL
(TYPICAL TO ALL TOP UNITS)
This is for non-combustible construction.
For combustible construction refer back
to previous page.

13
ASSEMBLY INSTRUCTIONS
Your Twin Eagles Grill is fully assembled and tested in the factory and requires no major assembly in
the field. For the purpose of safe shipping and transit, some parts such as the briquette trays and rotisserie
components are wrapped inside the grill and require minor assembly.
TO INSTALL BRIQUETTES TRAYS
1. Put briquette trays into the grill above the burner, as shown by
placing the flash-tube-hole on the front.
2. Place the hexagonal grates directly above the briquette trays
and make sure the square openings on the grates are at the
front.
TO INSTALL AND USE THE SMOKER BOX
1. Lift open smoker box lid and add soaked wood chips with
water.
2. Remove a hex grate. Remove a ½ sized briquette tray where
there is no flash tube.
3. Place the smoker box in place of the briquette tray and the
smoker box will always line-up on top of the burner flame.
Place hex grate back over the smoker box. Turn on grill to
HIGH heat. Once smoking starts, turn the heat down to
prevent wood flare-up. Smoker box is standard on all grills.
4. Warning: Do not use smoker box over the sear burner.
WARMING RACK LEVEL POSITIONS:
The warming rack may be used at a HI and LOW level position.
The HI level is further away from the heat source while the lower
level position is closer to the heat source.
When the warming rack is not in use, it may be moved out of the
way by moving up to the top support hooks.

14
ASSEMBLY INSTRUCTIONS - CONTINUED

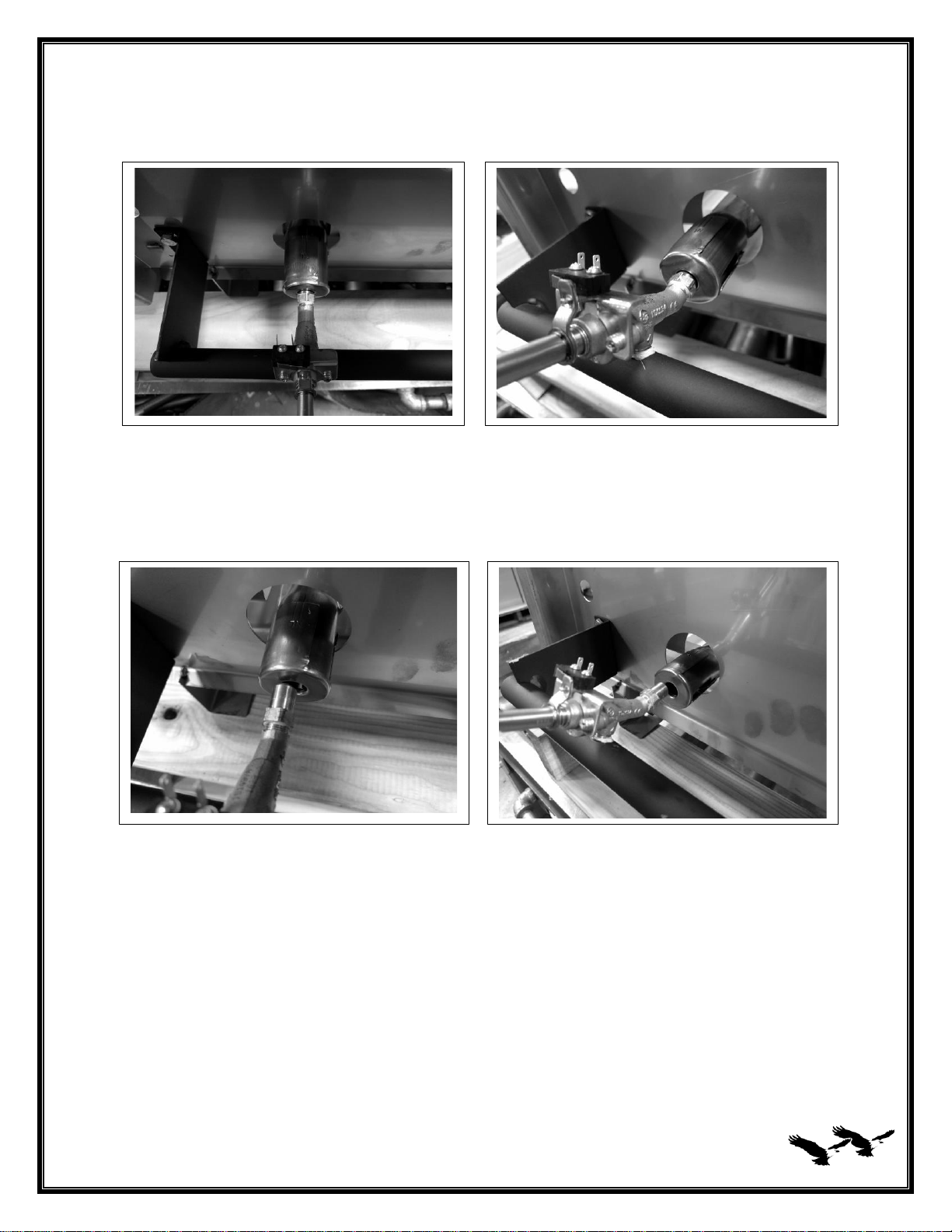

CORRECT BURNER INSTALLATION:
INCORRECT BURNER INSTALLATION:
The gas valve orifice is completely inserted inside the venturi.
The gas valve orifice is out of position and
is not inserted into the burner.
The orifice is out of position. The orifice is
touching the tip of the burner venturi.

15
BURNER FLAME / AIR SHUTTER ADJUSTMENT
ADJUSTING THE GRILL BURNER FLAME - The amount of air is controlled by a sheet metal cup
at the inlet of the burner called an air shutter. It is locked in place by a set screw which must be loosened
prior to lighting the burner for adjustment. The air shutter adjustment screws are accessible with a phillips
screwdriver. Loosen the lock screw of the air shutter. Adjust according to the following directions. Be
careful as the burner may be very hot.
•If the flame is yellow, indicating insufficient air, turn the air shutter counter-clockwise to allow
more air to the burner.
•If the flame is noisy and tends to lift away from the burner, indicating too much air, turn the air
shutter clockwise.
Remember to tighten the set screw prior to re-installing the burner.
ENSURE THAT THE BURNERS ARE SITTING PROPERLY ON THE ORIFICES BEFORE
LIGHTING THE BURNERS.
Each grill burner is tested and adjusted at the factory
prior to shipment; however, variations in the local
gas supply may make it necessary to adjust the
burners. The flames of the U-burners should be
visually checked. Flames should be blue and stable
with little to no yellow tips, no excessive noise or
lifting. If any of these conditions exist, remove the
burner and check to see if any air shutter or burner
ports are blocked by dirt, debris, spider webs, etc. if
it is clear, the air shutter may need to be adjusted.
Burner Set at LP
Burner Set at NG
